Liebherr LTM 1130-5.1 - Piomar

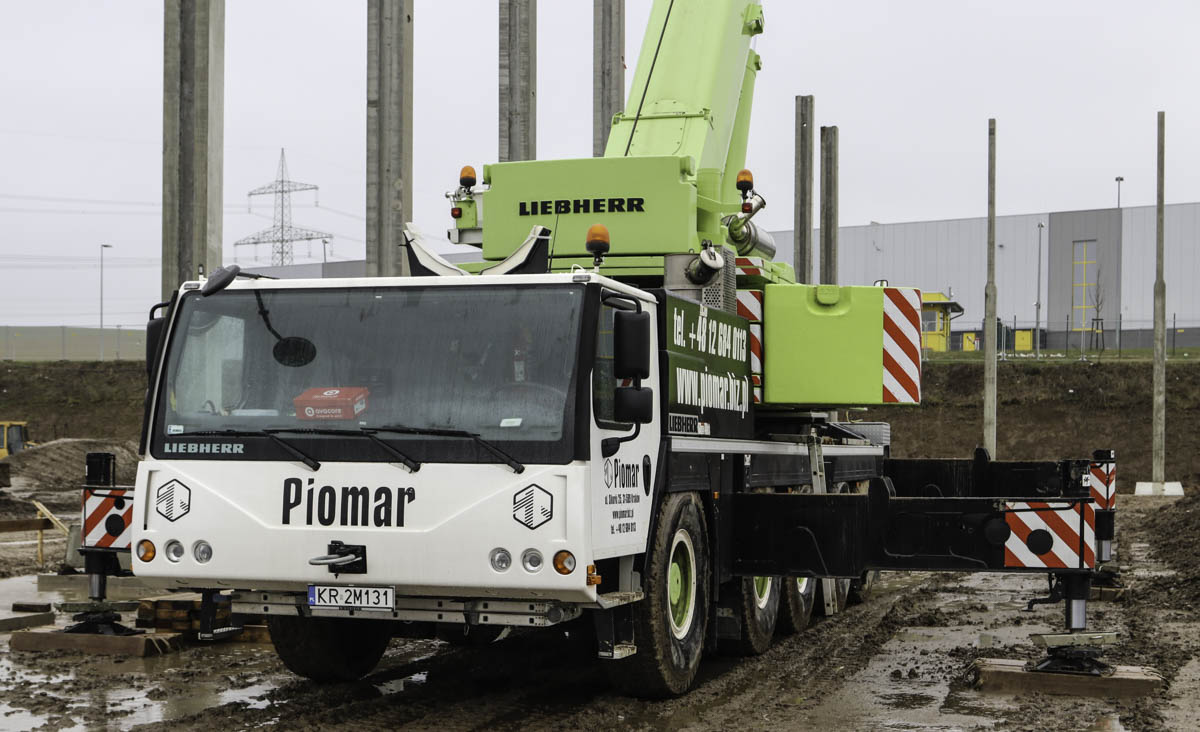

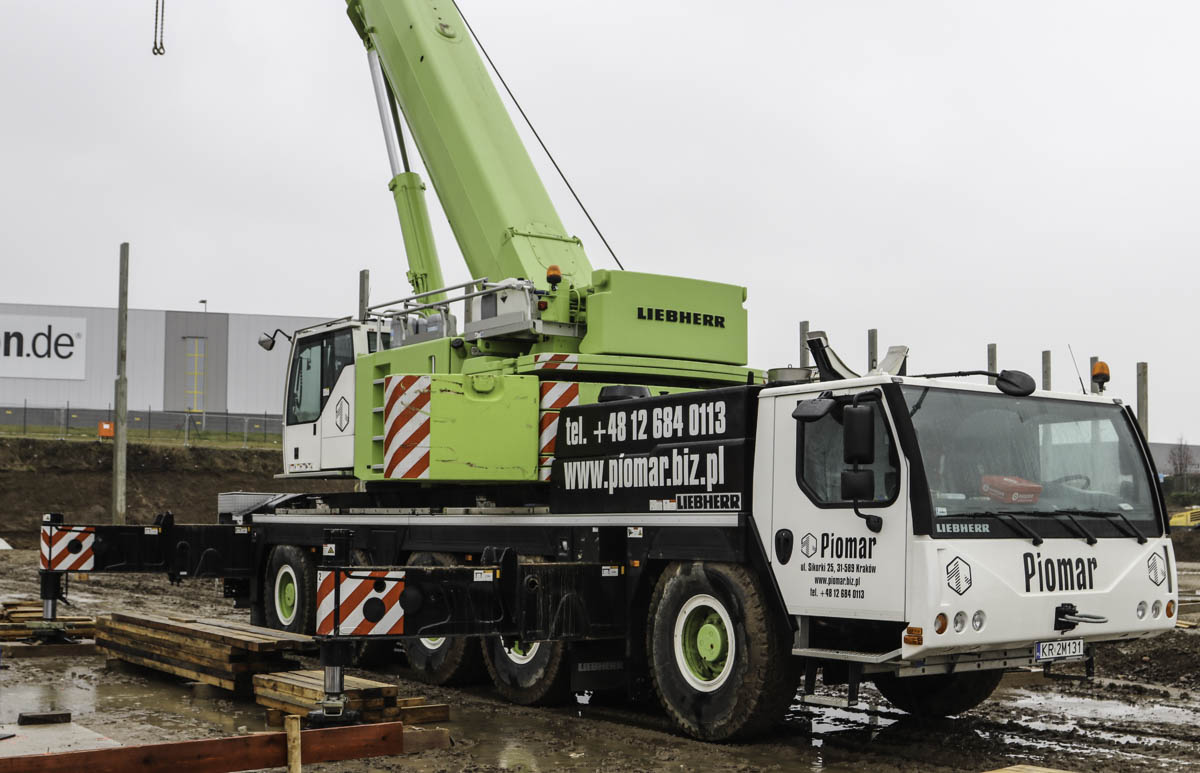

This sharp Liebherr LTM 1130-5.1 of Piomar from Krakow (PL) was used for the erection of concrete precast elements on a construction site in Germany. It is a 130-tonne crane with year of manufacture 2015.

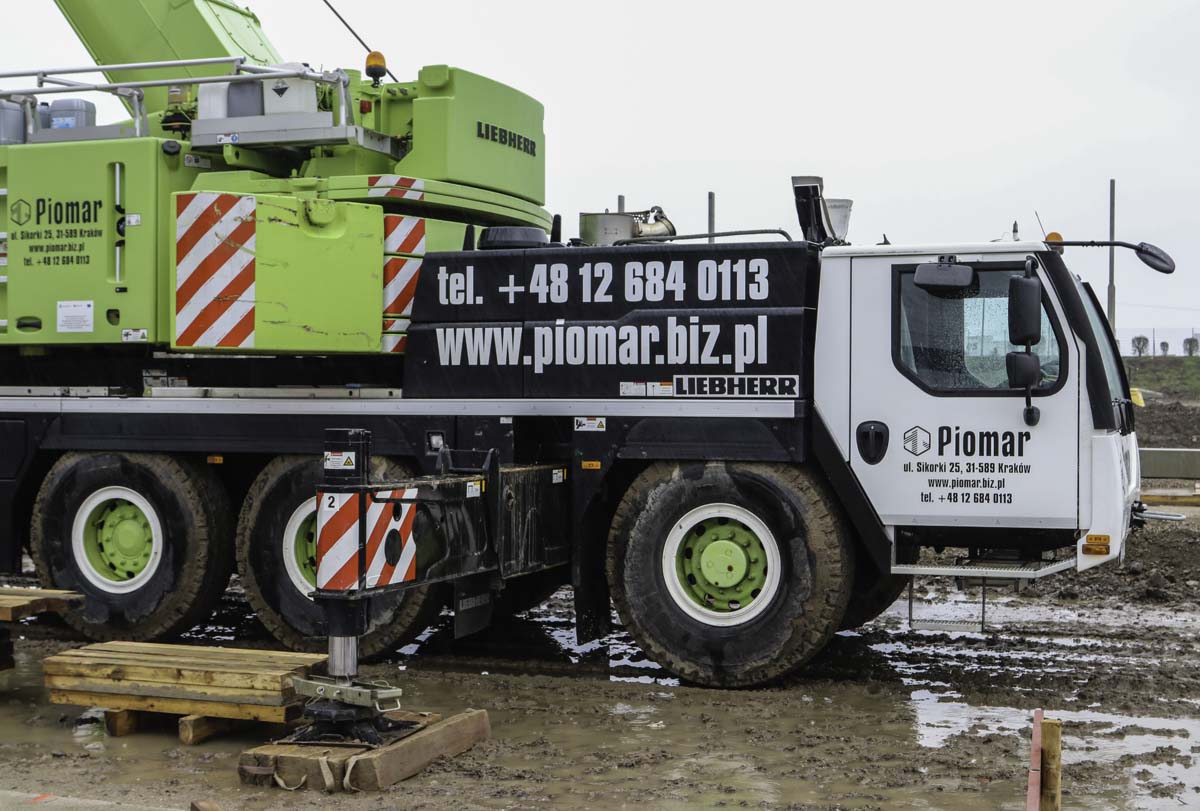

The carrier is powered by a Liebherr 6-cylinder diesel engine with a power of 370 kW (503 hp). This crane has the optional 10x8x10-drive line, where the axles 1, 2, 4 and 5 are powered and all axles are steerable.
In transit is the crane 14.8 meters long, 2.75 meters wide and 4 meters tall. The transport mass is approx. 60 tonnes.

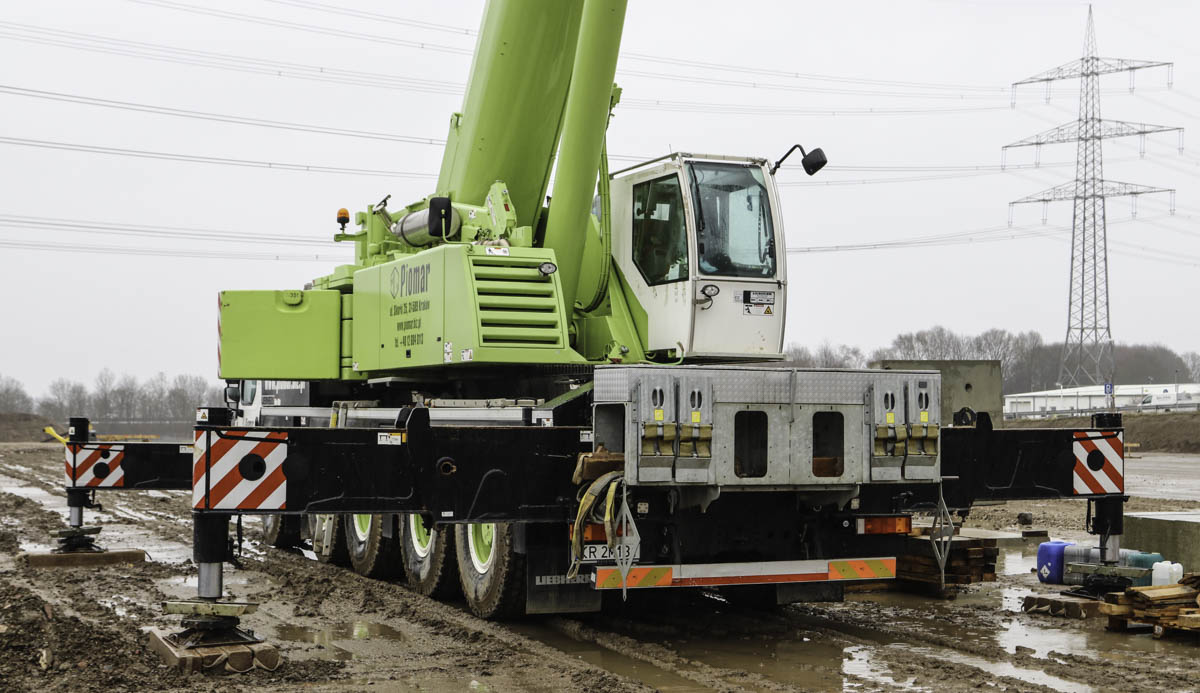

The outrigger base measures 8.1 x 7.5 meters, or half 8.1 x 5 meters. The full counterweight weights 42 tonnes and has a tailswing of 4.2 meters.

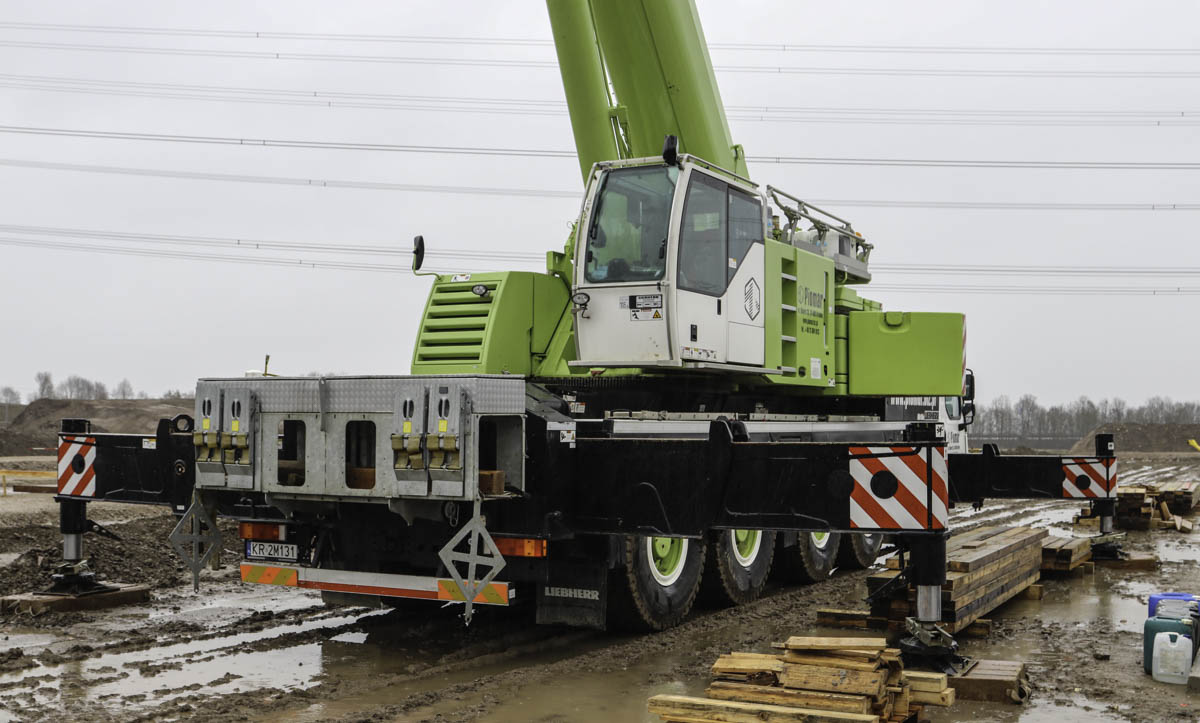

The superstructure has it's own engine, a 4-cylinder Liebherr diesel engine with a power of 129 kW (175 hp). The engine powers three hydraulic pumps to move the crane functions.

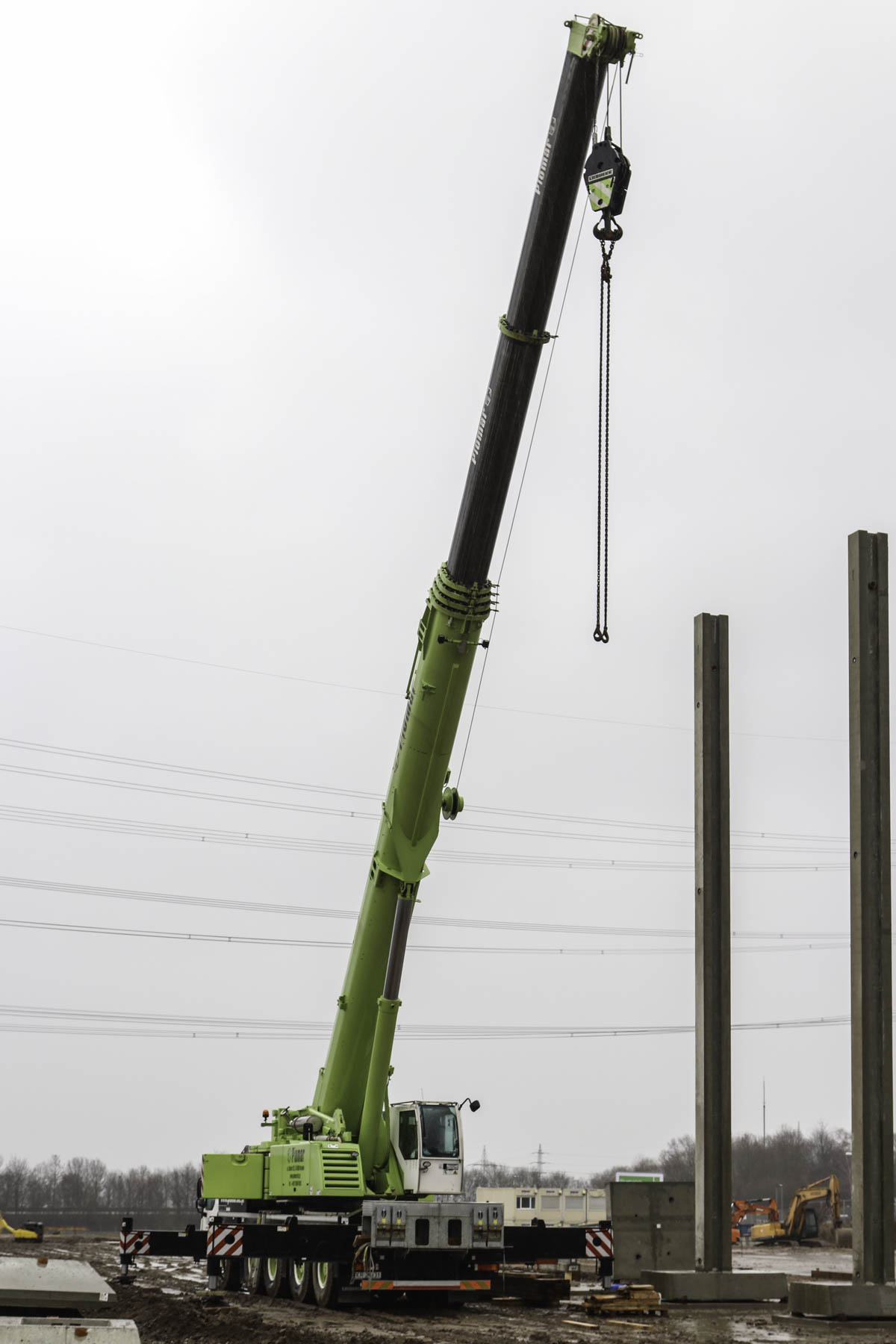

The main boom has a 12.7 meter base length and extends five times to a total length of 60 meters. A 10.8 or 19 meter long bi-fold swingaway jib can be transported by the crane itself. Between the main boom and the folding jib is is possible to install two 7-meter lattice sections. The maximum hook height would then be around 92 meters. A sharp crane by Piomar!
