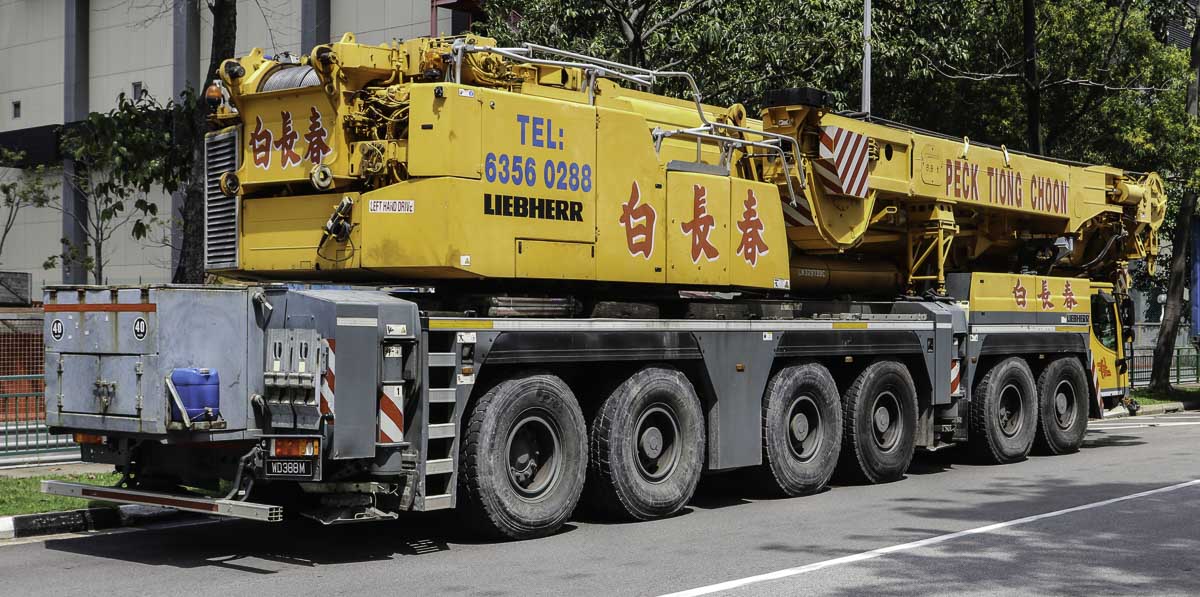

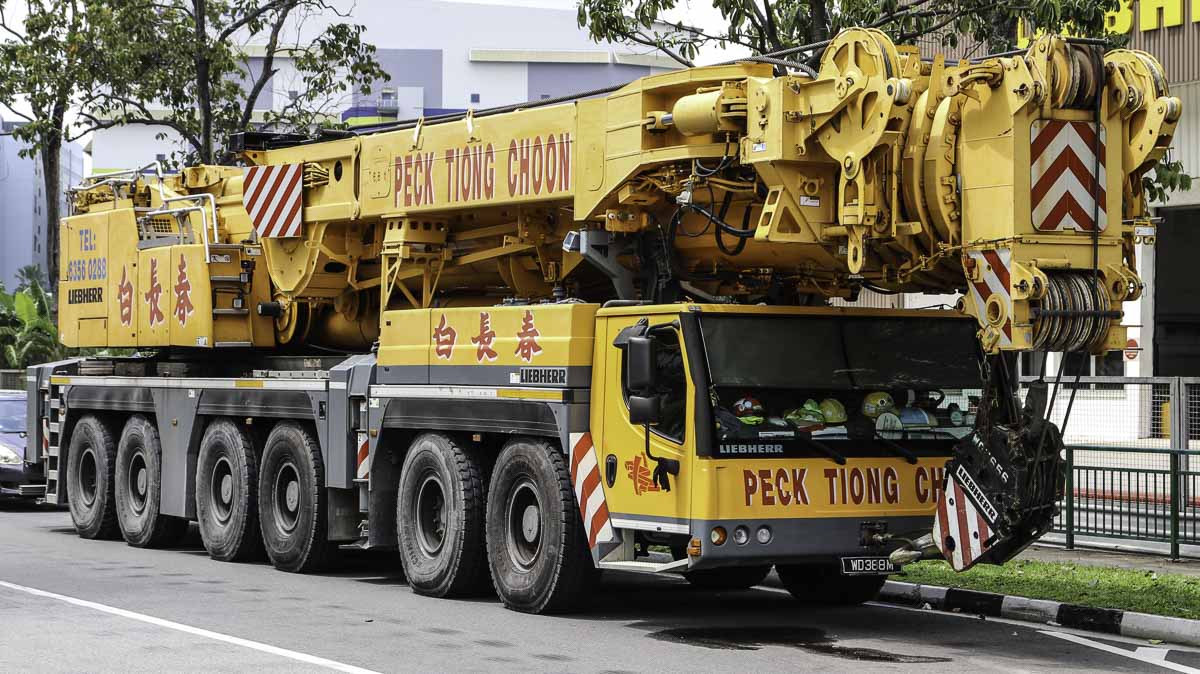

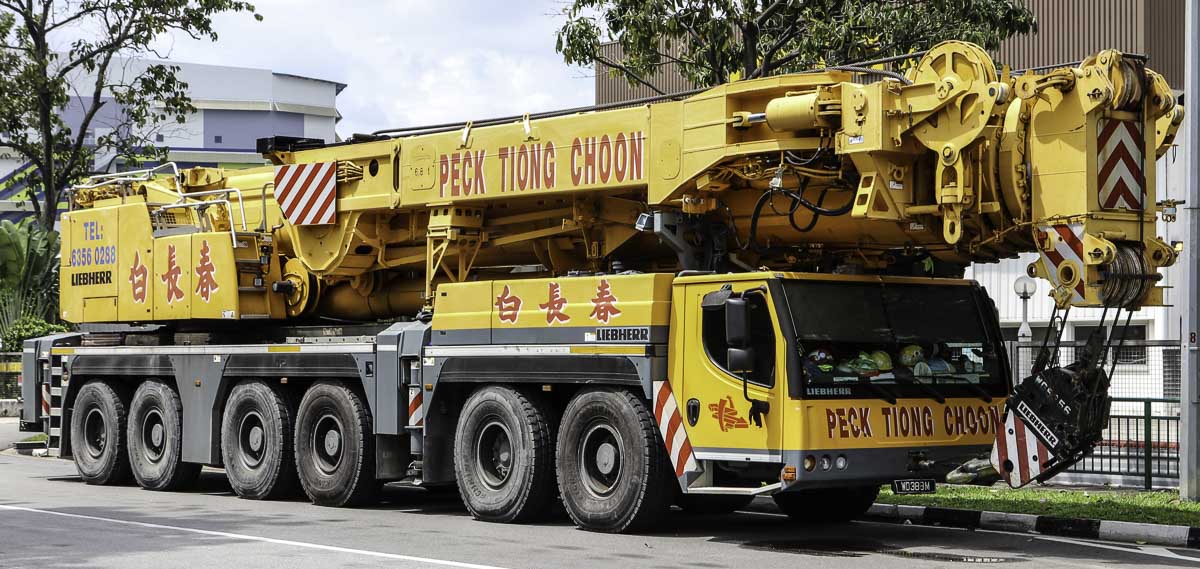

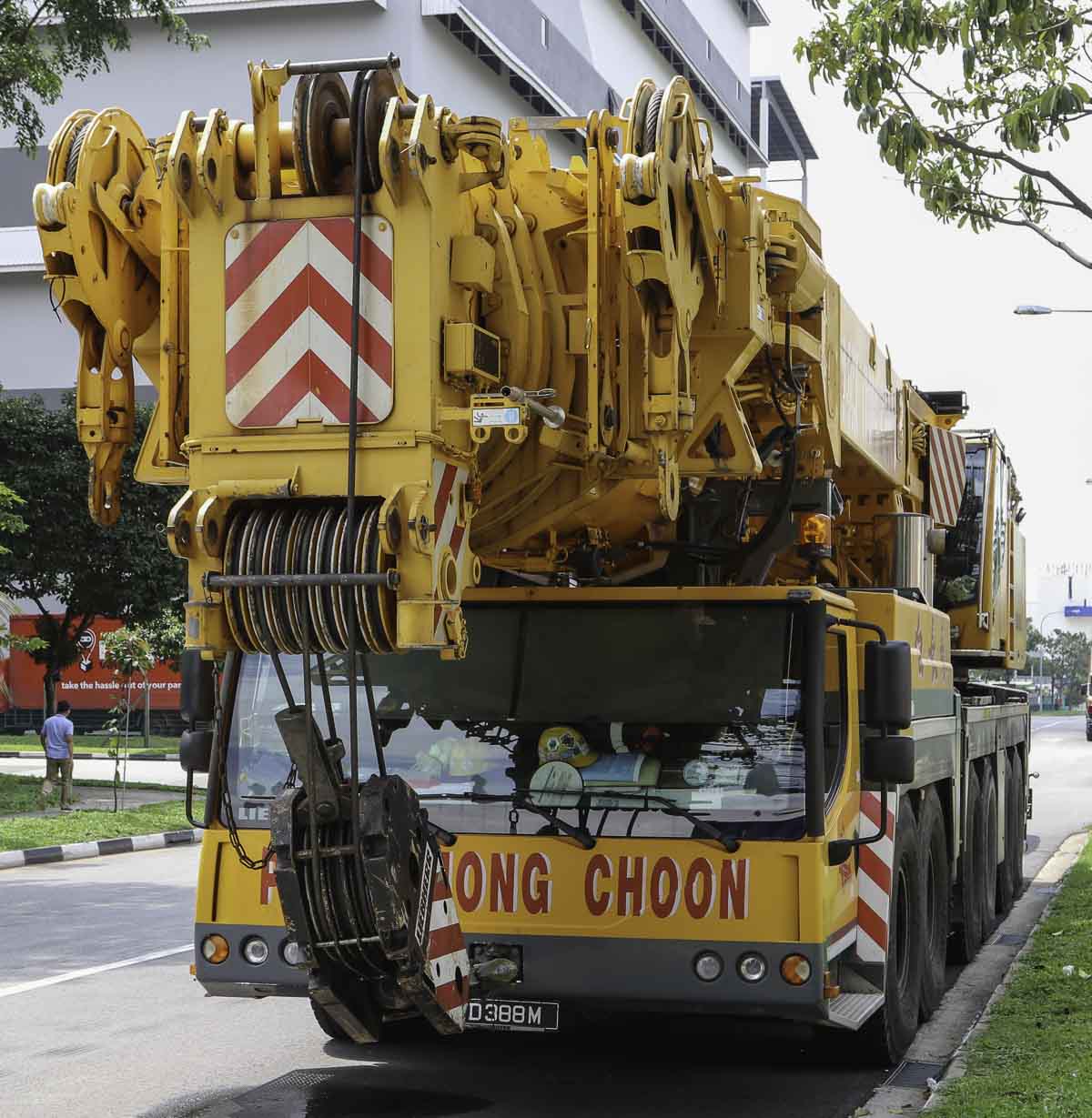

Peck Tiong Choon from Singapore (SG) is owning this Liebherr LTM 1350-6.1, a 350-tonne crane mounted on a 6-axle carrier. The crane's year of manufacture is 2012.

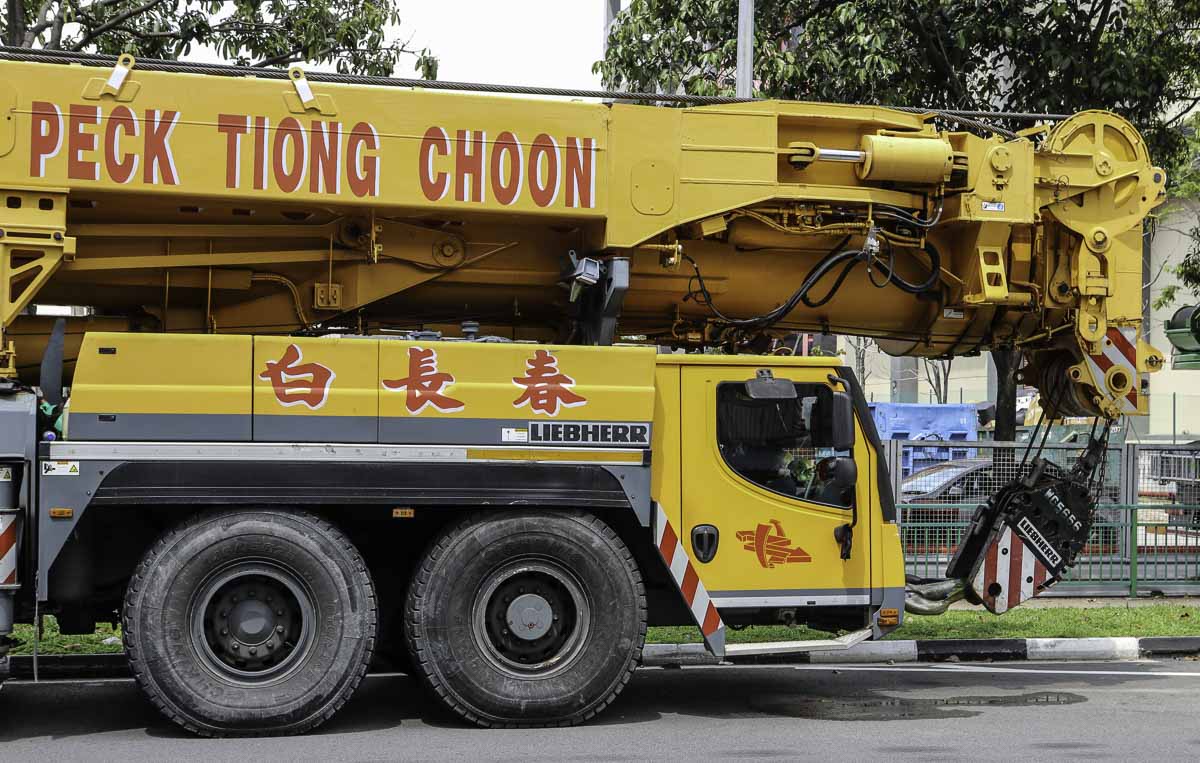

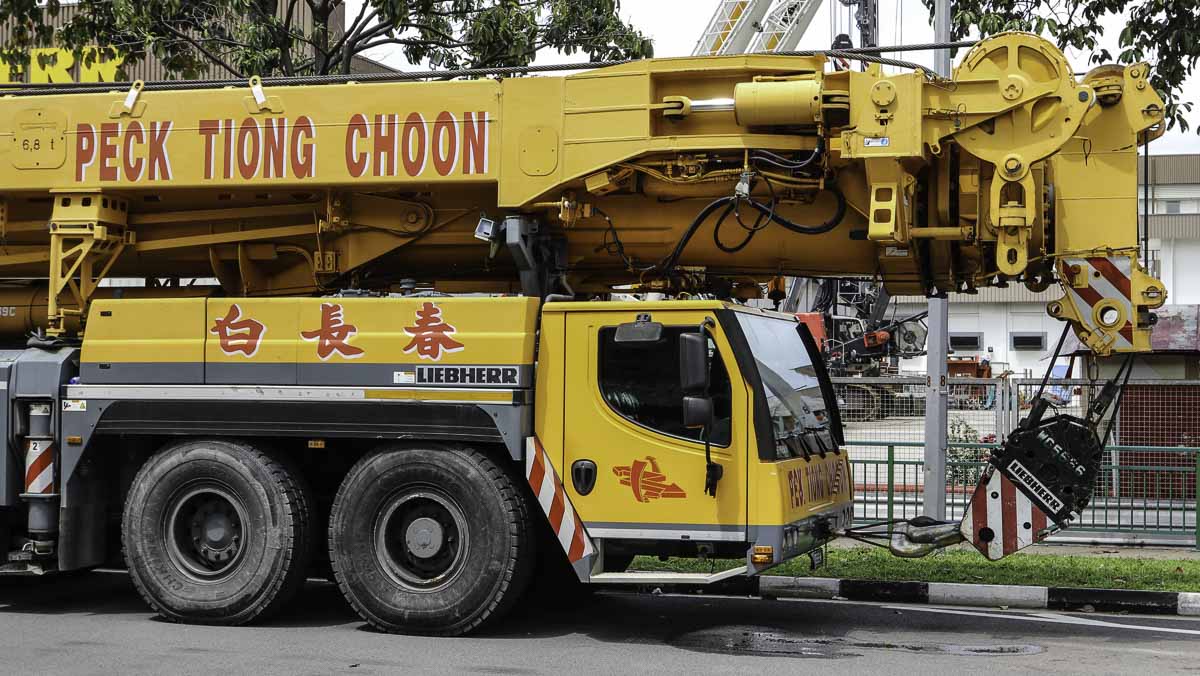

The crane has a 6-part main boom with a 14.9 meter base length and a maximum length of 70 meters. The crane takes the YSL-boom guying system with it during the transport over the road.

The undercarriage is powered by a Liebherr 8-cylinder diesel engine with a power of 450 kW (612 hp). This crane has the optional 12x8x10-drive line, where the axles 1, 3, 4 and 5 are powered and the axles 1 to 3, 5 and 6 are steerable.

The superstructure is powered by a Liebherr 4-cylinder diesel engine with a power of 180 kW (245 hp).

The outrigger base of the crane measures 8.93 x 8.53 meters, or half 8.93 x 5.6 meters.

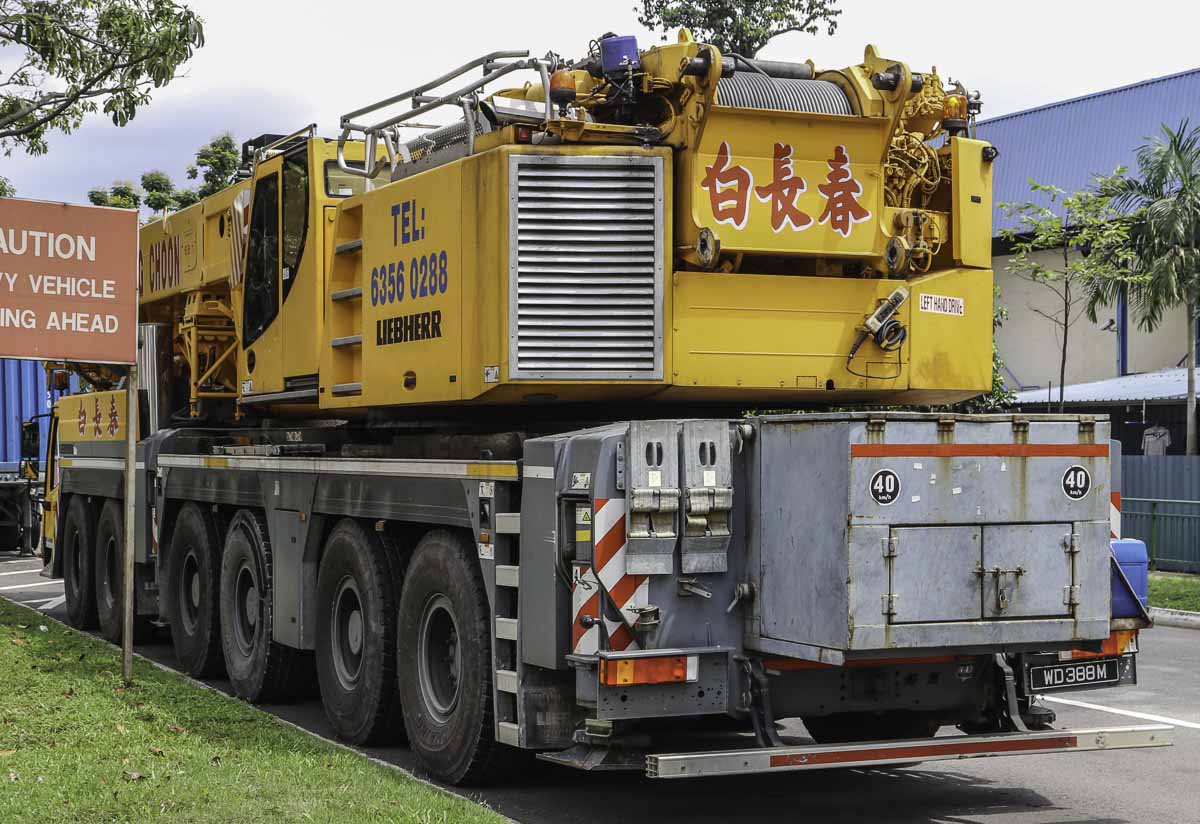

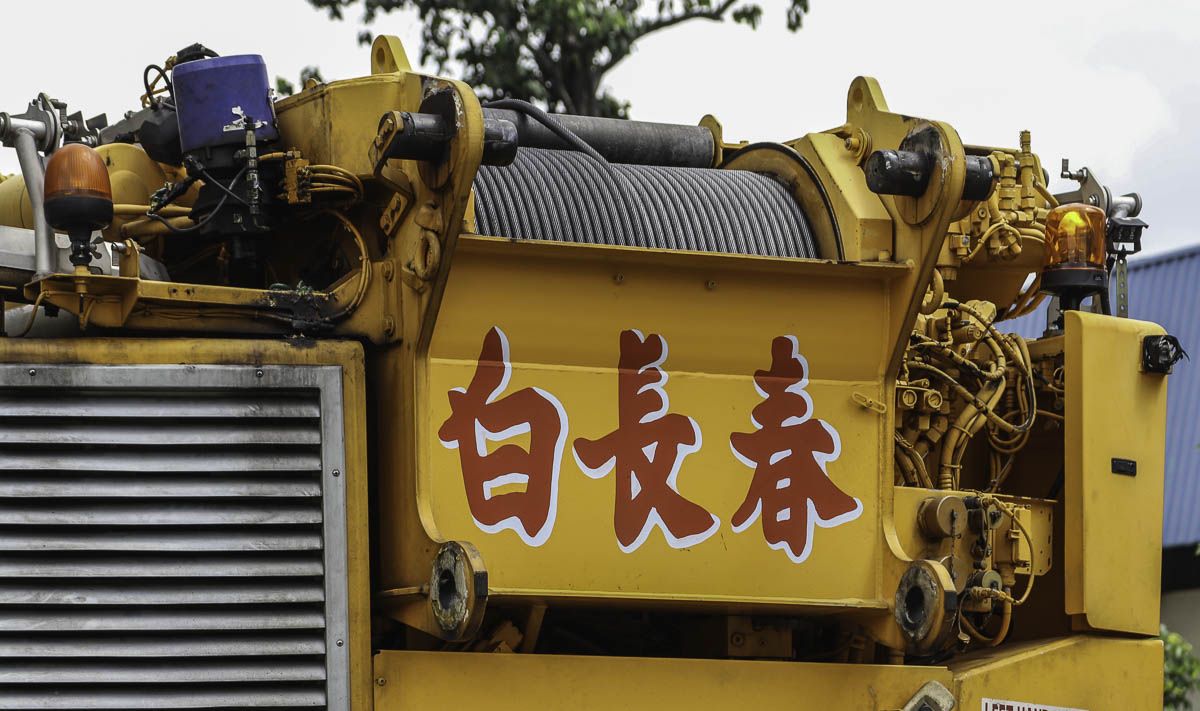

During crane operation is a maximum of 140 tonnes of counterweight attached to the superstructure, the counterweight has a 5.7 meter tailswing. The crane is fitted with a 12-tonne hoist winch.

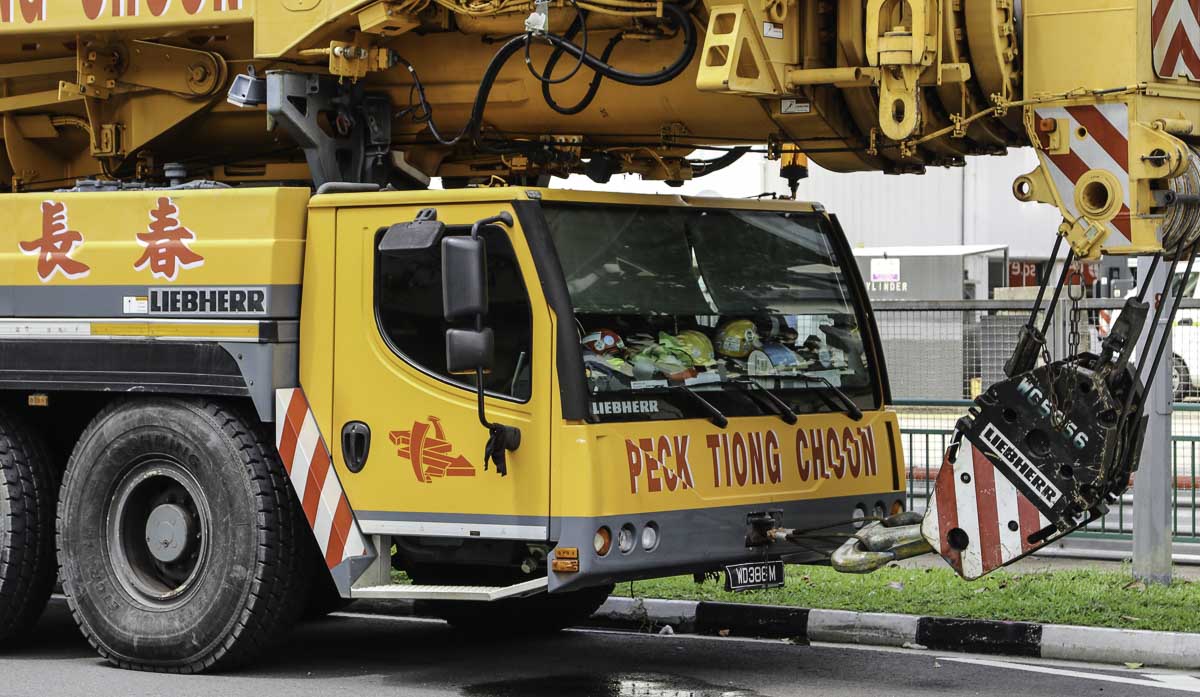

A sharp crane of Peck Tiong Choon, the crane is painted in the Liebherr colors because the yellow is matching with the company colors of Peck Tiong Choon.
