Liebherr LTC 1055-3.1
This Liebherr LTC 1055-3.1 was used by the construction of a new hall. It is a 3-axle city crane with a maximum lifting capacity of 55 tonnes.

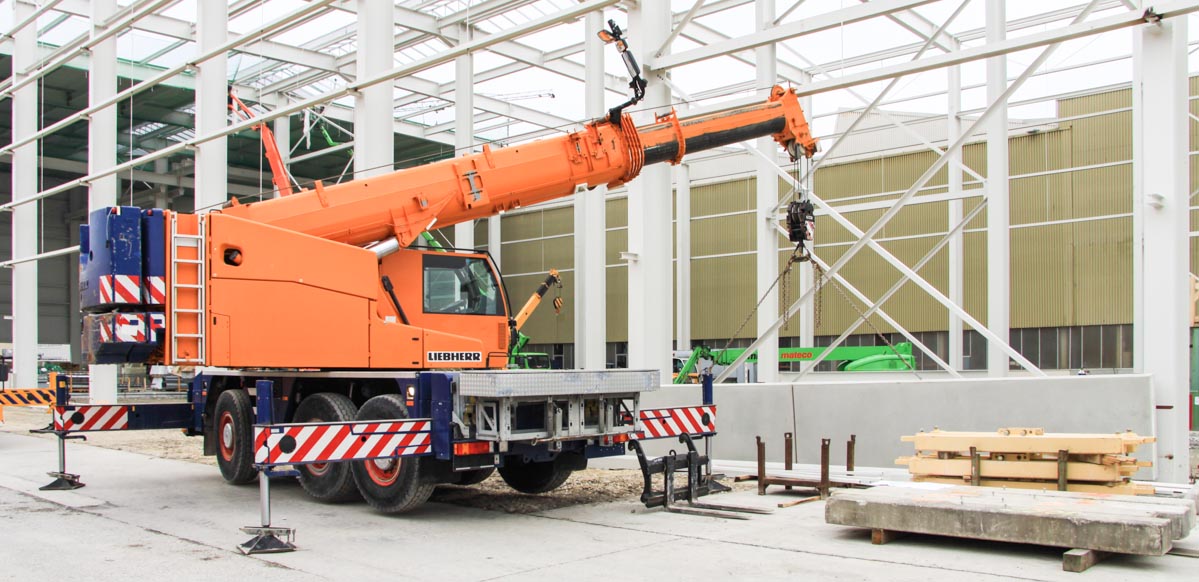

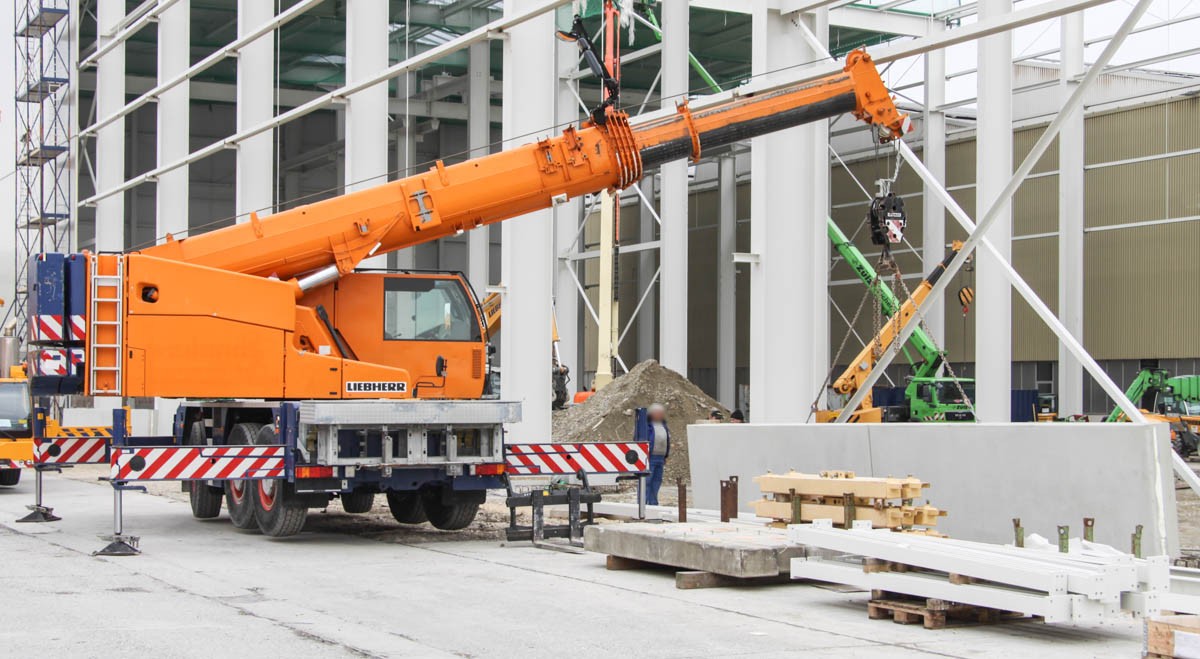

The crane is here busy to install a precast concrete beam. The compact crane is in advantage here on the narrow location.

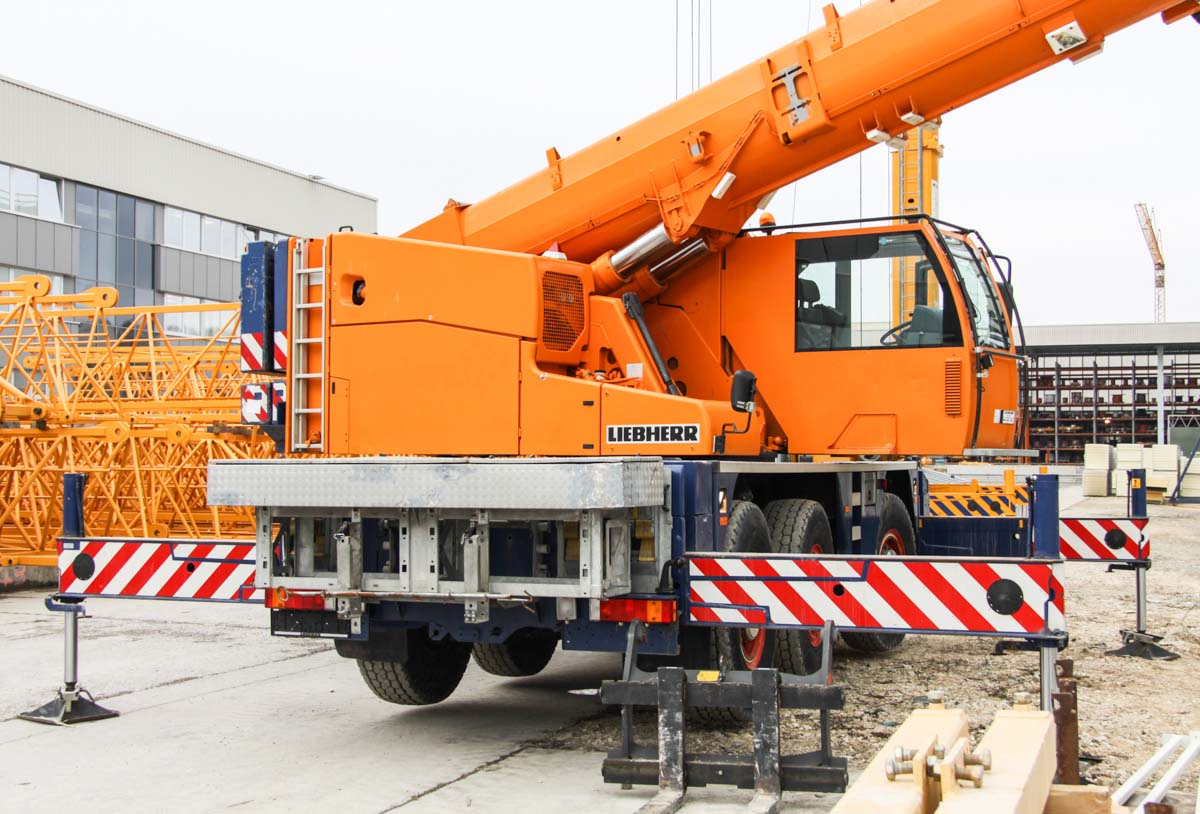

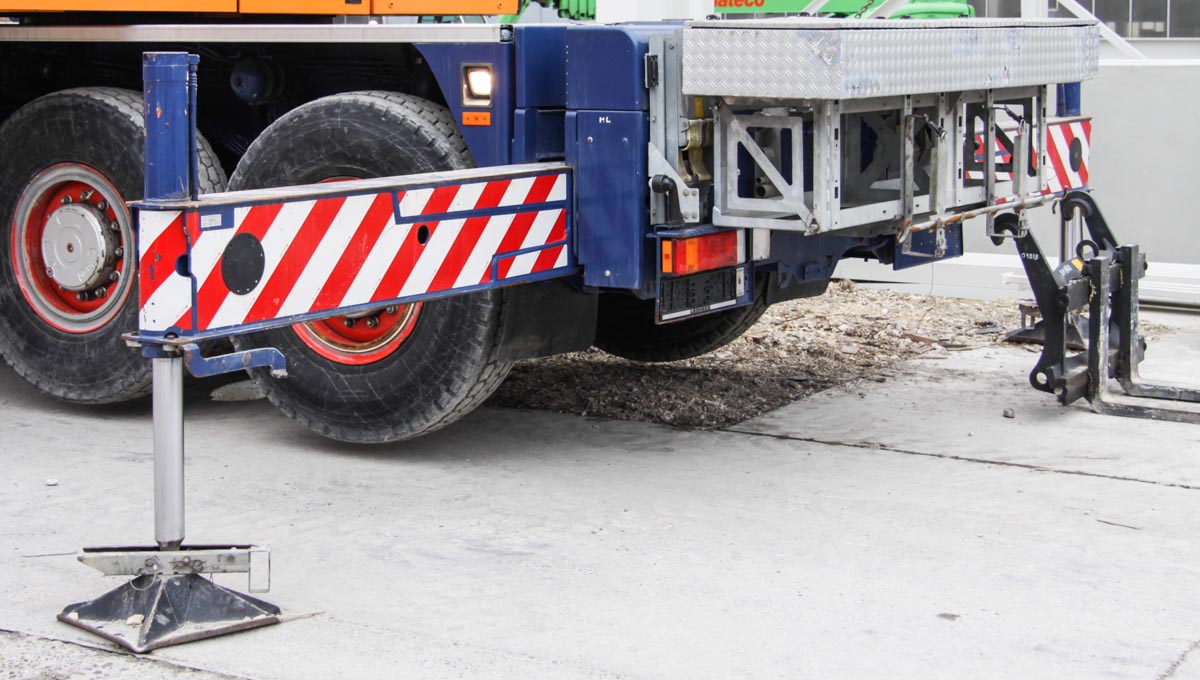

During the transport over the road is counterweight, 1.9 tonnes in total, attached to the bumper.

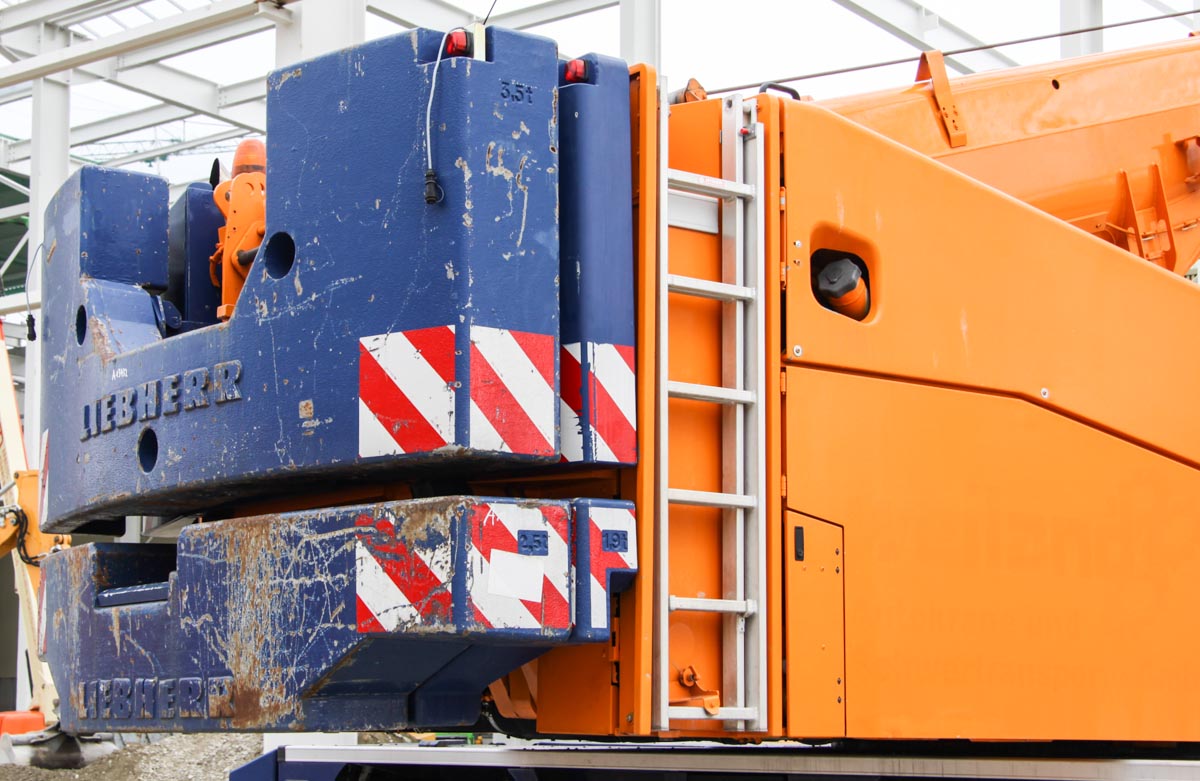

The full counterweight weights 10.4 tonnes and has a 3.59 meter tailswing.
The crane is powered by a Liebherr D846 A7, a 6-cylinder diesel engine with a power of 350 kW (476 hp), that is installed in the superstructure. During the transport over the road are all axles hydrostatic powered. For the crane operation are in total six hydraulic pumps powered, so all crane functions can be operated simultaneously.

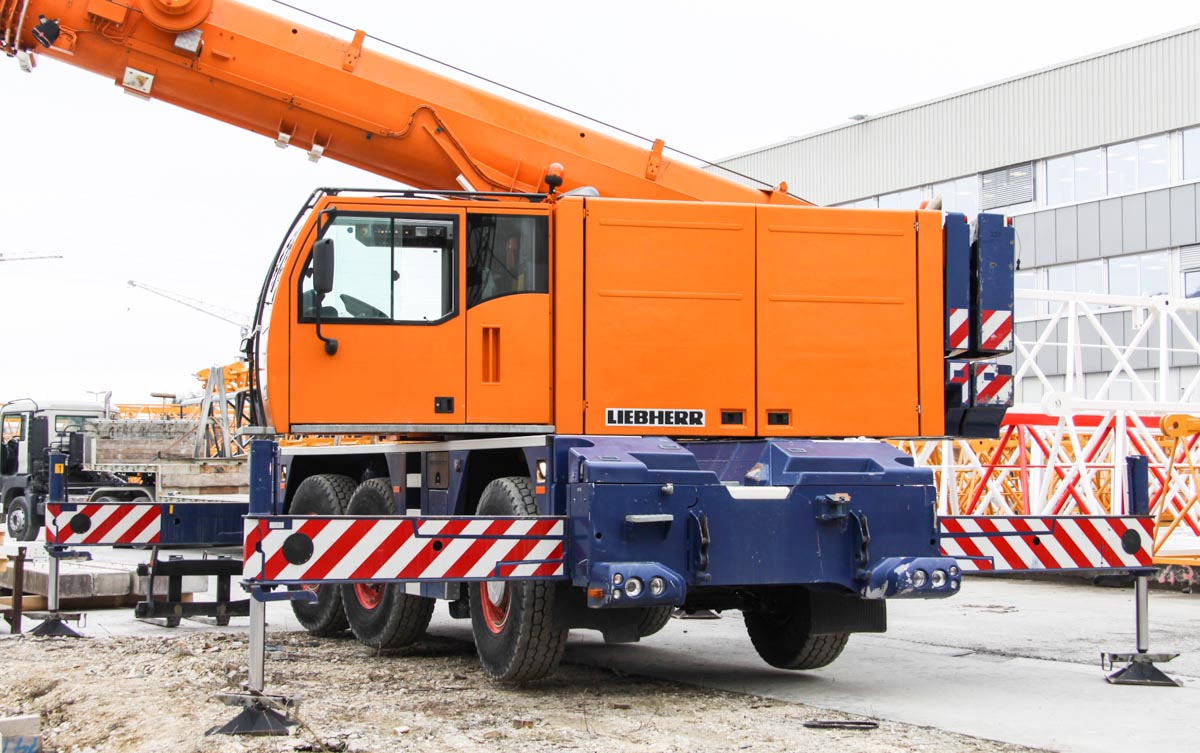

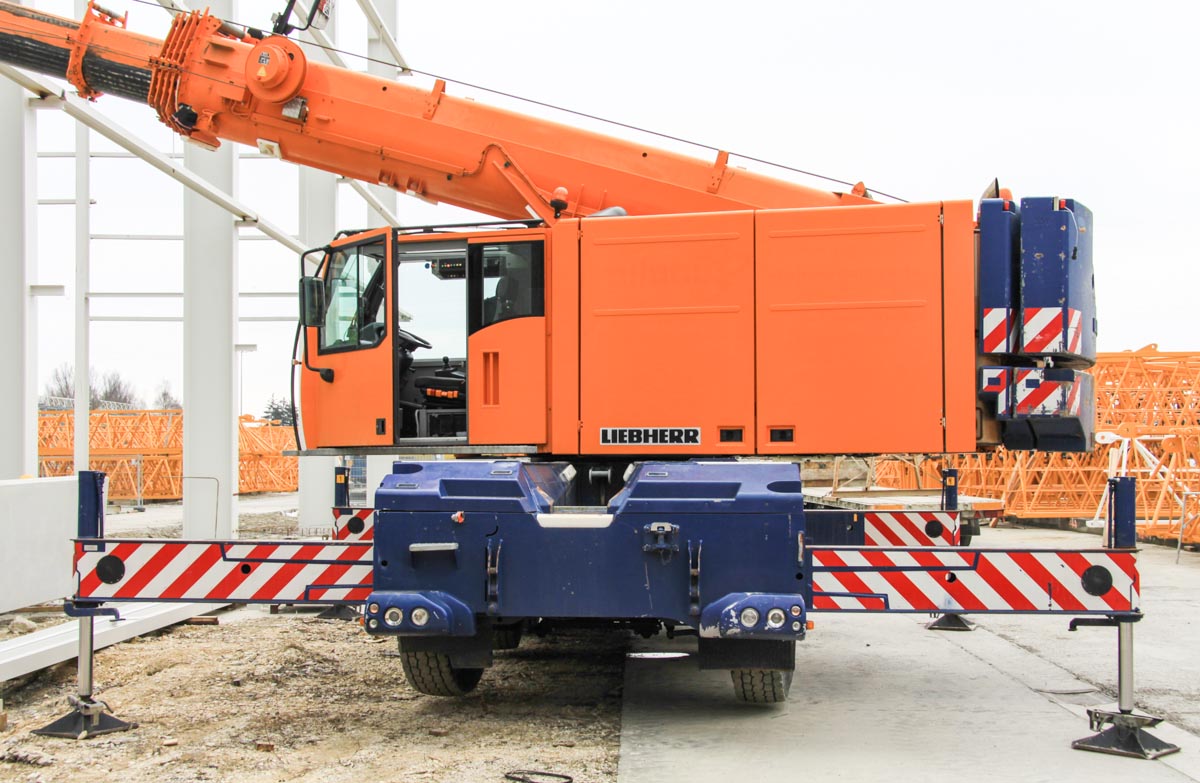

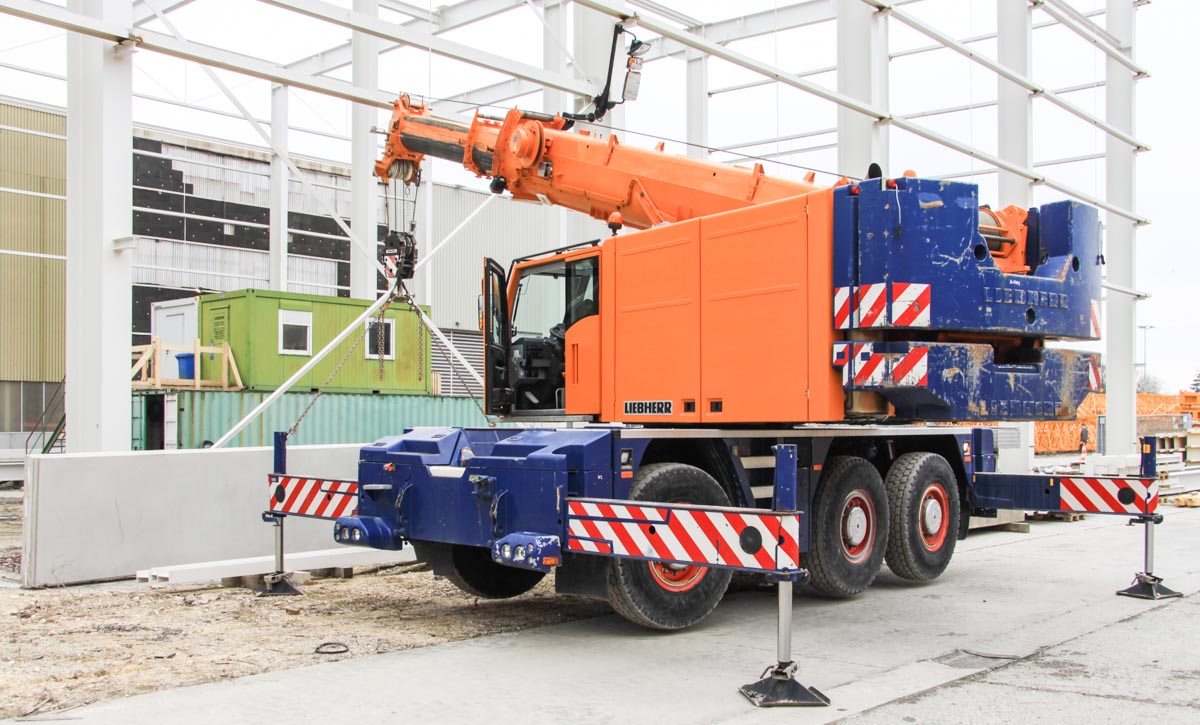

The outrigger base measures 6.26 x 6.26 meters, or half 6,26 x 4.5 meters. This crane also has the possibility to work on tires and is also able to drive with a load.

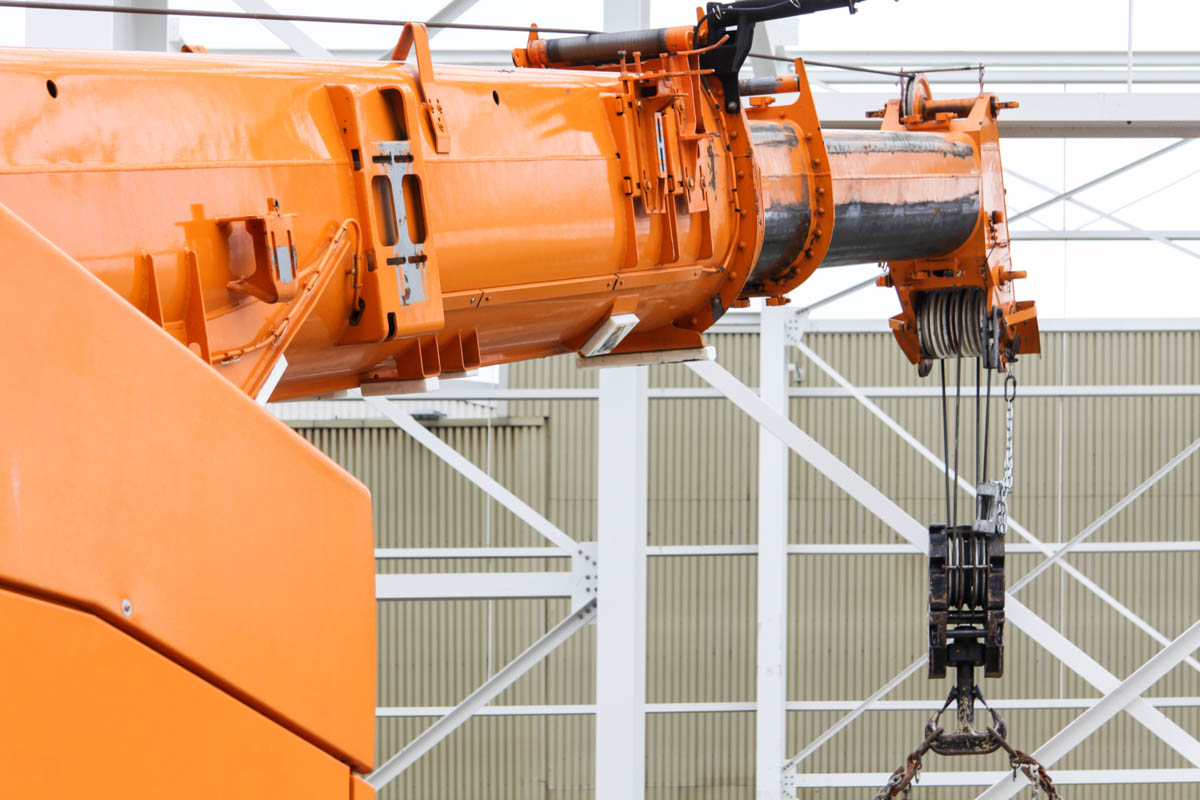

The main boom has a base length of 7.9 meters and extends six times to a full length of 36 meters. The main boom can be extended by a 15 meter bi-fold swingaway jib that is under 0, 20, 40 or 60 degrees mountable.
This is a used crane that was previously used by Weiland from Lampertsheim (DE).
