Liebherr LTM 1100-5.2 - Kutter
End of 2018 took Kutter from Memmingen (DE) this Liebherr LTM 1100-5.2 into operation. It is a used crane that was delivered new to Kranlogistik Lausitz. The crane's year of manufacture is 2013.

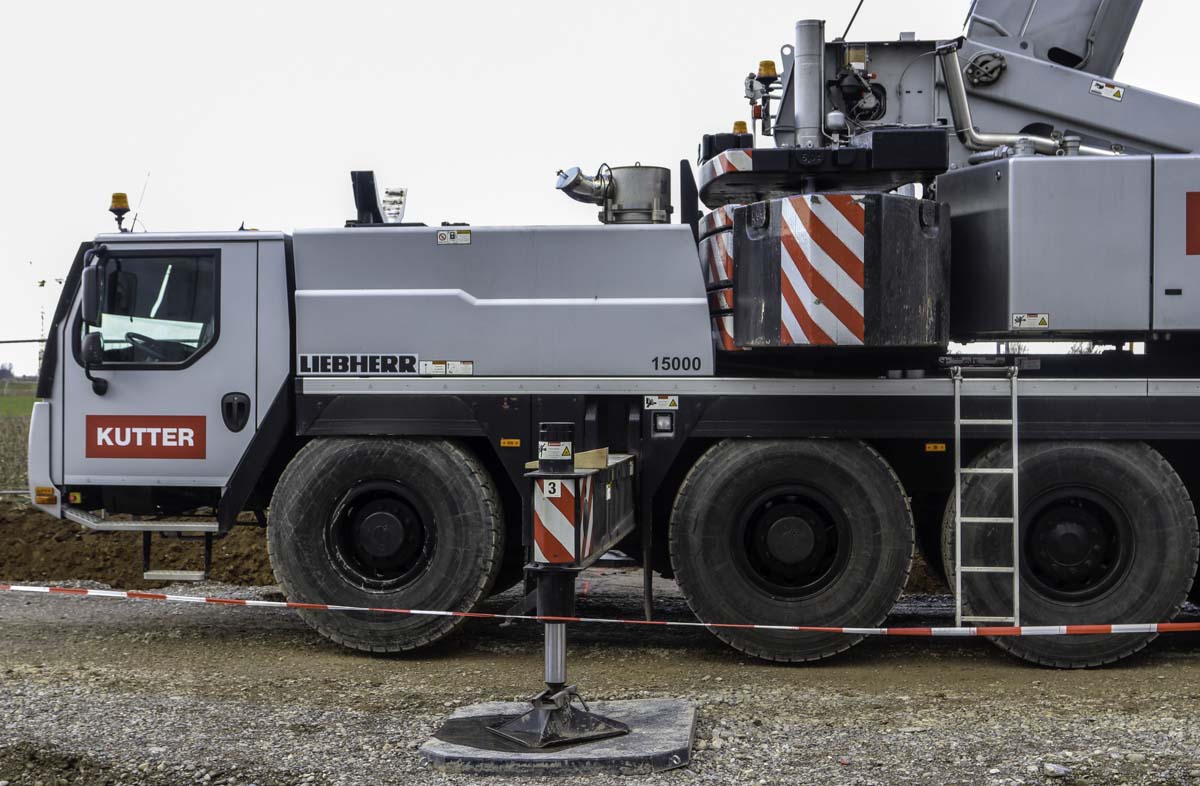

The undercarriage is powered by a Liebherr D846 A7, a 6-cylinder diesel engine with a power of 370 kW (503 hp). This crane is equipped with the optional 10x8x10-drive line, where the axles 1, 2, 4 and 5 are powered. All axles are steerable.
In transit is the crane 13.64 meters long, 2.75 meters wide and 3.9 meters tall. The transport mass with 15 tonnes of counterweight is approx. 60 tonnes.

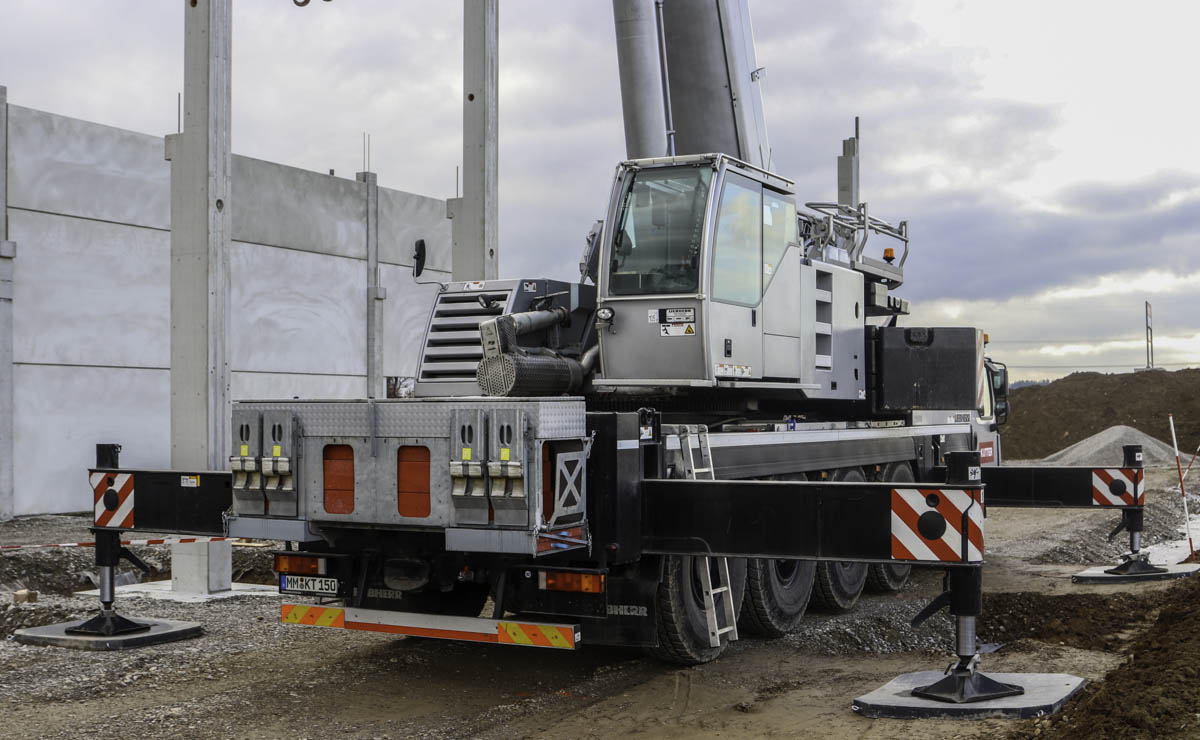

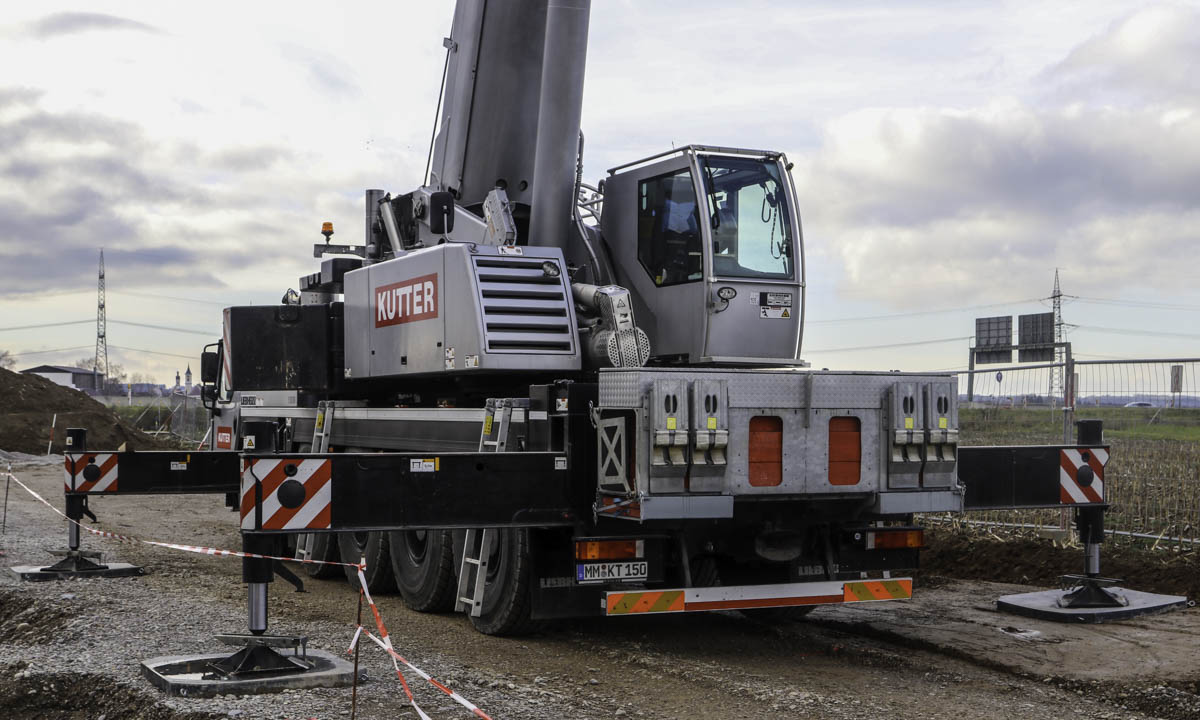

At the rear of the chassis is a large box mounted for the outrigger woods and some lifting gear.

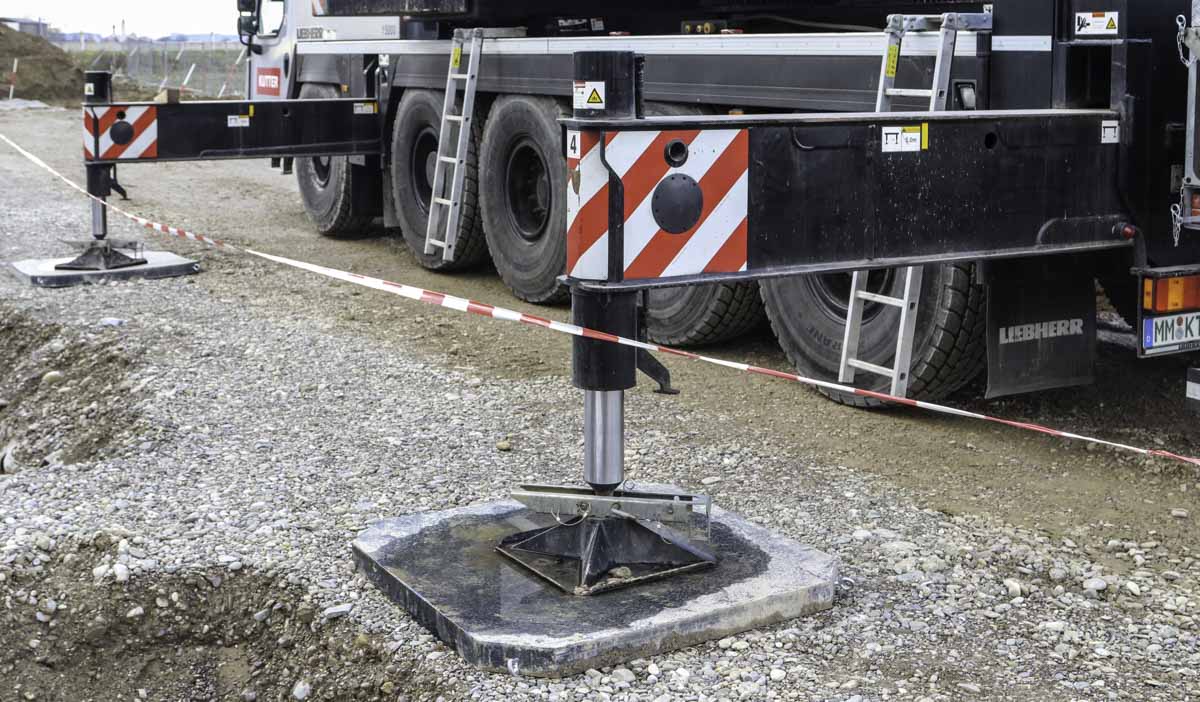

The outrigger base of the crane measures 7.36 x 7 meters, of halb 7.36 x 5 meters.

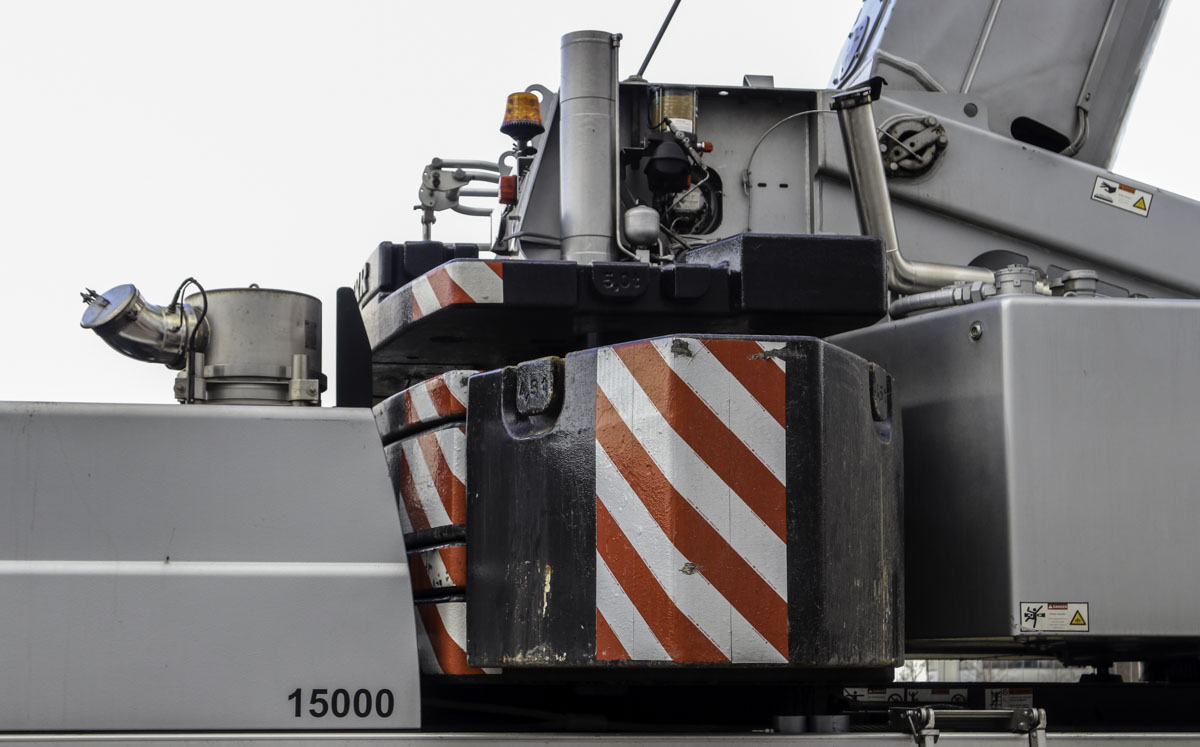

The full counterweight of the crane weights 35 tonnes and has a 3.84 meter tailswing.

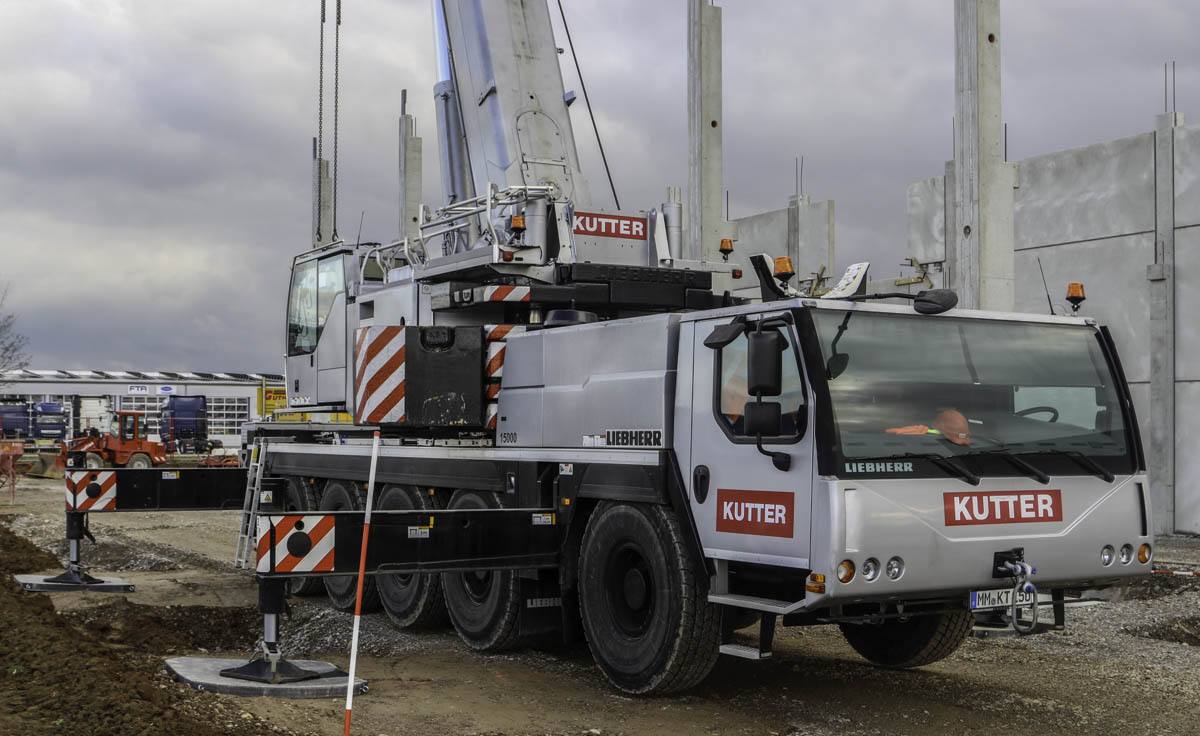

On this construction site was the crane used for the assembly of precast concrete elements.

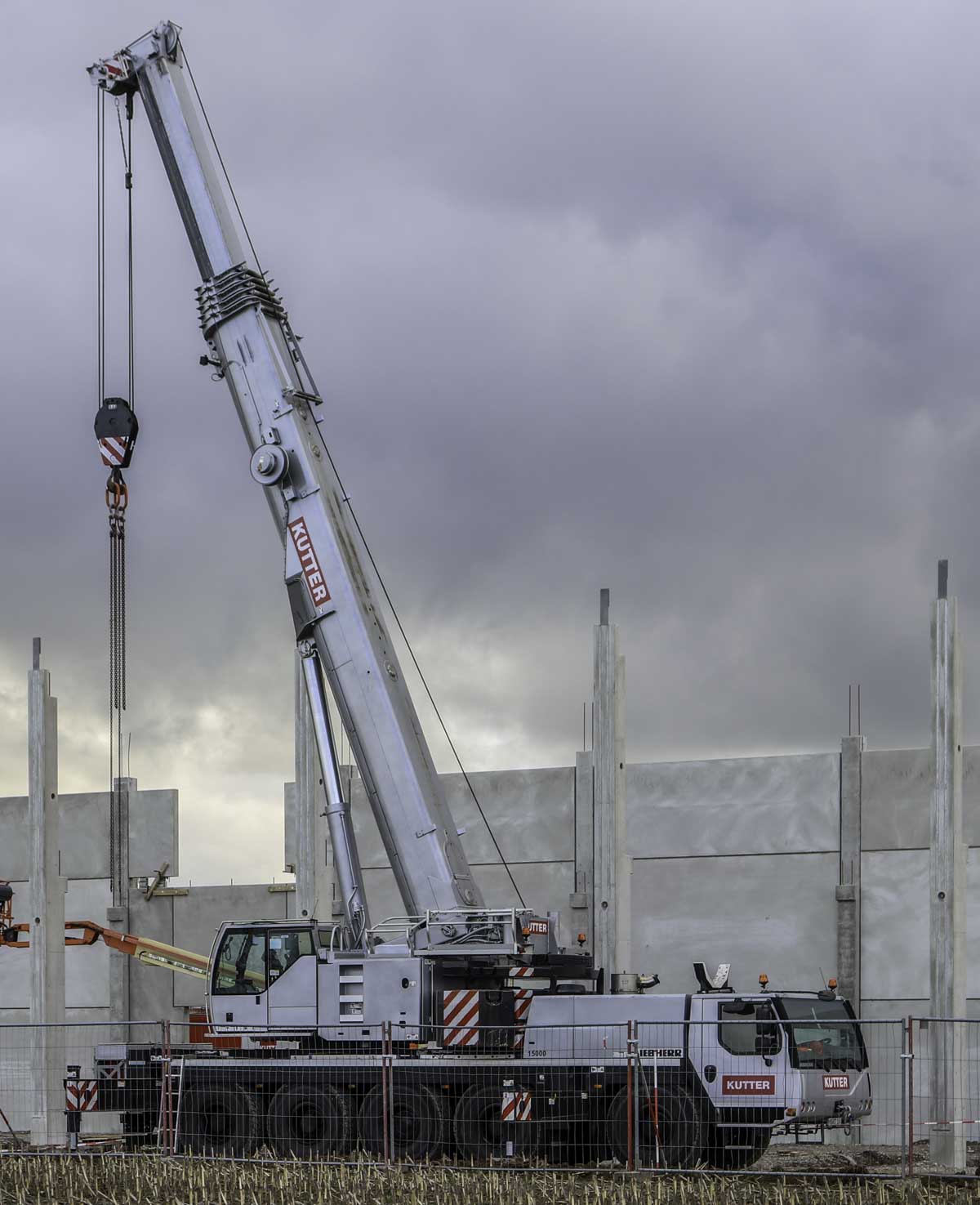

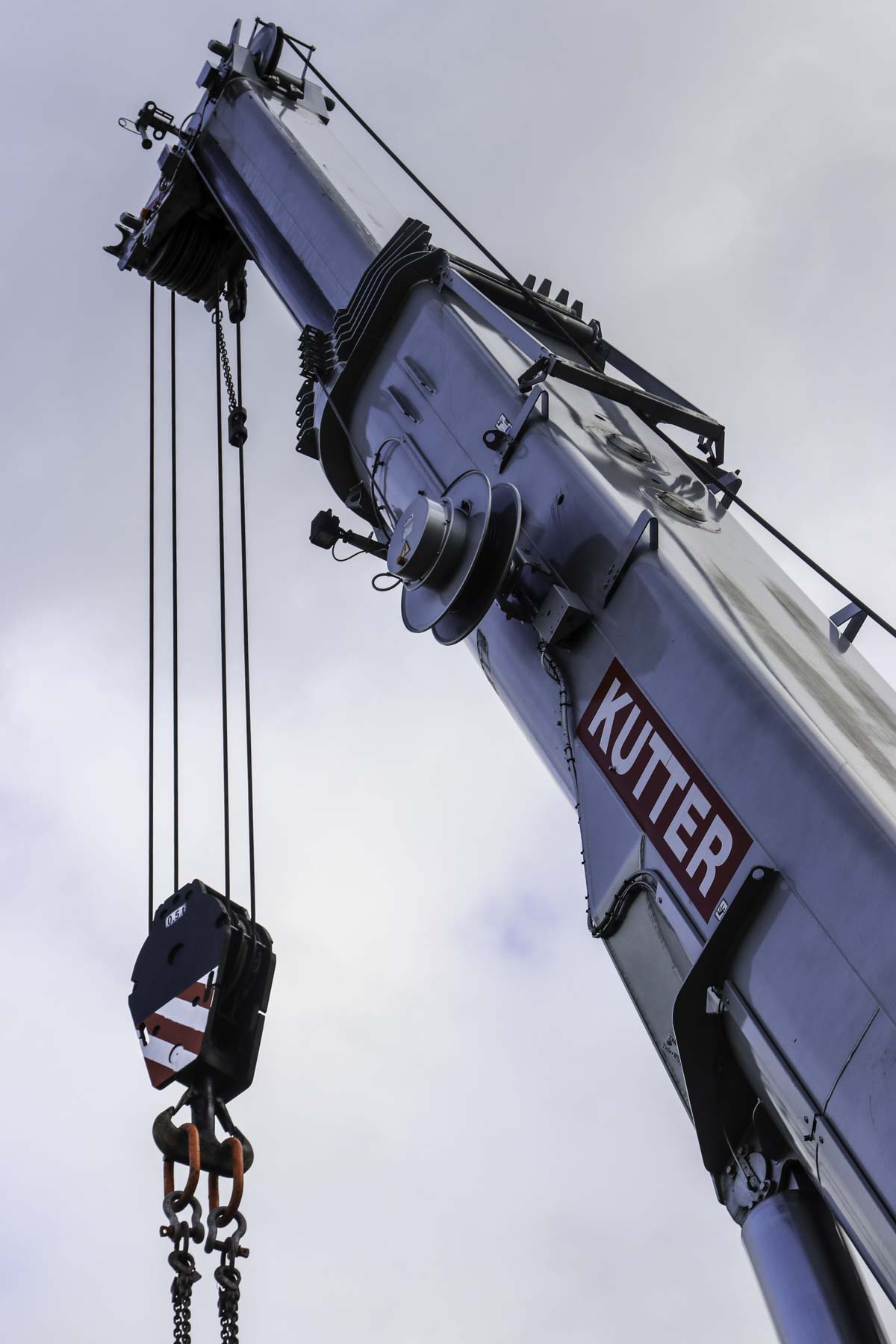

The 6-part main boom has an 11.5 meter base length and a maximum length of 52 meters. Optionally is the main boom to be extended with a 10.8 - 19 meter long bi-fold swingaway jib.
