Liebherr LTM 1070-4.2 - Kim Soon Lee

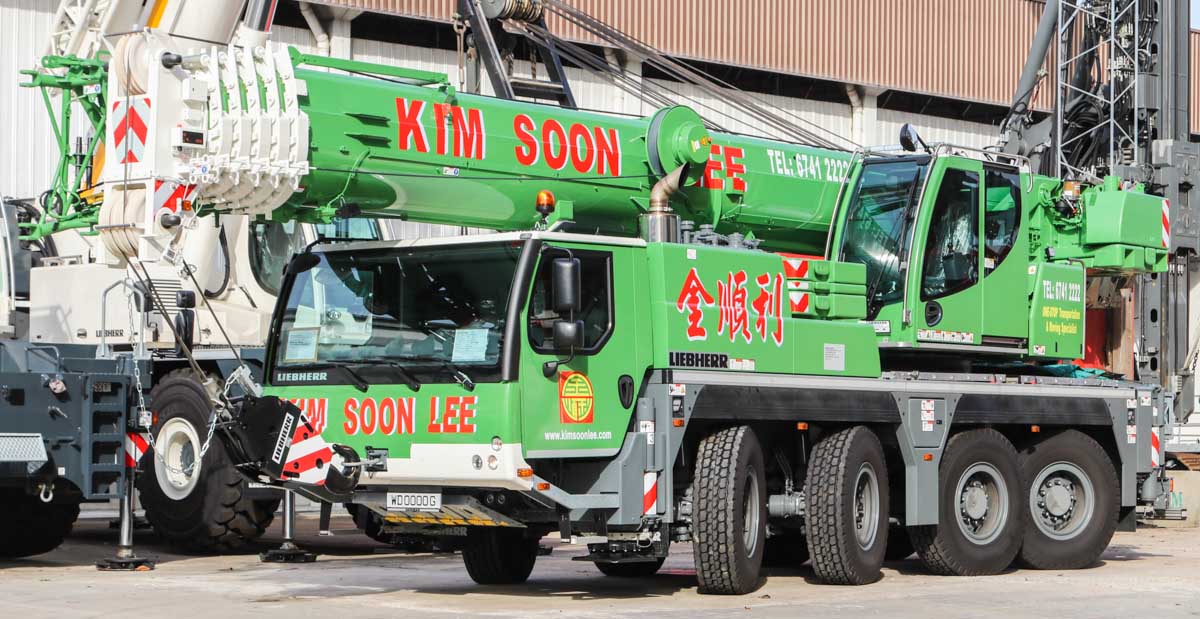

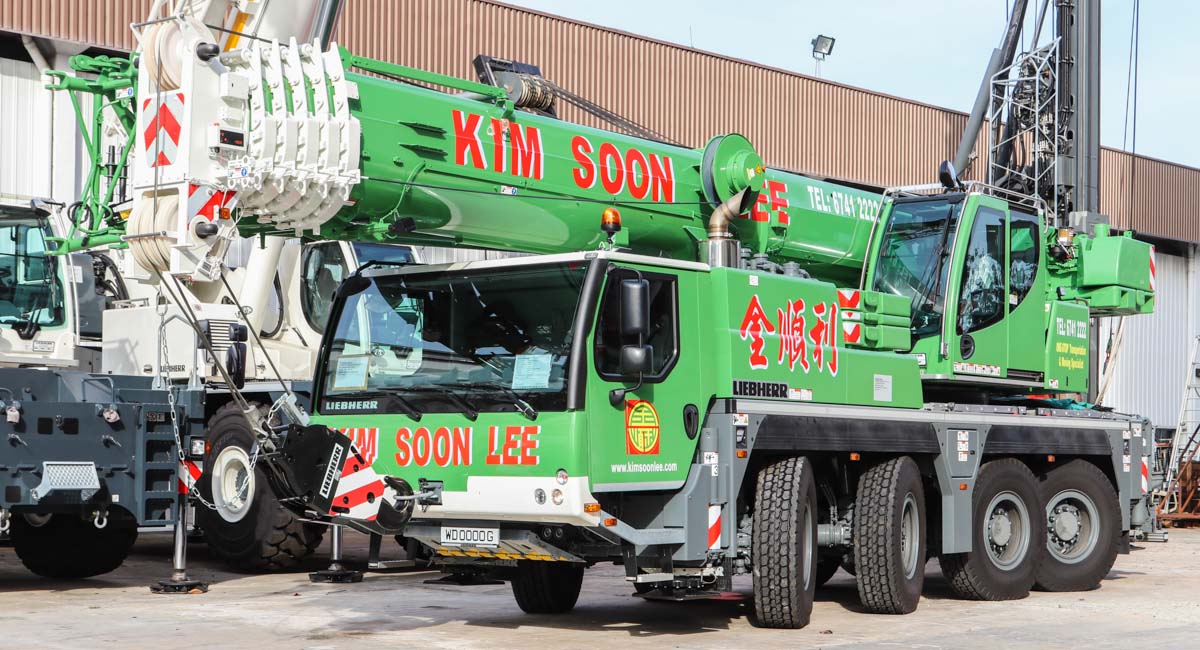

In the beginning of 2020 took Kim Soon Lee from Singapore this sharp Liebherr LTM 1070-4.2 in operation, it is the third crane of this type for Kim Soon Lee, who's crane fleet only out of Liebherr cranes up to 300 tonnes.

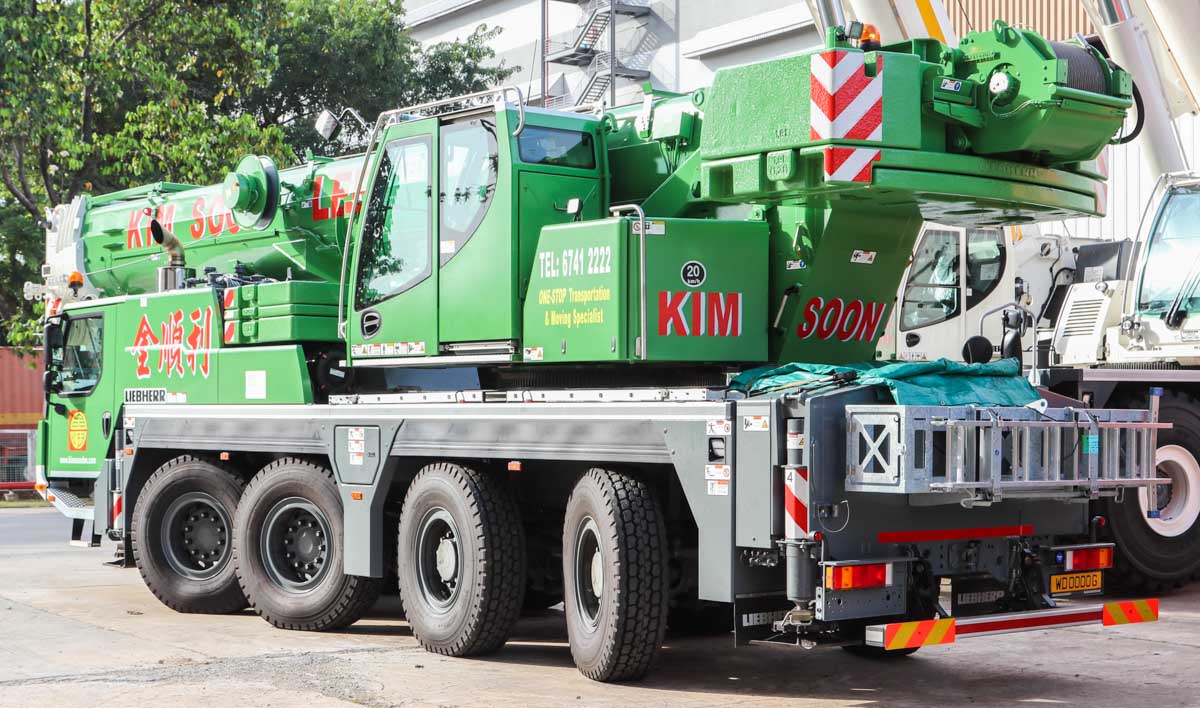

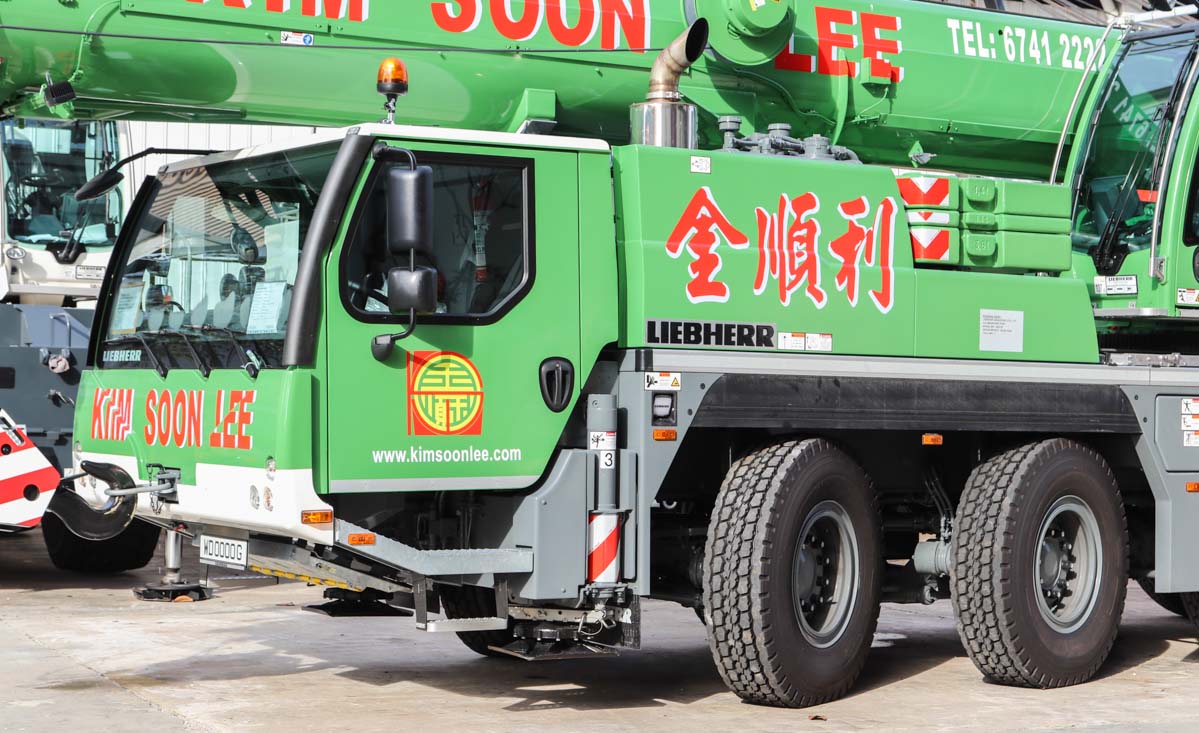

The 4-axle undercarriage is powered by a Liebherr diesel engine with a power of 270 kW (367 hp). The two rear axles are powered, all axles all steerable.

Packed is the crane 13 meters long, 2.55 meters wide and 3.9 meter high. The crane weights around 48 tonnes with 10.7 tonnes of counterweight and the bi-fold swingaway jib.

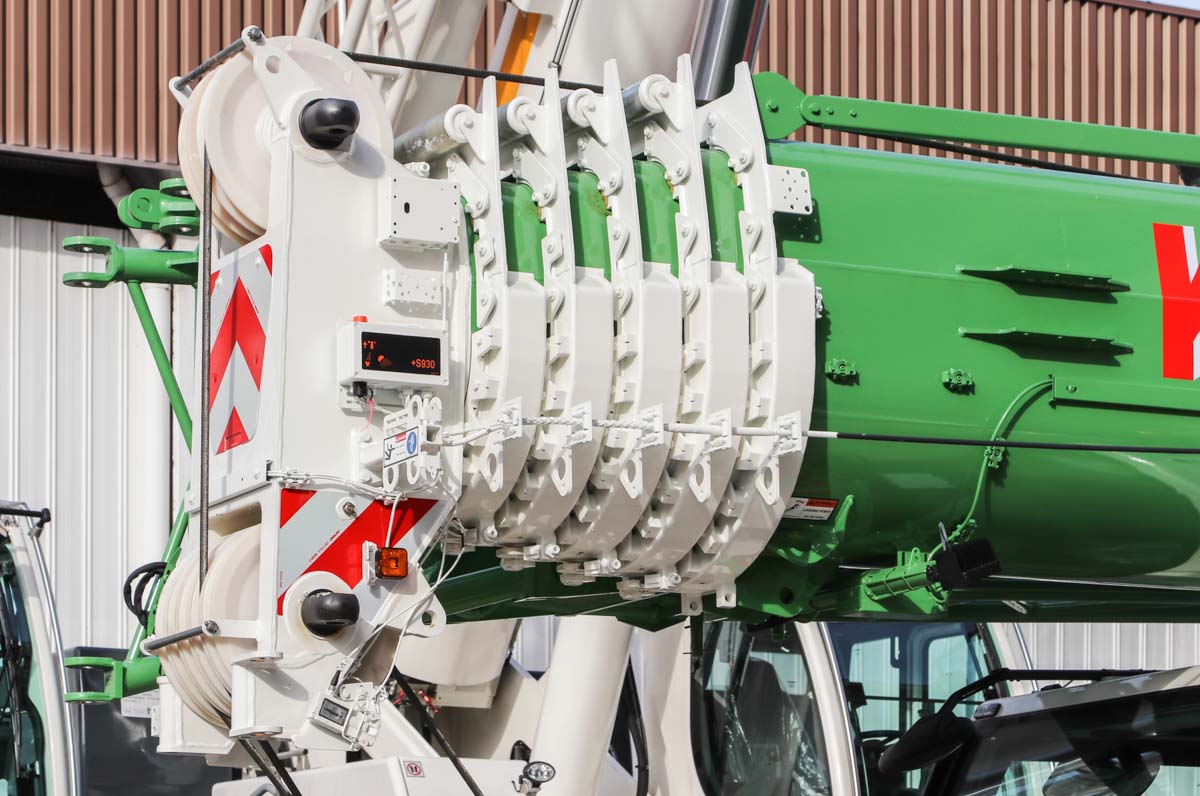

The 6-part main boom has a 11 meter base length and extends five times up to a total length of 50 meters.

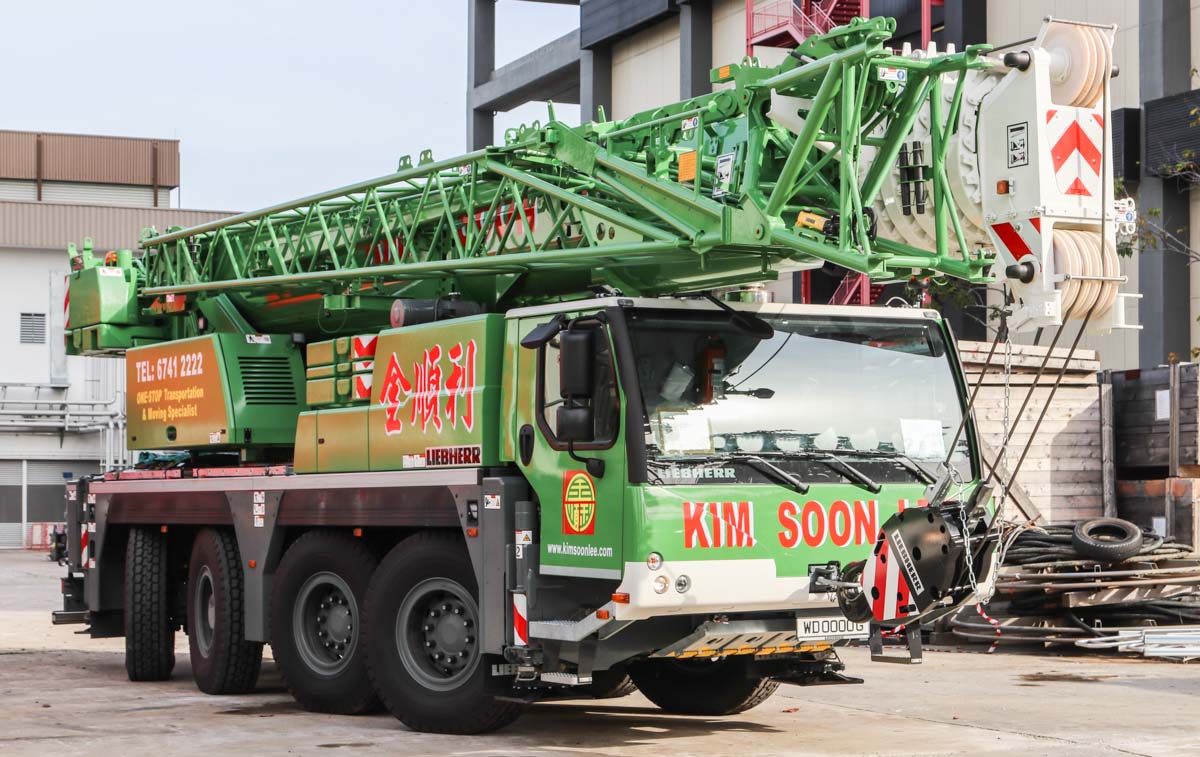

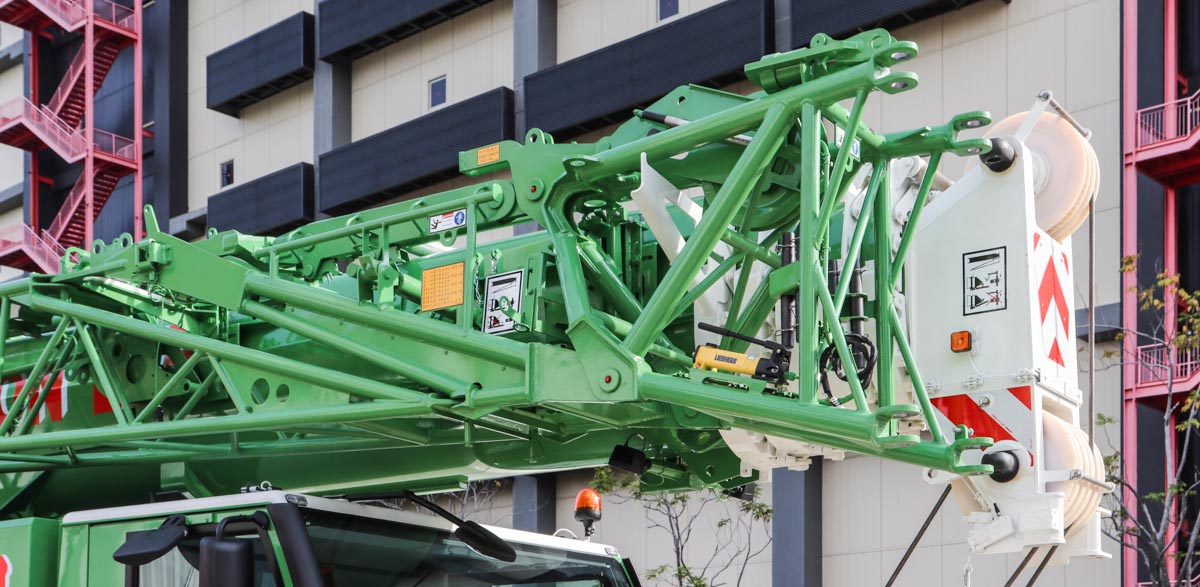

The 9.5 / 16 meter long bi-fold swingaway jib is under 0, 20, 40 and 60 degrees mountable.

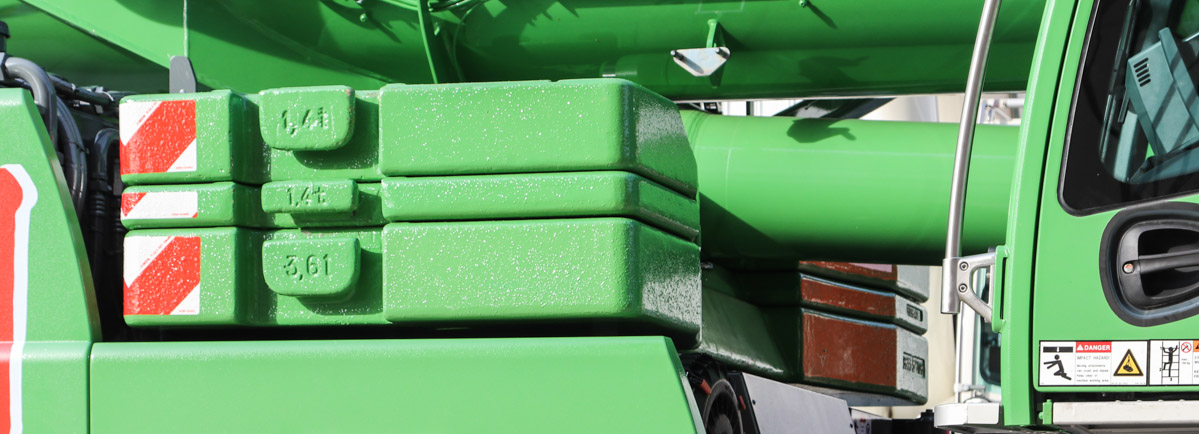

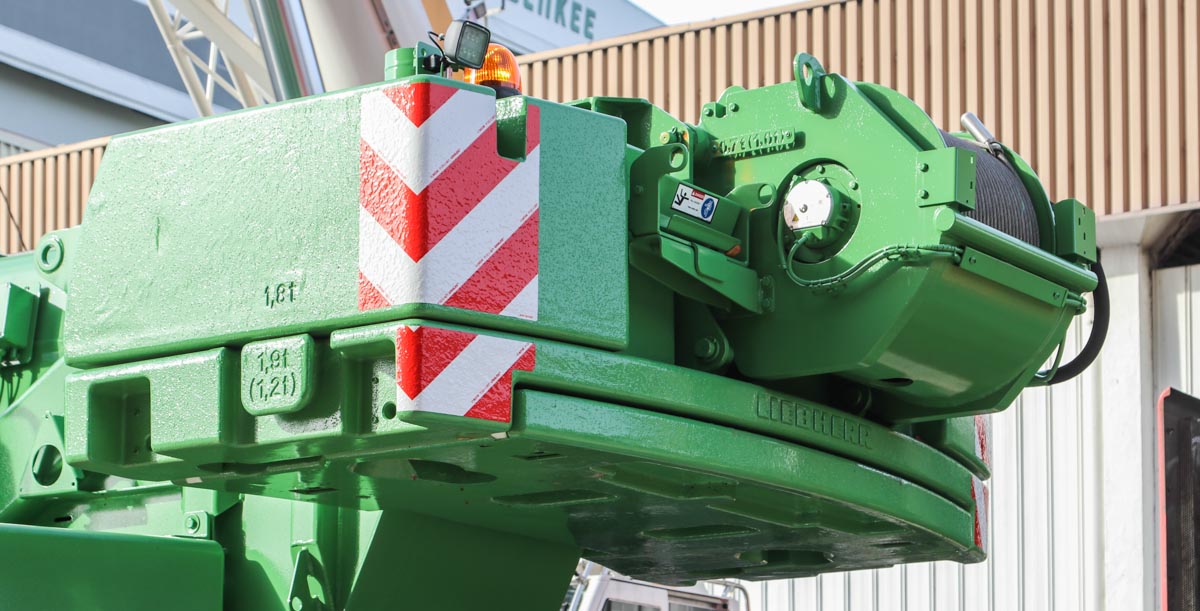

During the transport over the road 6.4 tonnes of counterweight remains on the undercarriage. The full counterweight weights 14.5 tonnes and has a 3.46 meter tailswing.

The crane is fitted with a second winch.

A very sharp and fresh crane in the colours of Kim Soon Lee!
