Liebherr LTM 1200-5.1
Huationg (Asia)

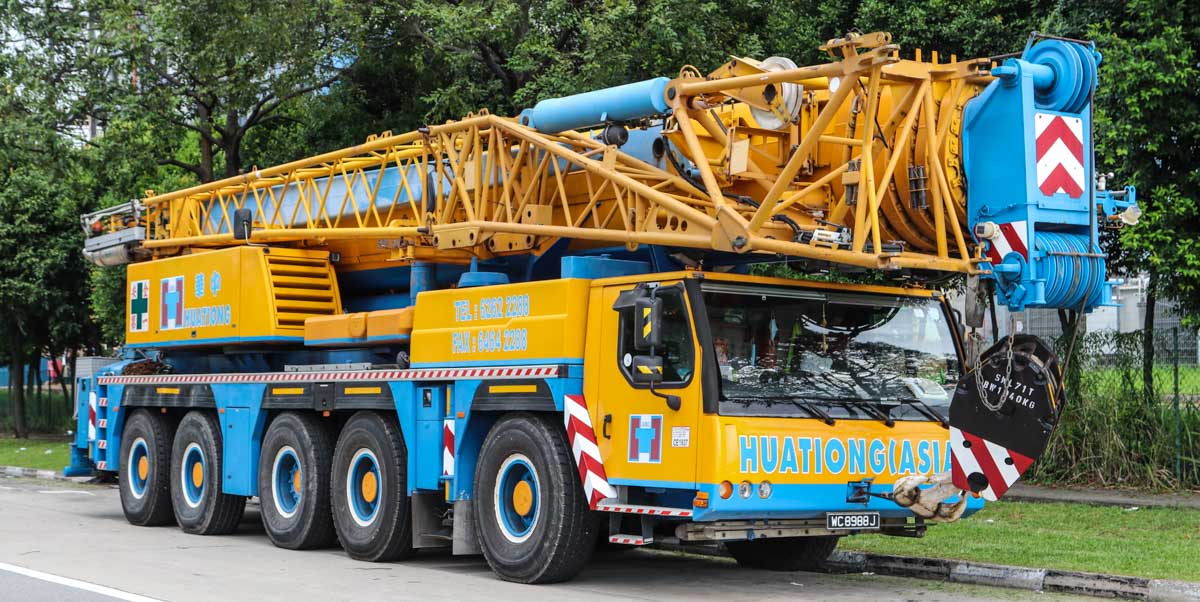

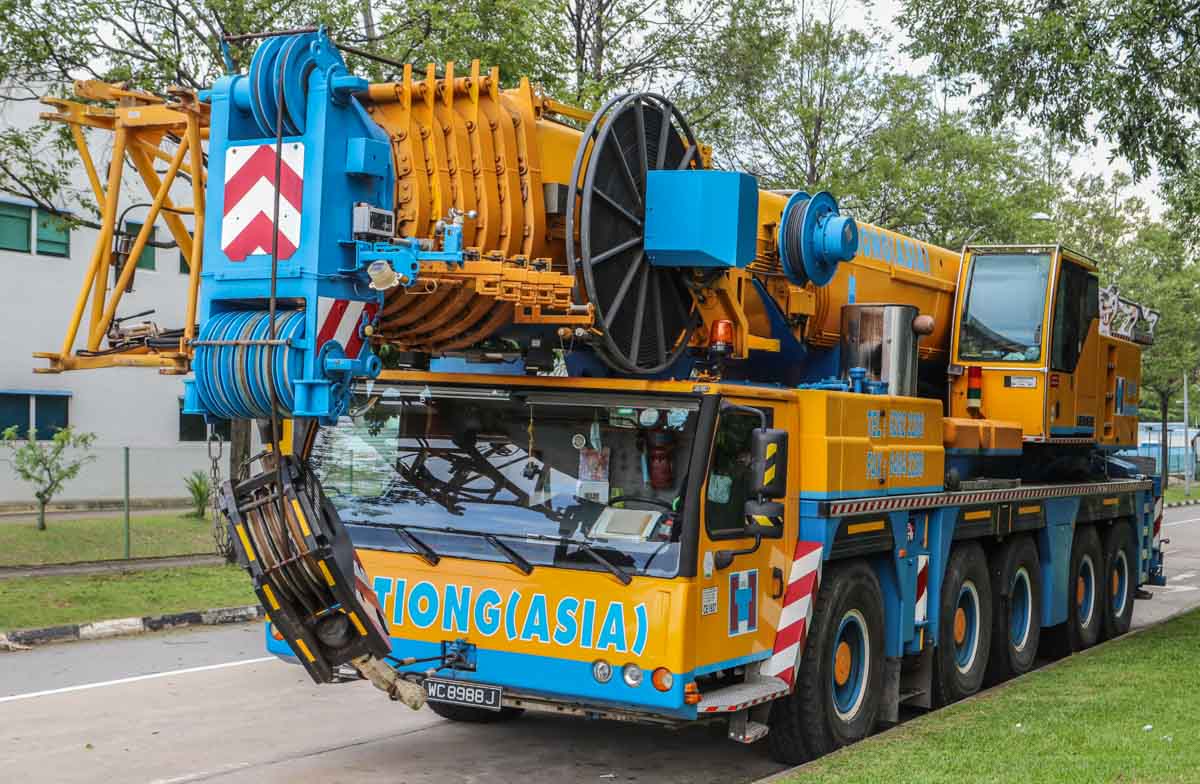

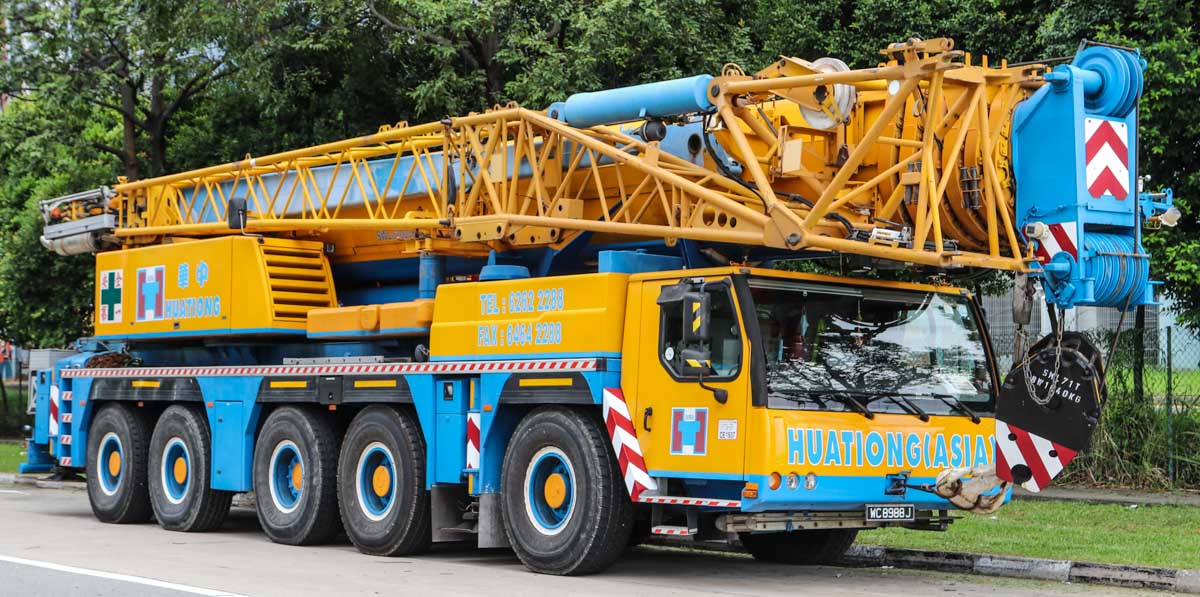

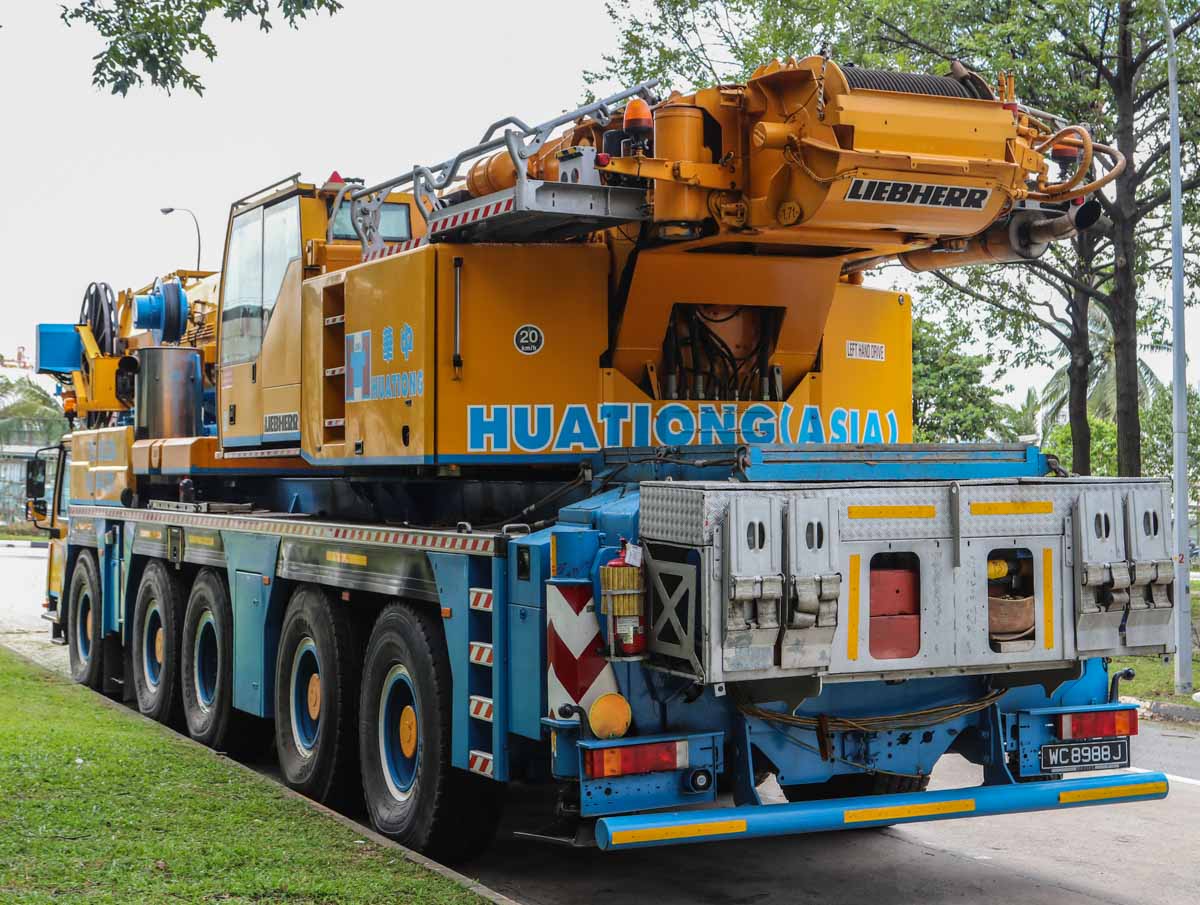

This fine Liebherr LTM 1200-5.1 belongs to Huationg (Asia) from Singapore (SG). It is a 200-tonne telescopic crane mounted on a 5-axle carrier, built in 2009.

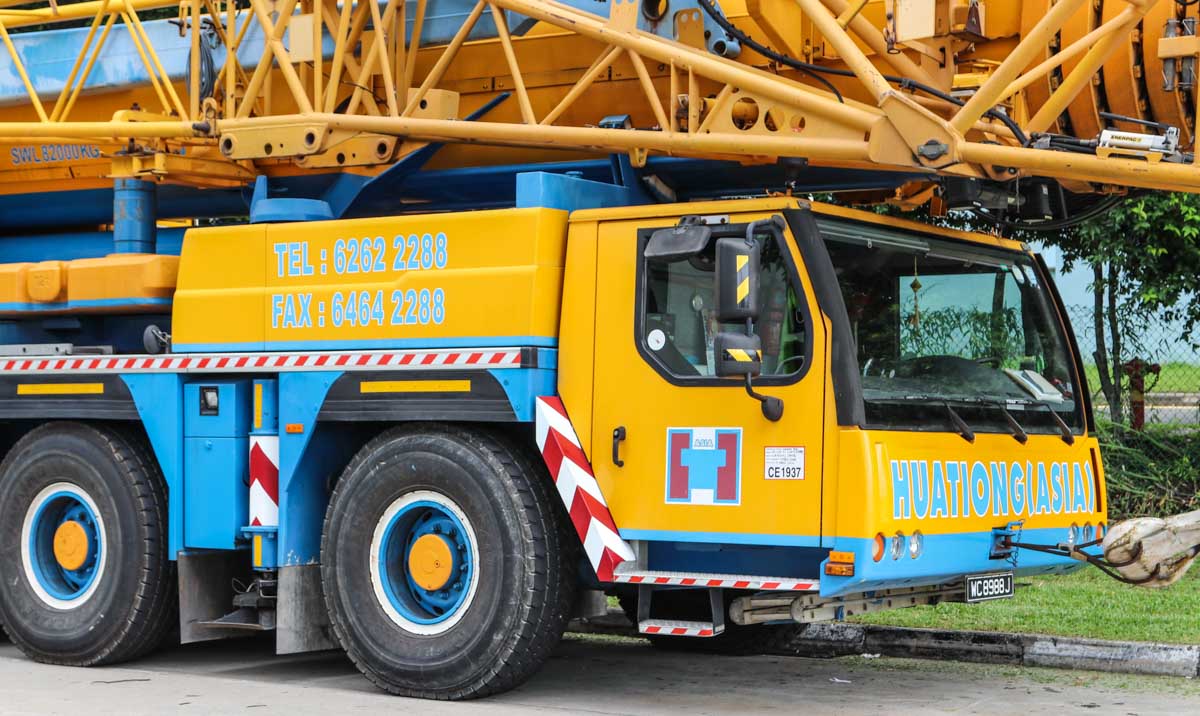

The 5-axle carrier is powered by a Liebherr 6-cylinder diesel engine with an output of 370 kW (503 hp). Axles 1, 2, 4 and 5 are driven, and all axles are steerable.
When stowed, the crane is 15.81 metres long, 3 metres wide and 4 metres high. The transport weight is approximately 75 tonnes.
The seven-section main boom has a base length of 13.2 metres and telescopes six times to a maximum length of 72 metres.

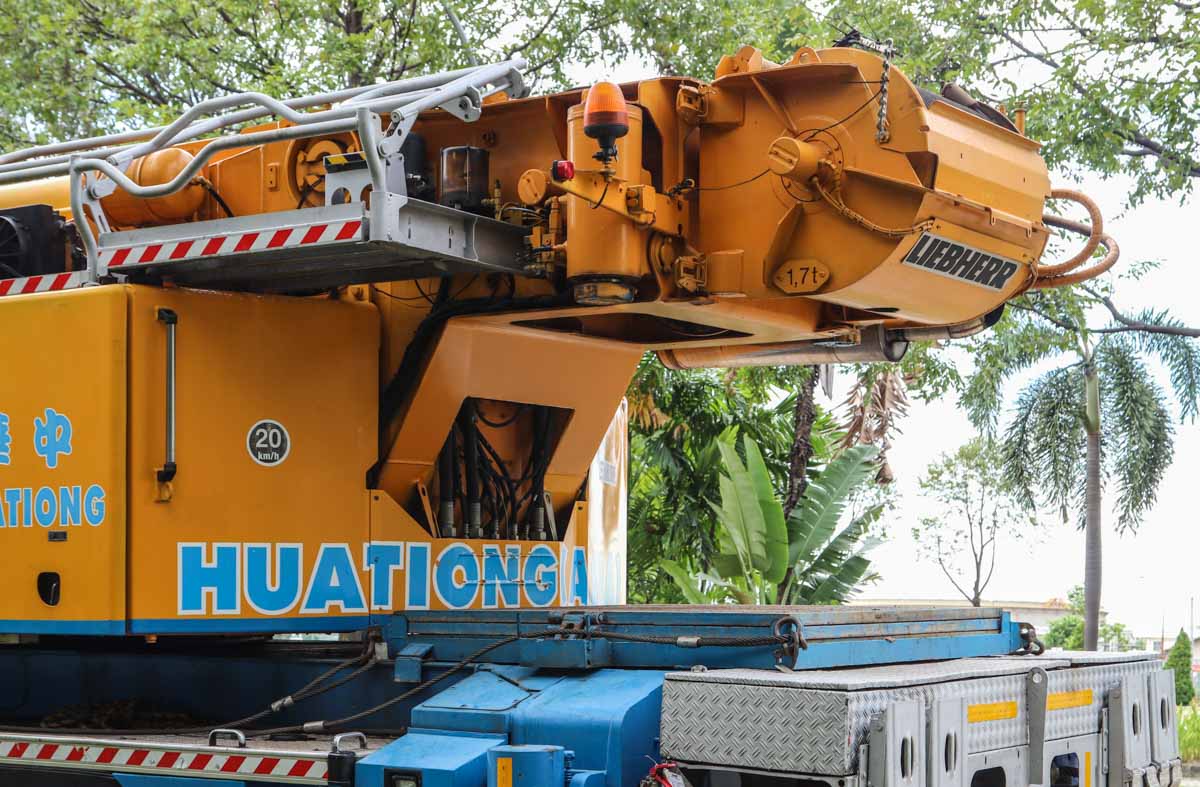

The superstructure has its own drive, provided by a Liebherr 4-cylinder diesel engine with an output of 145 kW (197 hp). This diesel engine drives a total of five hydraulic pumps.
A maximum of 72 tonnes of counterweight can be mounted on the superstructure, with a slewing radius of 4.85 metres. This crane is equipped with the optional second hoist winch. Both hoist winches have a line pull of 10.7 tonnes and are fitted with 23 mm hoist rope.

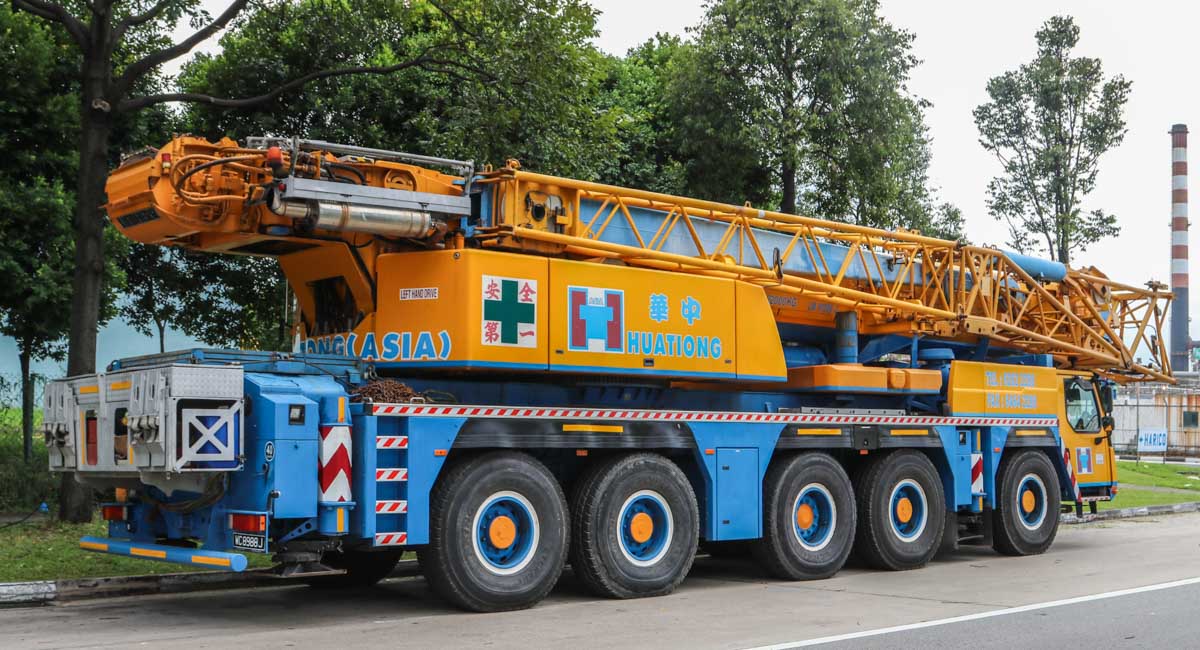

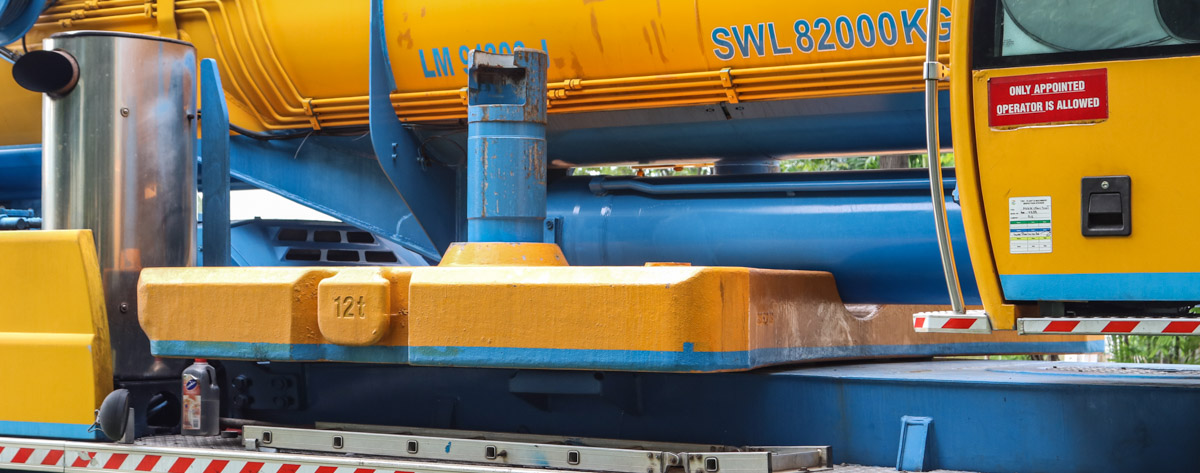

The 12-tonne base plate is carried on the deck of the carrier. This is the only counterweight the crane can transport itself; the remaining six slabs, each weighing 10 tonnes, must be delivered by truck.
The outrigger base measures 8.9 x 8.3 metres.

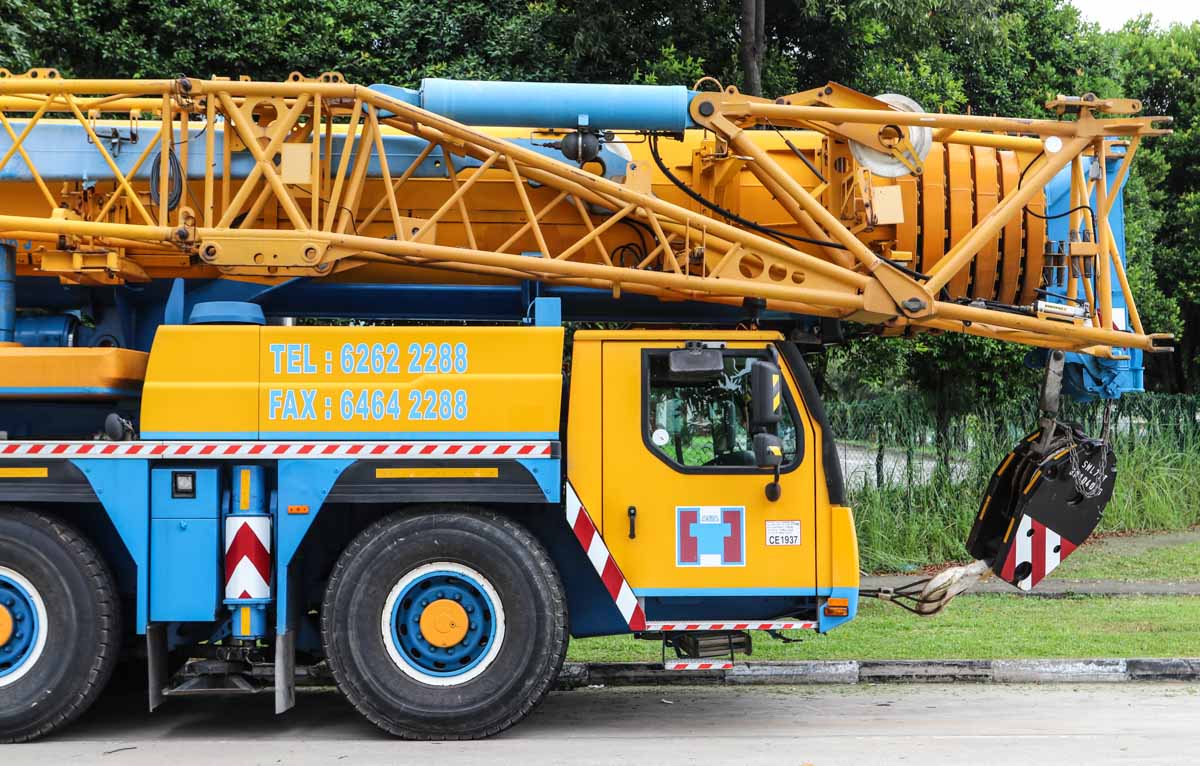

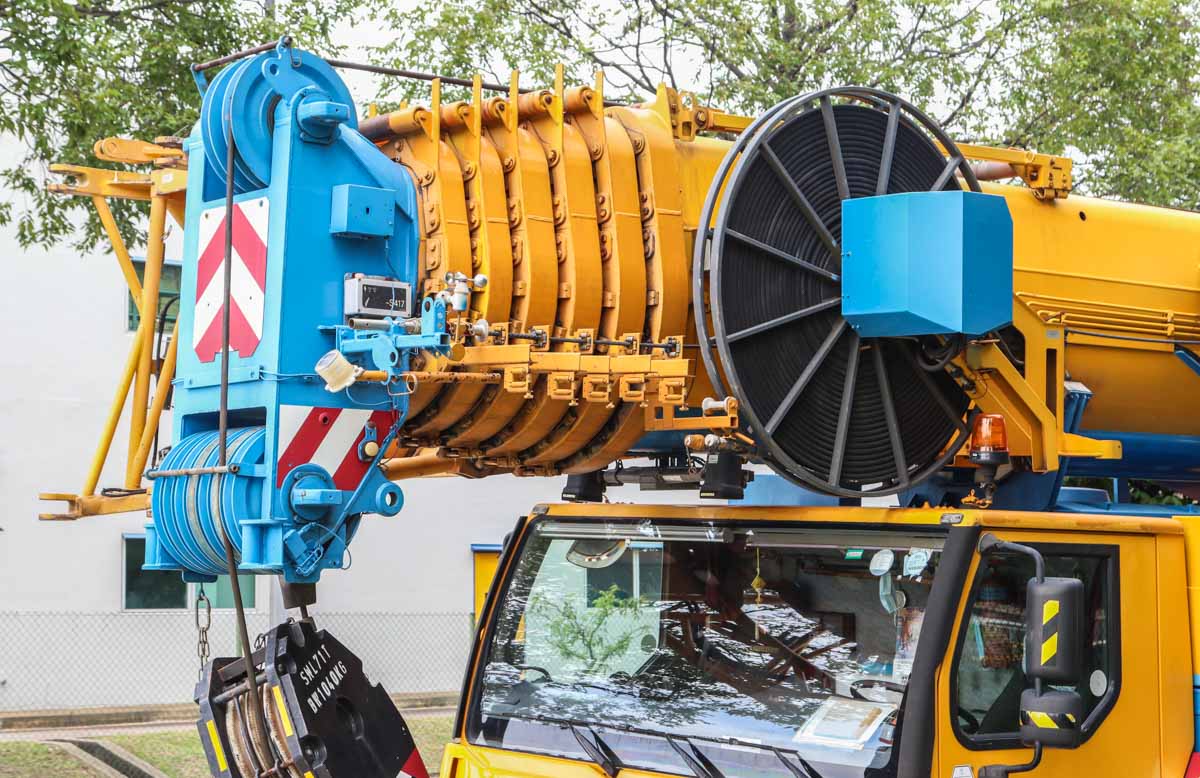

Optionally, the main boom can be extended with a 12.222 metre folding jib, which is hydraulically adjustable between 0 and 45 degrees.
A very fine crane from Huationg (Asia)!
