Liebherr LTM 1070-4.2 - Huationg (Asia)

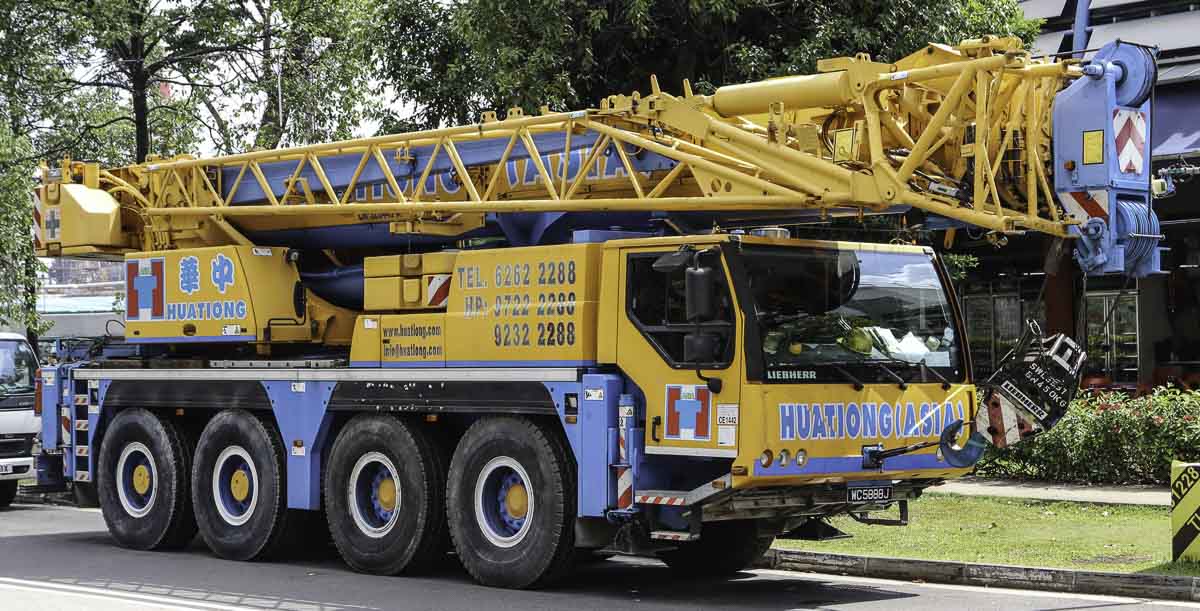

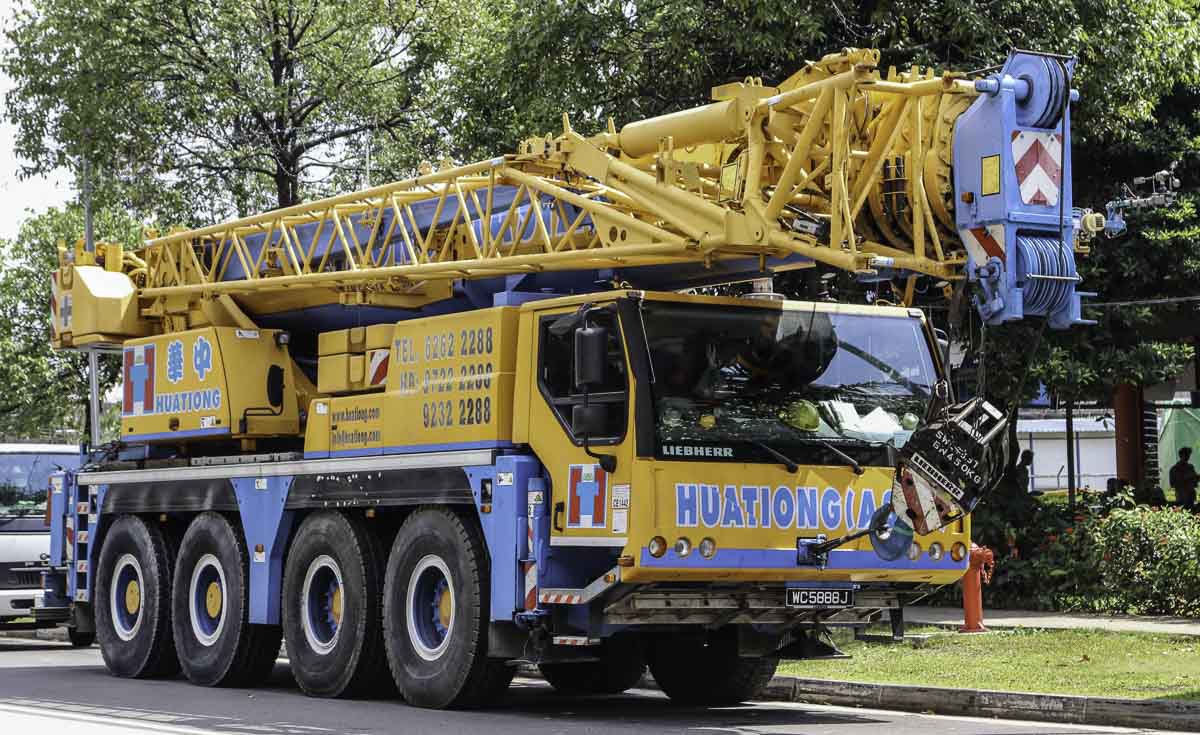

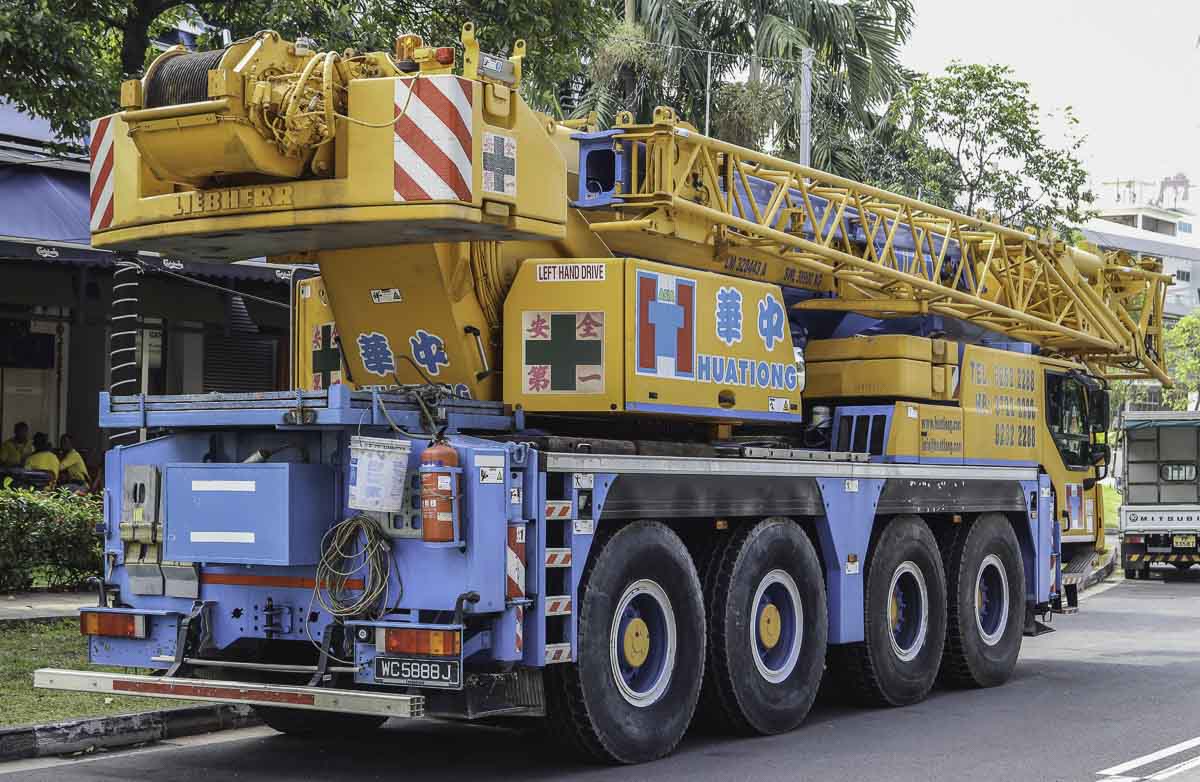

This sharp Liebherr LTM 1070-4.2 of Huationg (Asia) stood for a short lunch break parked along the road. It is a 70-tonne crane mounted on a 4-axle carrier.

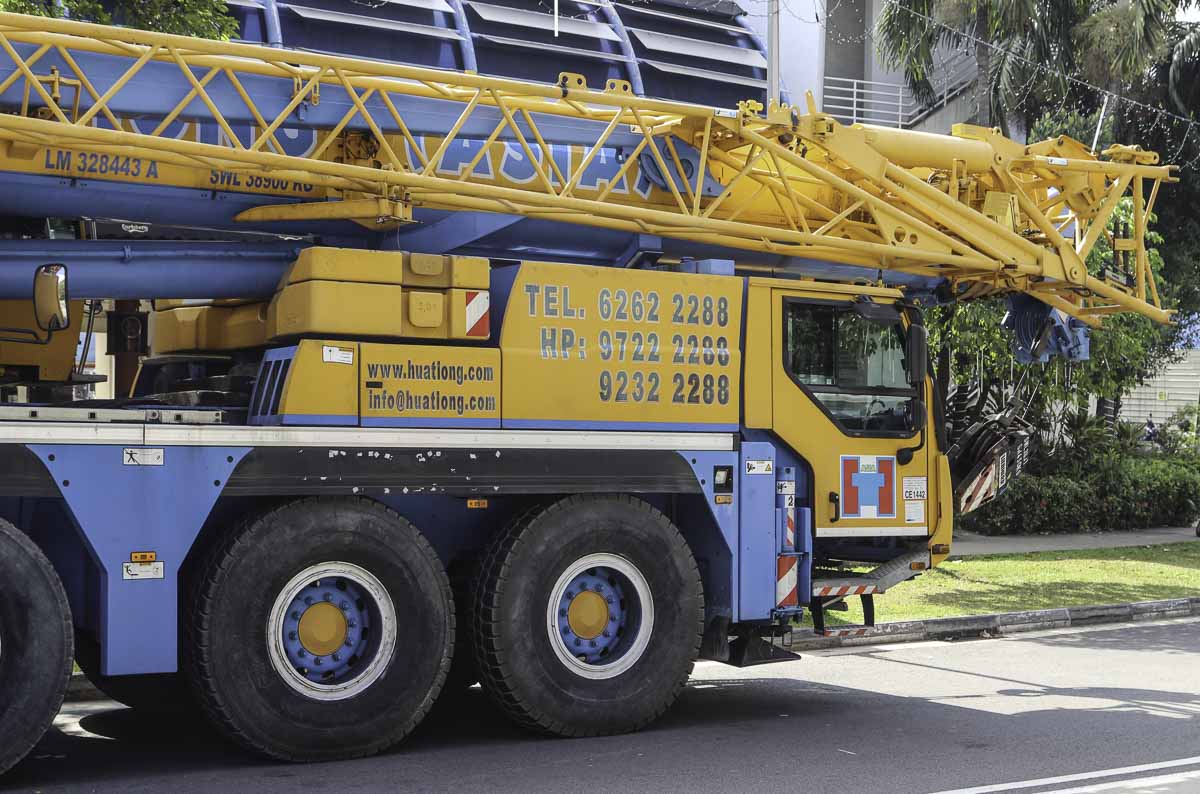

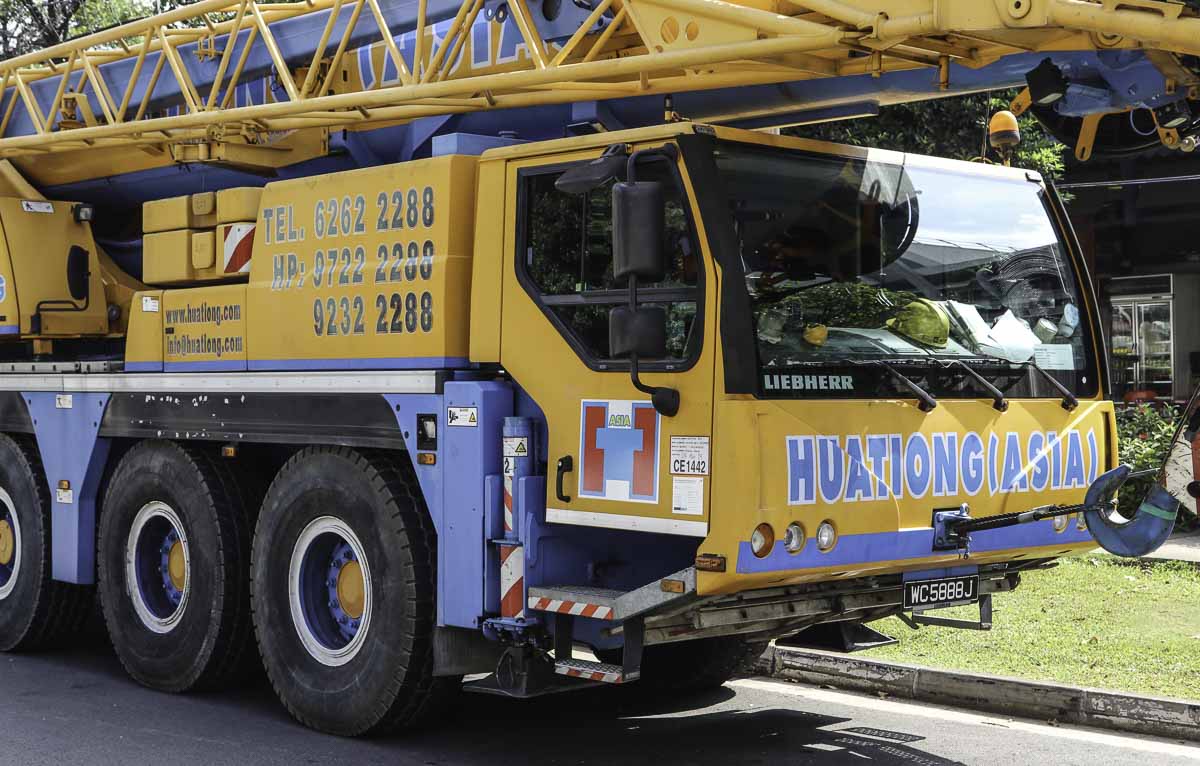

The undercarriage is powered by a Liebherr 6-cylinder diesel engine with a power of 270 kW (367 hp). This crane has the standard 8x4x8-drive line, where both rear axles are powered and all axles are steerable.
The outrigger base measures 8 x 6,3 meters, or half 8 x 4.5 meters. During the transport over the road are 7.6 tonnes of counterweight stored on the carrier.
In transit is the crane 13.04 meters long, 2.55 meters wide and 3.95 meters tall. The transport mass is about 48 tonnes. A set of outrigger pads are taken at the rear of the crane in a small frame.

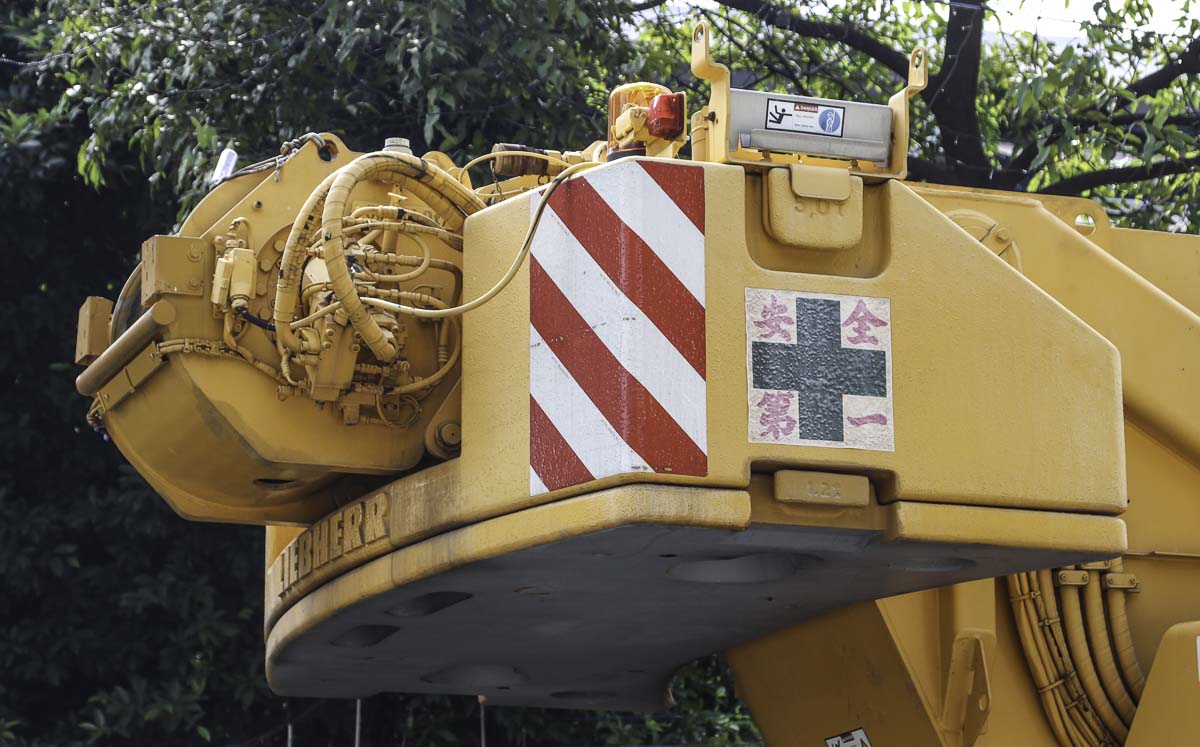

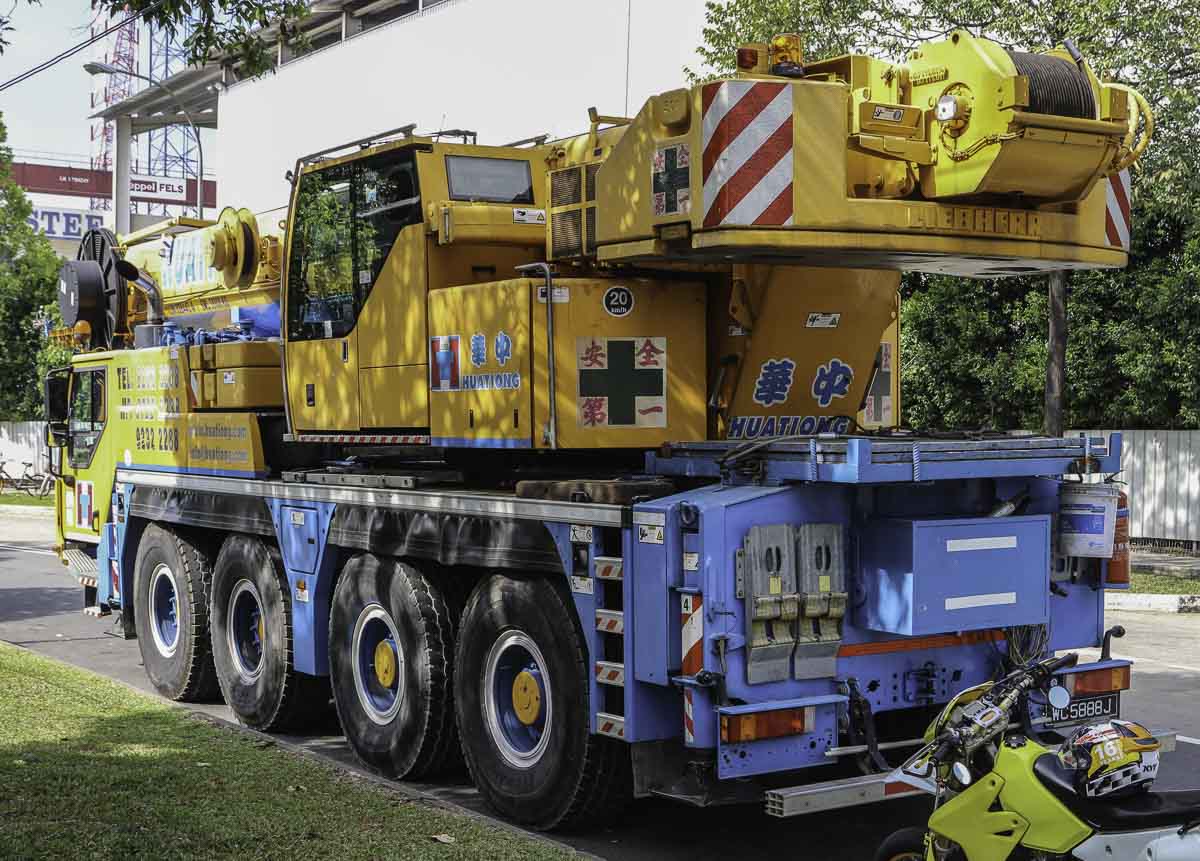

Attached to the superstructure remains 6.2 tonnes of counterweight. The crane is fitted with the optional second winch, because of the winch is the total counterweight reduced of 13.8 tonnes. The counterweight has a 3.46 meter tailswing and the second winch has a 4 meter tailswing.

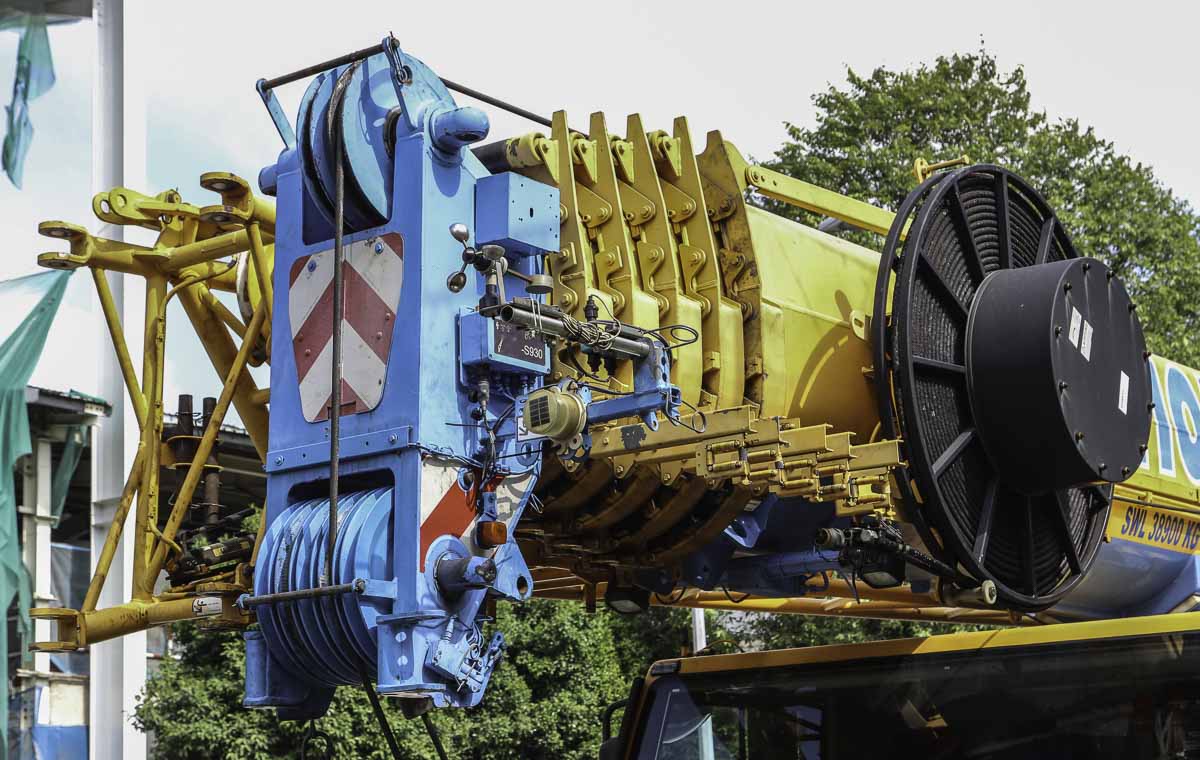

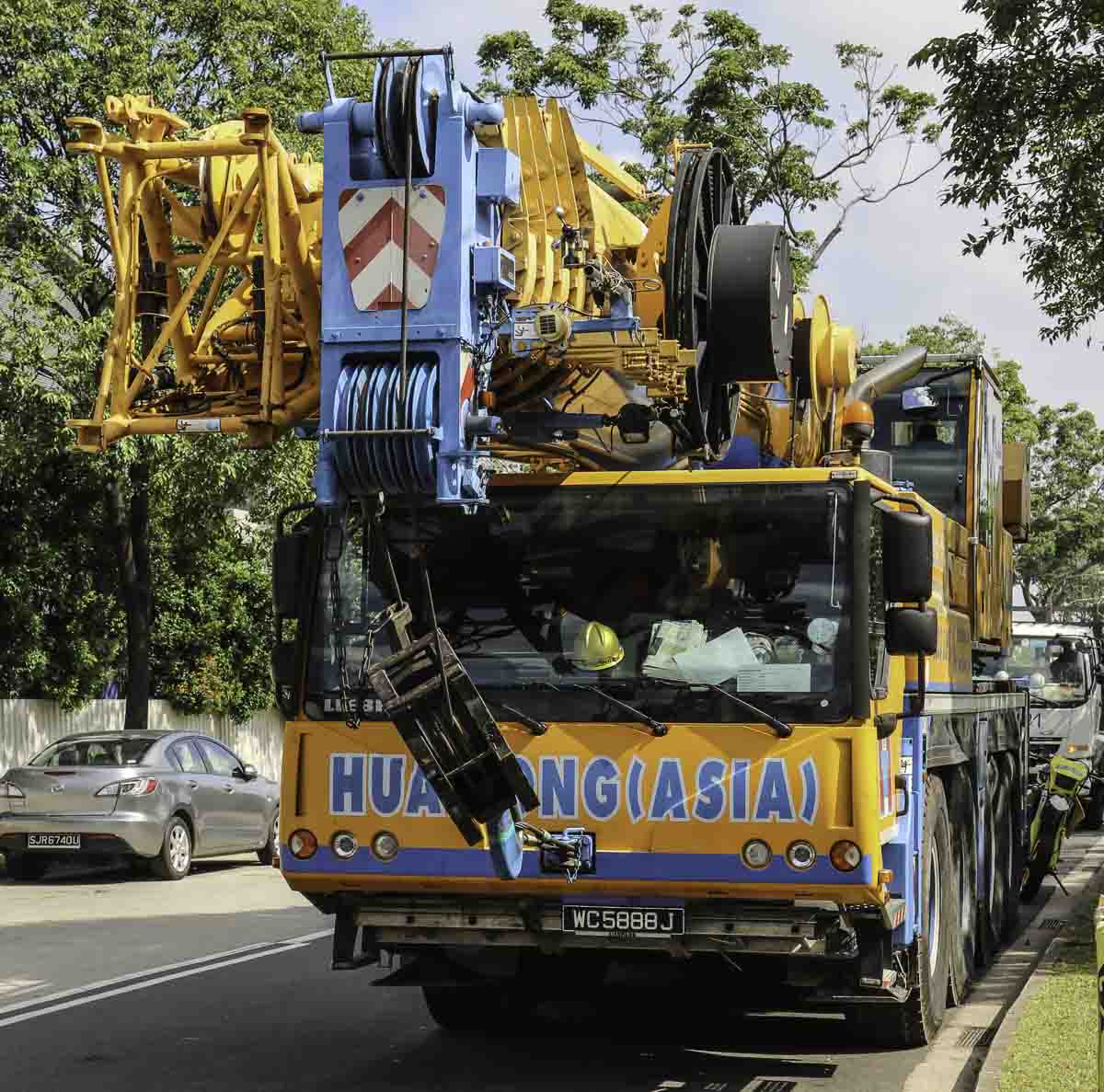

The 6-part main boom has an 11 meter base length and extends five times to a maximum length of 50 meters. The main boom can be extended by a bi-fold swingaway jib with a length of 9.5 or 16 meters, mountable to the main boom head and adjustable under load in an angle between 0 and 60 degrees.
A very sharp crane in the colours of Huationg (Asia)!
