Liebherr LTM 1130-5.1 - Gräser Eschbach

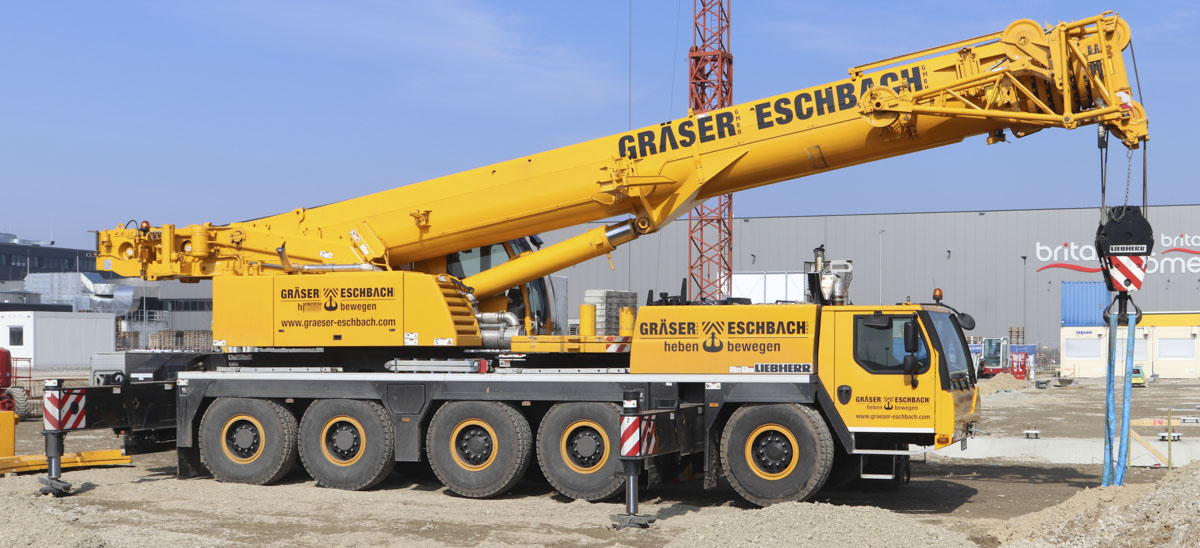

This sharp Liebherr LTM 1130-5.1 of Gräser Eschbach from Mannheim (DE) stood on a construction site in Leipheim (DE) and would be used for the installation of concrete precast elements. The crane's year of manufacture is 2015.

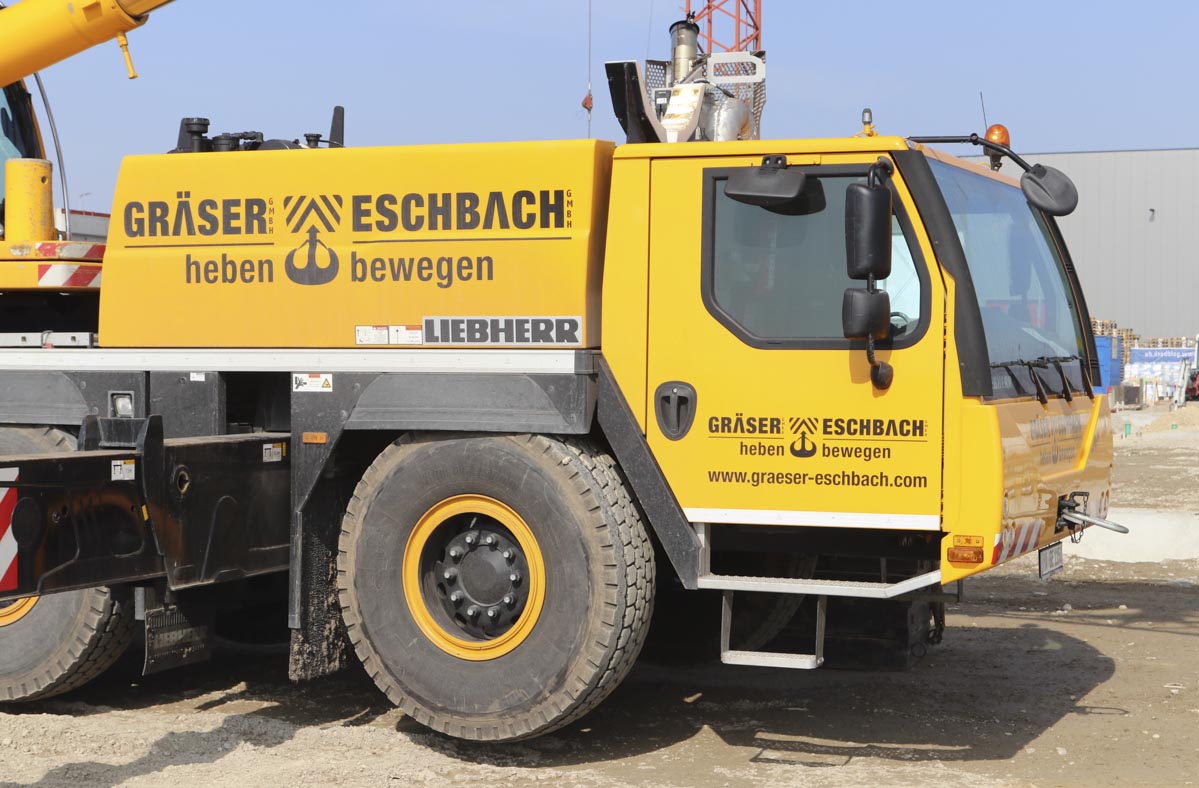

The 5-axle undercarriage is powered by a Liebherr 6-cylinder diesel engine with a power of 370 kW (503 hp). This crane has the standard 10x6x10-drive line where the axles 2, 4 and 5 are driven and all axles are steerable.

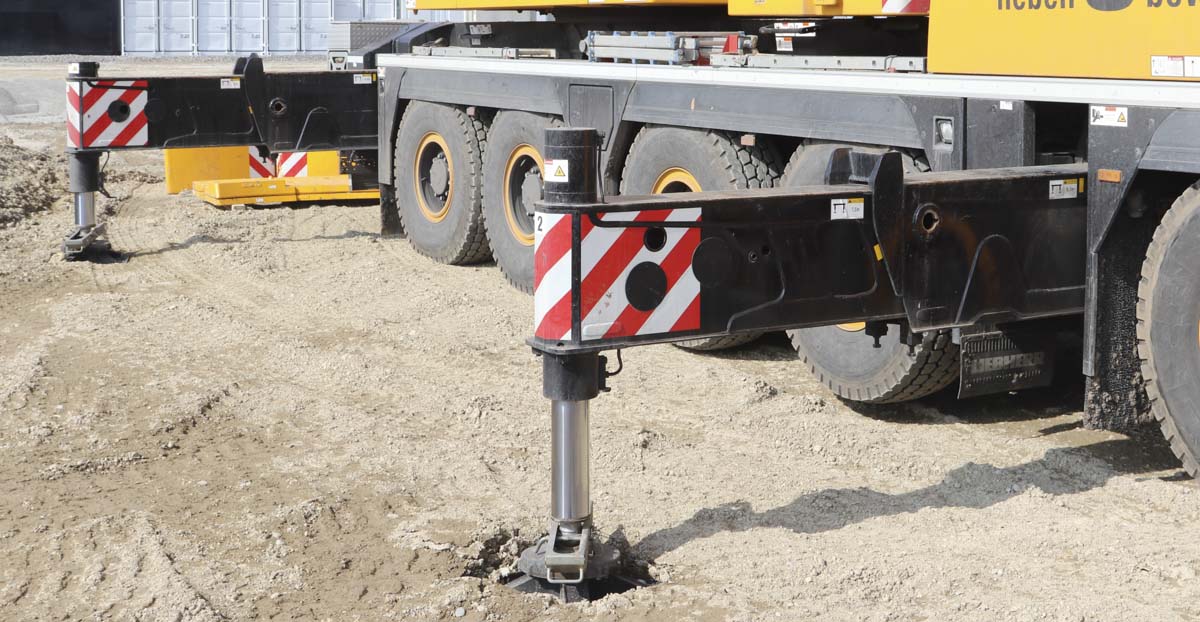

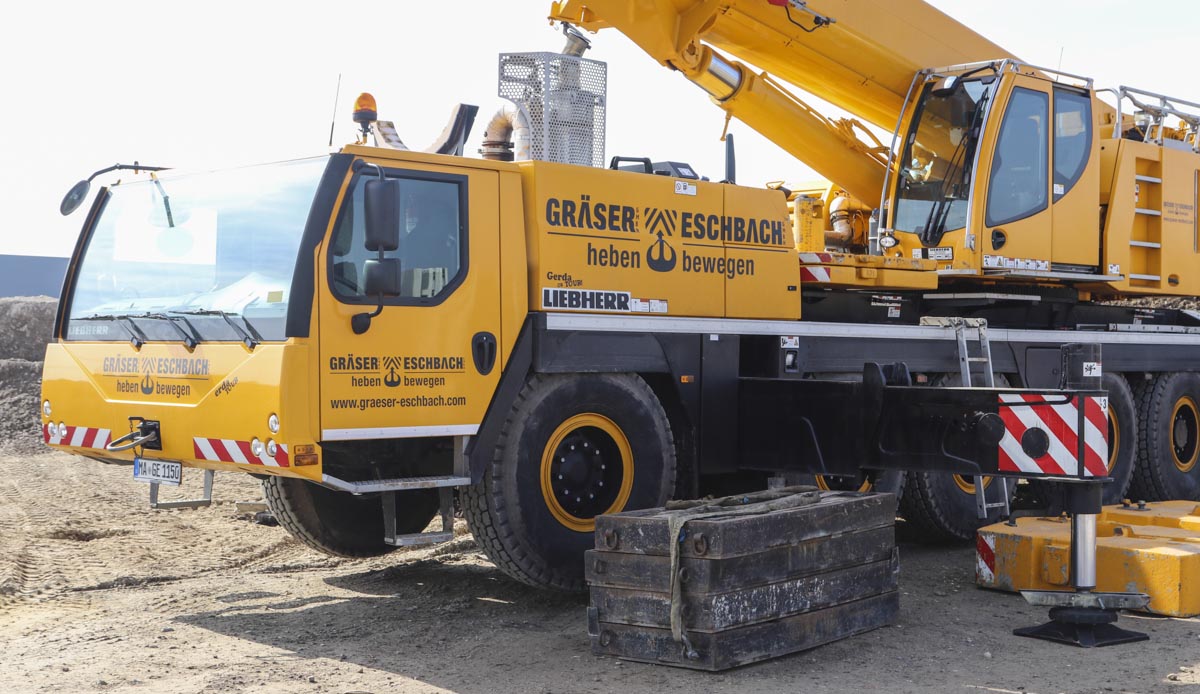

The outrigger base measures 8.1 x 7.5 meters, or half 8.1 x 5 meters.

In transit is the crane 15.5 meters long, 2.75 meters wide and 3.9 meters tall.

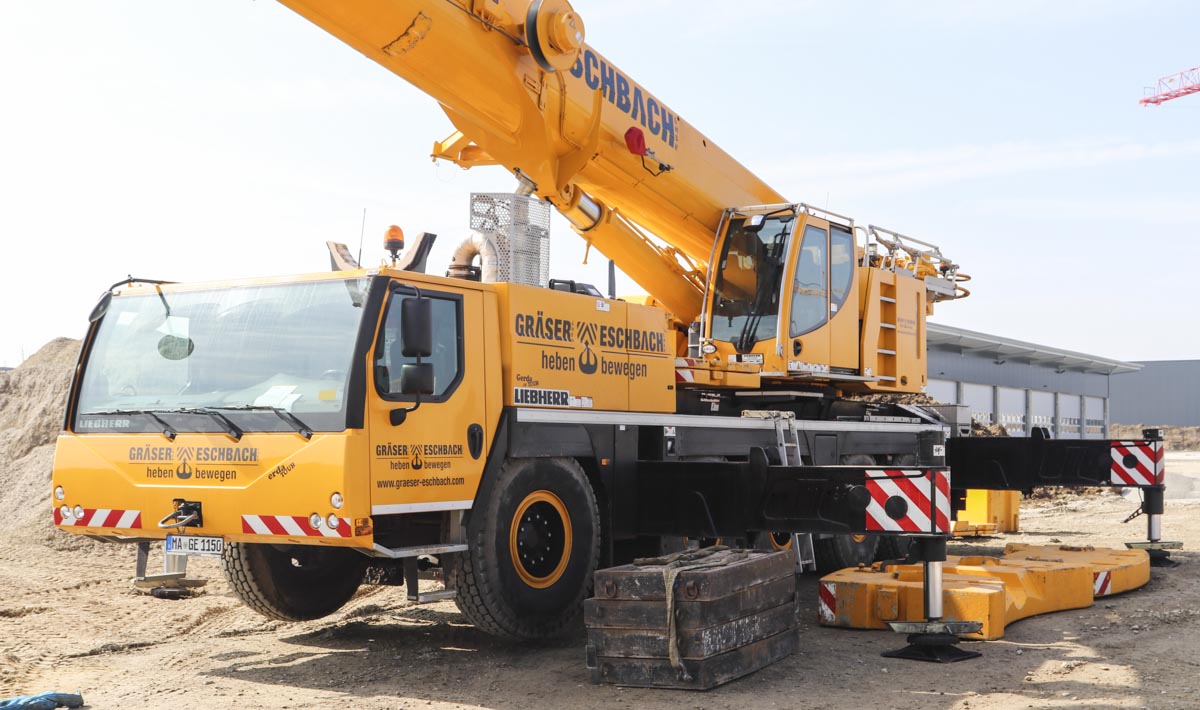

The crane was earlier delivered to the construction site and wasn't prepared for the operation.

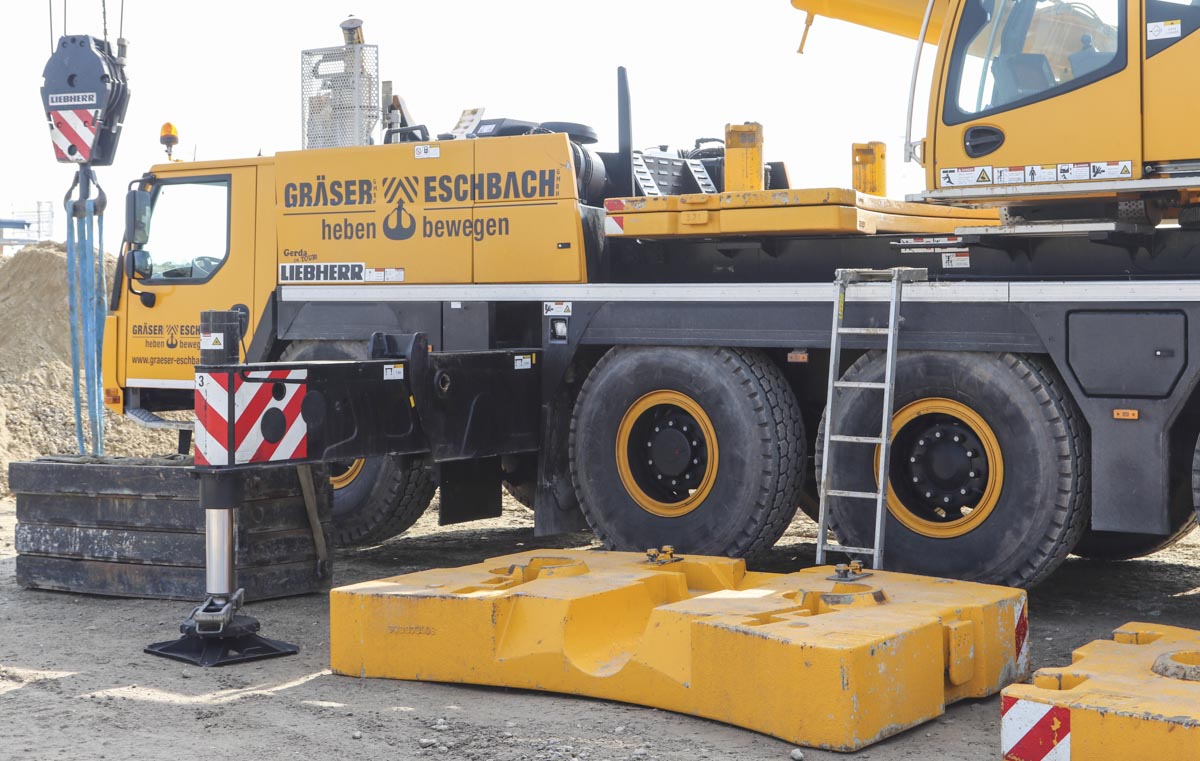

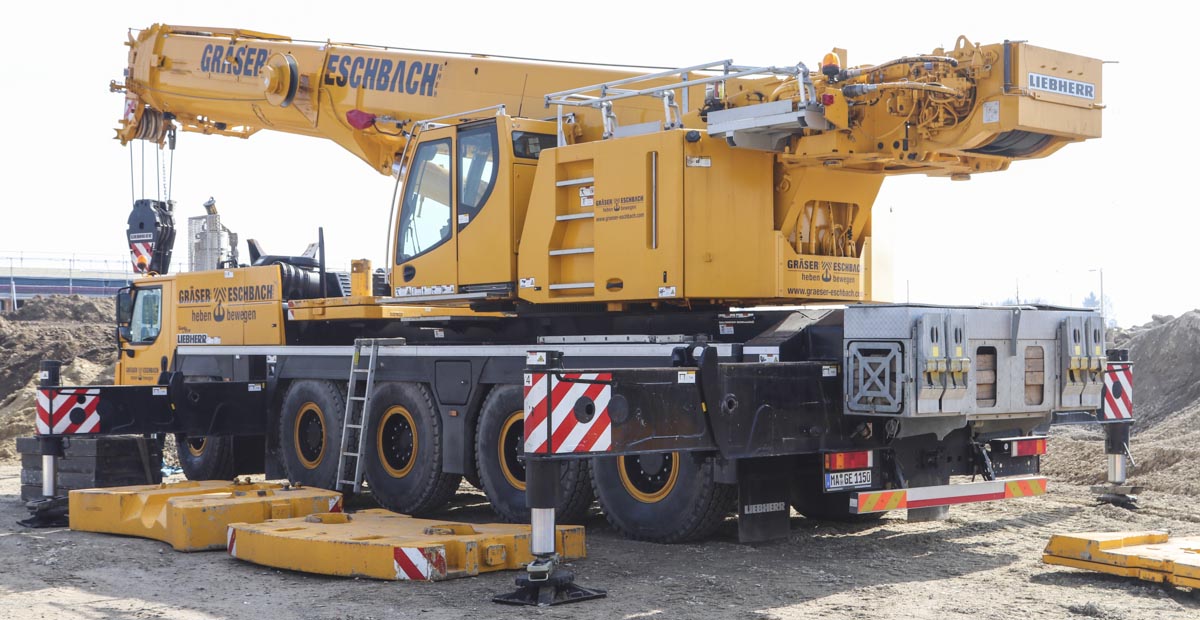

During the transport over the road remains 6.1 tonnes of counterweight on the undercarriage. The full counterweight weights 39.1 tonnes and has a 4.2 meter tailswing.

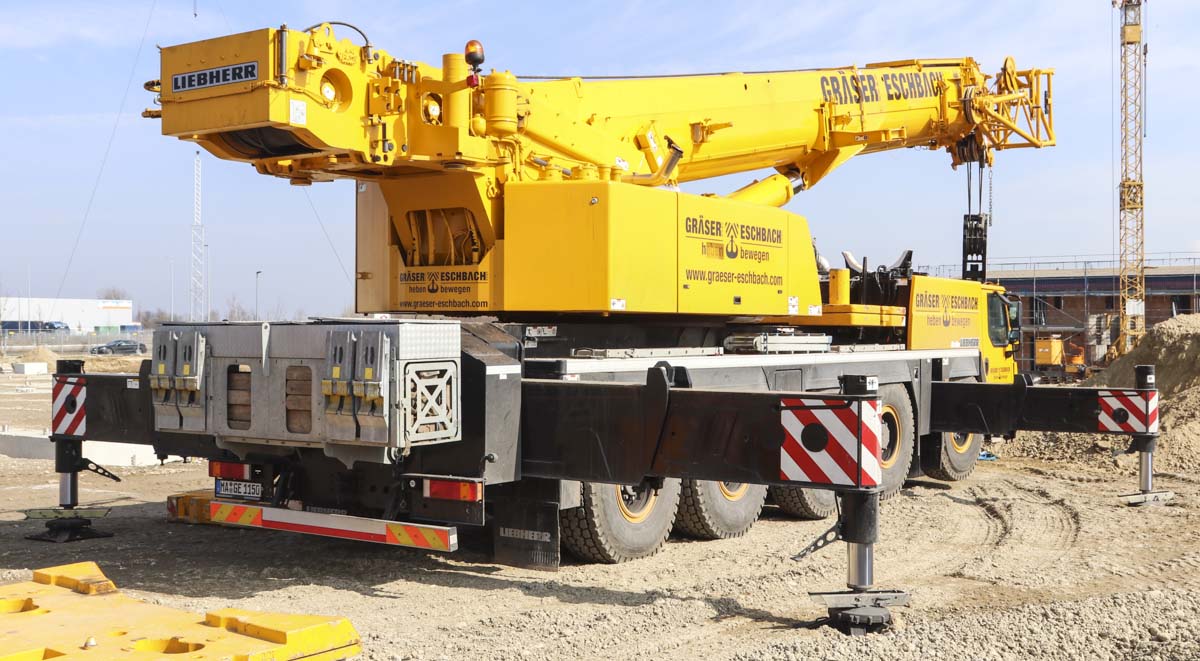

At the rear of the chassis is a large box with wooden beams installed. On top of the box are storage compartments for lifting gear made.

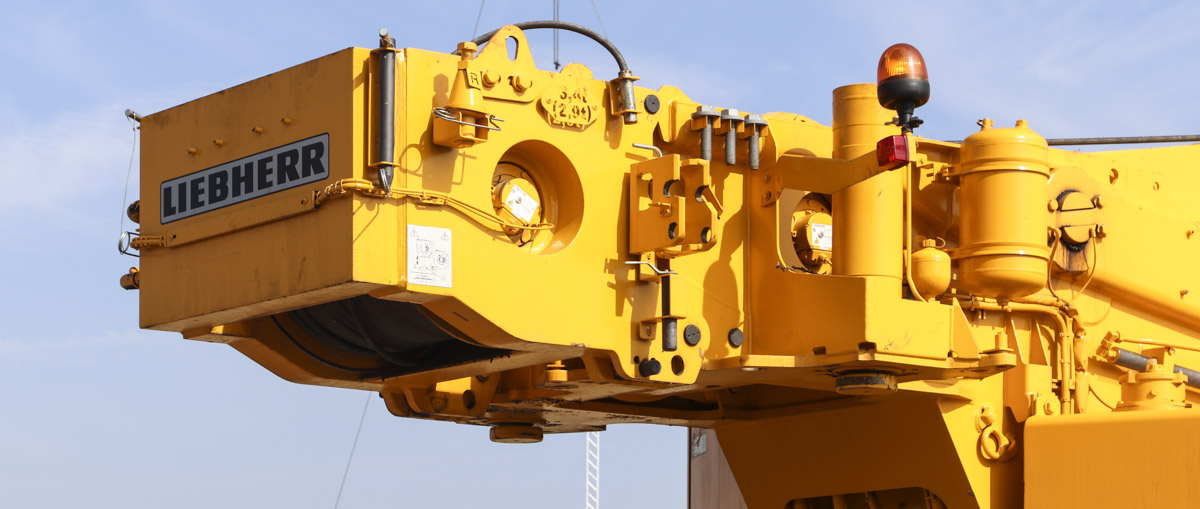

The crane is fitted with a second hoist winch, which increases the tailswing of the super structure to 4.88 meters.

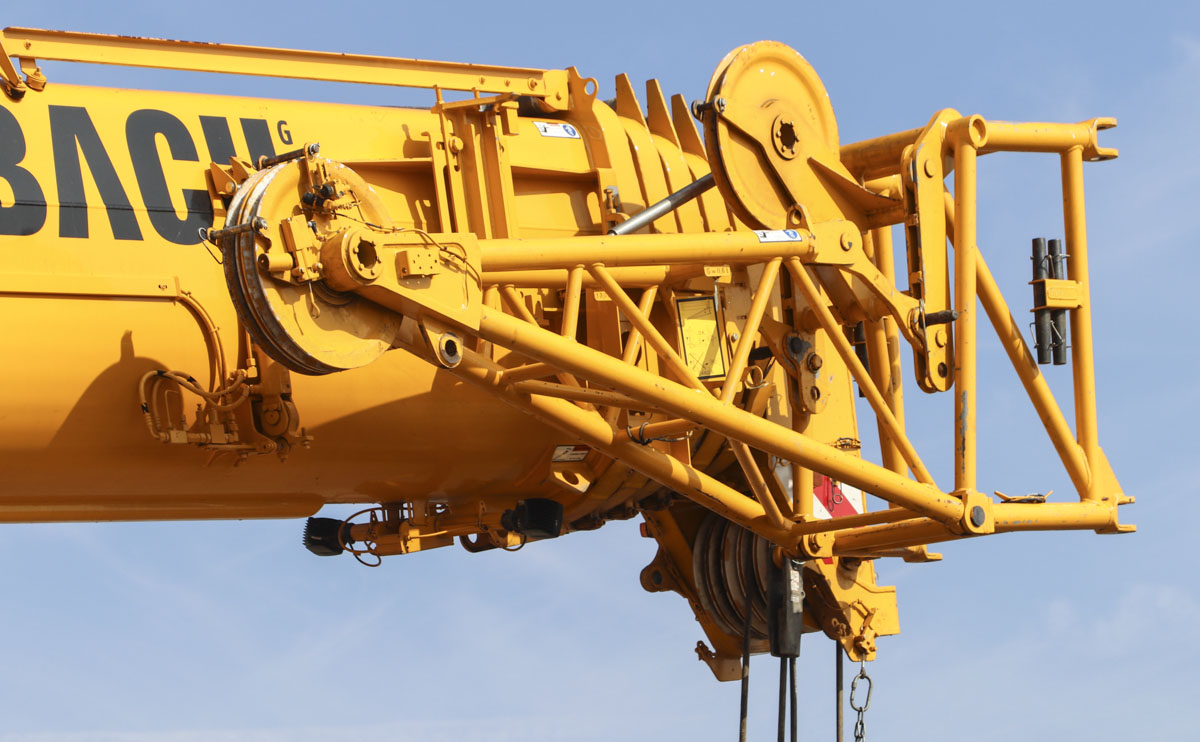

The main boom has a 12.7 meter base length and extends five times to a full length of 60 meters. Next to the main boom is a small assembly jib attached, the jib is usually used when the crane is working with two hooks to rotate elements.
