Liebherr LR 1200 - Felbermayr

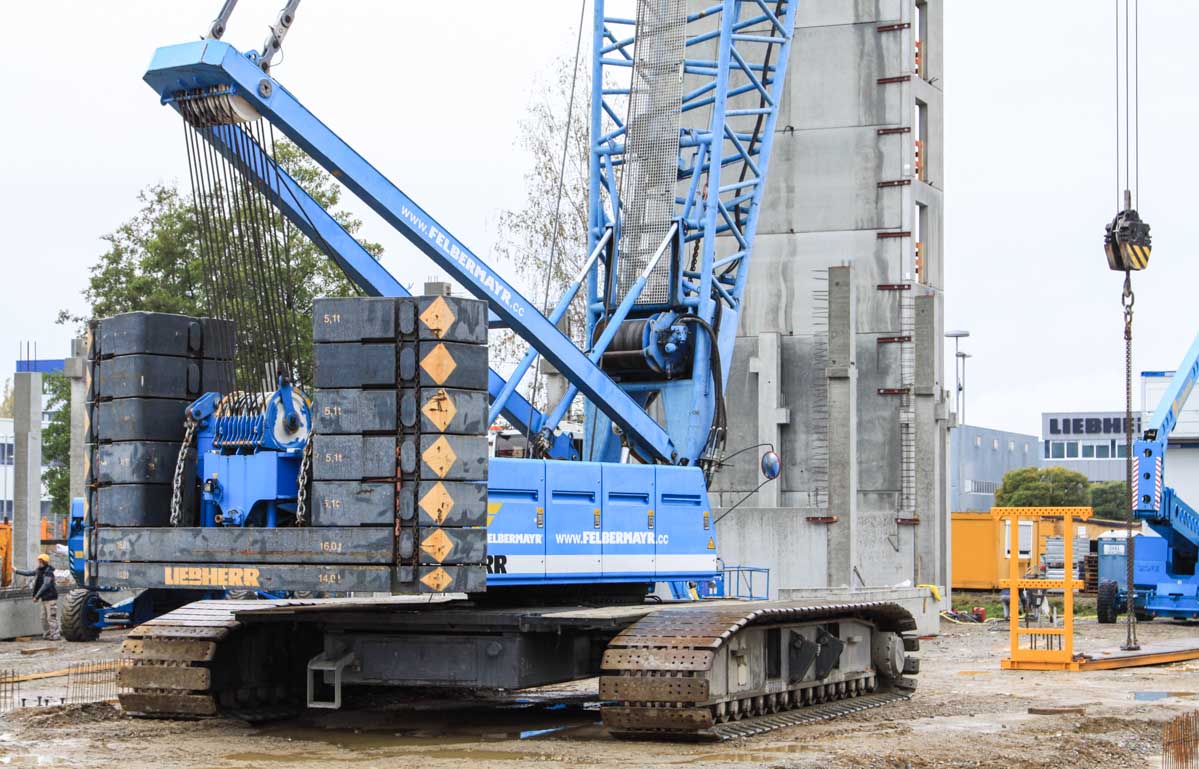

A Liebherr LR 1200 of Felbermayr from Wels (AT) by the assembly of precast concrete elements for a big parking.

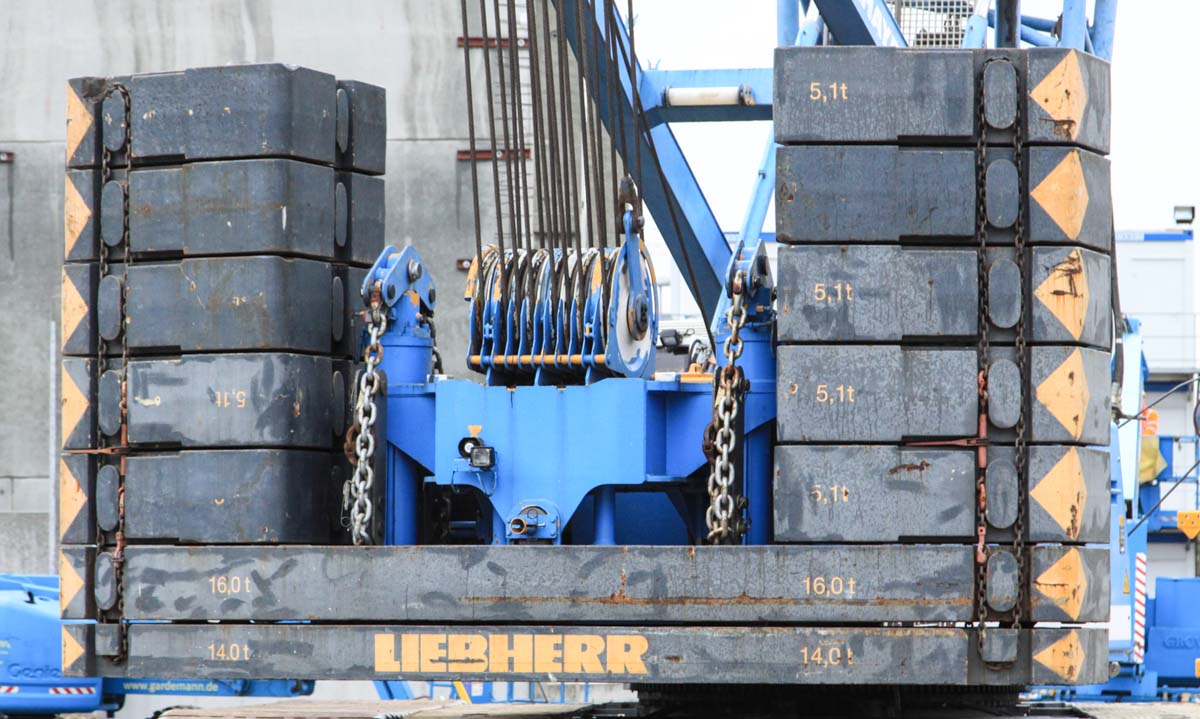

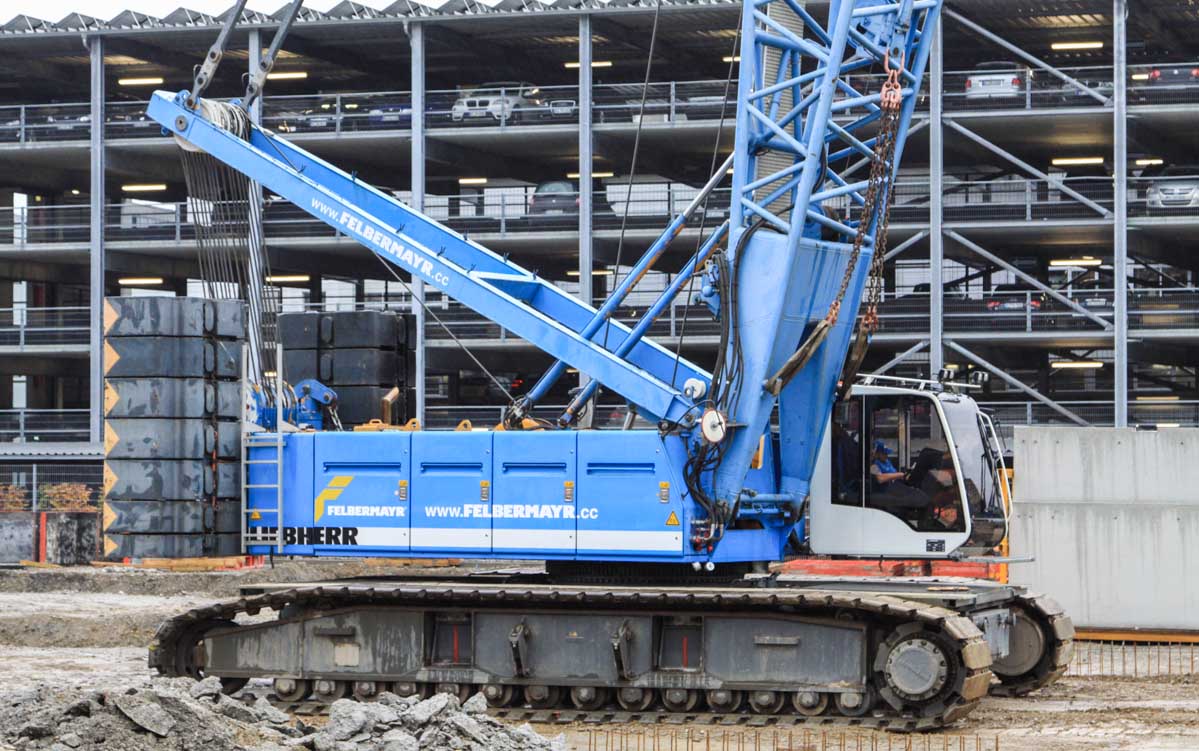

The crane is put up with 81 tonnes of counterweight and 36 tonnes of lower weights. The counterweight has a 6.2 meter tailswing.

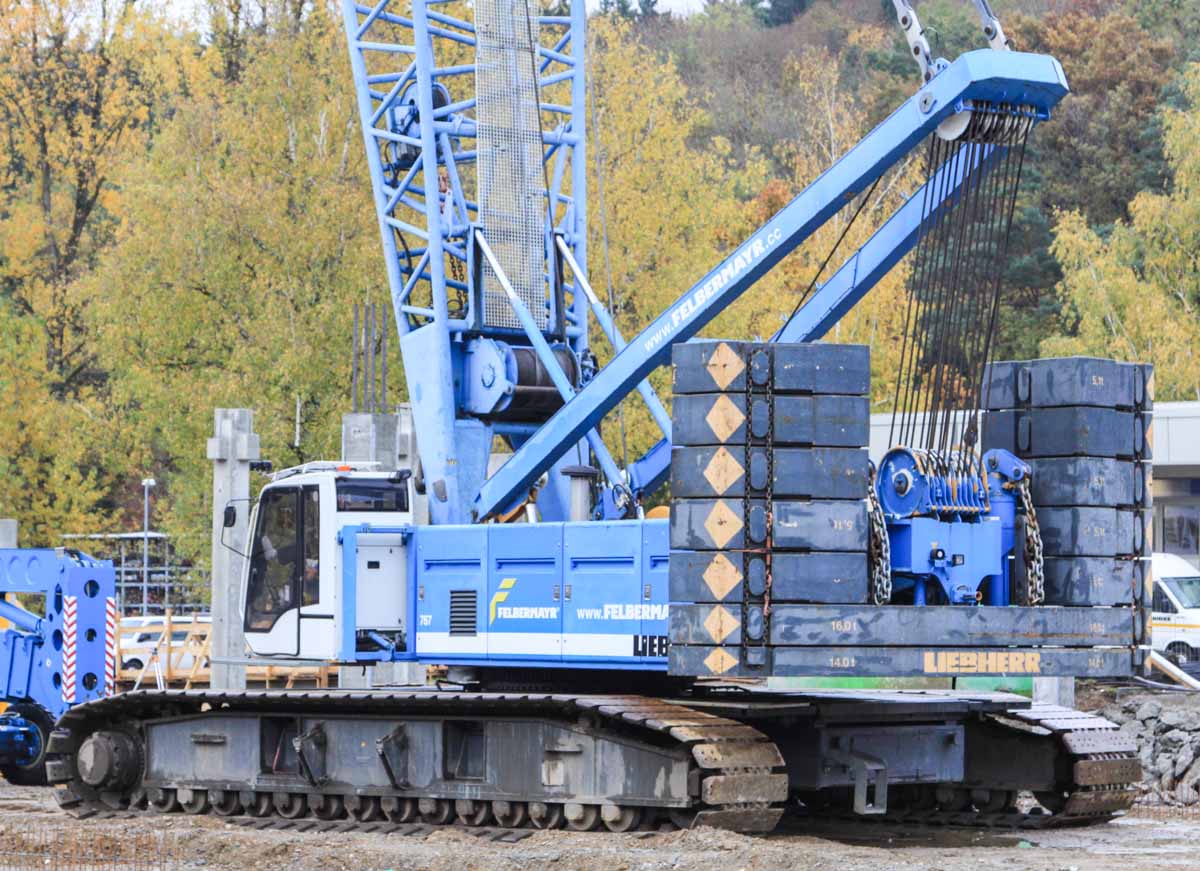

The tracks of the crane are 8.7 meters long, 1.2 meters wide and 1.35 meters high. The mass each is 19.8 tonnes.

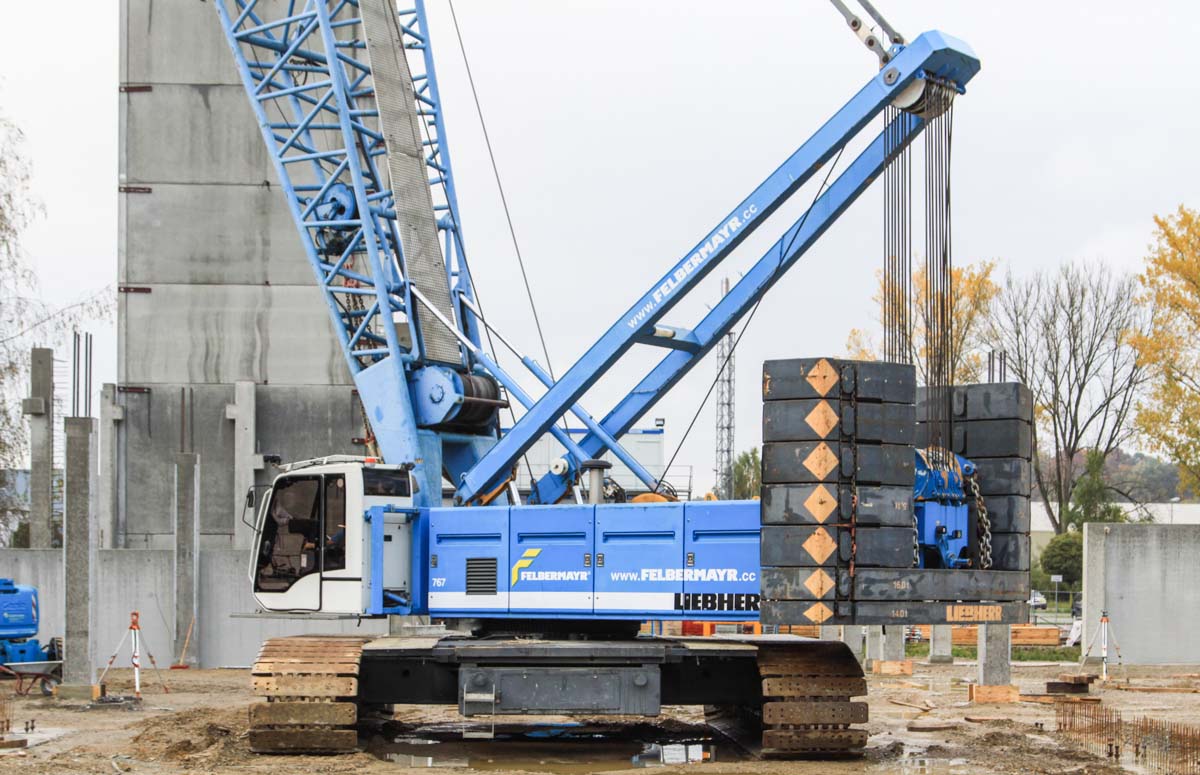

The undercarriage is 7 meters wide.

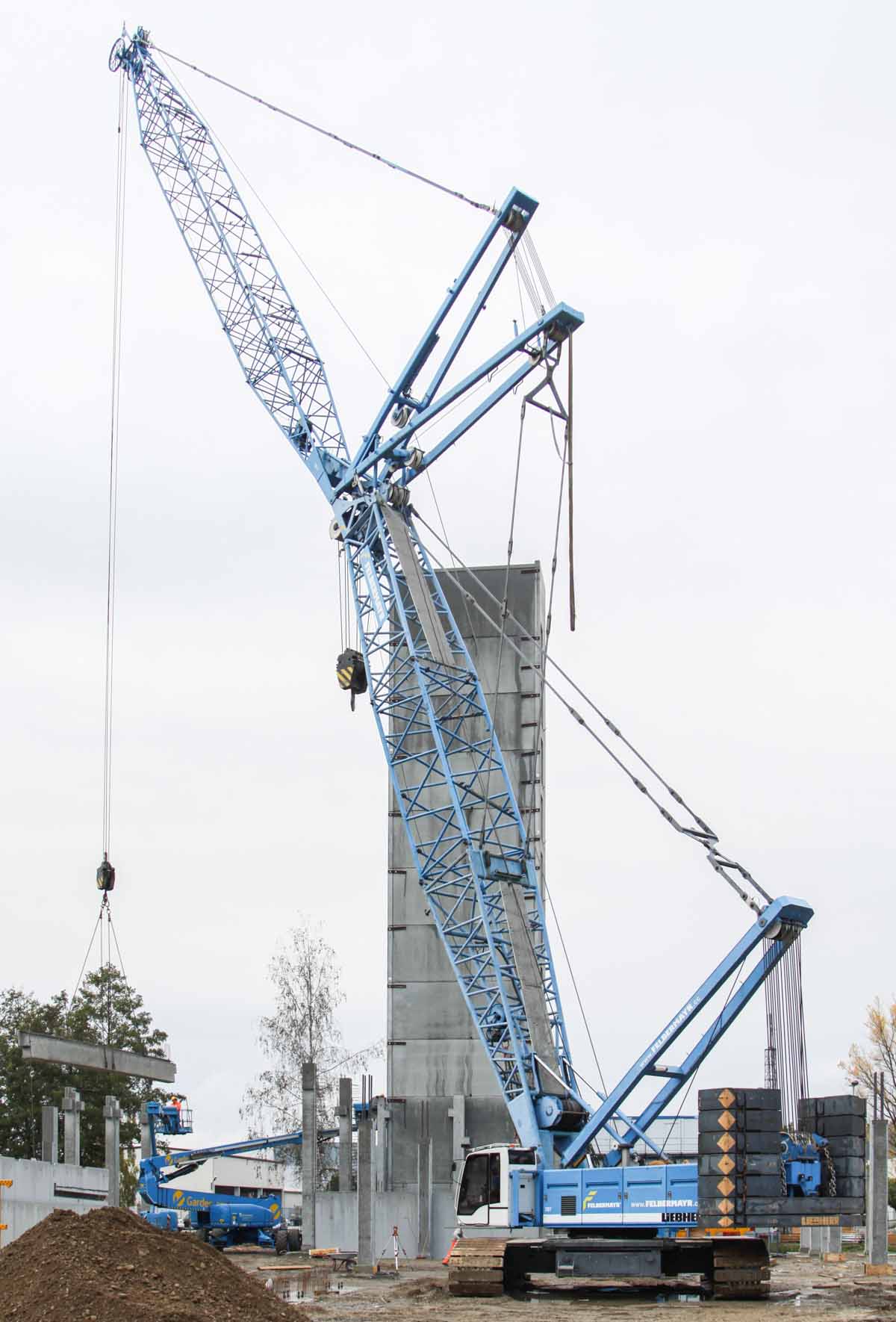

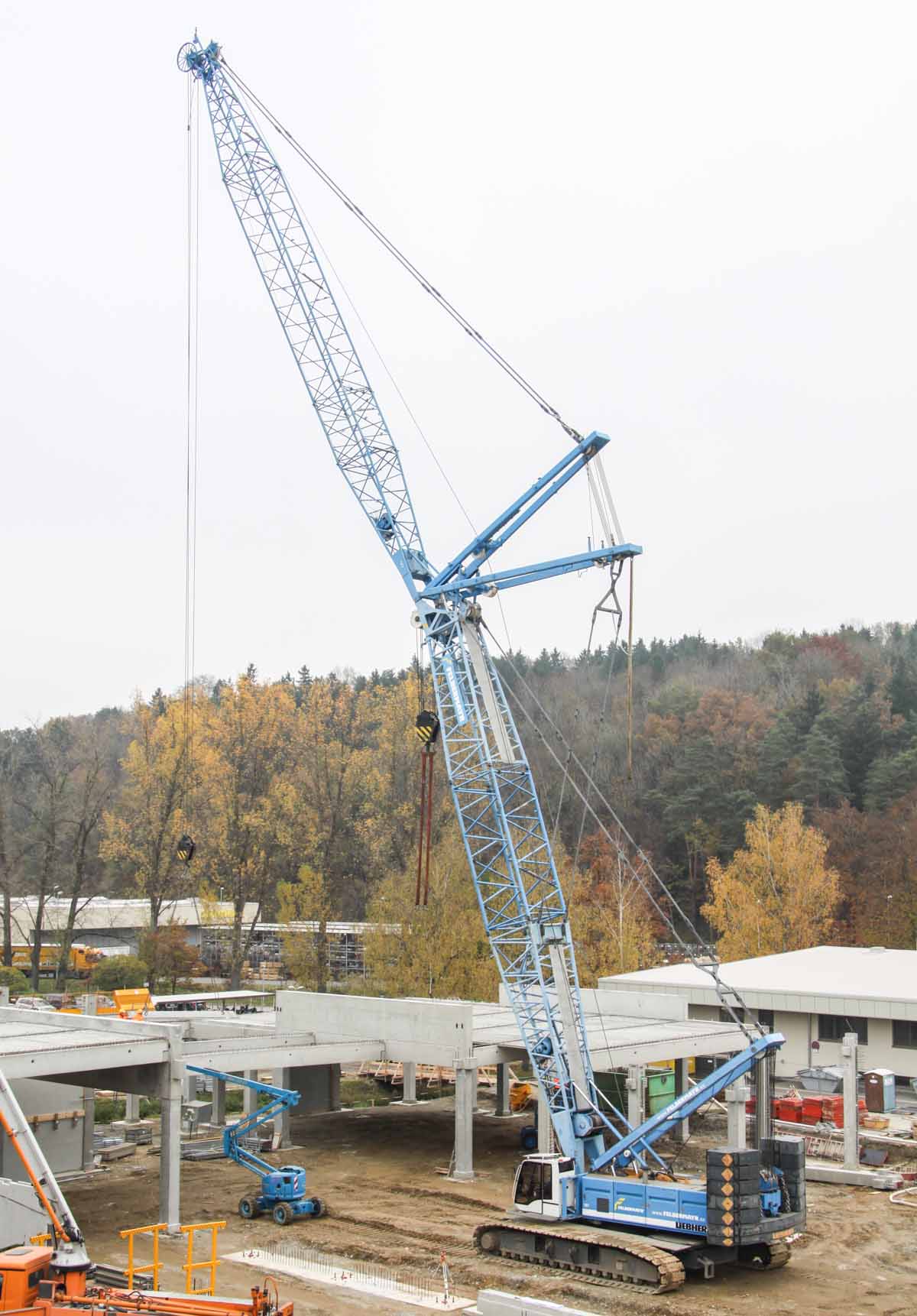

Fitted with a 23 meter main boom and 29 meter luffing jib. In this configuration are still 52 tonnes on a 10 meter radius lifted.

This crane has a Liebherr D 936 L A6 diesel engine with 362 hp, with them are two hydraulic pumps driven which makes it possible to use all crane functions at the same time.

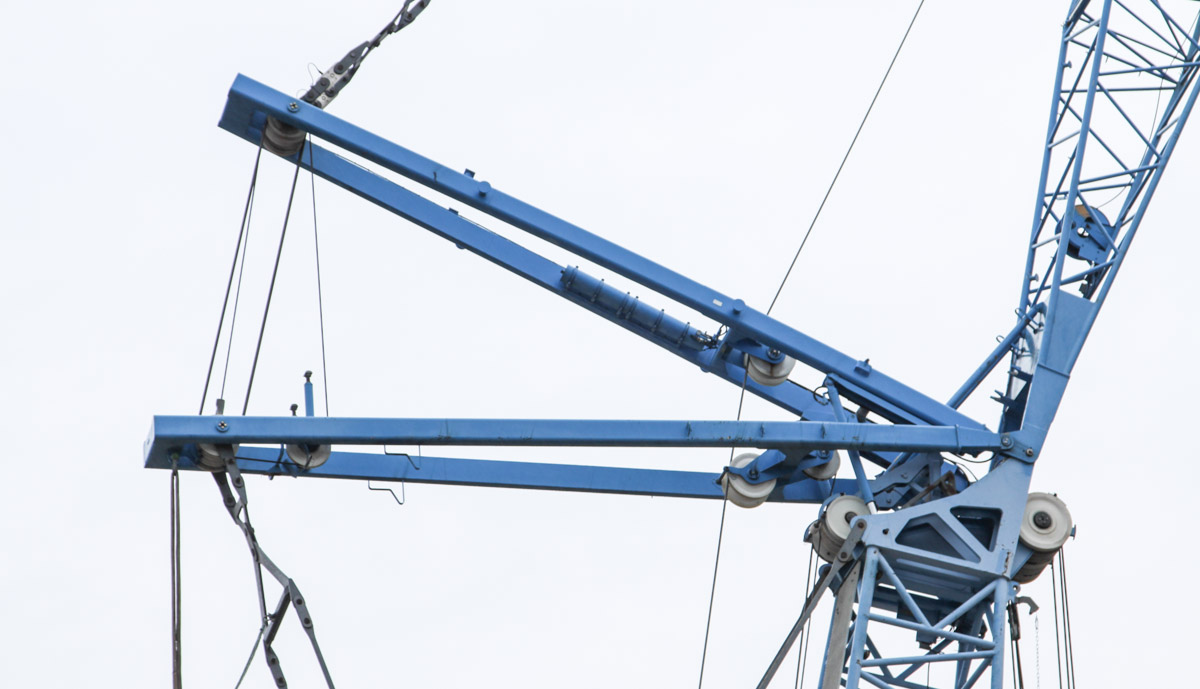

A detail of the A-frames of the luffing jib.

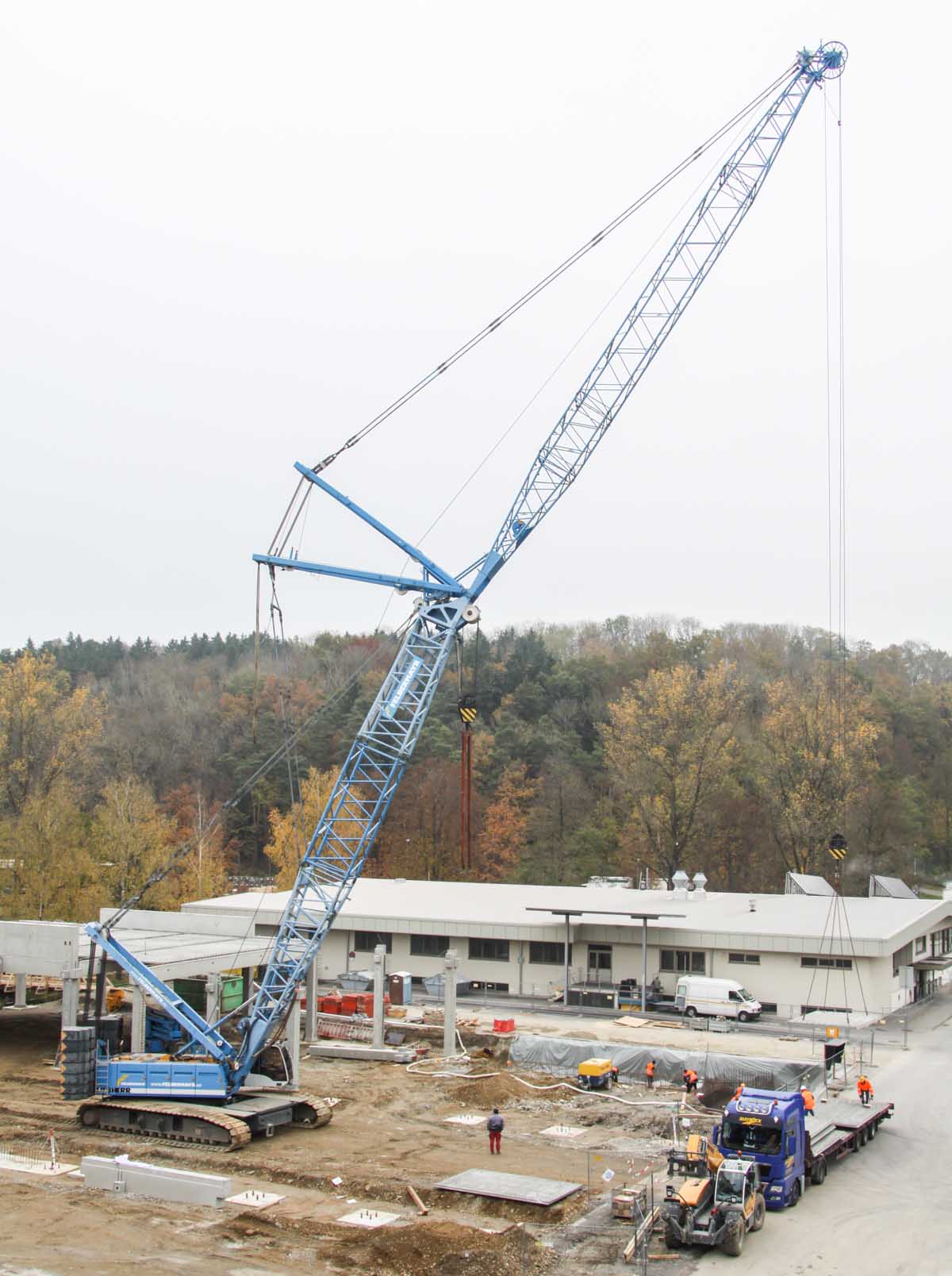

Some days later the crane was busy with laying floor plates between the mounted beams.

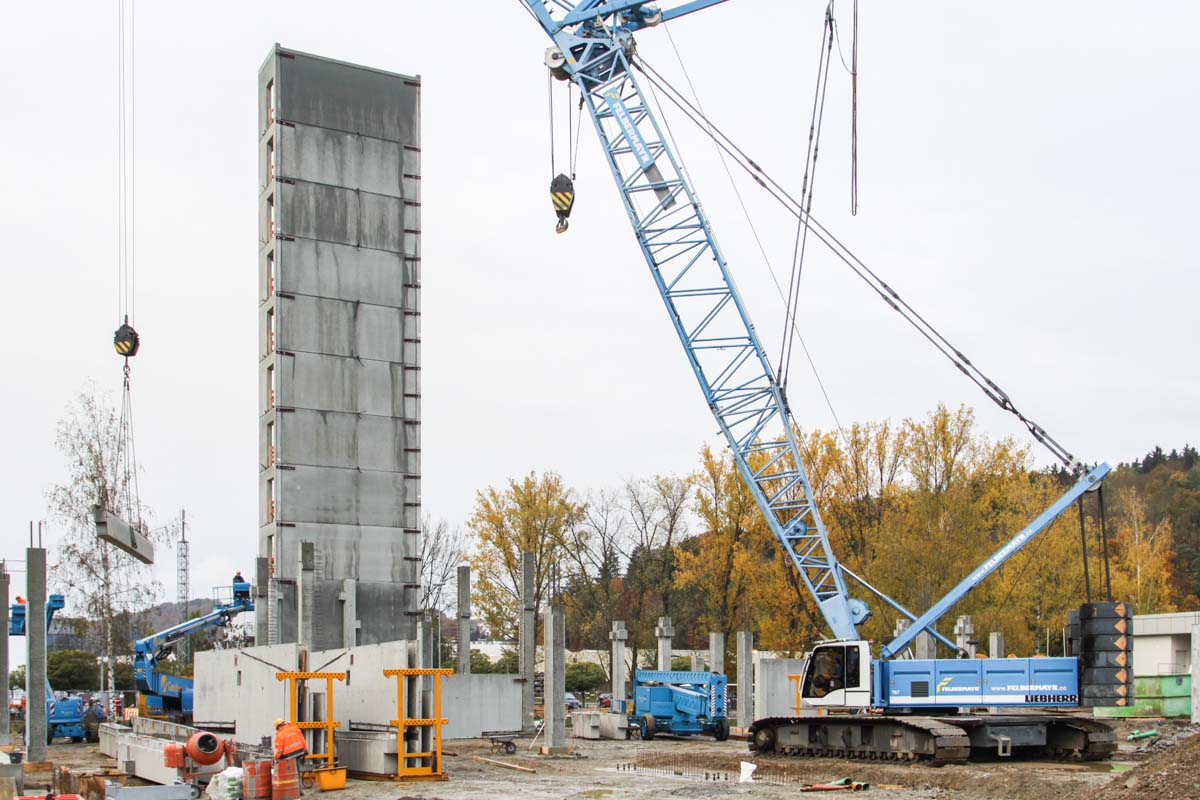

The crawler crane was used by the assembly of the heavy concrete pieces and stairhouses. Lateron two topslewing tower cranes were used for the steel construction.
