Liebherr LTM 1055-3.1 - Felbermayr

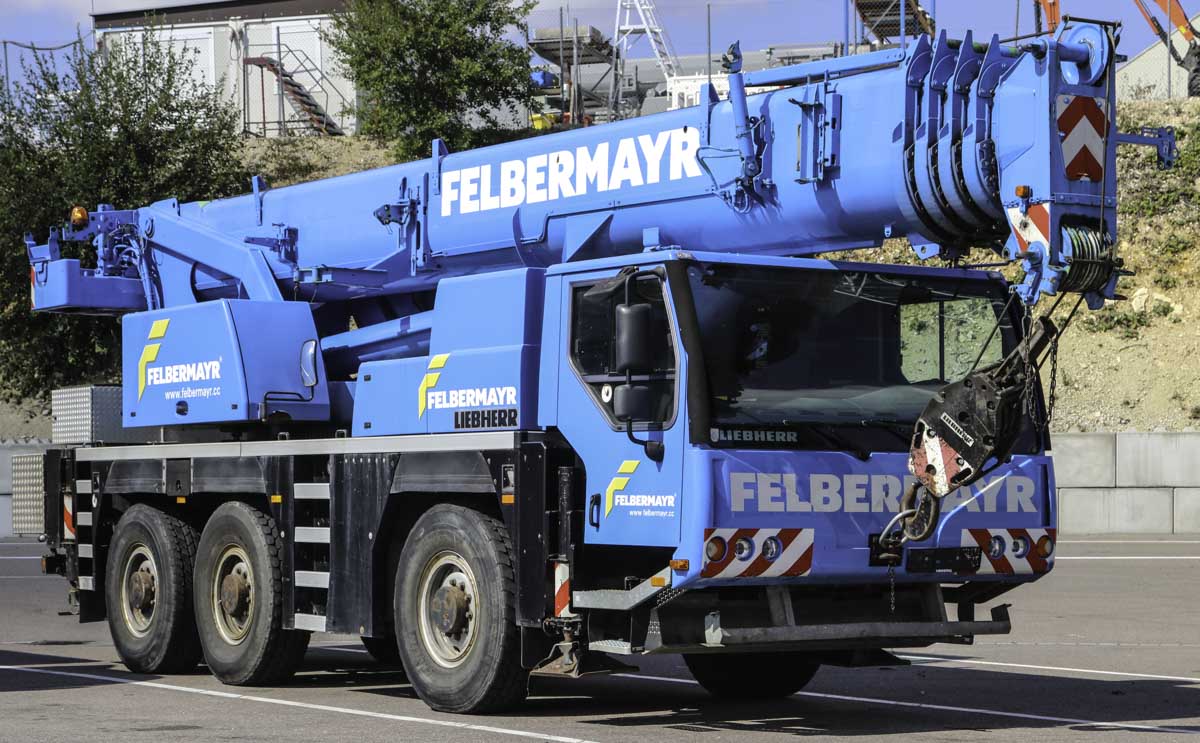

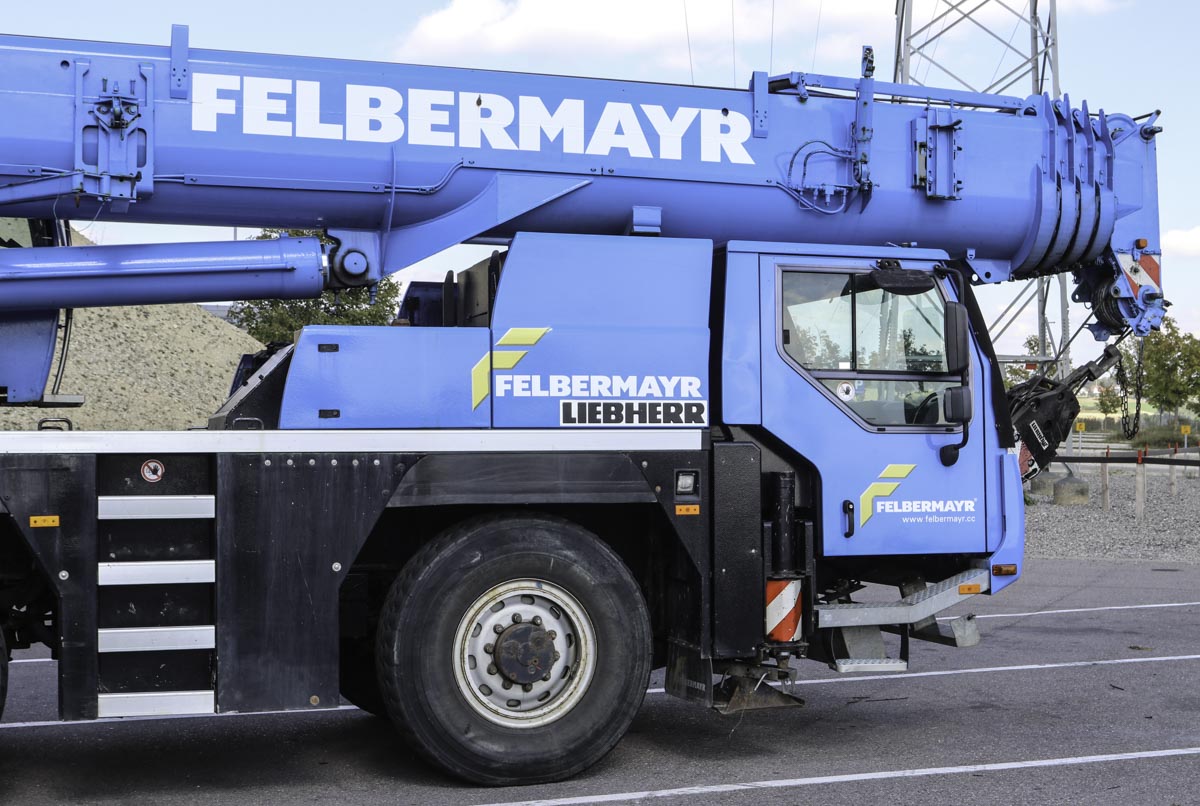

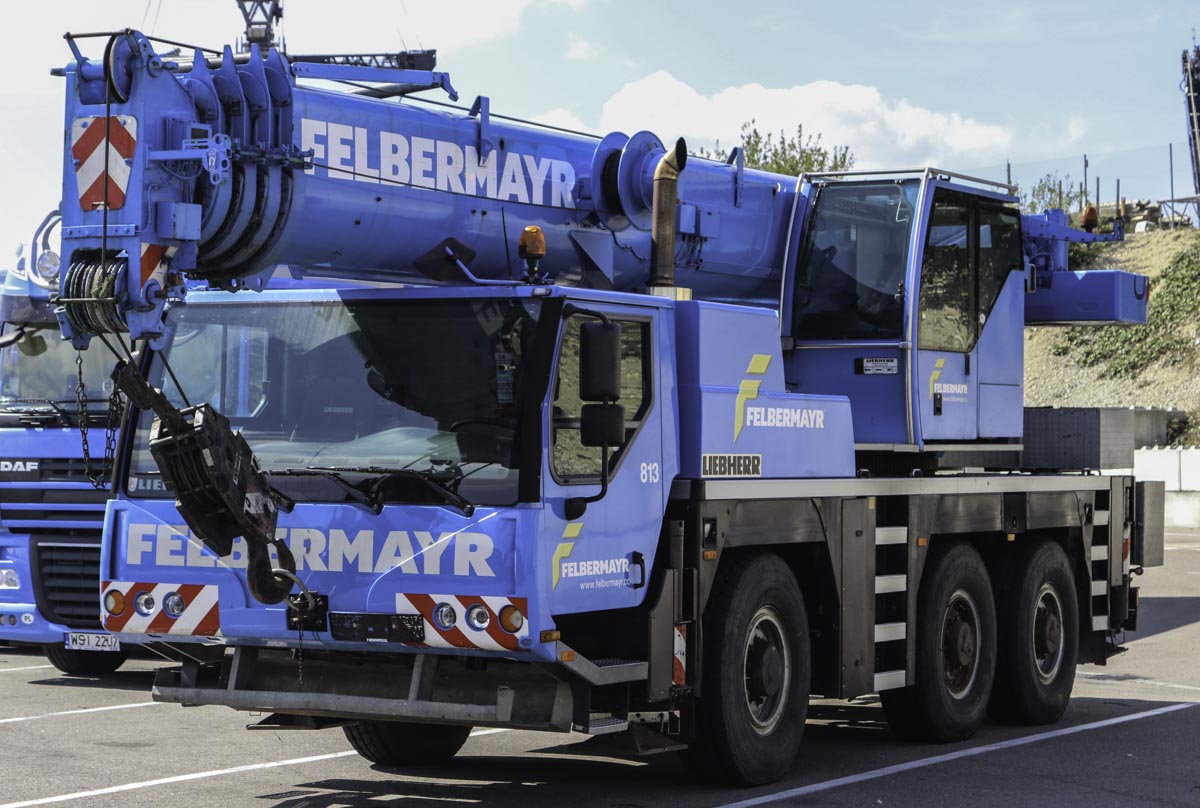

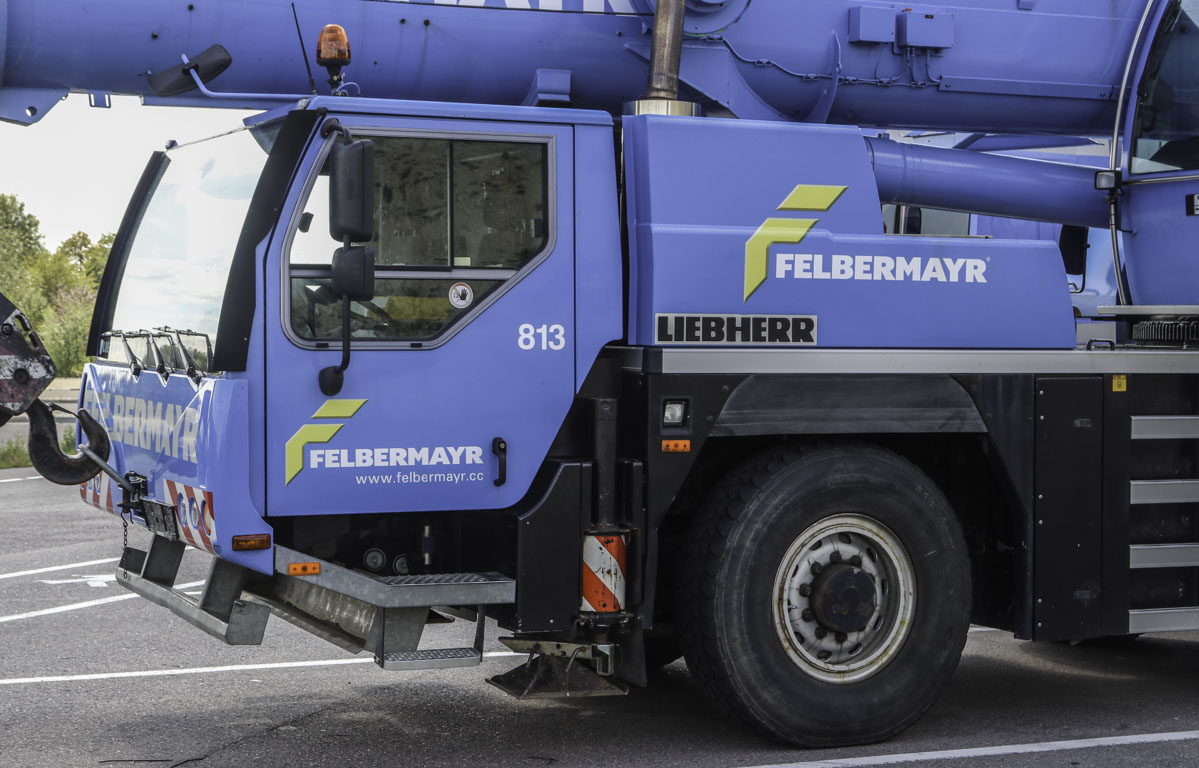

This Liebherr LTM 1055-3.1 of Felbermayr from Wels (AT) stood on a parking at Liebherr in Ehingen (DE). The 3-axle telescopic mobile crane has a maximum lifting capacity of 55 tonnes. The crane's year of manufacture is 2007.
The crane is powered by a Liebherr D 926 TI-E, a 6-cylinder diesel engine with a power of 270 kW (367 hp). This crane has the optional 6x6x6-drive line, where all axles are driven and steerable. During crane operation are the hydraulic pumps in the superstructure powered by the engine in the undercarriage.
In transit is the crane 11.36 meters long, 2.68 meters wide and 3.7 meters tall. The transport mass is approx. 36 tonnes.

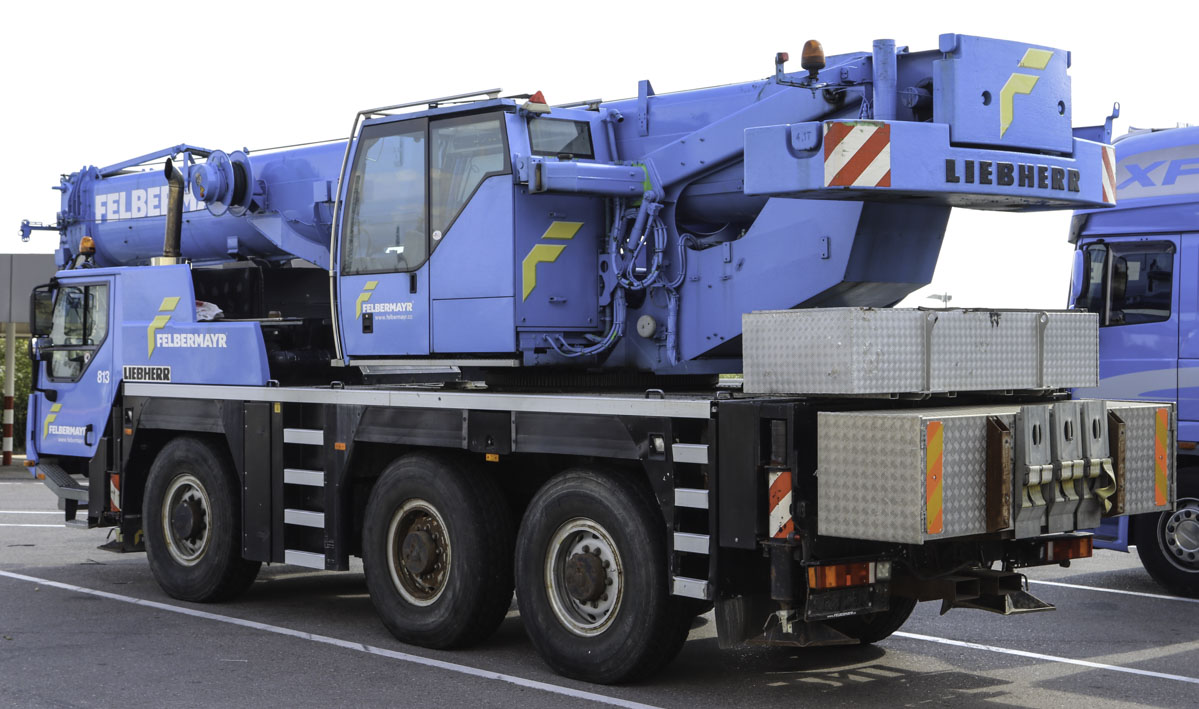

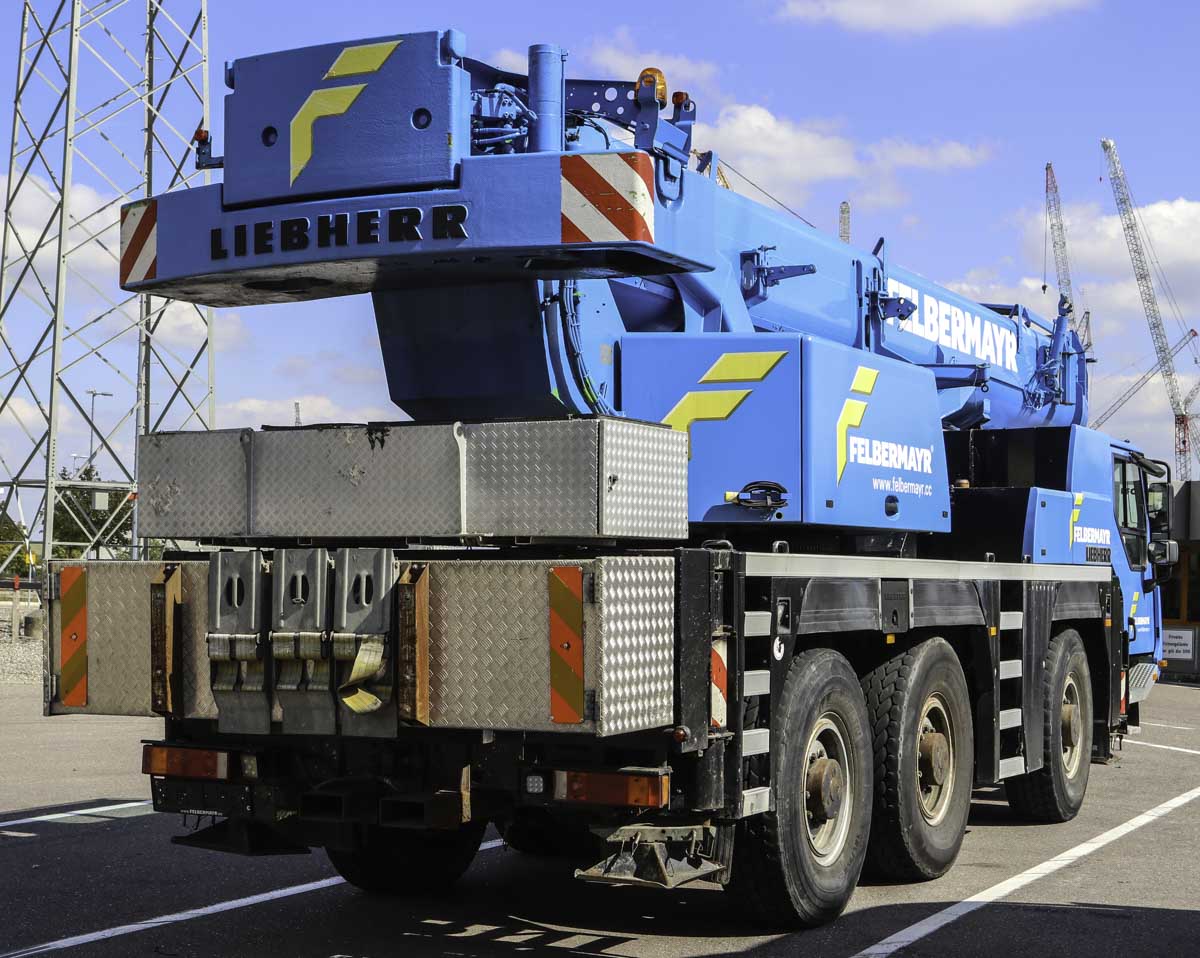

At the rear of the crane are two large boxes mounted, for the outrigger woods and lifting gear.

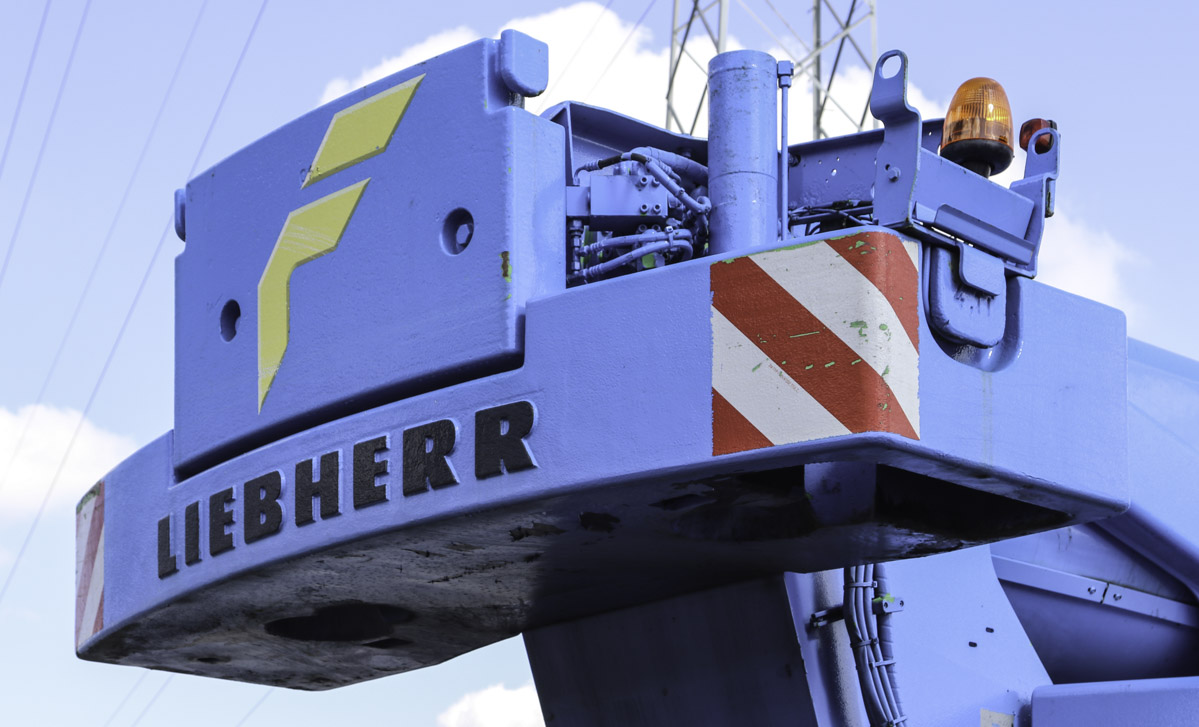

Attached to the superstructure remains 4.7 tonnes. The full counterweight of the crane is 12 tonnes, that has a 3.5 meter tailswing. The crane is fitted with a 4.5-tonne hoist winch with a 15 mm hoist cable.
The outrigger base of the crane measures 7.36 x 6.3 meters, or half 7.36 x 4.5 meters.

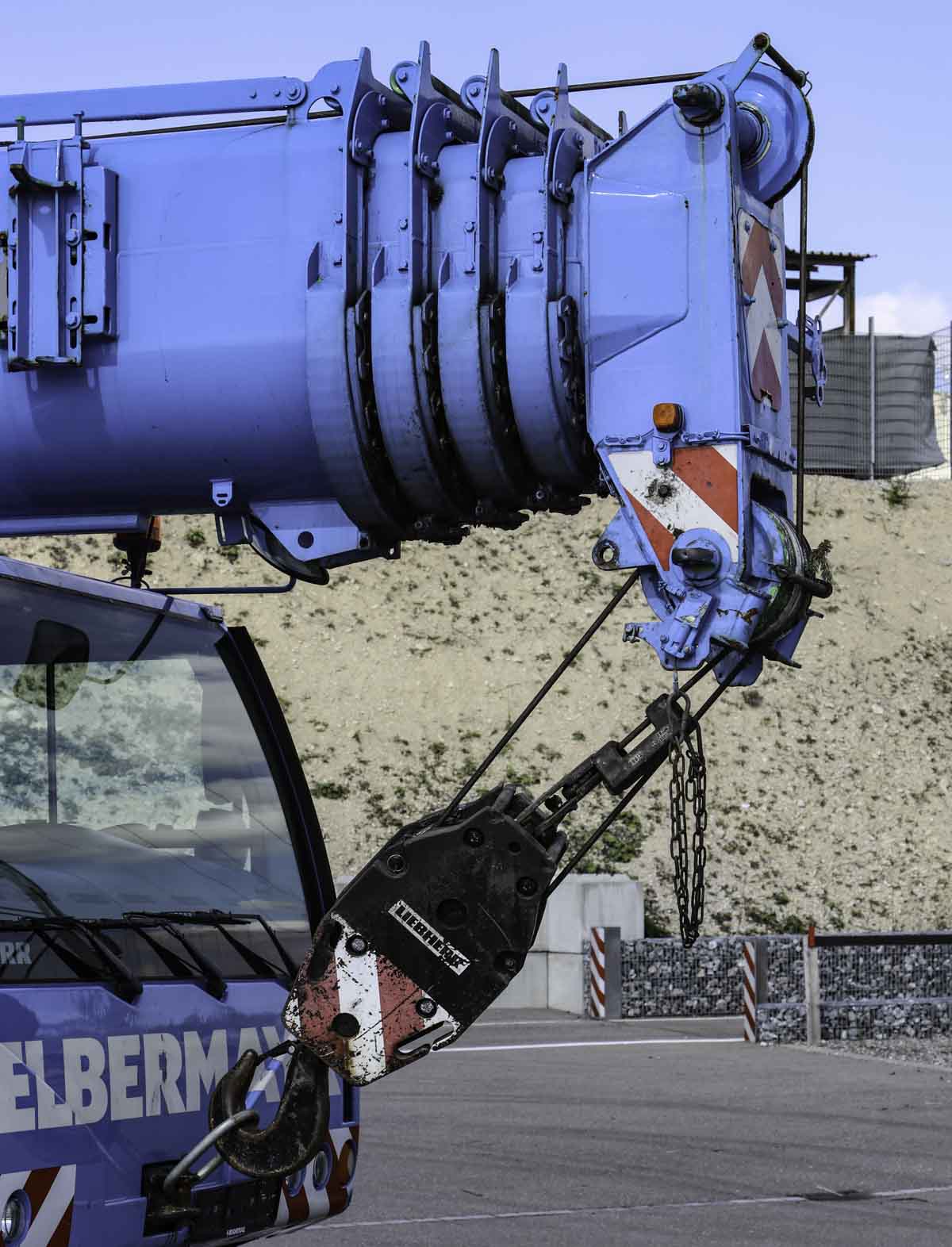

The 5-part main boom has a 10.2 meter base length and extends four times to a full length of 40 meters. Optionally is it possible to install a 9.5 or 16 meter long bi-fold swingaway jib under a 0, 20 or 40 degree angle to the main boom head.
A sharp crane in the Felbermayr colours!
