Liebherr LTM 1030-2.1 - BKV

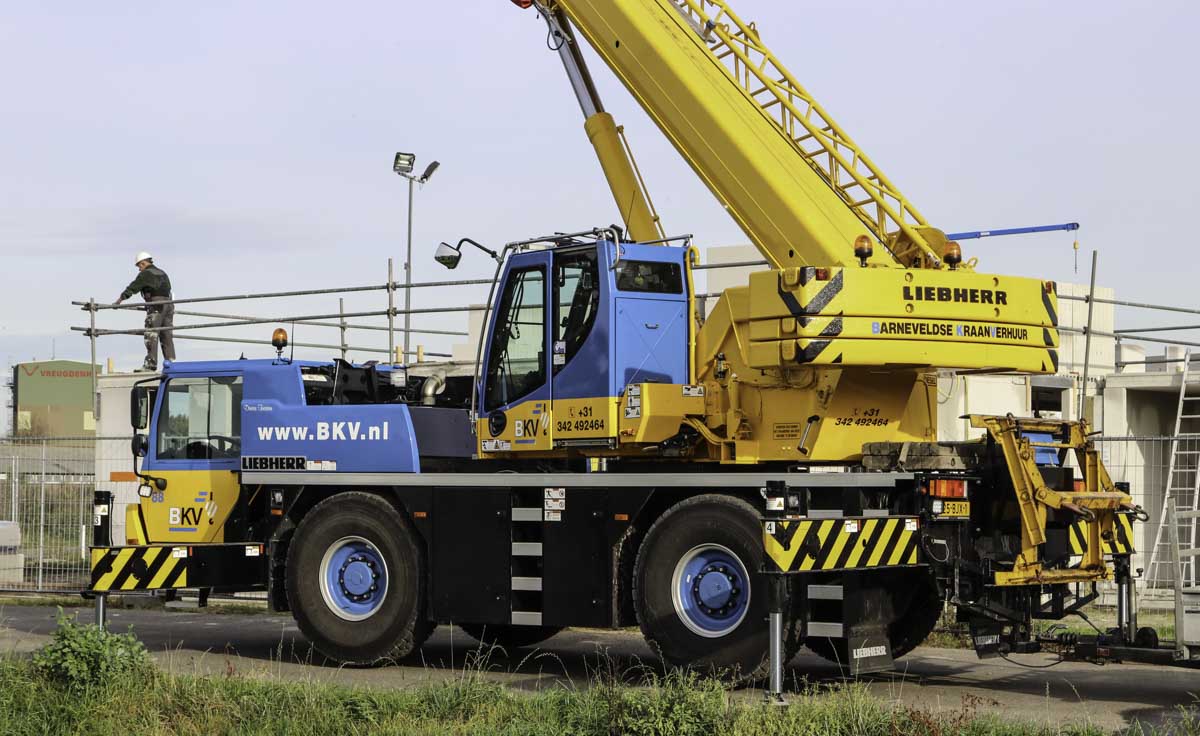

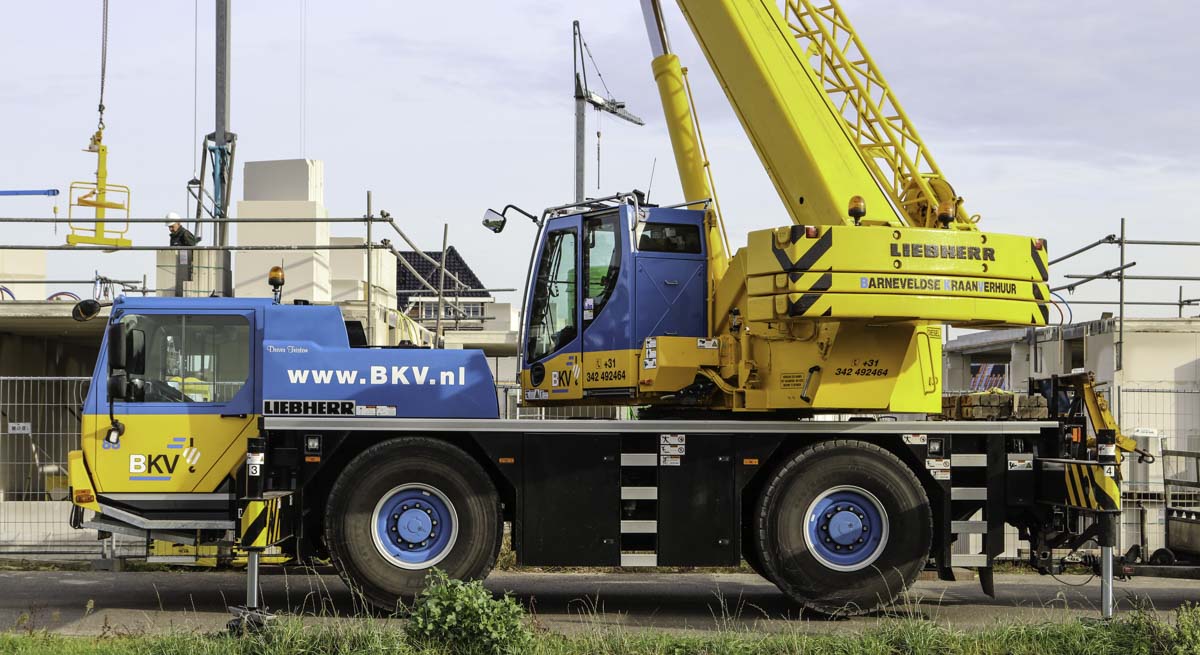

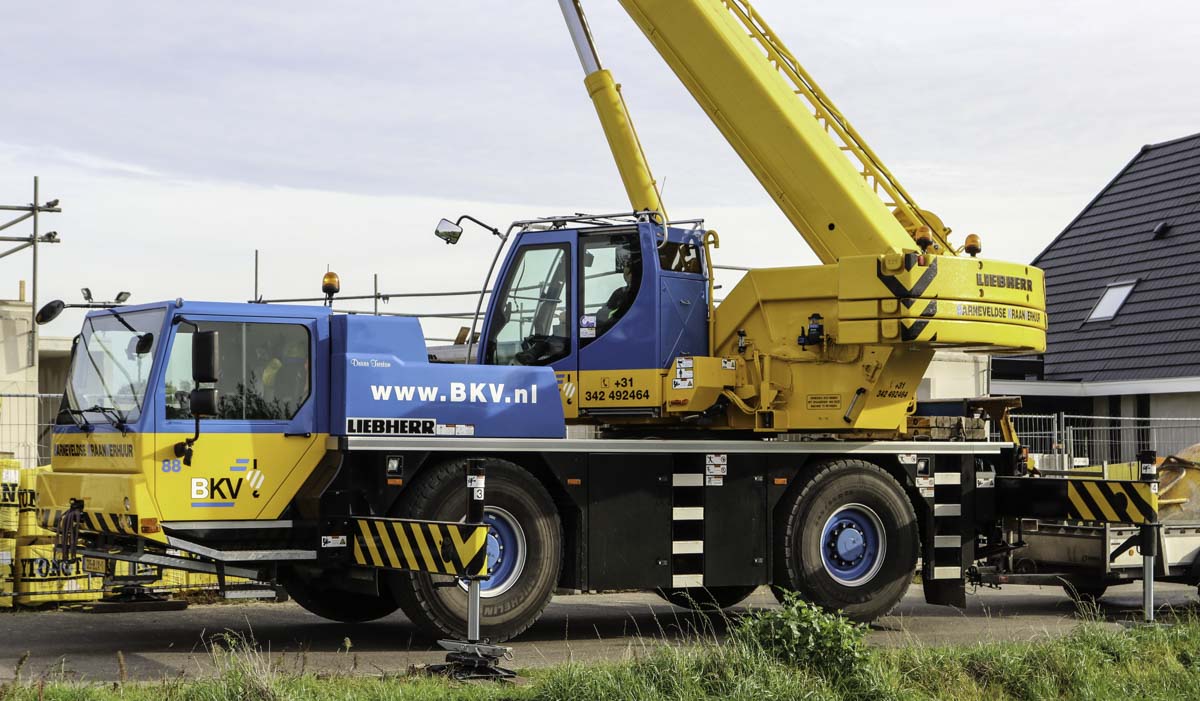

At the end of 2017 took BKV from Barneveld (NL) this sharp Liebherr LTM 1030-2.1 into operation. It is a 35-tonne crane installed on a 2-axle carrier.

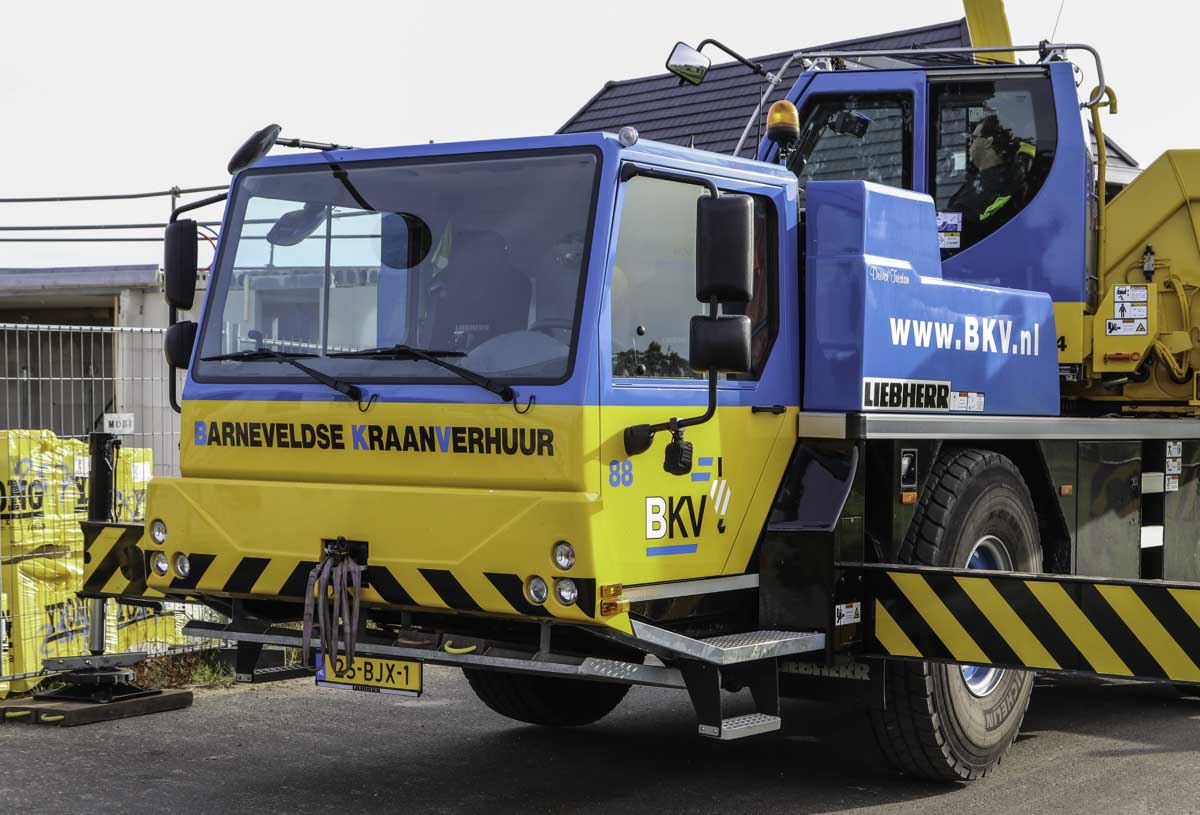

The crane is powered by a 6-cylinder Mercedes-Benz diesel engine with a power of 210 kW (286 hp). Both axles are powered and are steerable. The hydraulic pumps in the superstructure are also powered by the engine in the undercarriage.

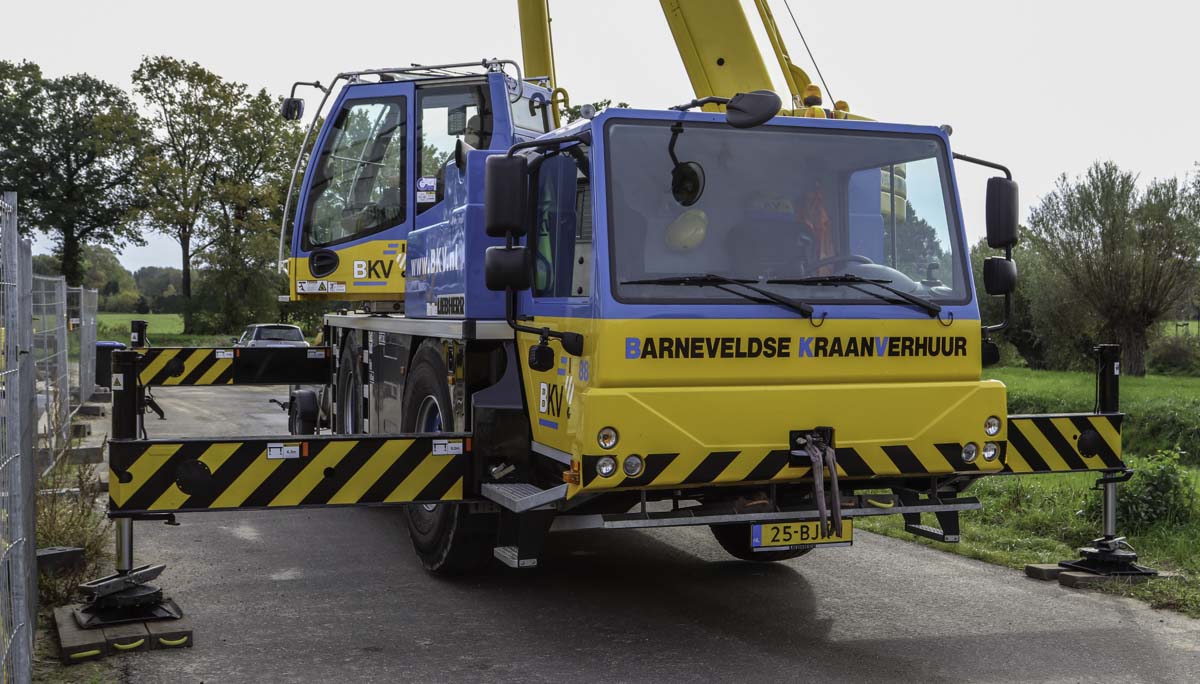

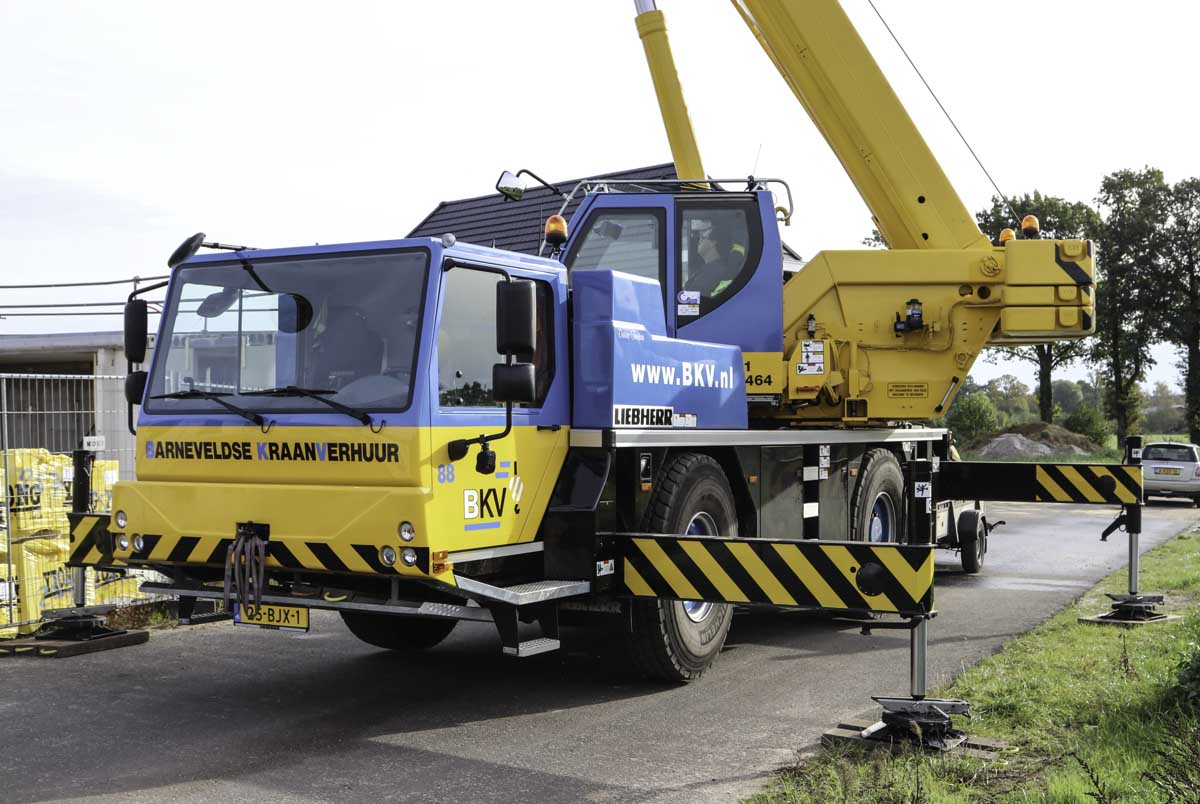

The outrigger base of the crane measures 6.3 x 6.03 meters, or half 6.3 x 4.33 meters. During the transport over the road are 2.1 tonnes of counterweight stored on the undercarriage.

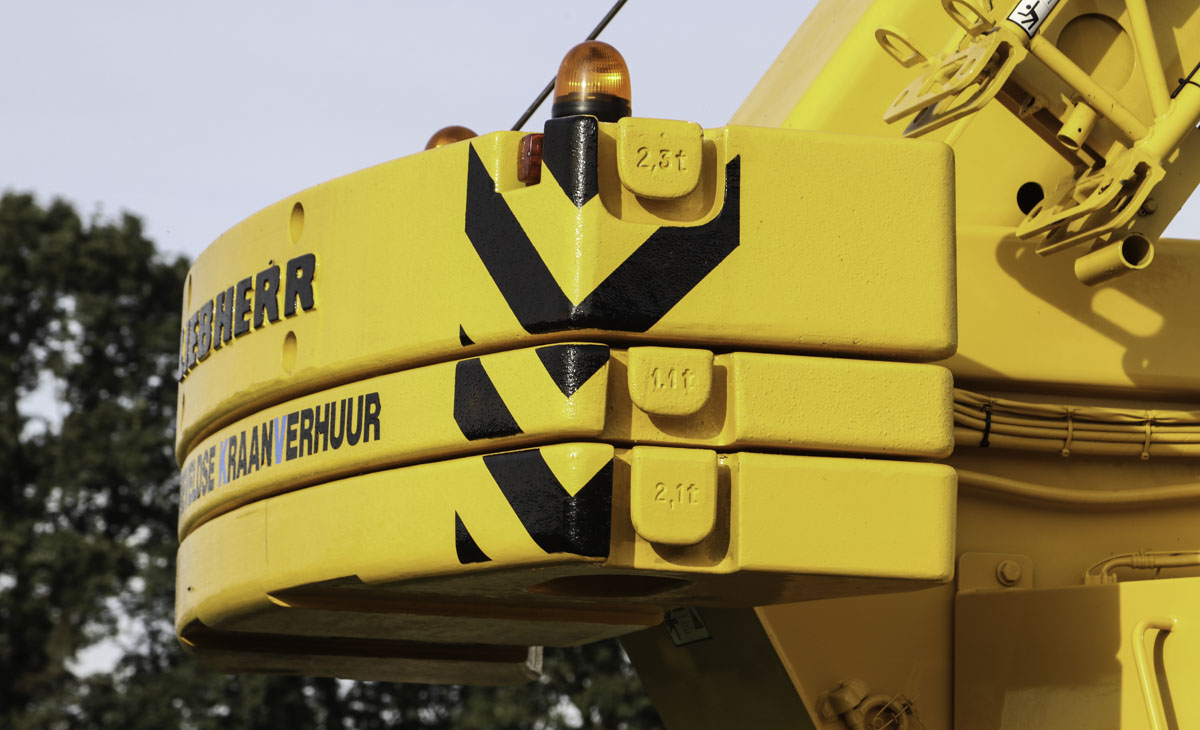

The full counterweight weights 5.5 tonnes and has a 3.15 meter tailswing. Attached to the superstructure remains 3.4 tonnes of counterweight during the transport over the road.

Packed is the crane 10.3 meters long, 2.55 meters wide and 3.55 meters tall. The transport mass is approx. 24 tonnes.

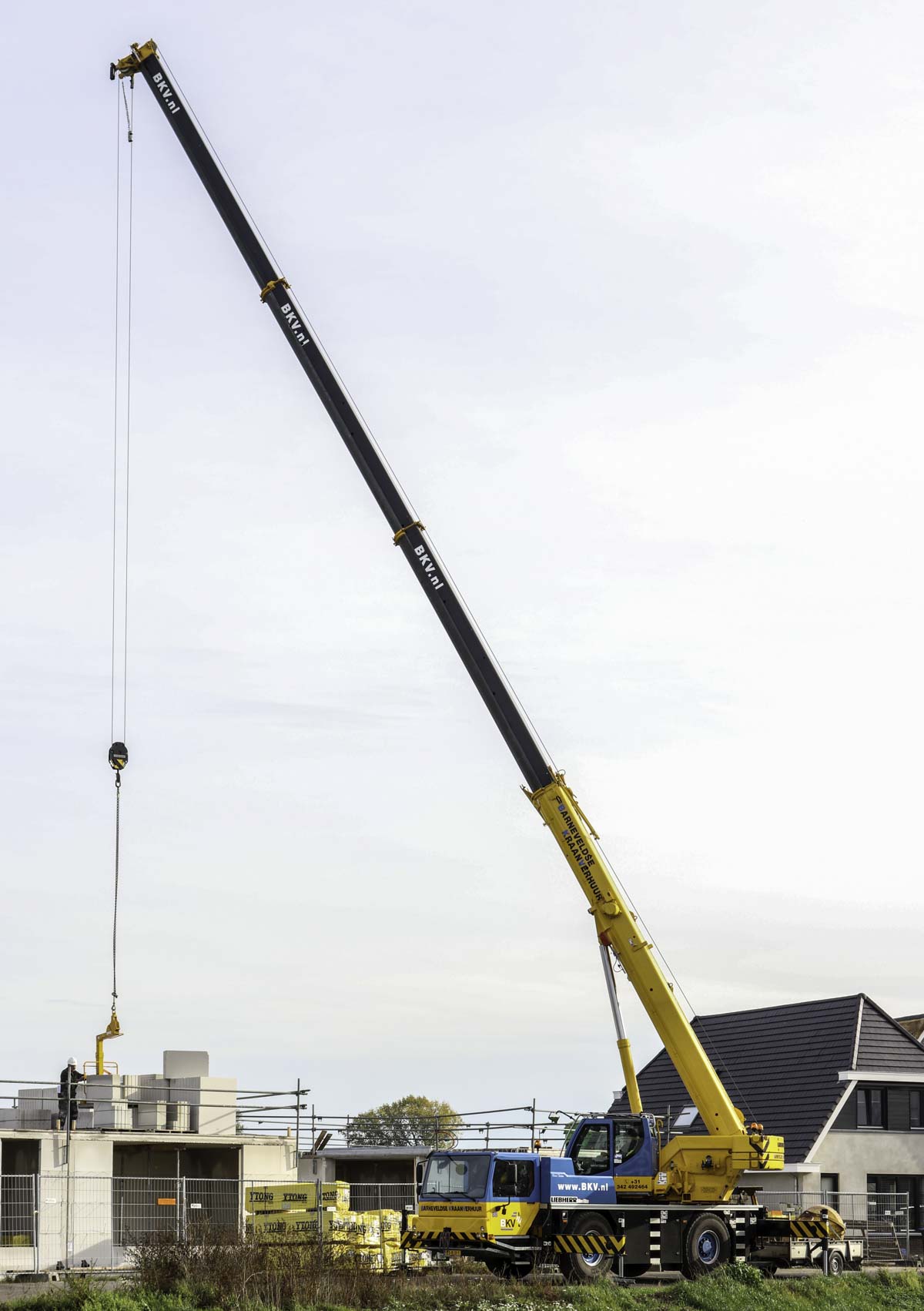

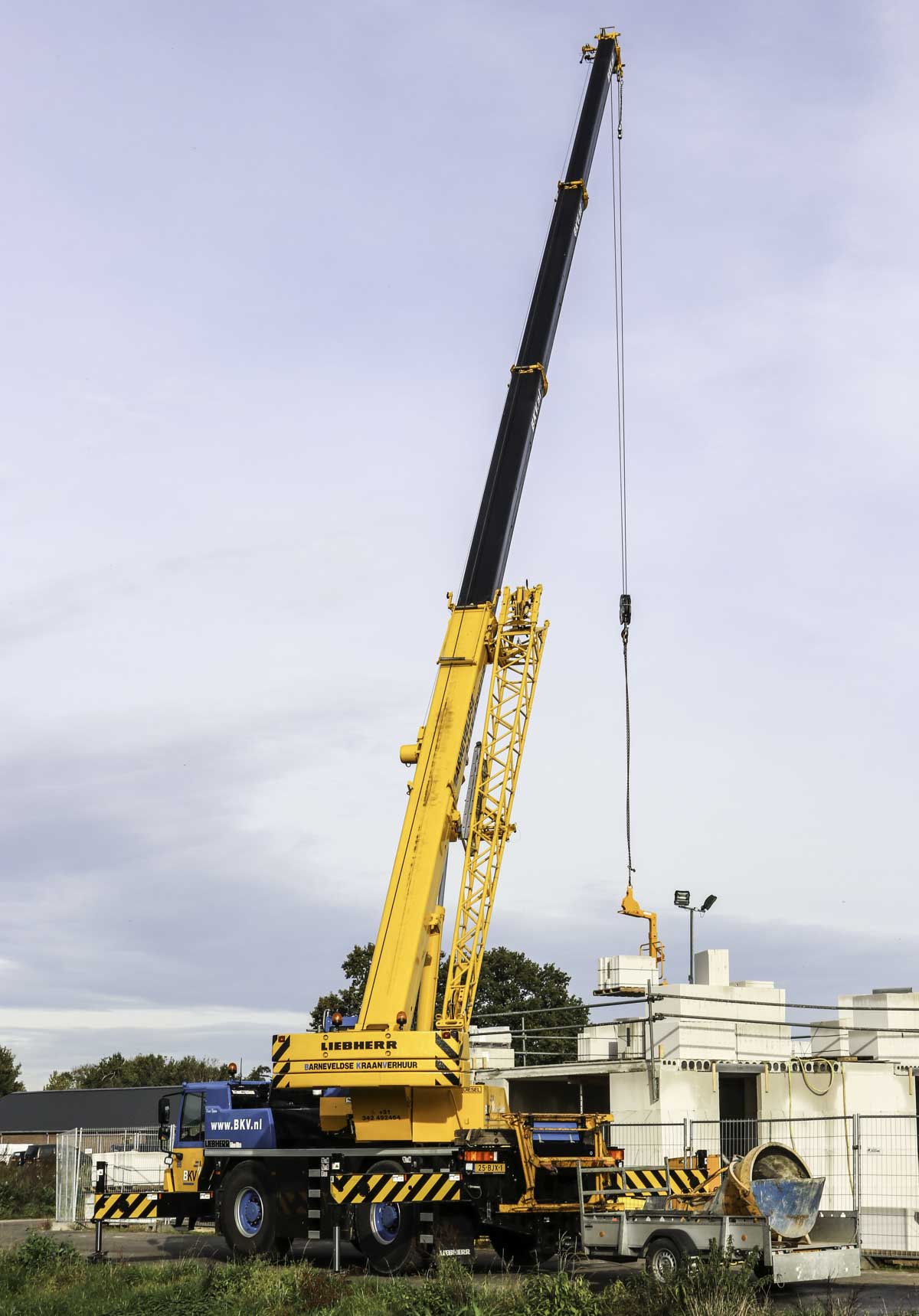

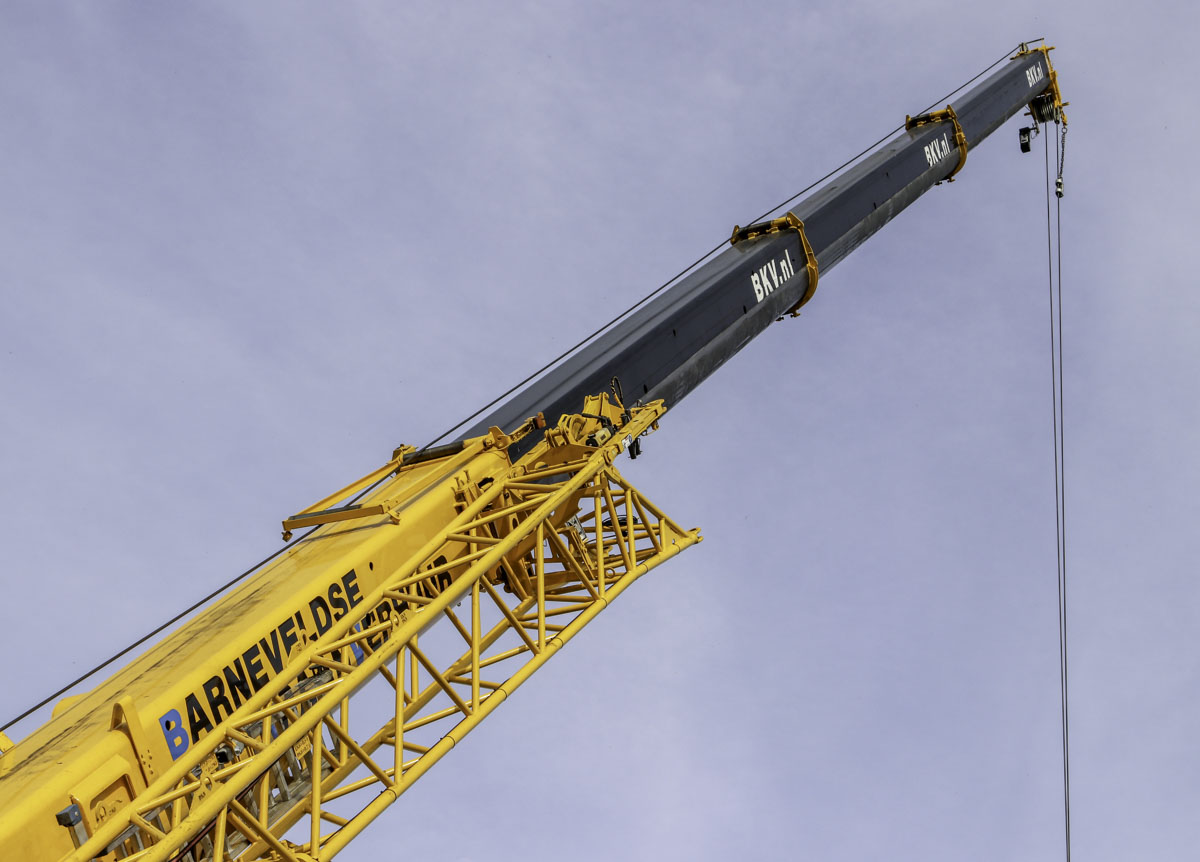

The main boom has a 9.2 meter base length and extends three times to a full length of 30 meters. The main boom can be extended by a 8.6 meter folding jib.

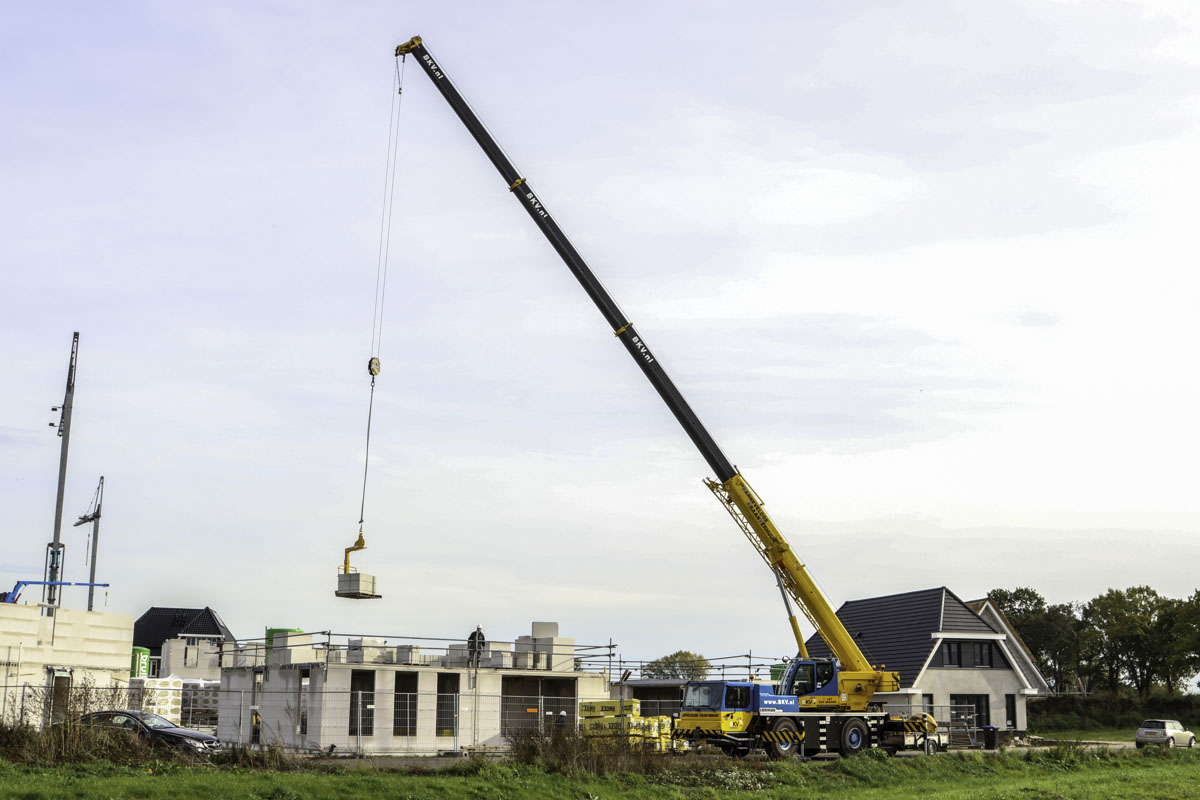

The crane was used on a small construction site to lift some small construction materials.

A very sharp crane in the BKV colours!
