Liebherr LTM 1100-4.2 - BKL

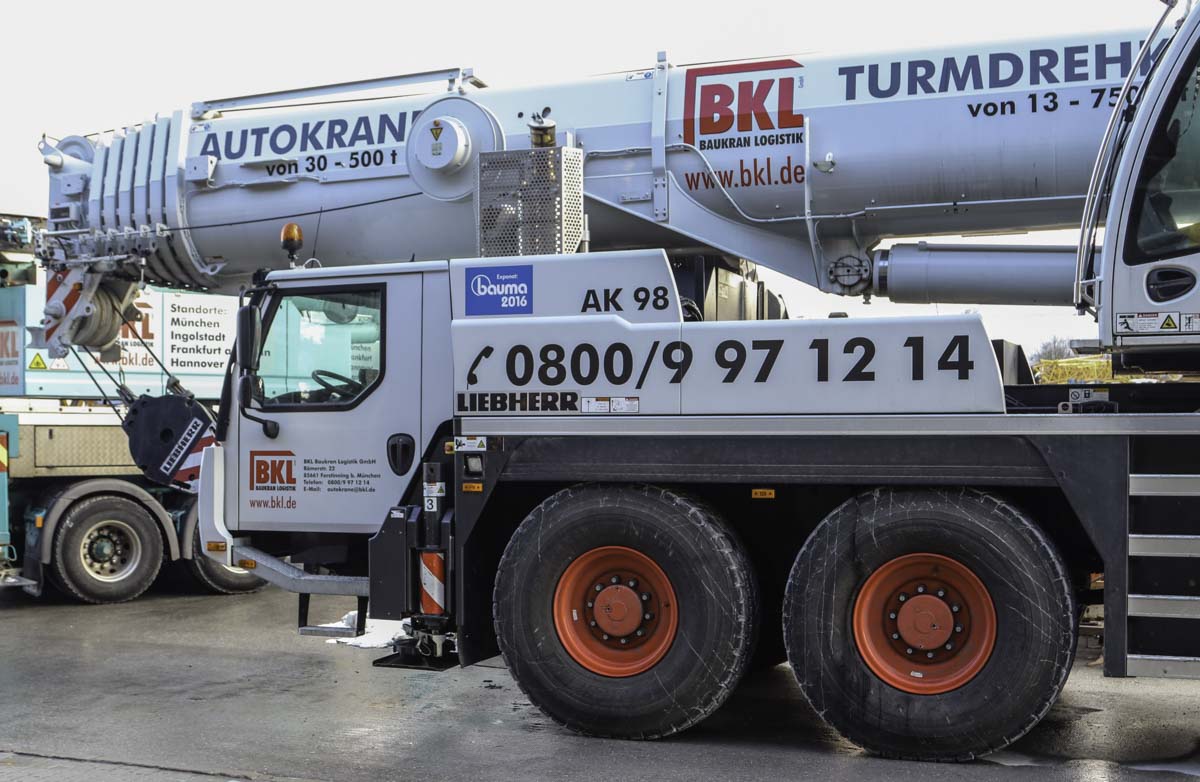

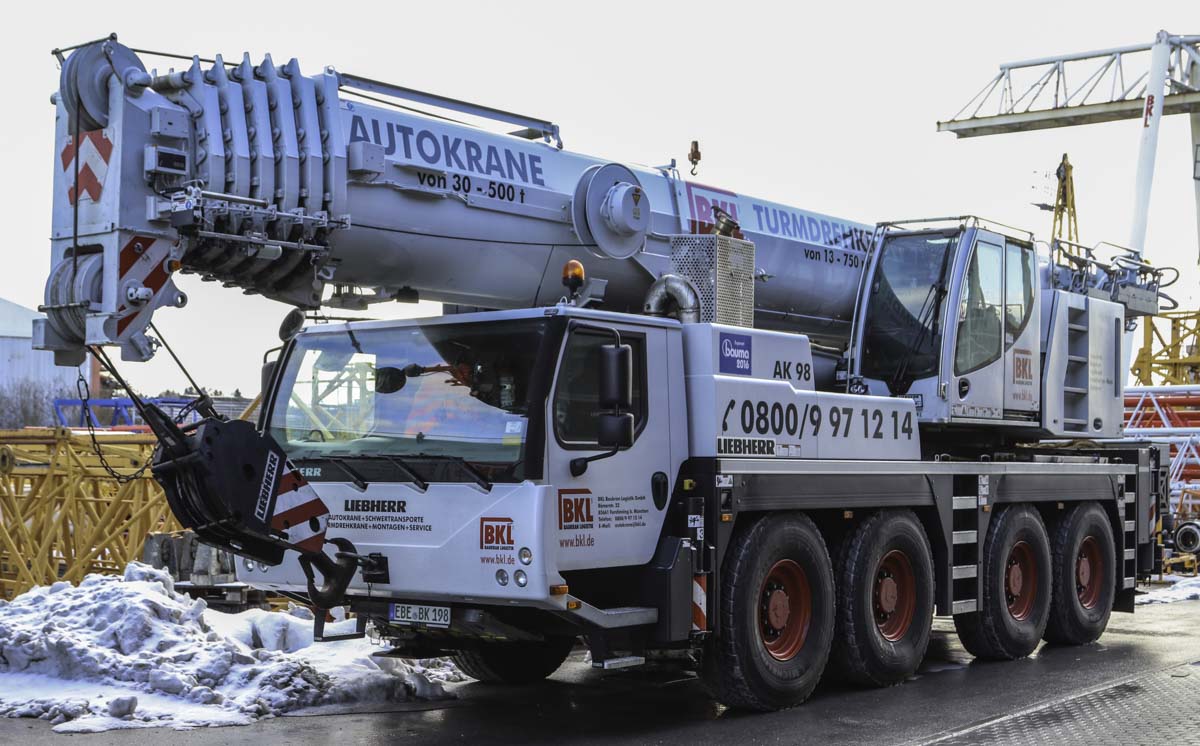

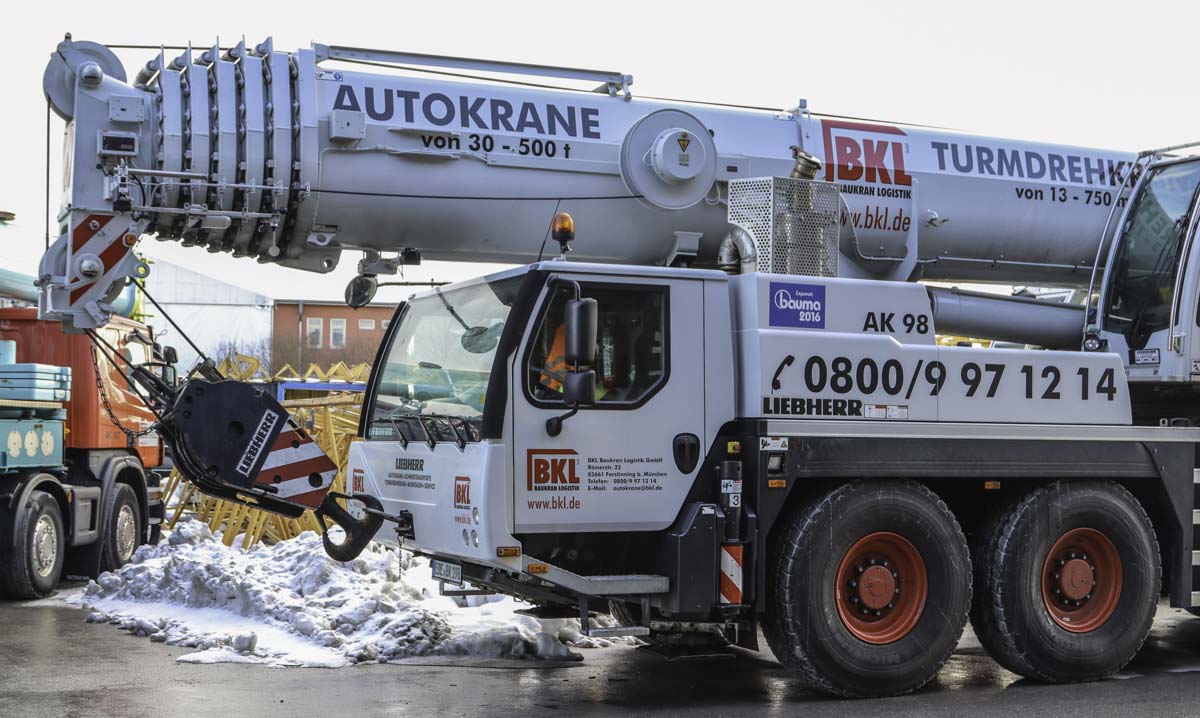

This sharp Liebherr LTM 1100-4.2 of BKL stood parked on their yard in Forstinning (DE). It is a 4-axle 100-tonne crane with year of manufacture 2016.
The crane is powered by a Liebherr 6-cylinder diesel engine with a power of 350 kW (476 hp). This crane has the optional 8x8x8-drive line where all axles are powered and steerable.

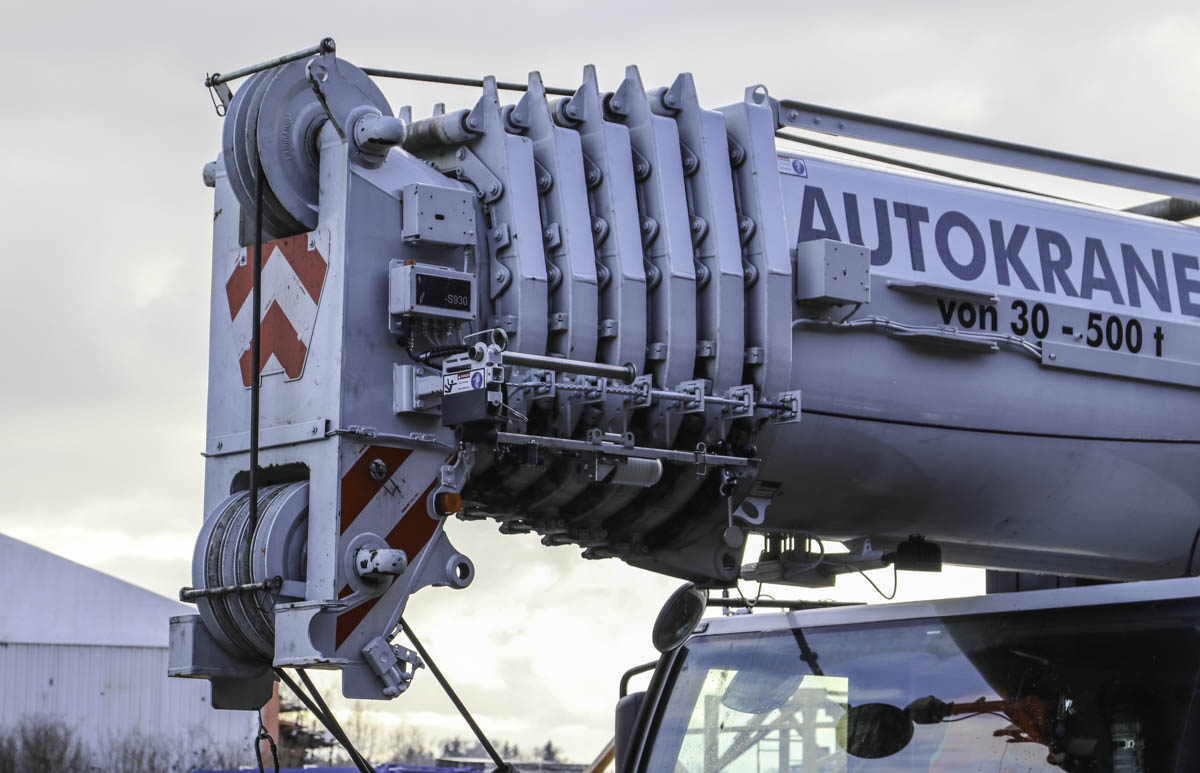

The crane has a 7-part main boom with a base length of 11.5 meters and extends six times to a maximum length of 60 meters.
The outrigger base of the crane measures 8.6 x 7 meters, or half 8.6 x 5 meters. There is no counterweight stored on the undercarriage.
In transit is the crane 13.5 meters long, 2.75 meters wide and 4 meters tall. The total mass of the crane is about 48 tonnes.

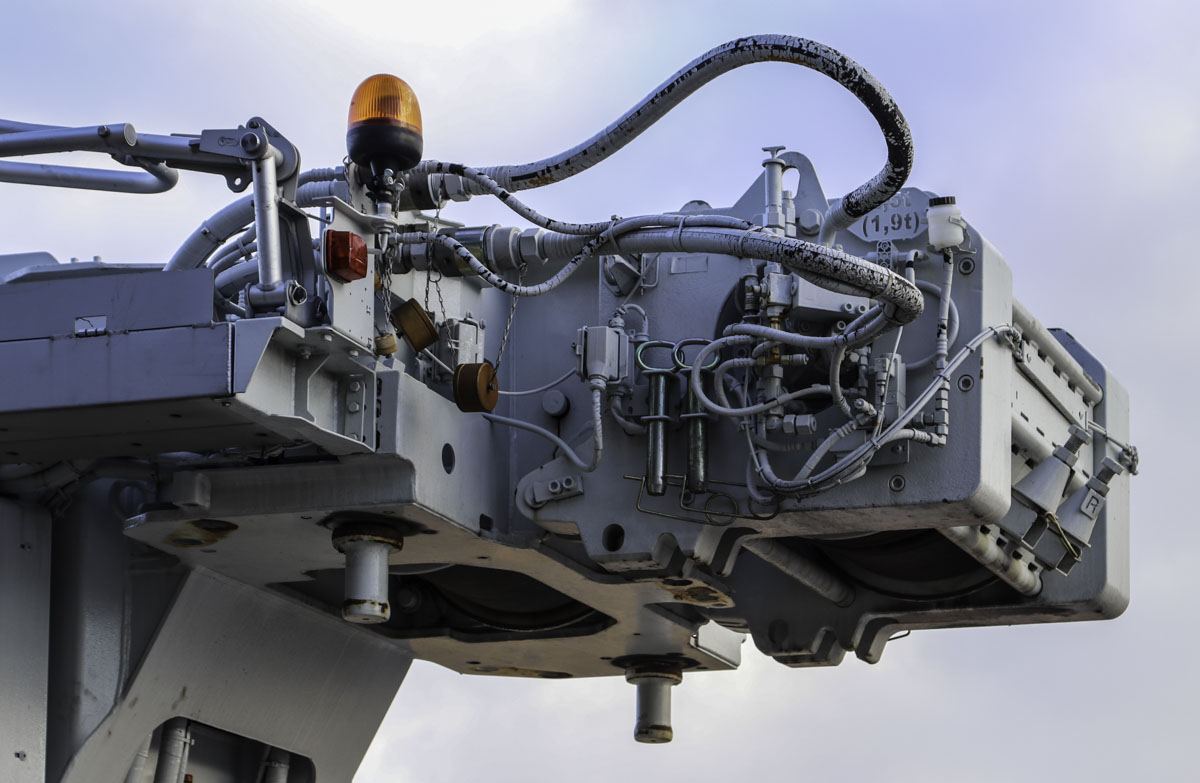

This crane is fitted with the optional second winch, both hoist winches have a line pull of 7.5 tonnes. The full counterweight on the crane has a maximum mass of 28.2 tonnes and has a 4.11 meter tailswing.

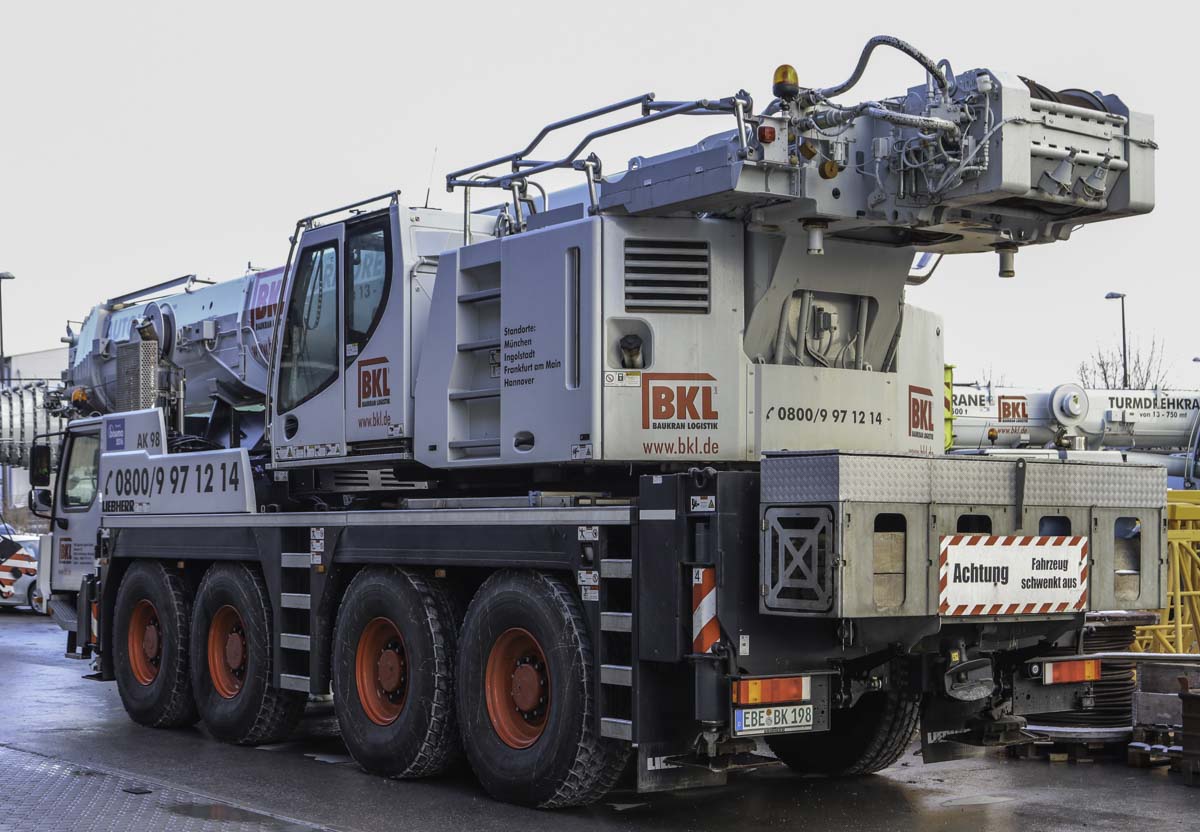

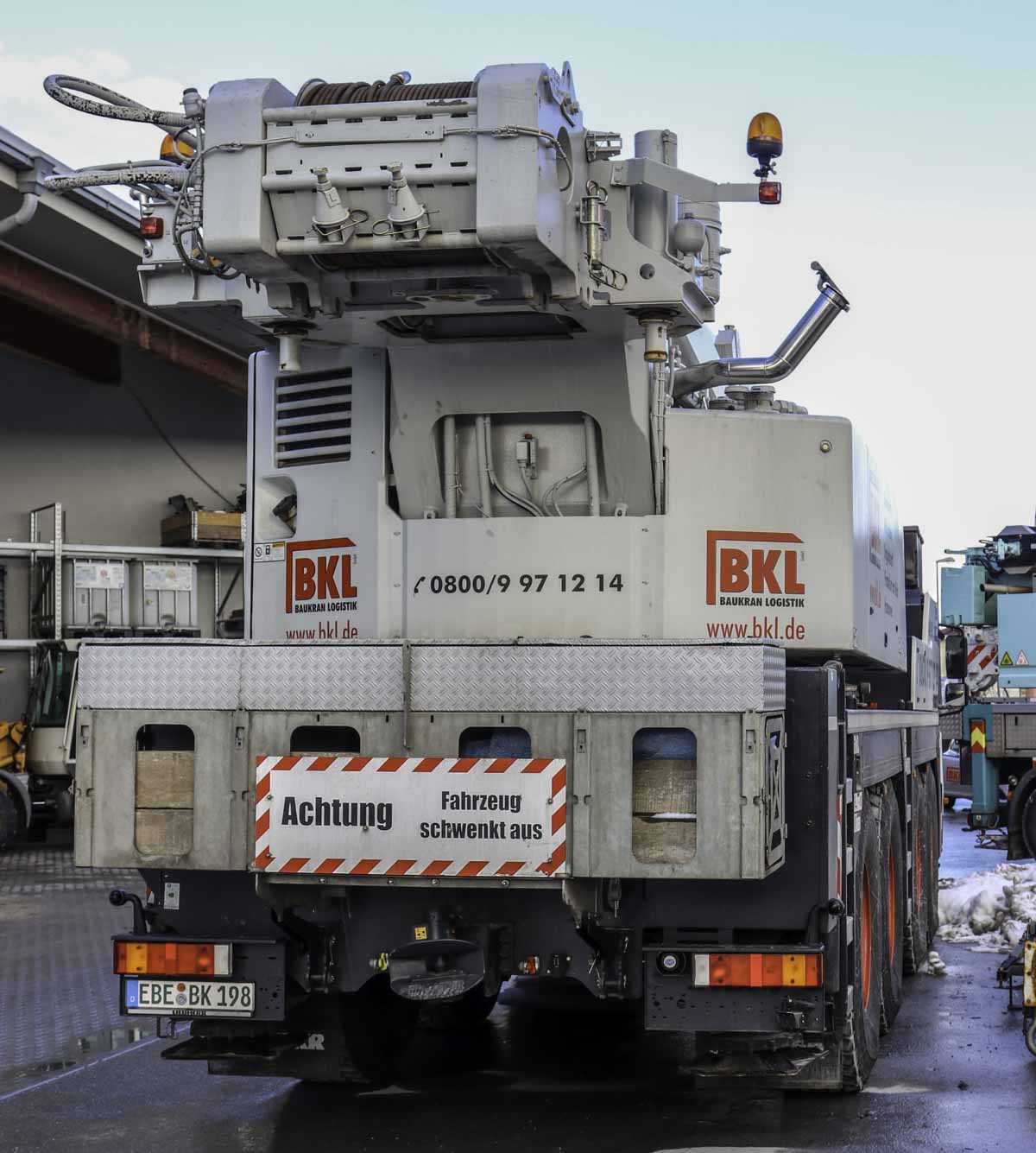

At the rear of the chassis is the standard box for outrigger woods mounted.
