Liebherr LTF 1030 - Baudicht

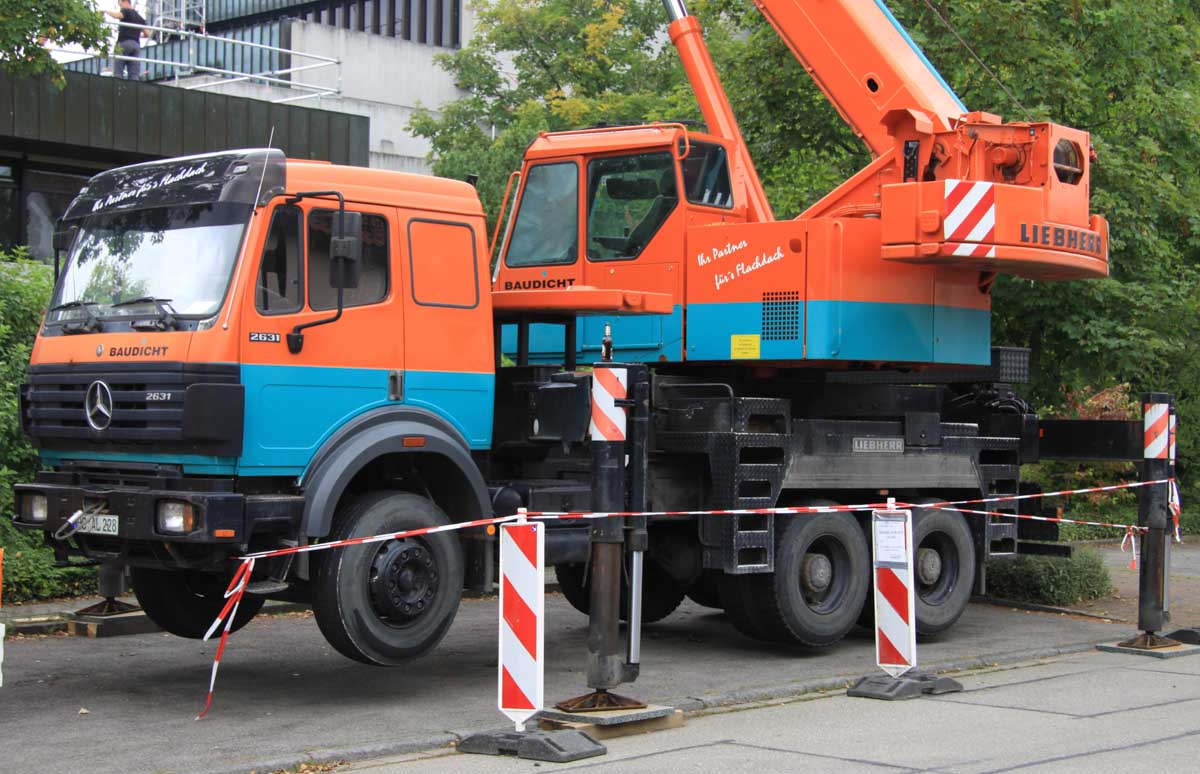

The Baudicht company from Ingoldingen (DE) is using this Liebherr LTF 1030 on their roof jobsites. The crane was used here by the renovation of a roof of a school in Biberach a/d Riss (DE).

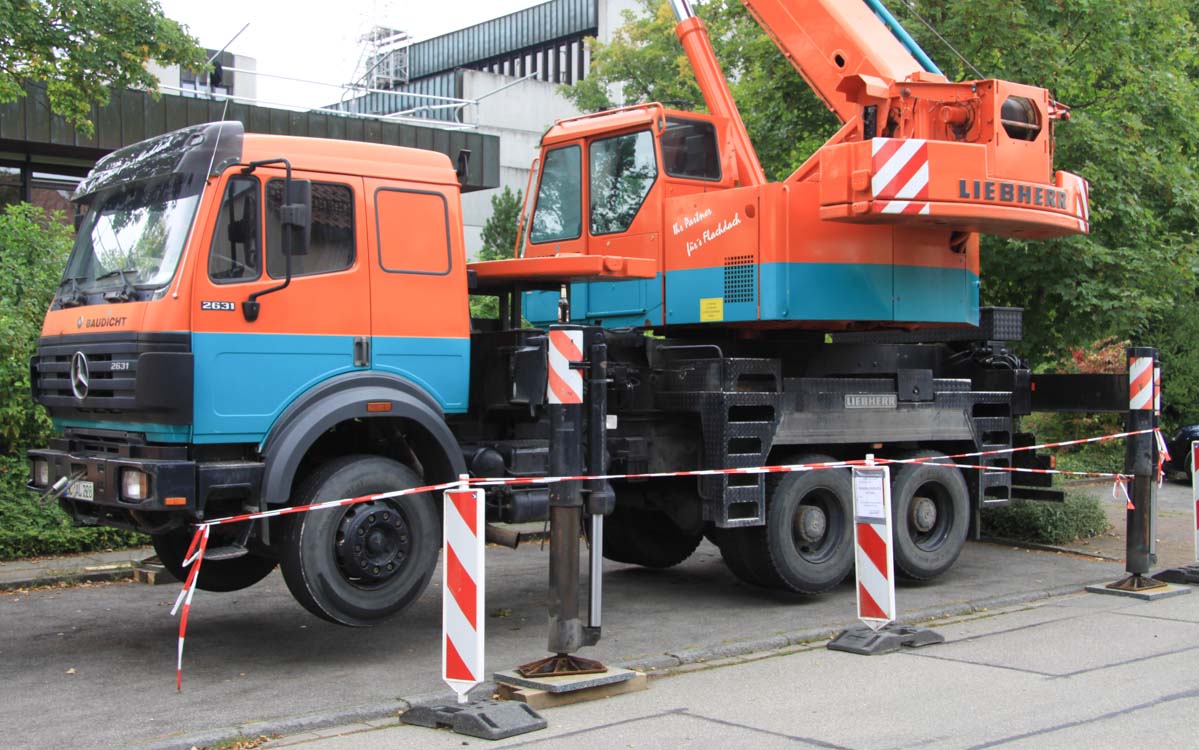

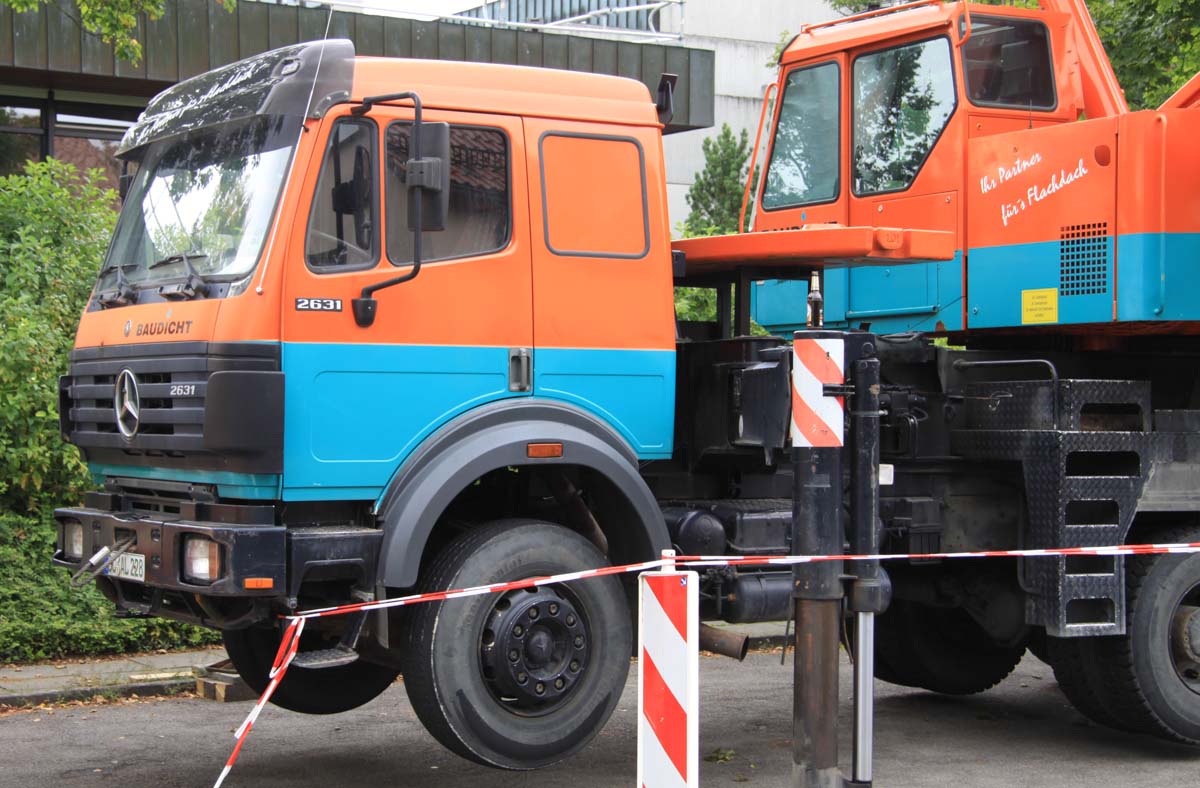

The crane is mounted on a truck chassis. Chosen was here for a Mercedes-Benz SK 2631 with 310 hp. It was also possible to put the crane on a MAN, Iveco or Scania chassis. The undercarriage had 3 or 4 axles.

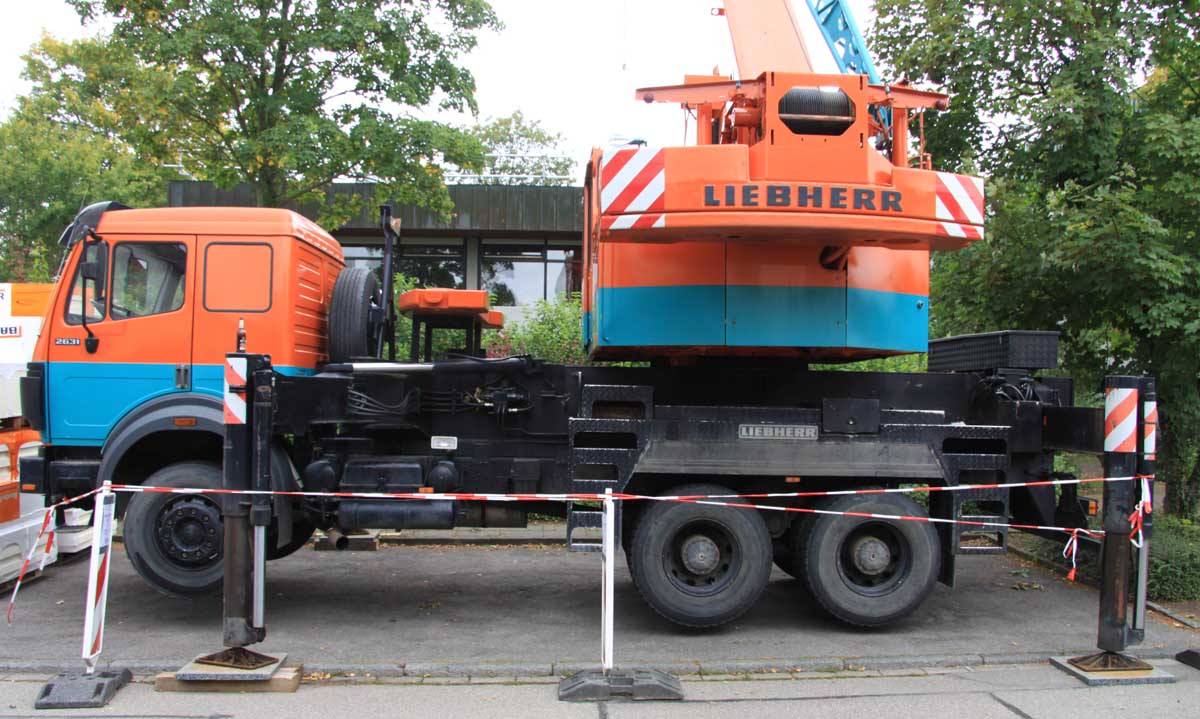

Packed is the crane 9.49 meters long, 2.5 meters wide and 3.88 meters high. The transport mass of the crane is about 28.4 tonnes.

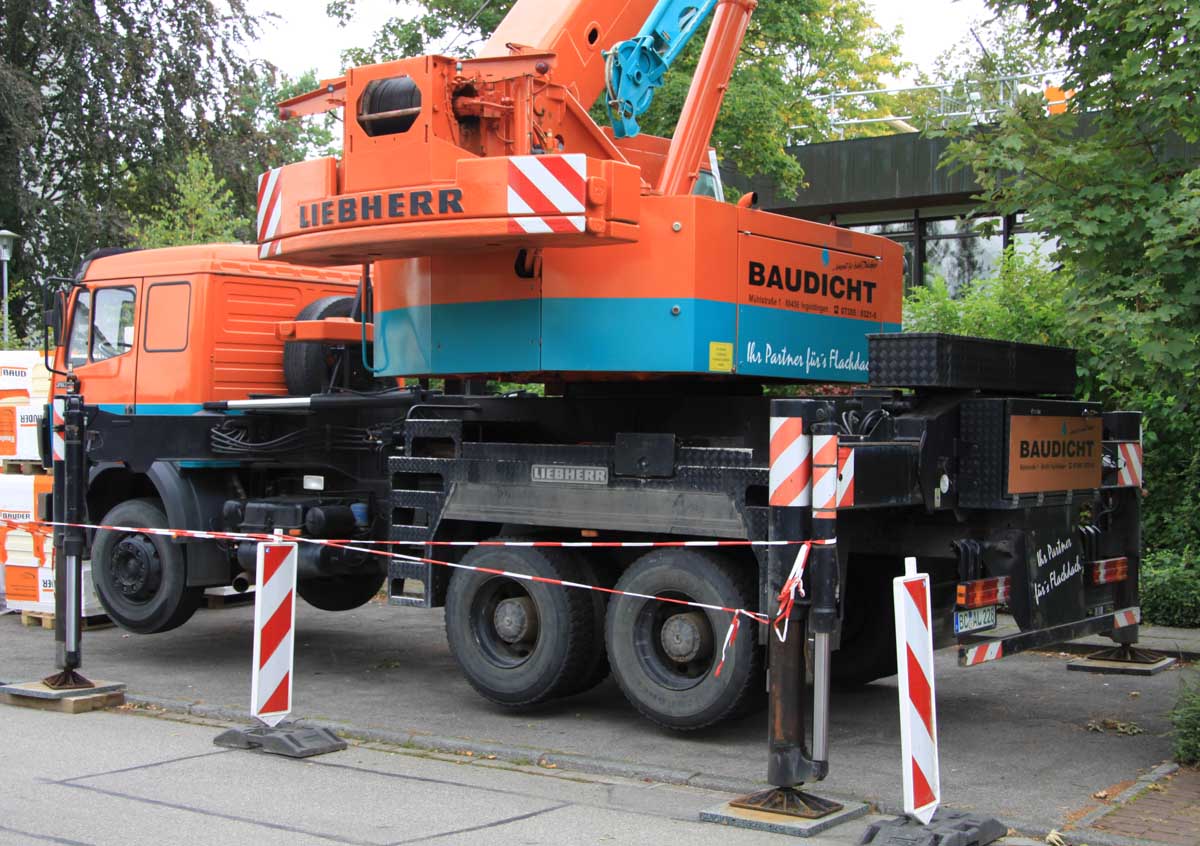

In the superstructure of the crane is laying a 4 cylinder Liebherr D 914 T diesel engine with 136 hp. The engine is driving two hydraulic pumps to make is possible to operate all four crane functions at the same time.

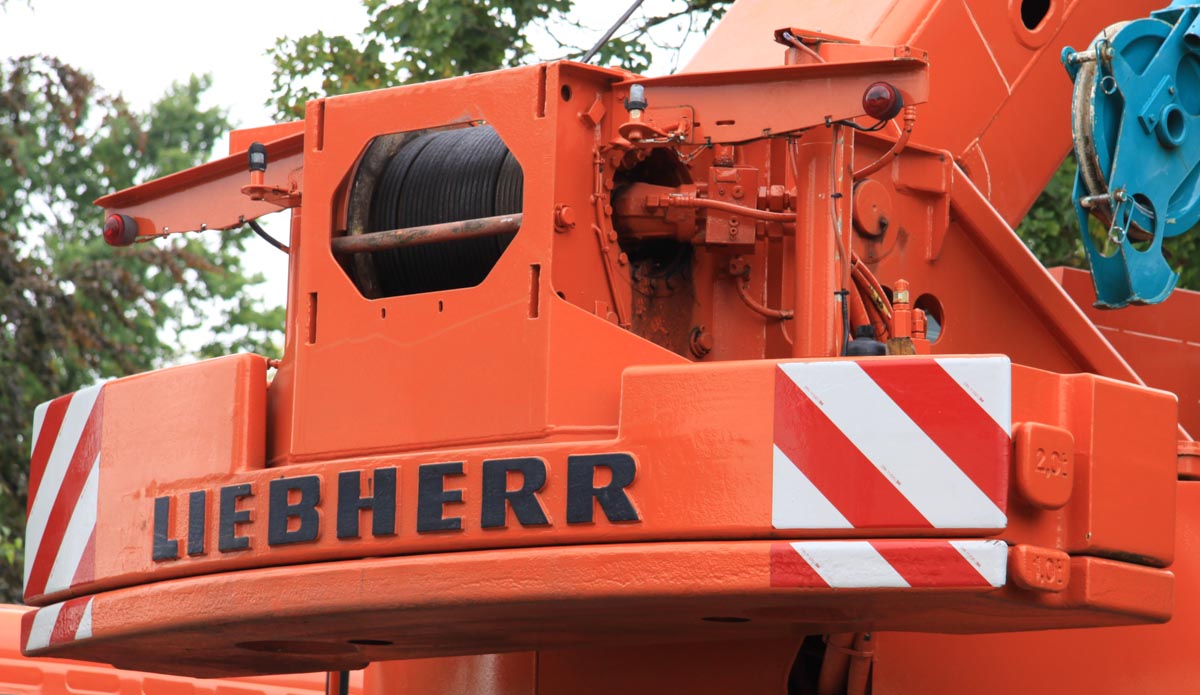

Attached to the superstructure is 3 tonnes of counterweight. The counterweight has a 2.8 meter tailswing.

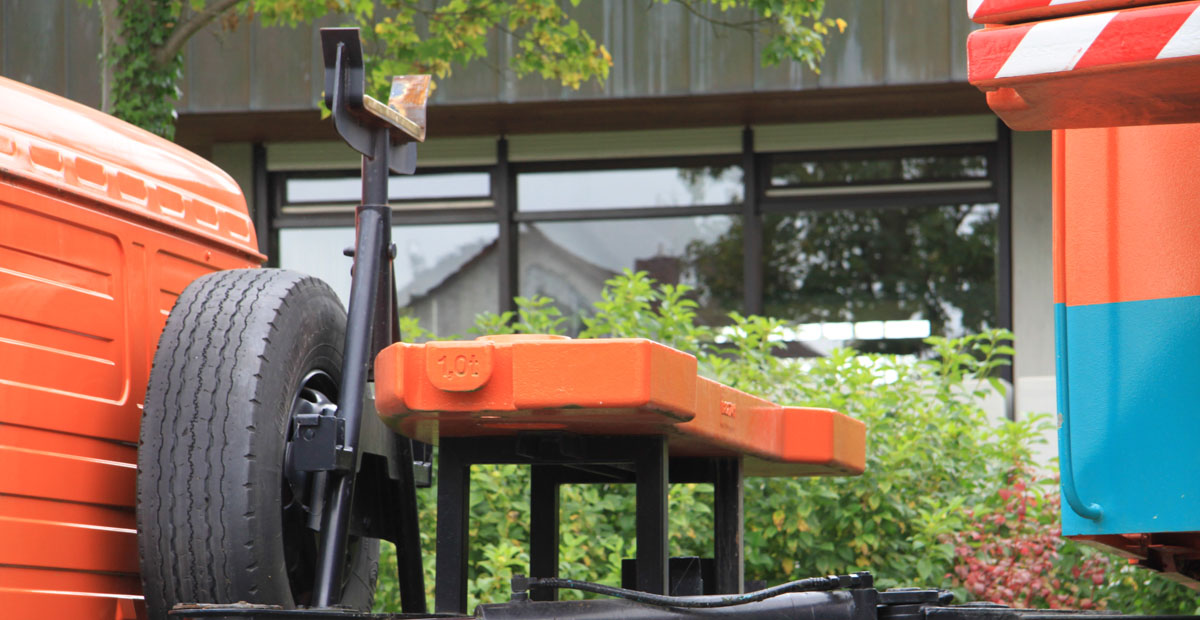

Behind the boom support is laying another 1 tonne counterweight. This crane takes 4 tonnes of counterweight with it, the max. counterweight is 5.5 tonnes.

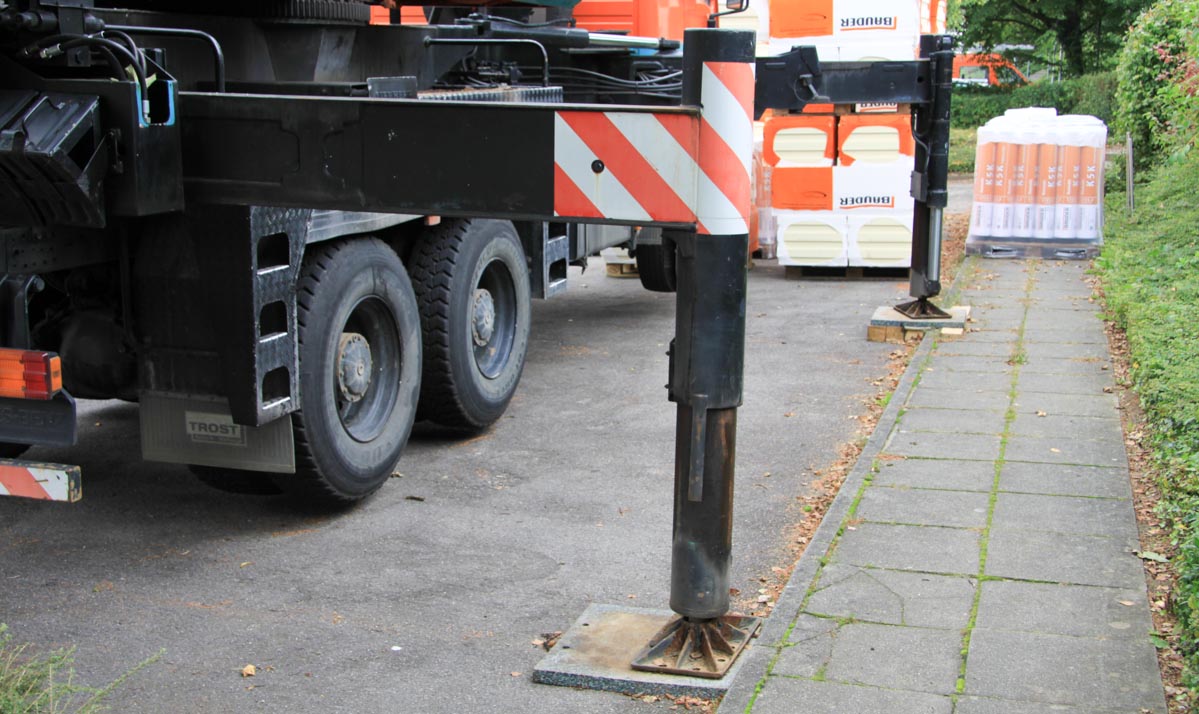

The outrigger base of the crane measures 6.1 x 8 meters. The rear outriggers are telescoping directly into the chassis, the front outriggers are first telescoping and are then folded hydraulically inside so that they are parallel with the chassis.

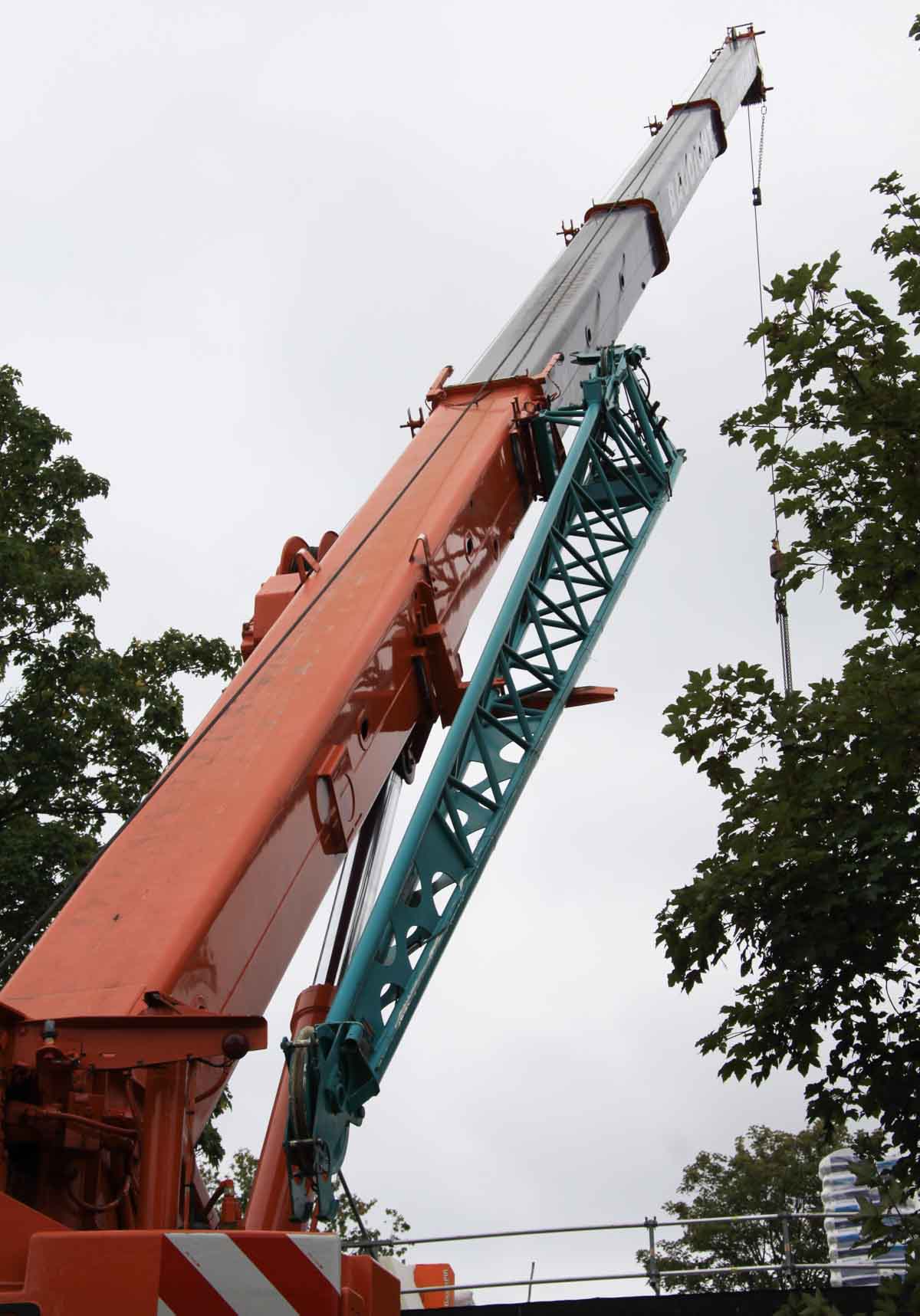

The main boom has a 8.4 meter base length and is fully extended 26 meters long. The main boom is extendable with a 8.4 meter single folding jib or a 14.4 meter double foling jib. This crane is equiped with the single folding jib.

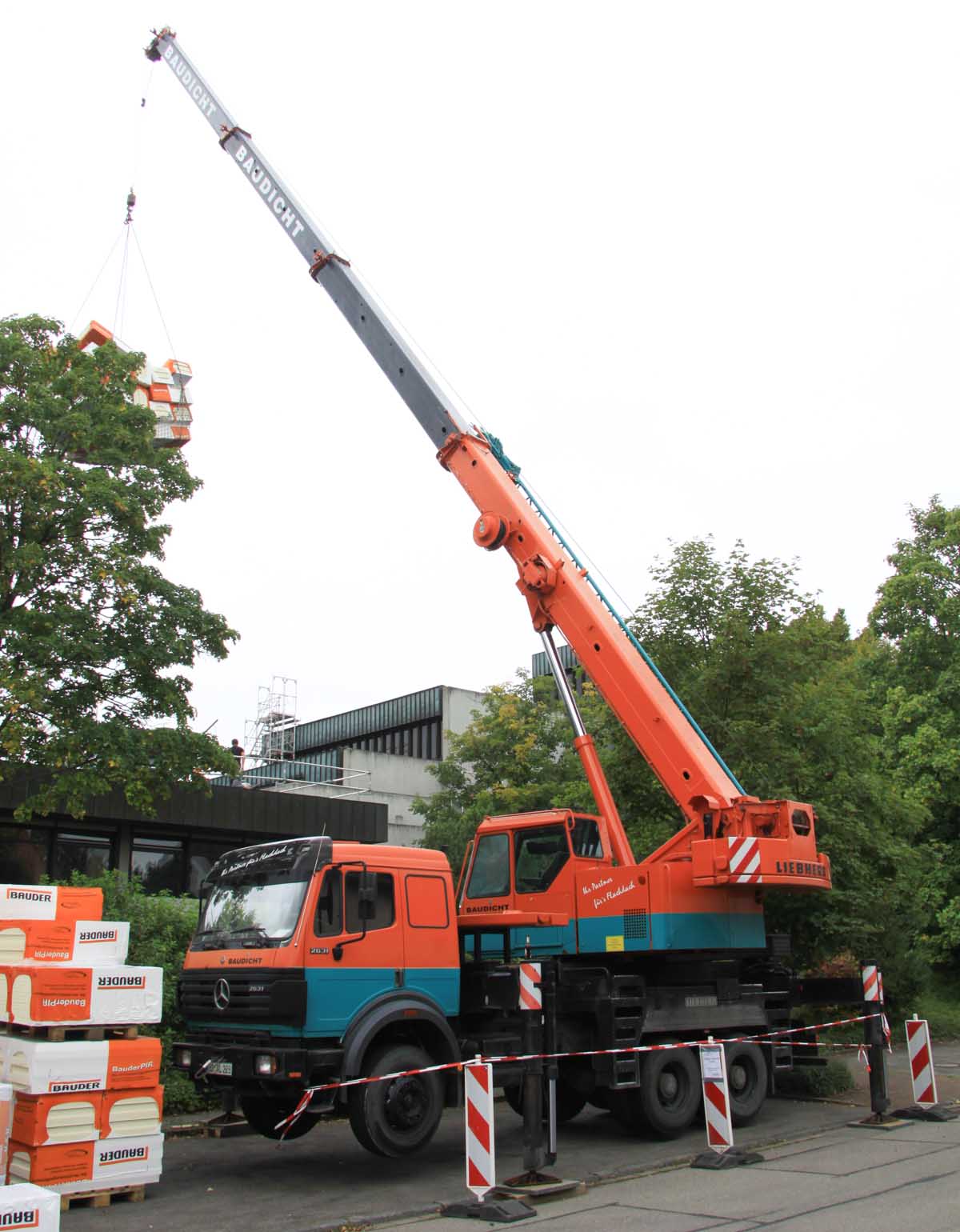

The crane is lifting here some packages with isolation material onto the roof of the school.
A sharp crane!
