Kobelco BM700 - Tiong Aik

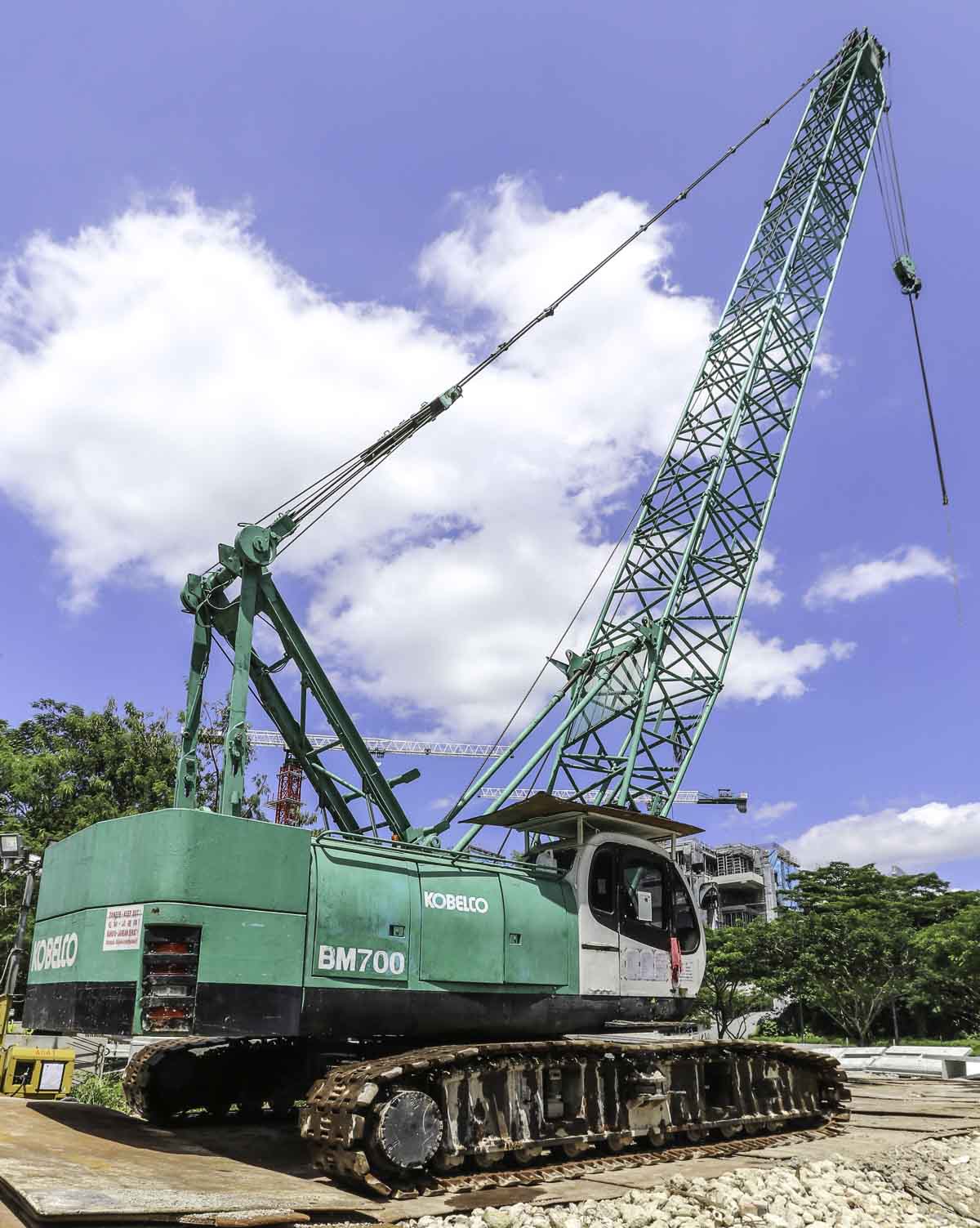

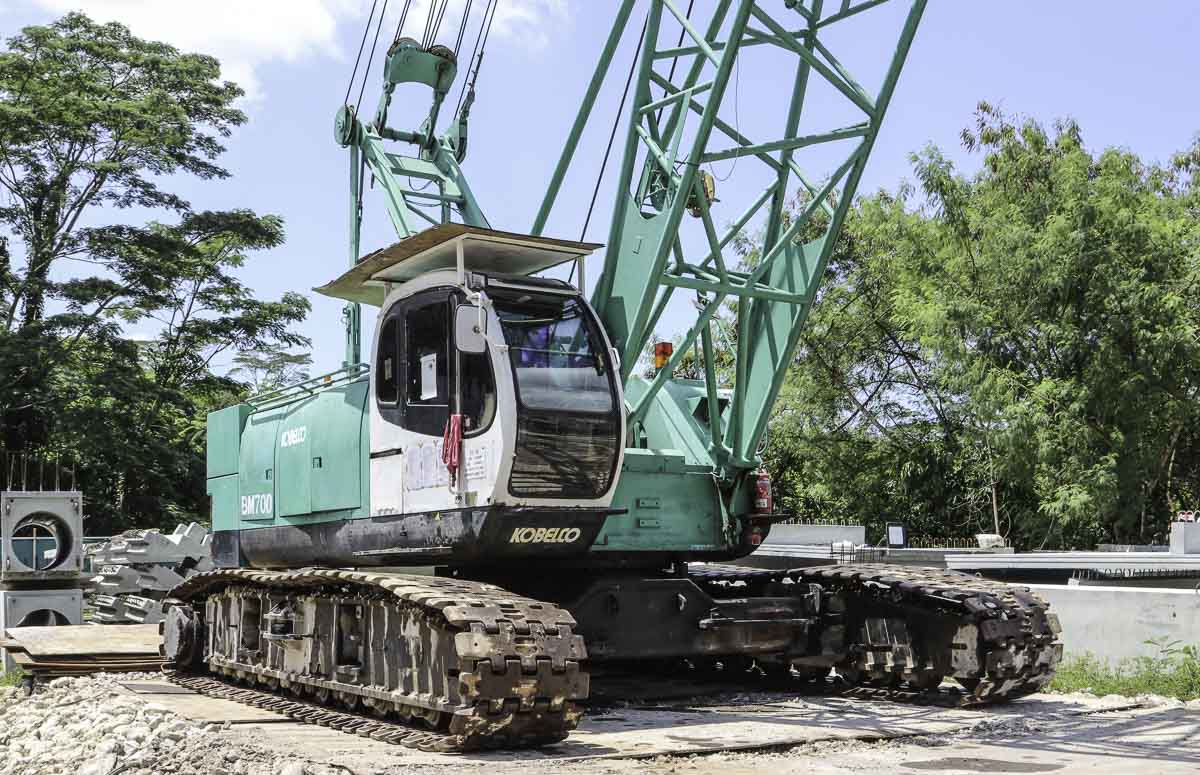

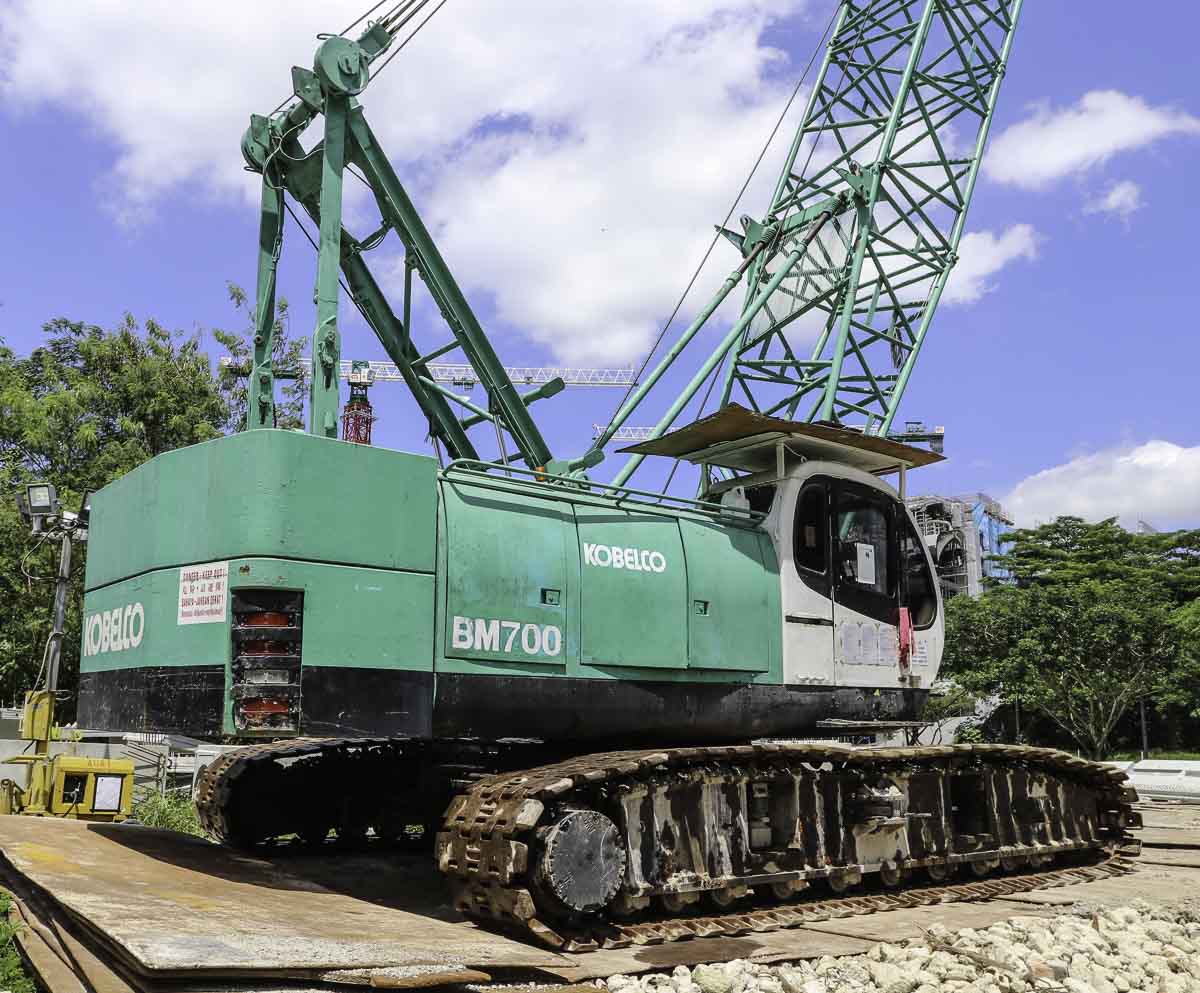

This Kobelco BM700 belongs to Tiong Aik from Singapore (SG) and was there used as assist crane on a storage yard for concrete precast elements. It is a 65-tonne crawler crane with year of manufacture 1997.

The crane is powered by a Mitsubishi 6D22-T, a 6-cylinder diesel engine with a power of 170 kW (230 hp). The diesel engine powers in total three hydraulic pumps.

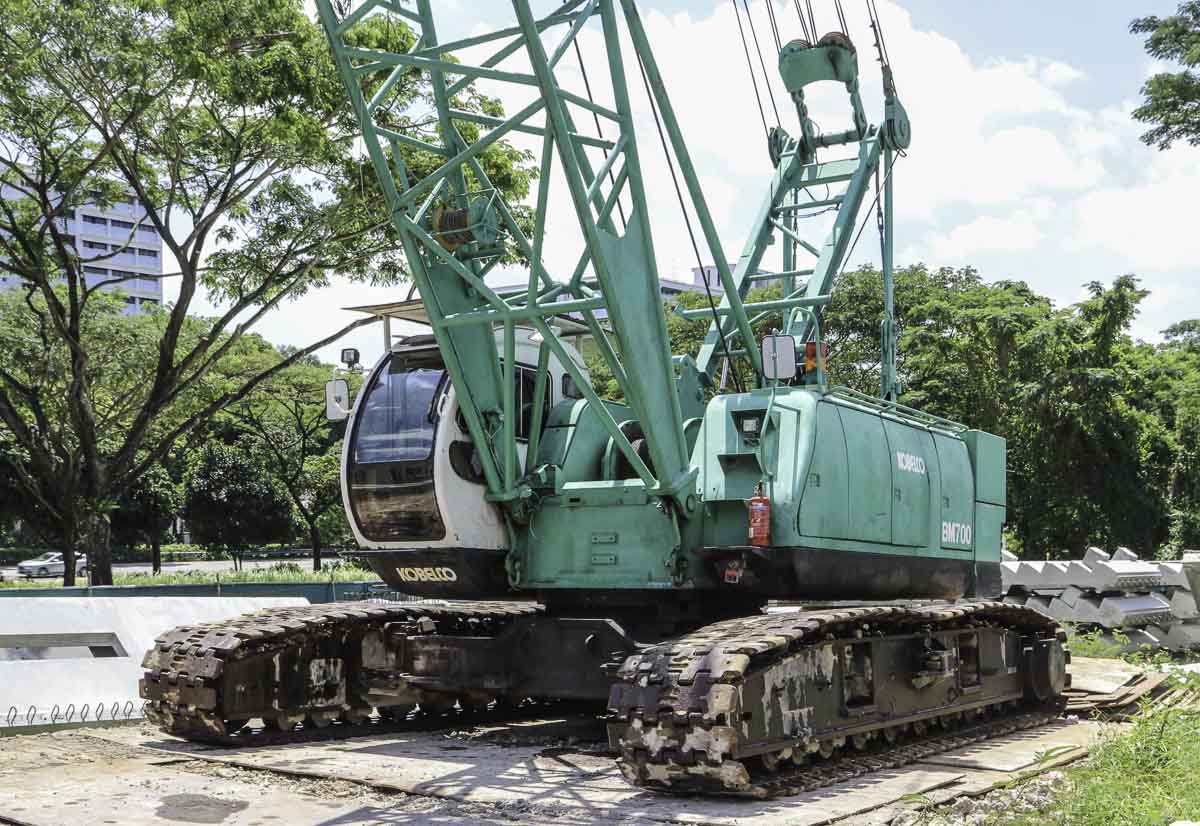

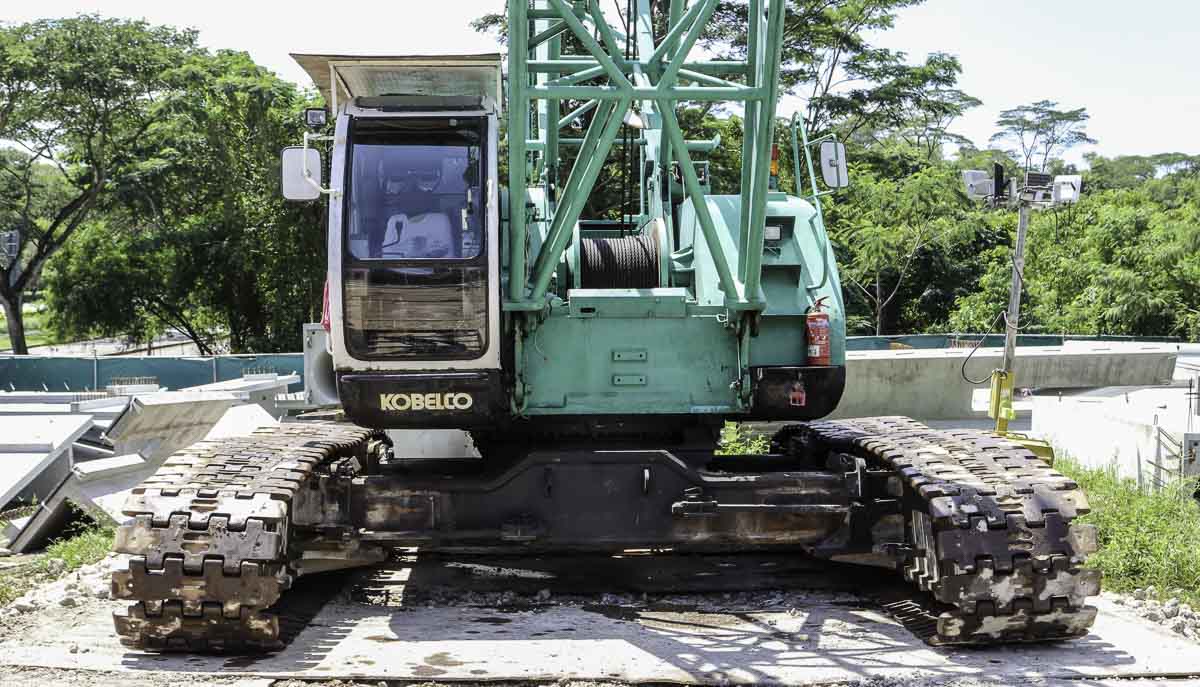

The undercarriage of the crane is 5.88 meters long and 4.83 meters wide. For the transport over the road is the width adjustable to 3.2 meters only by hydraulics. The tracks are each 0.8 meters wide.

The crane is fitted with two 6.6-tonne hoist winches, which are both in operation here.

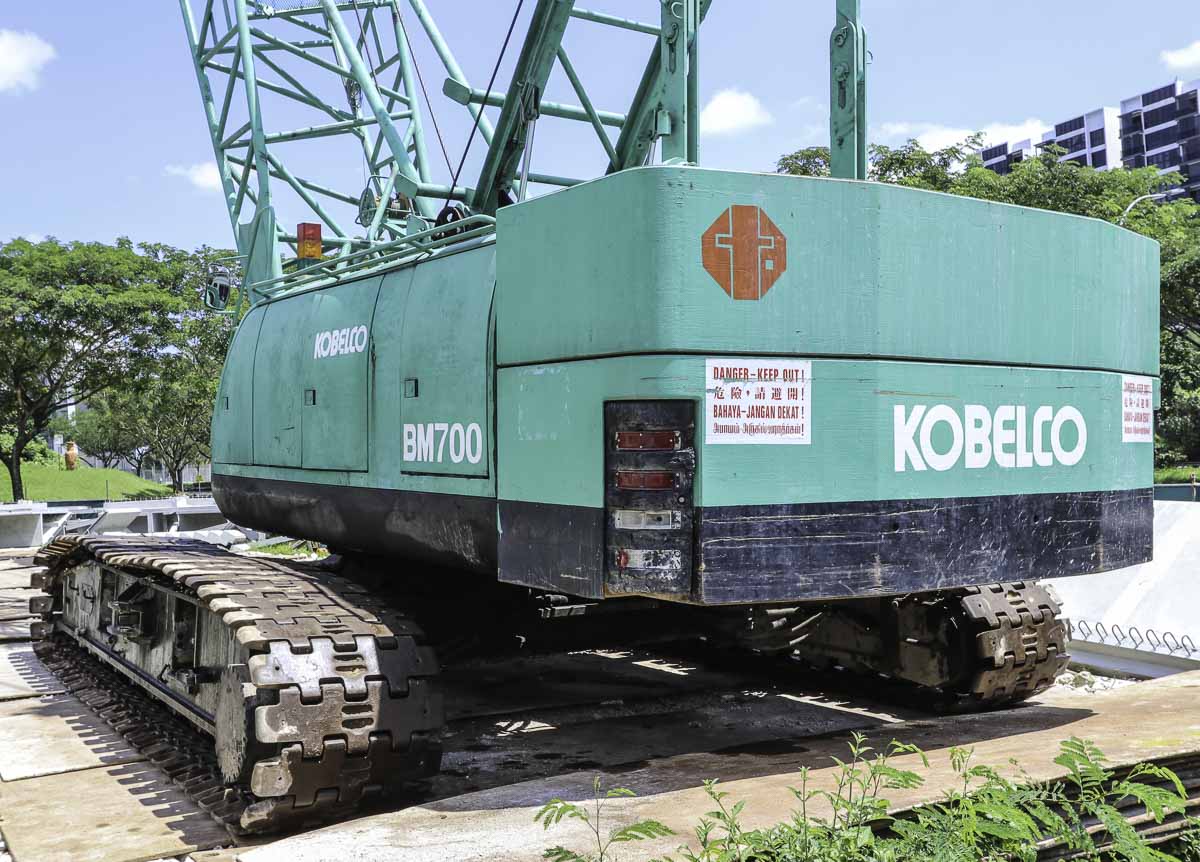

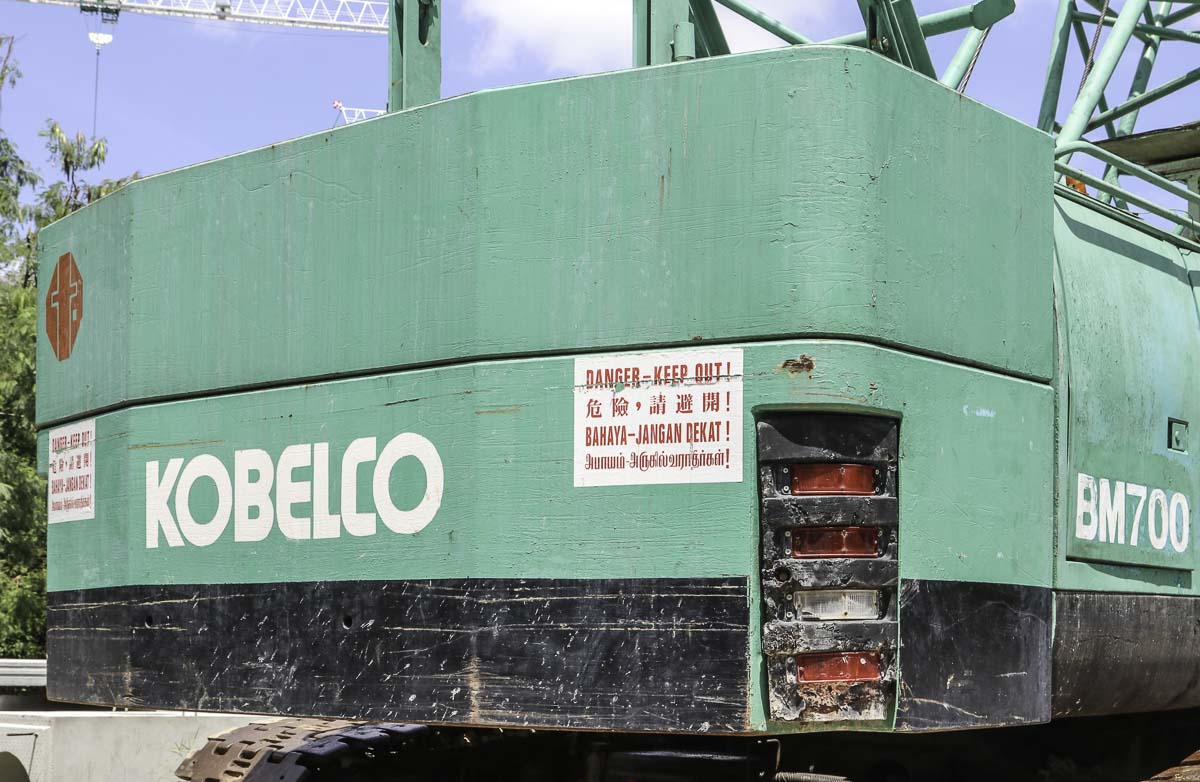

The two-part counterweight has a total mass of 20.55 tonnes and has a 4.35 meters tailswing.

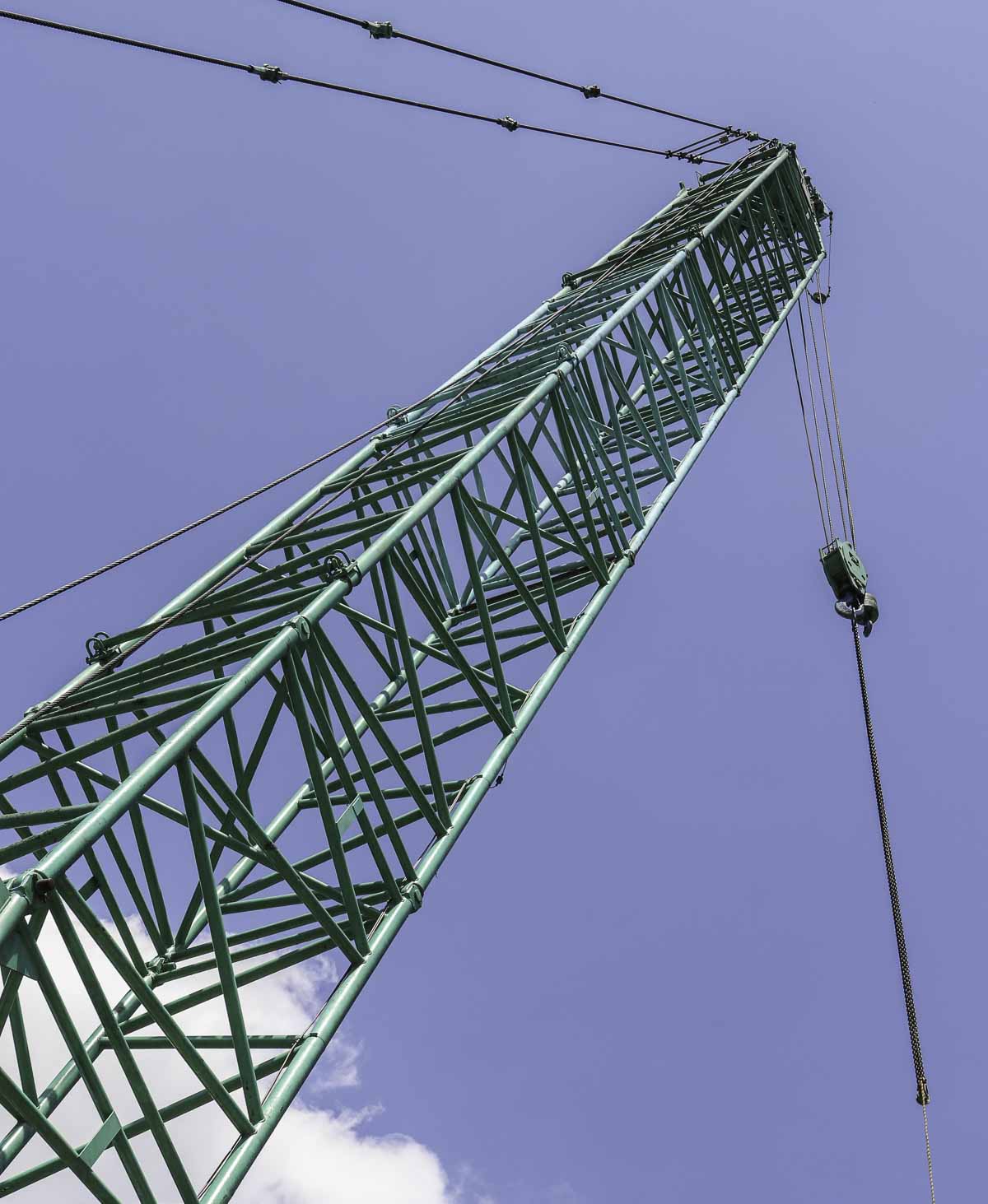

The main boom has a 9.1 meter base length and can be extended to a maximum length of 54.9 meters. Here is the crane fitted with a 33.5 meter long main boom, in this configuration is the crane able to hoist maximum 28.4 tonnes on a 7.3 meters or 3.6 tonnes to a 30.3 meter radius.

A sharp crane of Tiong Aik!
