Kobelco CKS900
Team Alliance

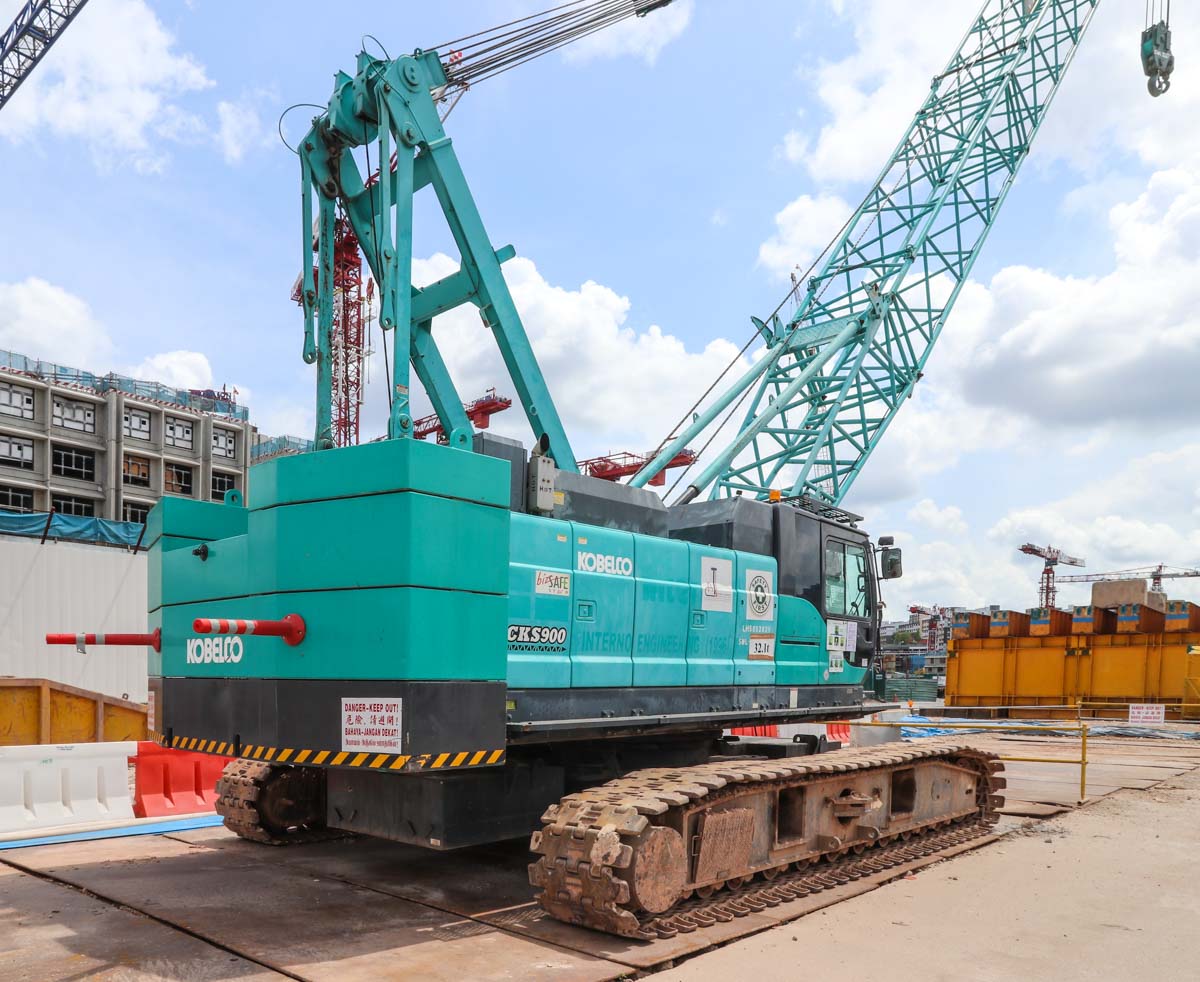

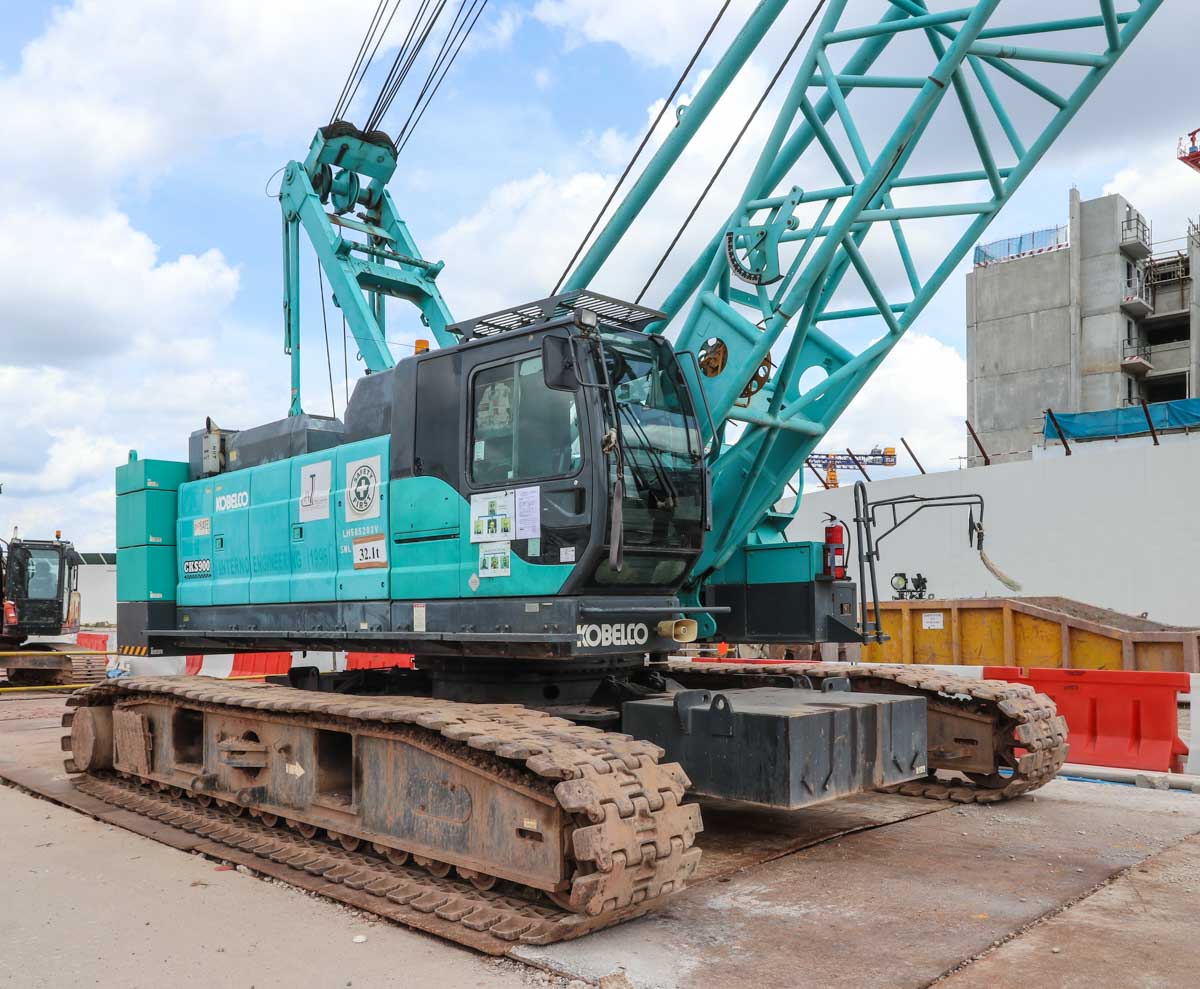

This fine Kobelco CKS900 belongs to Team Alliance from Singapore (SG). It is a 90-tonne crawler crane; this maximum load can be lifted at a radius of 3.9 metres.
The crane is powered by a Hino J08E-VM, a 7.7-litre 6-cylinder diesel engine with an output of 213 kW (286 hp). The diesel engine drives three hydraulic pumps.

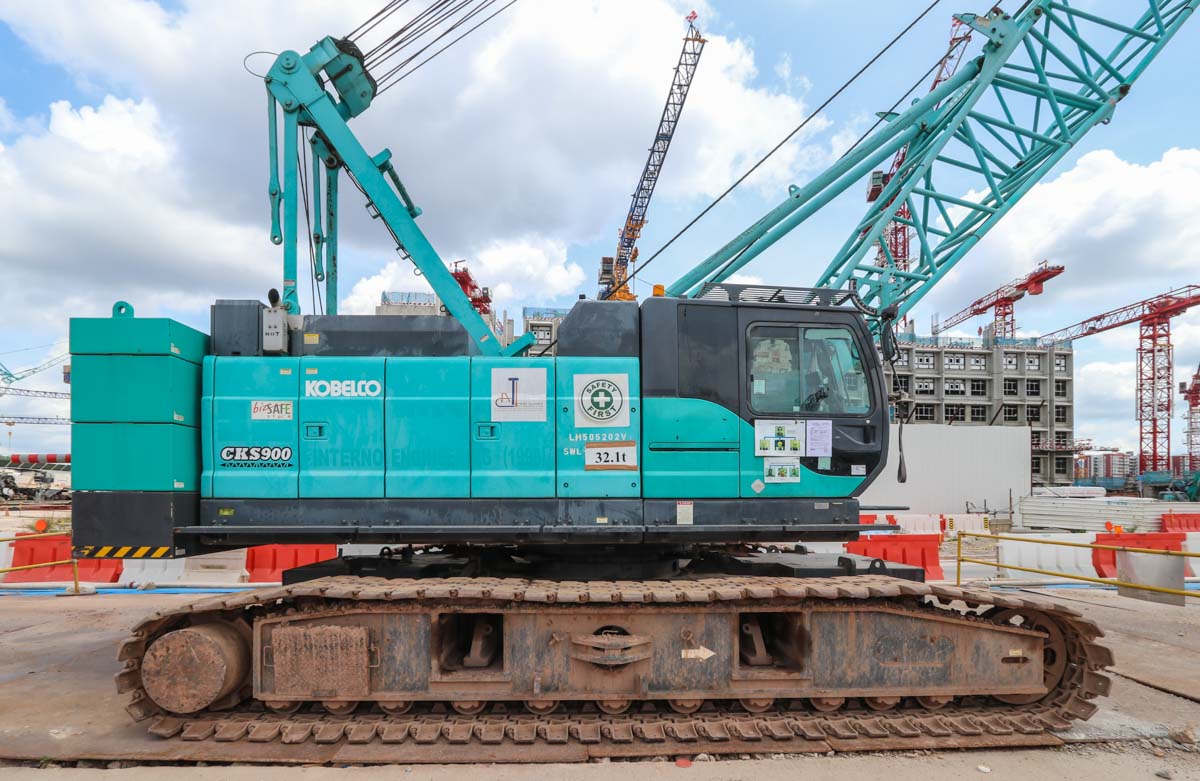

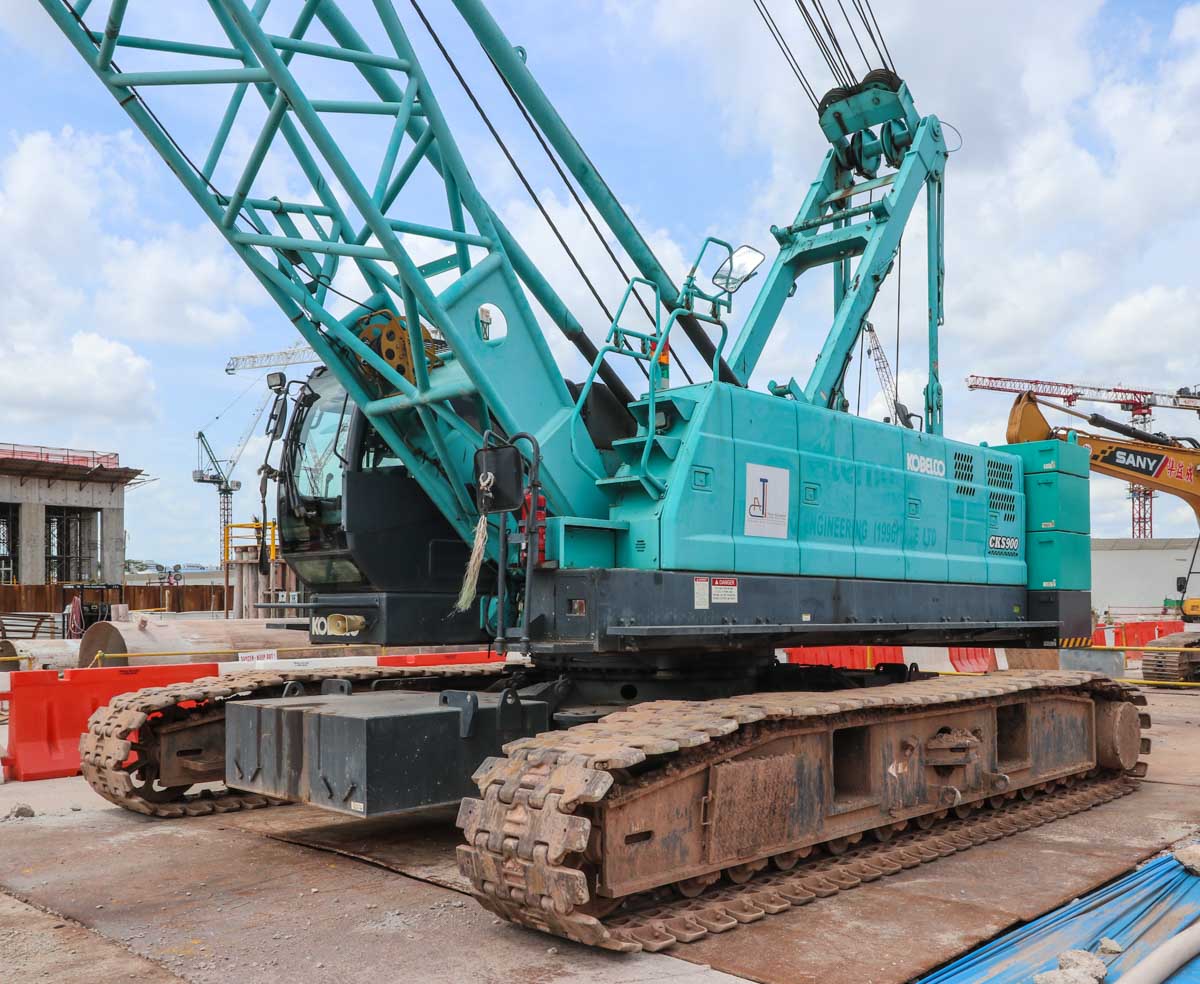

The carrier is 6.28 metres long and 5.13 metres wide. The crawler tracks each have a width of 0.8 metres. For transport on public roads, the width can be reduced to 3.5 metres.

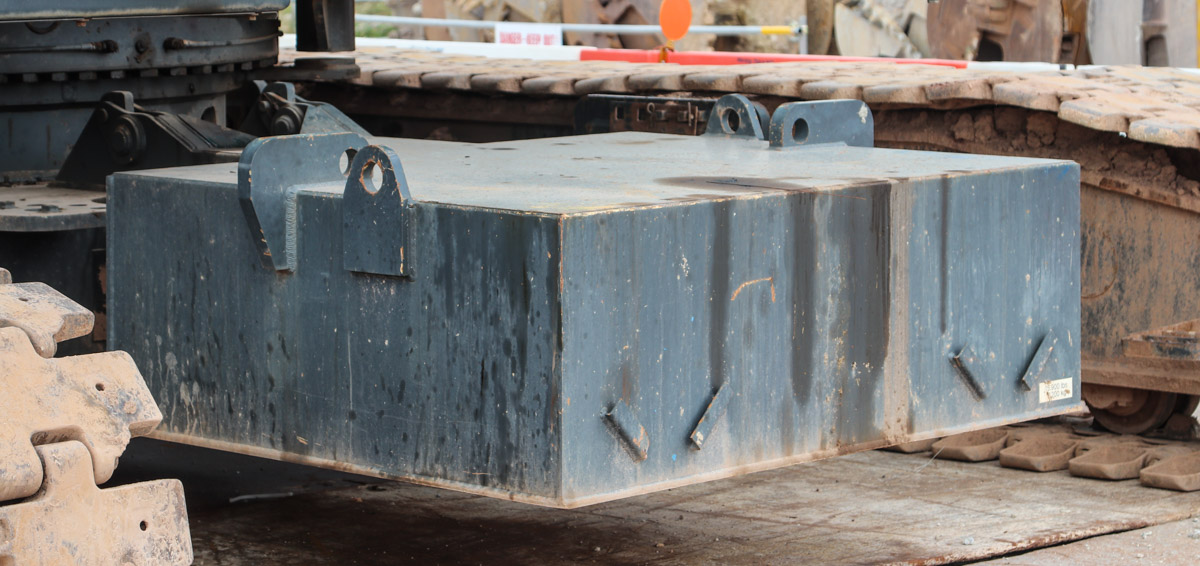

A total of 14.4 tonnes of central ballast is mounted on the carrier.
The crawler crane is equipped with two 11-tonne hoist winches, both hoist winches using 26 mm diameter hoist rope.

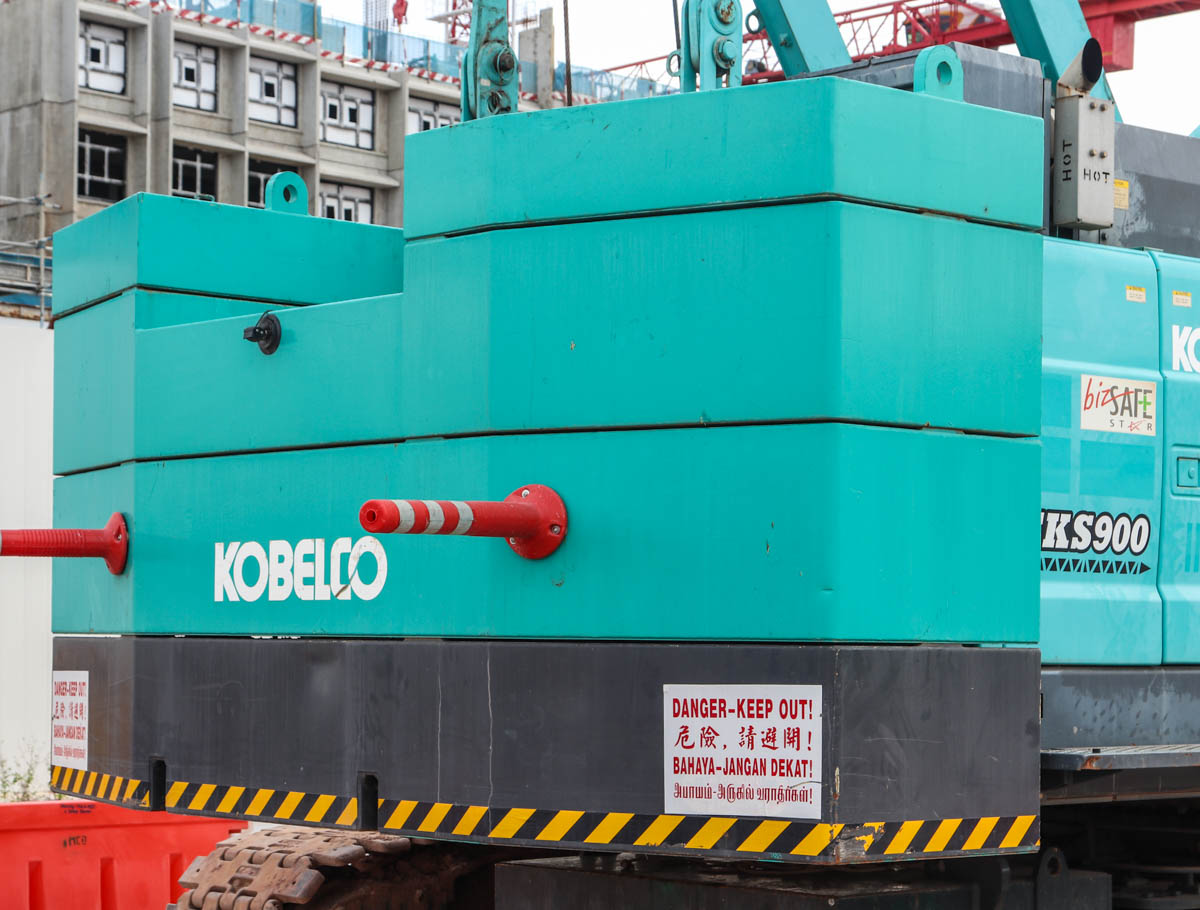

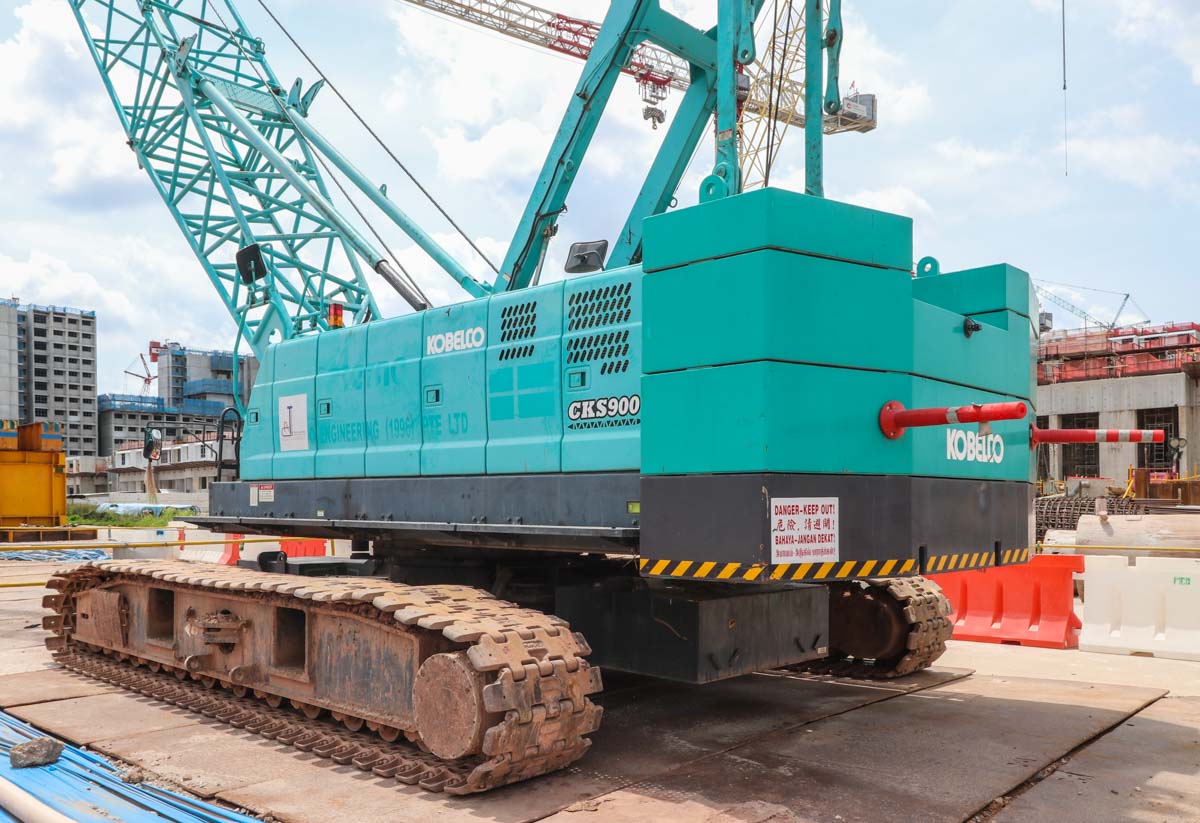

The five-part ballast has a total weight of 31.9 tonnes and has a swing radius of 4.5 metres.

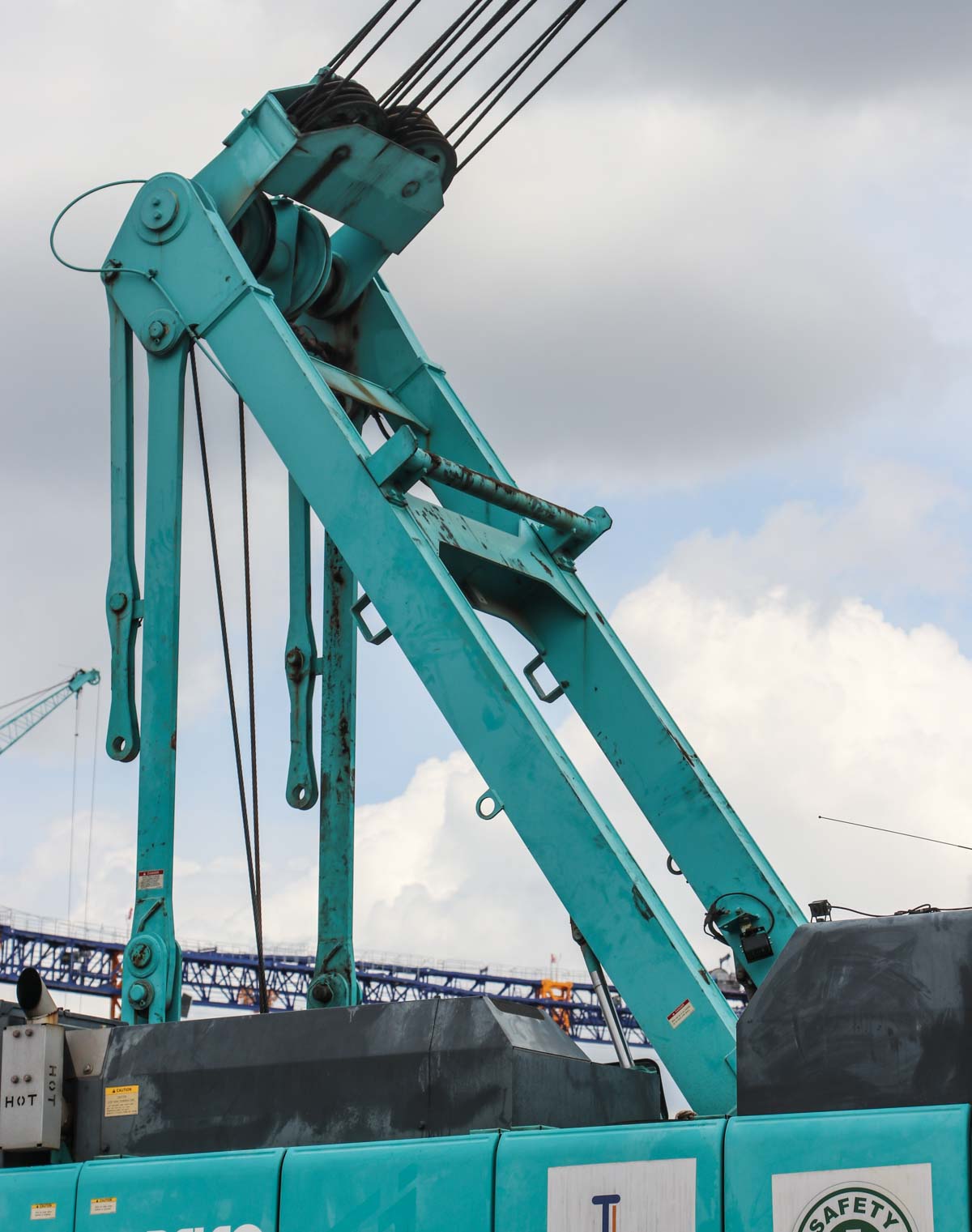

In working position, the A-frame has a total height of 6.19 metres.

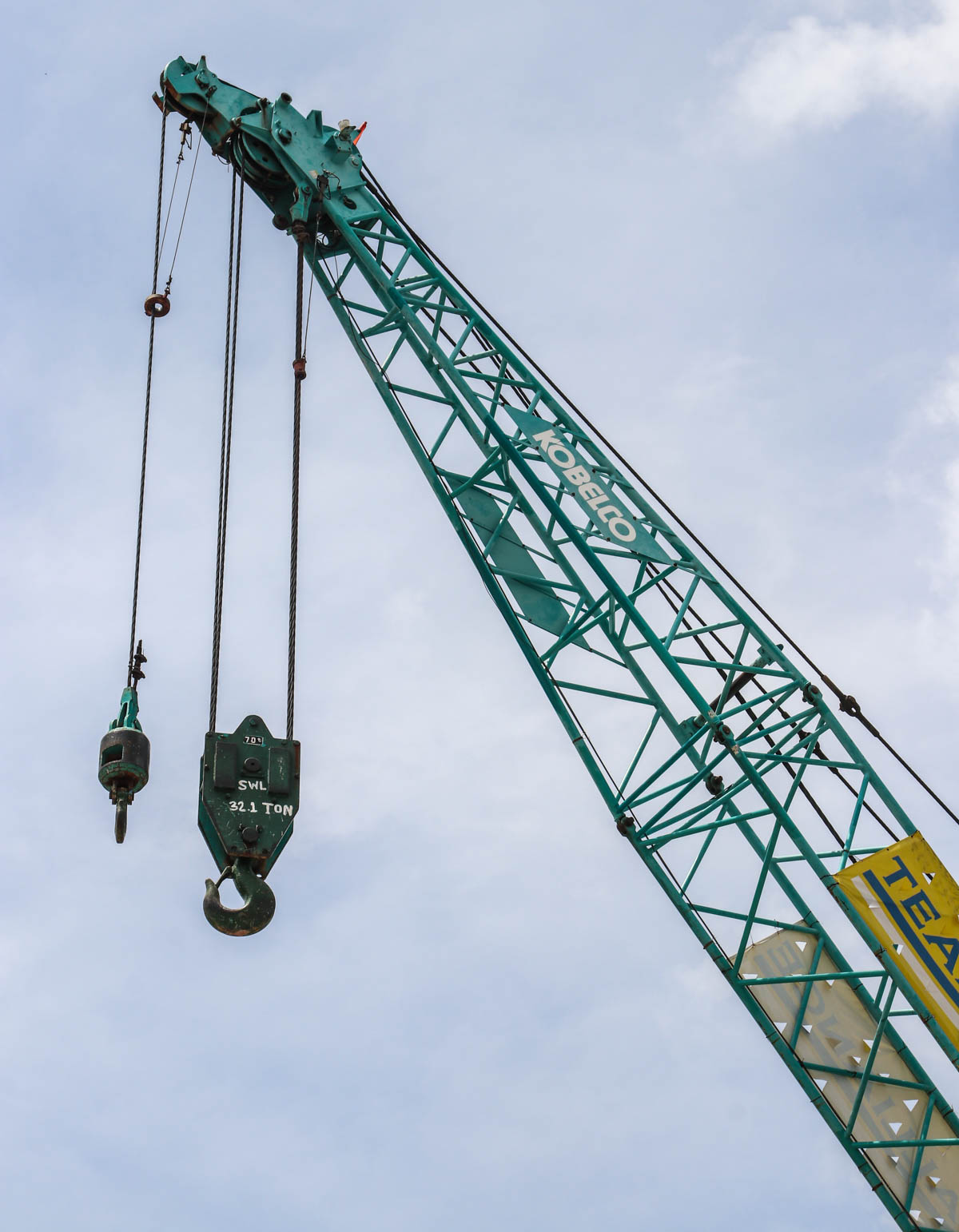

The main boom has a base length of 12.2 metres and can be extended to a maximum of 61 metres. Both hoist winches are in use here.

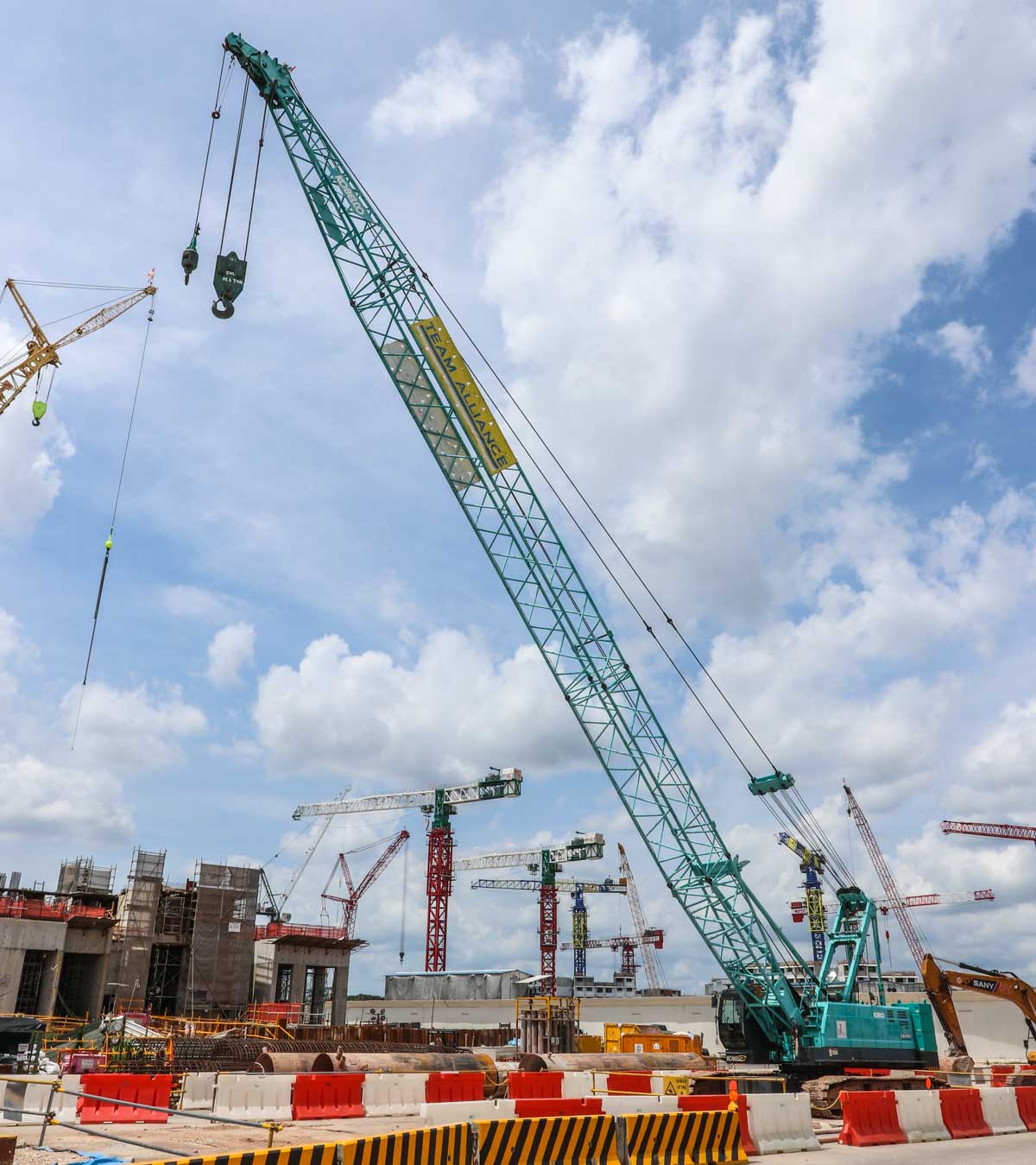

Here, the crane was erected with a 30.5-metre main boom. Provided that the correct reeving is applied, the crane can lift a maximum of 54 tonnes at a radius of 5.6 metres or 7.6 tonnes up to a radius of 27.6 metres. A fine crane from Team Alliance!
