Kobelco TK550

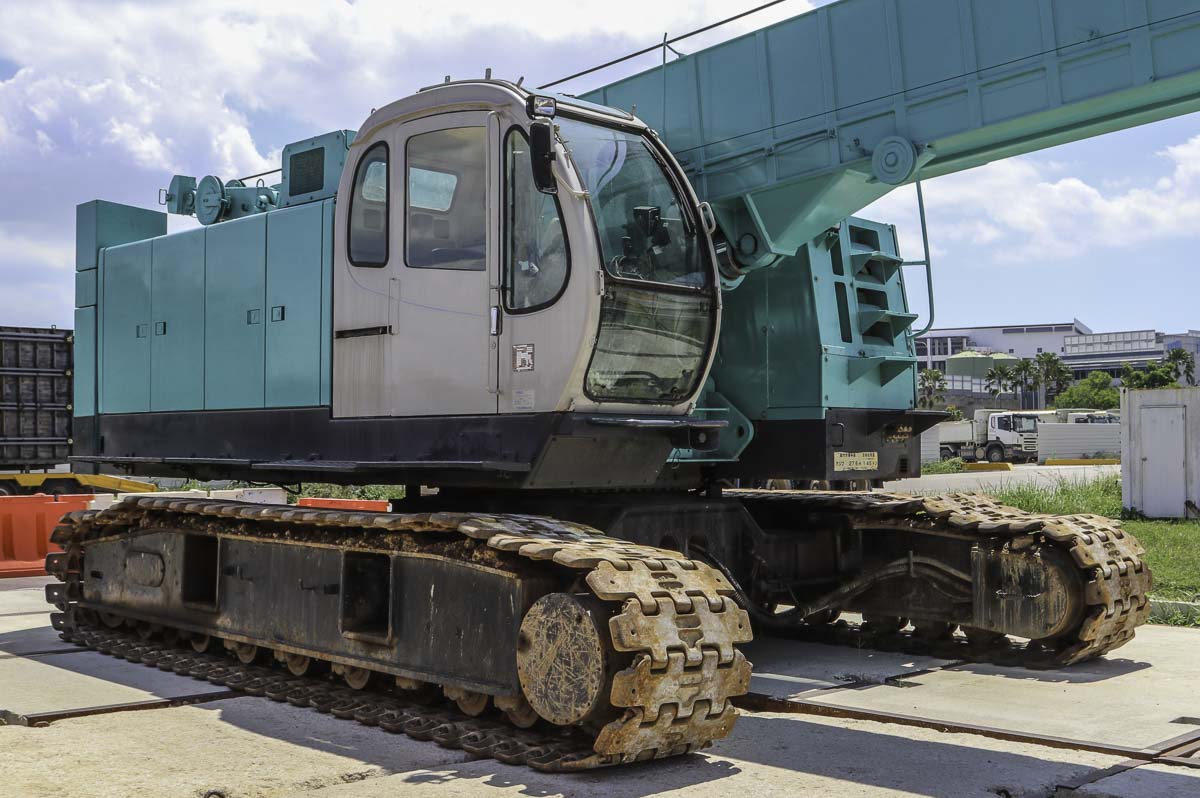

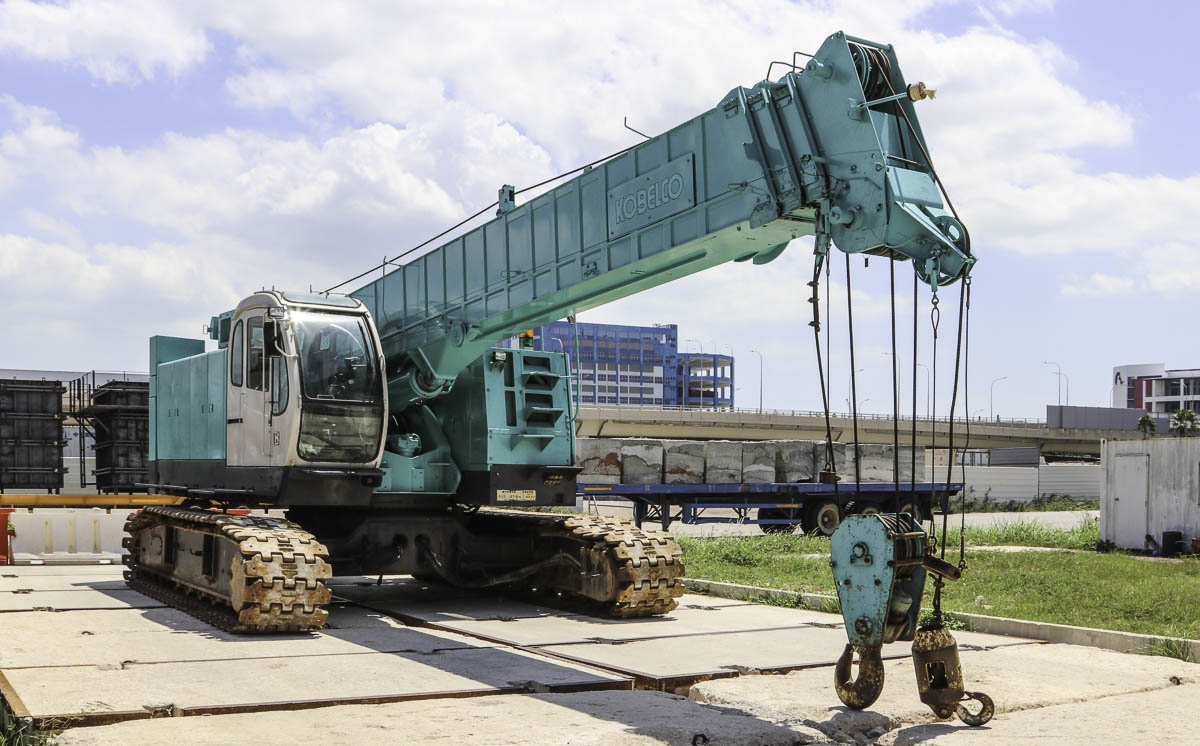

This Kobelco TK550 from an unknown company stood parked on a small yard. It is a 55-tonne telescopic crane on crawler carrier with year of manufacture 2000.
The crane is powered by a Mitsubishi 6D16-TLE1, a 7.54-liter 6-cylinder diesel engine with a power of 147 kW.

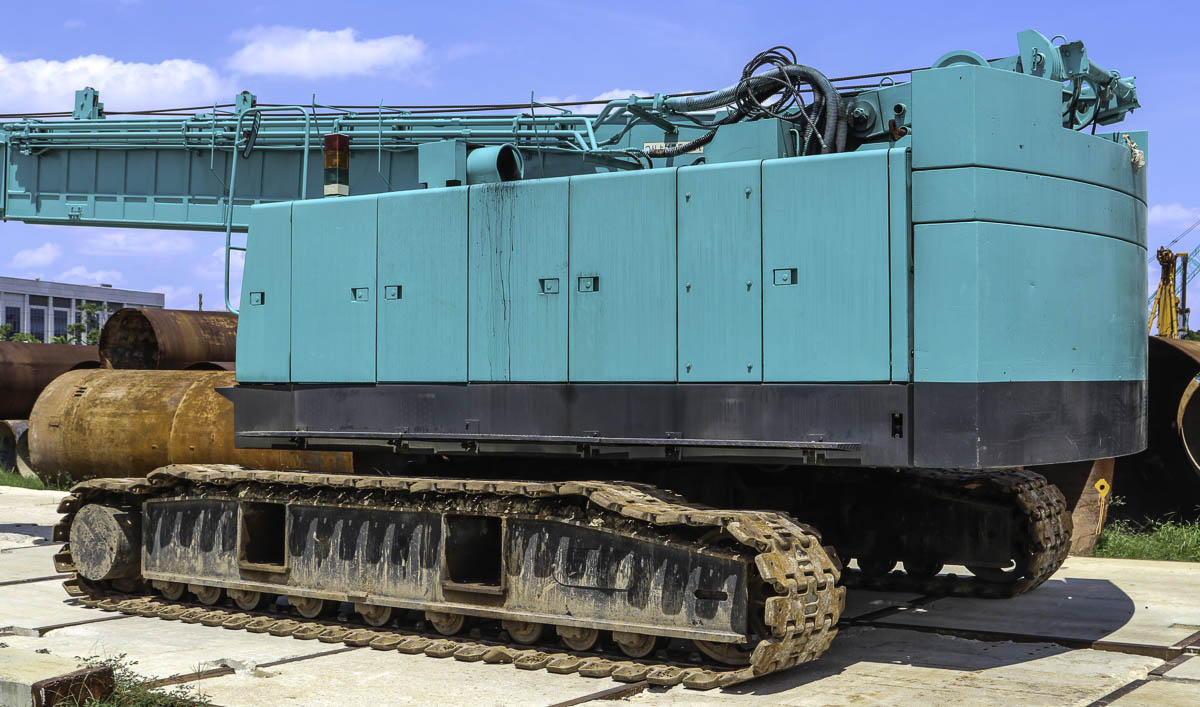

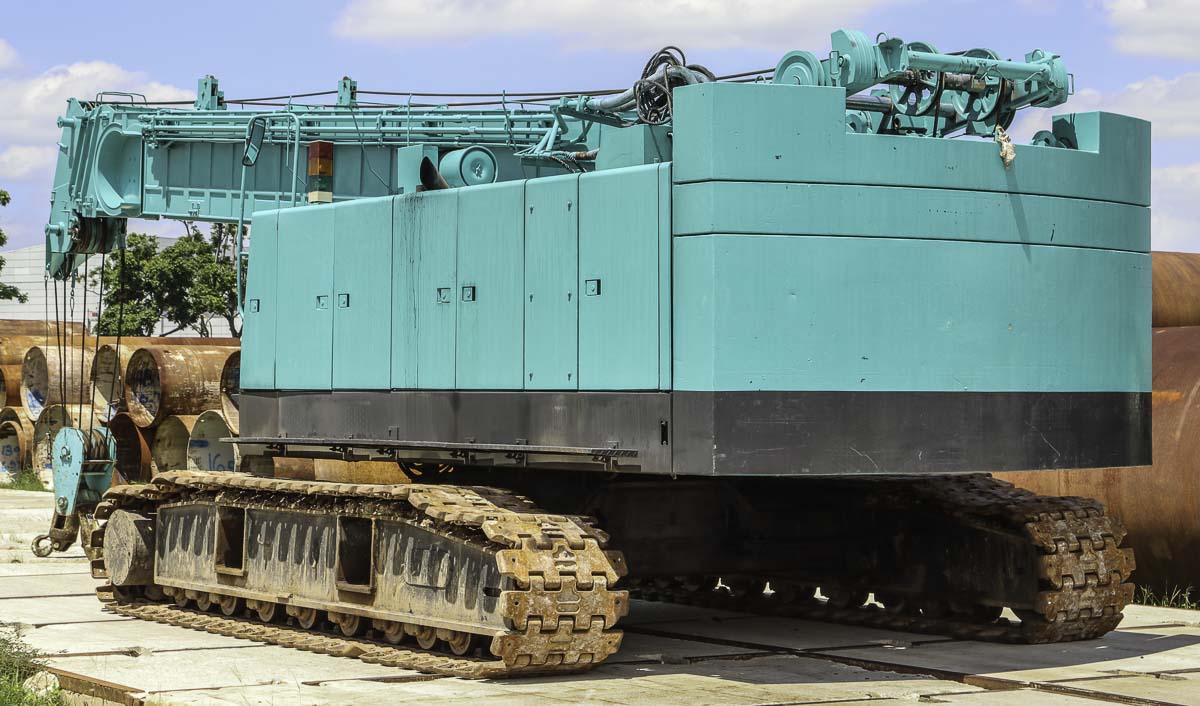

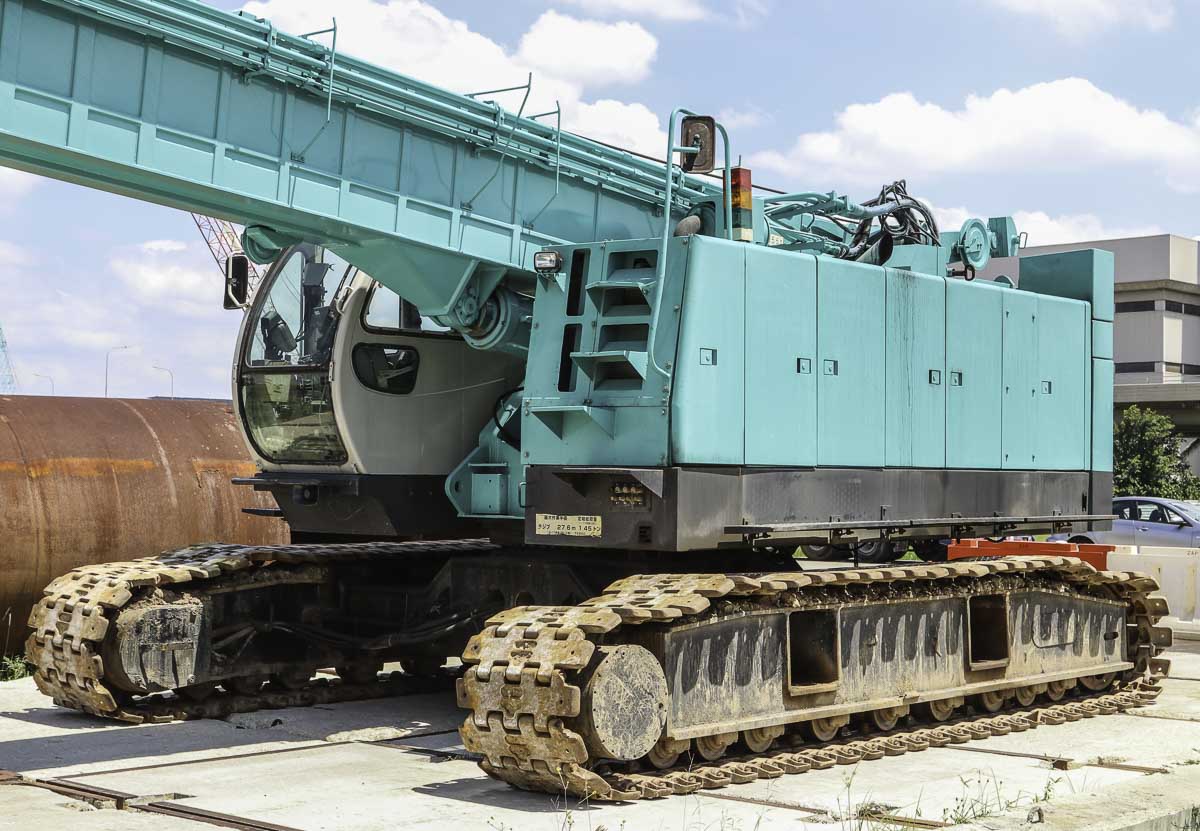

The undercarriage is 5.59 meters long and 4.36 meters wide. For the transport over the road is the width to be reduceed to 2.84 meters only.
In total is the crane fitted with five hydraulic pumps. The crane is fitted with two 5-tonne hoist winches.

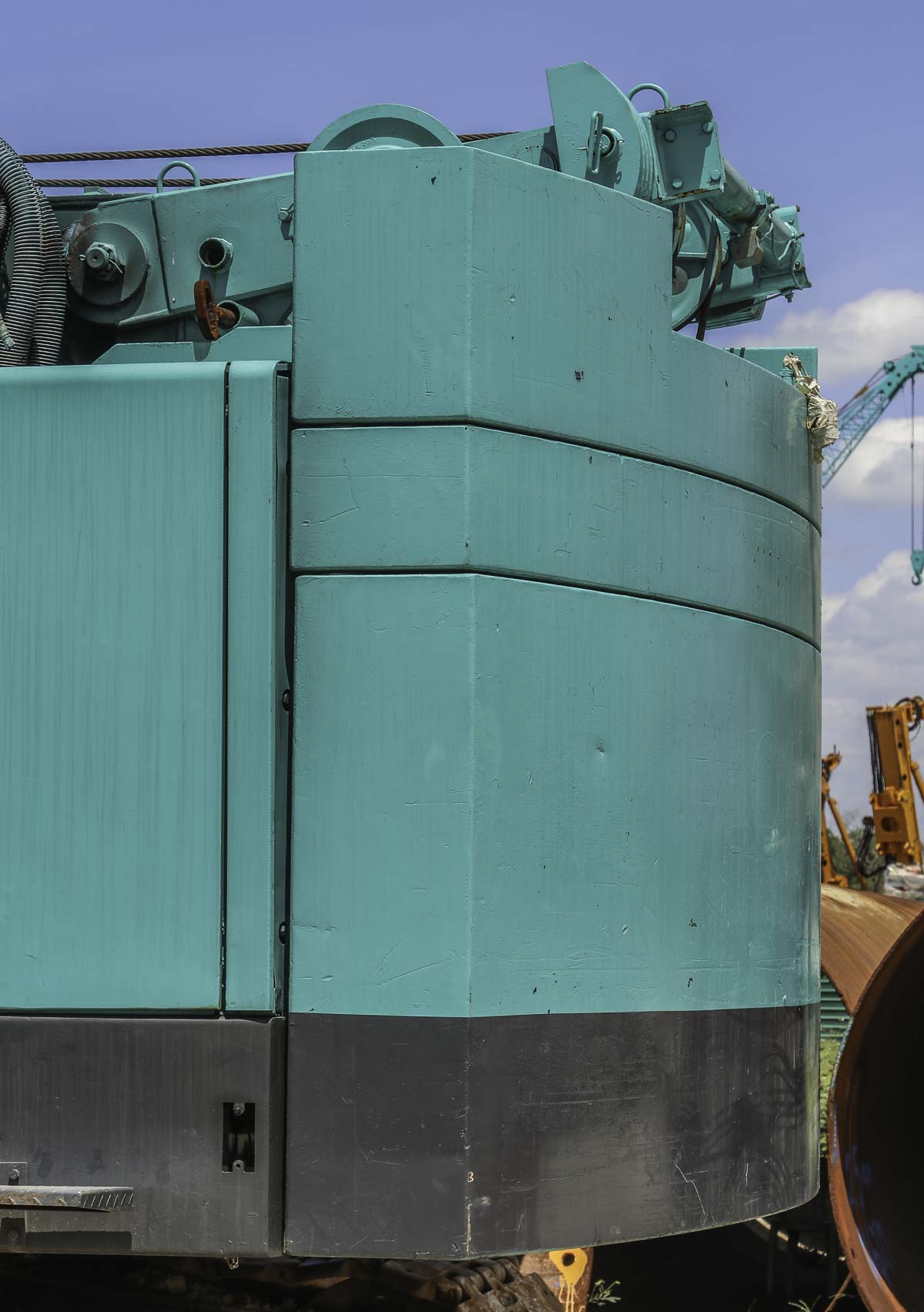

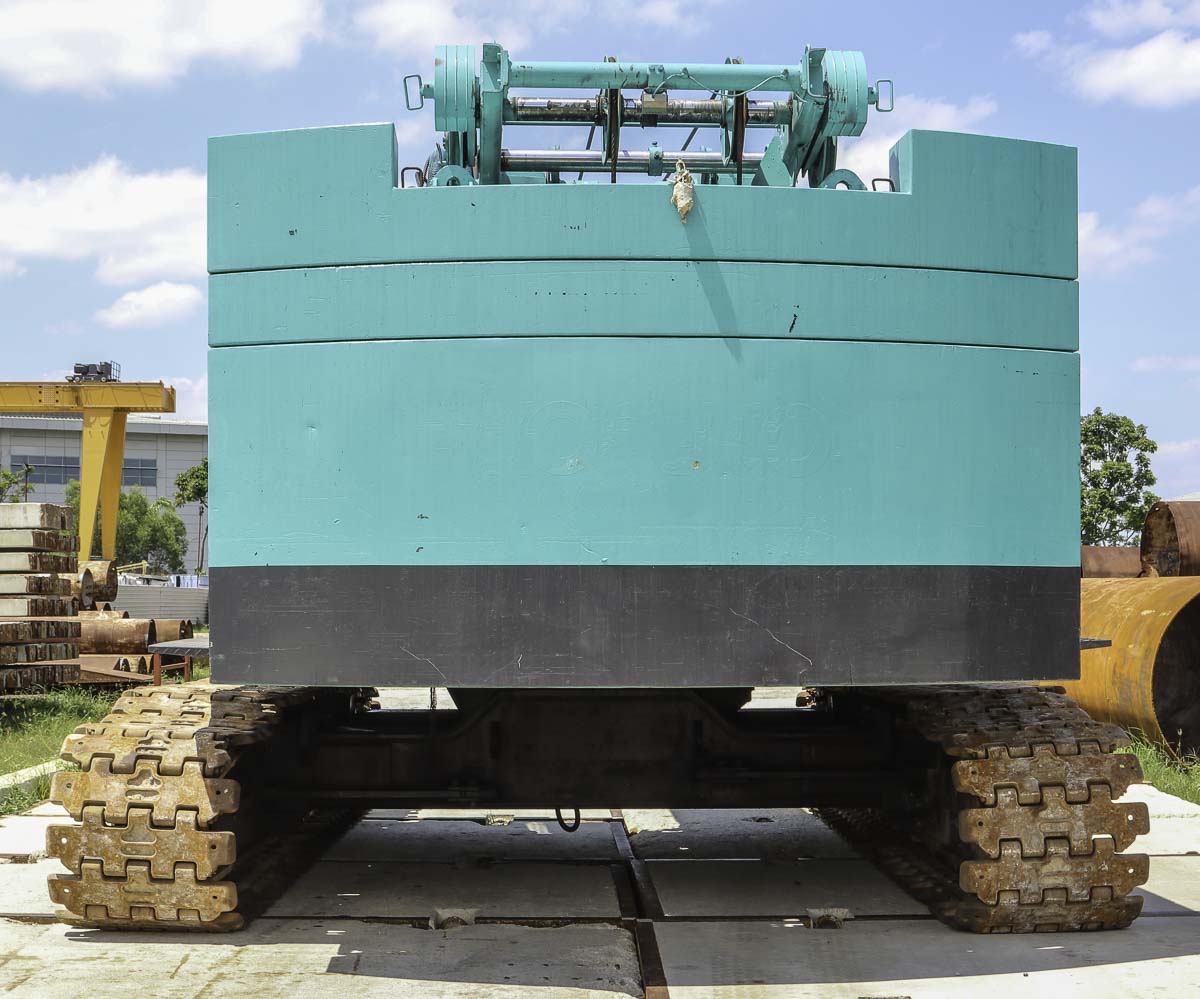

Attached to the superstructure is in total 12 tonnes of counterweight, the tailswing is 3.8 meters.
The crane has a total mass of 50 tonnes.

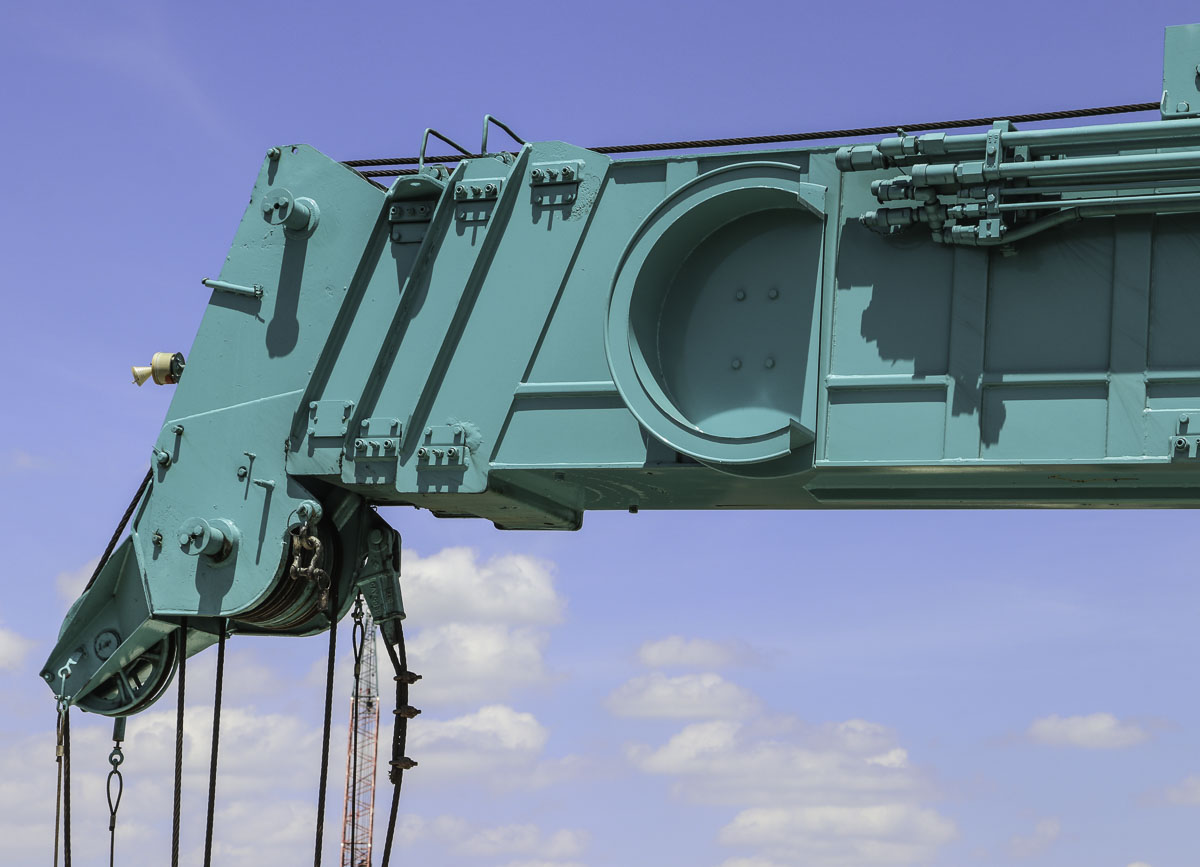

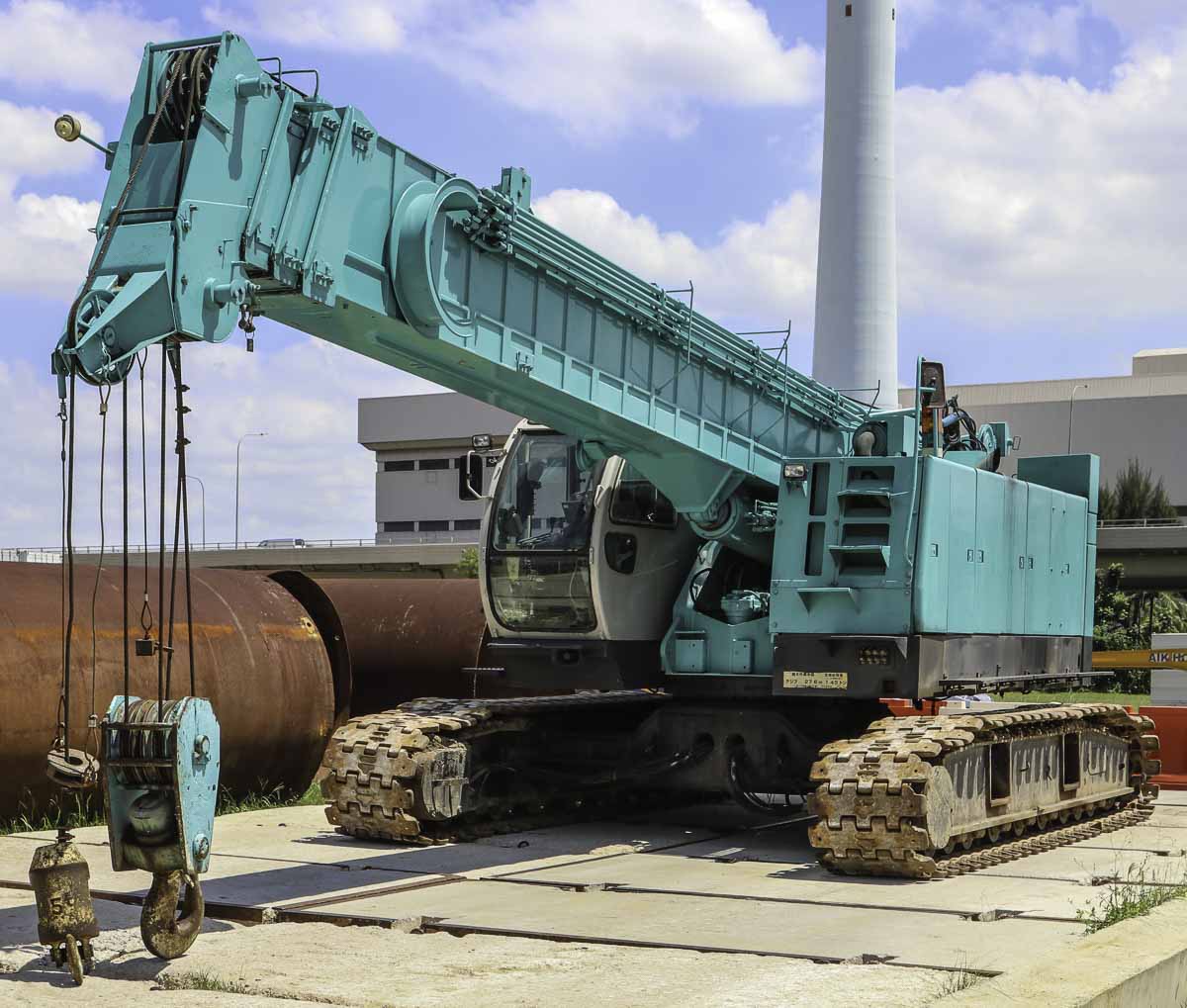

The 4-part main boom has a 9.97 meter base length and extends three times to a maximum length of 30.1 meters. Here are both hoist winches in use.
A sharp and interesting crane.
