Kobelco 7150

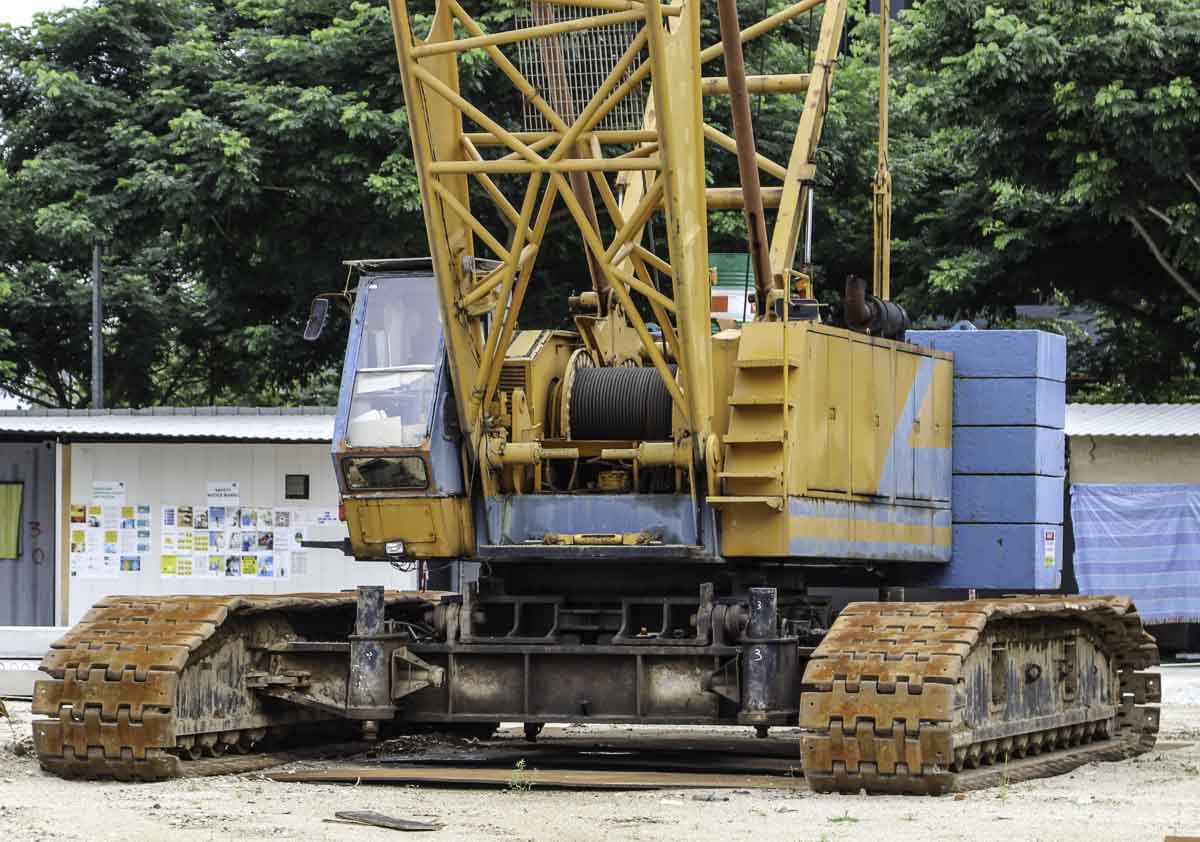

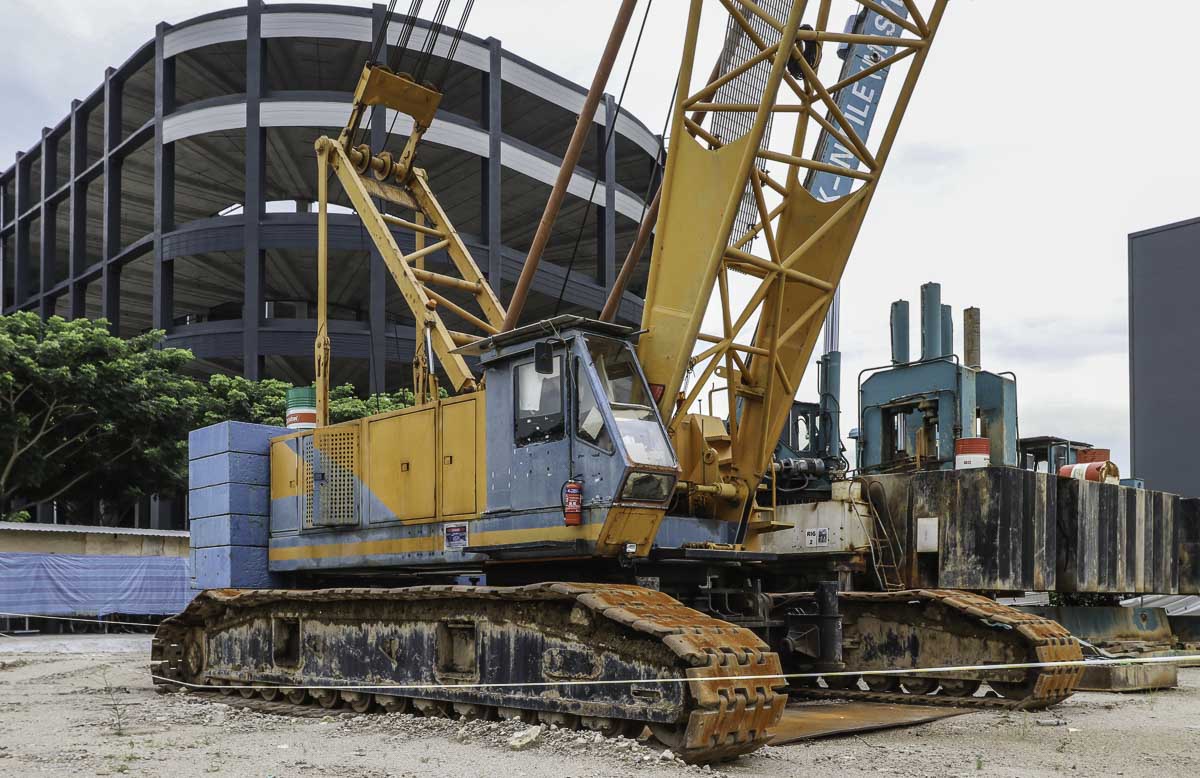

This sharp, but anonymous, Kobelco 7150 was used on a construction site in Singapore (SG). It is a 150-tonne crawler crane.
The undercarriage is 6.67 meters wide and 8.155 meters long.

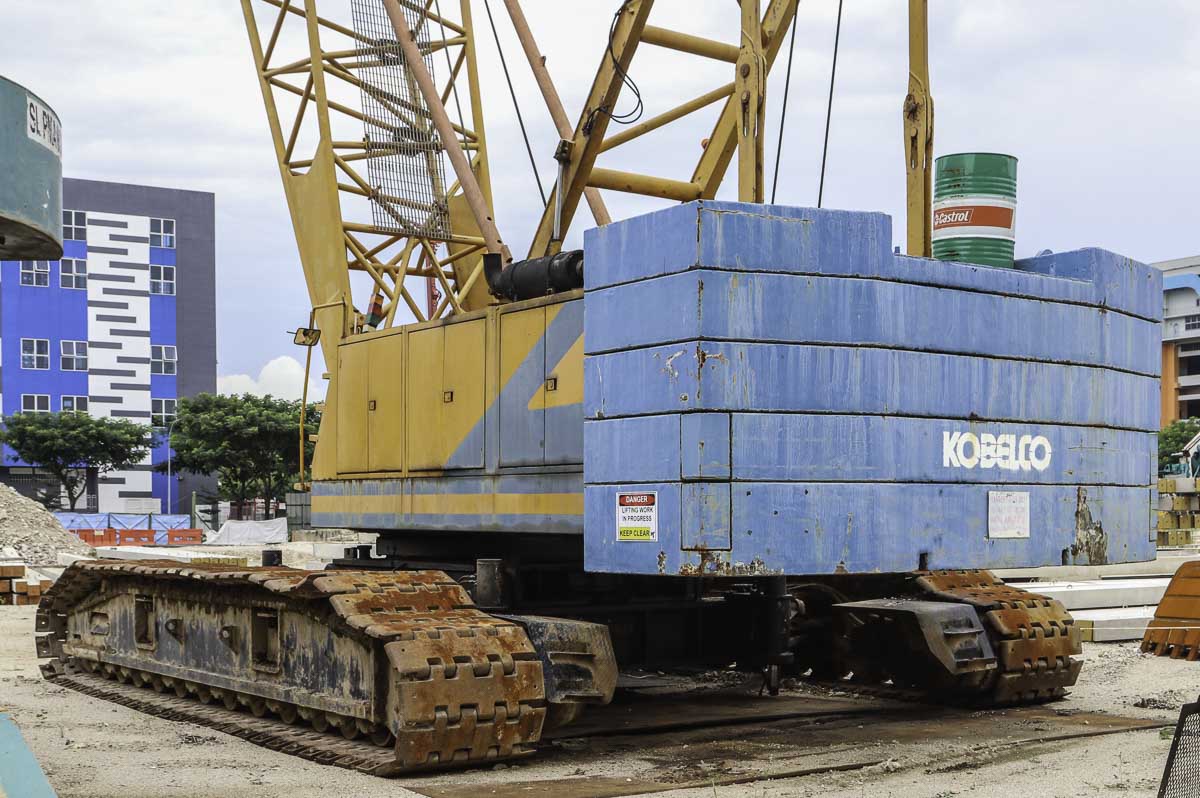

The crane is powered by a Mitsubishi 6D22-TC, an 11.1-litre 6-cylinder diesel engine with a power of 216 kW (294 hp). The diesel engine powers four hydraulic pumps. The crane is fitted with the five-part counterweight with a mass of 54 tonnes, the counterweight has a 5.94 meter tailswing.

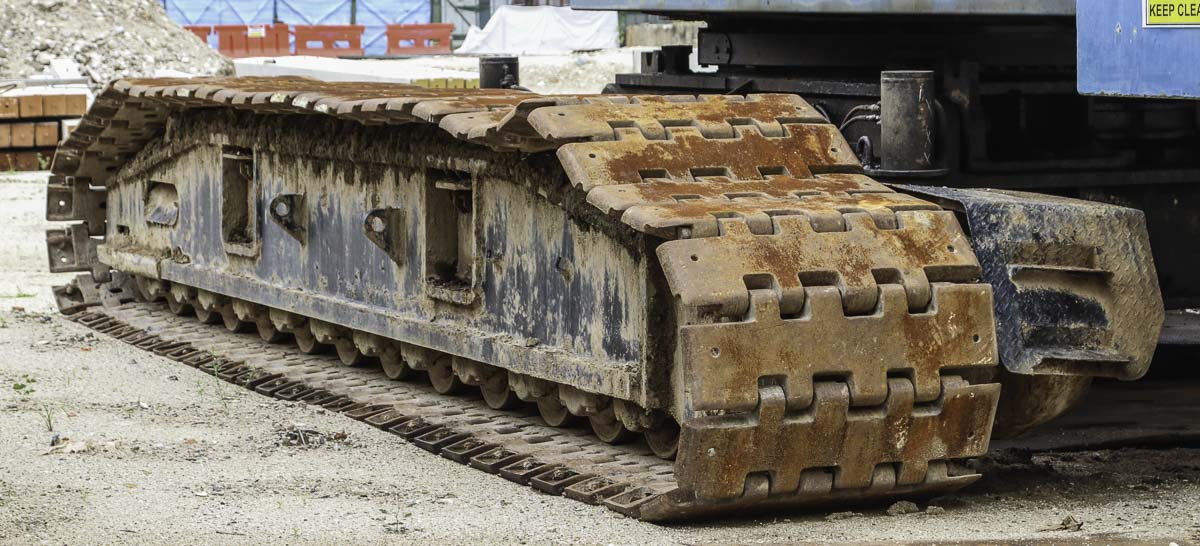

A single track is 8.155 meters long, 1.07 meters wide and 1.3 meters tall.
The crane is fitted with two 12-tonne hoist winches, which are both in use here.

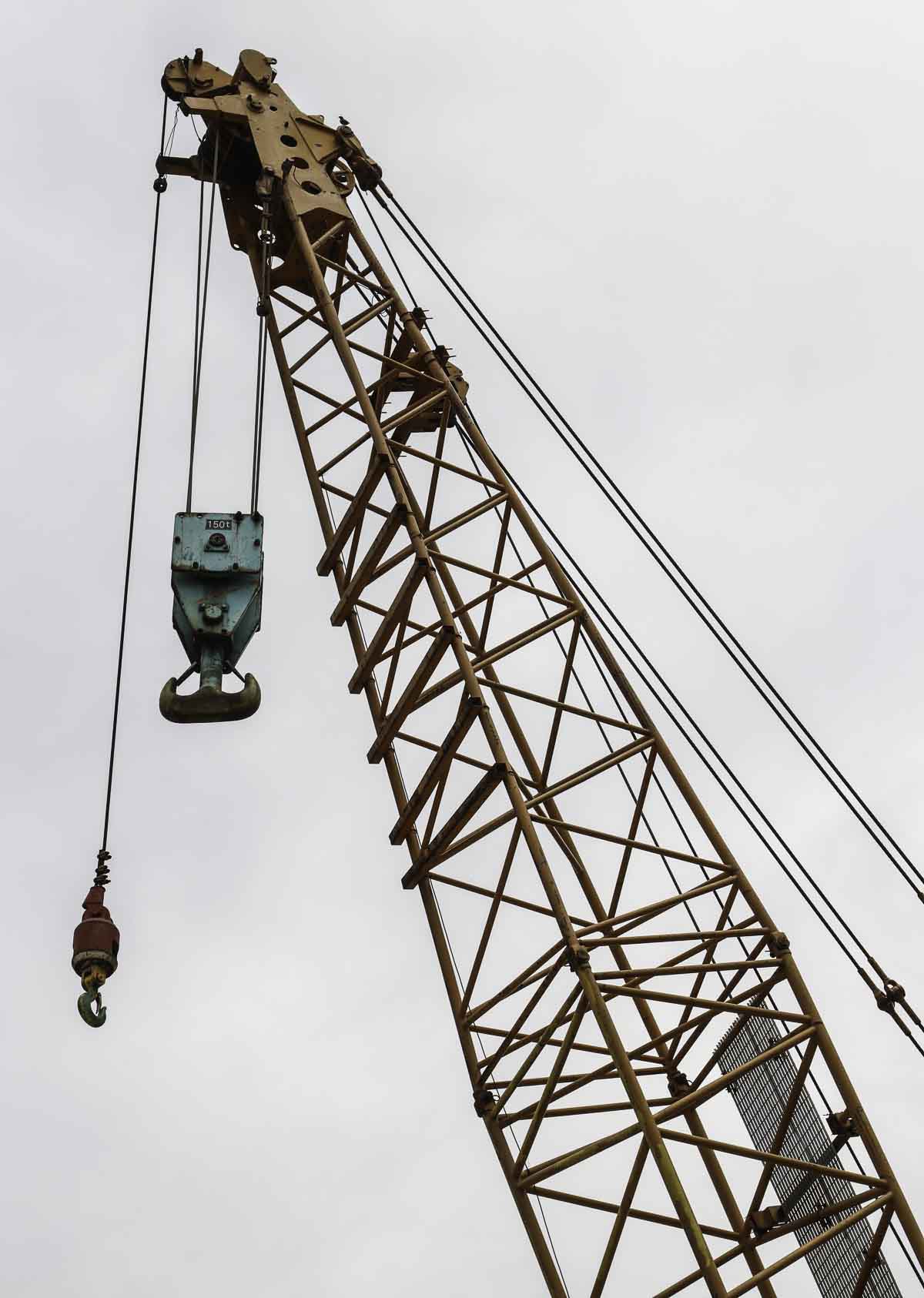

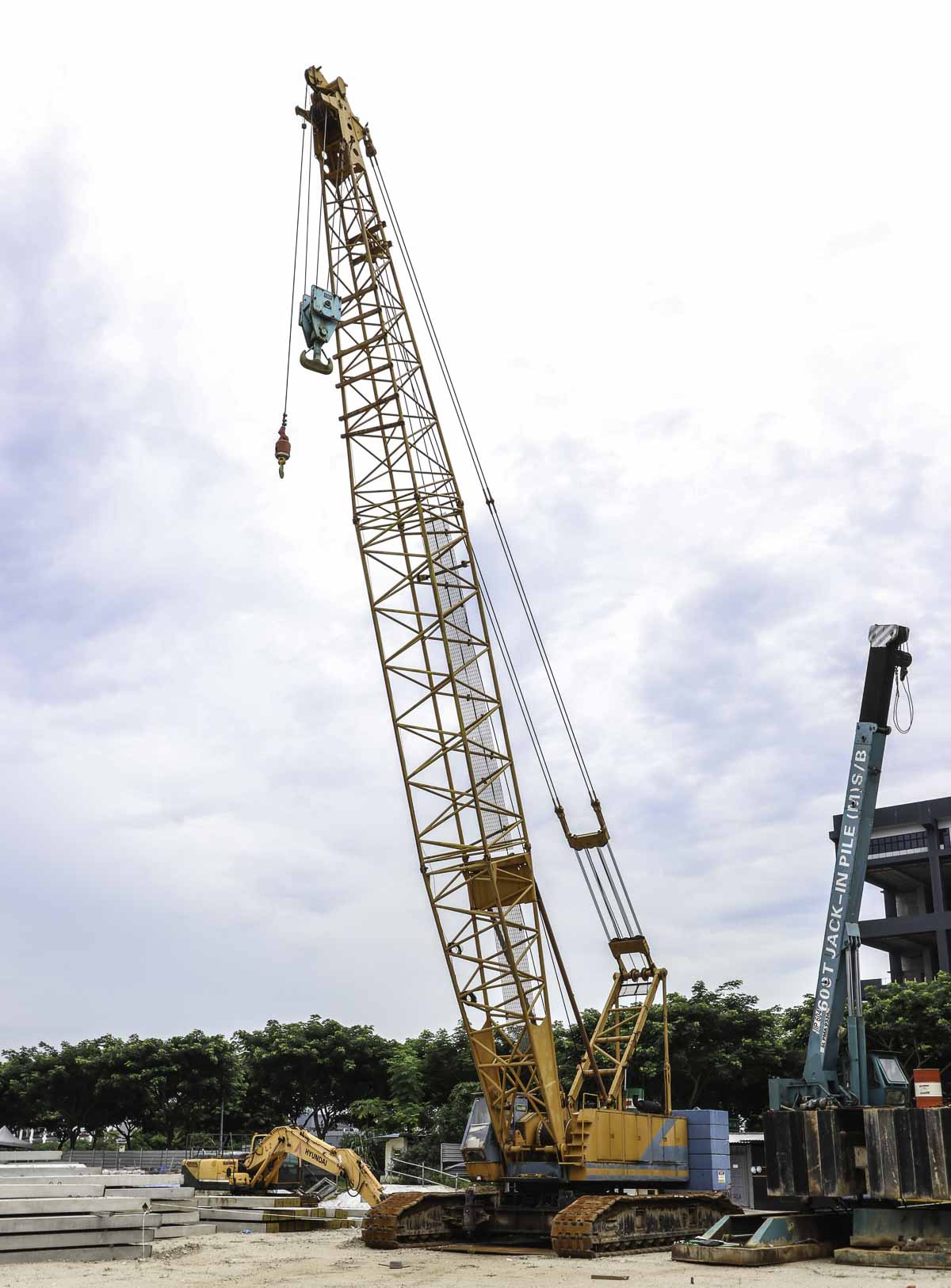

Here was the crane fitted with a 27.43 meter long main boom, in this configuration is the crane able to hoist maximum 102.5 tonnes on a 7 meter radius or 21.9 tonnes to a 24 meter radius, when a suitable reeving is applied. A very sharp an tough crane!
