Kobelco CKE1800
HLM

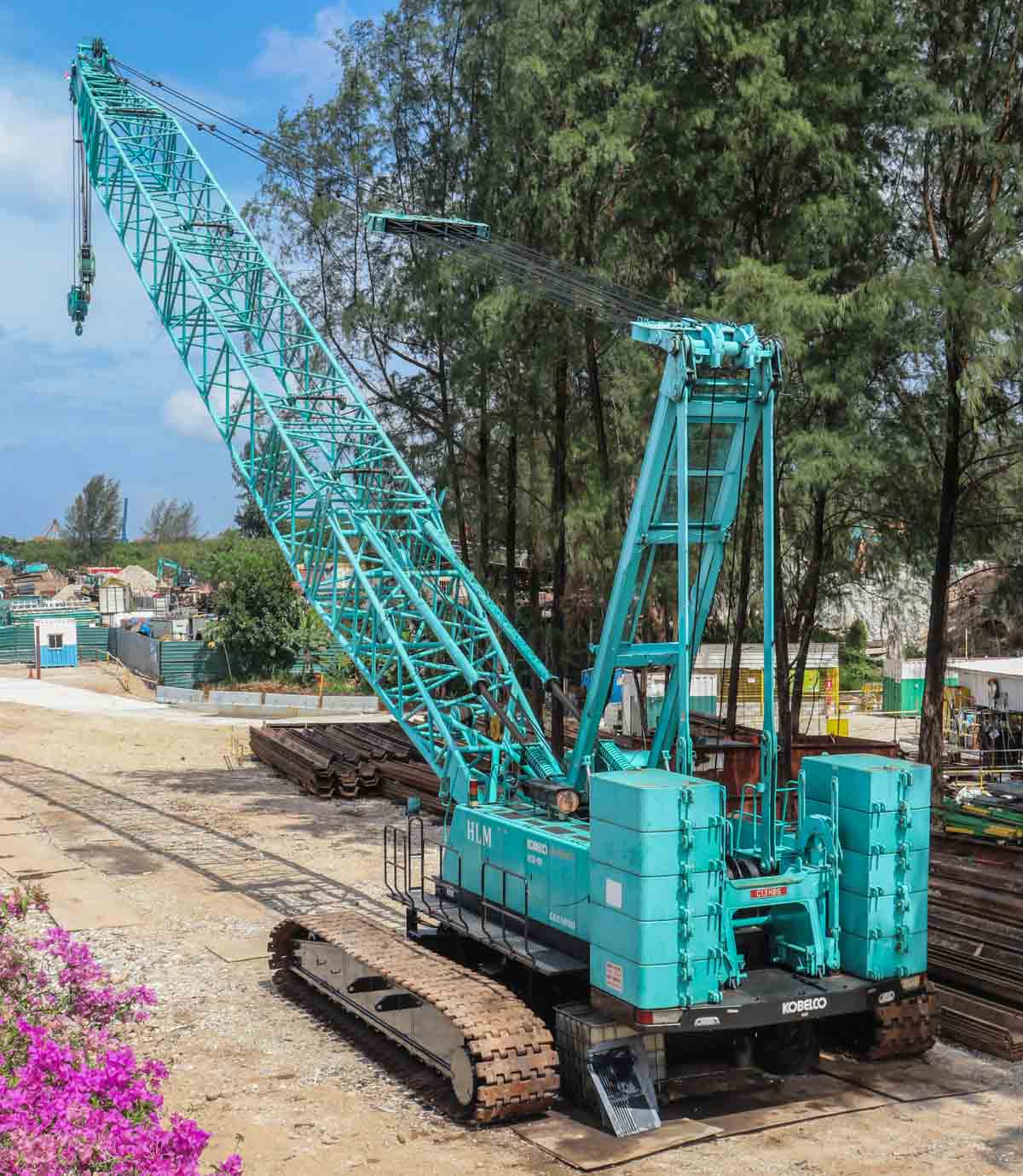

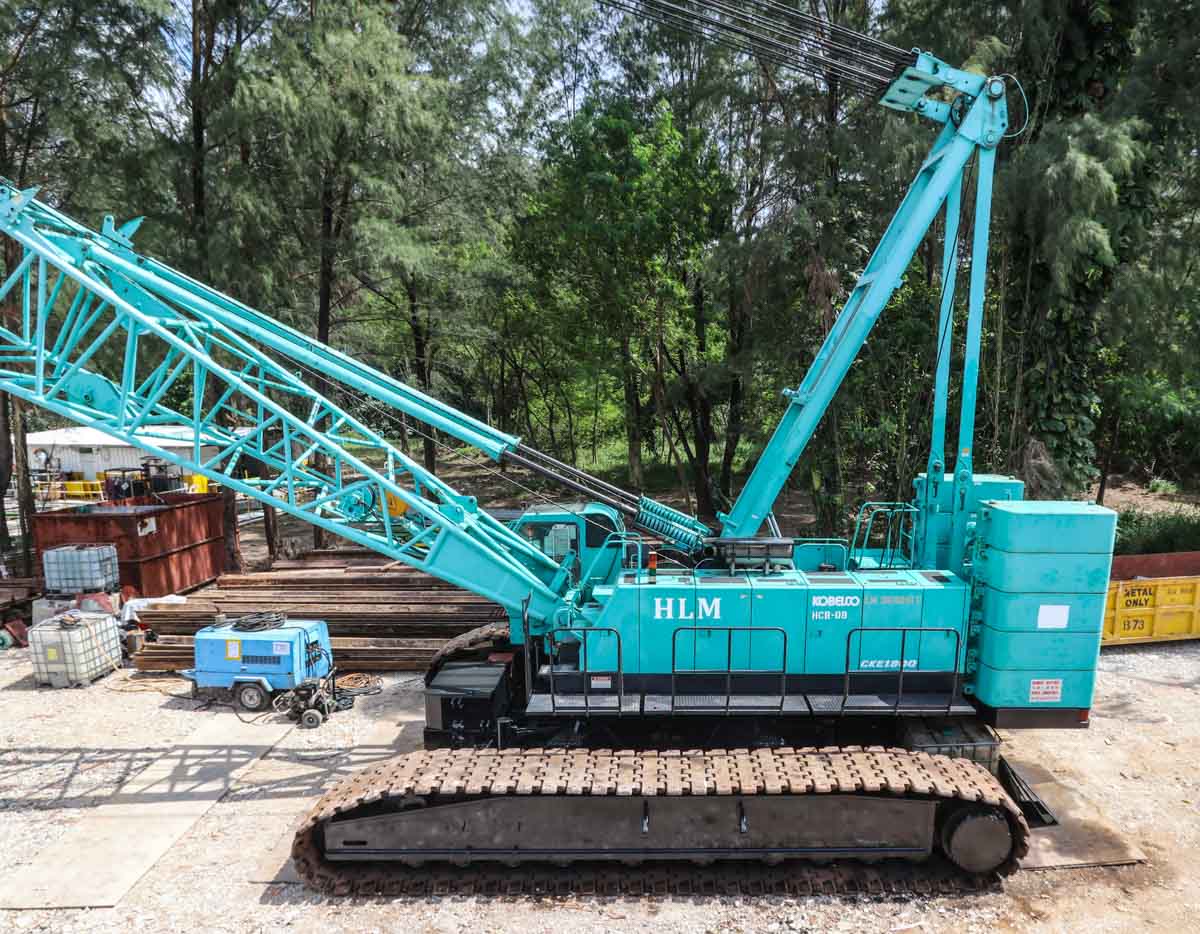

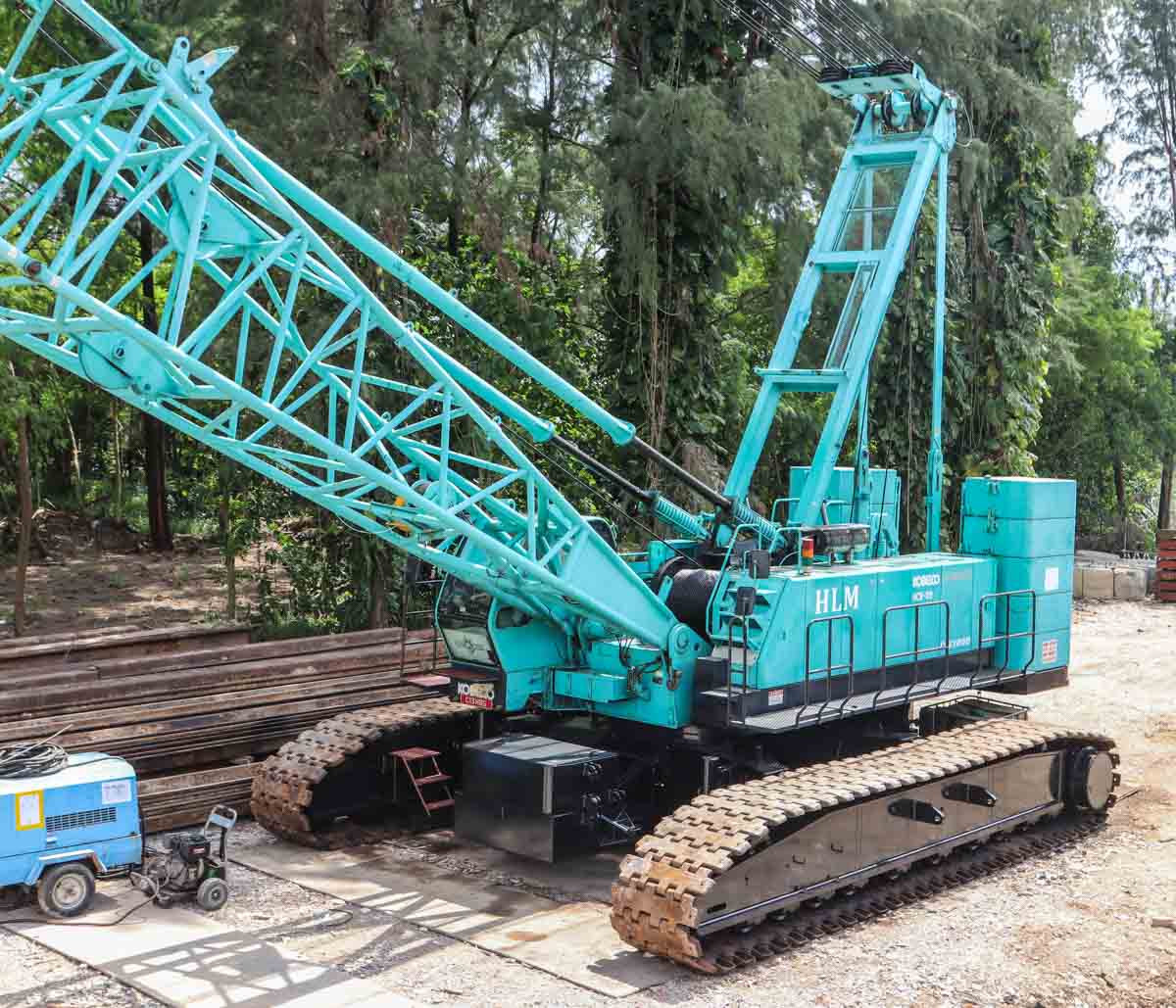

This fine Kobelco CKE1800 belongs to HLM (Hsing Loong Management) from Singapore (SG). It is a 180-tonne crawler crane from the year of manufacture 2013.
The carrier is 8.36 metres long and 6.67 metres wide. The crane is powered by a Mitsubishi 6D24-TLU2D, a 6-cylinder diesel engine with an output of 235 kW (315 hp).

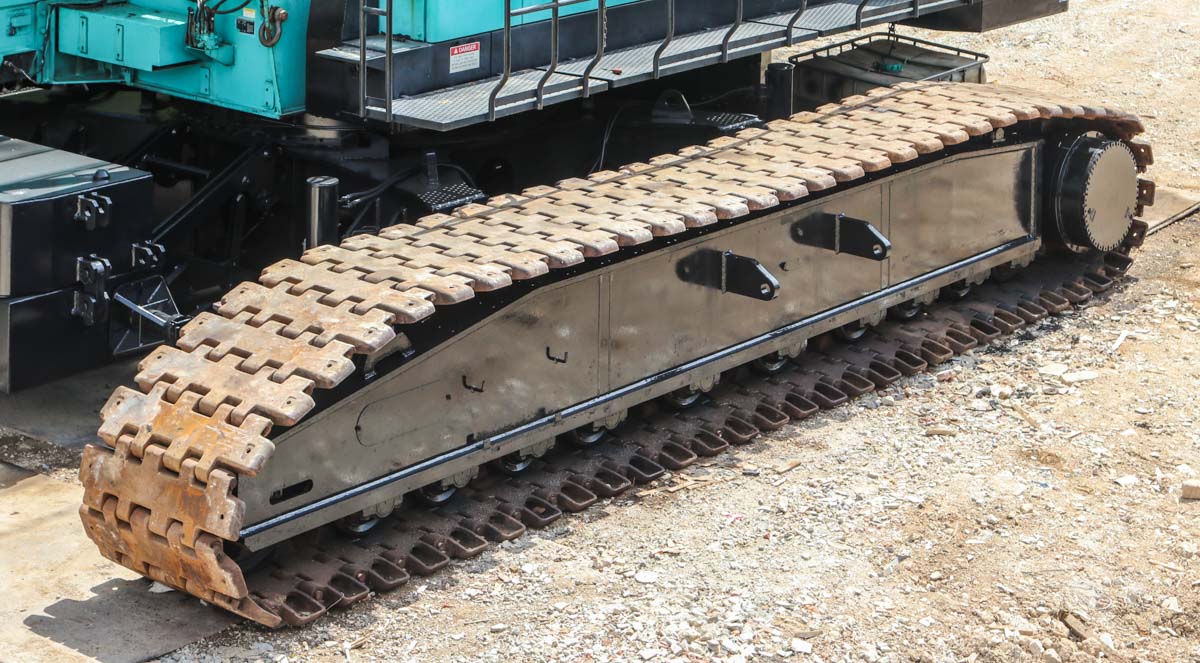

A single crawler track is 8.36 metres long, 1.07 metres wide and 1.38 metres high. The weight per piece is 17.155 tonnes. For transport on public roads, the crawler tracks are separated from the body.

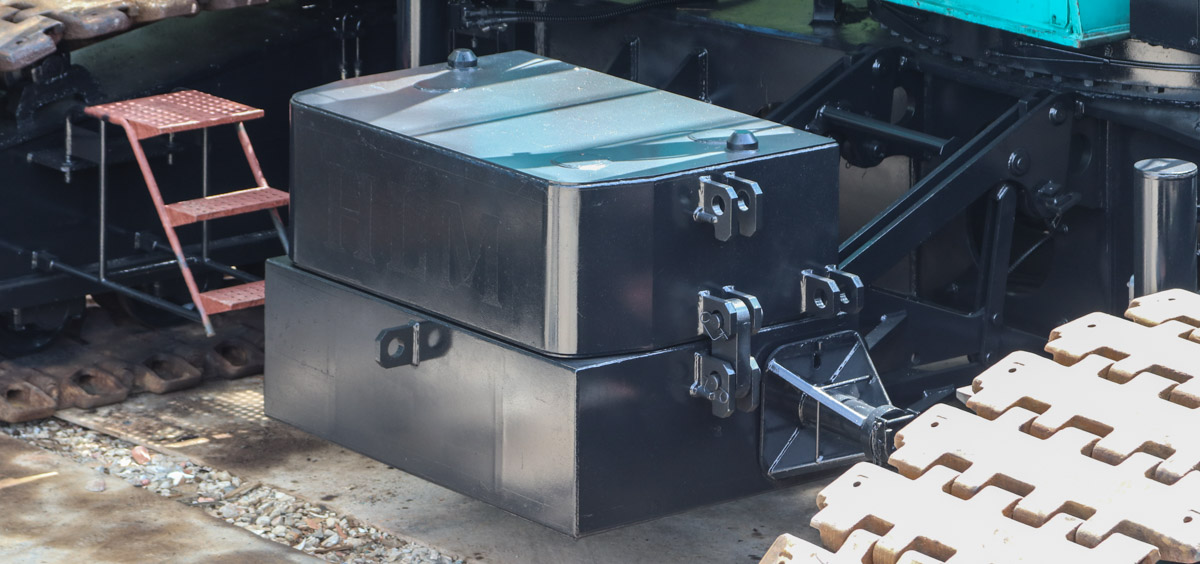

A total of 20 tonnes of central ballast is mounted on the carrier.

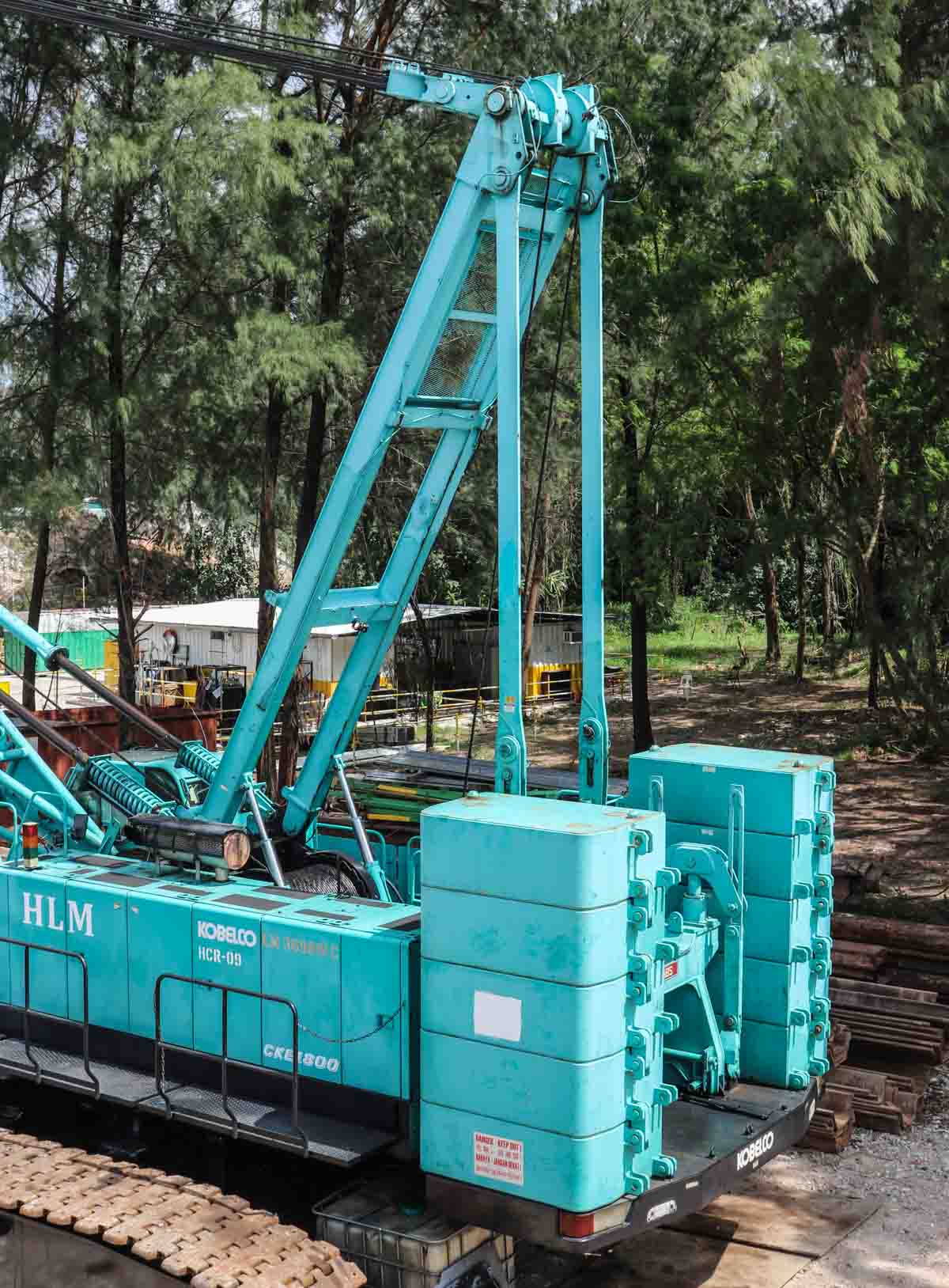

The ballast on the superstructure weighs a total of 60.6 tonnes, and the swing radius of the ballast is 5.95 metres. Characteristic of the Kobelco CKE1800 is the large A-frame, which has a total height of 9.57 metres.

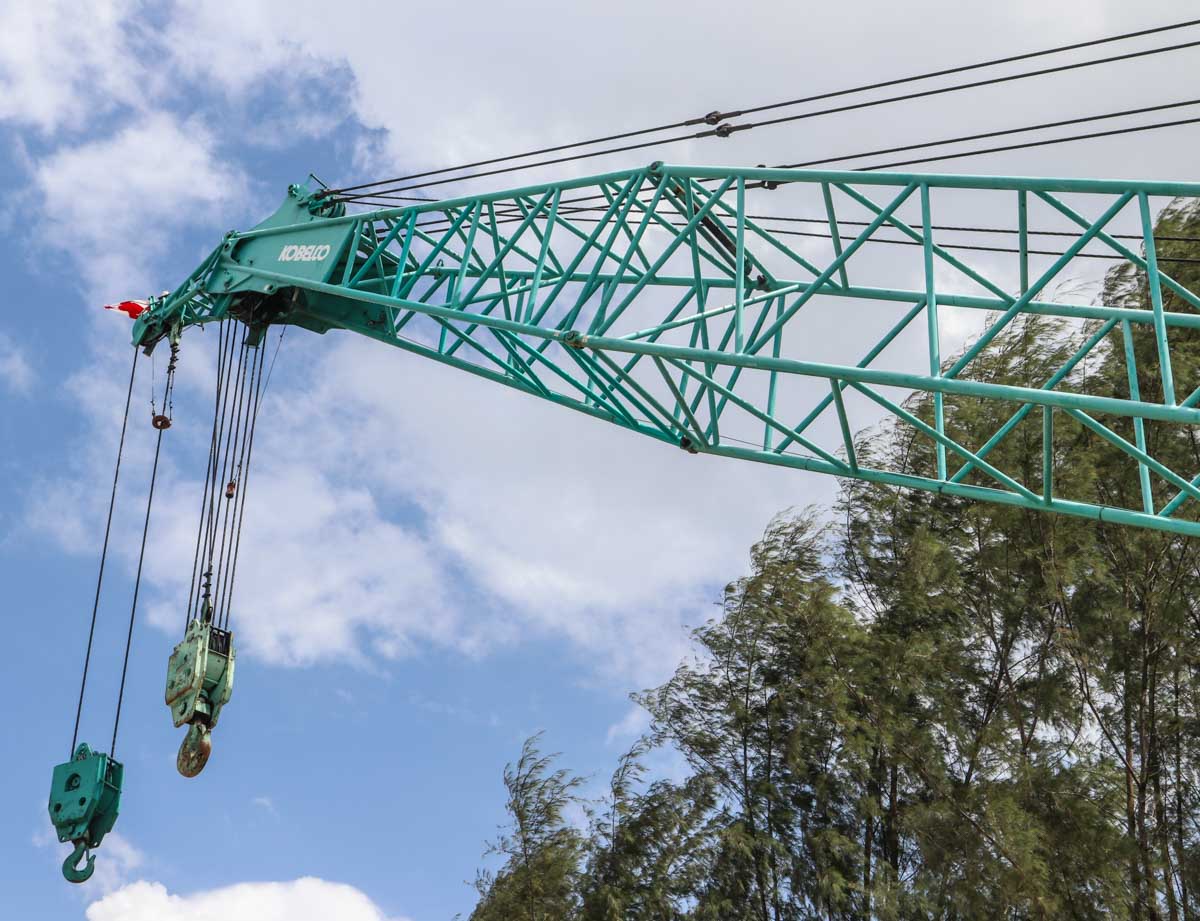

The crane is equipped with two 13.5-tonne hoist winches, both of which are in use here. The main boom has a base length of 15.2 metres and a maximum length of 85.3 metres.

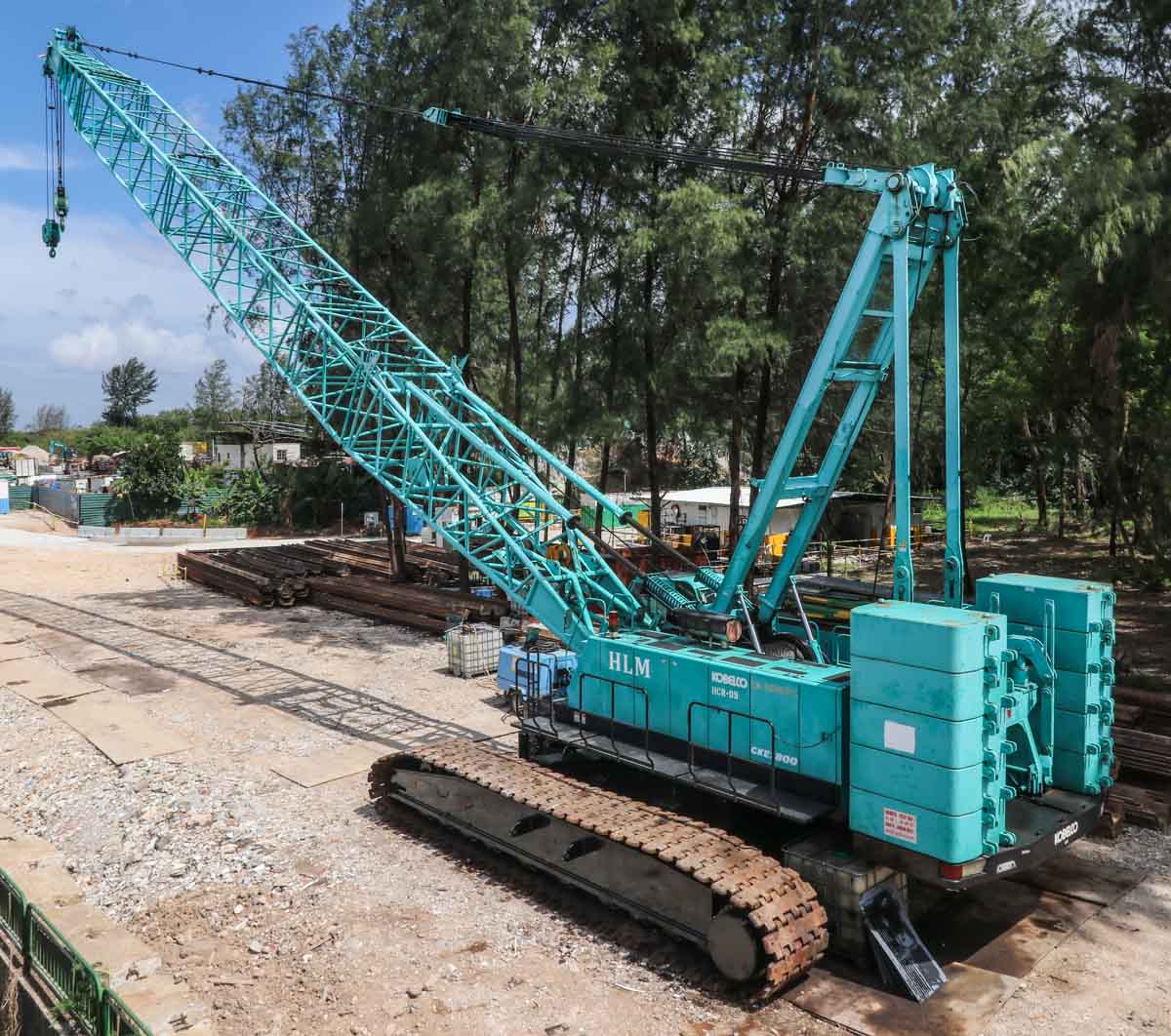

Here, the crane was erected with a 36.6-metre main boom. In this configuration, the crane can lift a maximum of 90.6 tonnes at a radius of 7.9 metres or 15 tonnes up to a radius of 33.3 metres, provided that the correct reeving is applied. A very fine and rugged crane from HLM!
