Kobelco CKE1100 - GC Piling

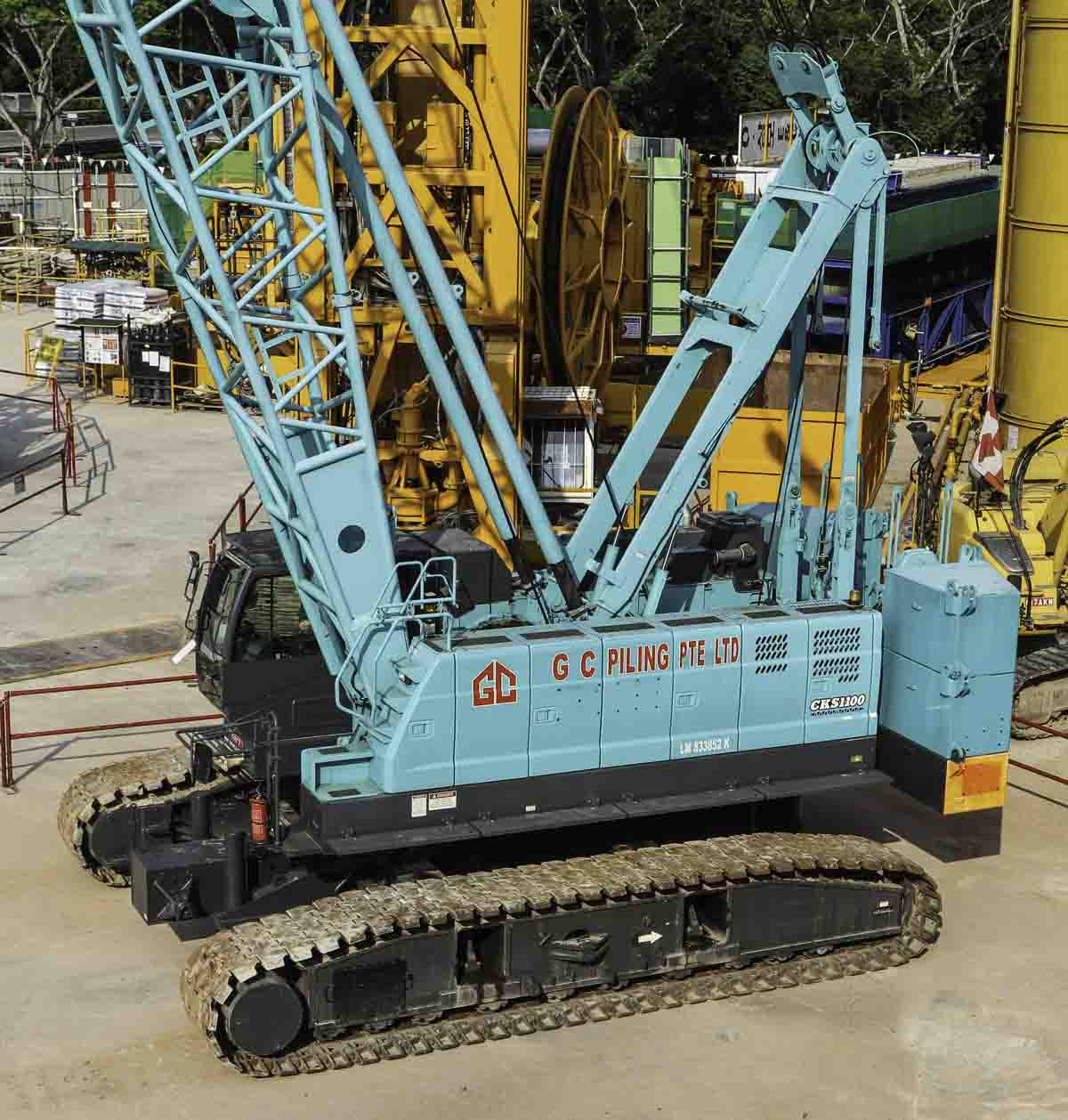

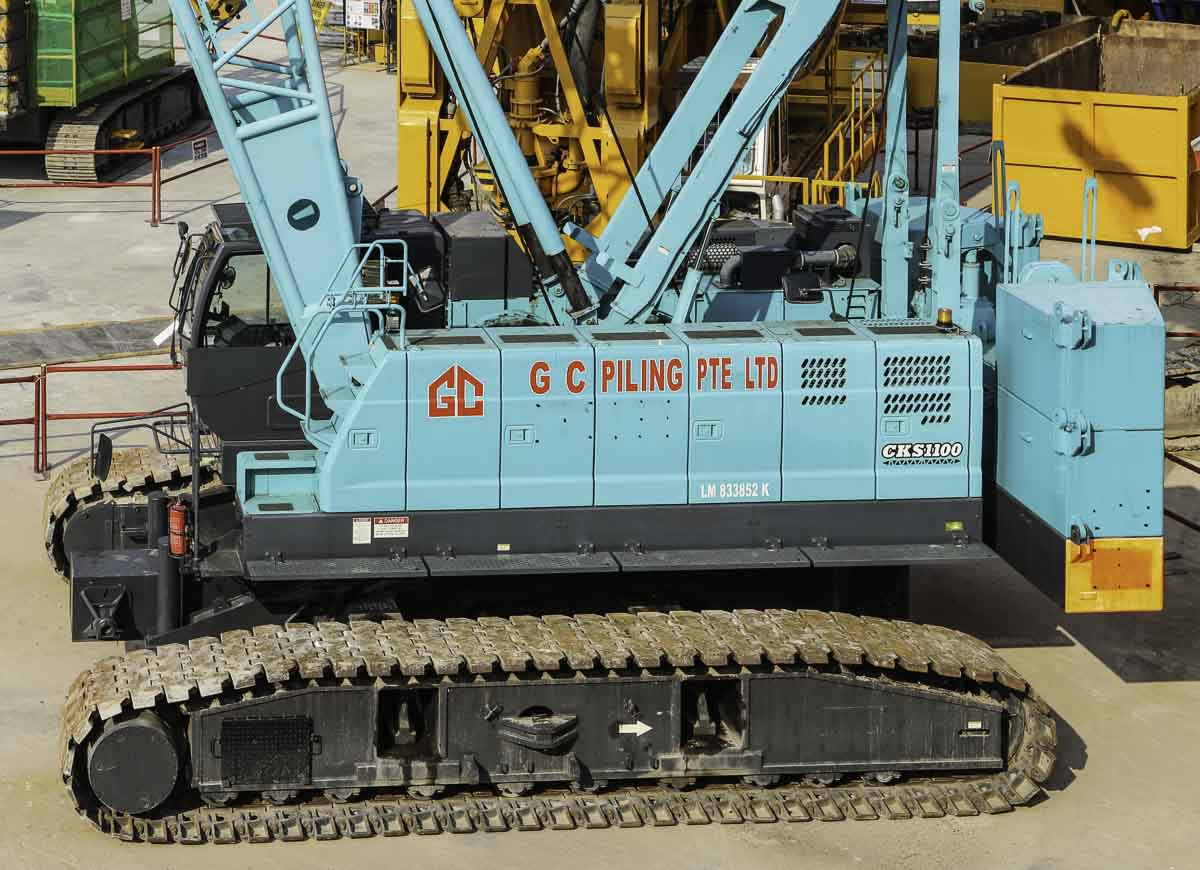

This sharp Kobelco CKS1100 of GC Piling from Singapore (SG) was used as assist crane for a piling machine. It is a 110-tonne crawler crane.

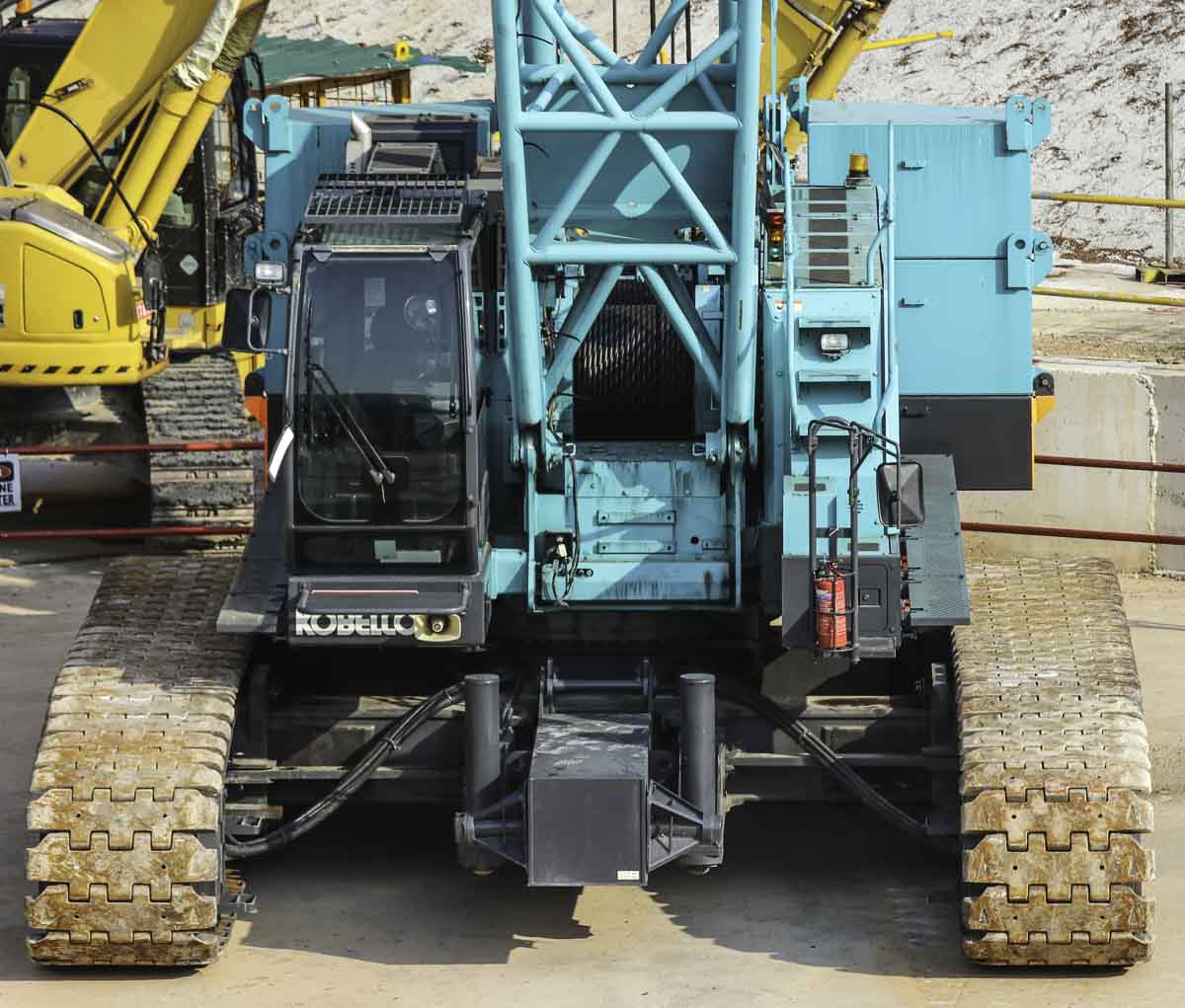

The undercarriage of the crane is 6.77 meters long and 5.3 meters wide. For the transport over the road are the tracks dismantled from the undercarriage, they have each a mass of about 11.9 tonnes.

The crane has an Hino J08E-VM, a water-cooled 7.68-liter, 6-cylinder diesel engine with a power of 213 kW. The diesel engine powers in total four hydraulic pumps.

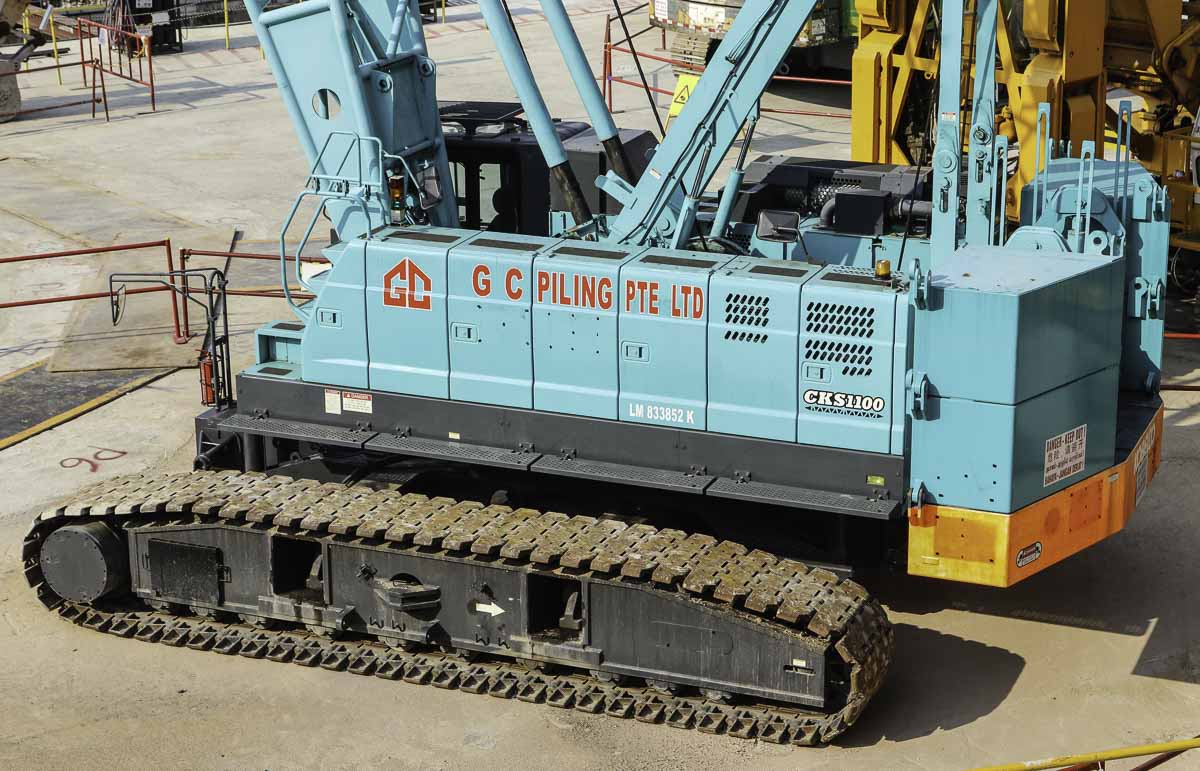

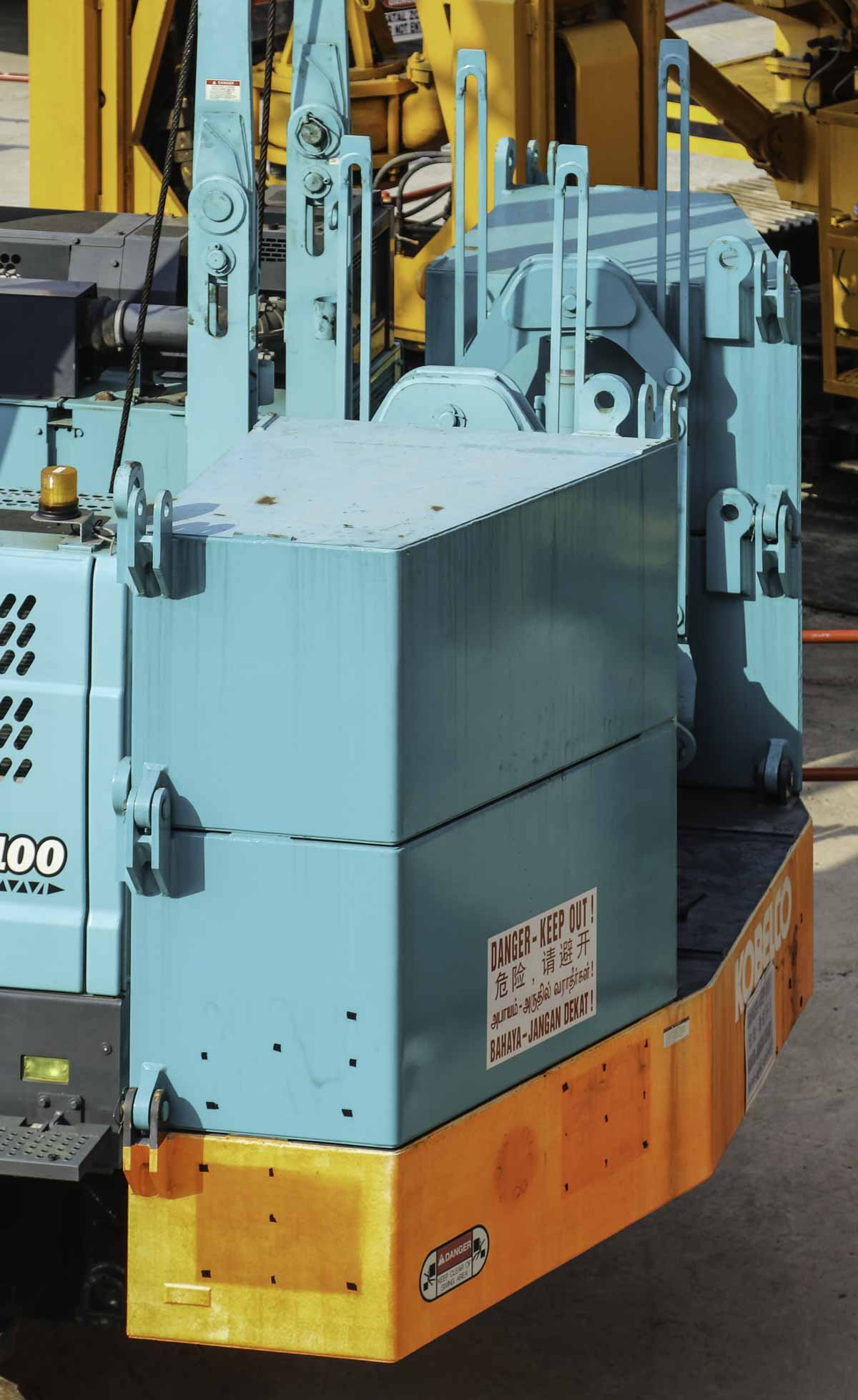

Attached to the superstructure is a 5-part counterweight with a mass of 34.6 tonnes. The counterweight exists out of an 11.6 tonne base plate with four 5.75 tonne slabs. The counterweight has a 4.86 meter tailswing.

Attached to the undercarriage is a total central counterweight with a mass of 6.5 tonnes, per side one slab of 3.25 tonnes.

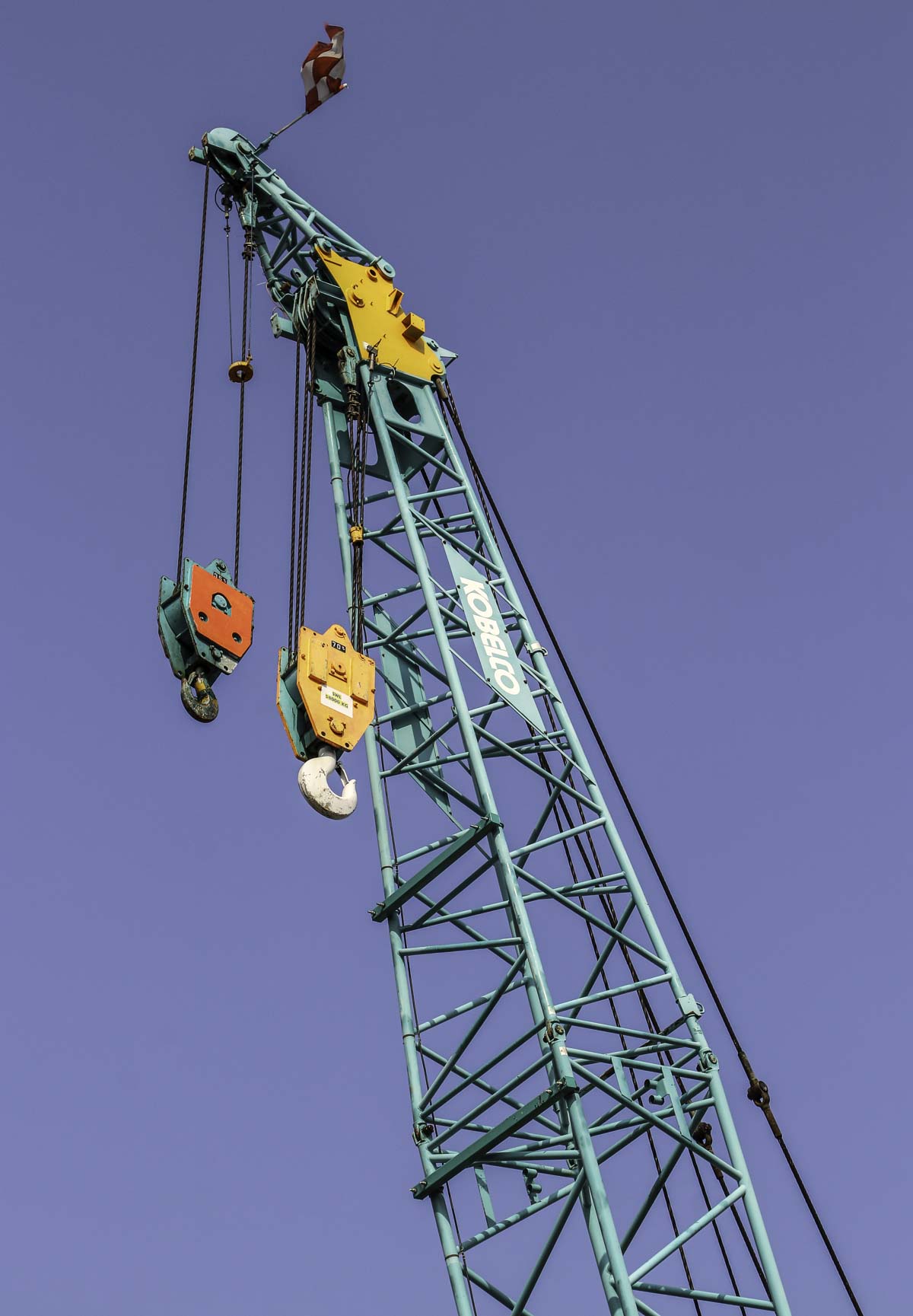

The main boom has a 15.2 meter base length and can be extended to a maximum length of 70.1 meters. The crane is fitted with two 11-tonne hoist winches, each fitted with 26 mm hoist wire rope on the drums.

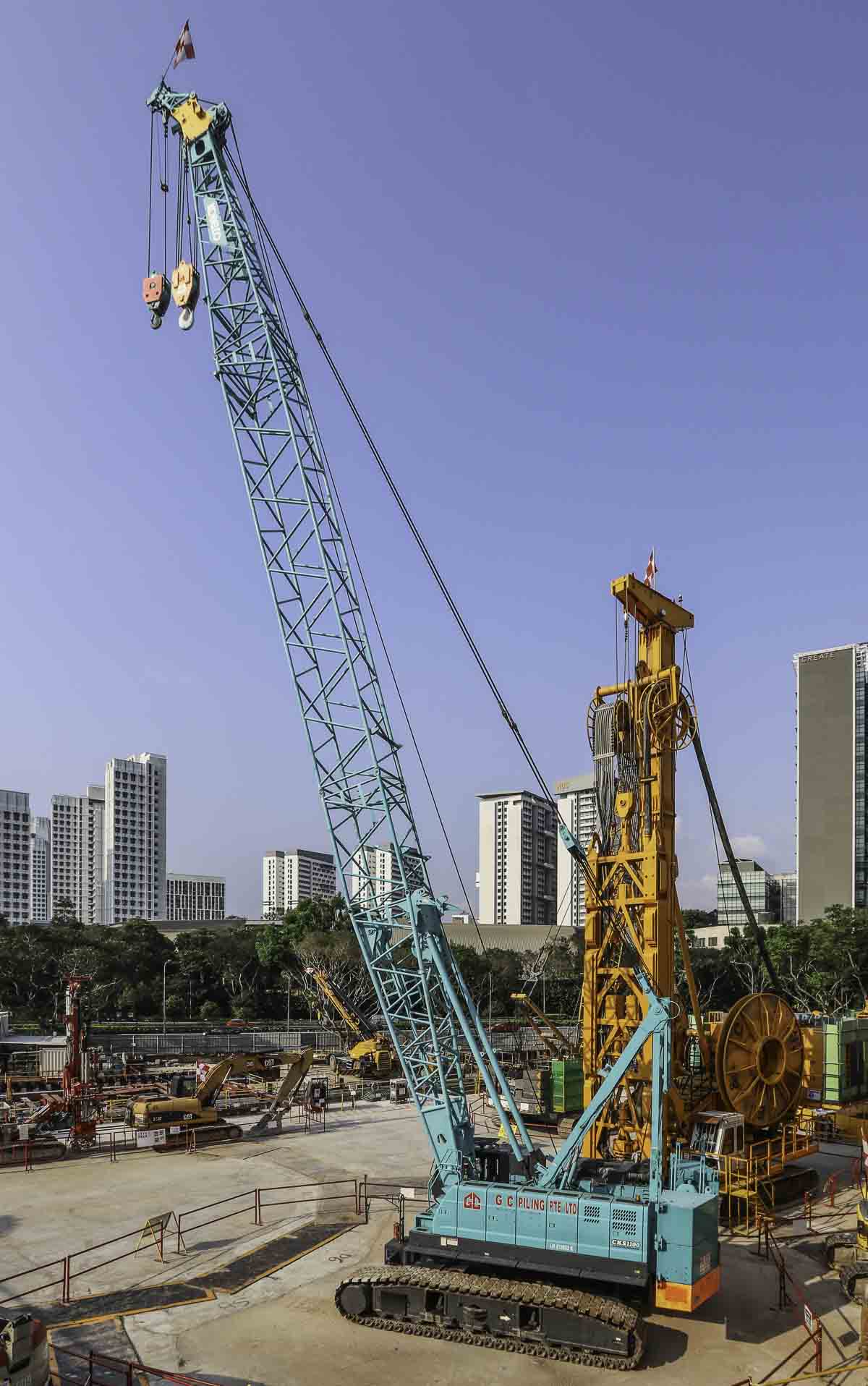

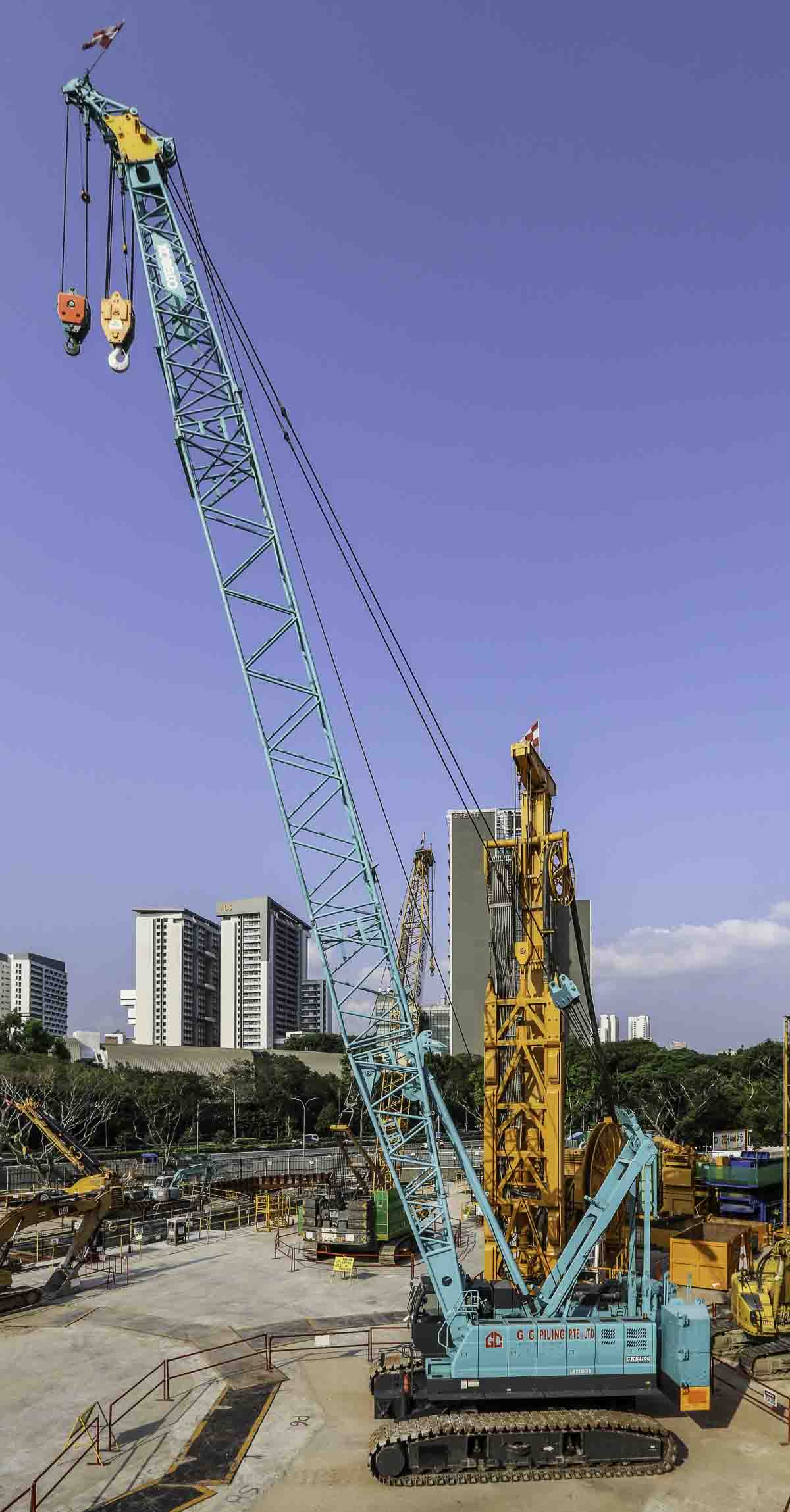

Here was the crane fitted with a 30.5 meter long main boom. In this configuration is the crane able to lift maximum 58.9 tonnes on a 5.9 meter radius or 8.1 tonnes to a 27.6 meter radius. A sharp crane of GC Piling!
