Kobelco 7035 - Busker

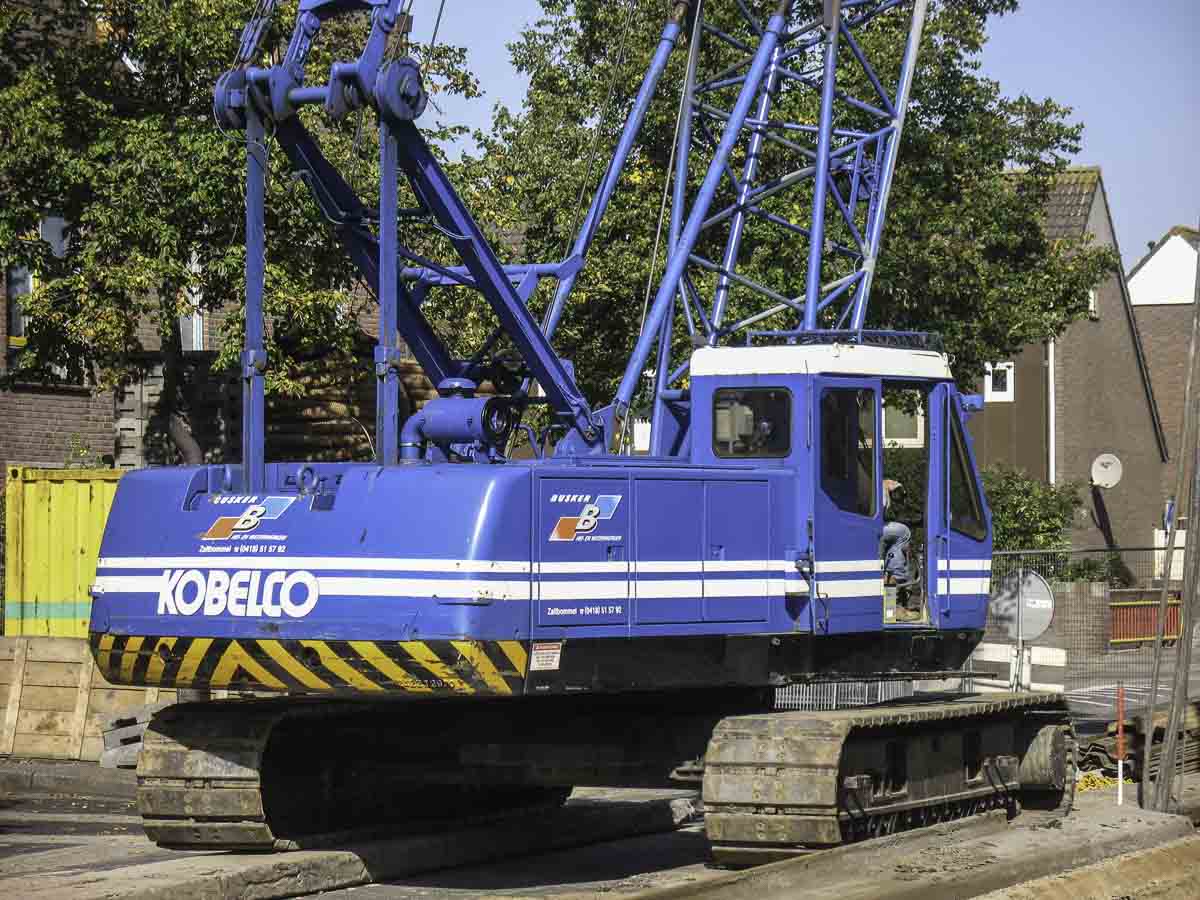

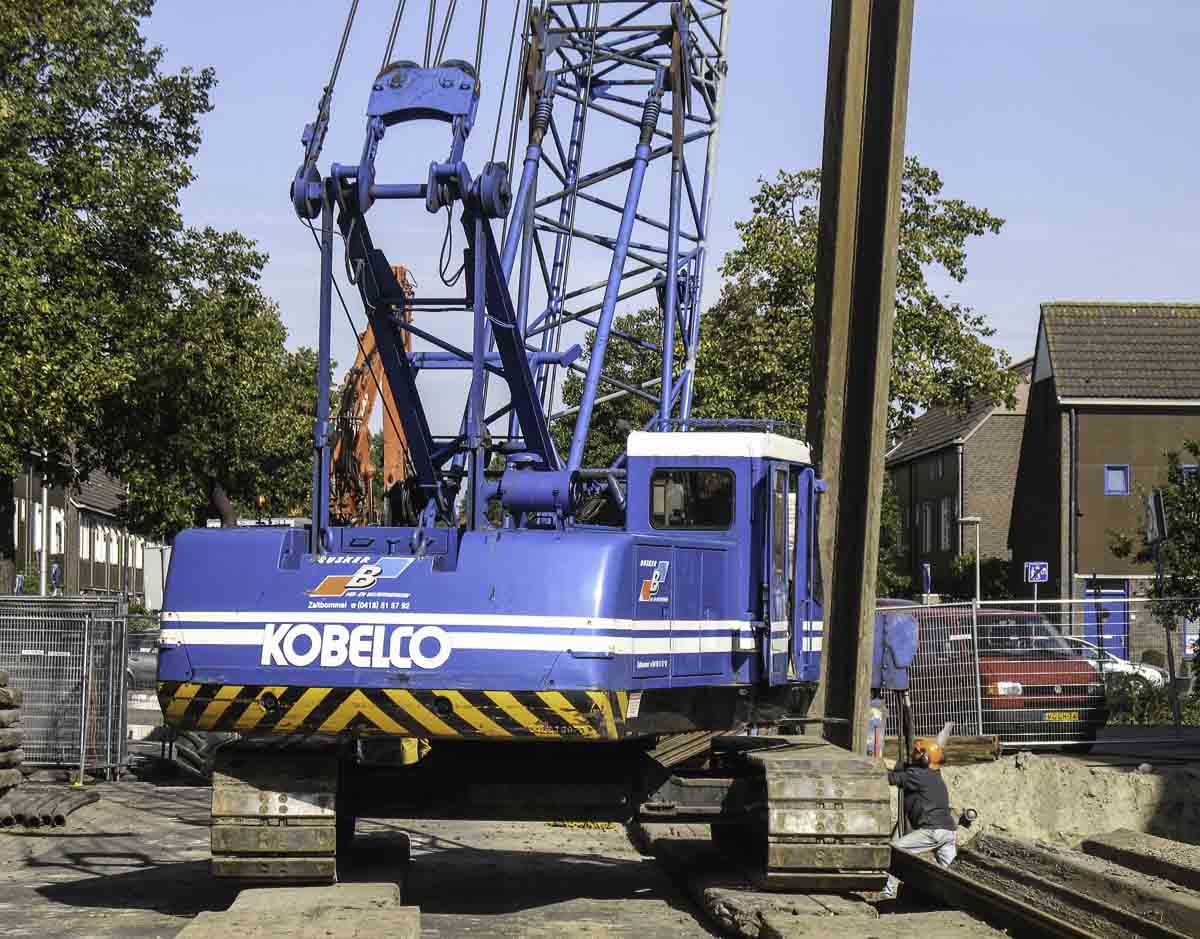

This sharp Kobelco 7035 belongs to Busker from Zaltbommel (NL) and was used in Purmerend (NL) for a sheet piling job. It is a 35-tonne crawler crane.

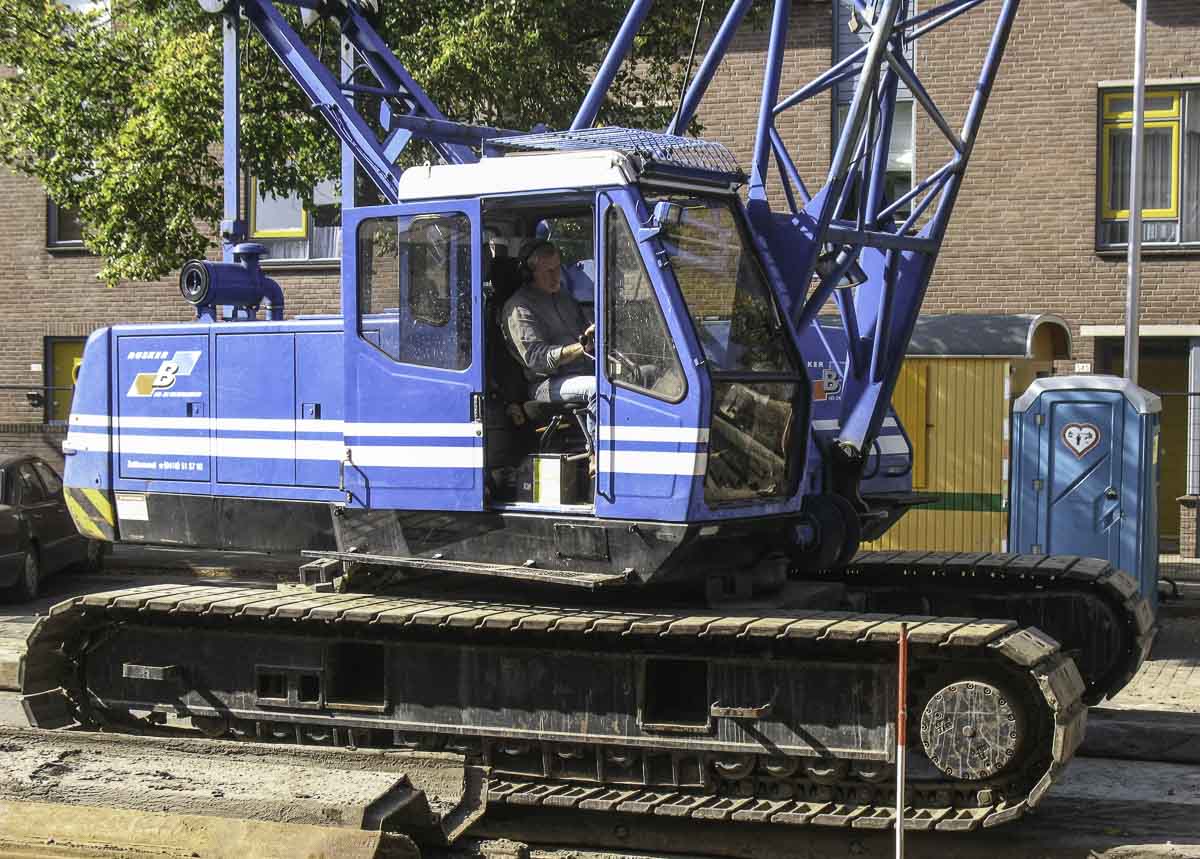

The undercarriage of the crane is 5.15 meters long and 4.18 meters wide. For the transport over the road is the width to be reduced to 3.3 meters.

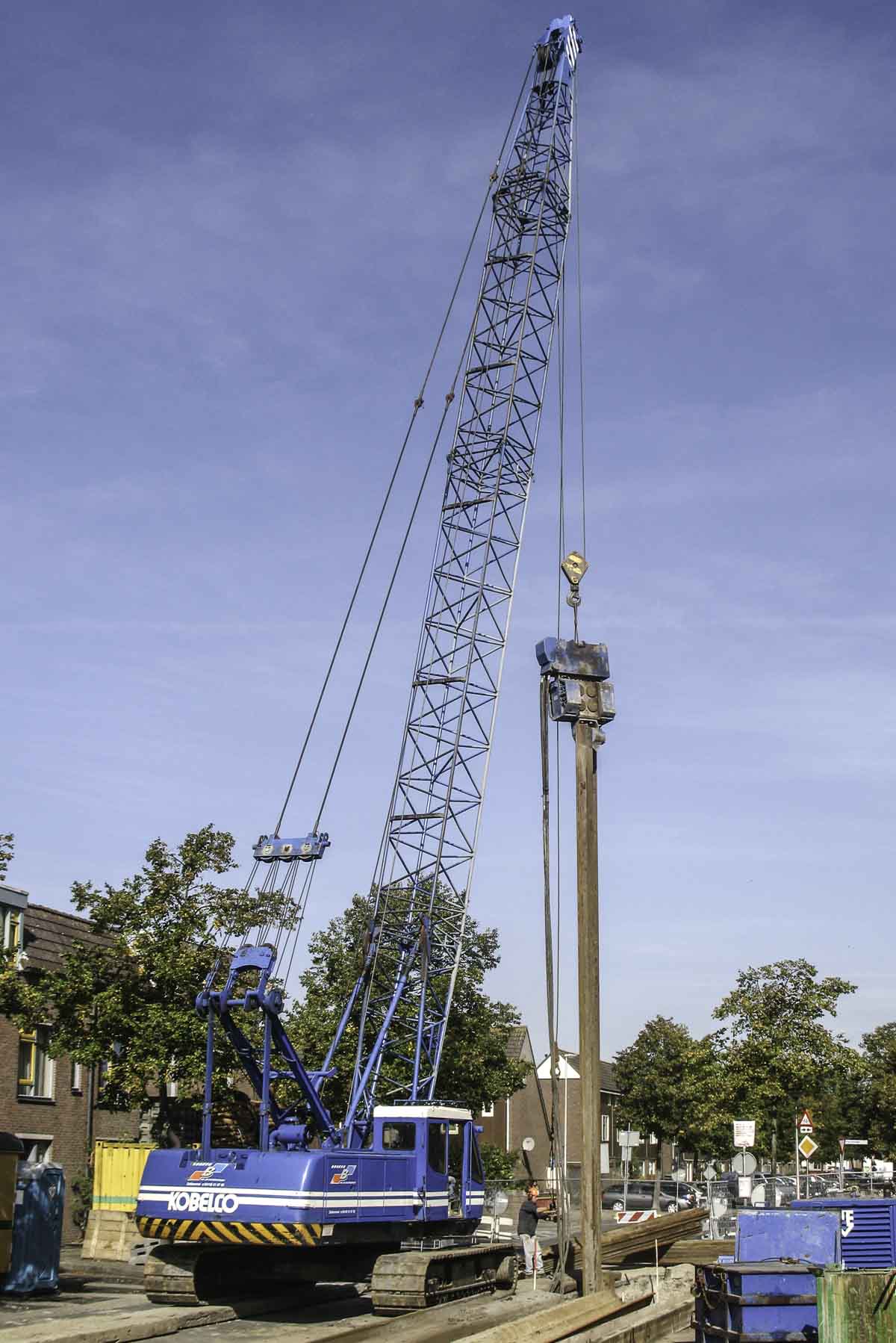

Here was the crane fitted with a 24.38 meter long main boom. The maximum length of the main boom is 39.62 meters.

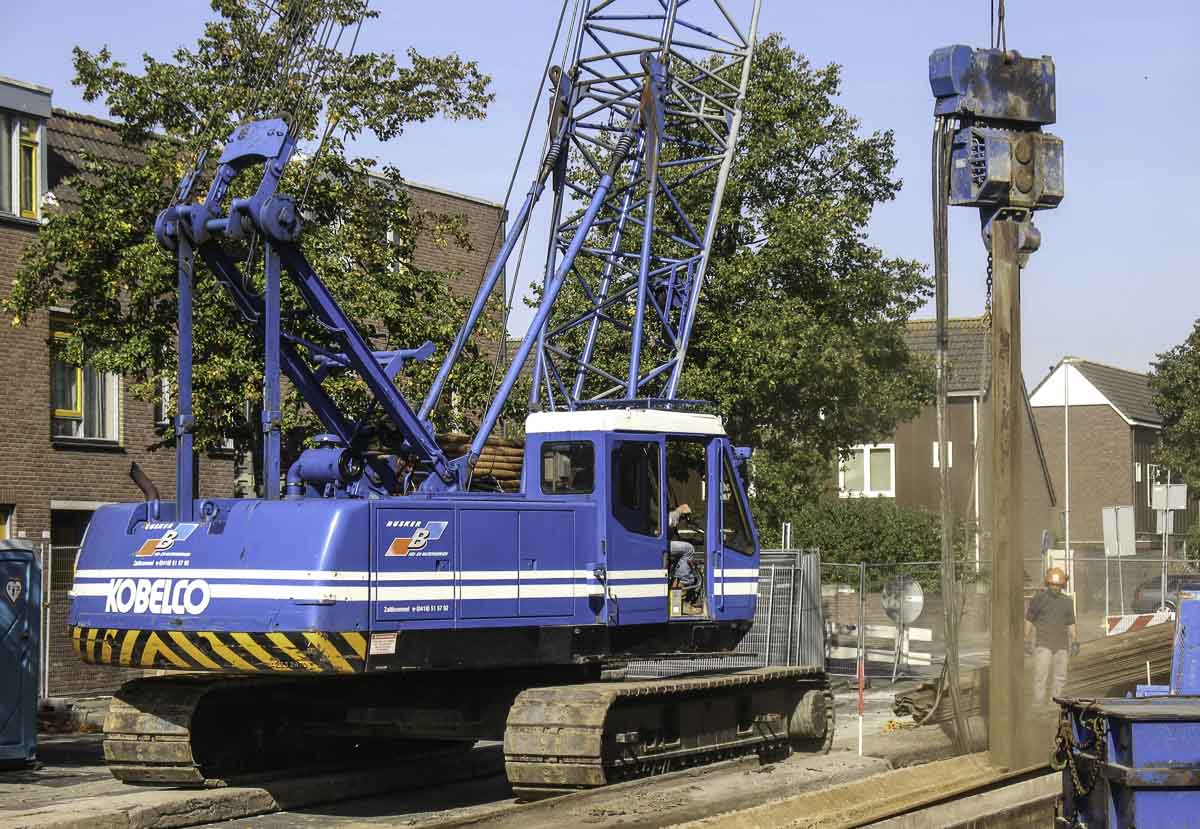

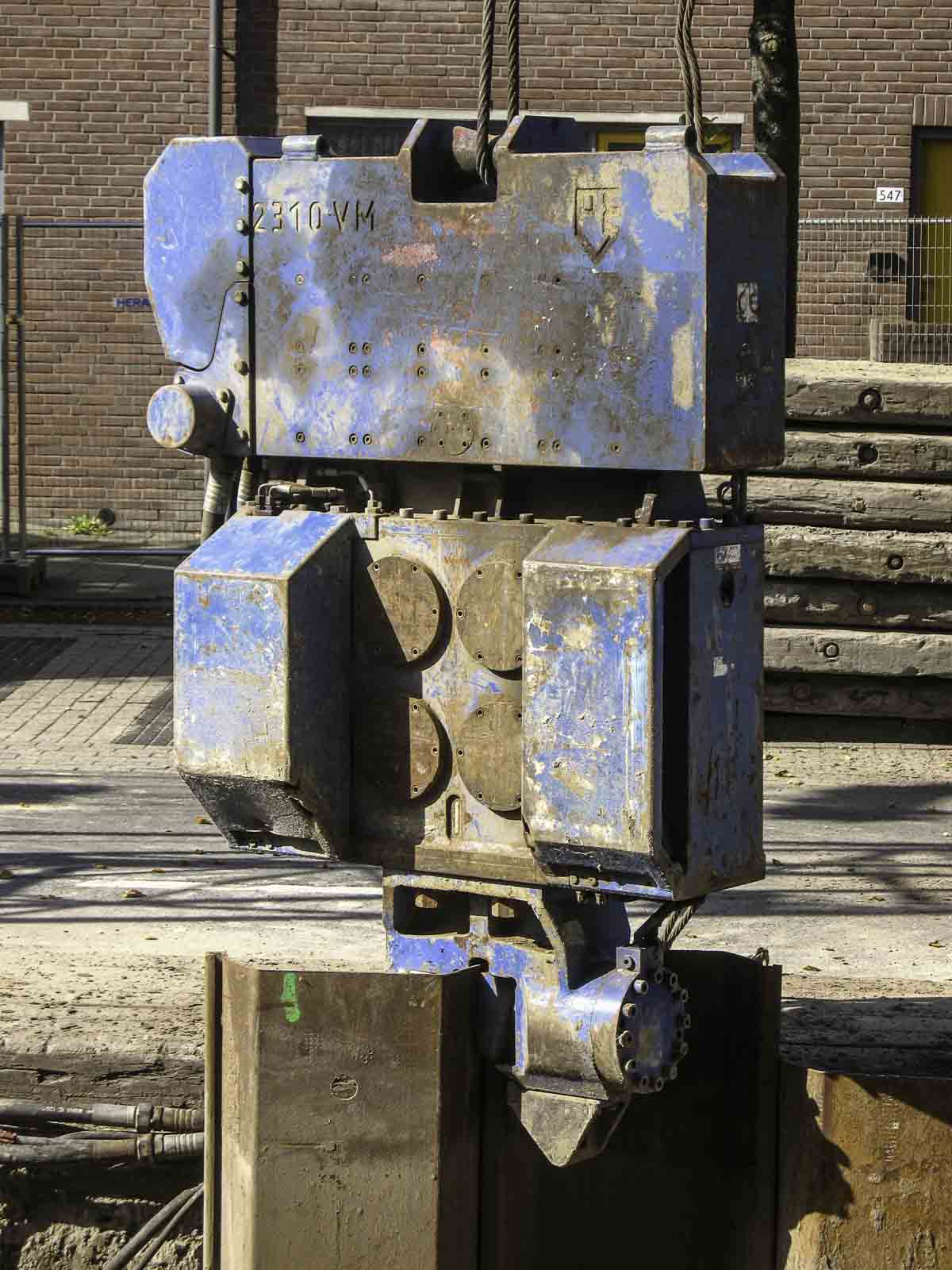

Here was worked with a PVE 2310 VM vibrator, that has a mass of approx. 1.9 tonnes. The vibrator is powered by an external power pack.

The crane is powered by a Mitsubishi 6D15T, a 6.92-litre 6-cylinder diesel engine with a power of 114 kW (155 hp). The diesel engine powers in total three hydraulic pumps.

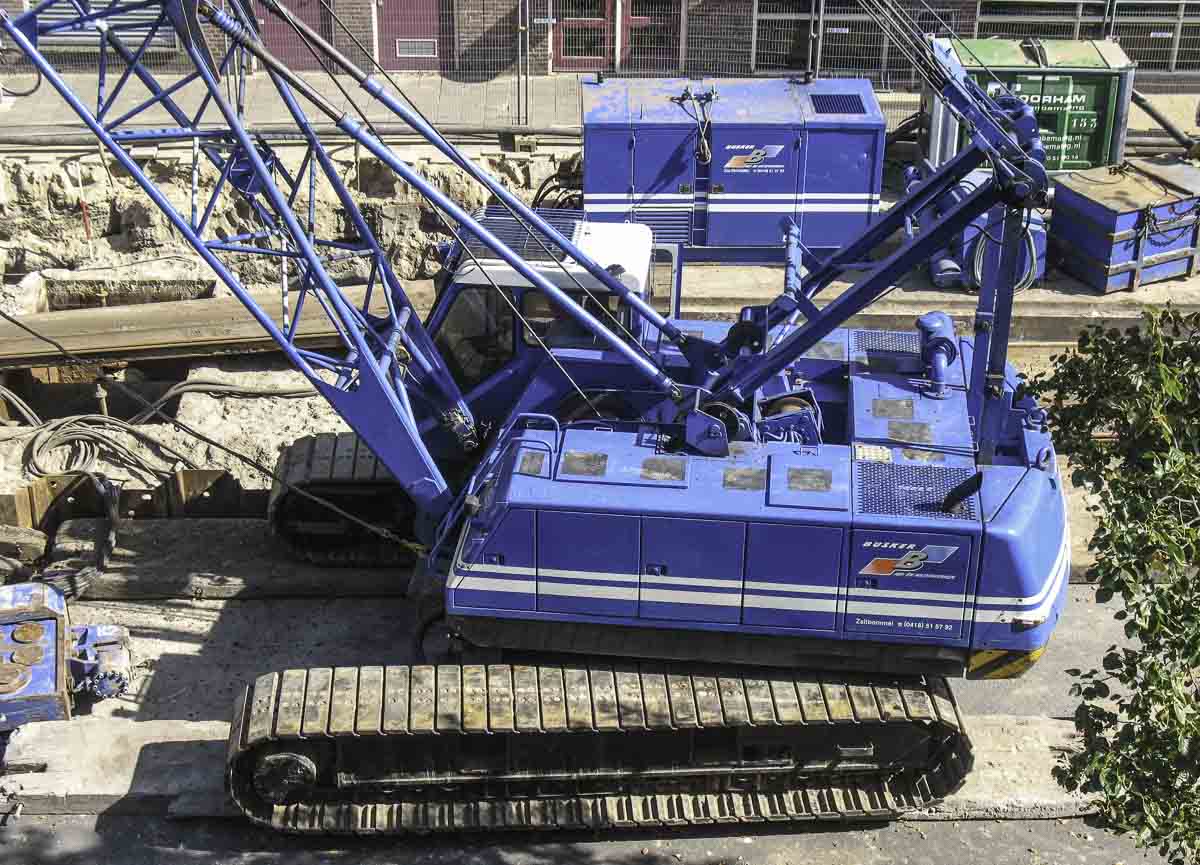

Attached to the superstructure is a counterweight with a 10.9-tonne mass and a 3.6 meter tailswing. The crane is fitted with two 16-tonne hoist winches. A very shap crane of Busker!
