Kobelco CKE1800 - Antar

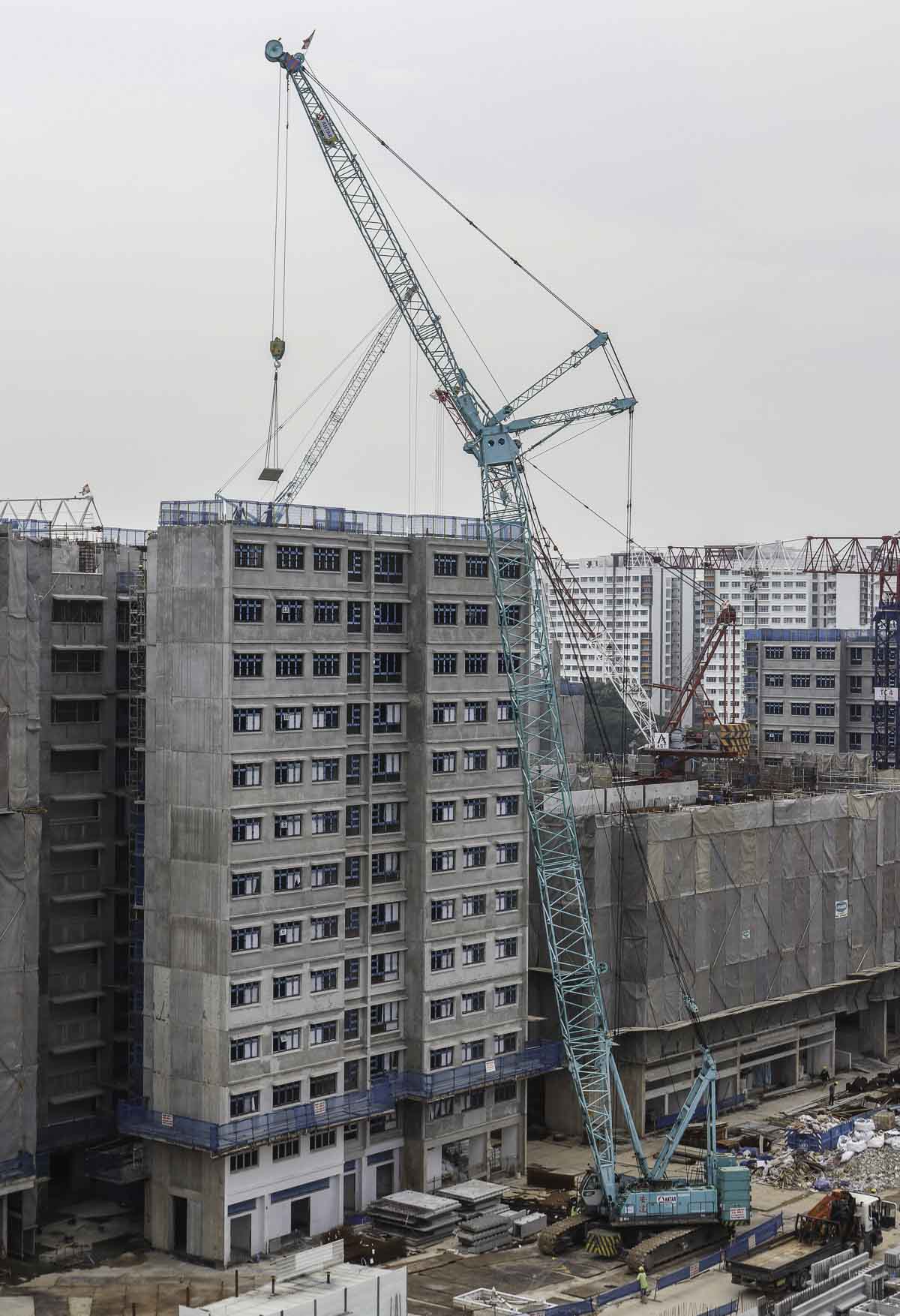

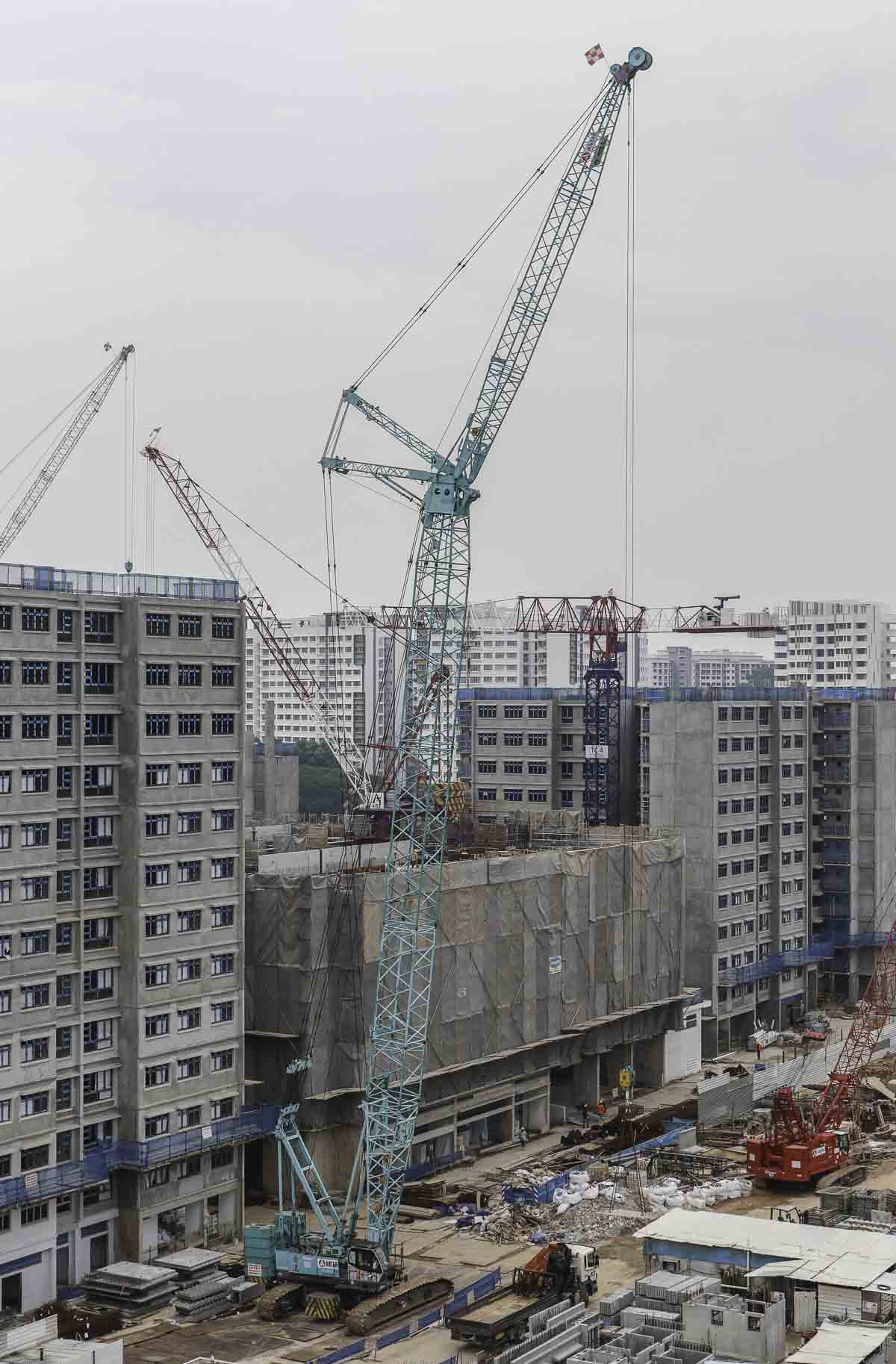

This Kobelco CKE1800 belongs to Antar from Singapore (SG) and was there used for various lifting duties on a construction project for new houses. It is a 180-tonne crawler crane. The crane is powered by a Mitsubishi 6D24-TLE2D diesel engine with a power of 235 kW.

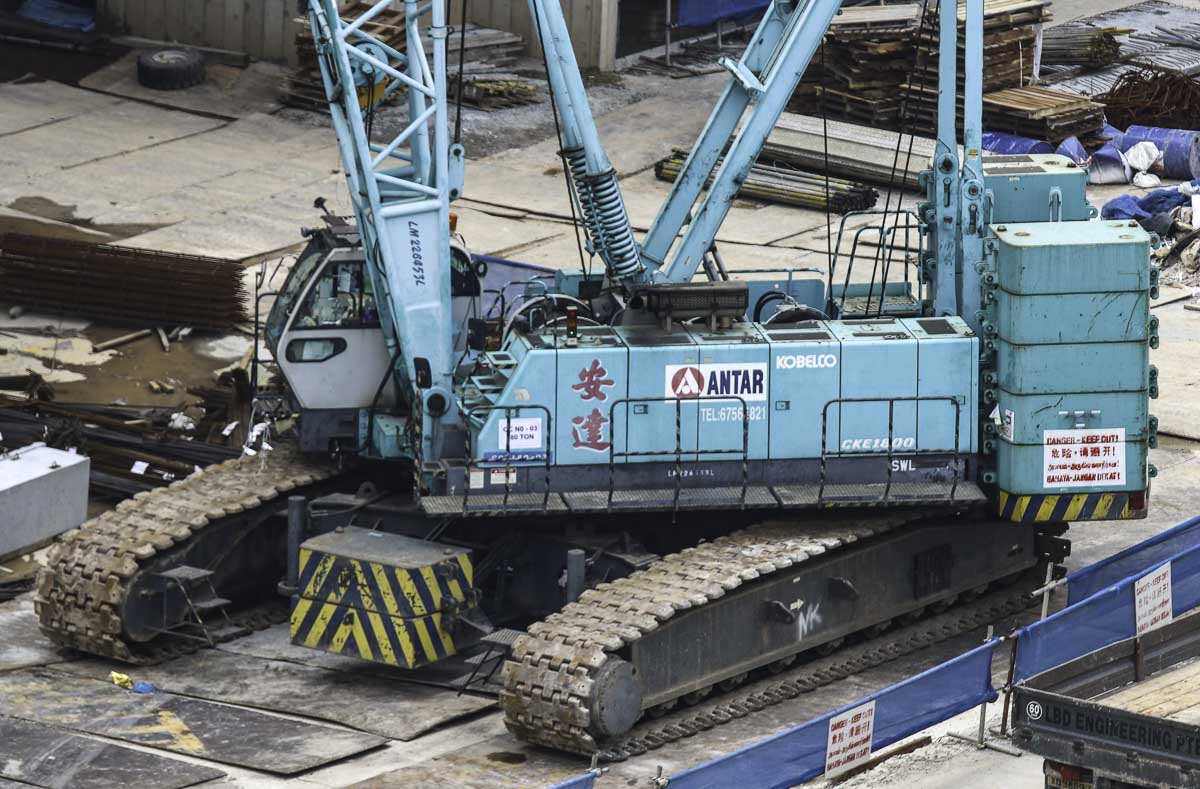

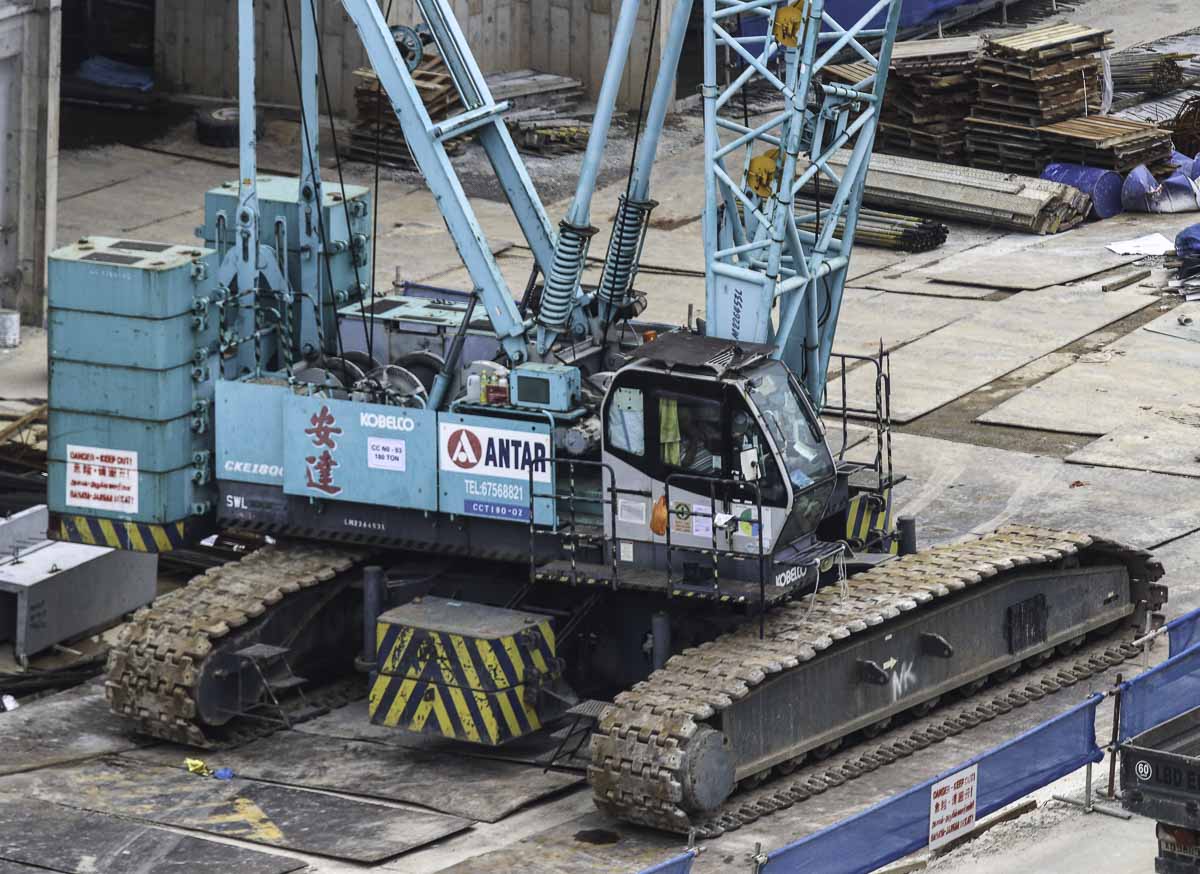

The undercarriage is 8.36 meters long and 6.67 meters wide. Attached to the undercarriage is in total 20 tonnes of central counterweight.

Attached to the superstructure is a total of 60.6 tonne counterweight mounted, the counterweight has a 5.95 meter tailswing.

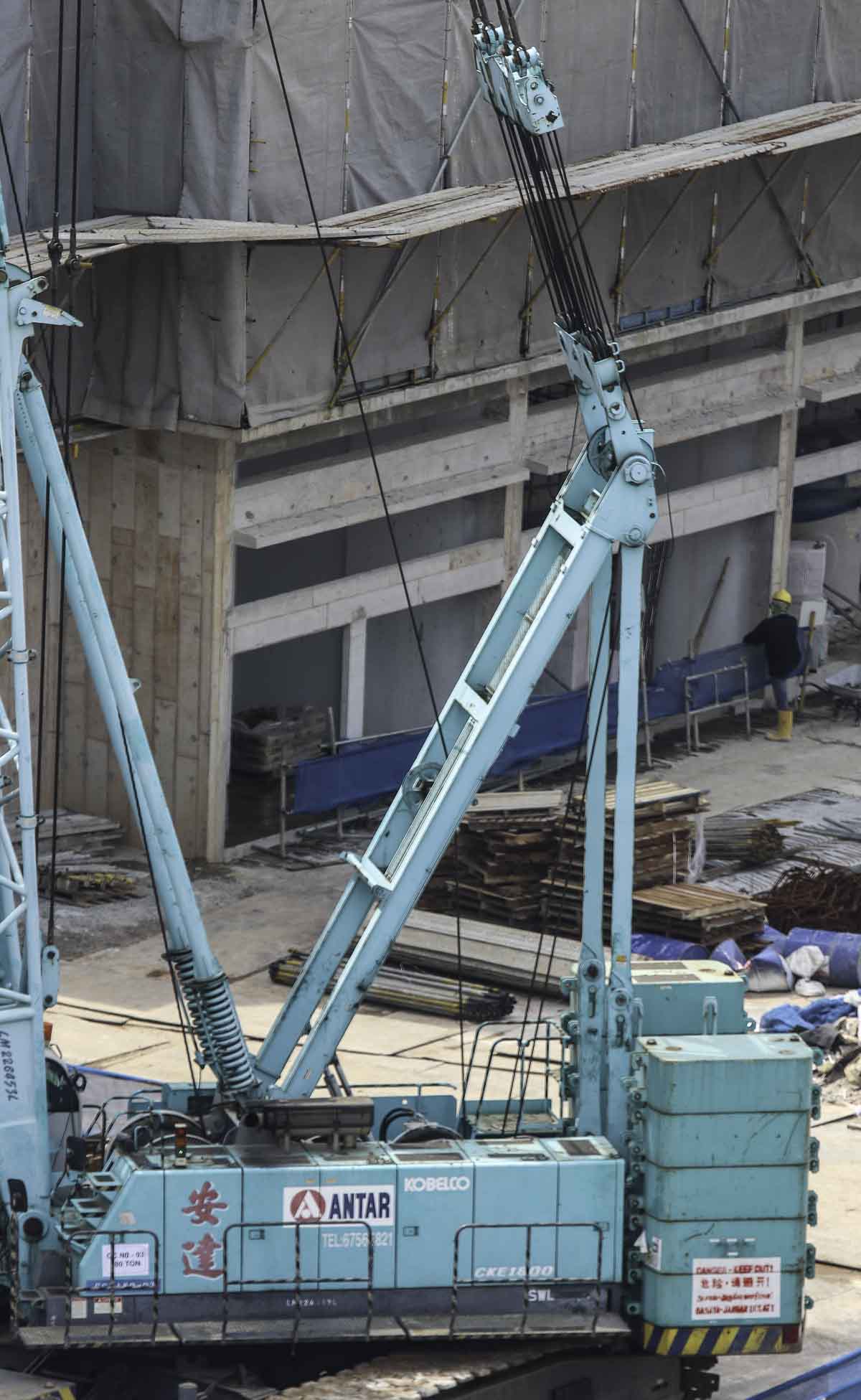

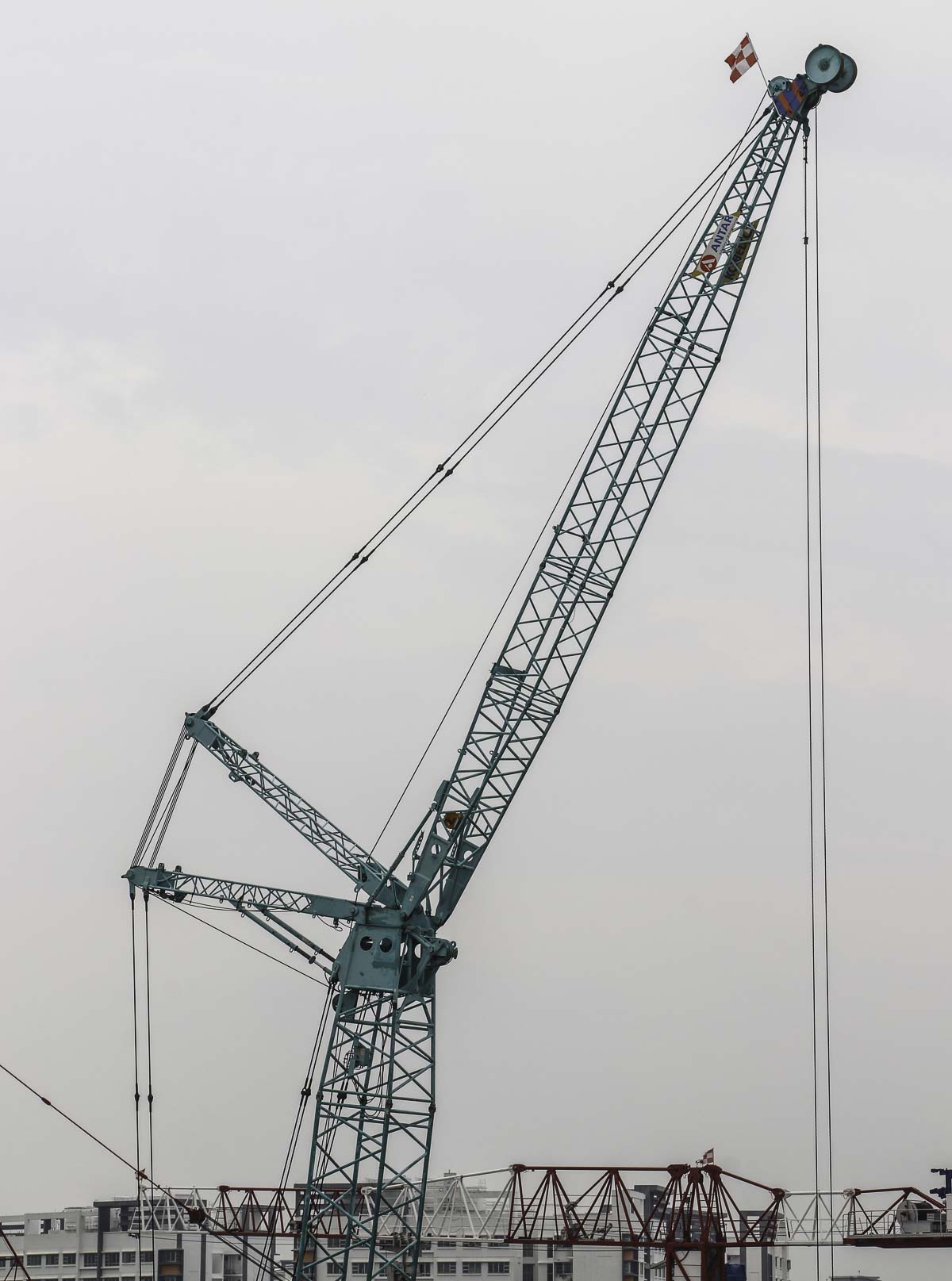

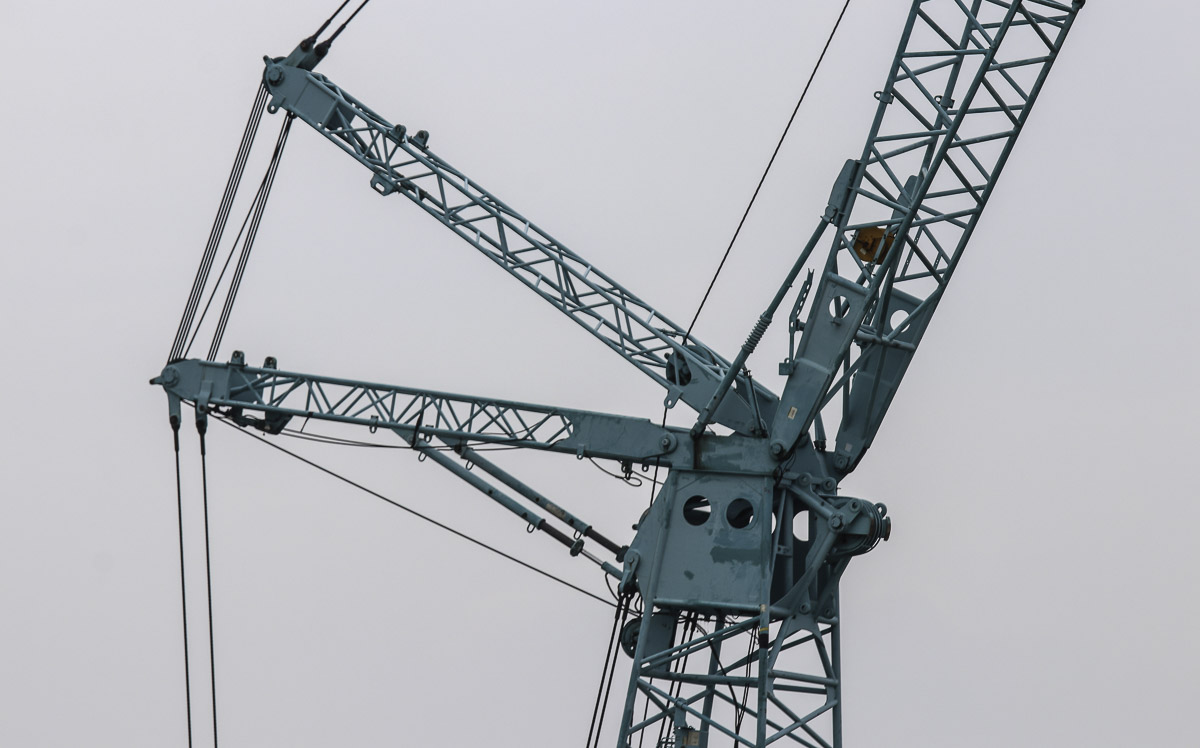

The crane was fitted here with a luffing jib. The main boom is here 39.6 meters long and the luffing jib is here 21.3 meters long.

The luffing jib has a 21.3 meter base length and a maximum length of 51.8 meters.

A very sharp crane of Antar!
