Kobelco RK250 - 2K Builder

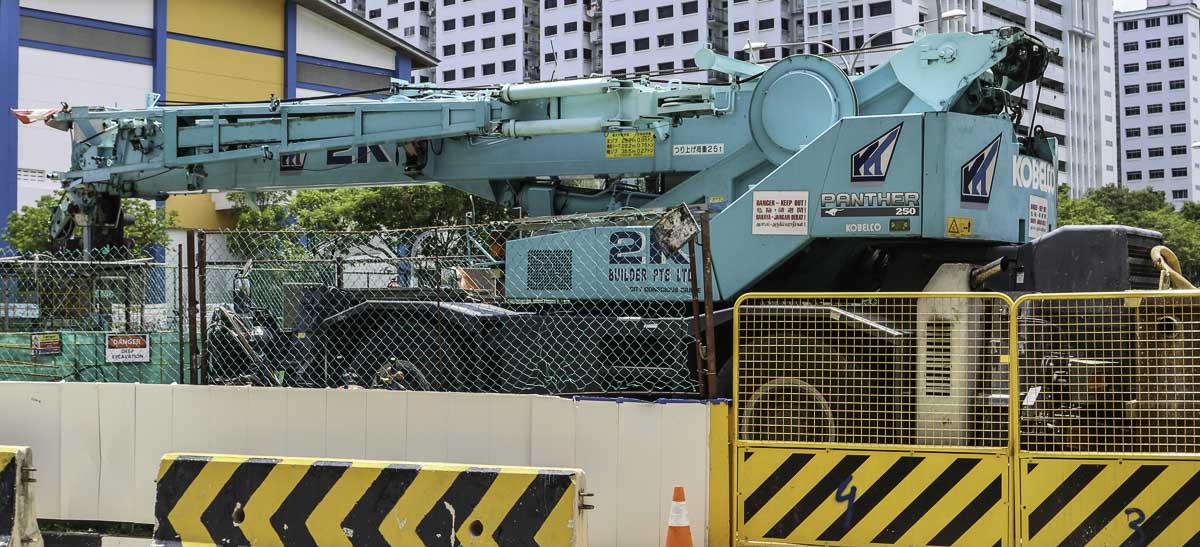

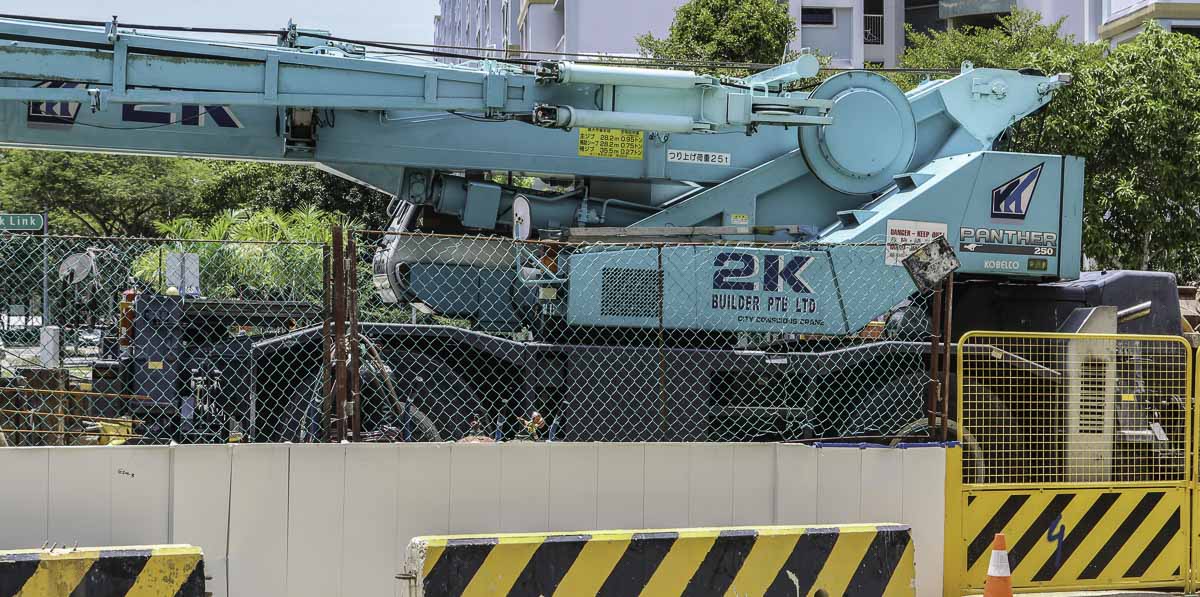

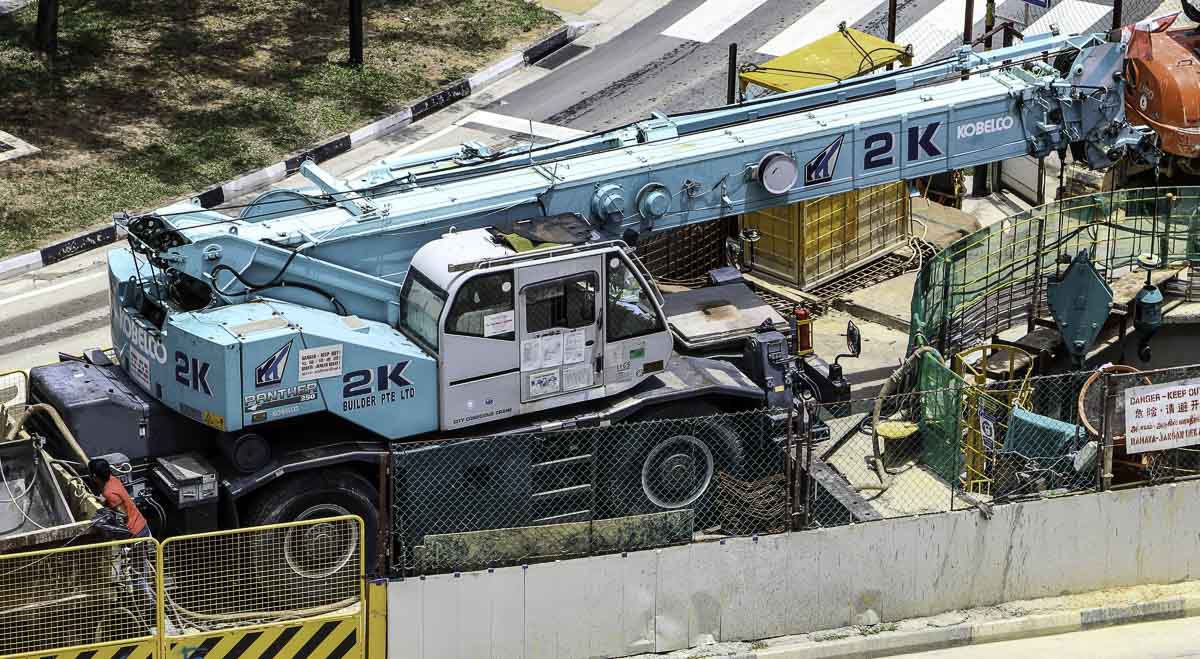

This interesting Kobelco RK250 belongs to 2K Builder from Singapore (SG) and was there used on a very tight construction site for lifting duties. It is a 25-tonne rough-terrain crane, mounted on a 2-axle carrier.

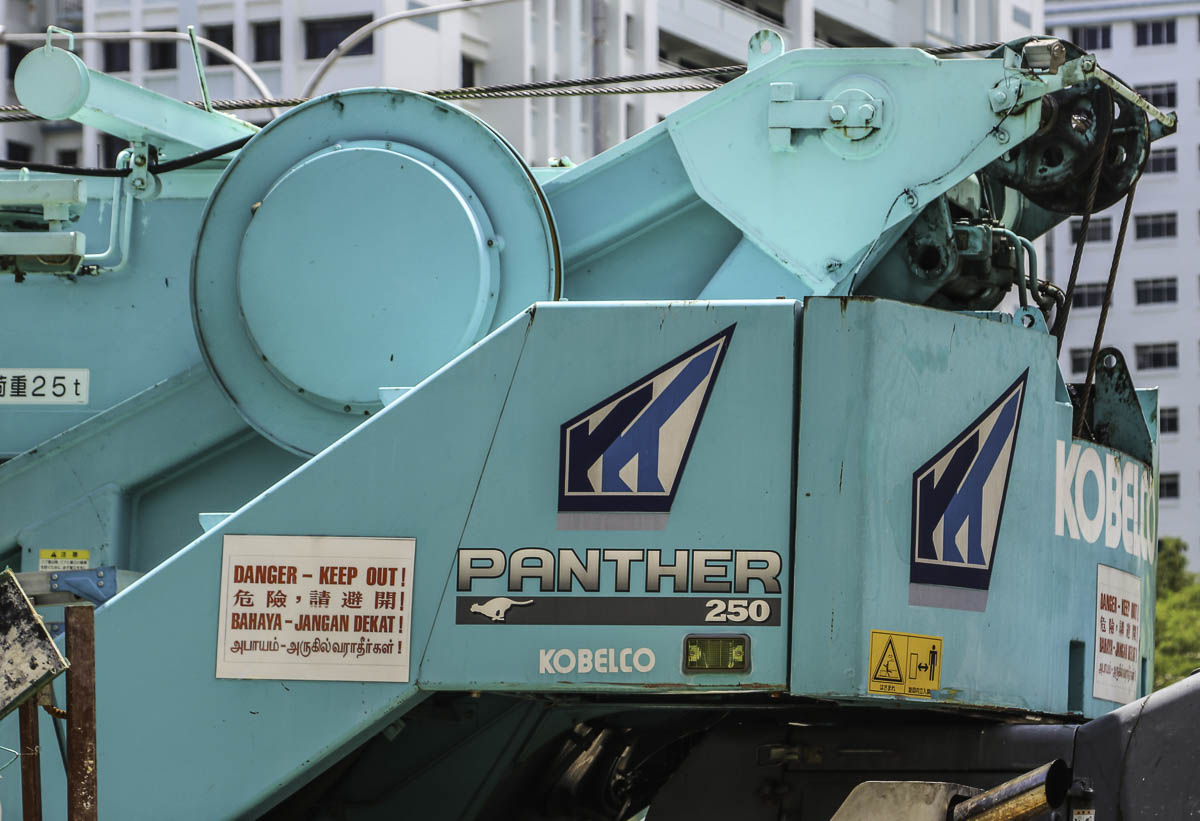

The crane is powered by a Mitsubishi 6D16-TL, a 7.5-liter 6-cylinder diesel engine with a power of 184 kW. The crane is fitted with two 3.5-tonne hoist winches, both with a 16 mm hoist wire rope. The tailswing of the superstructure is 3.03 meters.
In transit is the crane 11.01 meters long, 2.49 meters wide and 3.45 meters tall. The total mass of the crane is approx. 26.5 tonnes.

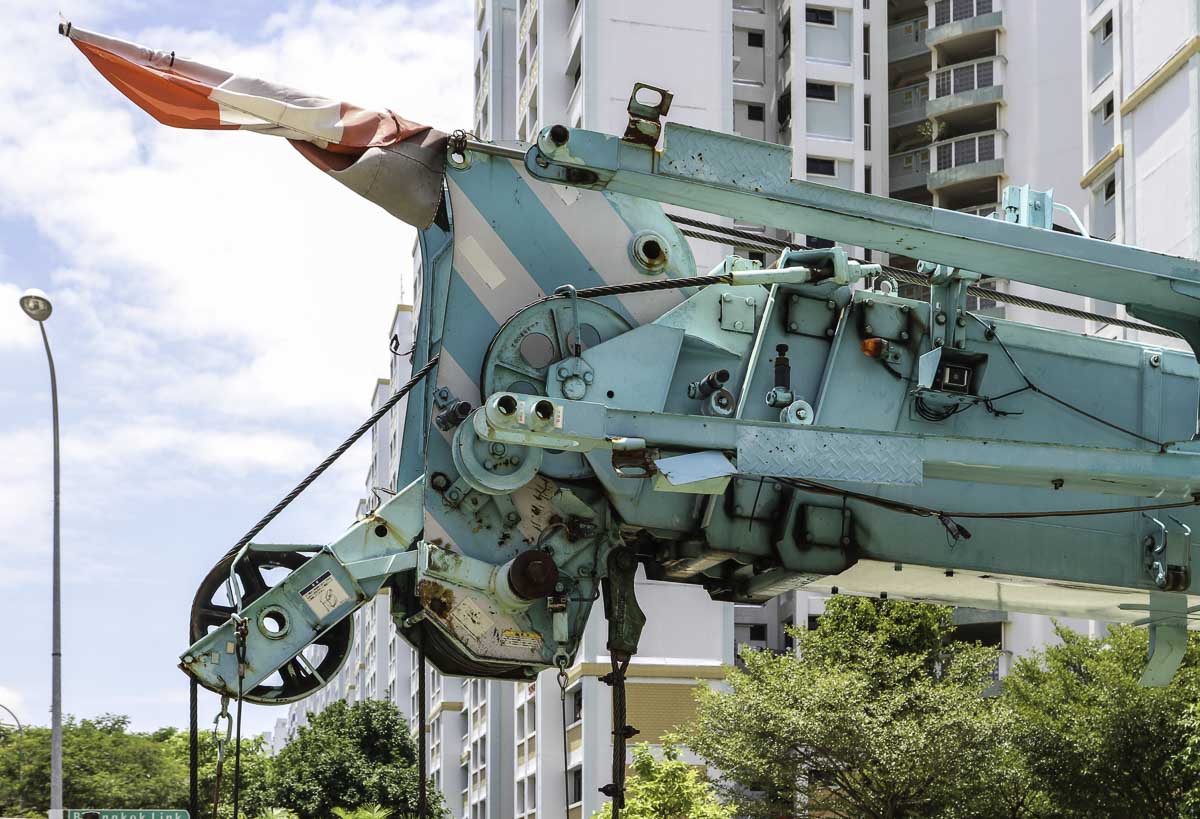

The 4-part main boom has a 9.32 meter base length and extends three times to a maximum length of 30.62 meters. Optionally is the main boom to be extended by a 7.5 - 12 meter long jib. The jib is mountable under a 5, 25 or 45 degree angle.
The outrigger base measures 6.42 x 6.3 meters. An interesting crane of 2K Builder!
