Kato KR-25H-V2 - Ecomac

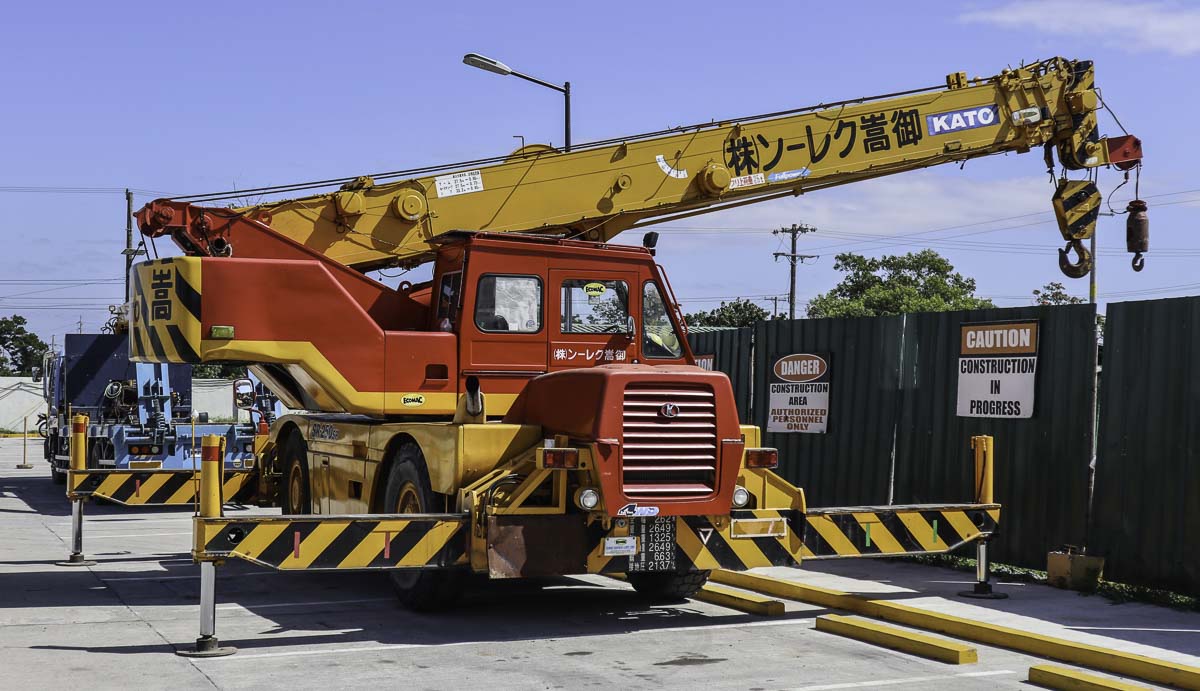

This interesting Kato KR-25H-V2 belongs to Ecomac from Quezon City (PH) and could be photographed on a construction site in San Fernando, Pampanga (PH). It is a 25-tonne crane with year of manufacture 1997.

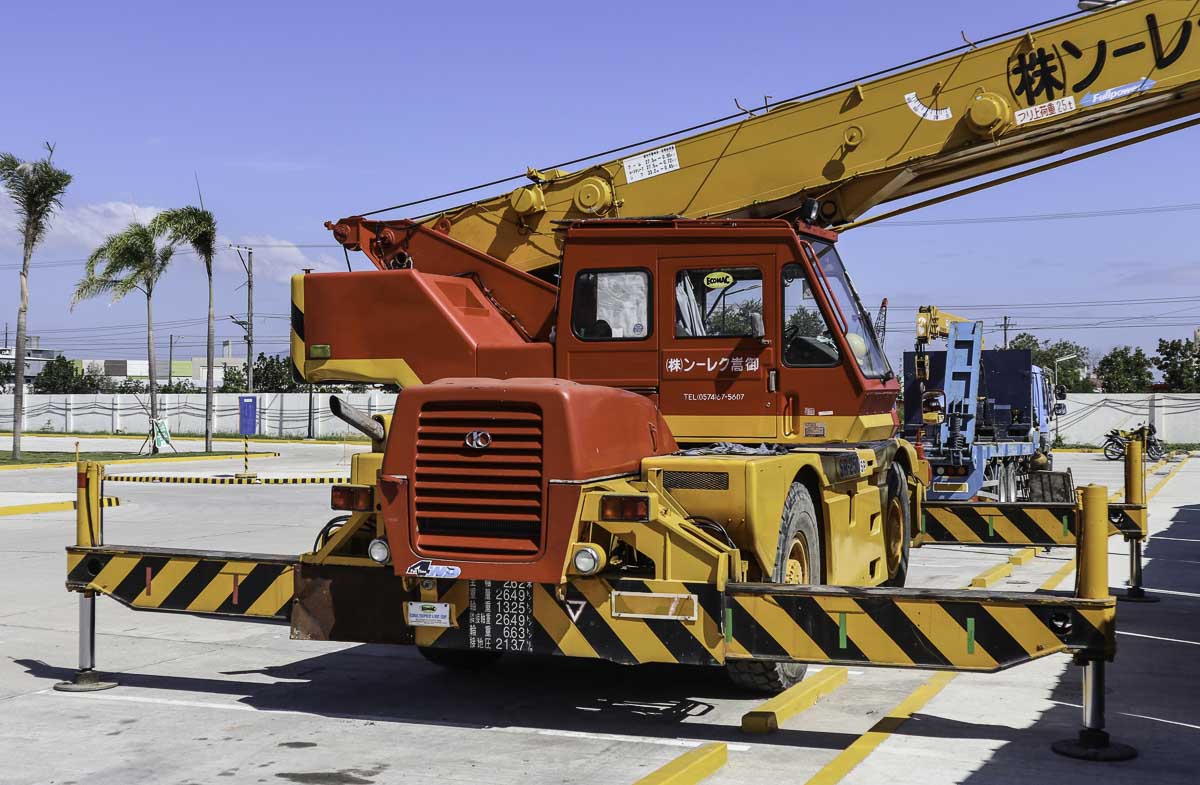

The crane is powered by a Mitsubishi 6D16-TL, a 7.5-liter 6-cylinder diesel engine with a power of 184 kW (250 hp). The crane was purched used from Mitake Crane from Nagoya (JP).

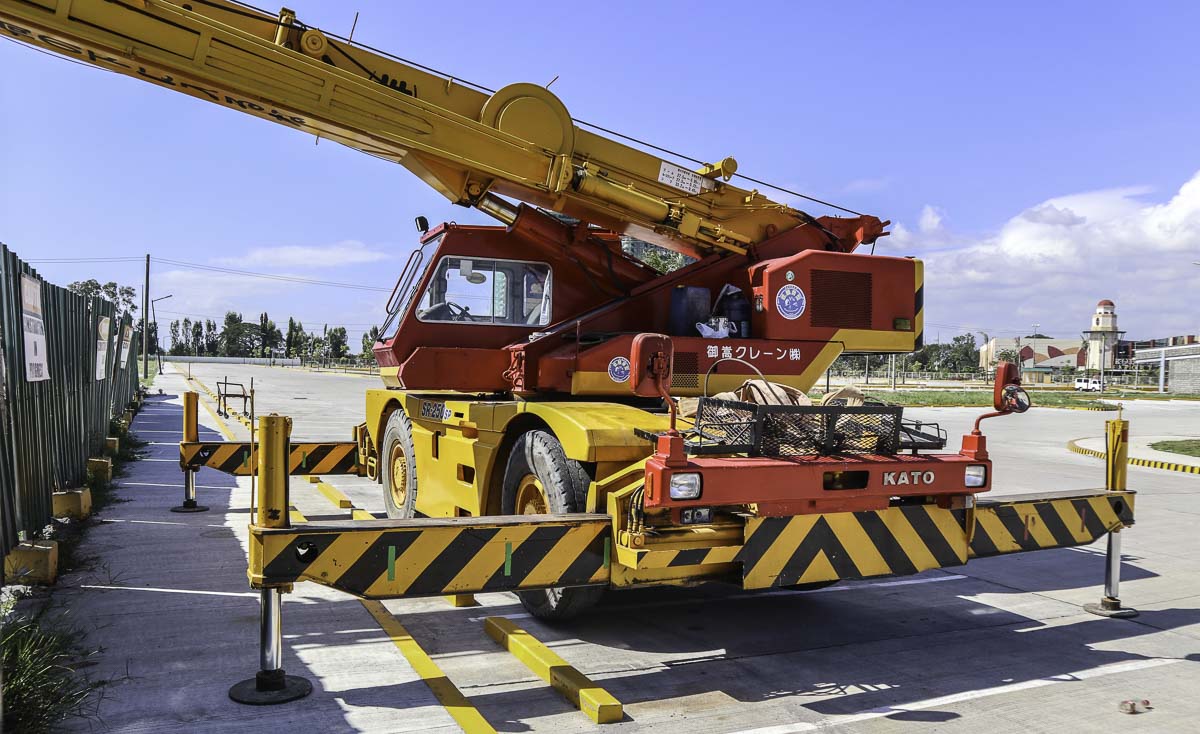

The full outrigger base of the crane measures 6.3 x 6.3 meters.
In transit is the crane 11.05 meters long, 2.62 meters wide and 3.42 meters tall. The total mass of the crane is 26.5 tonnes.

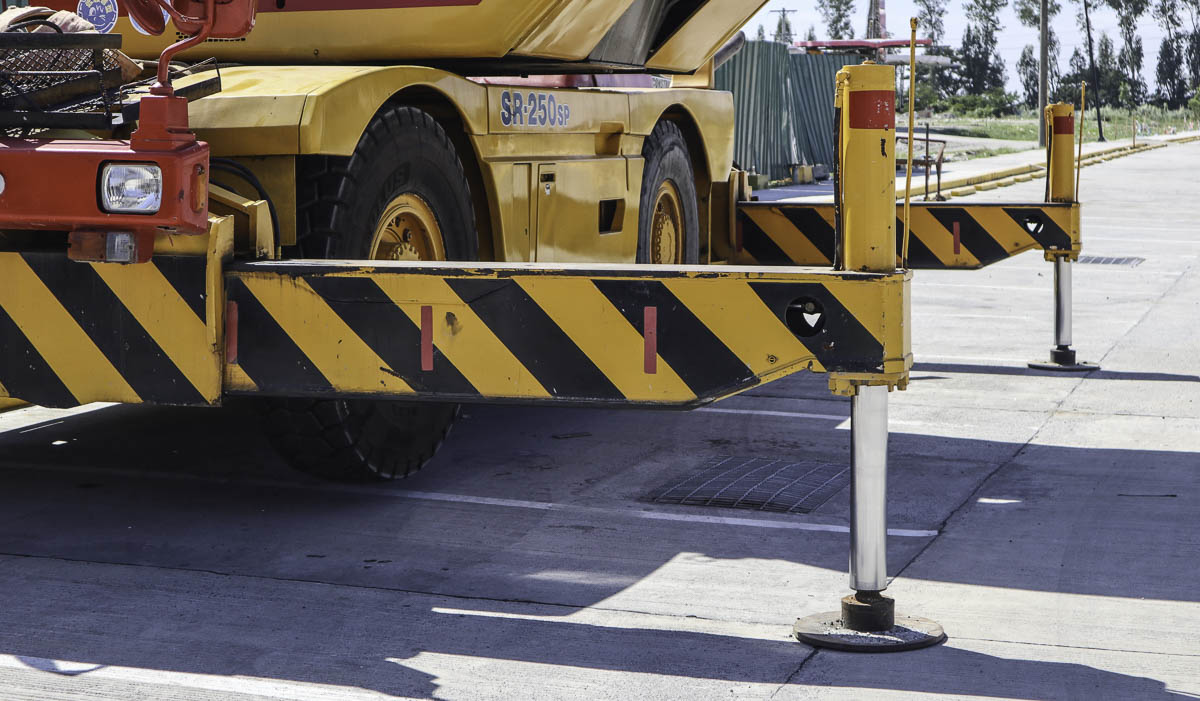

On narrow construction sites are the outriggers to be extended to a breadth of 5.1 or 3.8 meters.

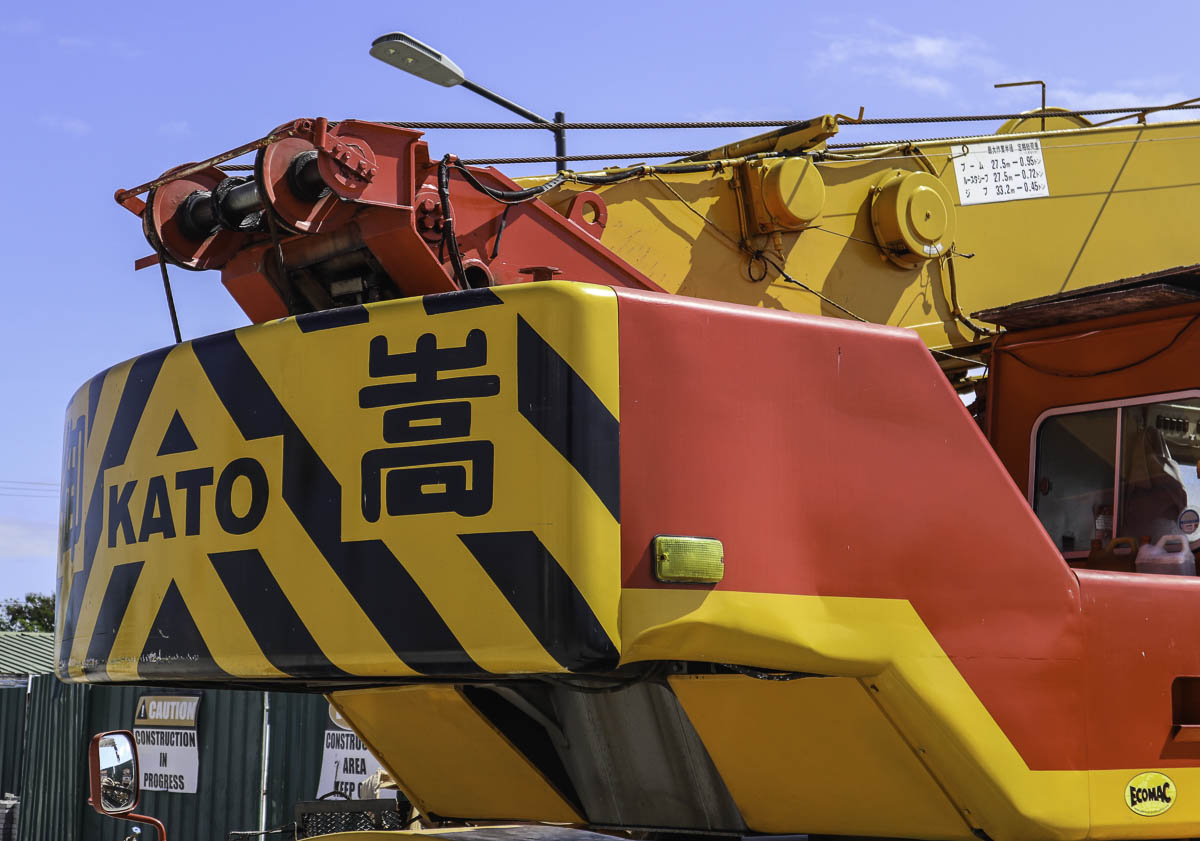

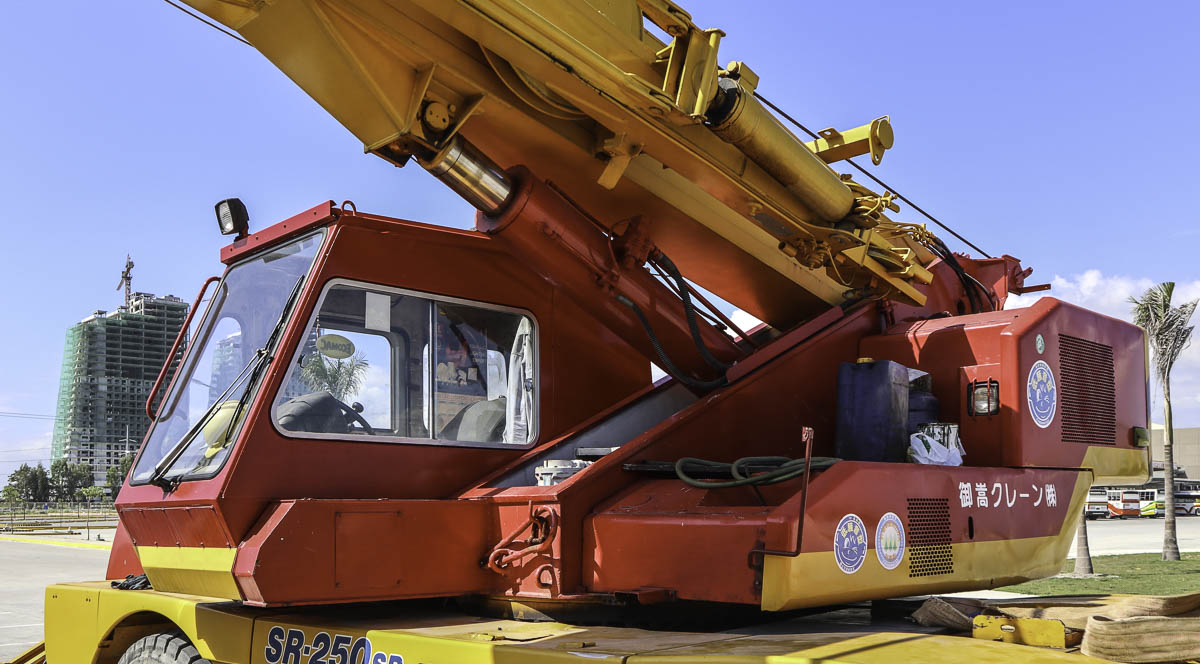

The counterweight has a 3.15 meter tailswing. In the superstructure are two hoist winches mounted.

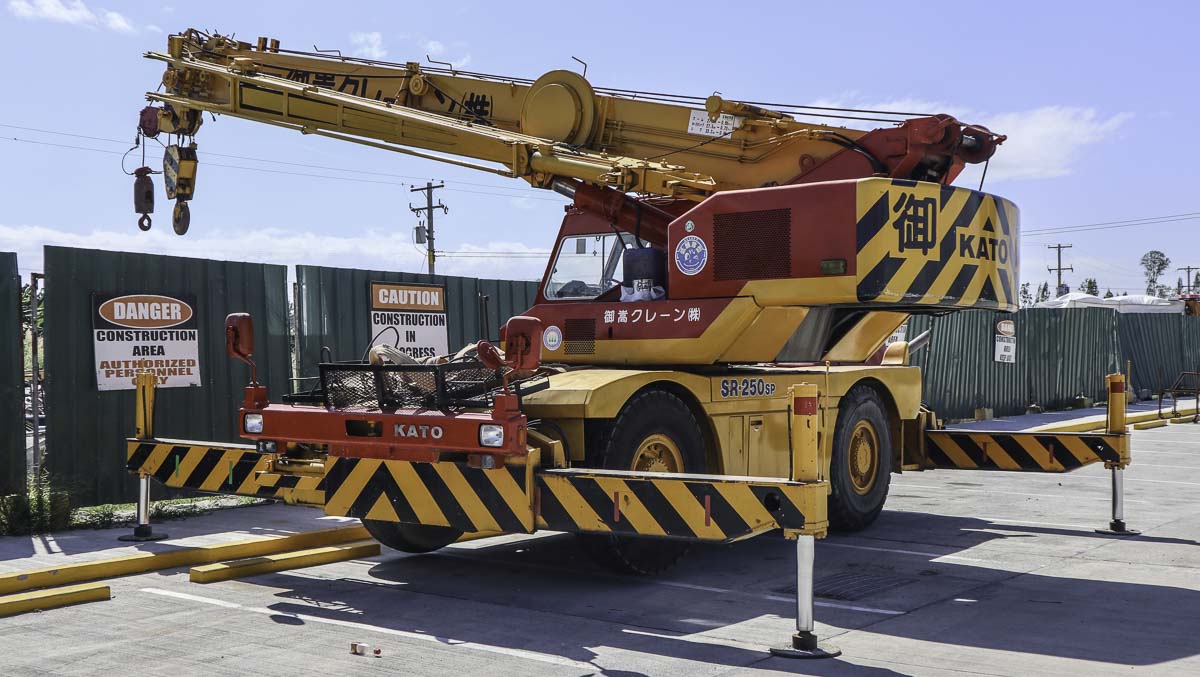

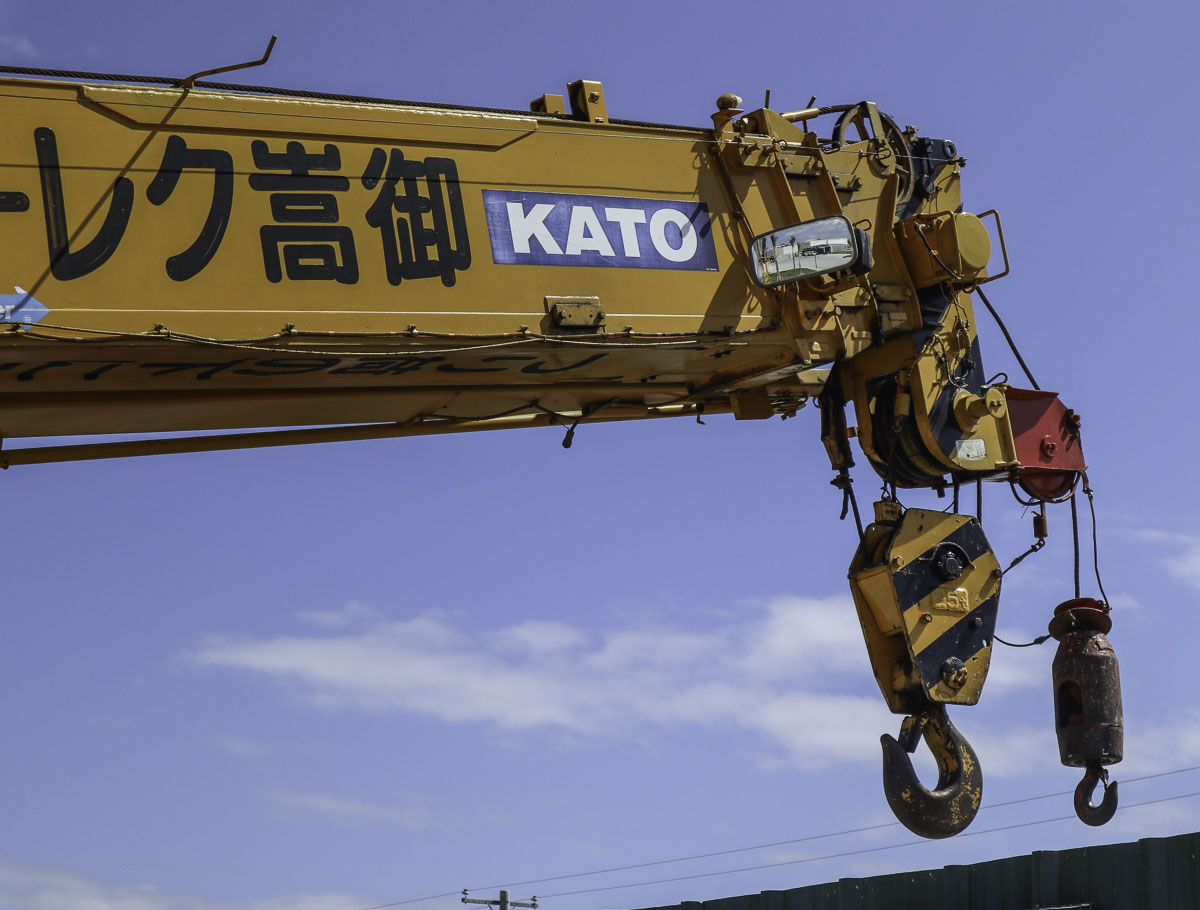

The 4-part main boom has a 9.5 meter base length and extends three times to a maximum length of 30.5 meters. The main boom can be extended by a 7.9 - 13 meter long jib, the jib can be mounted in a 5, 25 or 45 degree angle to the main boom.
A sharp crane of Ecomac!
