Hitachi KH300-3 - Sin Leng

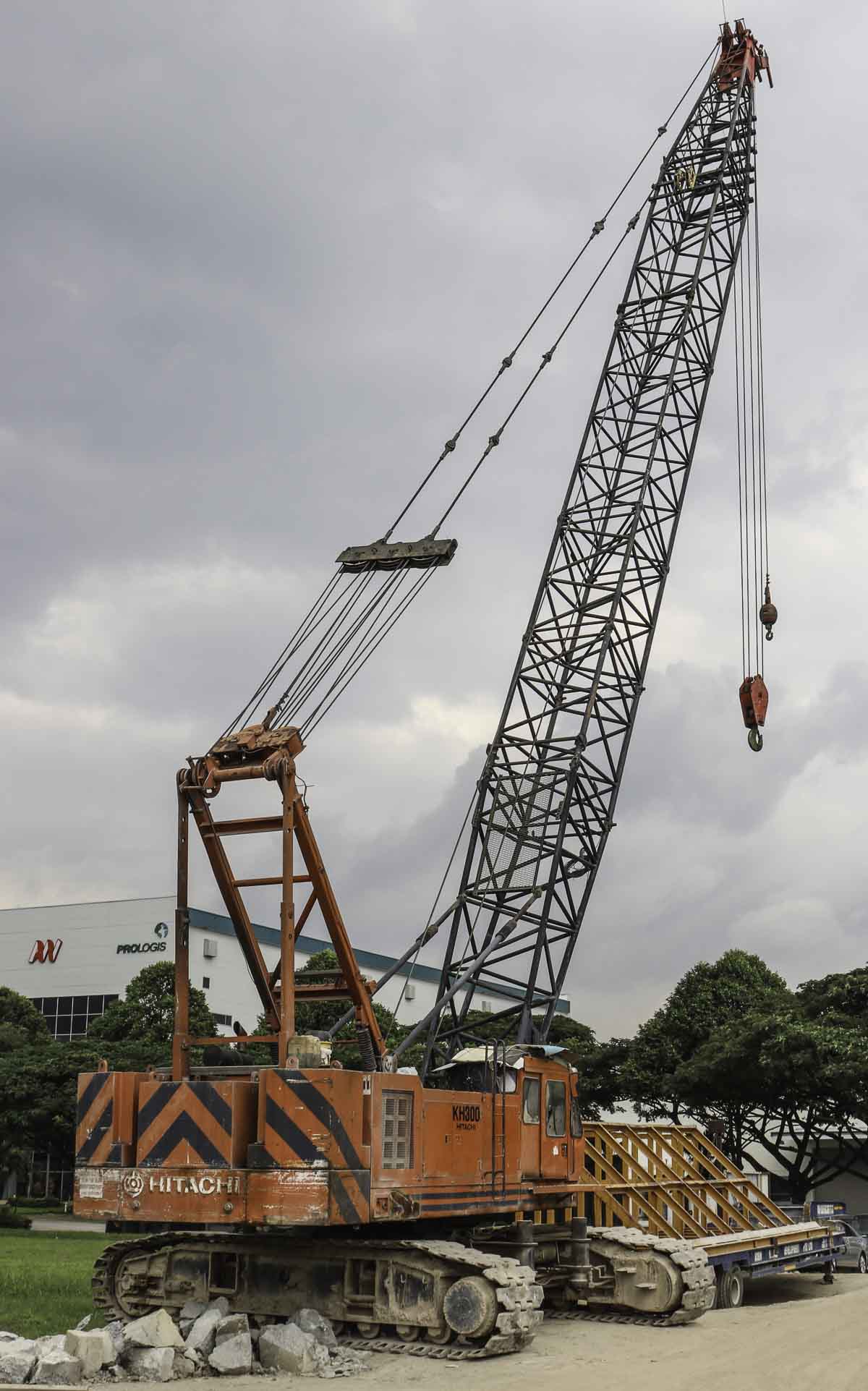

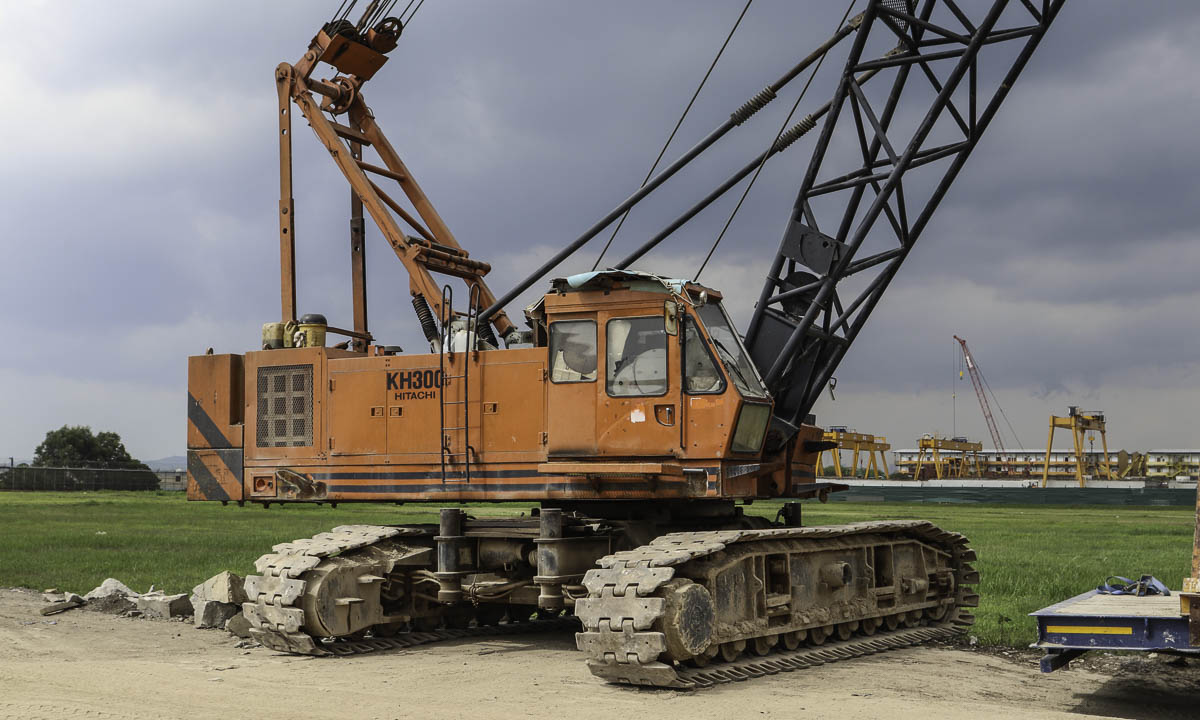

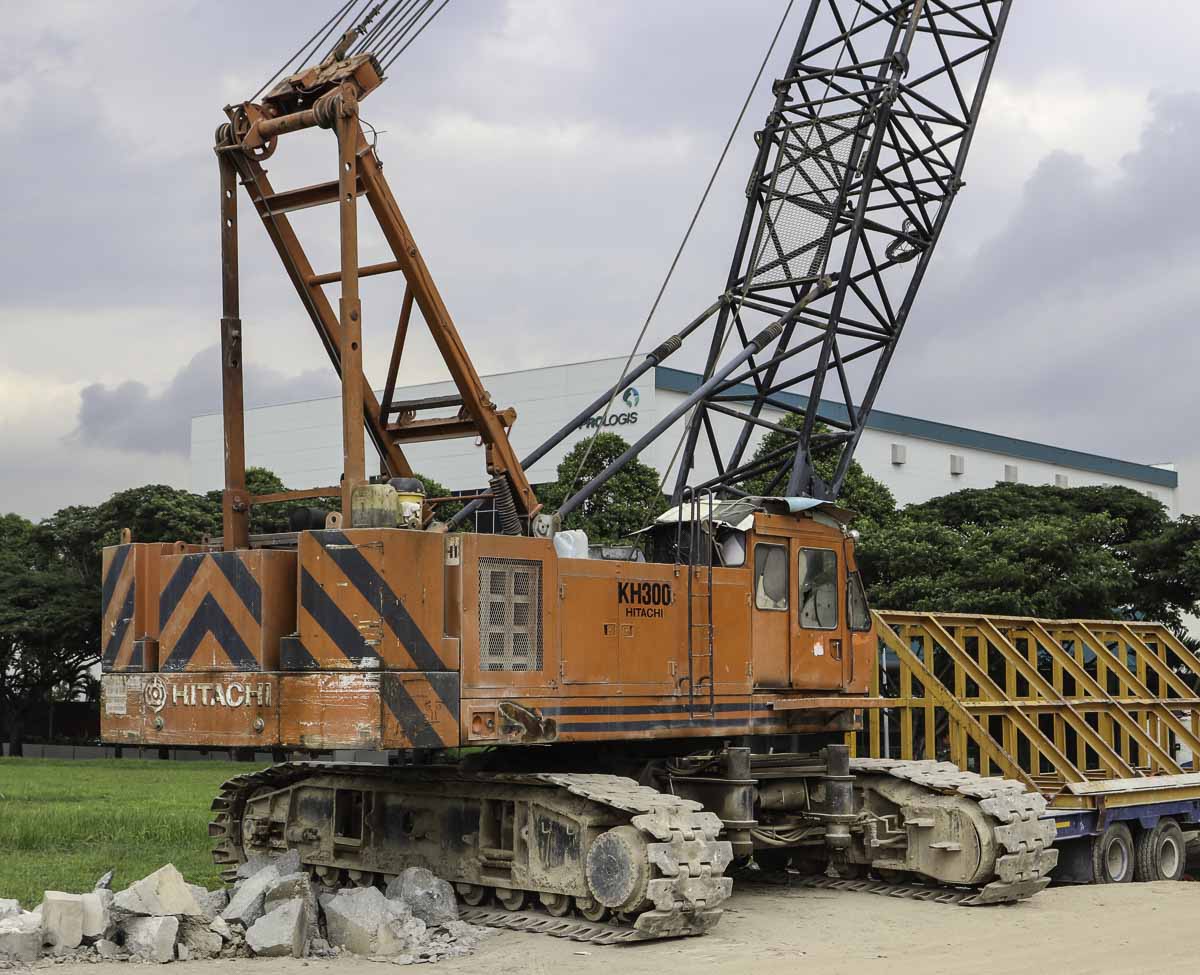

This sharp Hitachi KH300-3 belongs to Sin Leng from Singapore (SG) and was used on a fabrication yard for concrete precast elements. It is an 80-tonne crawler crane.
The crane is powered by an Isuzu 6RB1, a 6-cylinder diesel engine with a power of 166 kW (255 hp).

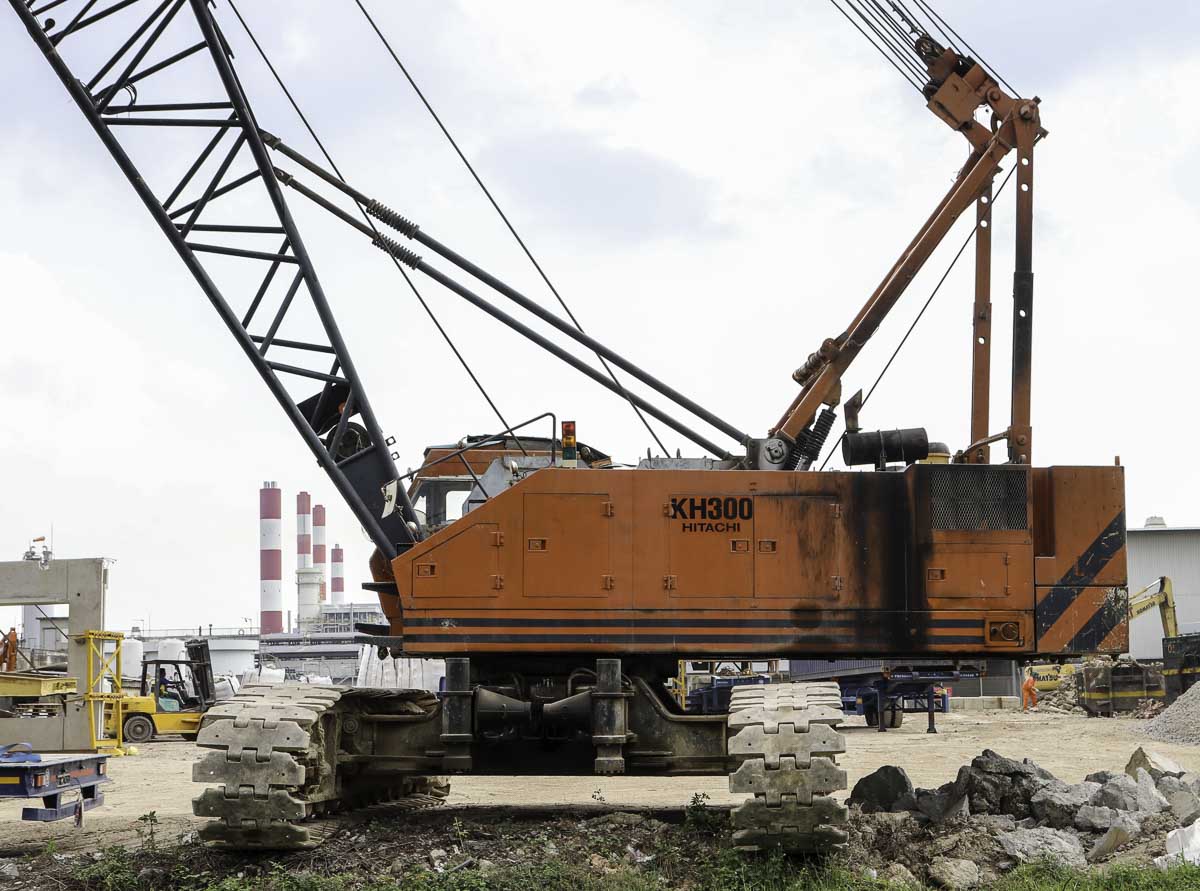

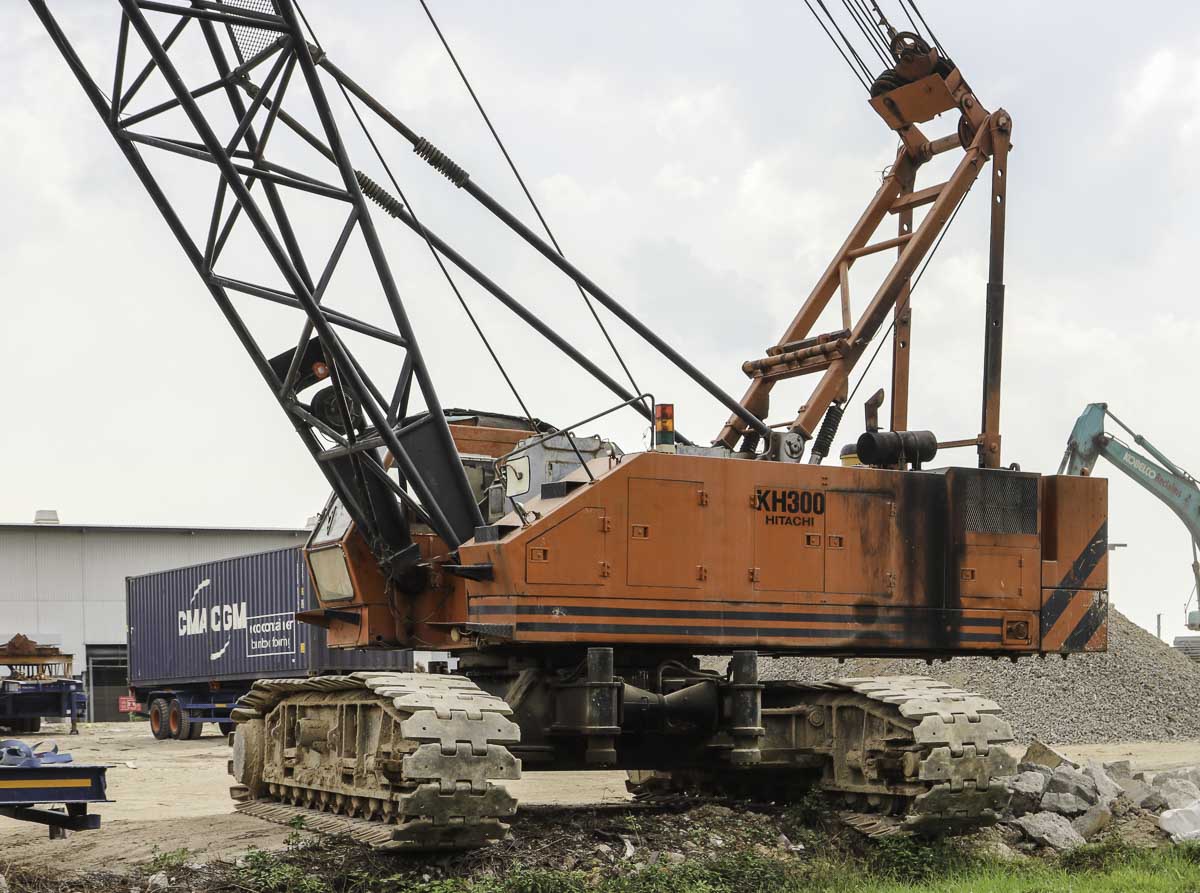

The undercarriage of the crane is 6.345 meters long and 4.83 meters wide. For the transport over the road is the width to be reduced to 3.5 meters only. The tracks are each 0.85 meters wide.

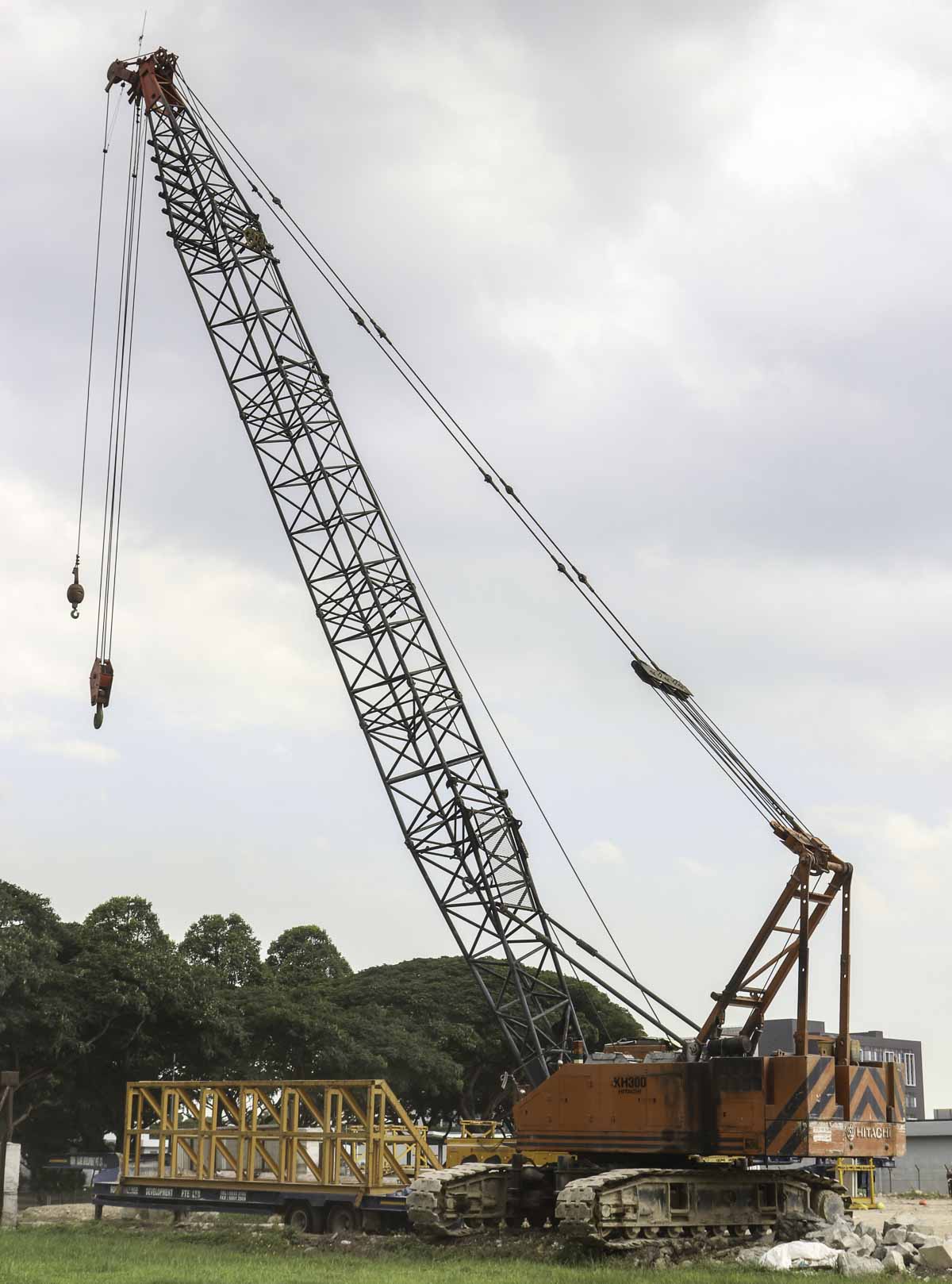

Here was the crane fitted with a 31 meter long main boom. In this configuration is the crane able to hoist 34.1 tonnes on a 7 meter radius and 4.7 tonnes to a 28.3 meter radius.

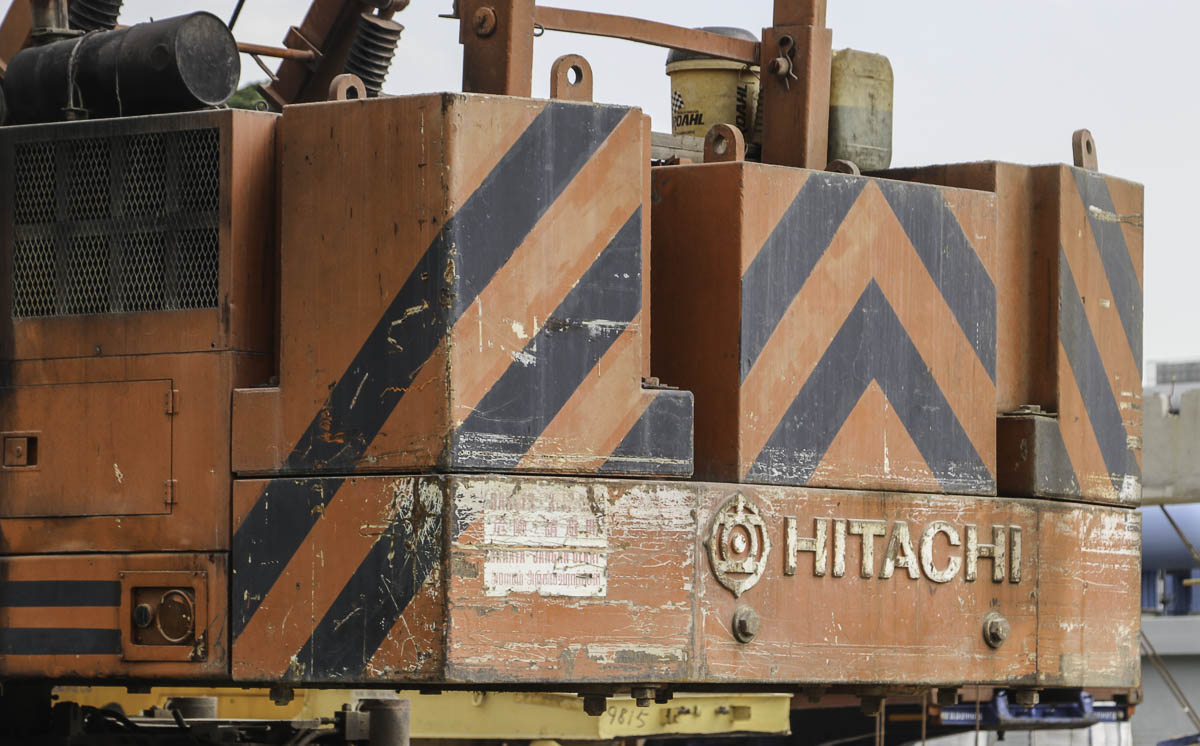

Attached to the superstructure are 20.8 tonnes of counterweight, the counterweight has a 4.9 meter tailswing.

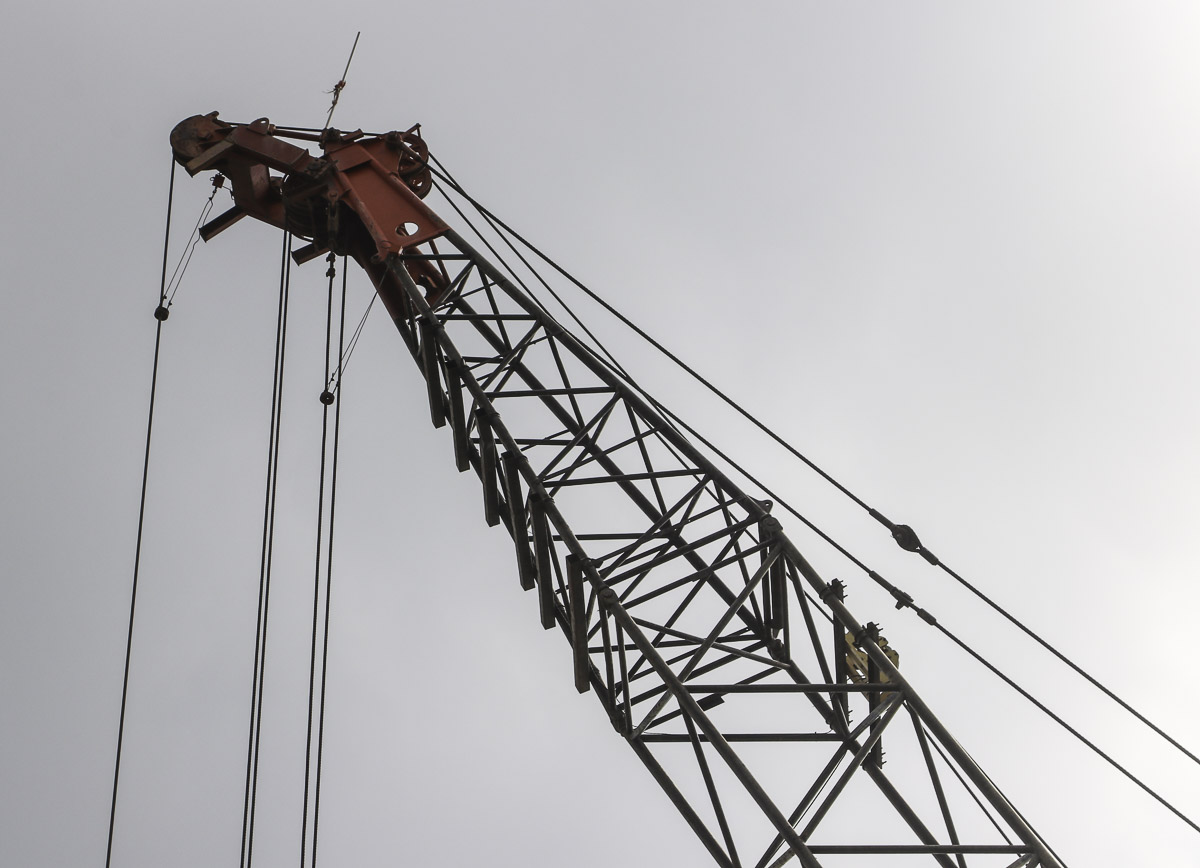

The main boom has a 13 meter base length and can be extended in steps of three meters to a maximum length of 58 meters.
The crane is equipped with two 15-tonne hoist winches, both fitted with 26 mm hoist wire rope.

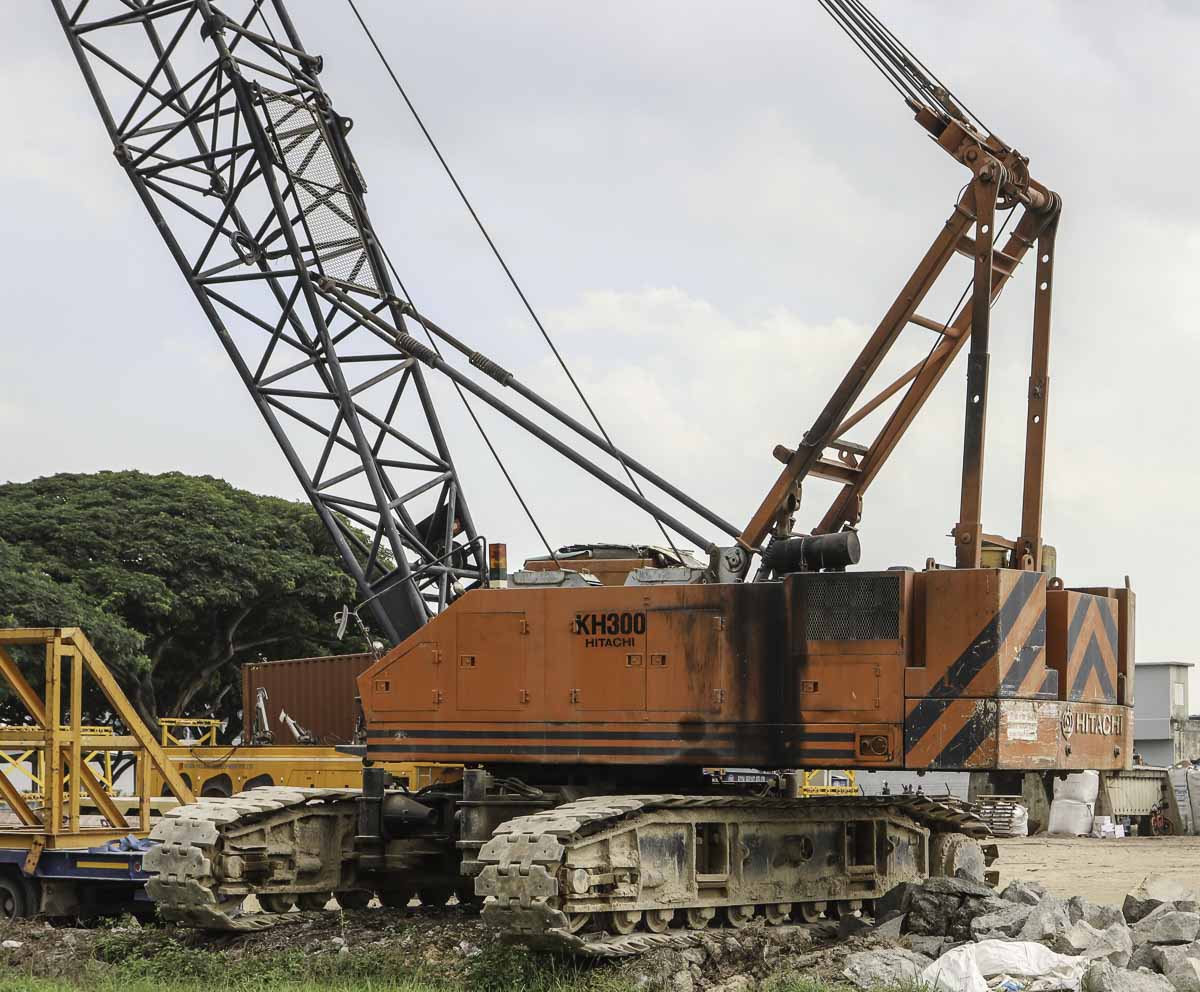

A sharp crane of Sin Leng! The crane is still in the original factory colors of Hitachi.
