Hitachi KH100 - Goldridge

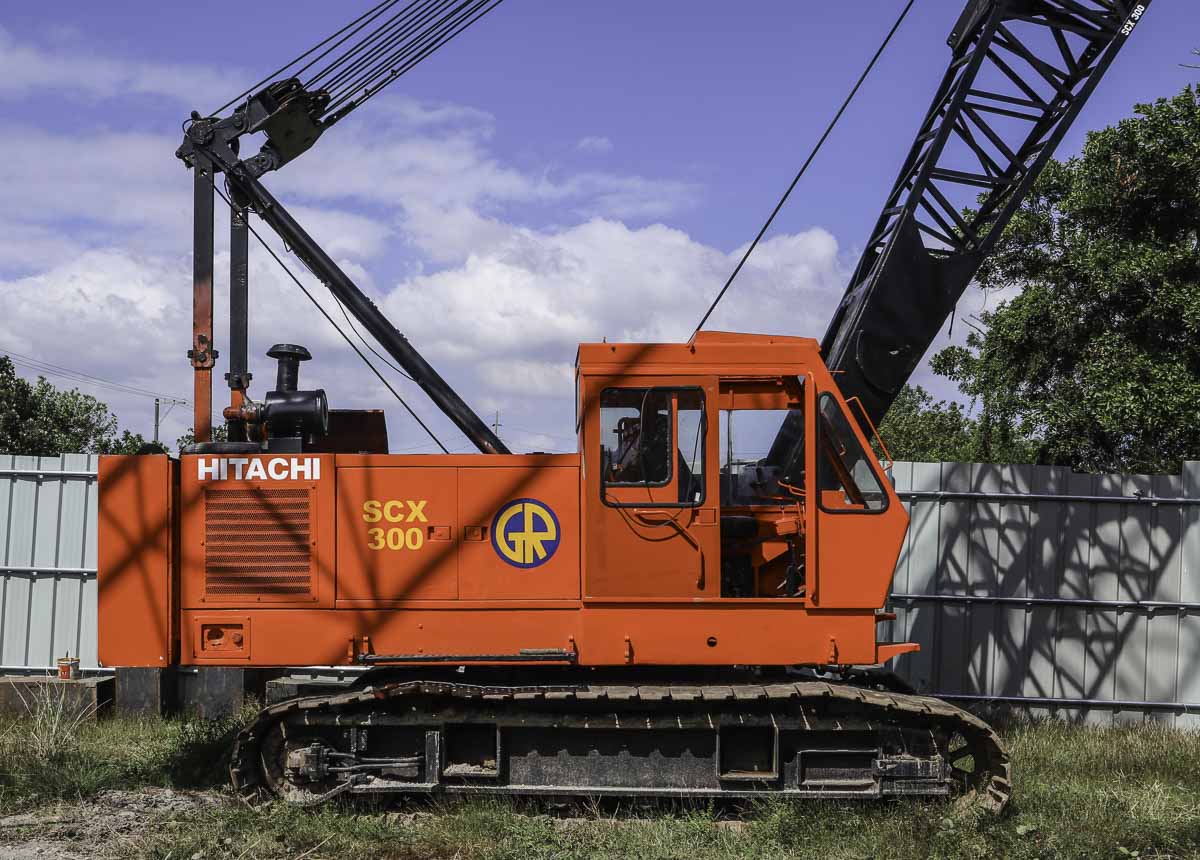

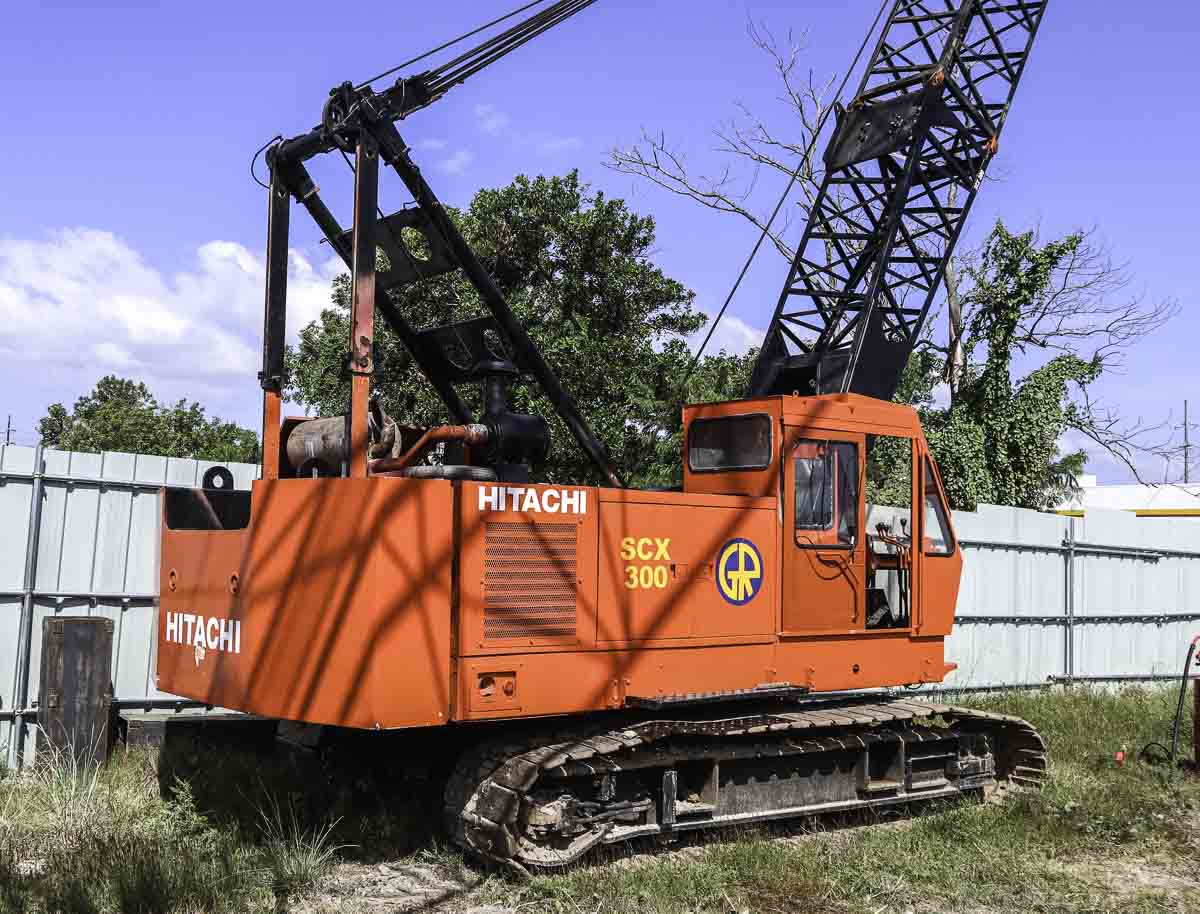

This sharp Hitachi KH100 belongs to Goldridge from Puting Buhangin (PH) and stood on a construction site in San Fernando, Pampanga (PH). It is a 30-tonne crawler crane.
The crane is powered by a Hino H06C-T, a 6-cylinder diesel engine with a power of 110 kW (150 hp).

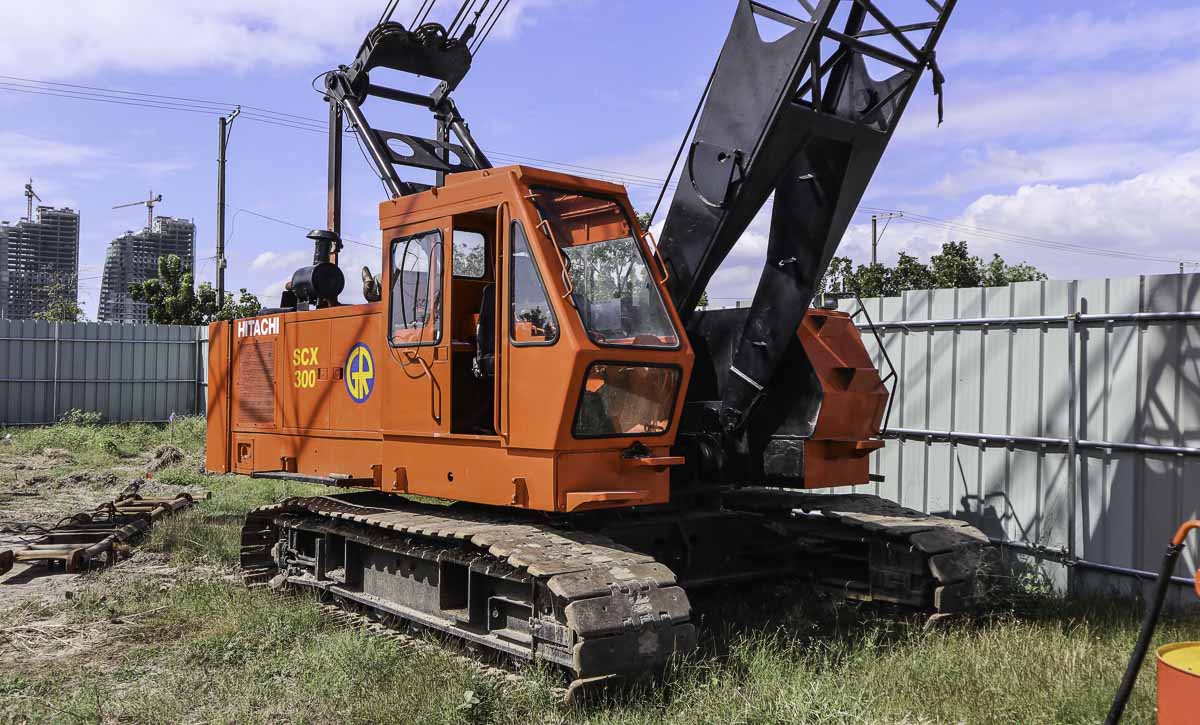

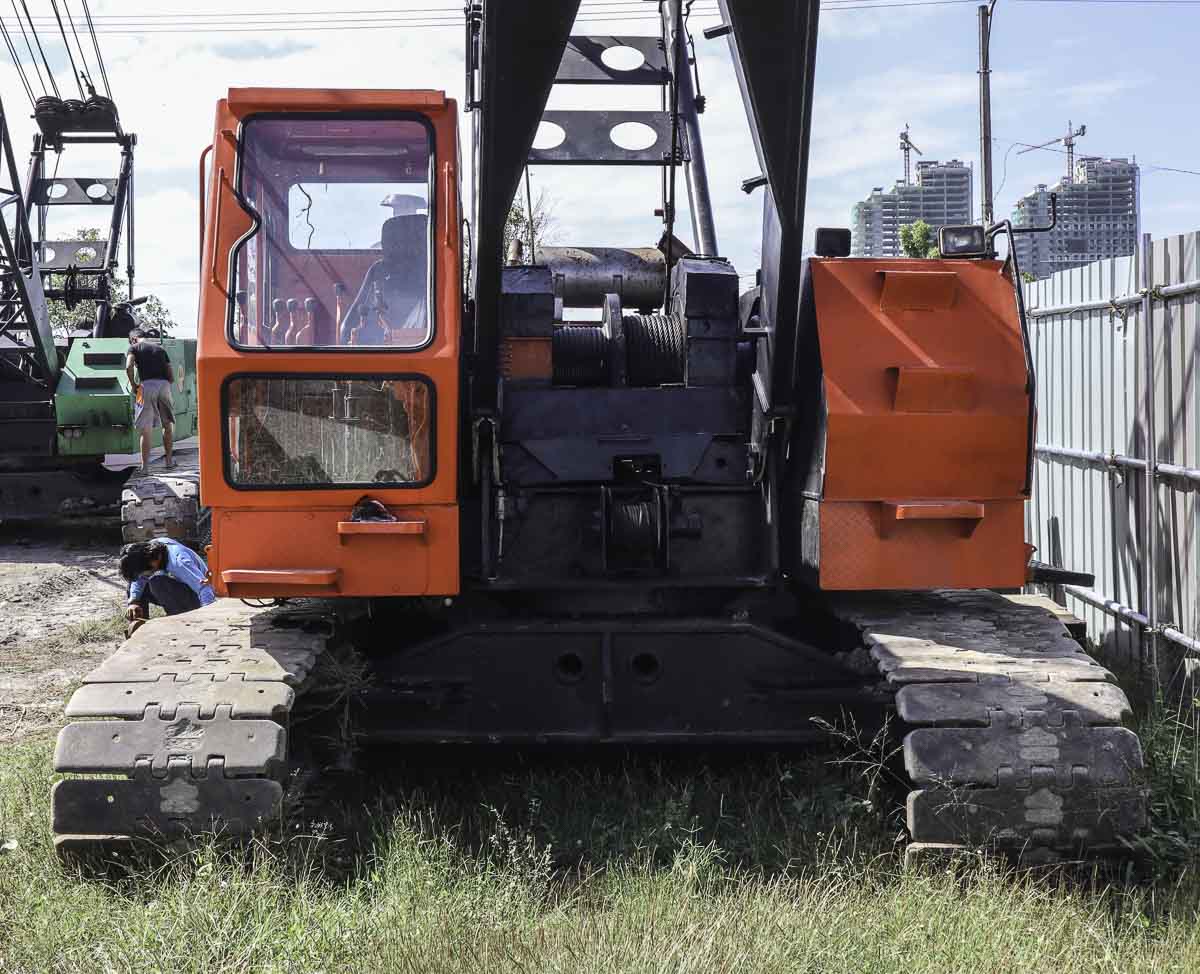

The undercarriage is 4.49 meters long and 3.3 meters wide.
Attached to the superstructure is 8.8 tonnes of counterweight, the counterweight has a 3.5 meter tailswing. The crane is fitted with two 5-tonne hoist winches, both with 22 mm hoist wire rope.

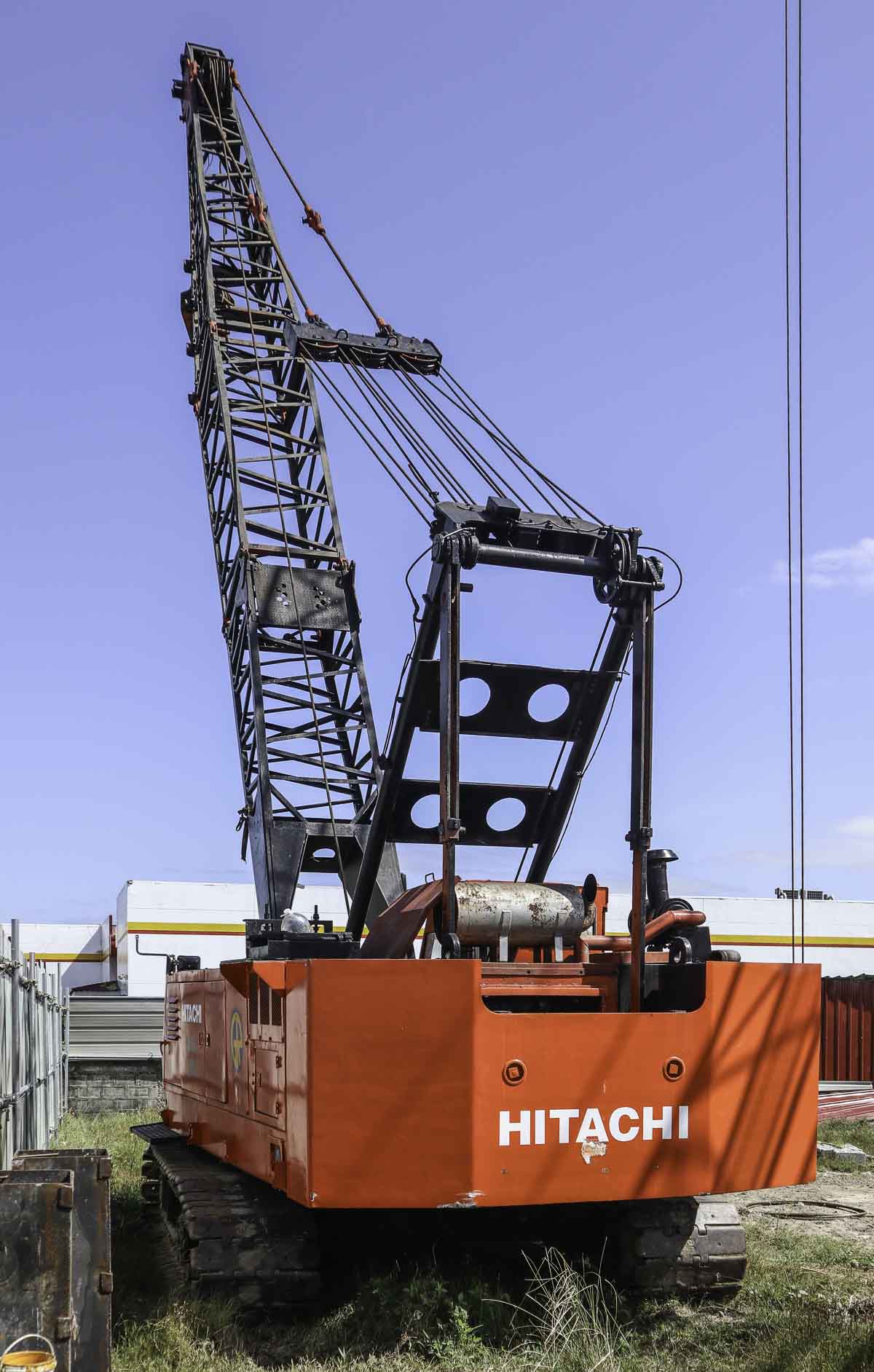

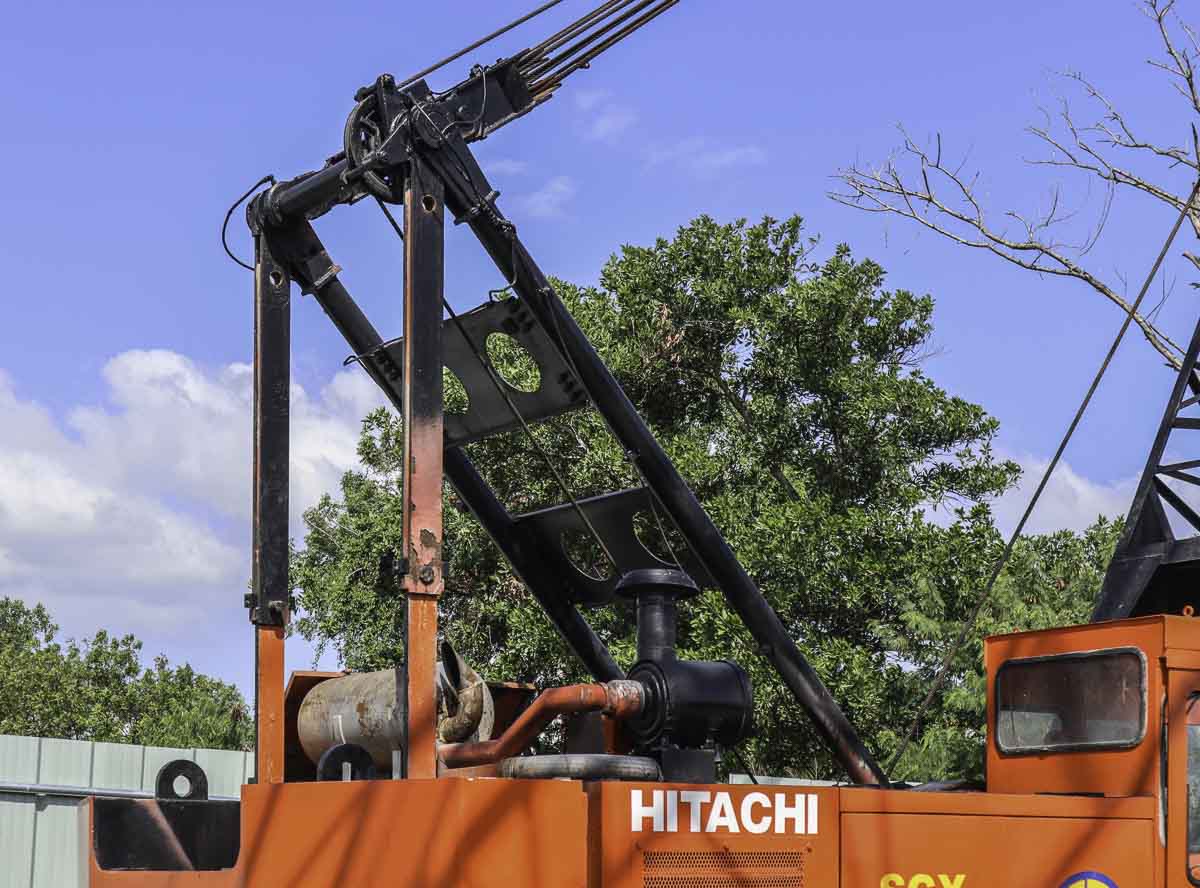

During crane operation is the A-frame 4.72 meters tall, for the transport over the road is it possible to lower the A-frame.

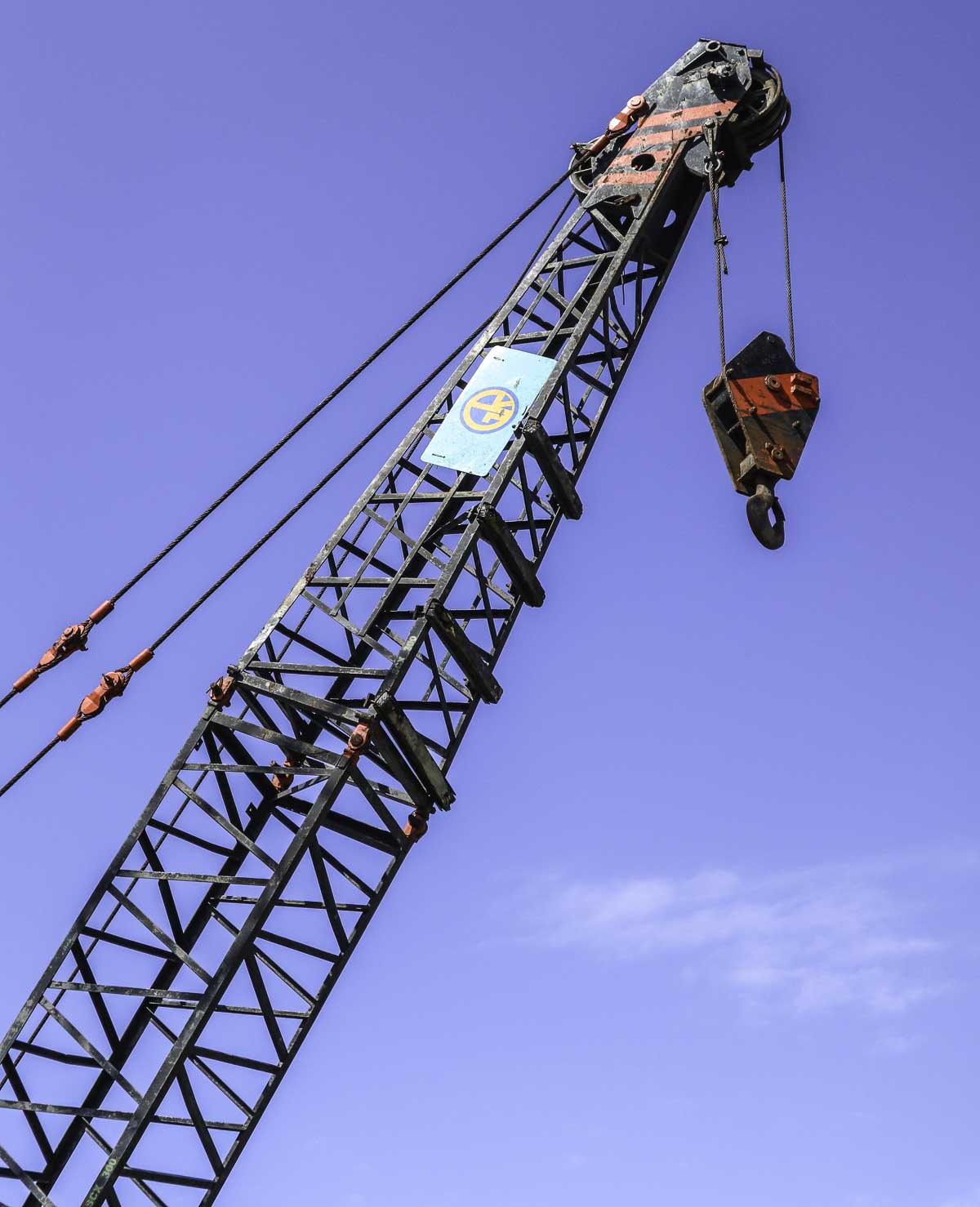

The main boom has a 10 meter base length and can be extended in steps of three meters to a maximum length of 34 meters.
The crane was fitted here with a 13 meter main boom.
A very sharp and well maintained crane of Goldridge!
