Fuwa FCC100C - Tiong Woon

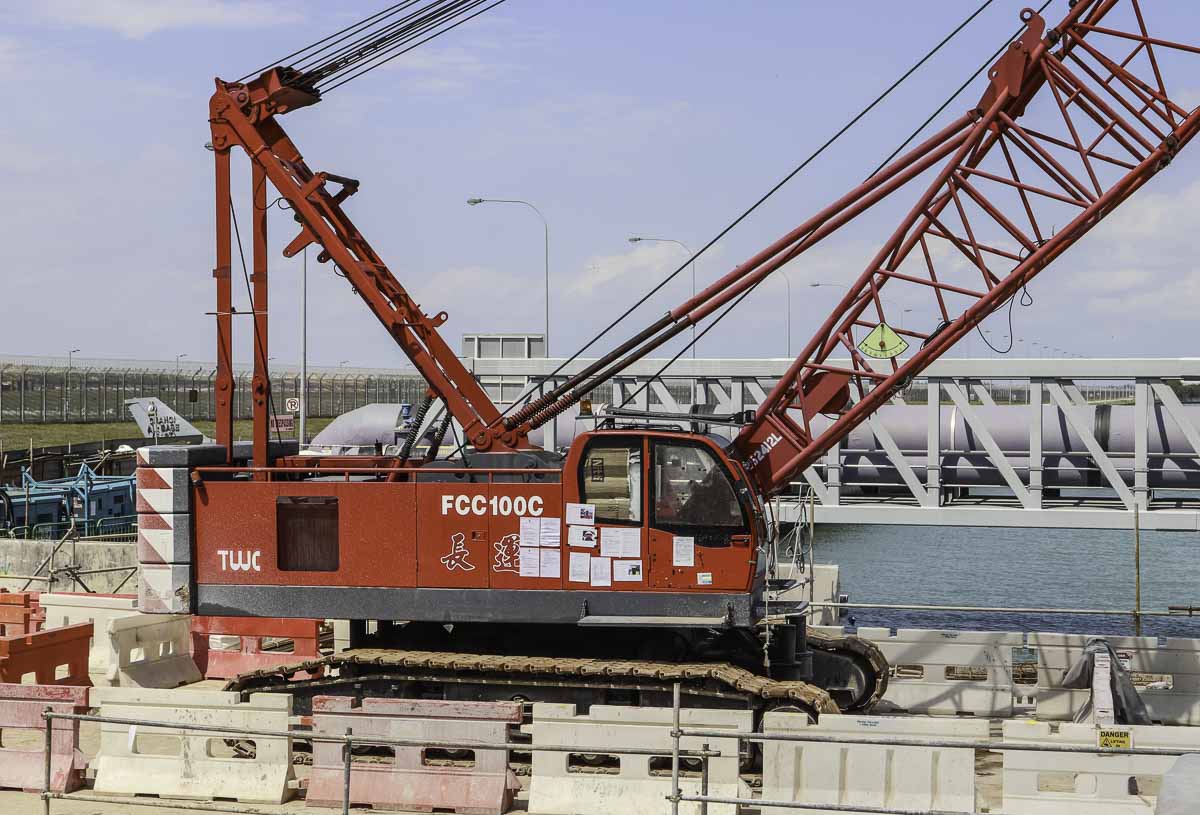

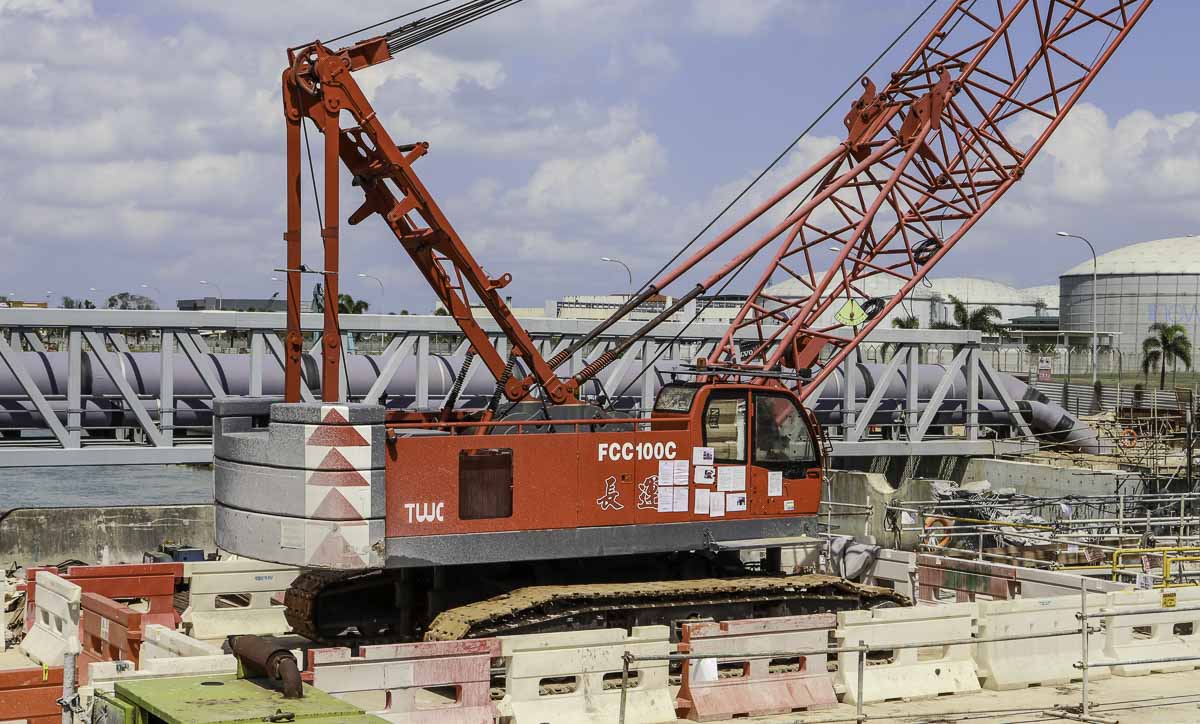

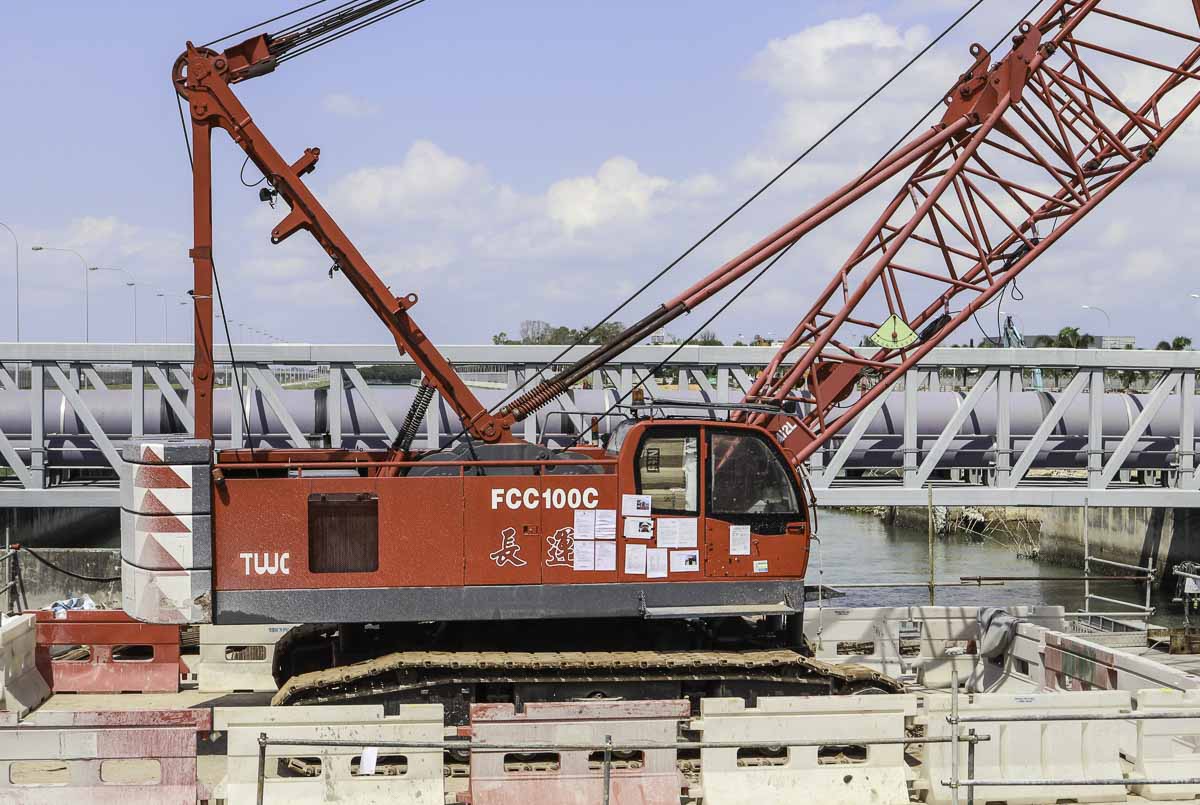

This sharp Fuwa FCC100C belongs to Tiong Woon from Singapore (SG), it is a 100-tonne crawler crane.
The undercarriage of the crane is 5.54 meters long and 5.06 meters wide. The tracks are each 0.86 meters wide, for the transport over the road is the width to be reduced to 3.37 meters only.
The crane is powered by a Cummins QSL-9, a water-cooled 8.9-litre diesel engine with a power of 209 kW.

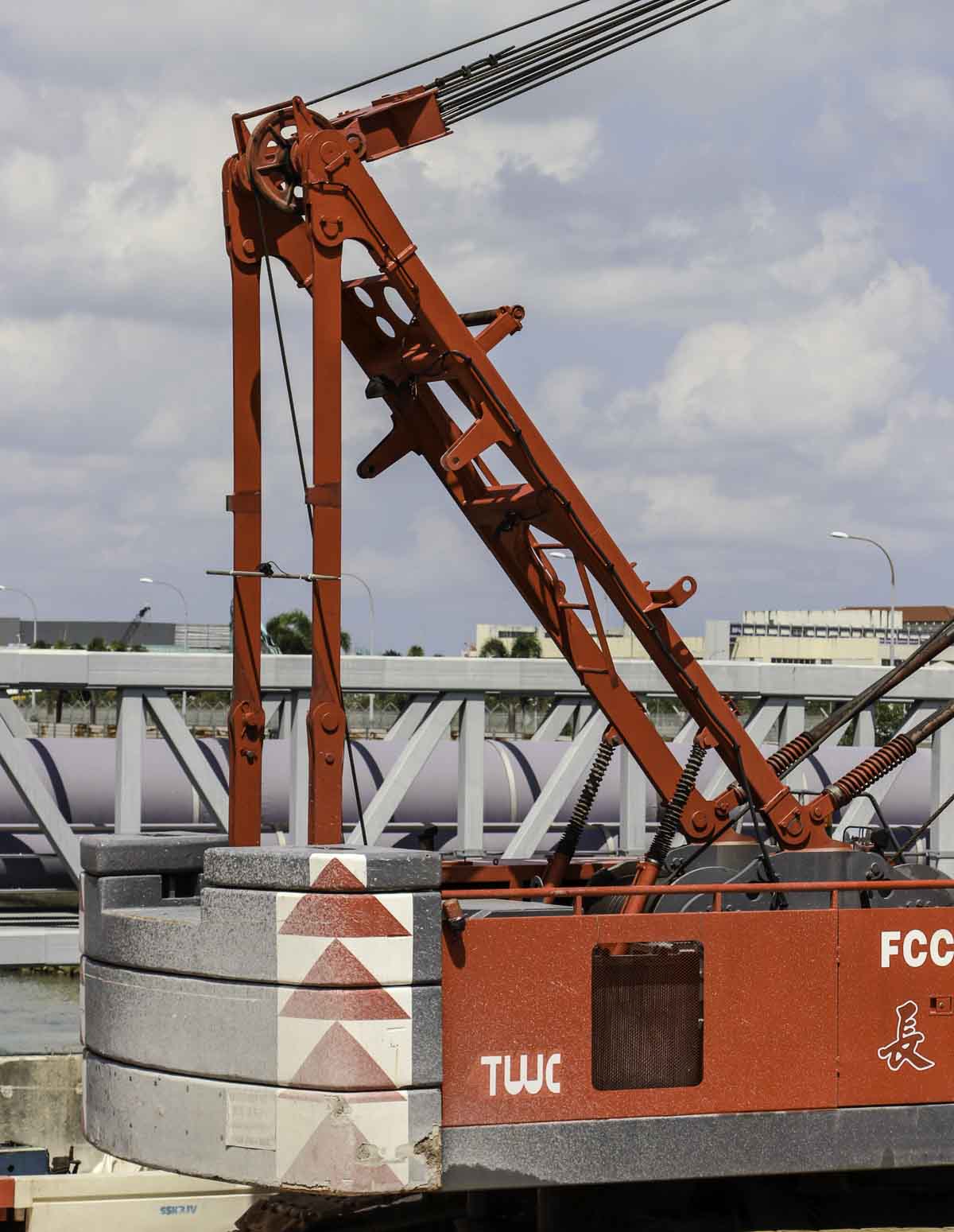

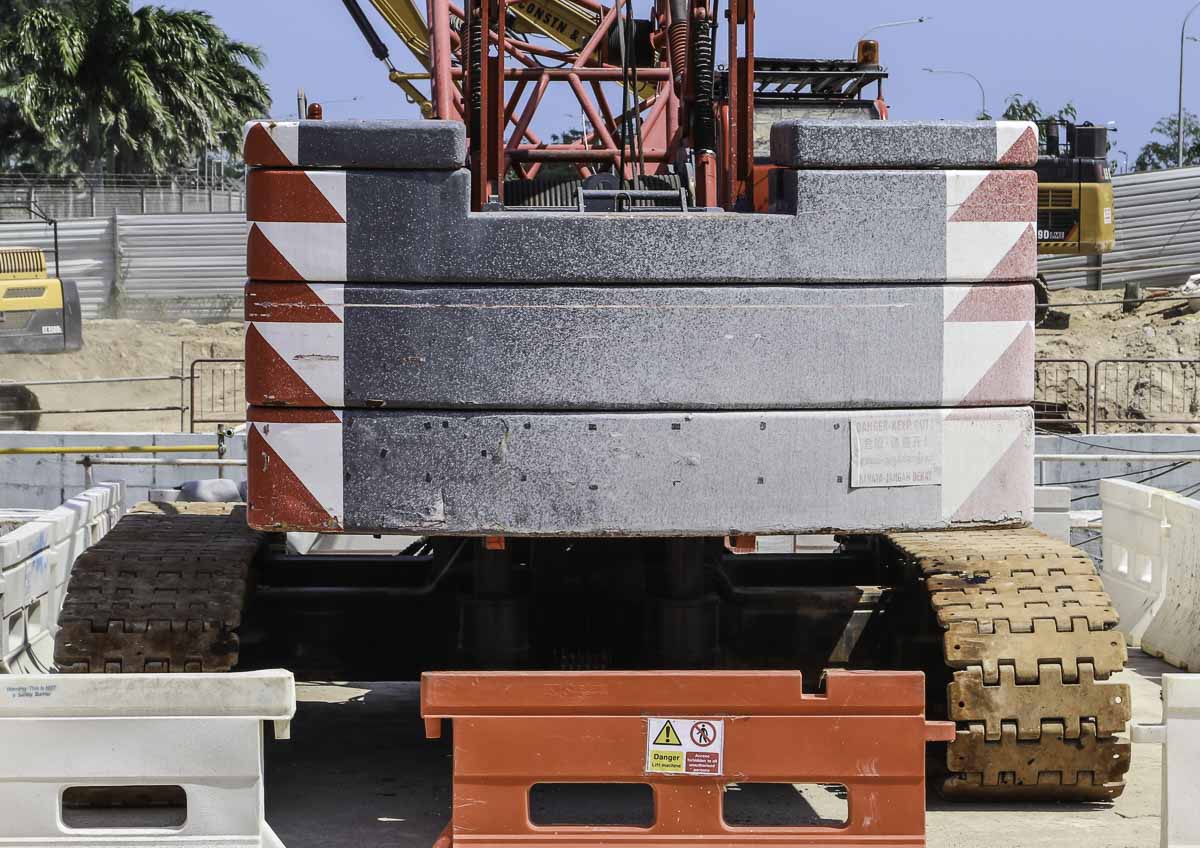

Attached to the superstructure is a counterweight with a total mass of 26.2 tonnes, the counterweight has a 4.8 meter tailswing. The A-frame has in working position a height of 7.1 meters, for the transport over the road is the A-frame able to fold down.
The crane is fitted with two 13-tonne hoist winches with 26 mm hoist wire rope. When the crane is used with a luffing jib, one of these hoist winches is used as luffing winch for the jib.

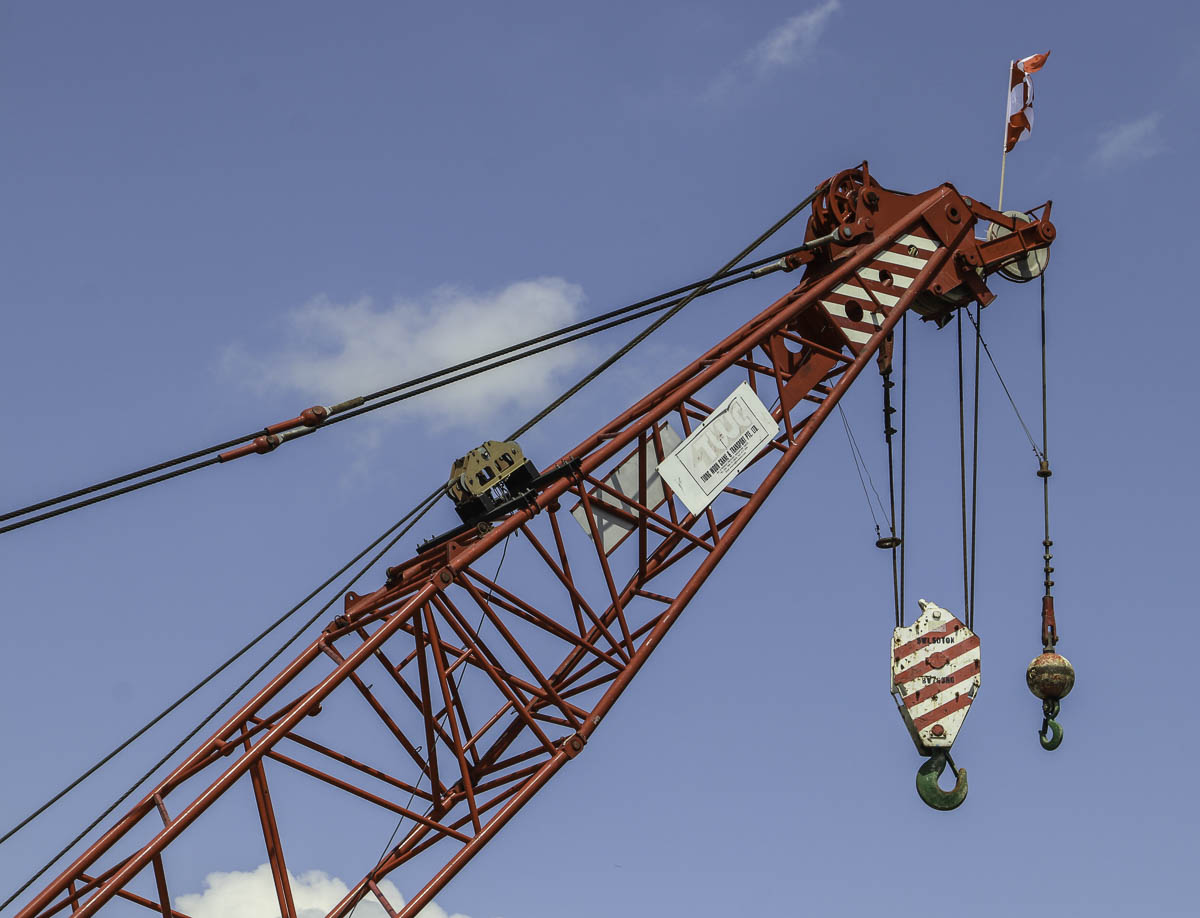

The main boom has a 13 meter base length and a maximum length of 61 meters. Here was the crane fitted with a 19 meter long main boom, the crane has in that configuration a maximum lifting capacity of 68.4 tonnes on a 4.9 meter radius or 12.6 tonnes to a 17.9 meter radius. A sharp crane of Tiong Woon!
