Fuwa FWT65 - Hirose

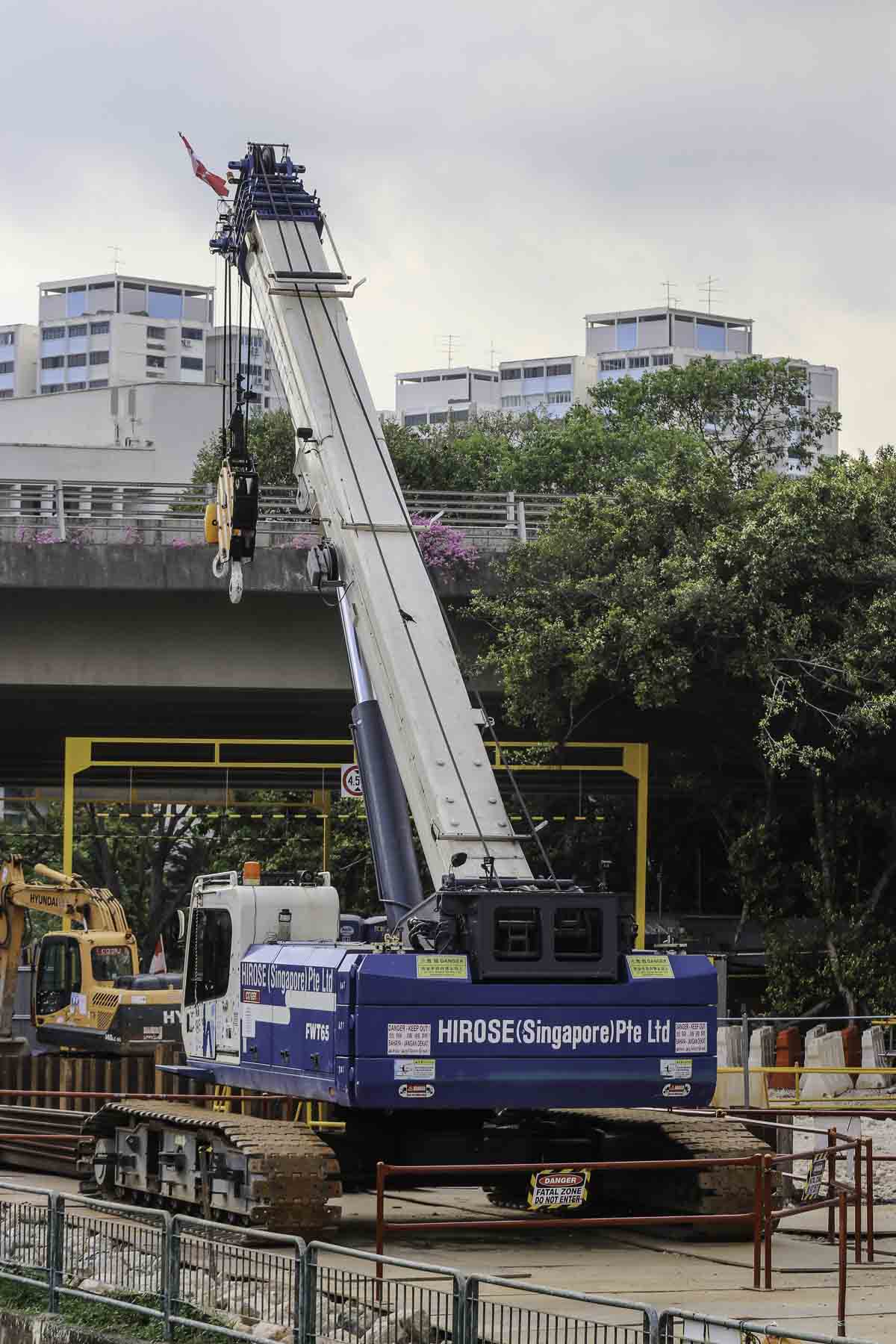

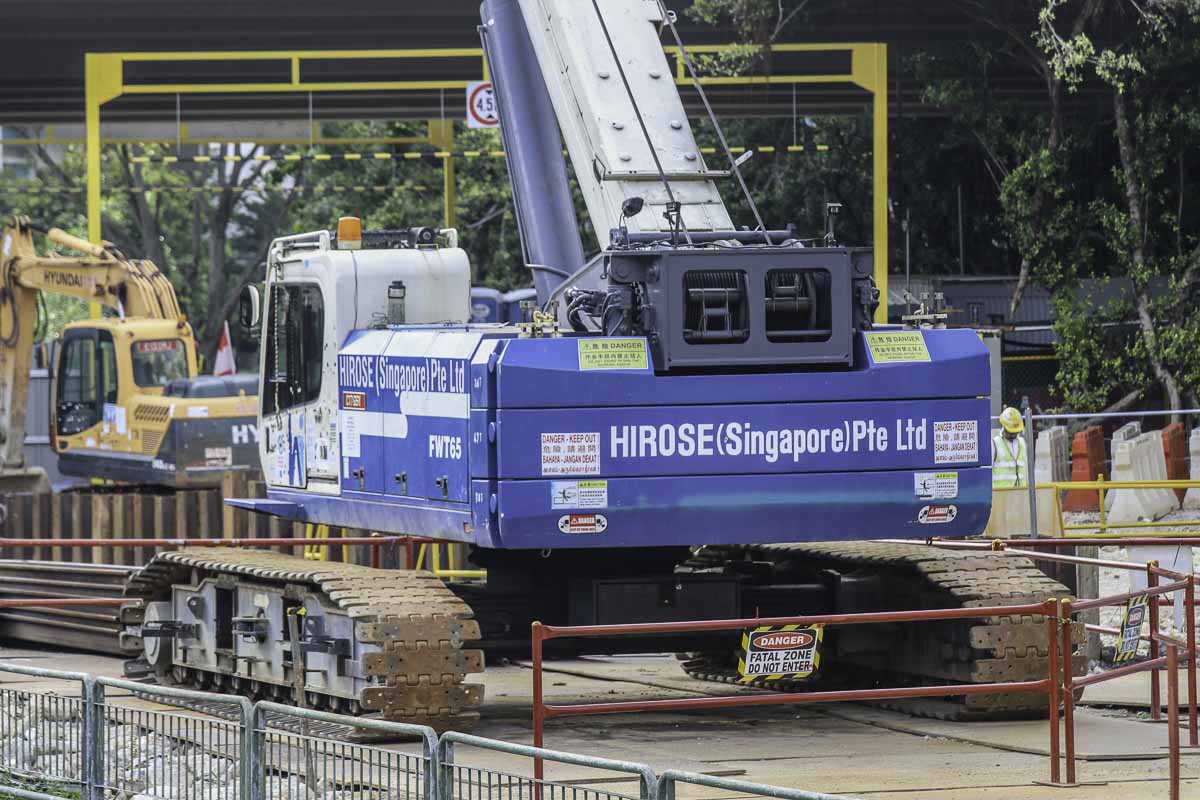

This interesting Fuwa FWT65 belongs to Hirose from Singapore (SG) and was used on a project to drive some sheetpiles. It is a 65-tonne crawler crane with telescopic boom.

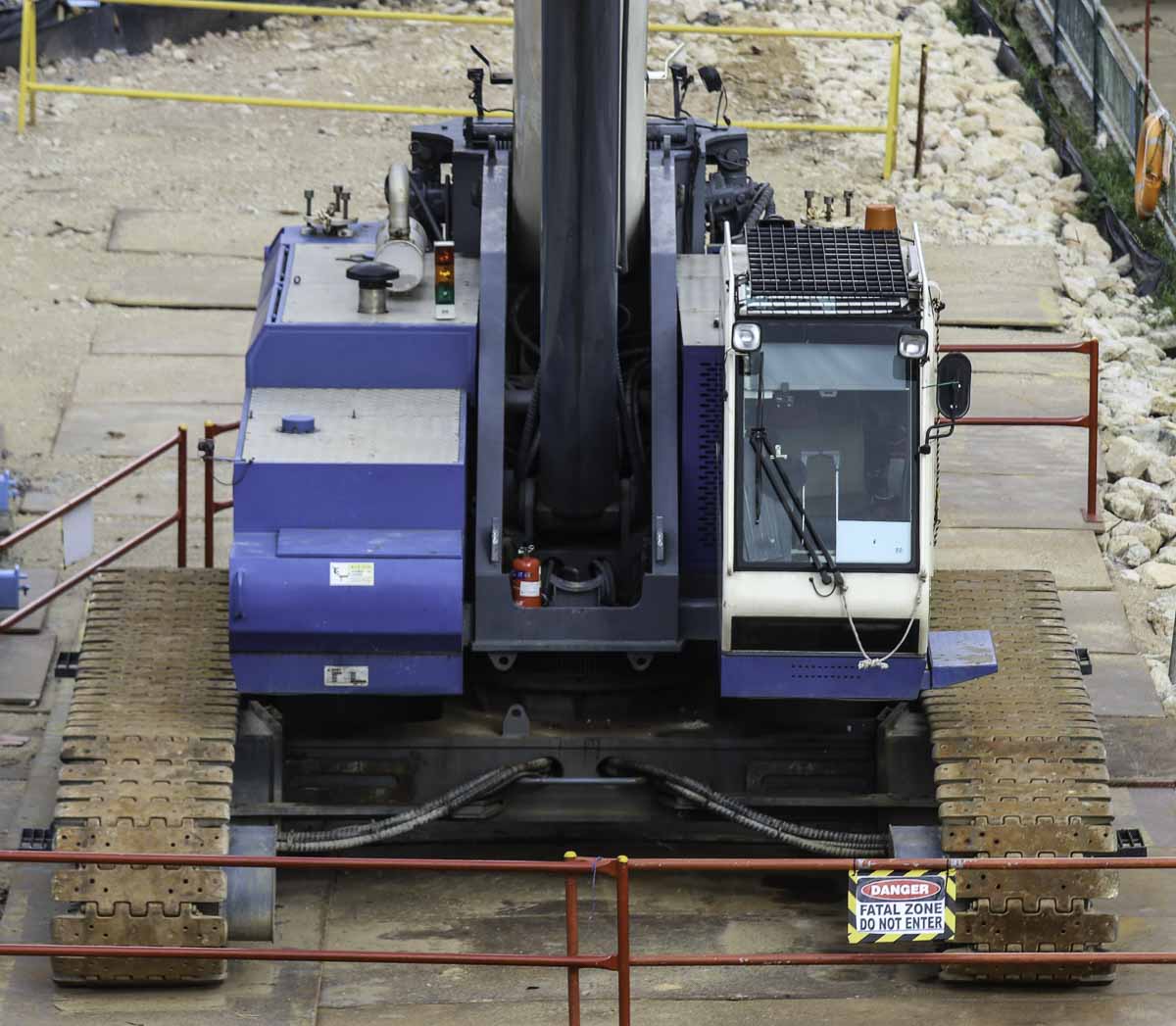

The undercarriage is in working mode 6.02 meters long and 4.8 meters wide.
For the transport over the road is the width of the undercarriage hydraulically adjustable to 3.26 meters. The crane has a transport mass, including counterweight, of approx. 61 tonnes.

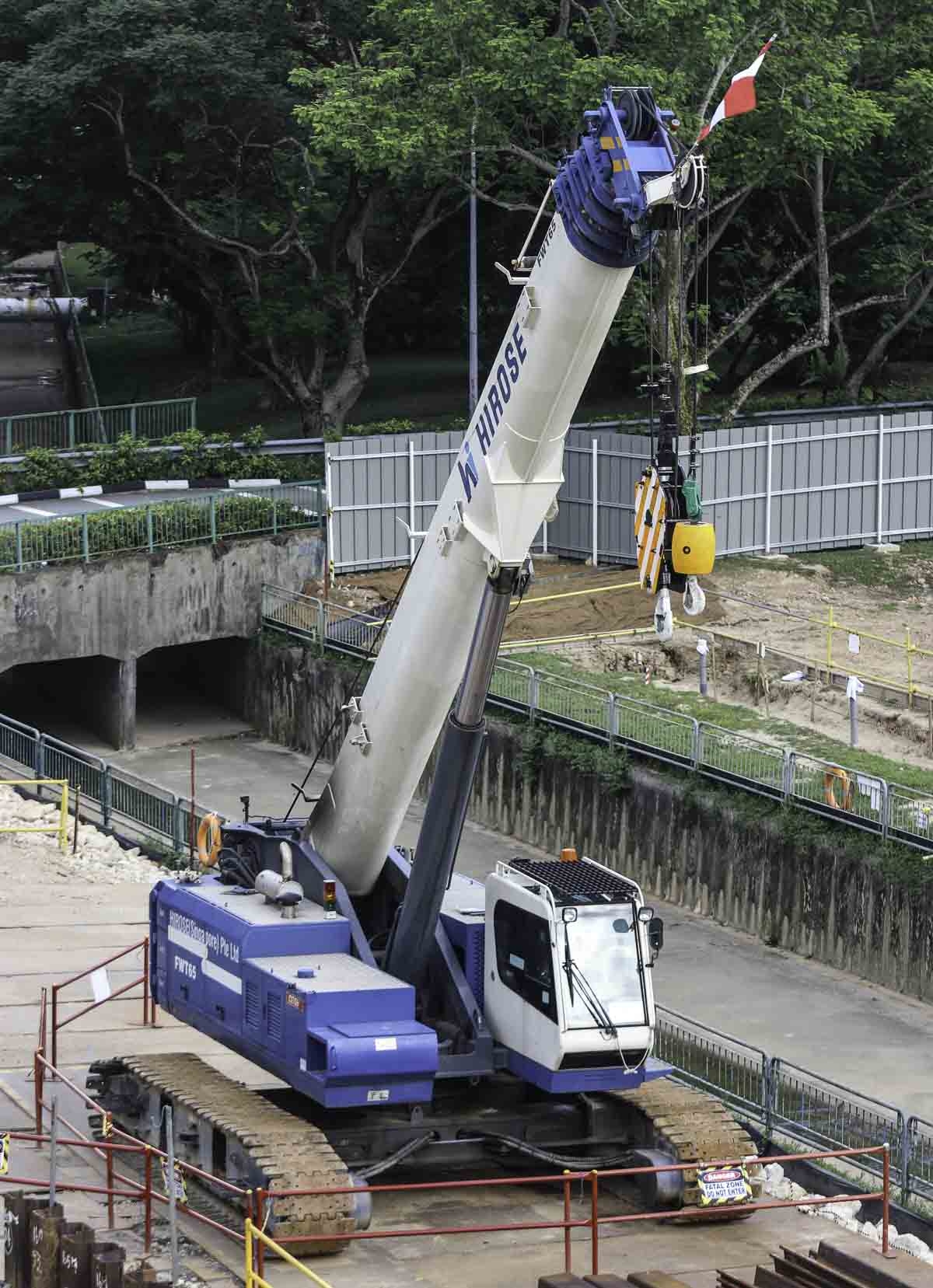

The main boom has a base lengte of 10.8 meters and extends four times to a maximum length of 38 meters. Optionally is the main boom to be extended with a 7 - 14 meters long bi-fold swingaway jib.

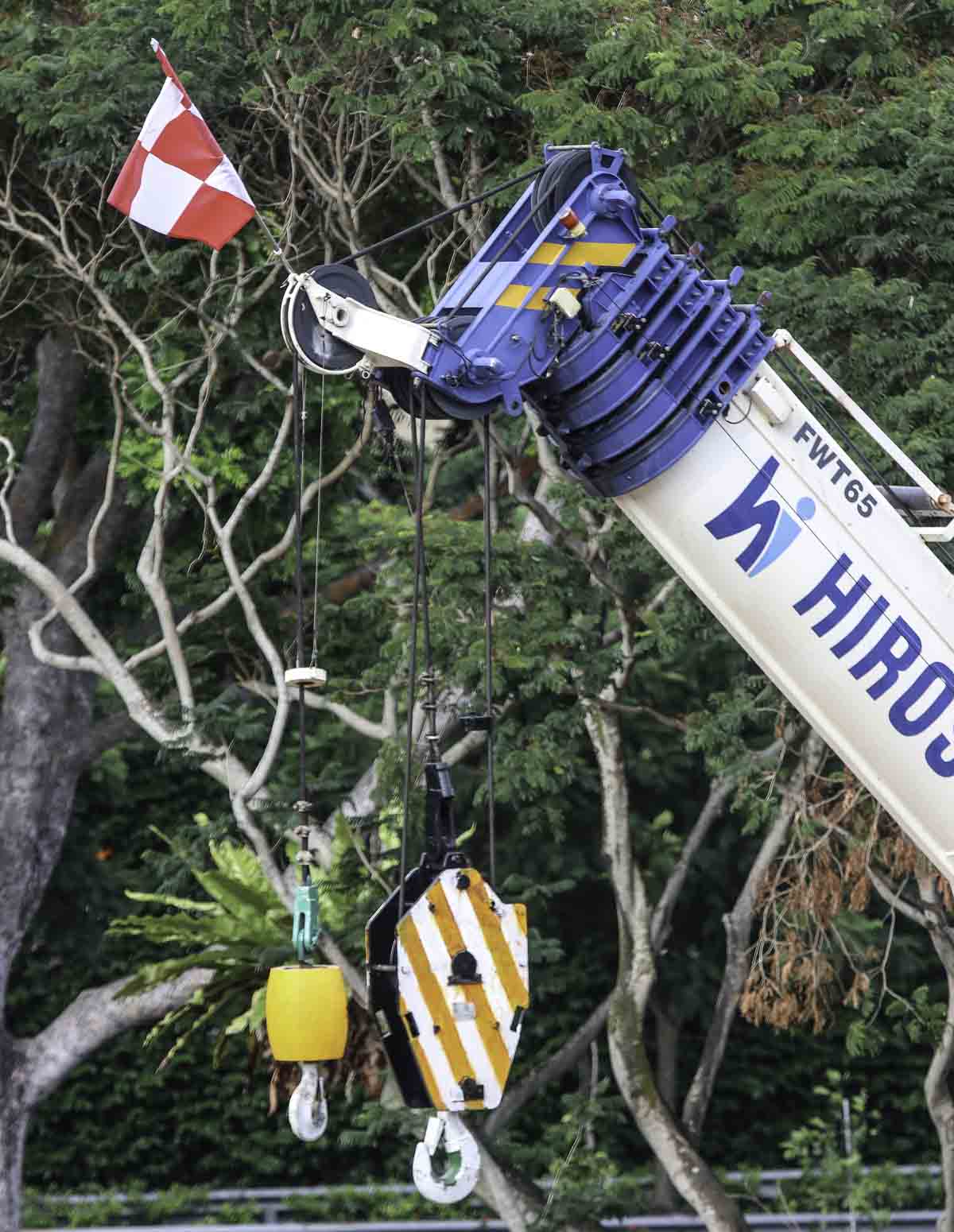

Both hoist winches with a line pull of 7.5 tonnes are in use here. The crane is able to lift maximum 11.6 tonnes over the fully extended main boom if the right amount of reevings is used.

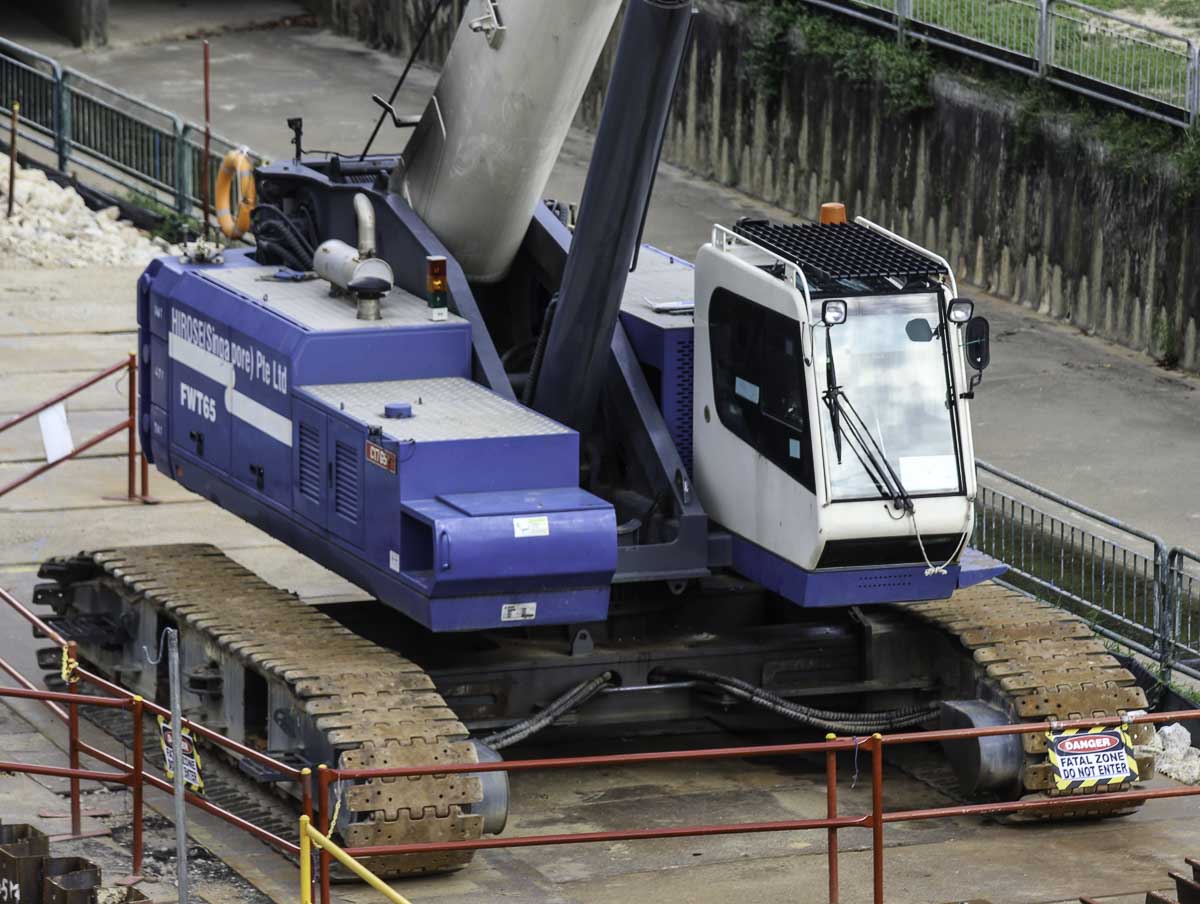

The counterweight has a total mass of 16.1 tonnes and has a 3.85 meter tailswing.
An interesting crane of Hirose!
