Demag AC 40-1 - Fanger

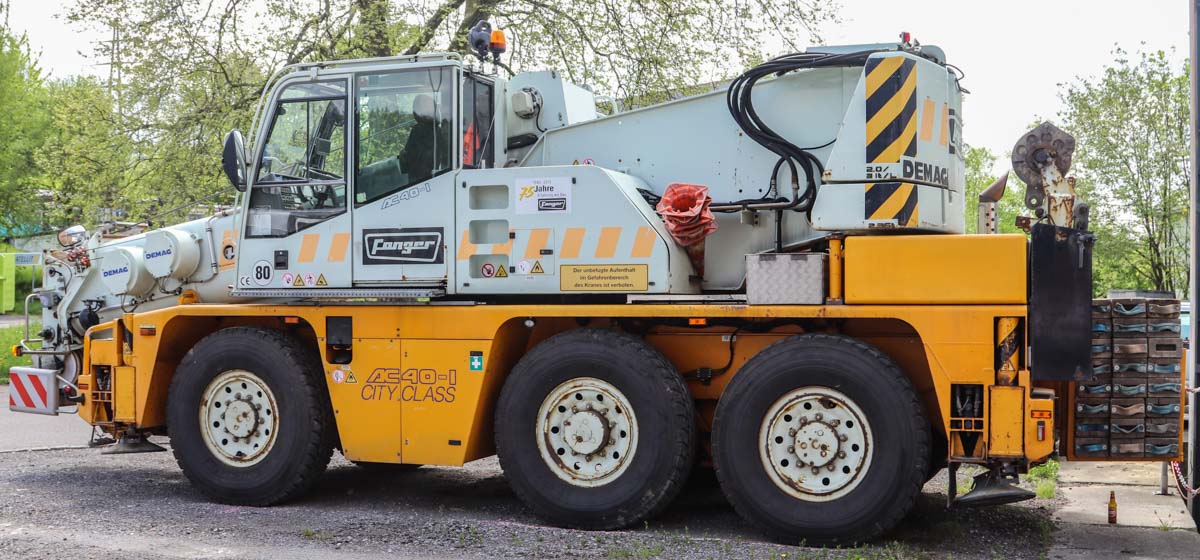

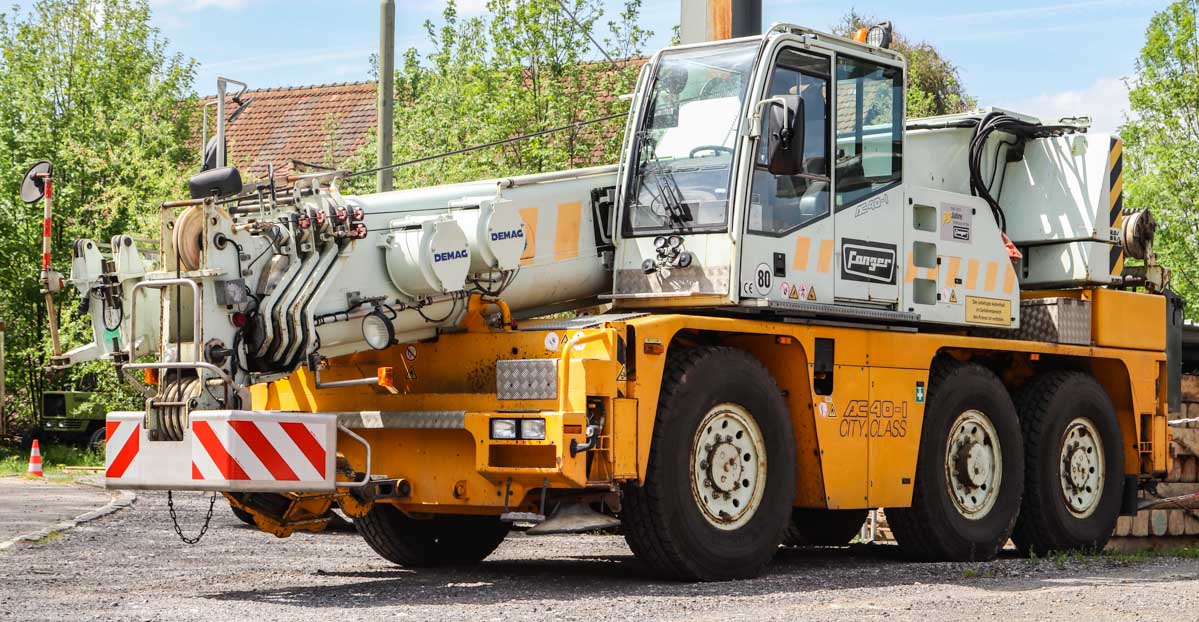

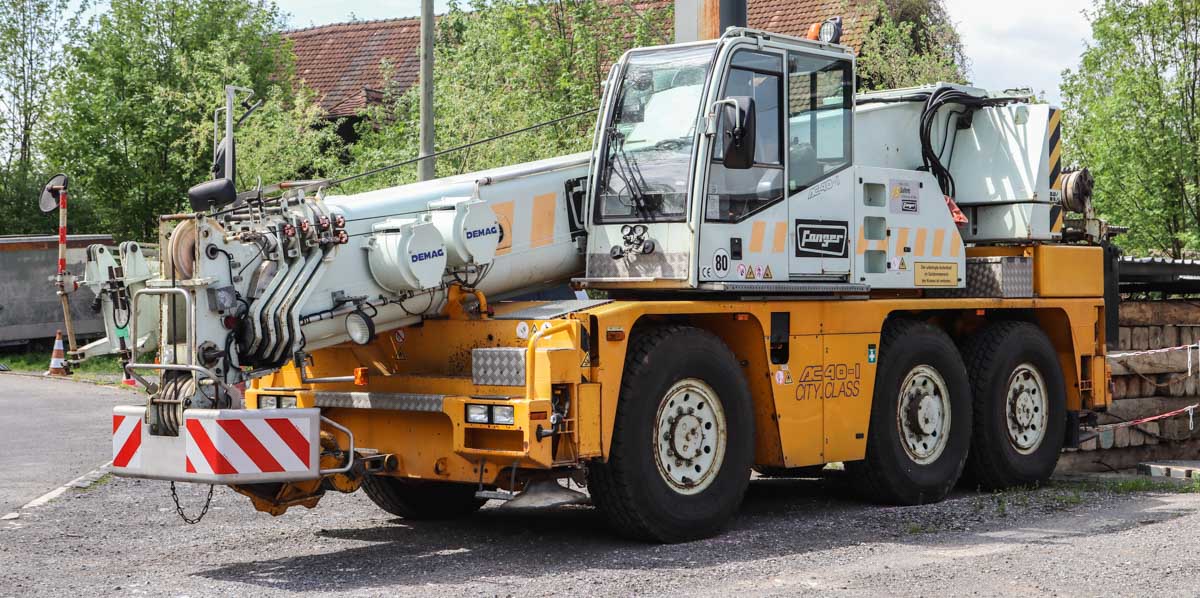

This sharp Demag AC 40-1 Coty of Fanger from Sachseln (CH) stood parked on their yard. It is a 40-tonne crane with year of manufacture 2000.

The outrigger base of the crane measures 6.35 x 6.2 meters, or half 6.35 x 4.4 meters.

Packed is the crane 8.546 meters long, 2.55 meters wide and 3.2 meters tall. The transport mass is approx. 33 tonnes.

The crane is powered by a Mercedes-Benz OM 906 LA, a watercooled 6-cylinder diesel engine with a power of 205 kW (279 hp). This crane has the optional 6x6x6-drive line, where all axles are powered and steerable.

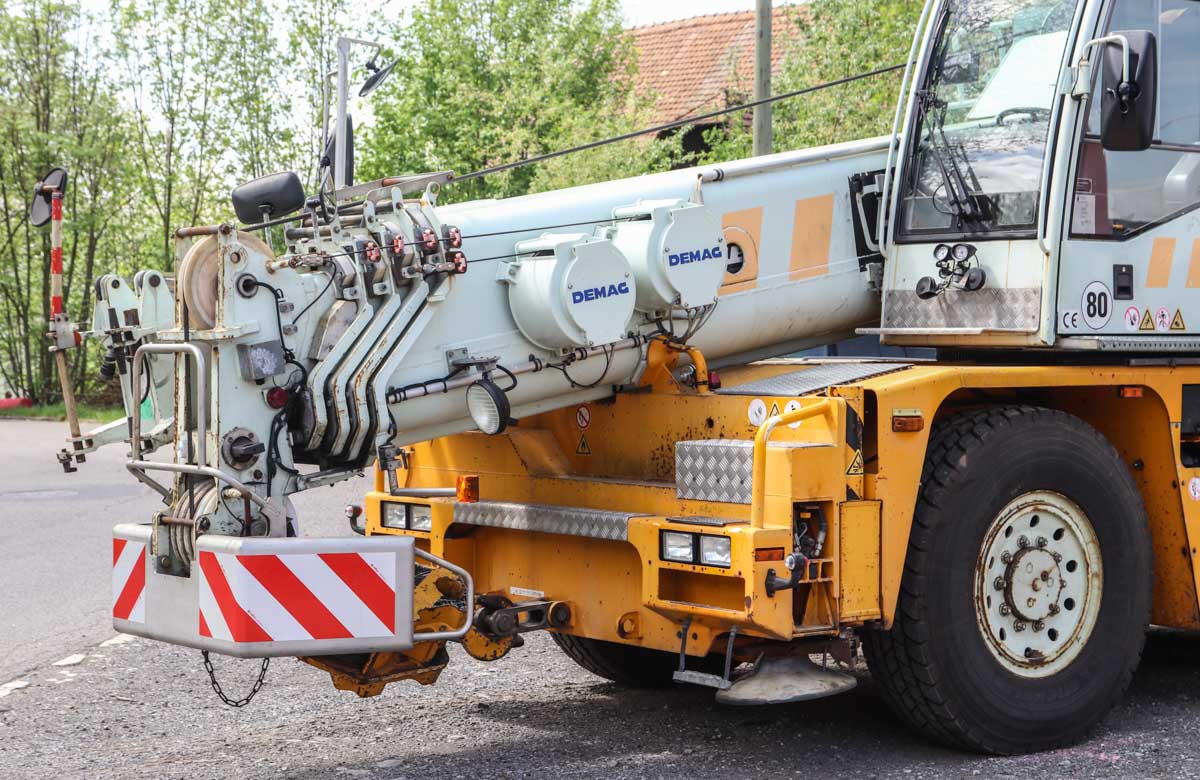

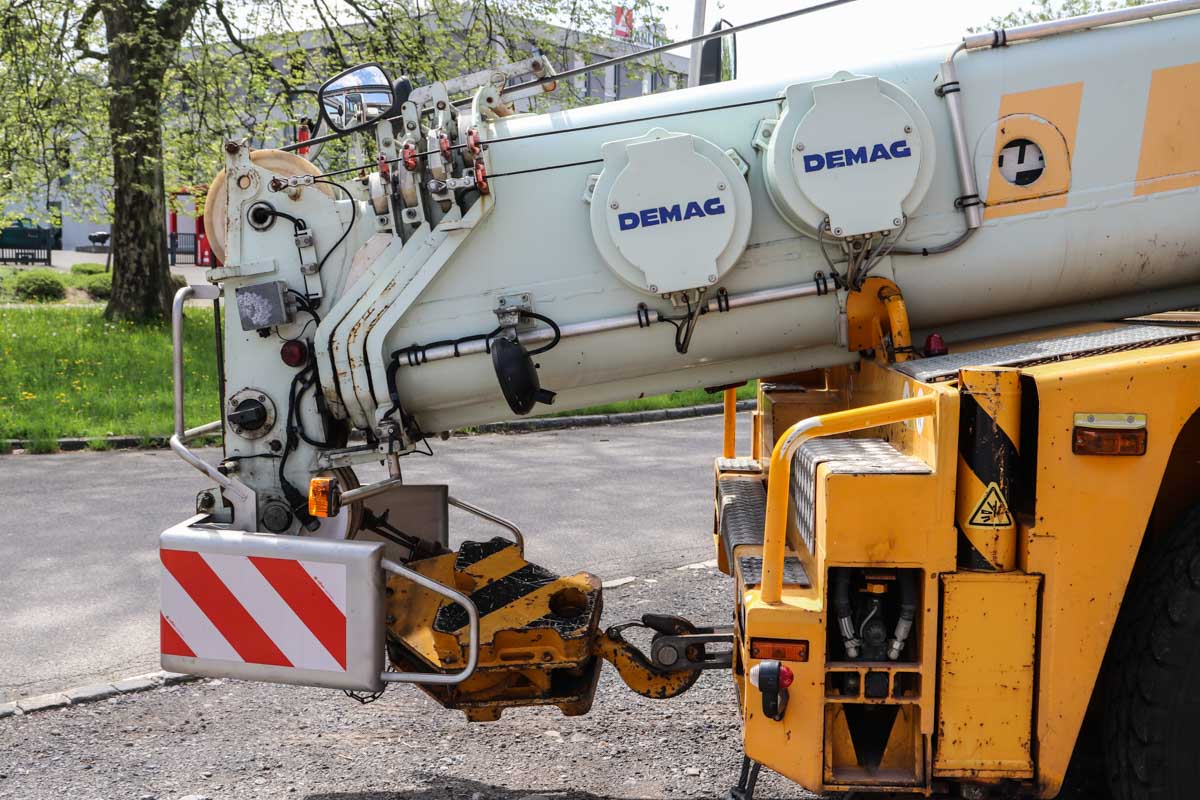

The 5-part main boom has a 7.8 meter base length and extends four times to a maximum length of 31.2 meters. During the transport over the road is a small bumper attached to the main boom head.

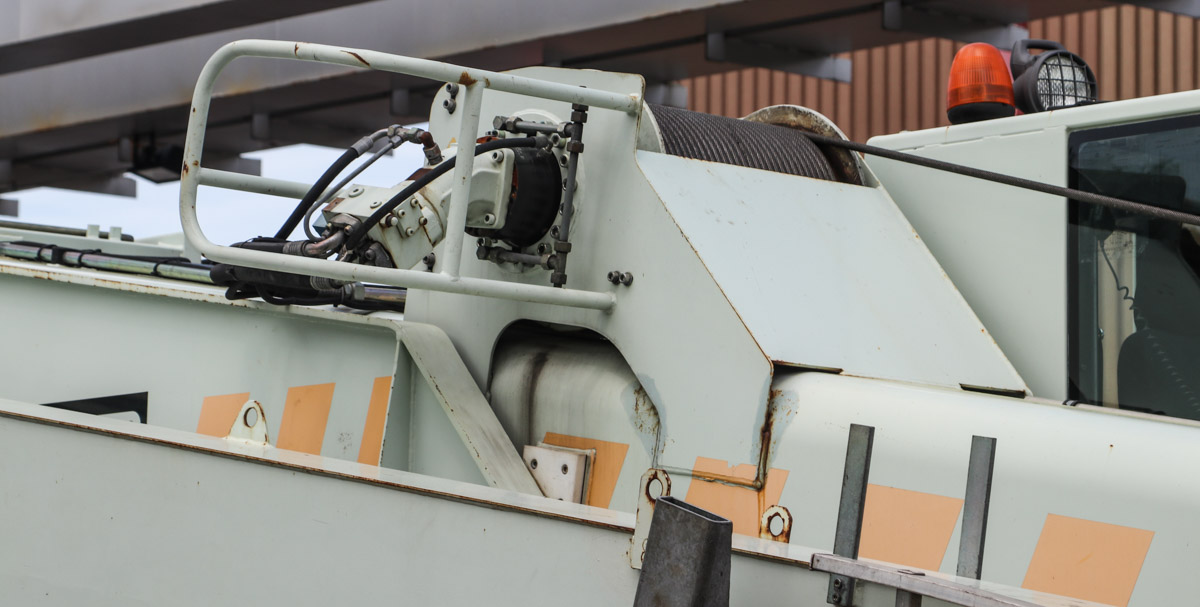

The hoist winch is installed on top of the main boom. The winch has a 4.3 tonne line pull and a 16 mm hoist line.

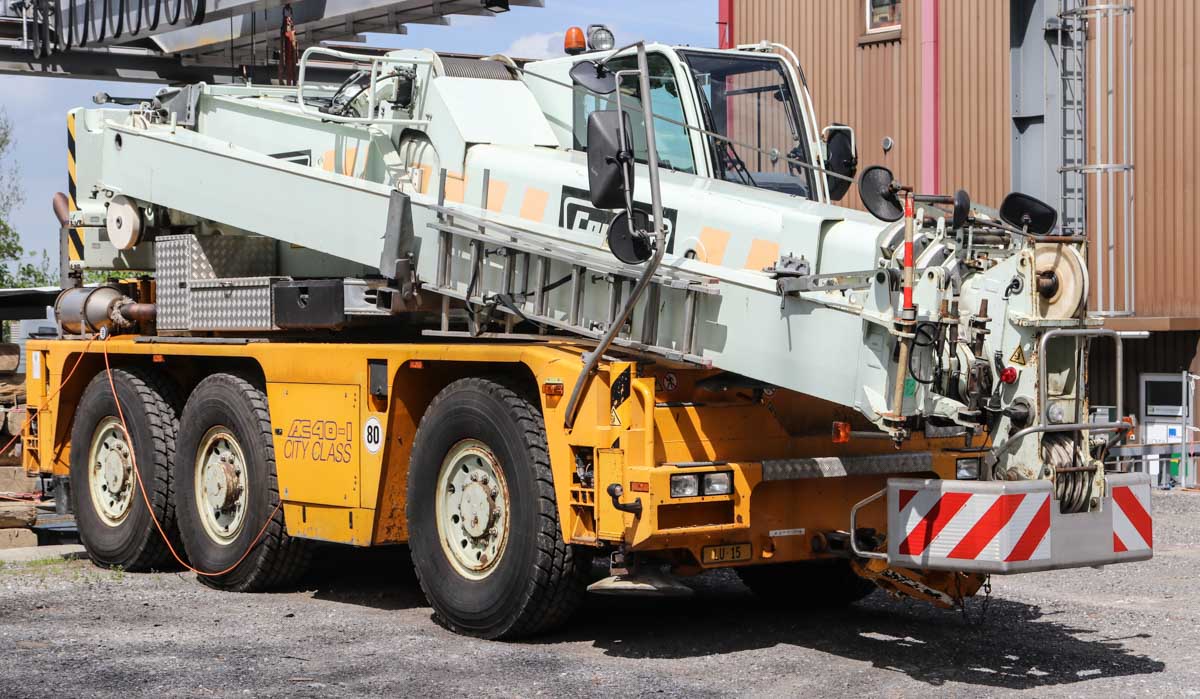

Optionally is the main boom extendable by a 13 meter bi-fold swingaway jib under a 0 or 30 degree angle. During the transport over the road is the jib hanging next to the main boom.

A very sharp crane by Fanger!
