BQ QY55H3 - Peck Tiong Choon

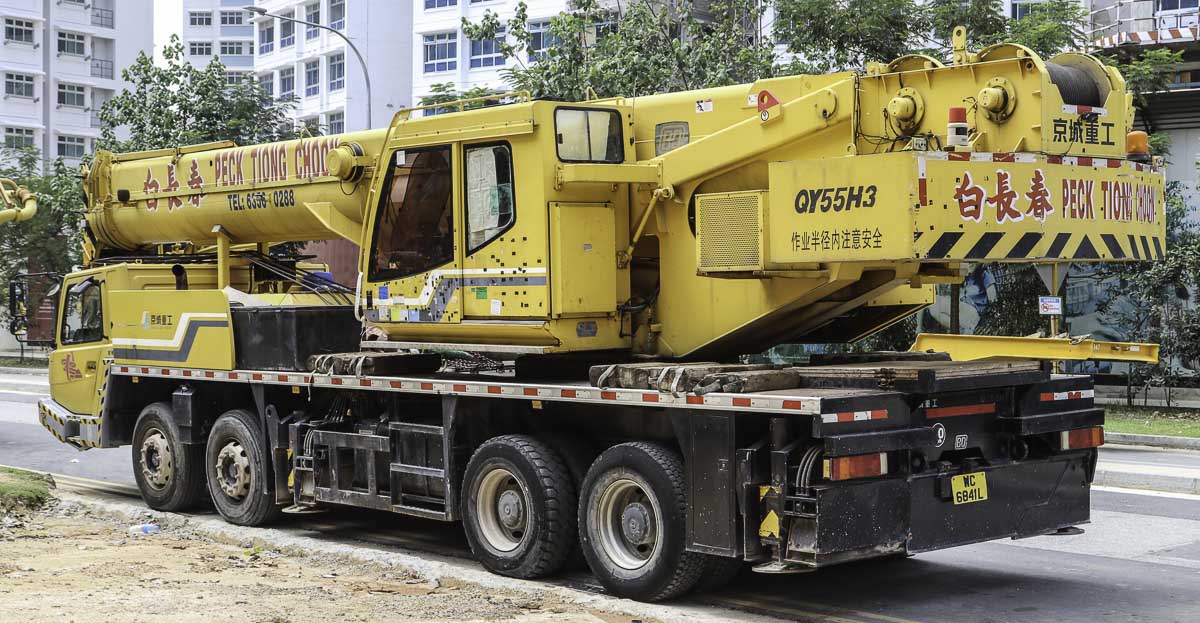

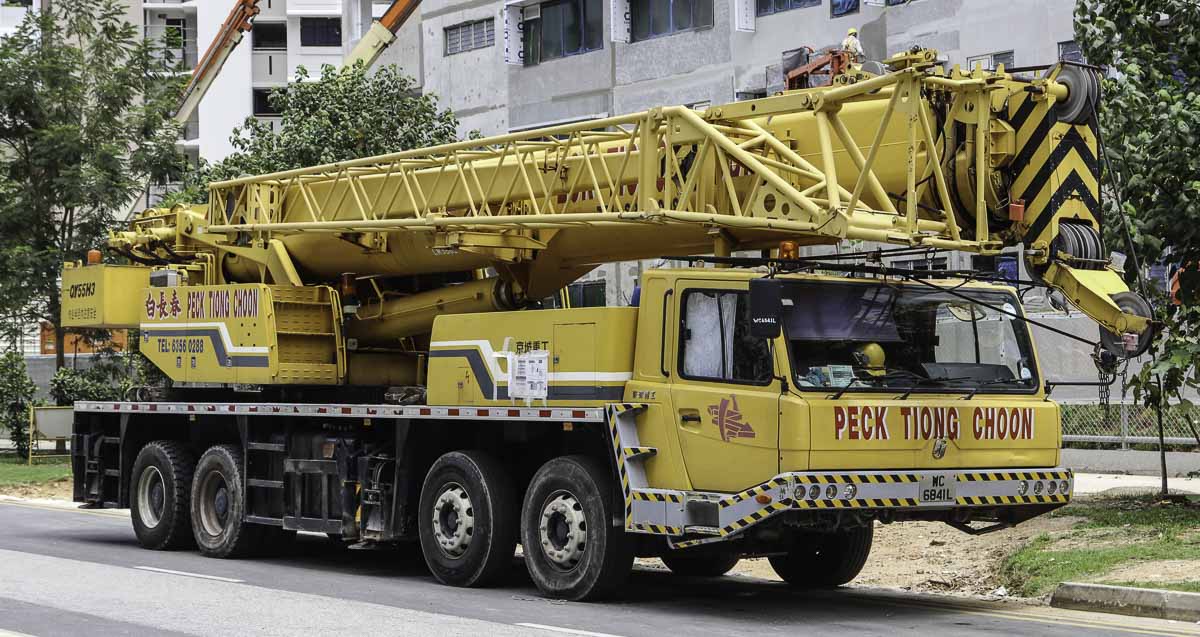

This BQ QY55H3 belongs to Peck Tiong Choon from Singapore (SG). It is a 55-tonne truck crane mounted on a 4-axle carrier. The crane's year of manufacture is 2013.

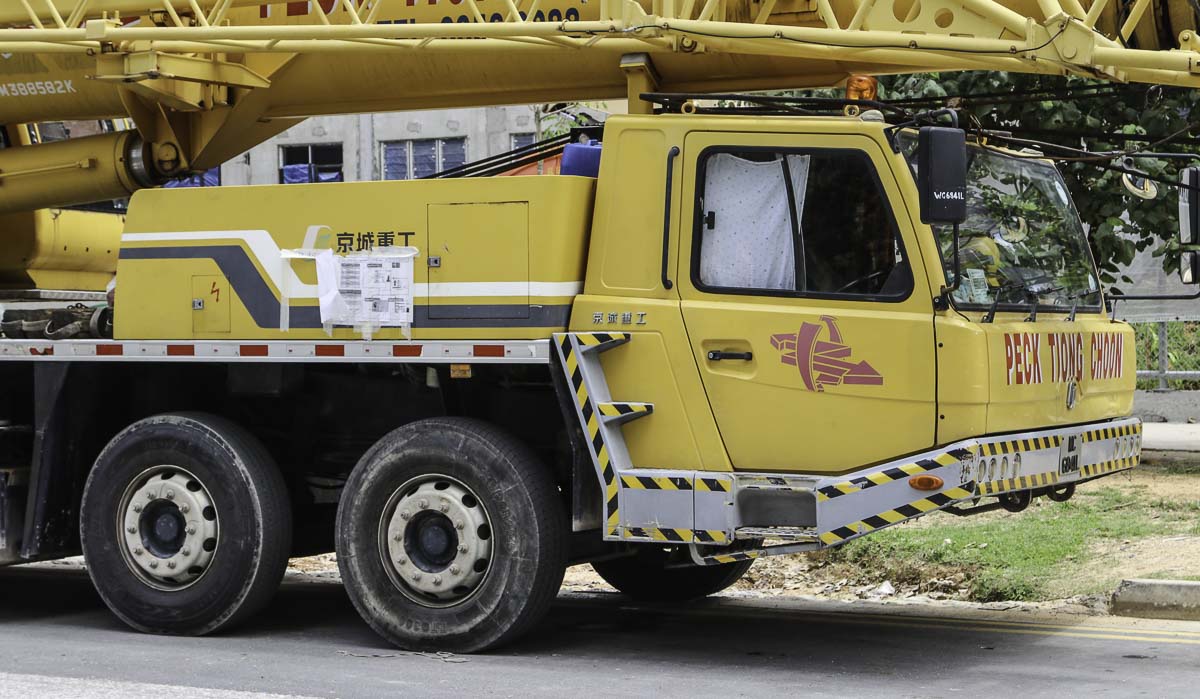

The 4-axle carrier is powered by a Dongfeng ISLE340, an 8.9-litre 6-cylinder diesel engine with a power of 243 kW (330 hp). The crane has two driven rear axles, both front axles are steerable.

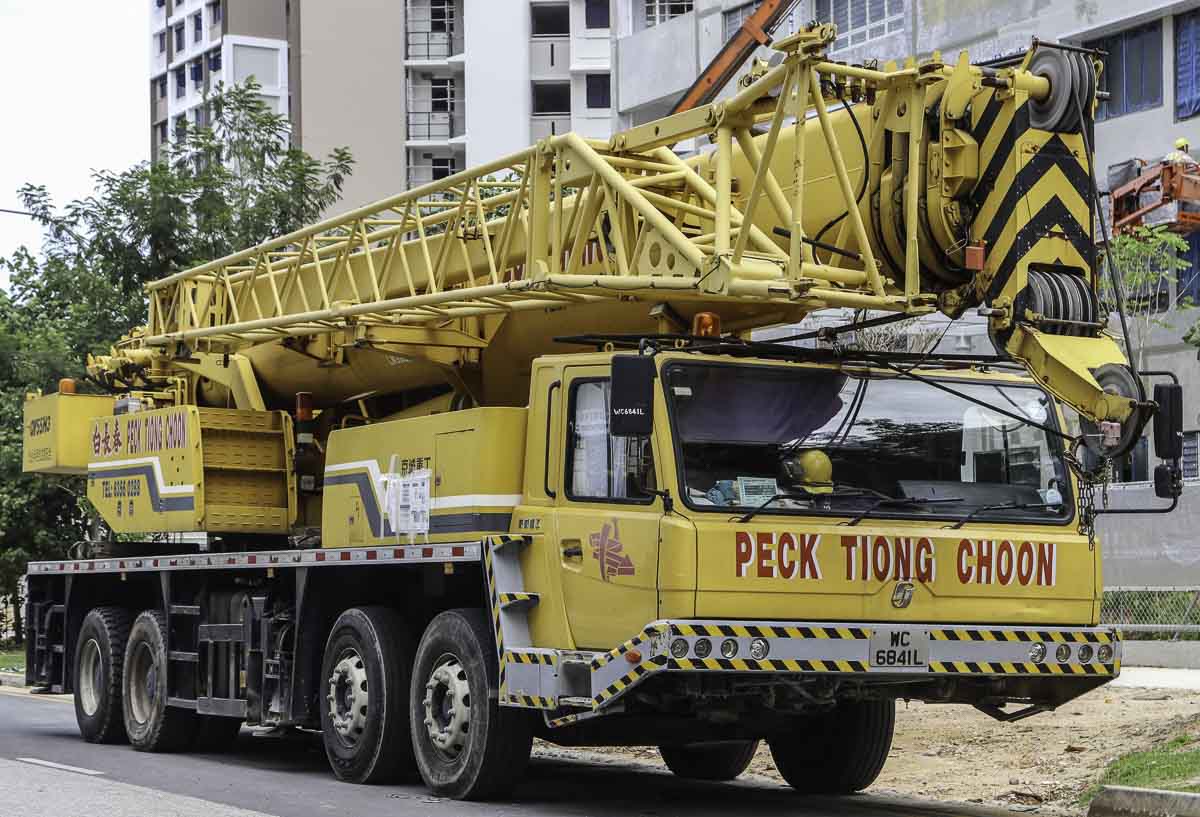

The H-shaped outrigger base measures 5.48 x 6.8. During the transport over the road are both hooks stored on the deck of the undercarriage.

In transit is the crane 13.13 meters long, 2.79 meters wide and 3.55 meters tall. The transport mass is approx. 41.3 tonnes.

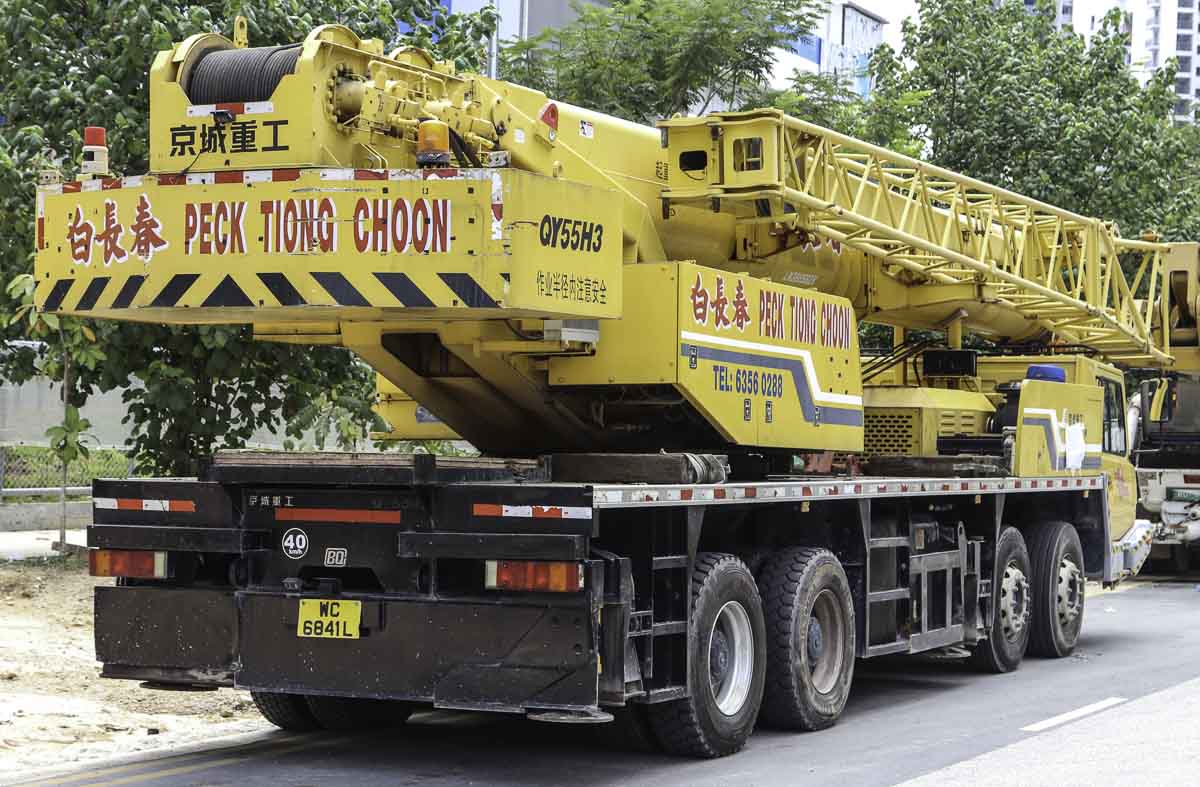

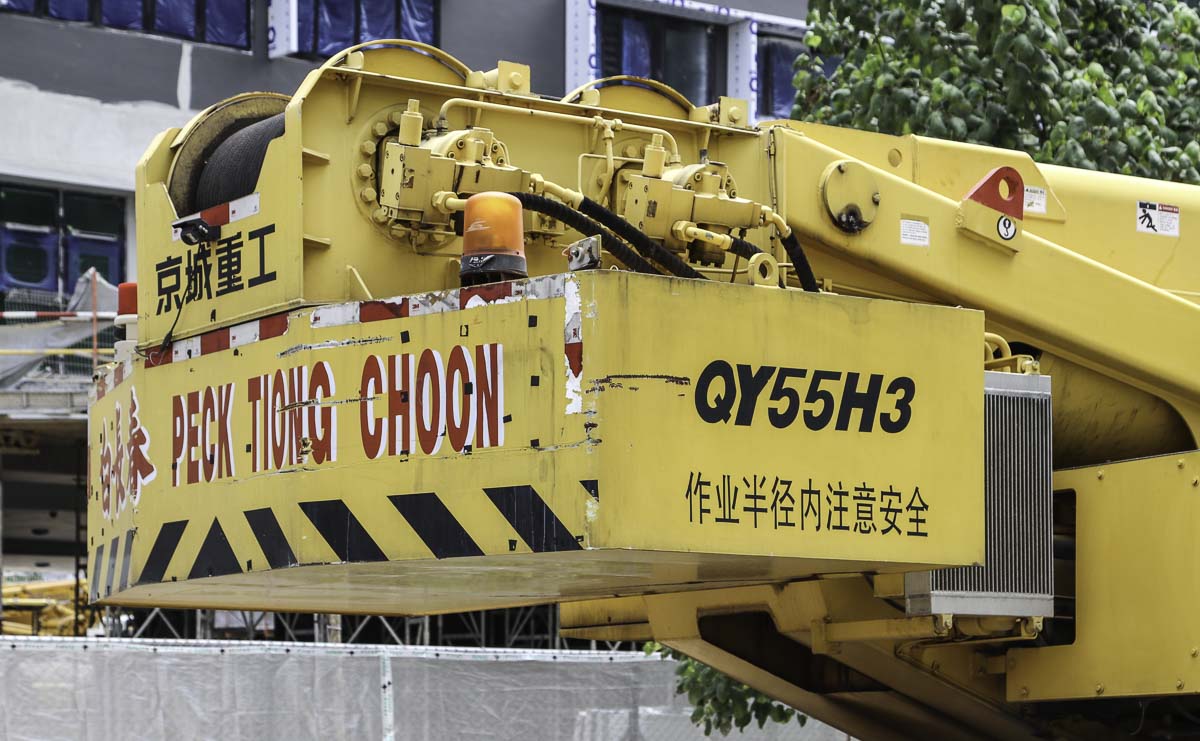

The counterweight is fixed to the superstructure, the counterweight has a 4.13 meter tailswing. The crane is fitted with two hoist winches.

During transport over the road is the crane able to reach a maximum driving speed of 74 km/h.

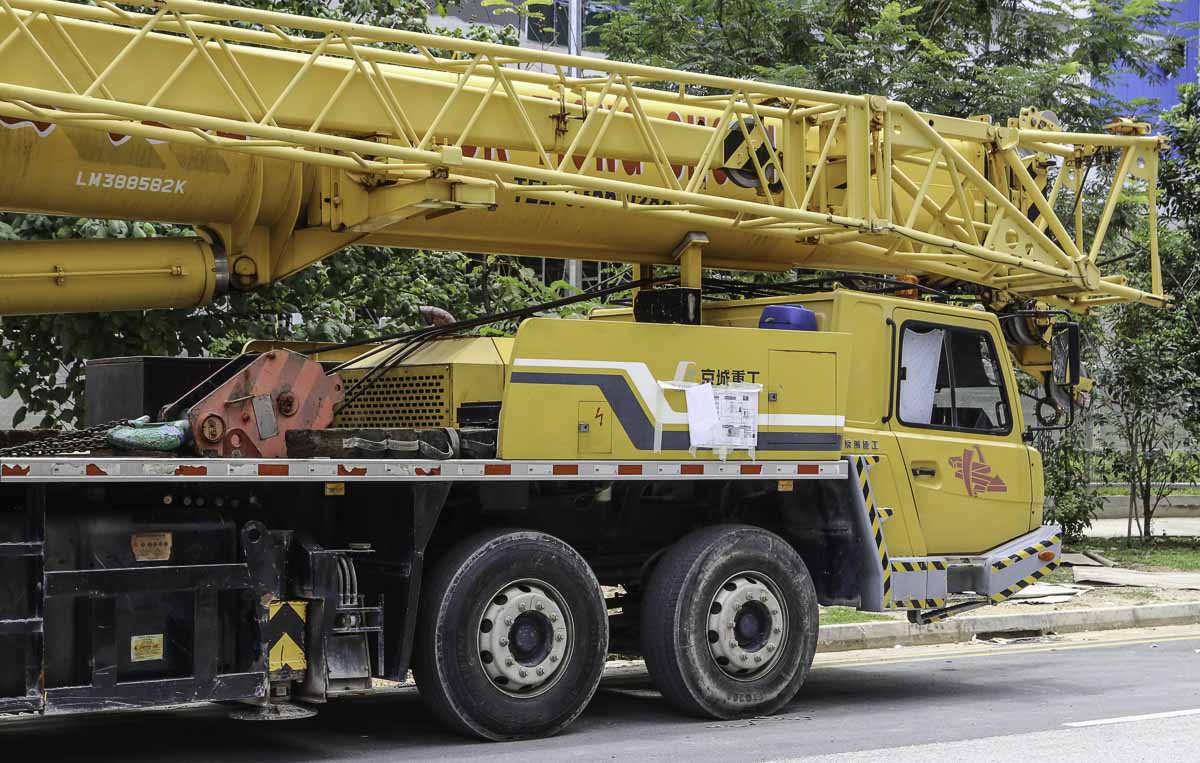

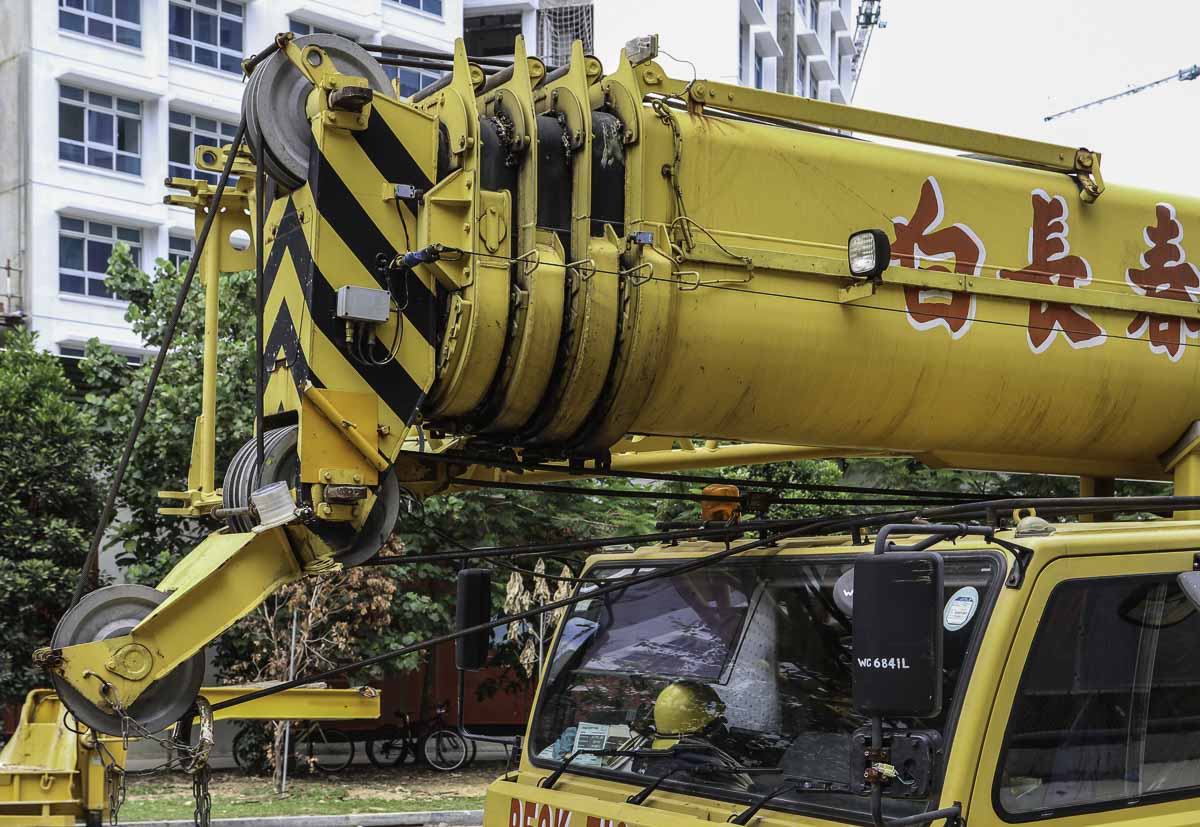

The 5-part main boom has an 11.3 meter base length and extends four times to a maximum length of 42 meters. The optional bi-fold swingaway jib with a length of 9 or 16 meters is mountable to the main boom in a 0, 20 or 40 degree angle.

An interesting crane of Peck Tiong Choon!
