Zoomlion QY25E - Dasin

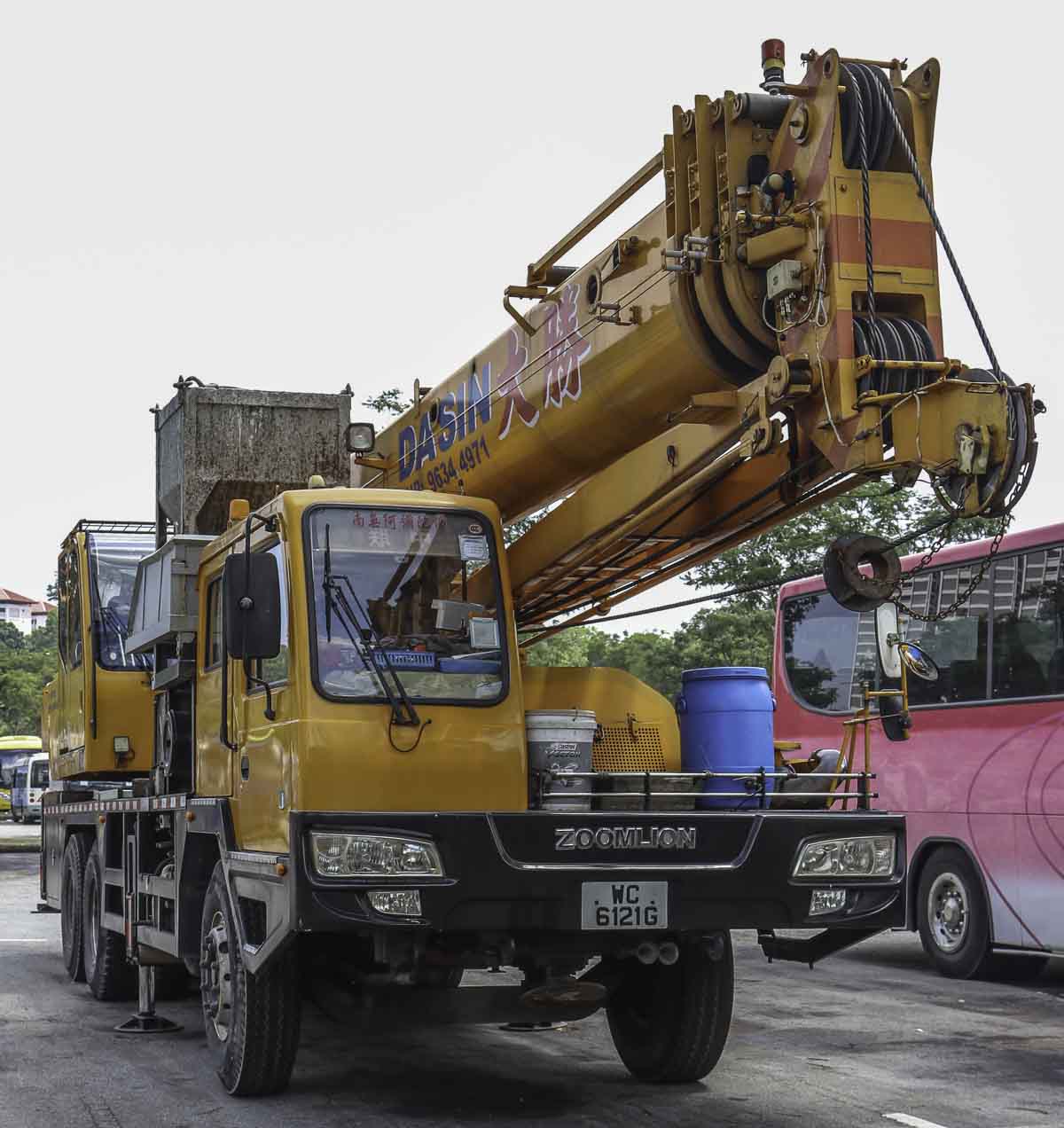

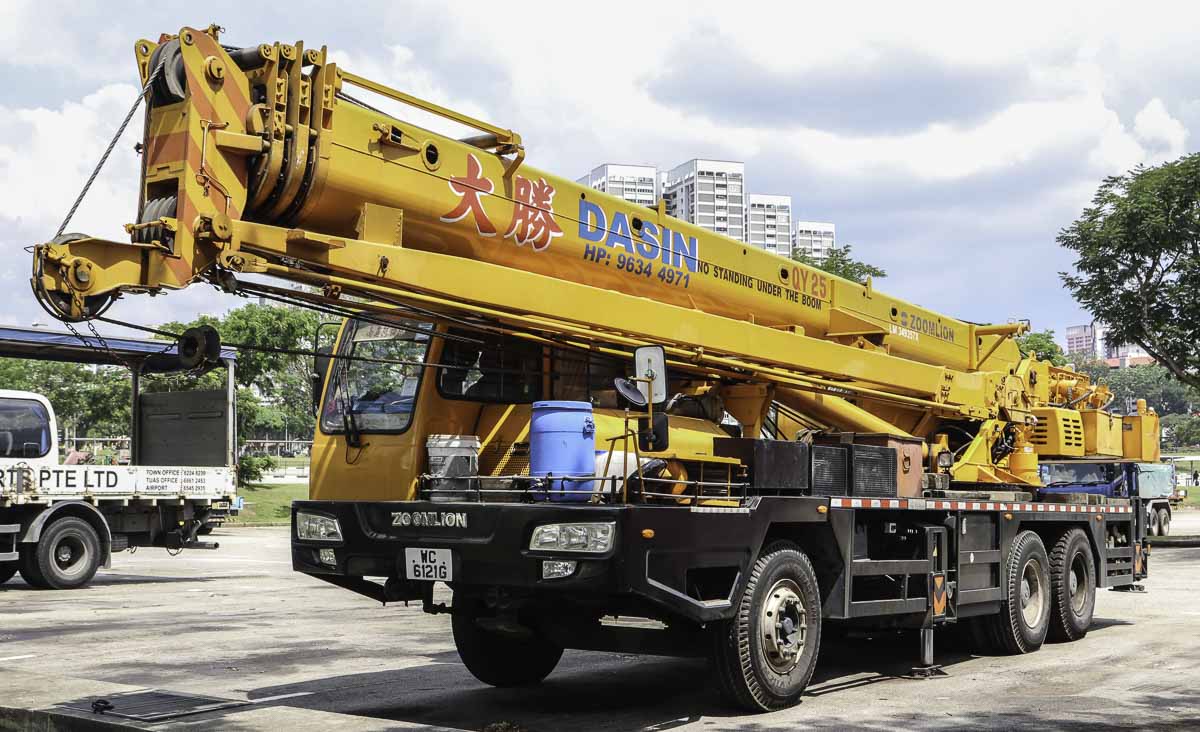

This Zoomlion QY25E of Dasin from Singapore (SG) stood during a weekend on a large parking. It is a 25-tonne crane mounted on a 3-axle carrier with year of manufacture 2012.

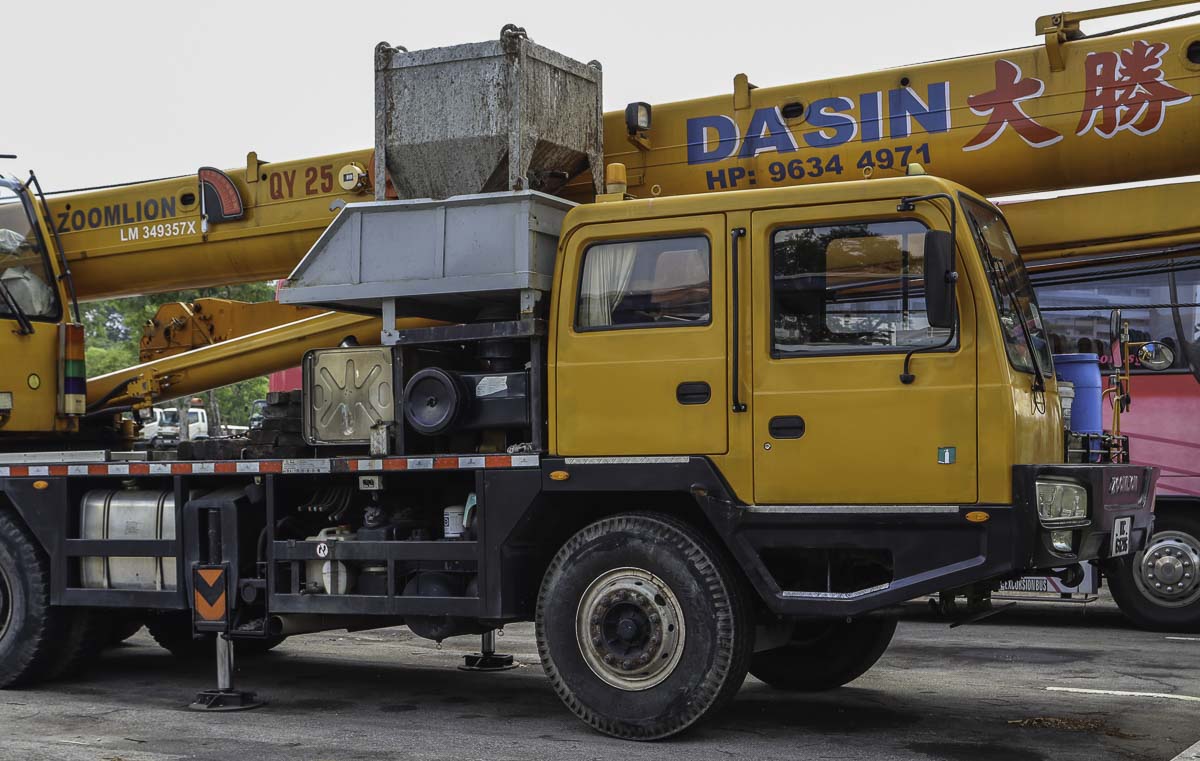

The undercarriage is 6x4-drive line is powered by a Weichei WP7.270 diesel engine with a power of 199 kW (267 hp). Only the front axle is steerable. The undercarriage is fitted with a cabin for two persons on the right side of the carrier.

The full outrigger base measures 5.36 x 6.1 meters. Below the cabin is another fifth jack mounted for better stability forwards.

In transit is the crane 13 meters long, 2.55 meters wide and 3.5 meters tall. The crane has a total mass of approx. 30 tonnes.

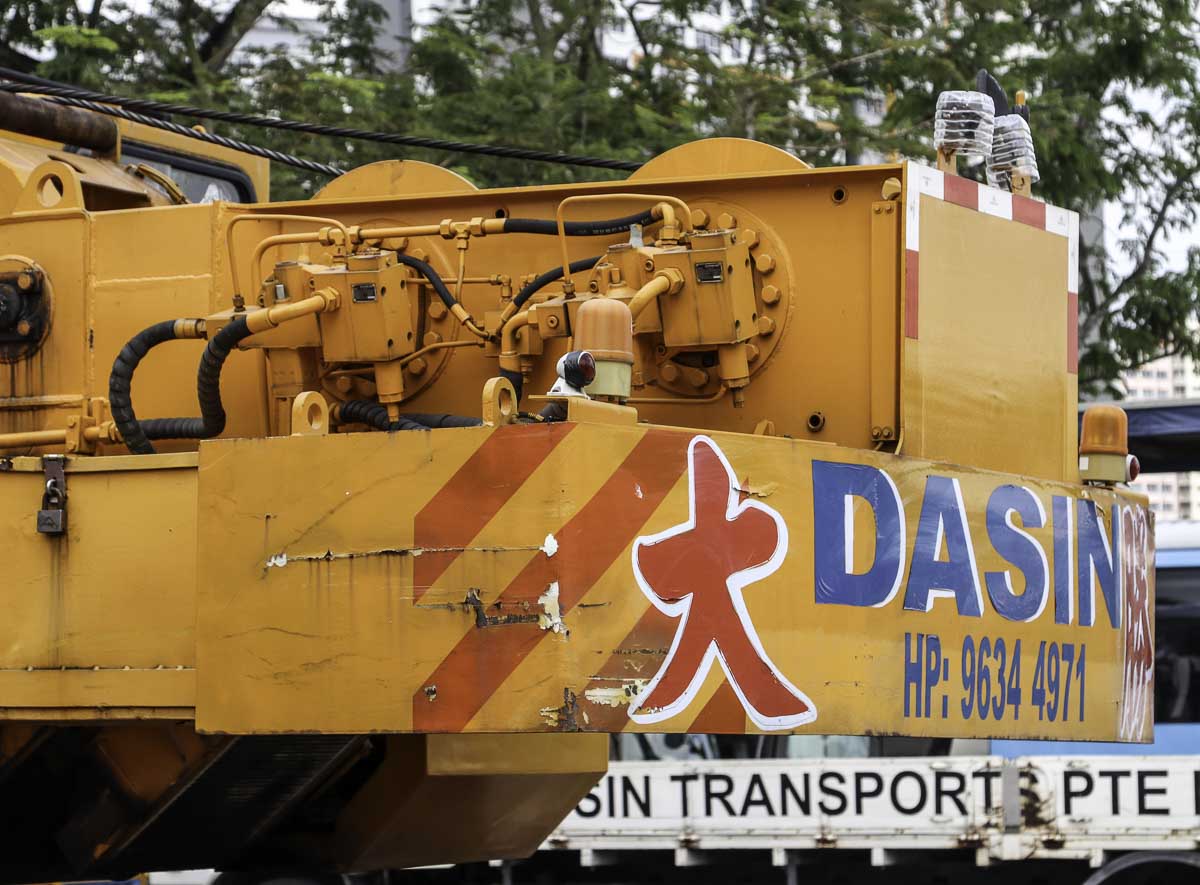

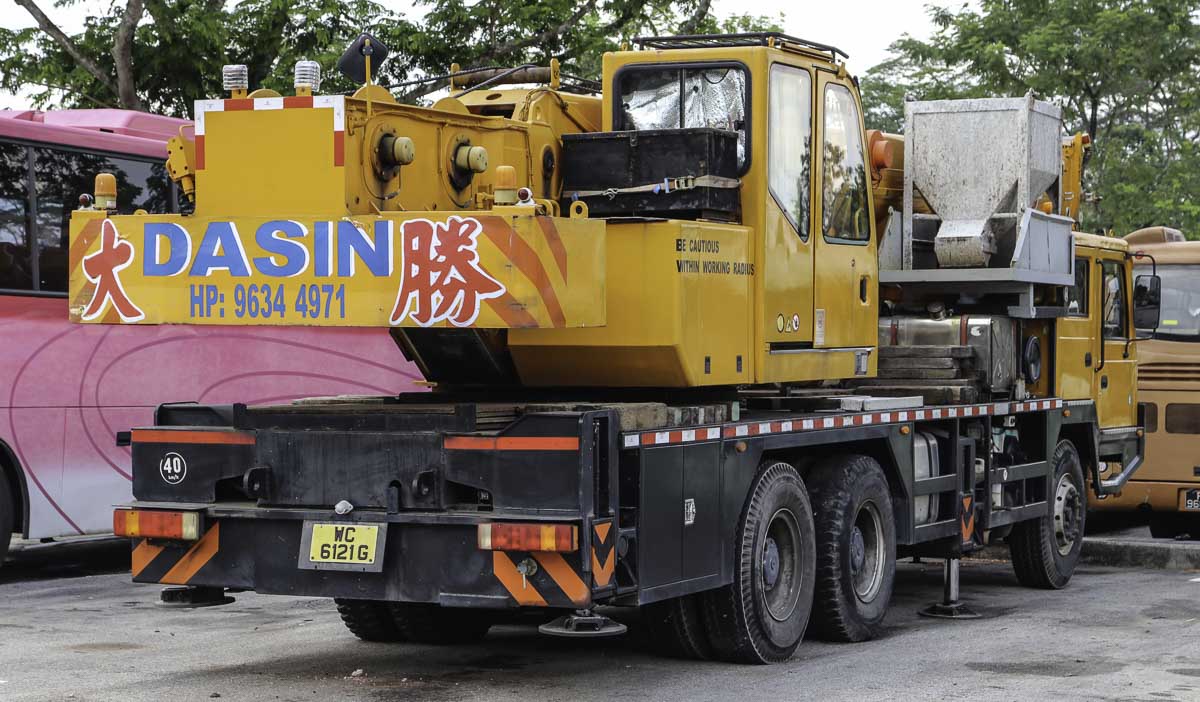

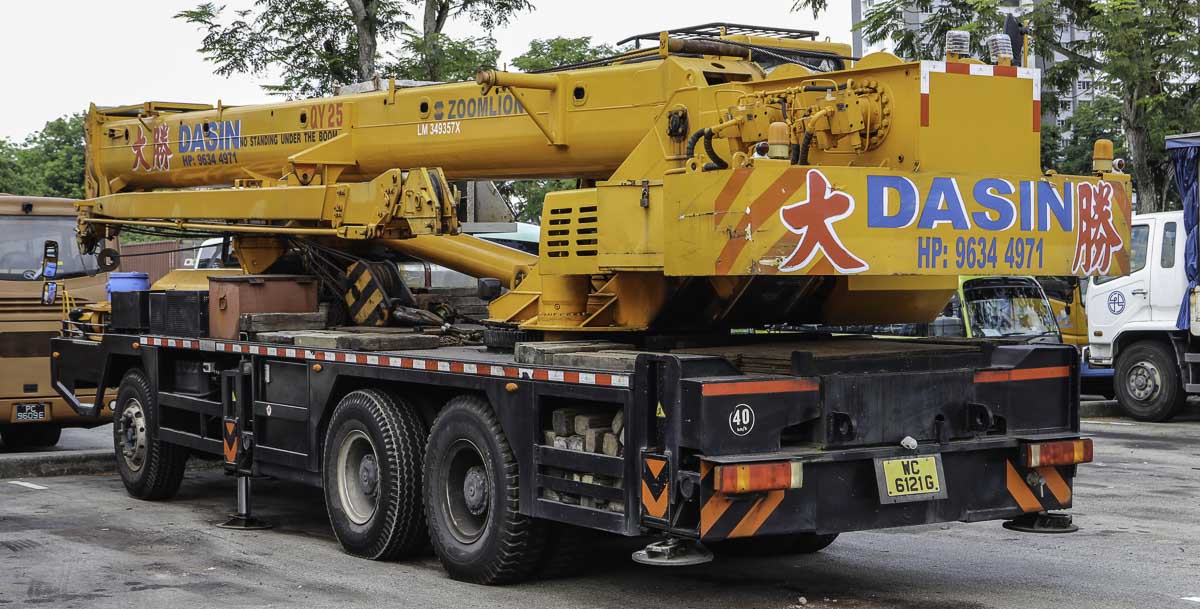

The crane is fitted with 3-tonne hoist winches, which are both in use here. The counterweight is fixed to the superstructure and has a tailswing of approx. 3.2 meters.

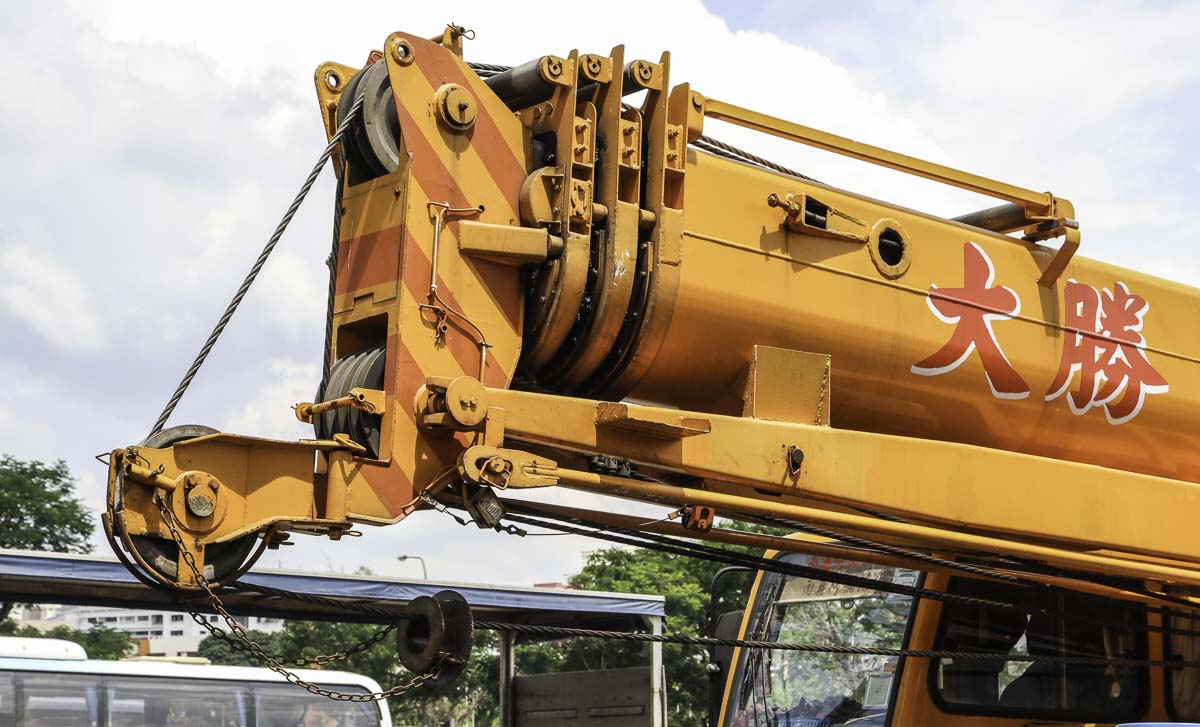

The 4-part main boom has a 10.5 meter base length and extends three times to a maximum length of 33.3 meters.

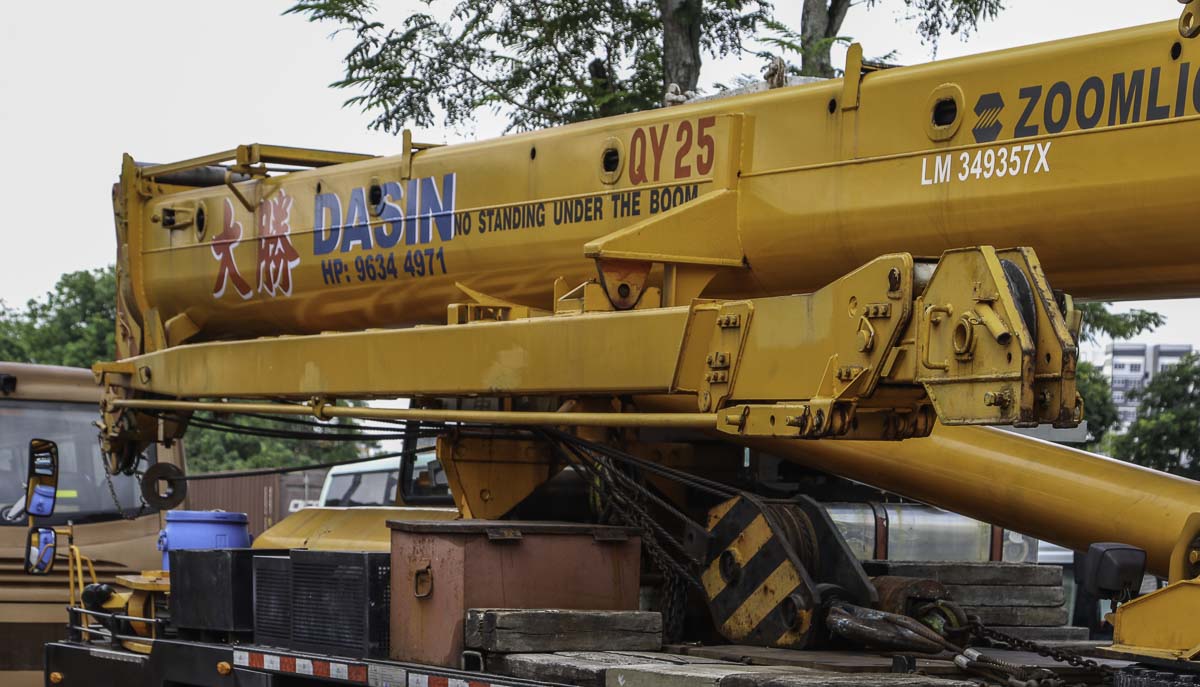

The main boom can be extended by this 8 meter jib. The jib is moutable under 0 or 30 degrees to the main boom. Over the jib, the crane can lift only 3 tonnes.
