Zoomlion QY55D - ACL Construction

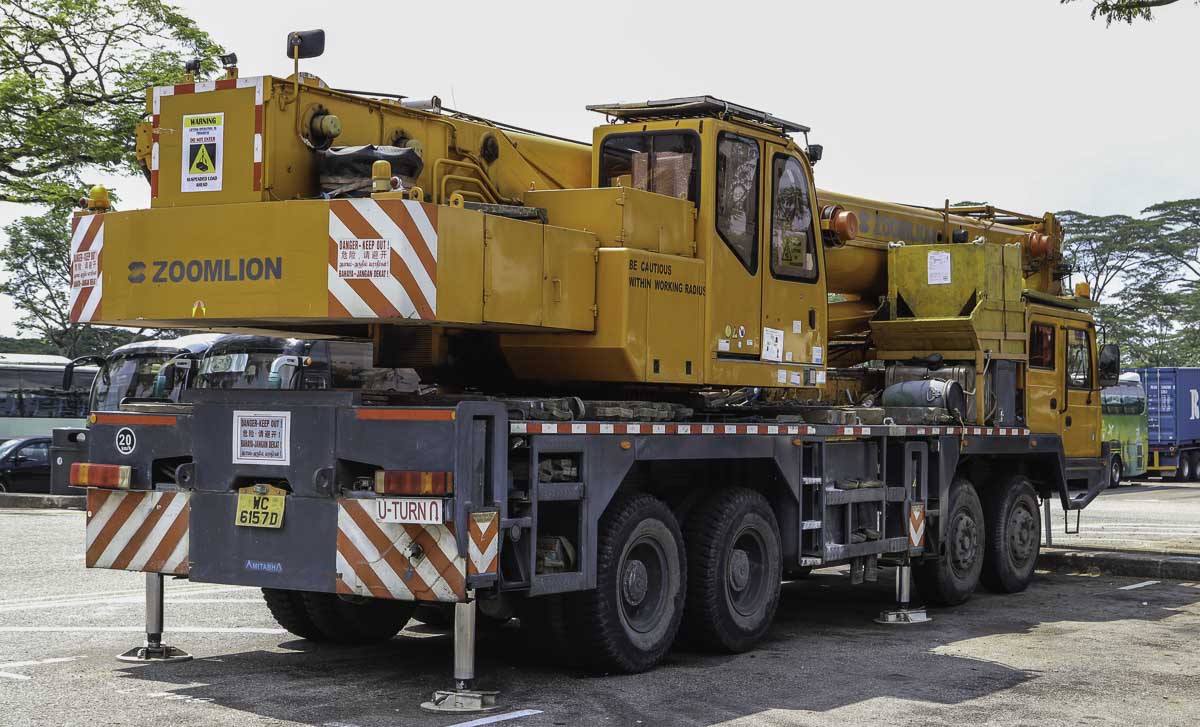

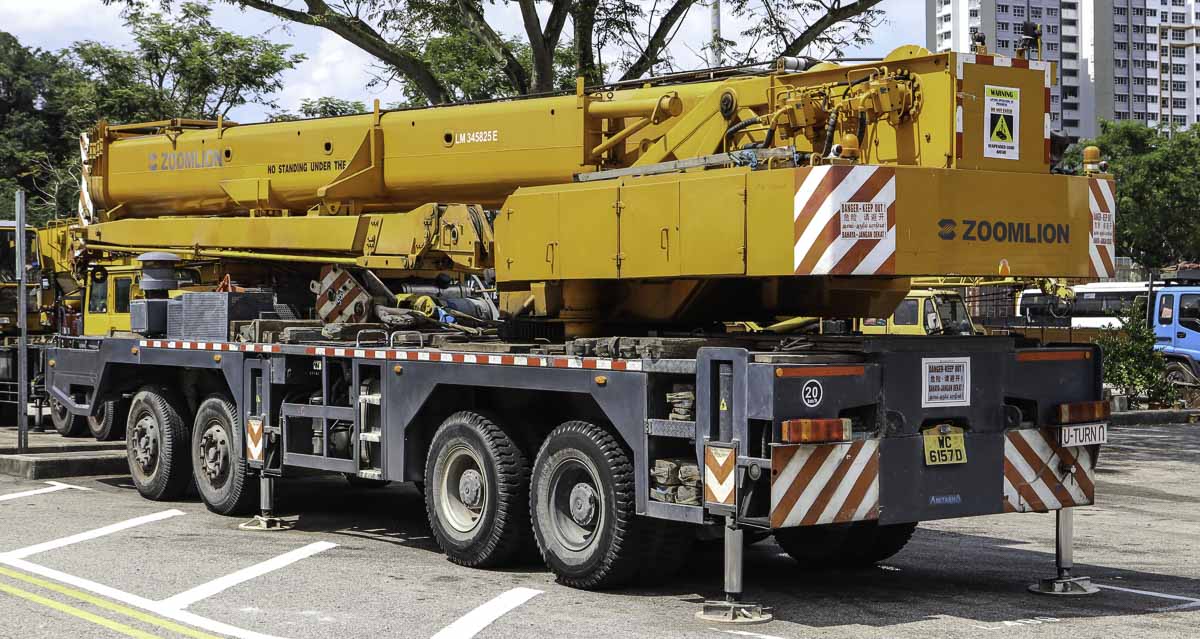

This Zoomlion QY55D belongs to ACL Construction from Singapore (SG). It is a 55-tonne crane mounted on a 4-axle carrier with year of manufacture 2012.

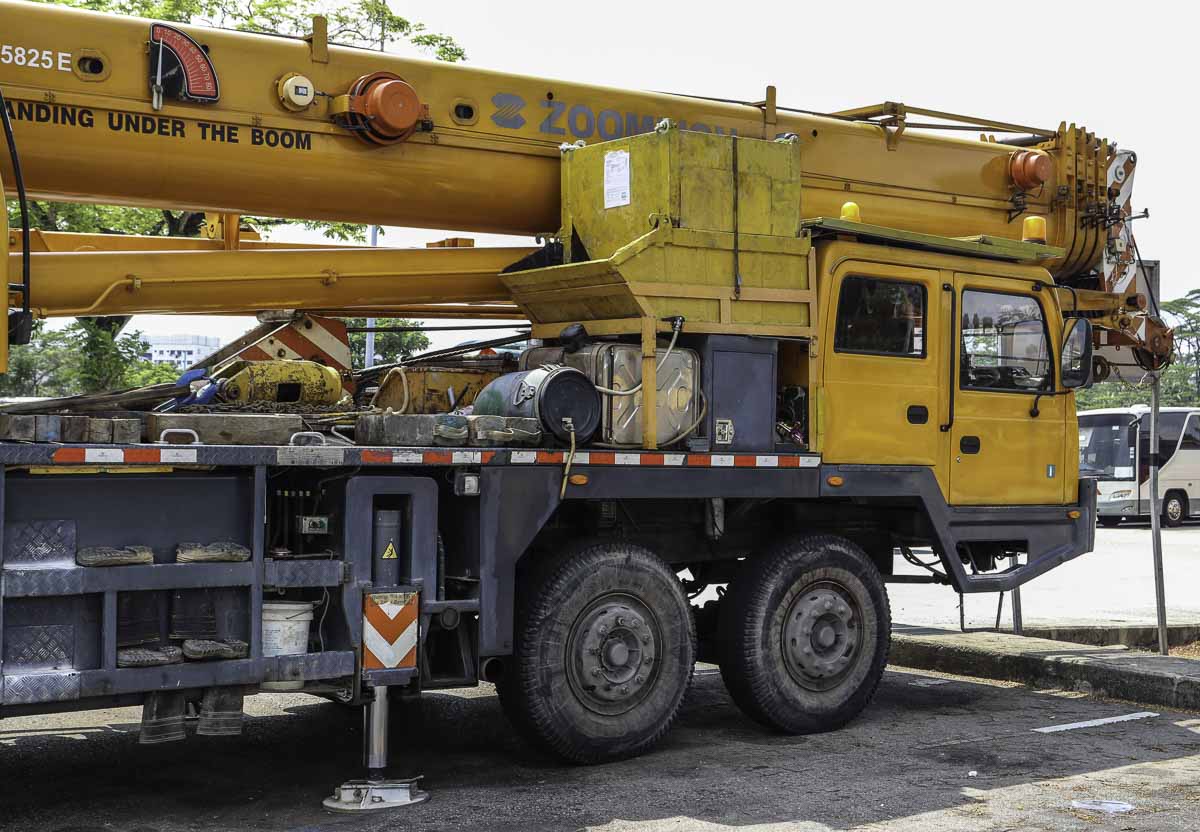

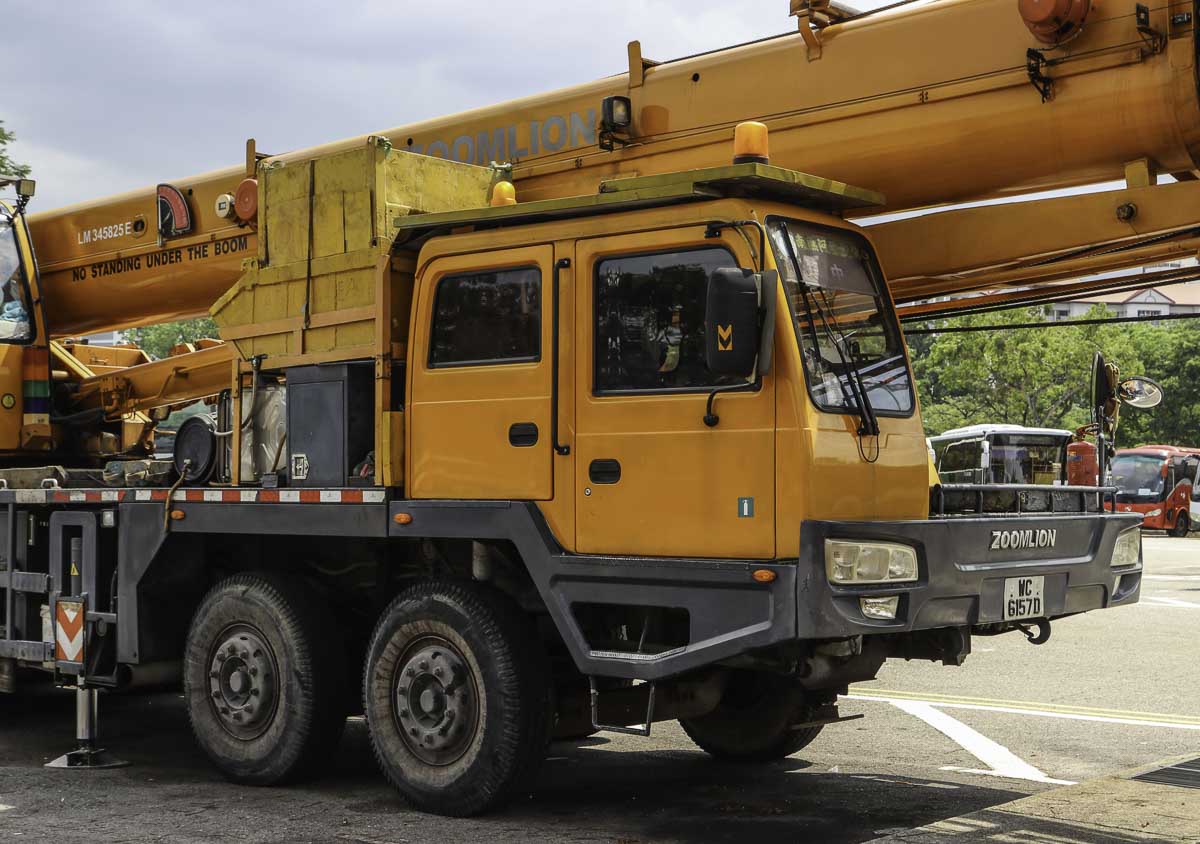

The 4-axle undercarriage with 8x4-drive line is powered by a Wechai WP10, a 6-cylinder diesel engine with a power of 247 kW. The cabin on the undercarriage has two seats.

The outrigger base of the crane measures 5.92 x 7.1 meters, or half 5.92 x 4.8 meters.

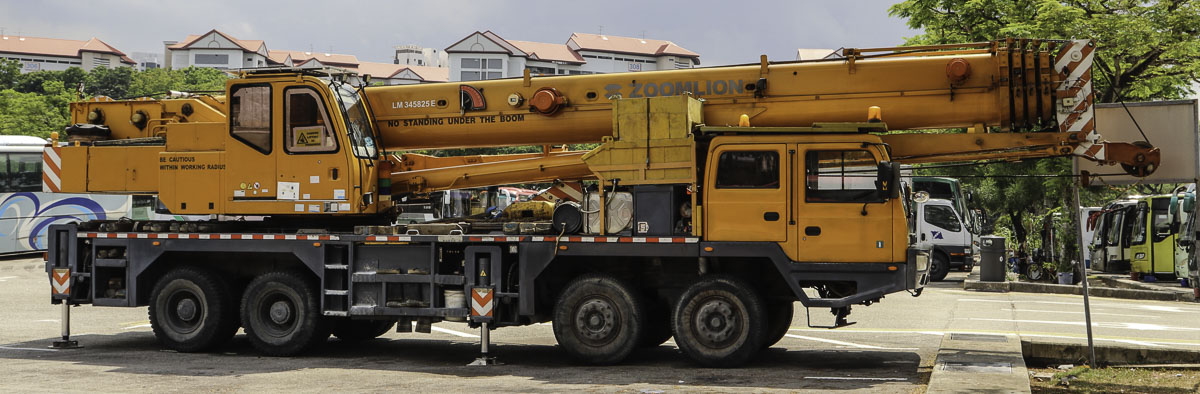

In transit is the crane 13.7 meters long, 2.8 meters wide and 3.8 meters tall. The transport mass is approx. 42 tonnes.

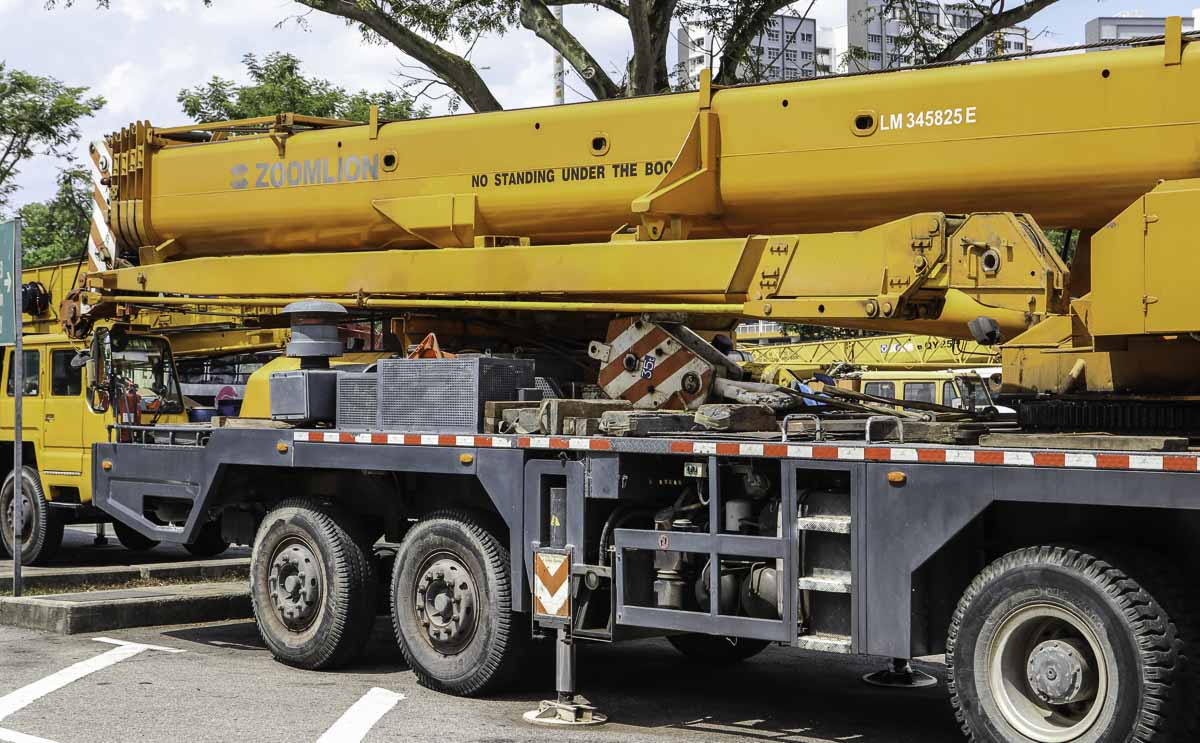

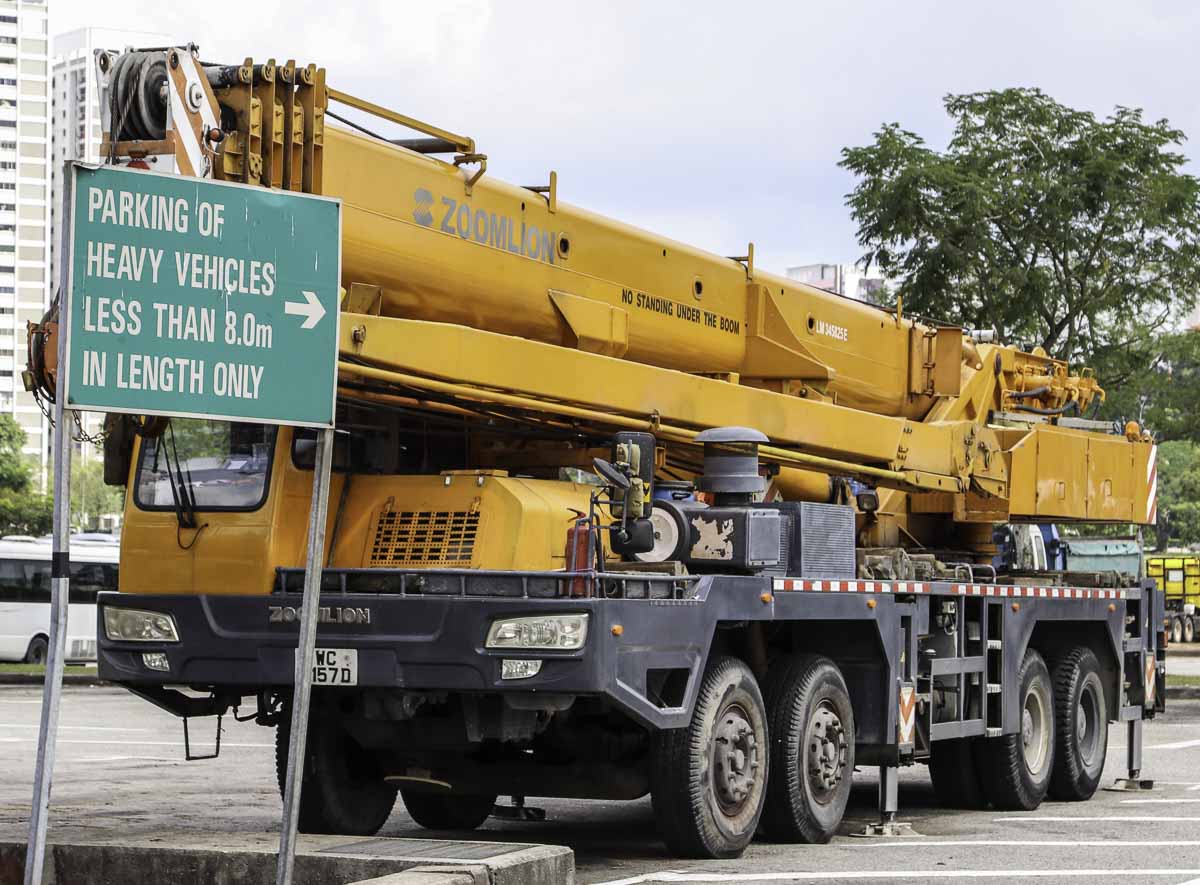

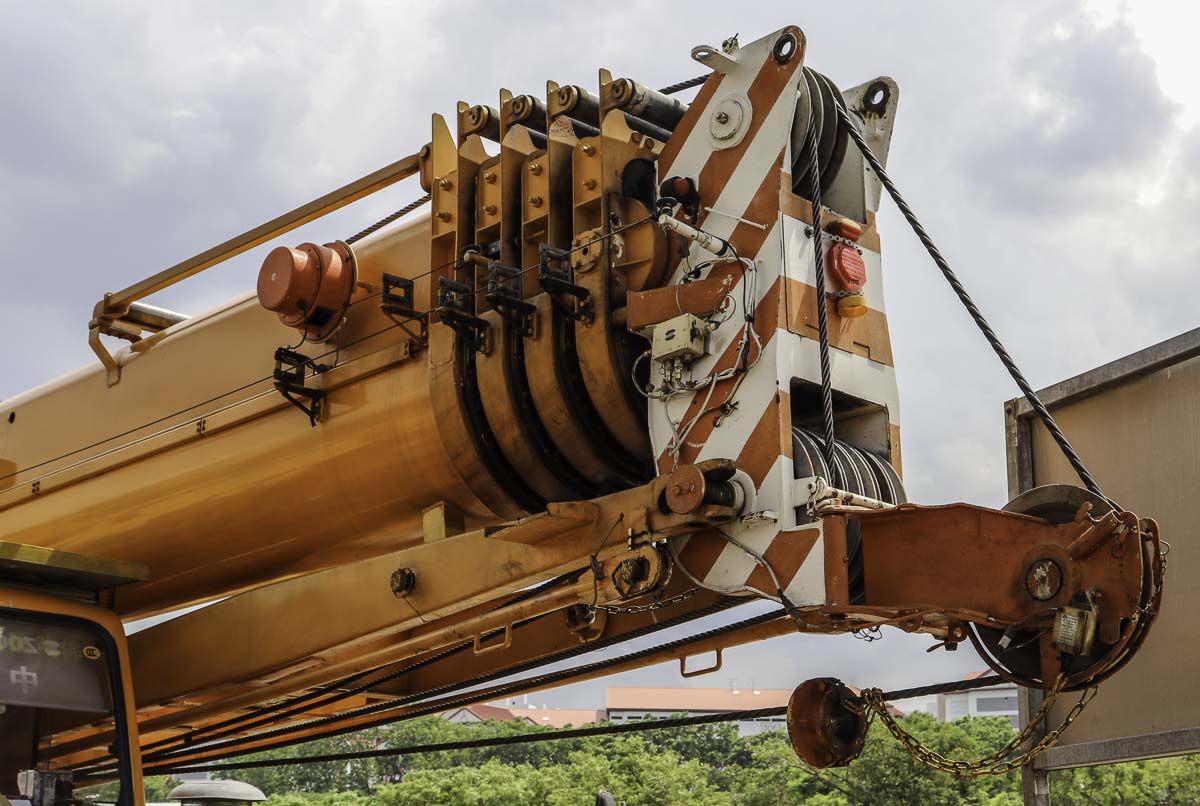

The 5-part main boom has a 11.4 meter base length and extends four times to a maximum length of 43 meters. Optionally is the main boom to be extenable by a 9.2 - 14.6 meter jib. The jib is mountable under a 5, 25 or 45 degree angle towards the main boom.

During the transport over the road are both hooks stored on the deck of the undercarriage.

A very popular type of crane in Asia!
