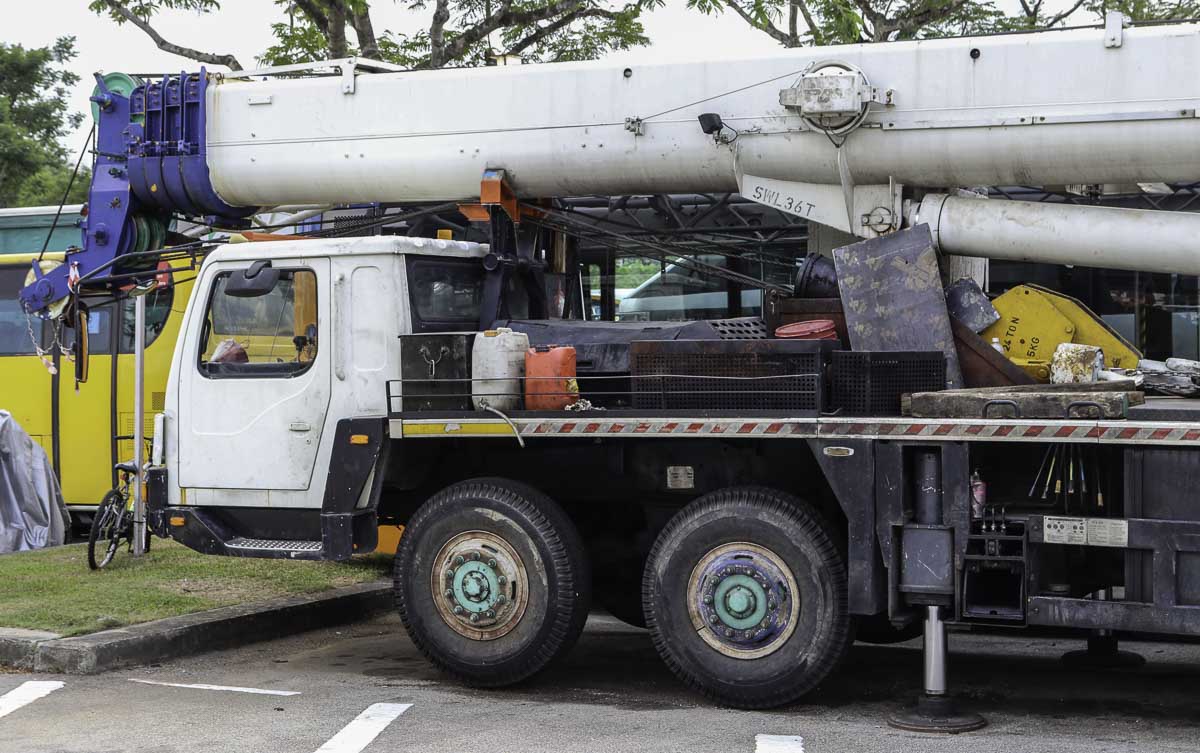

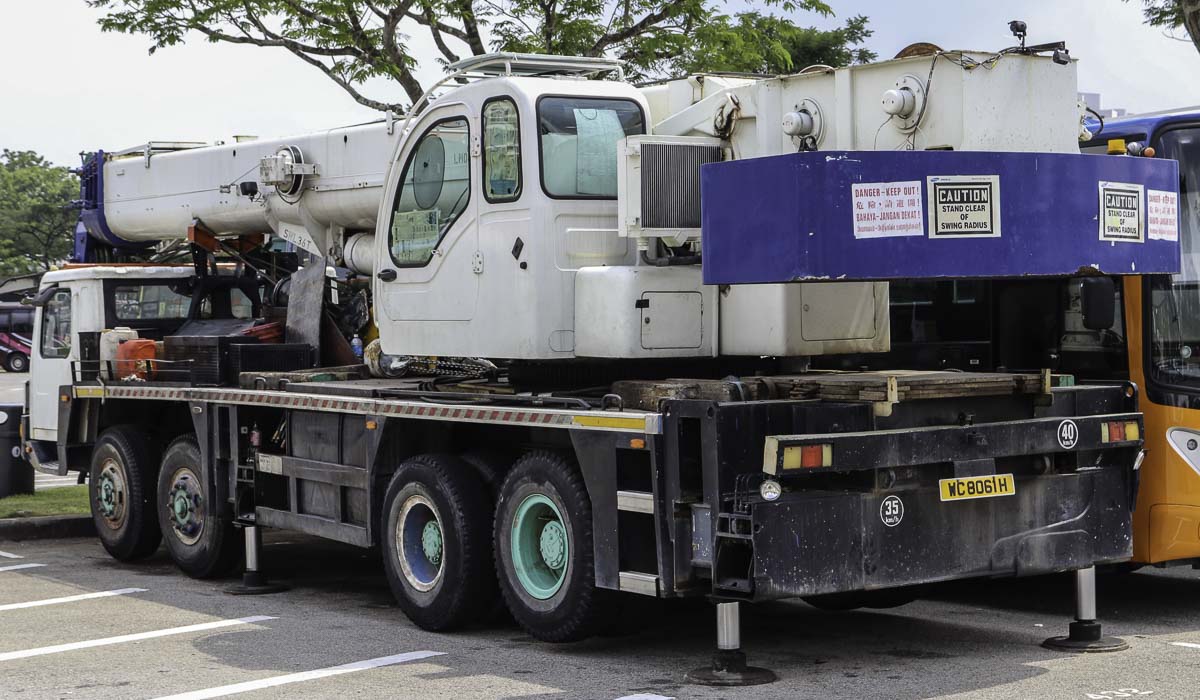

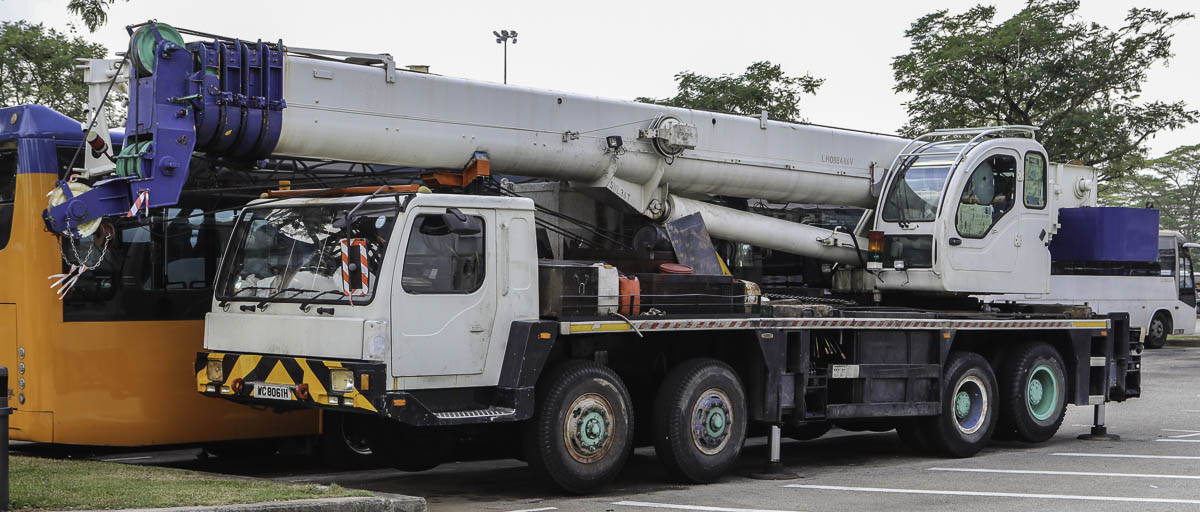

This XCMG QY50K-1 of an unknown company stood parked during a weekend on a parking in Singapore (SG). It is a 50-tonne crane mounted on a 4-axle carrier with year of manufacture 2008.

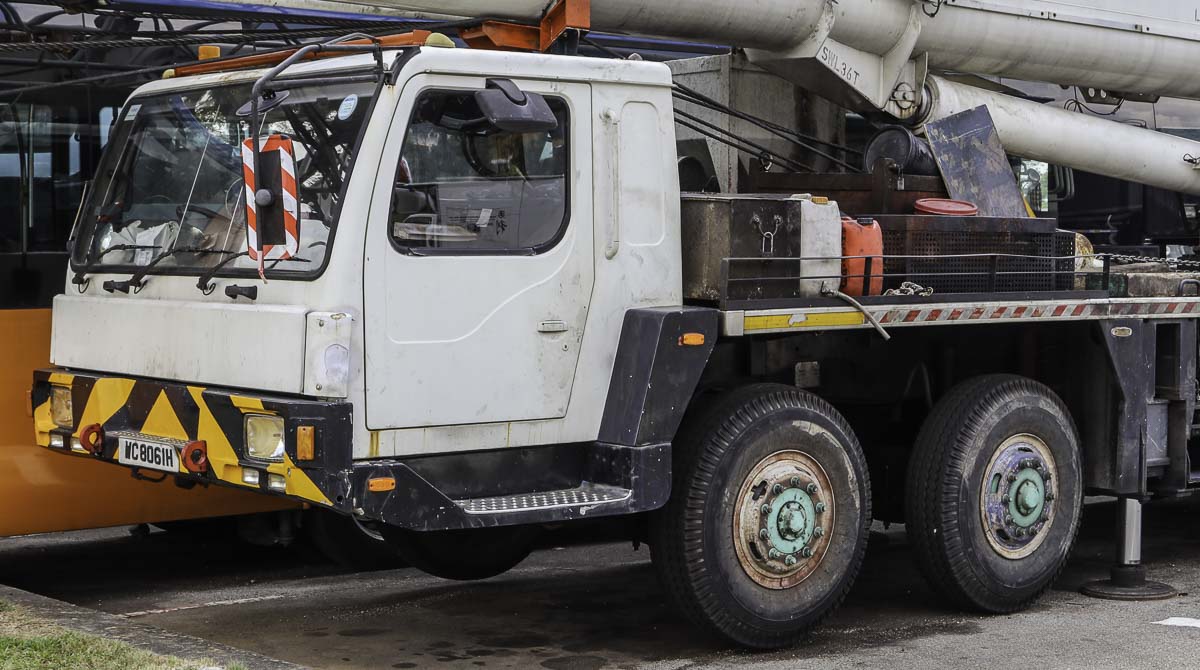

The undercarriage with 8x4x4-drive line is powered by a Weichai diesel engine with a power of 266 kW. The two front axles are steerable, the two rear axles are powered. The crane has a mass of approx. 39 tonnes.

The outrigger base of the crane measures 5.65 x 6.6 meters.

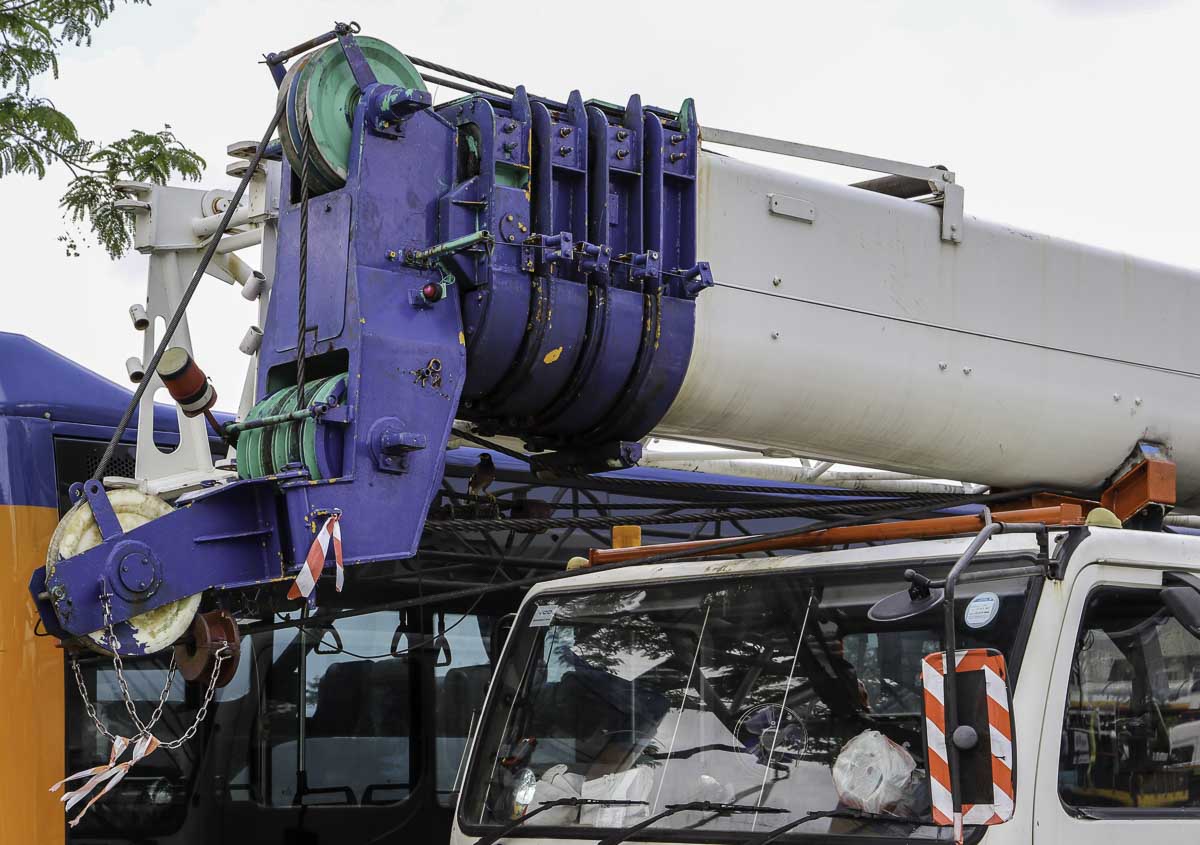

The 5-part main boom has a maximum length of 42.7 meters and can be extended by a 15 meter long bi-fold swingaway jib.

In transit is the crane 13.1 meters long, 2.75 meters wide and 3.35 meters tall.

The crane has two hoist winches with a 4.2 tonne line pull.
