XCMG QY25B

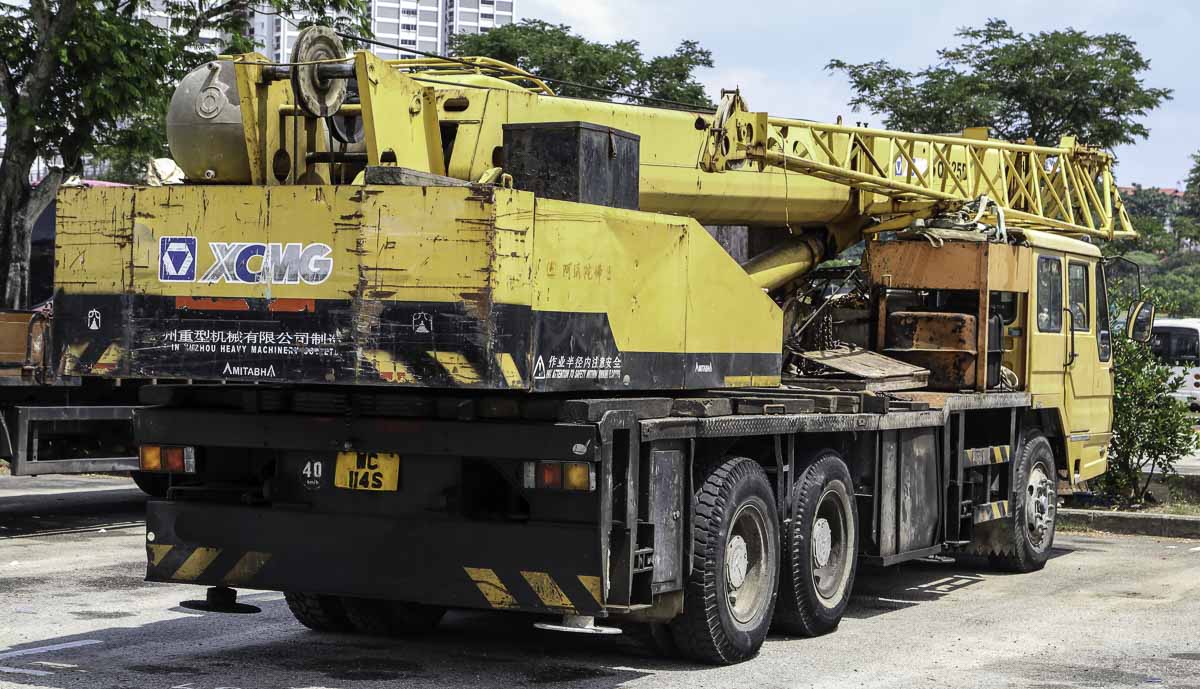

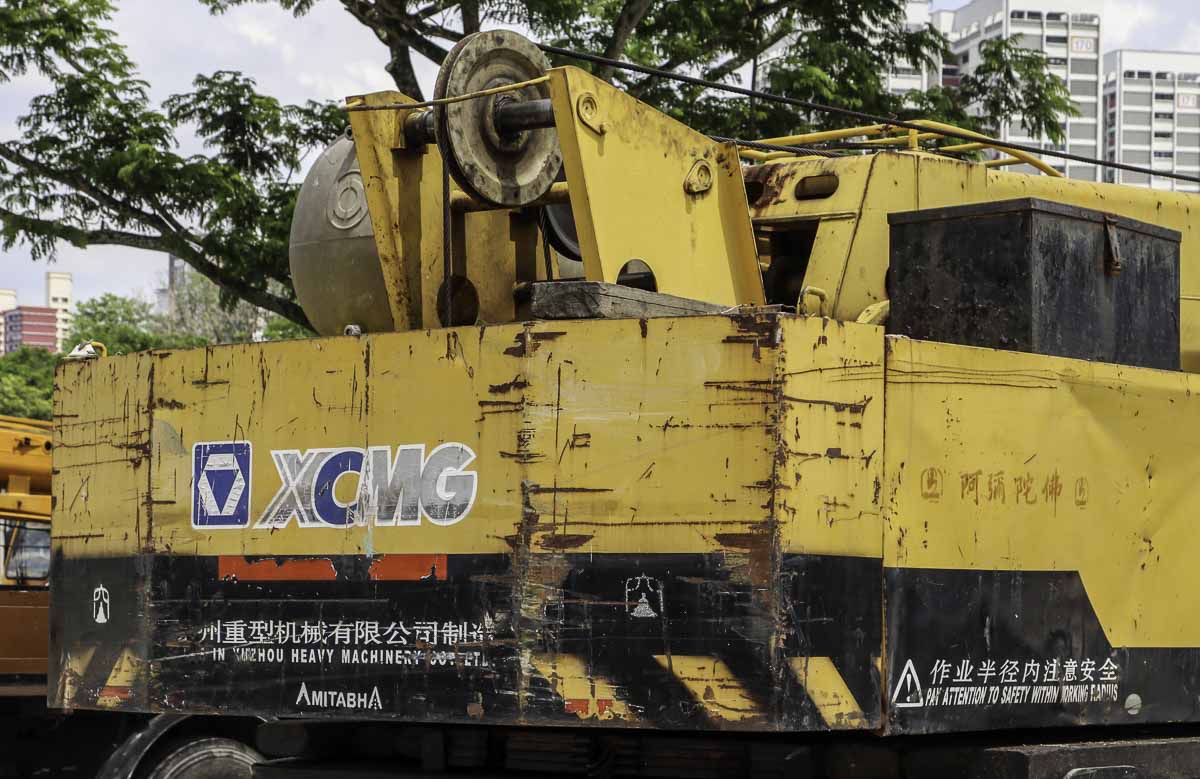

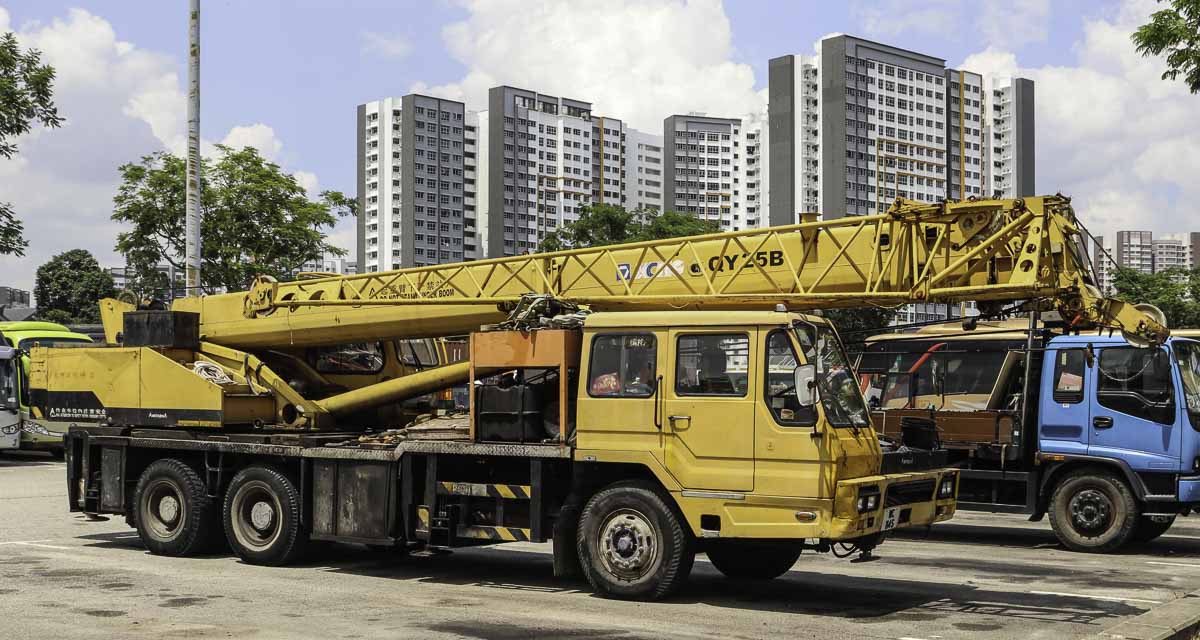

This XCMG QY25B from an unknown company stood during a weekend parked on a large public parking in Singapore (SG). It is a 25 tonne crane mounted on a 3-axle carrier with year of manufacture 2006.

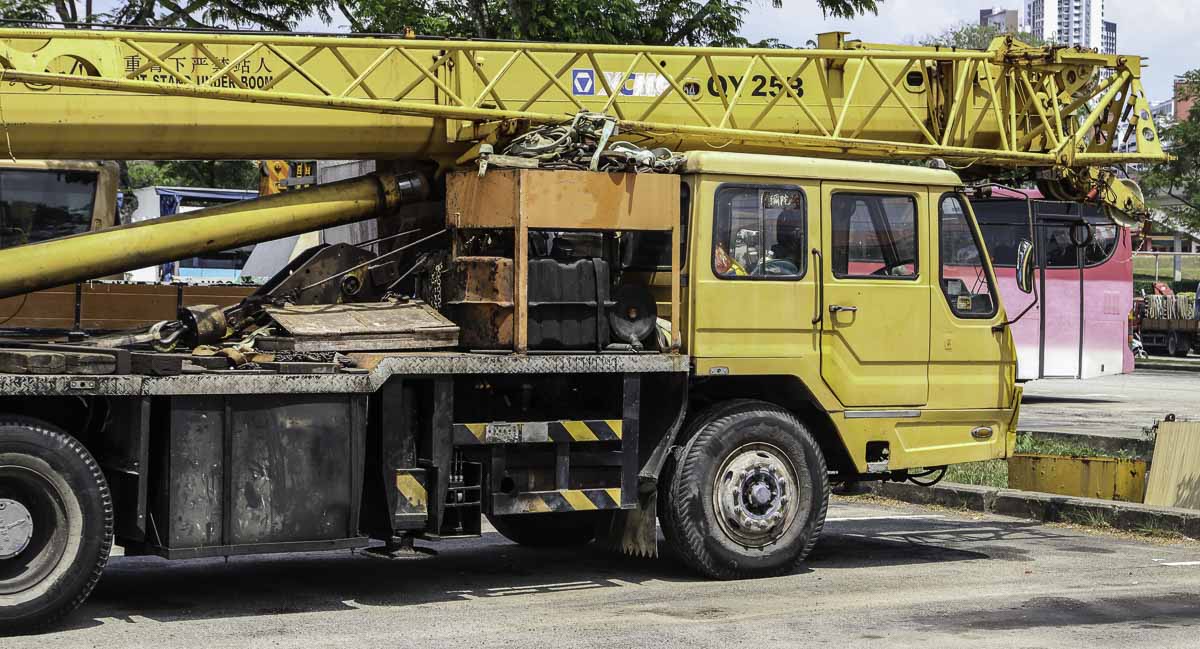

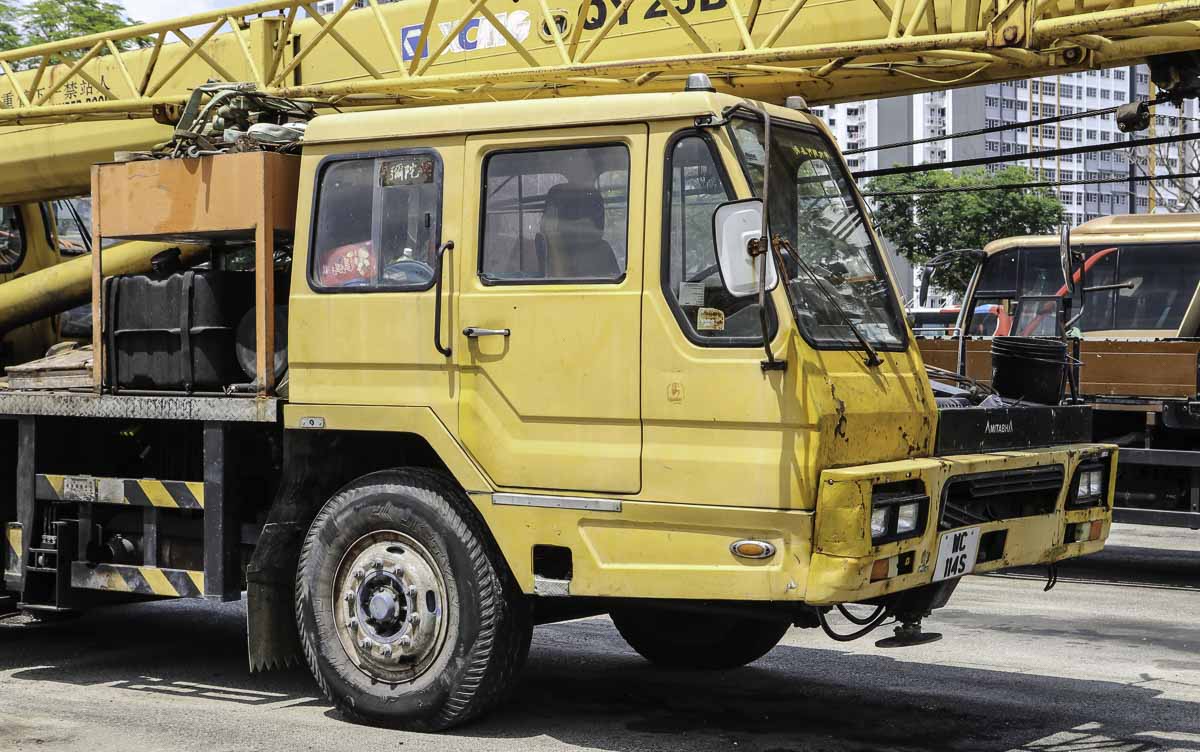

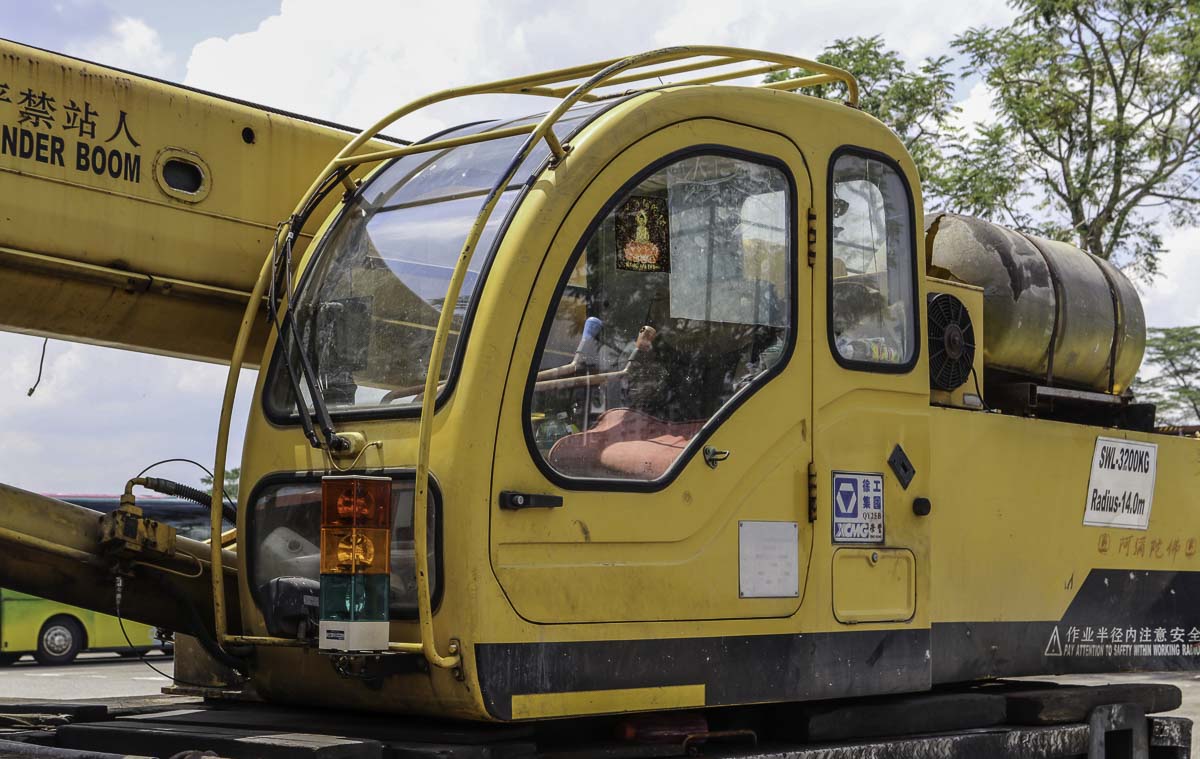

The 3-axle carrier is powered by a Sinotruk WD615.58, a 6-cylinder diesel engine with a power of 175 kW (238 hp). Both rear axles are powered, the front axle is steerable. The crane has the cabin mounted on the left side of the chassis and offers space for two seats.
The outrigger width is 6 meters, or half 4.8 meters. A fifth jack is mounted on the front side of the chassis. During the transport over the road are both hooks stored on the deck of the undercarriage.
In transit is the crane 12.36 meters long, 2.5 meters wide and 3.38 meters tall. The total mass is approx. 27.9 tonnes.

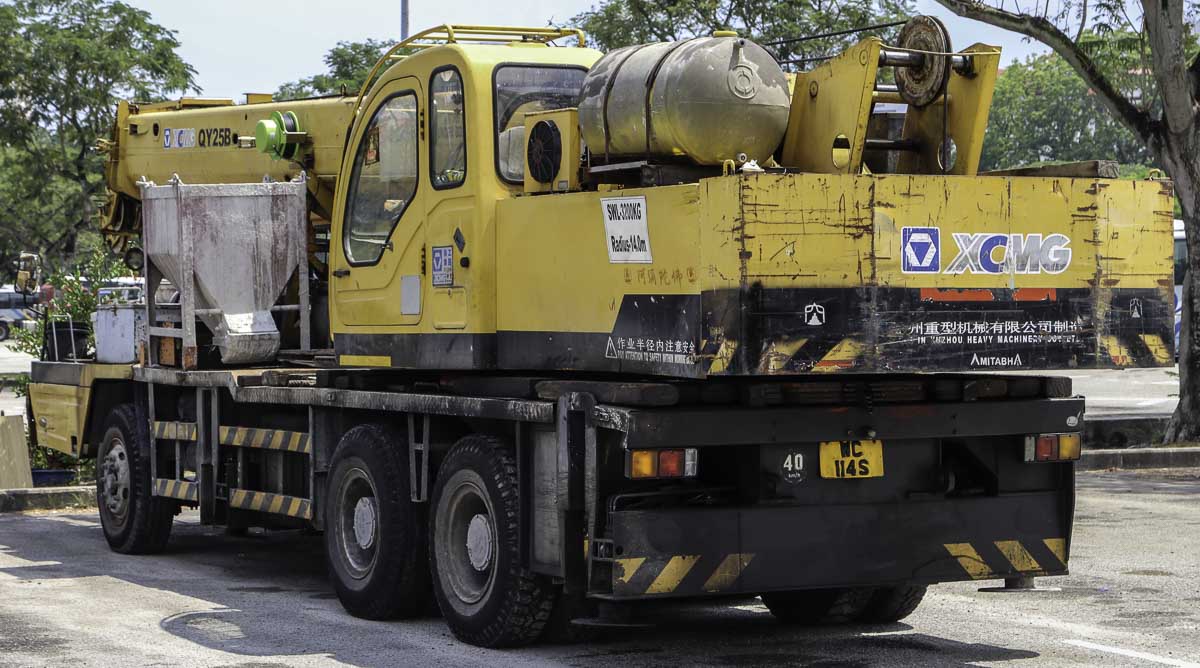

On the deck is also a concrete skip stored.

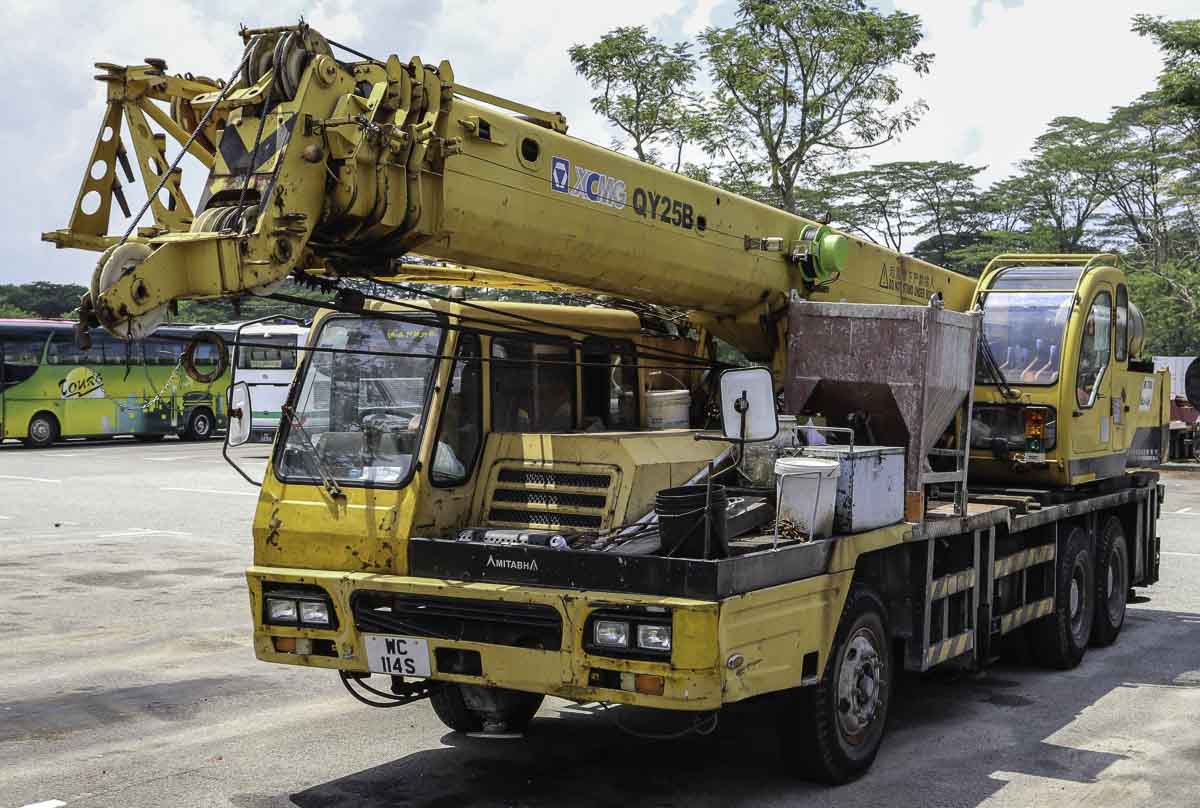

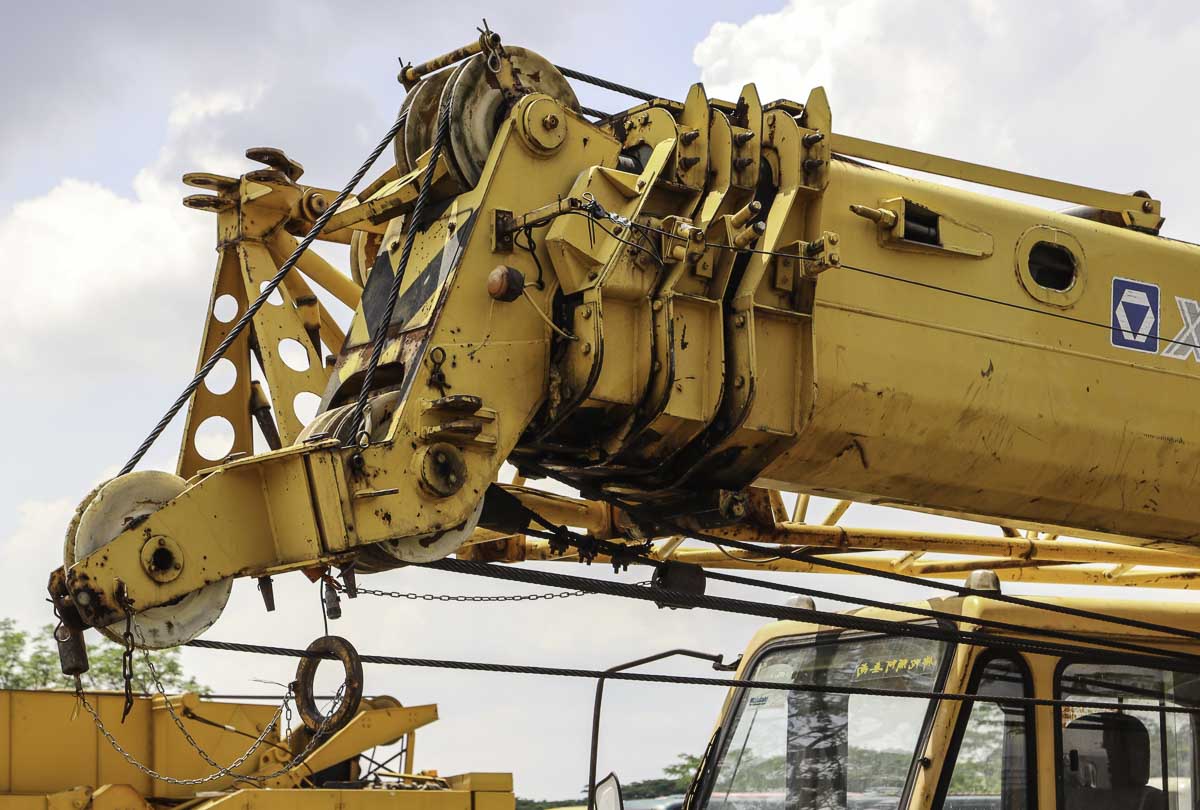

The 4-part main boom has a 10.4 meter base length and extends to a maximum length of 32 meters. The main boom can be extended by an 8.15 meter jib, that is mountable under 0, 15 or 30 degrees towards the main boom head.
An interesting XCMG crane!
