P&H 320 - Fitz

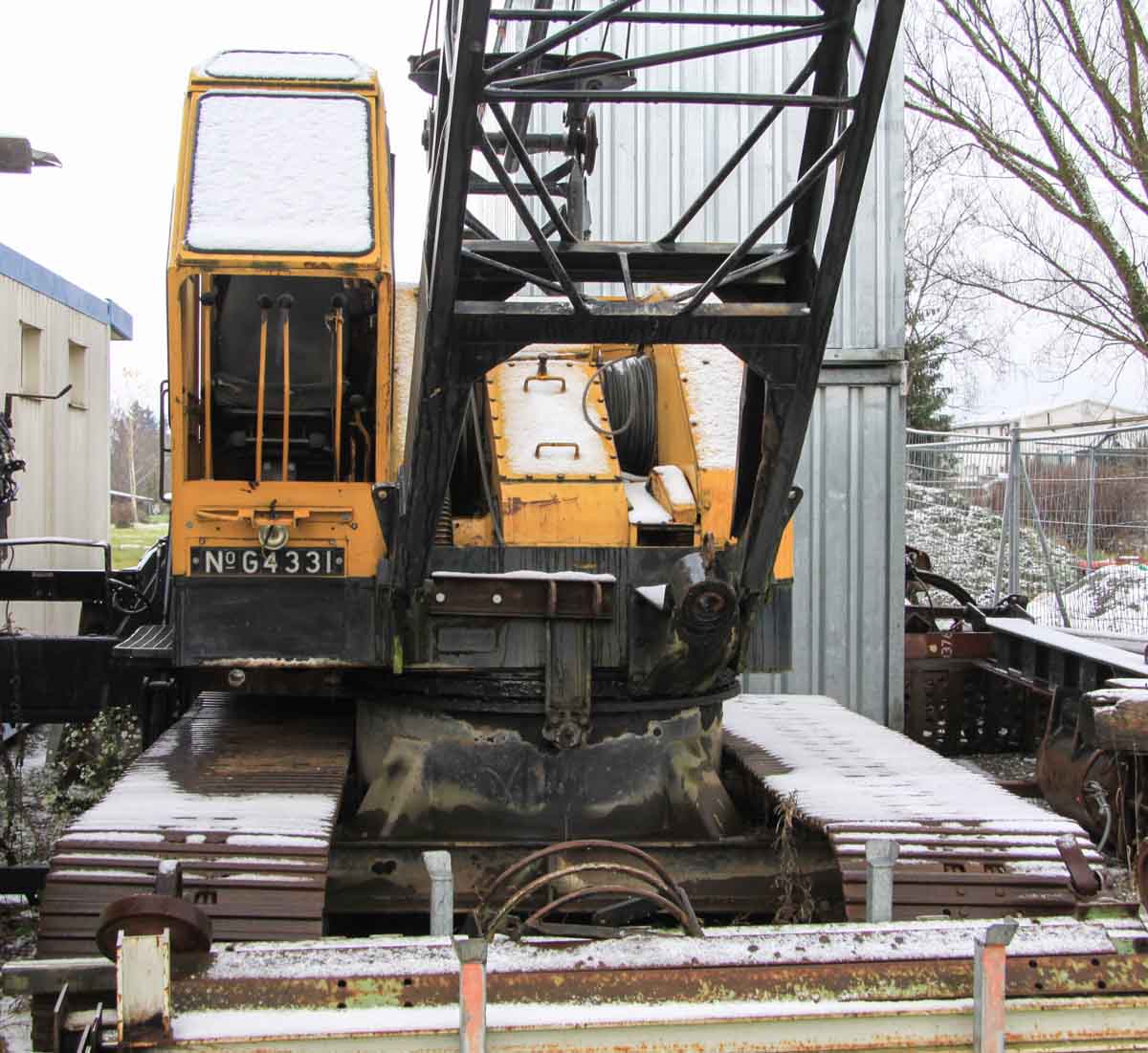

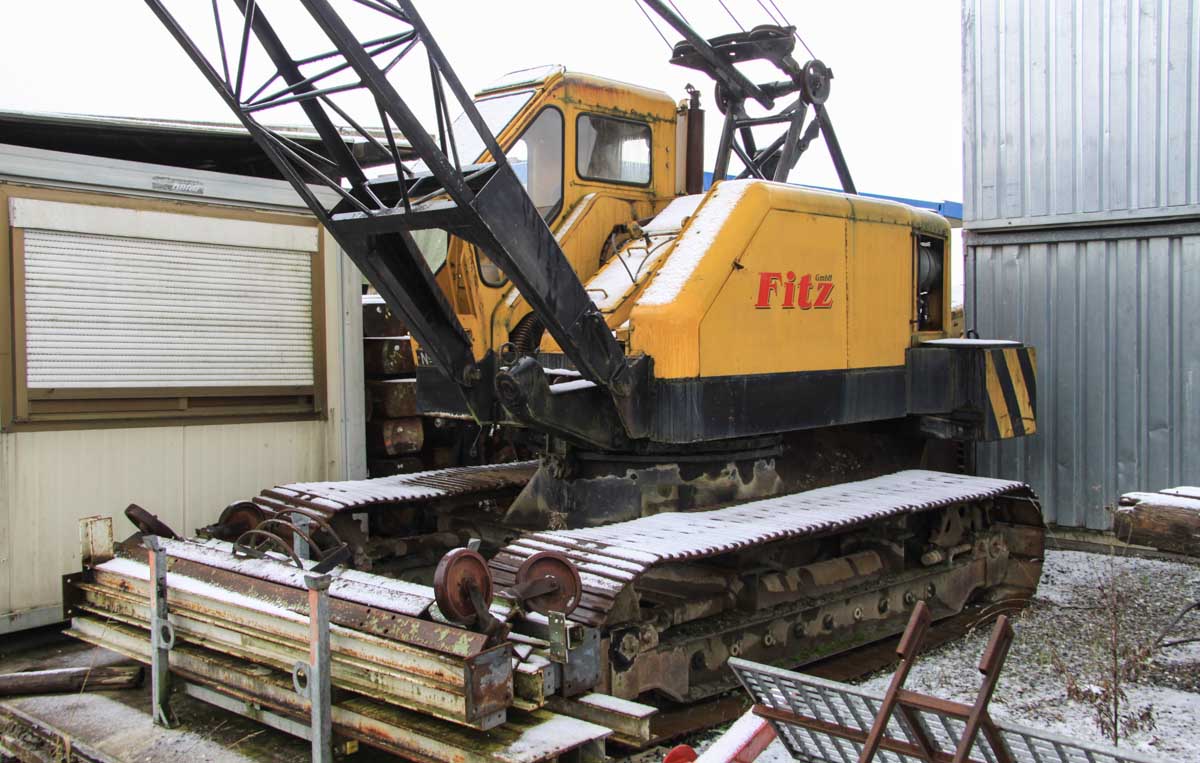

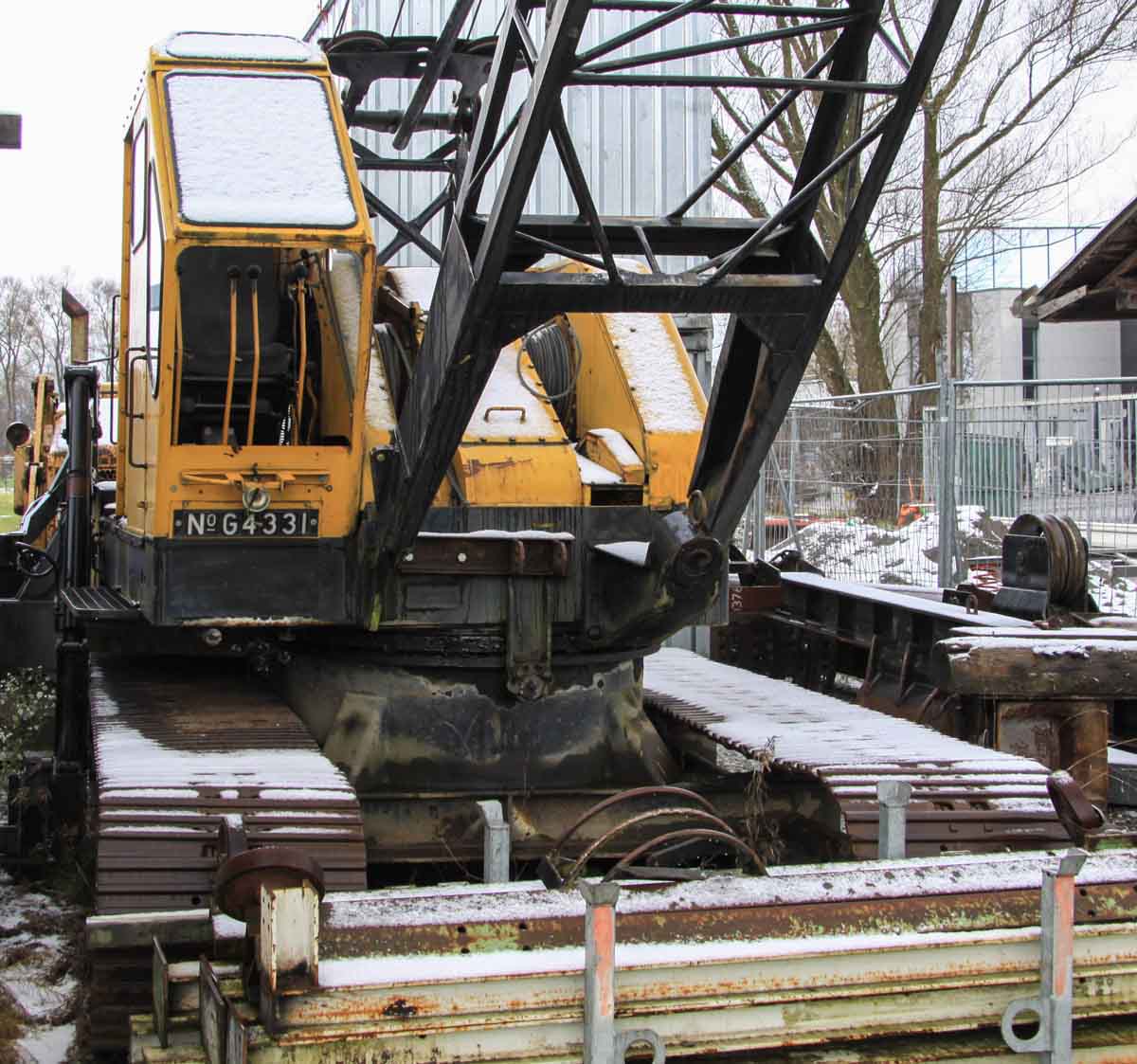

This P&H 320 of Fitz from Lustenau (AT) stood parked on a small yard, the crane wasn't used for a long time.

It is an 18 tonne crane. The undercarriage is 4.19 meters long and 3.25 meters wide. The crane has a total mass of about 23 tonnes.

European machines are powered by a Deutz F6L 912, a 6 cylinder water cooled diesel engine with 90 hp, or by a 4 cylinder DAF DD 575 A. The european cranes were built by Rheinstahl in Dortmund (DE).

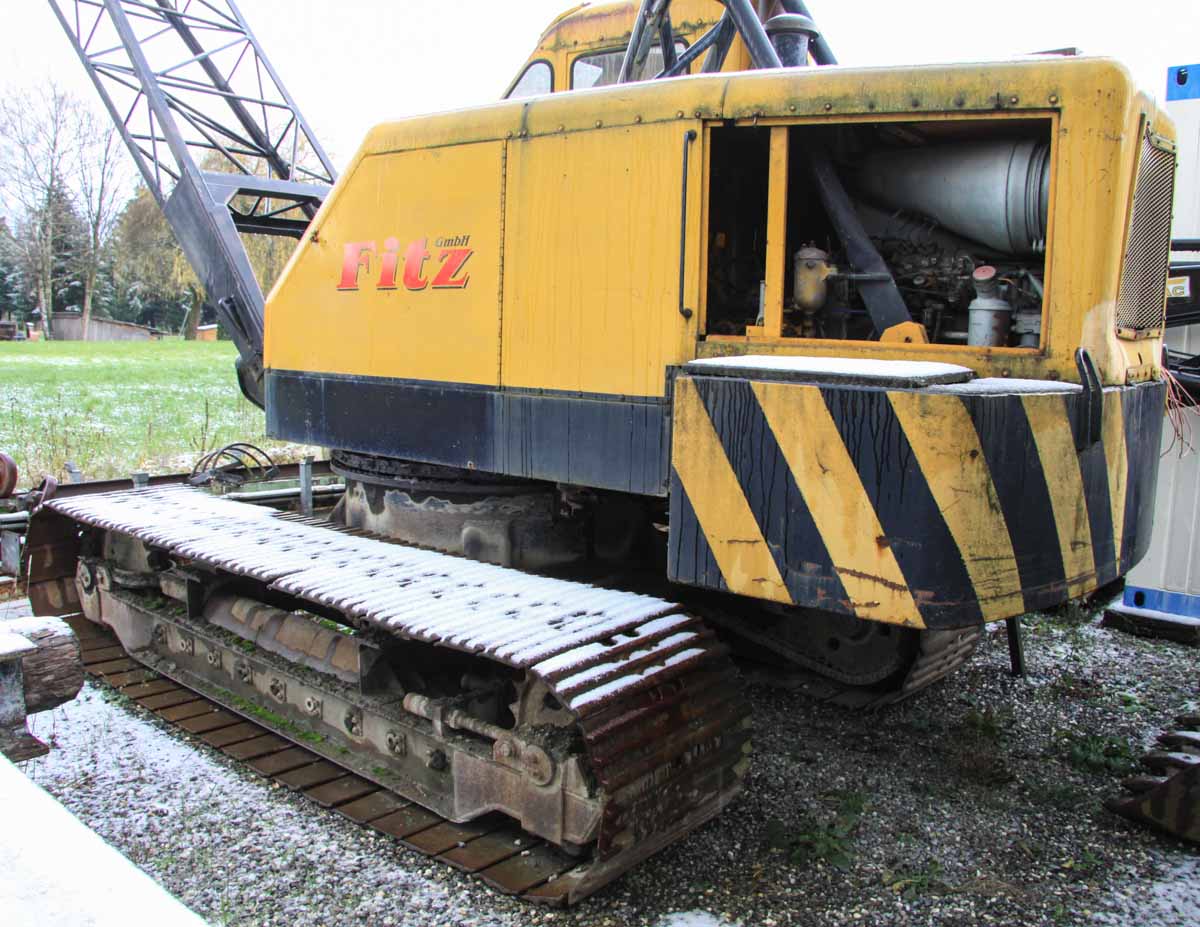

The counterweight weights 1,360 kg and has a 3.31 meter tailswing.

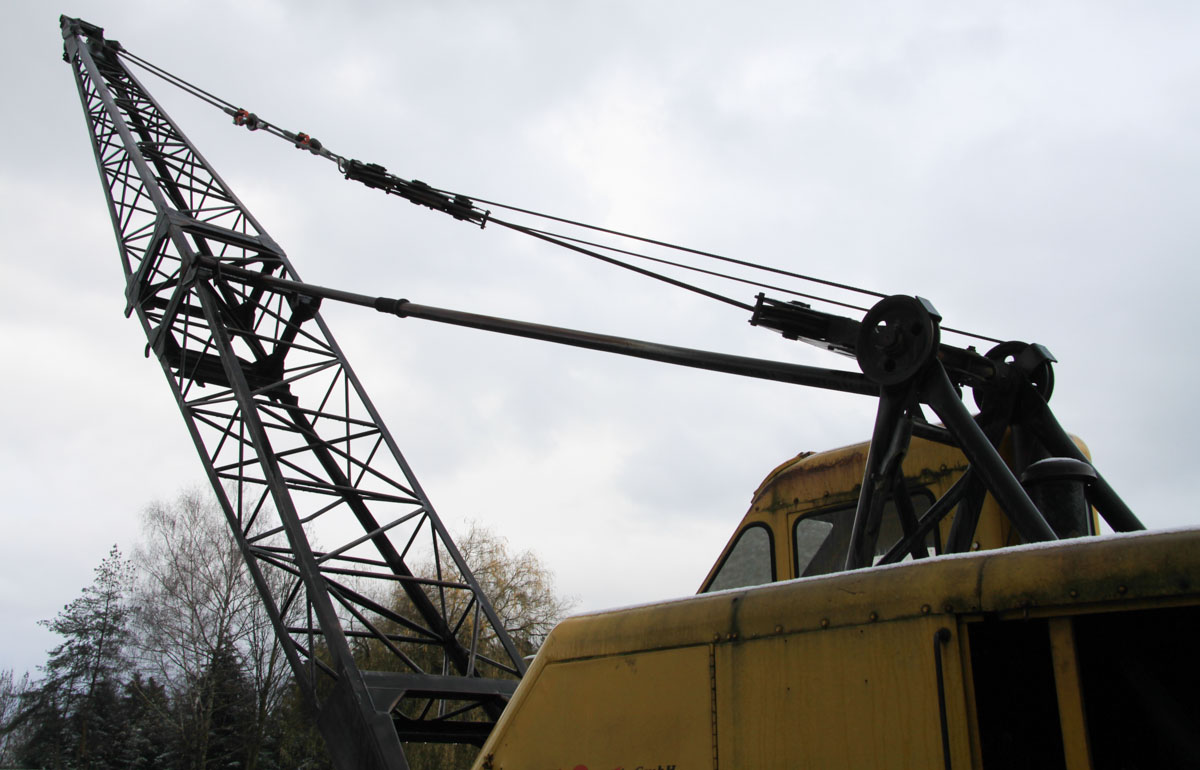

The crane was erected here with the shortest possible main boom; 9.14 meters. The max. boom length is 27.43 meters.
