Luna GT 45/30 - Münch

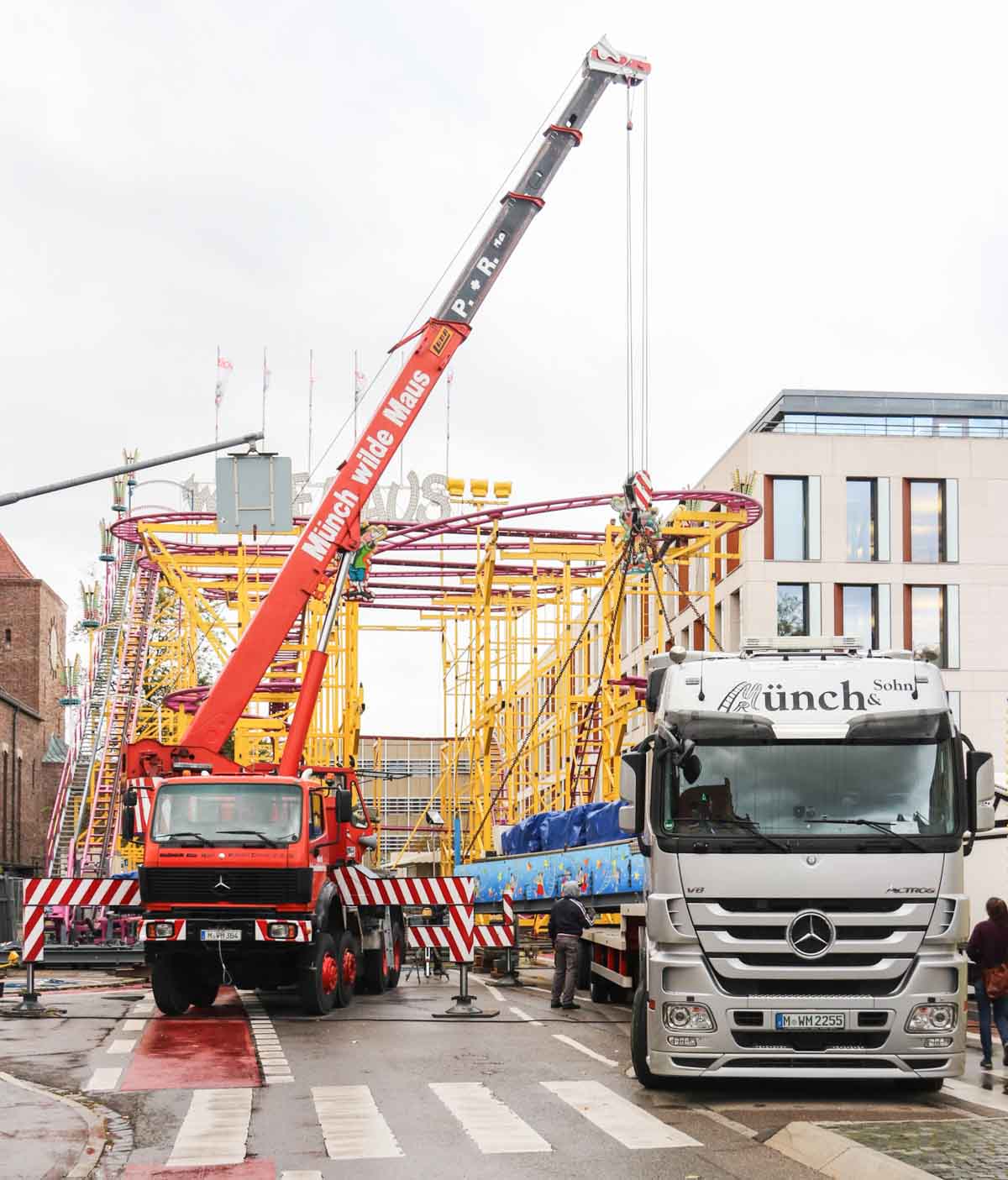

For the erection and dismantling of the roller coaster "Wilde Maus" is the company Münch from München (DE) using an interesting Luna GT 45/30. Here was the crane used for the erection of the roller coaster for the fair in Memmingen (DE).

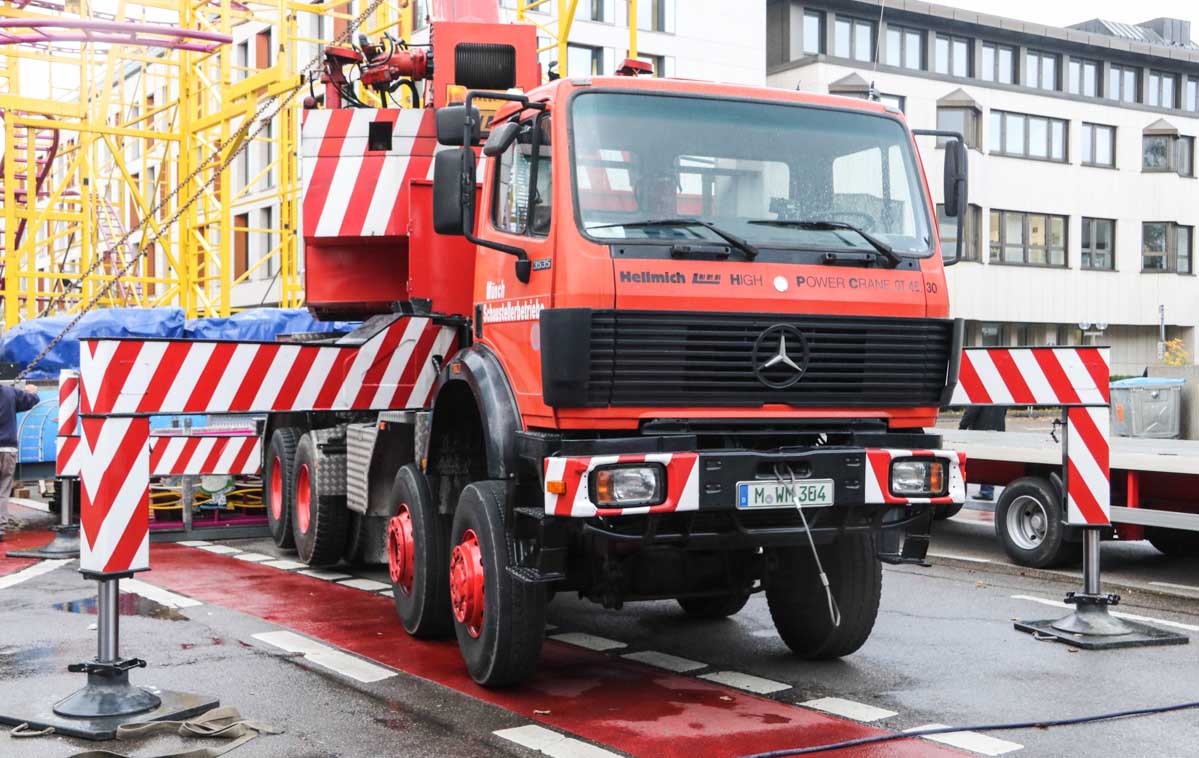

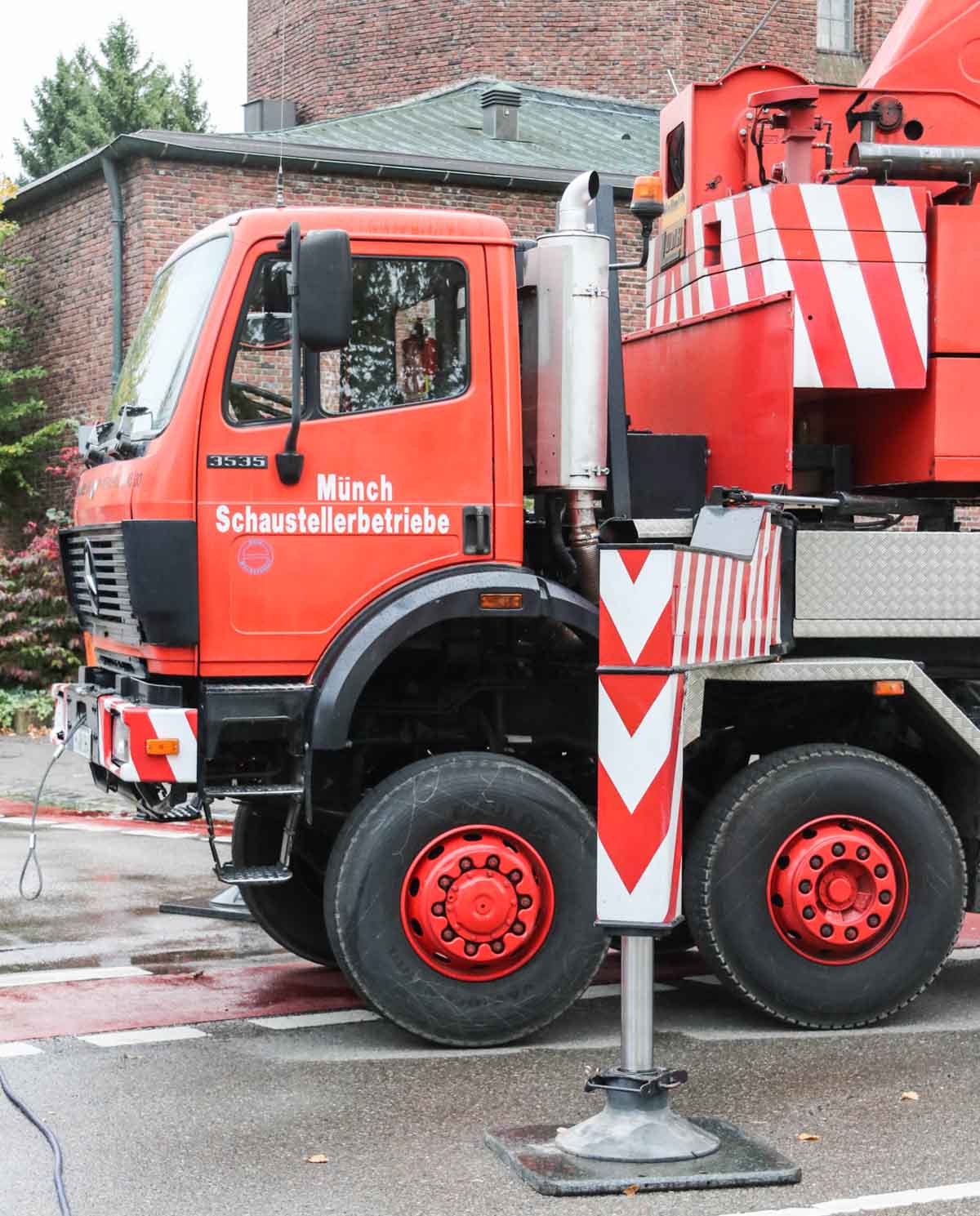

It is a 45-tonne crane that is installed on a Mercedes-Benz SK 3535 chassis with 8x6-drive line. The truck is powered by a Mercedes-Benz OM 442 LA, a 15.1-liter V8 diesel engine with 350 hp. The crane's year of manufacture is 1995.

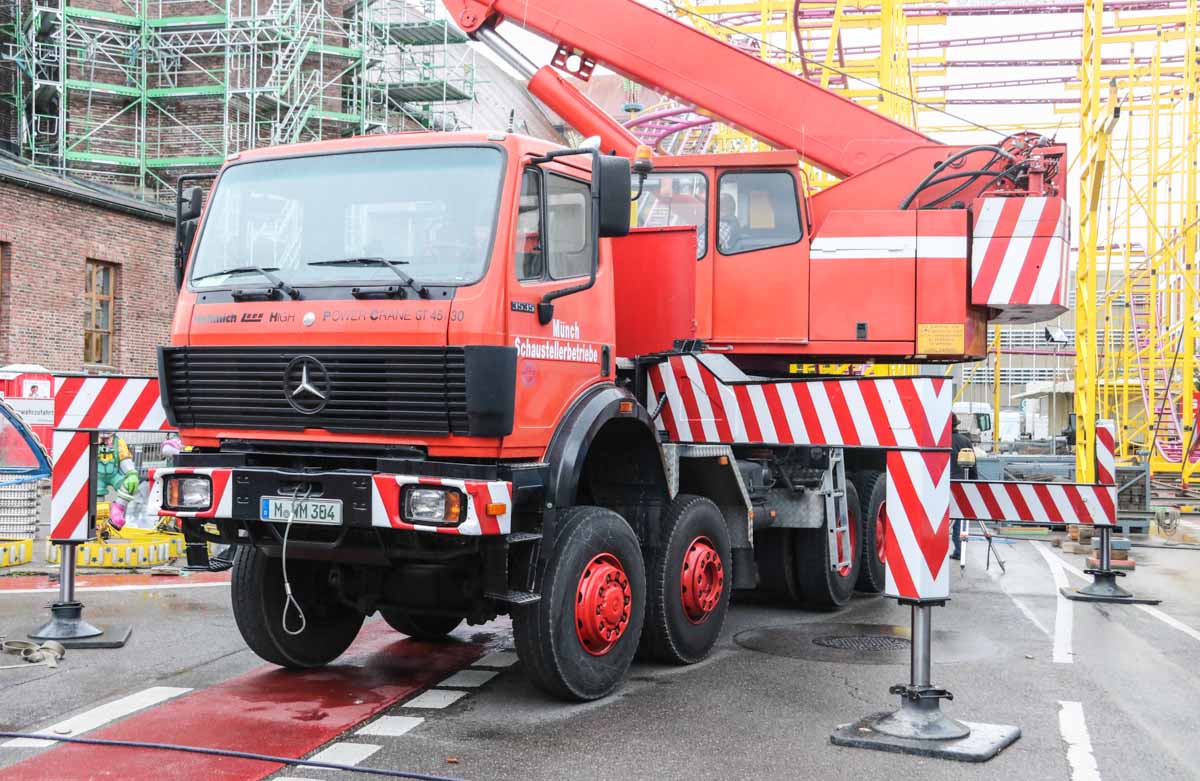

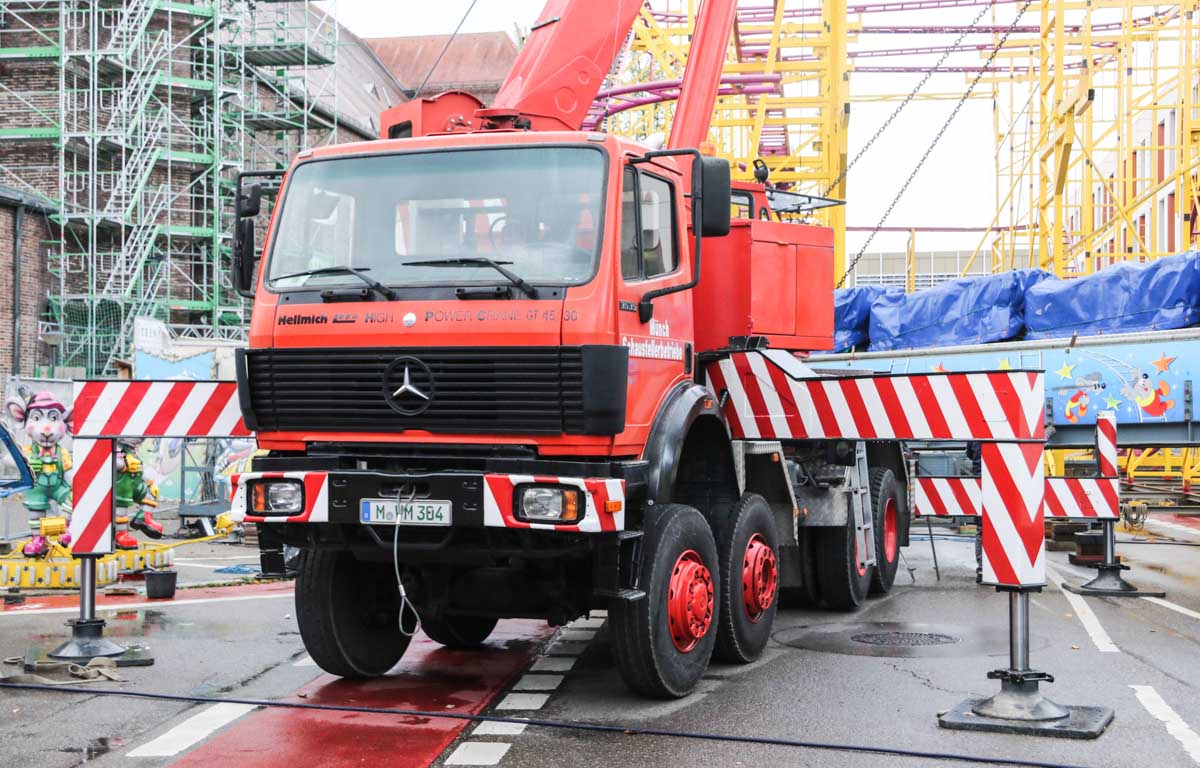

The K-shapped outrigger base measures 7.123 x 6 meters. During the transport over the road are the front outrigger folding rear wards against the chassis.

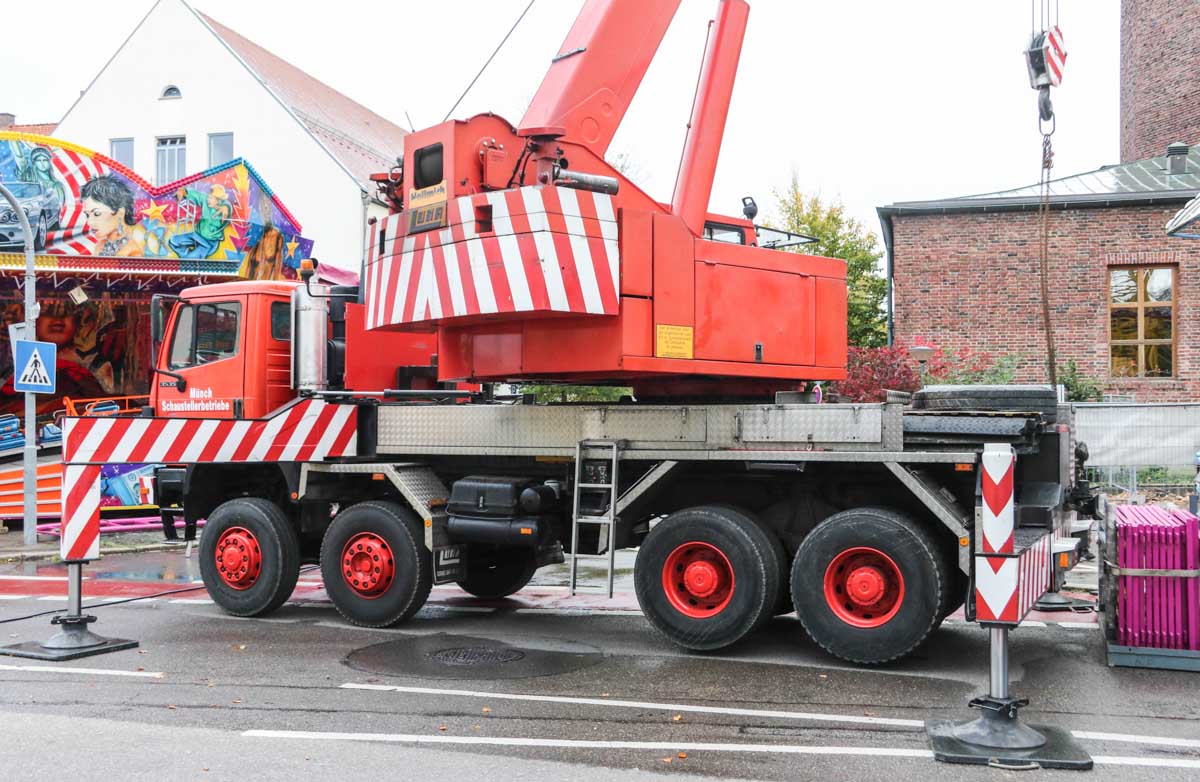

Behind the second axle are the battery and a few compressed-air tanks installed. On top of the chassis are multiple storage compartments for lifting gear made.

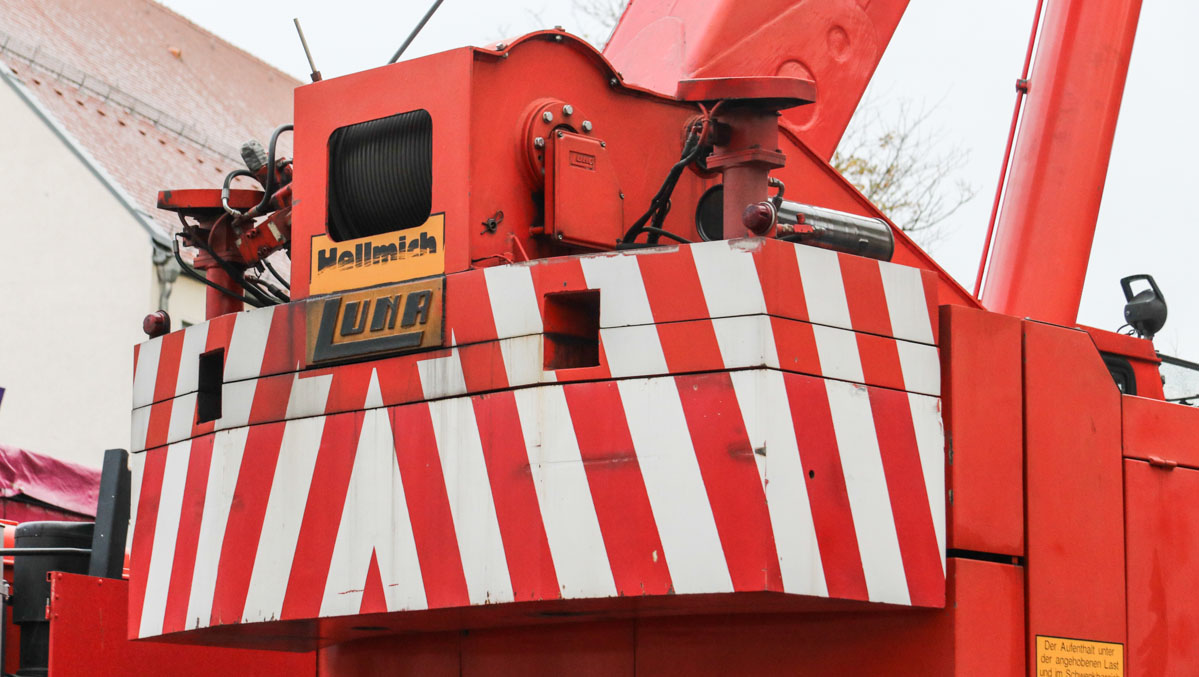

The counterweight weights 2 tonnes and has a 3 meter tailswing. The super structure is powered by a Mercedes-Benz OM 366 A diesel engine with a power of 122 kW (168 hp).

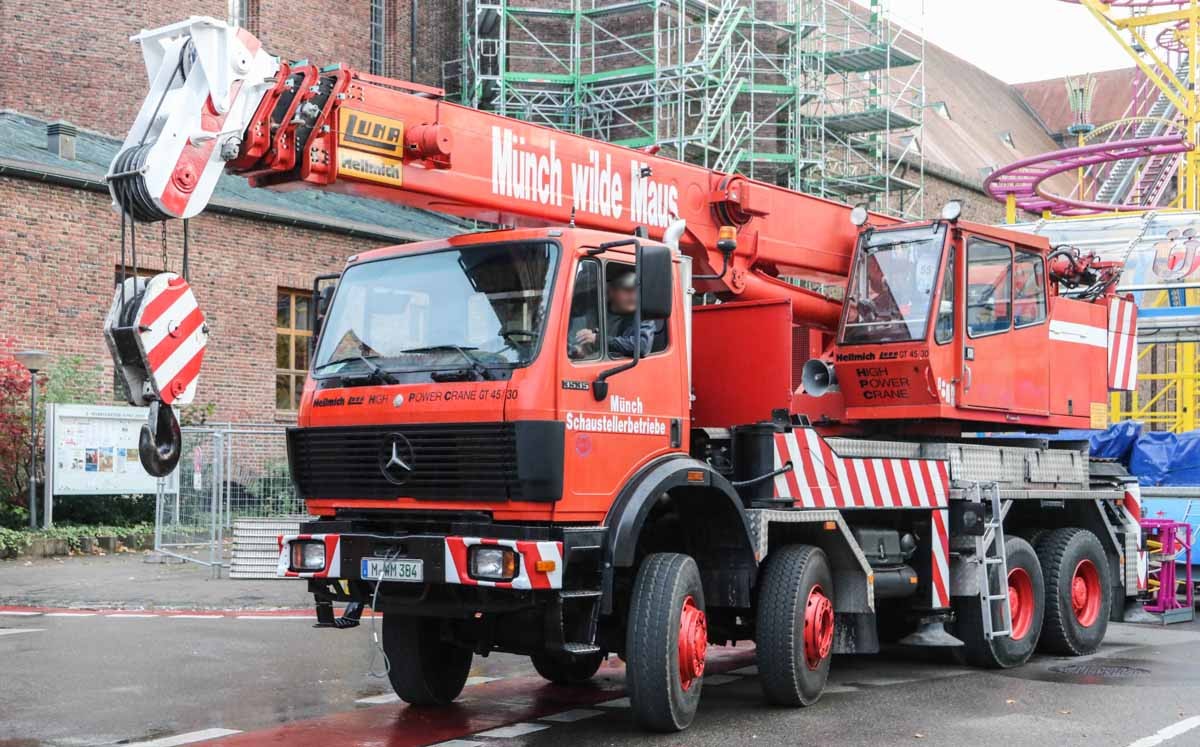

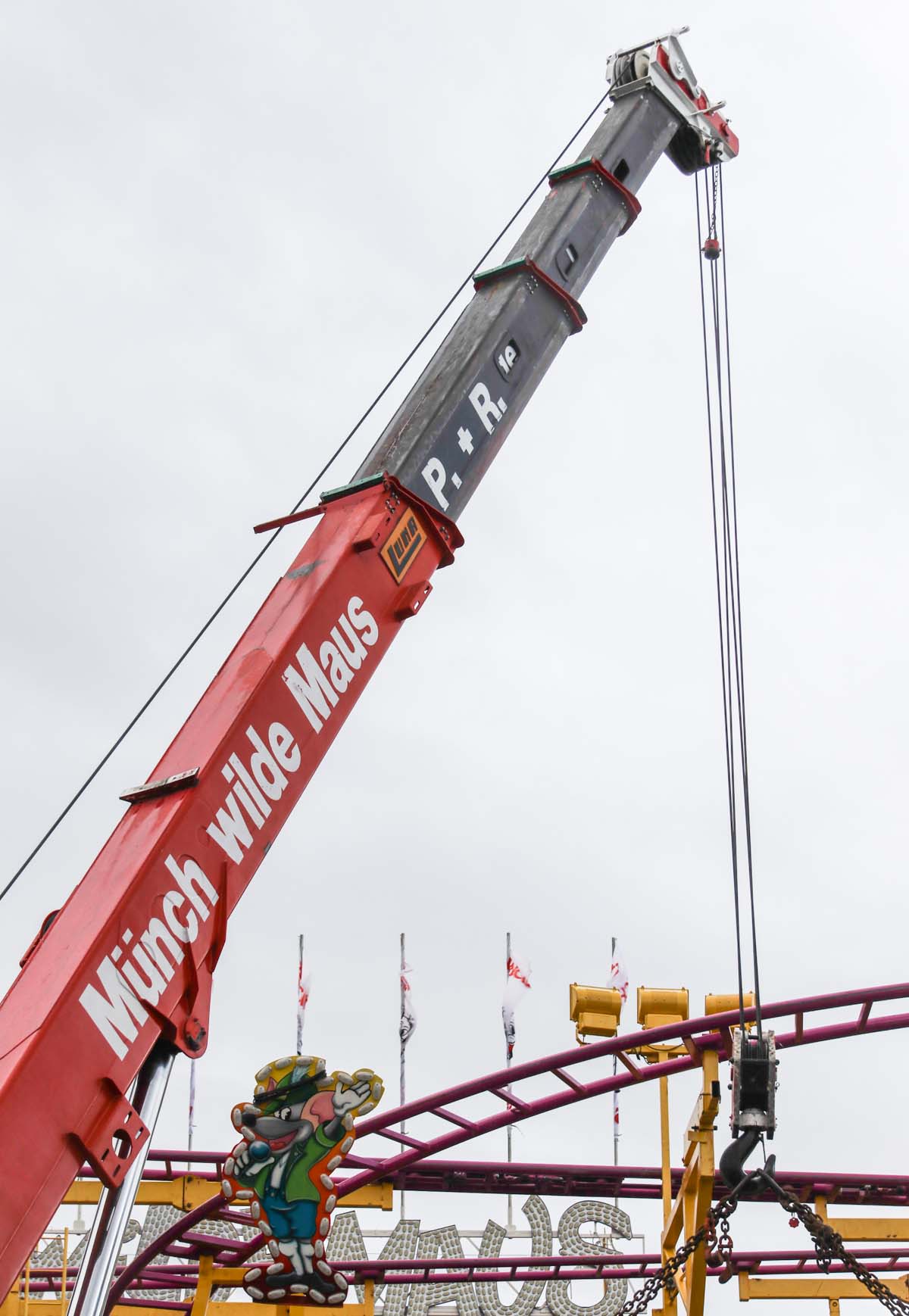

The main boom has a 9.3 meter base length and extends three times to a full length of 29.3 meters. The hoist rope has a maximum line pull of 47 kN.

Packed has the crane a length of 10.55 meters and a 2.49 meter width. The transport mass is approx. 32 tonnes. A very sharp and special crane!
