Liebherr LTM 1350-6.1 - Wiesbauer

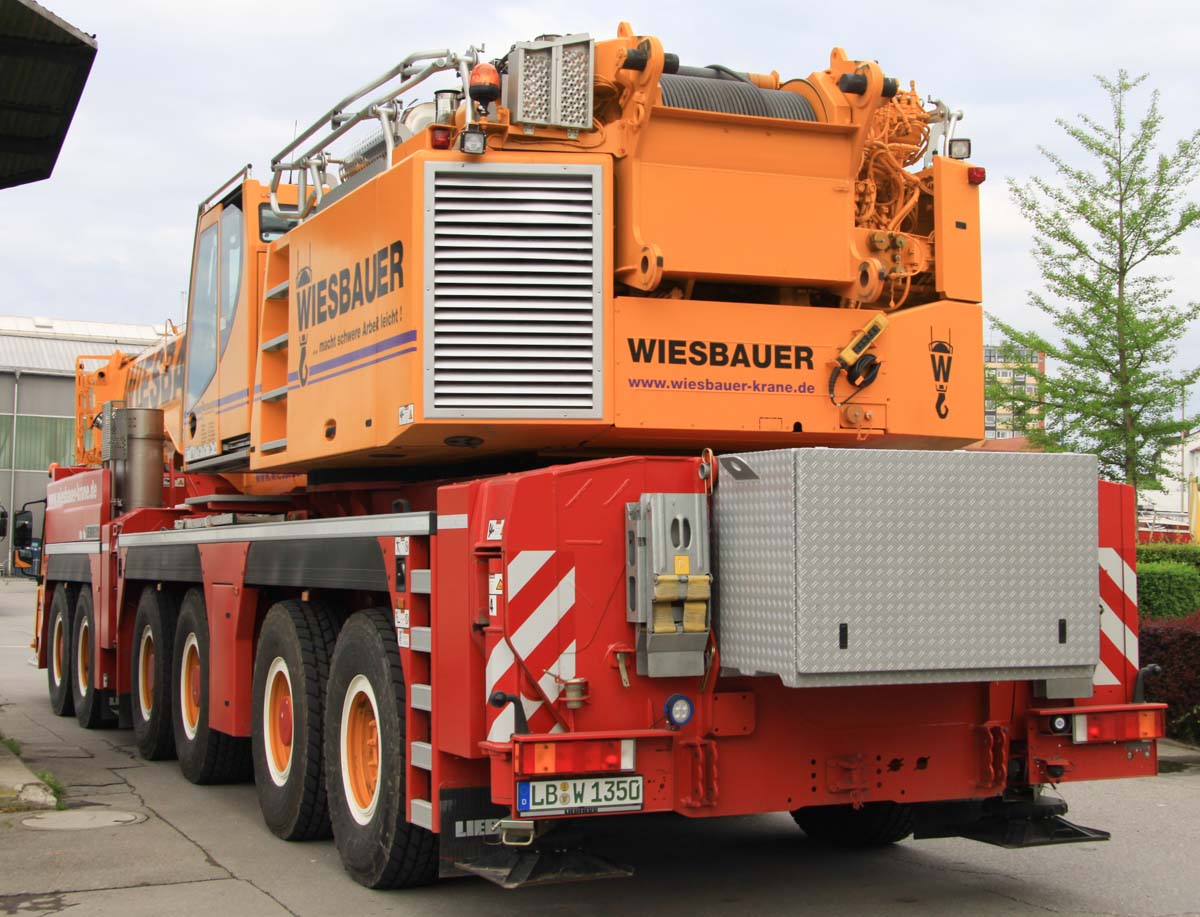

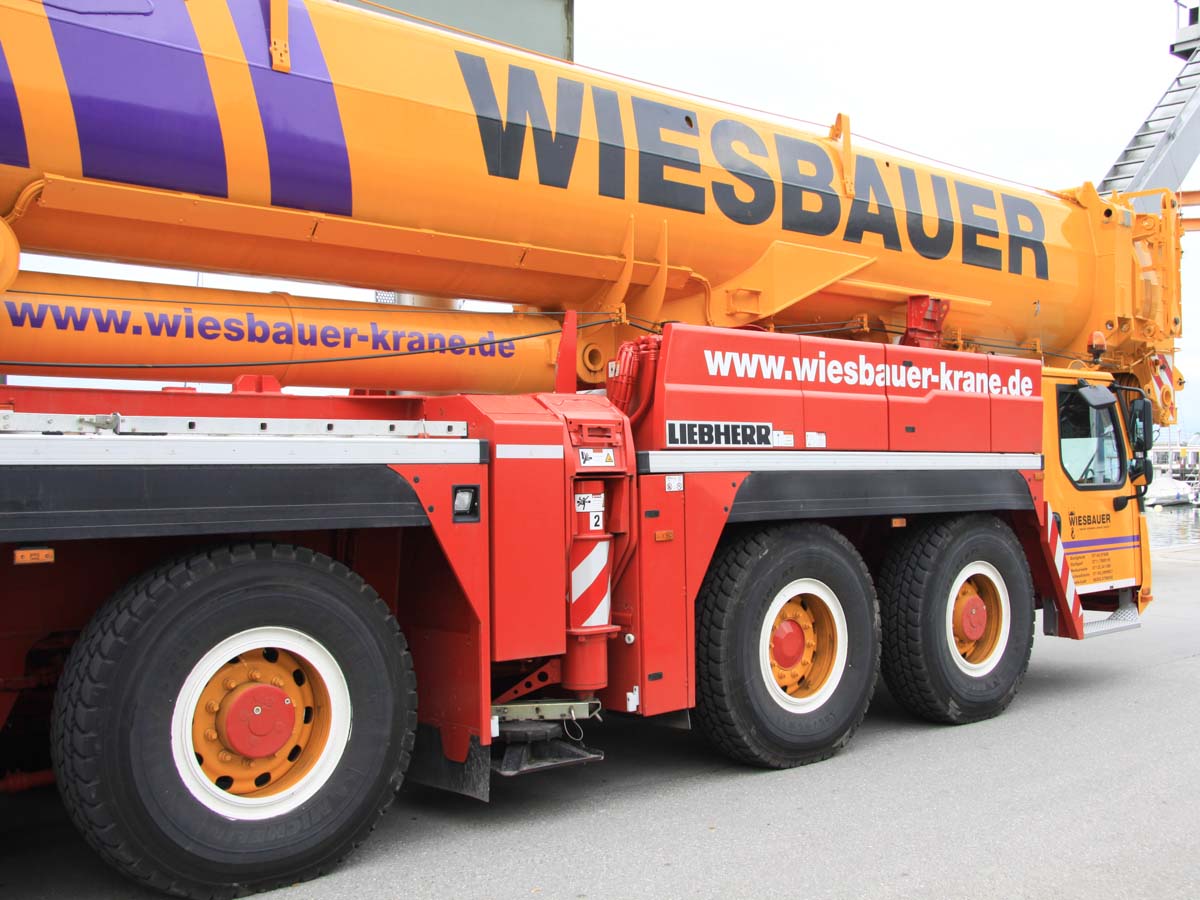

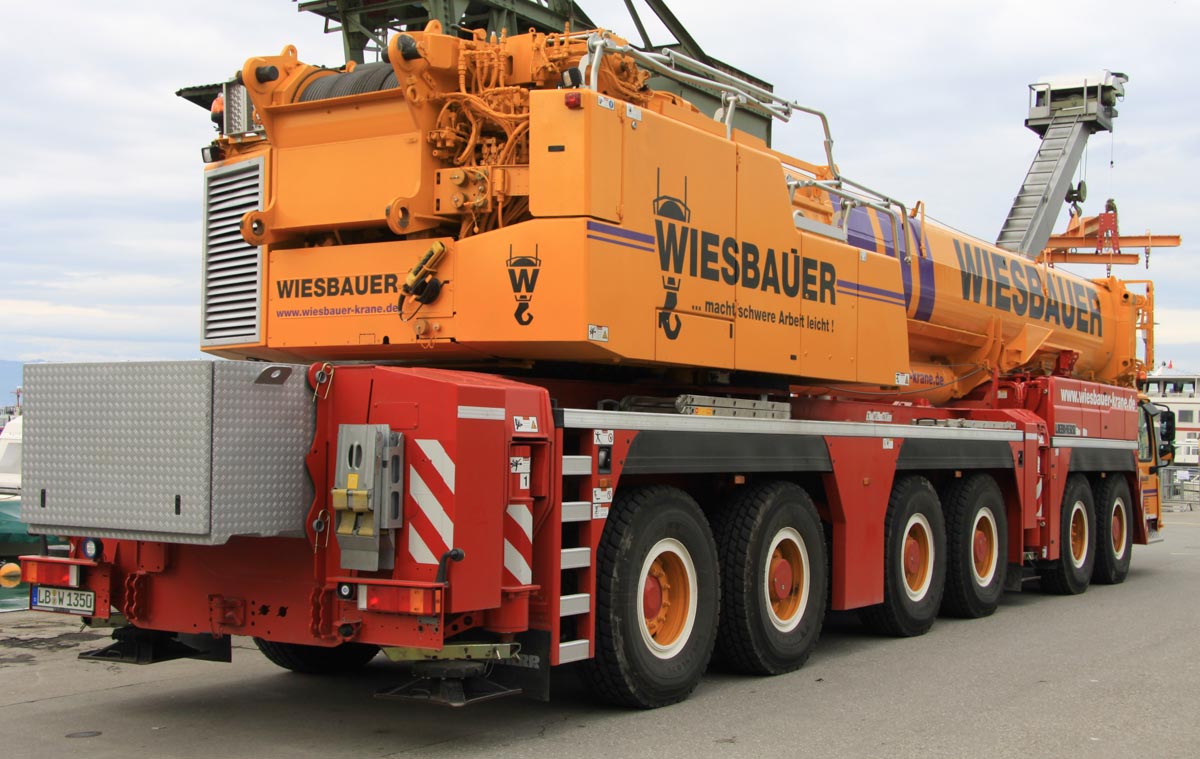

Wiesbauer from Bietigheim-Bissingen (DE) is using this sharp Liebherr LTM 1350-6.1. The crane should be used here in Friedrichshafen (DE) to lift a ship, that was transported in the week before by Kübler.

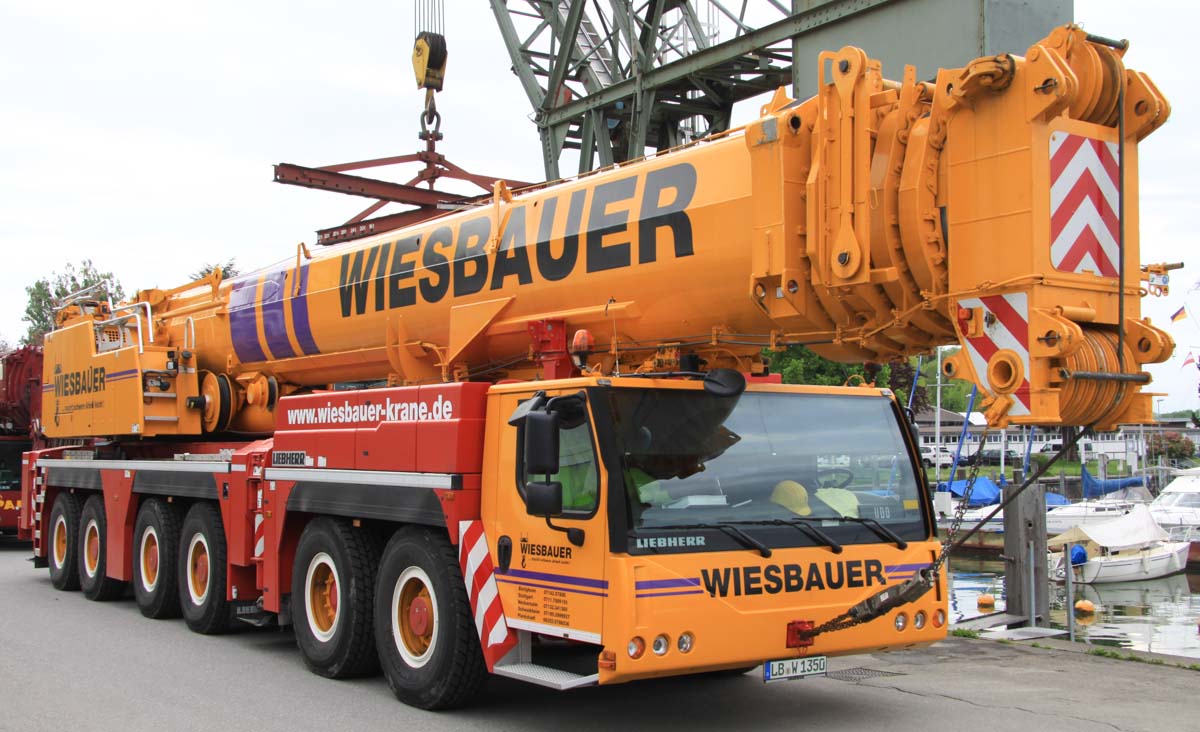

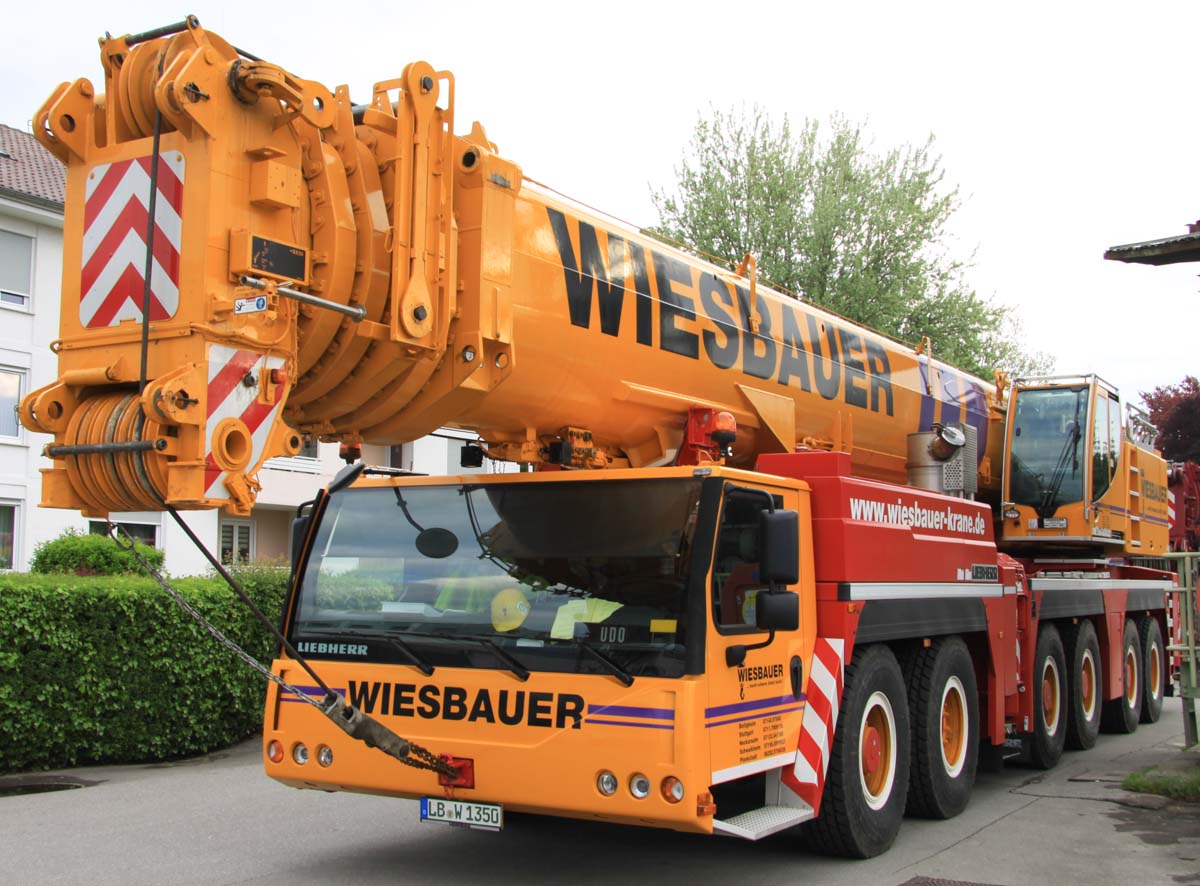

It is a 350 tonne crane on 6 axles. Packed has the crane a length of 17.74 meters, a breadth of 3 meters and a height of 3.95 meters (with 14.00 tires). The transport weight is here almost exact 72 tonnes.

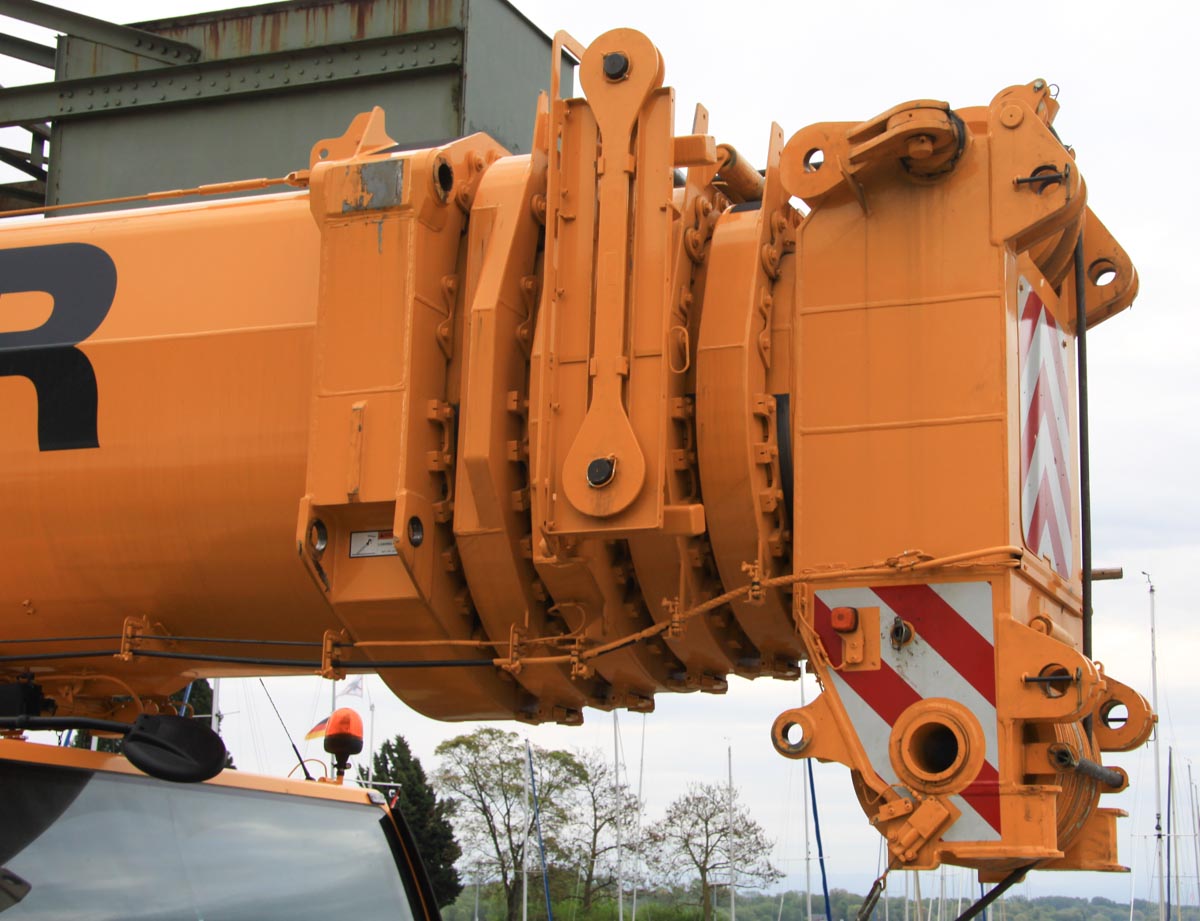

The main boom of the crane has a 14.9 meter base length and extends five times to a 70 meter length. The YSM boom guying will be mounted on the collar of the base section. The main boom can be extended by a 42 meter fixed jib or a 78 meter luffing jib.

The outrigger base of the crane measures 8.93 x 8.53 meters, or half 8,93 x 5.6 meters.

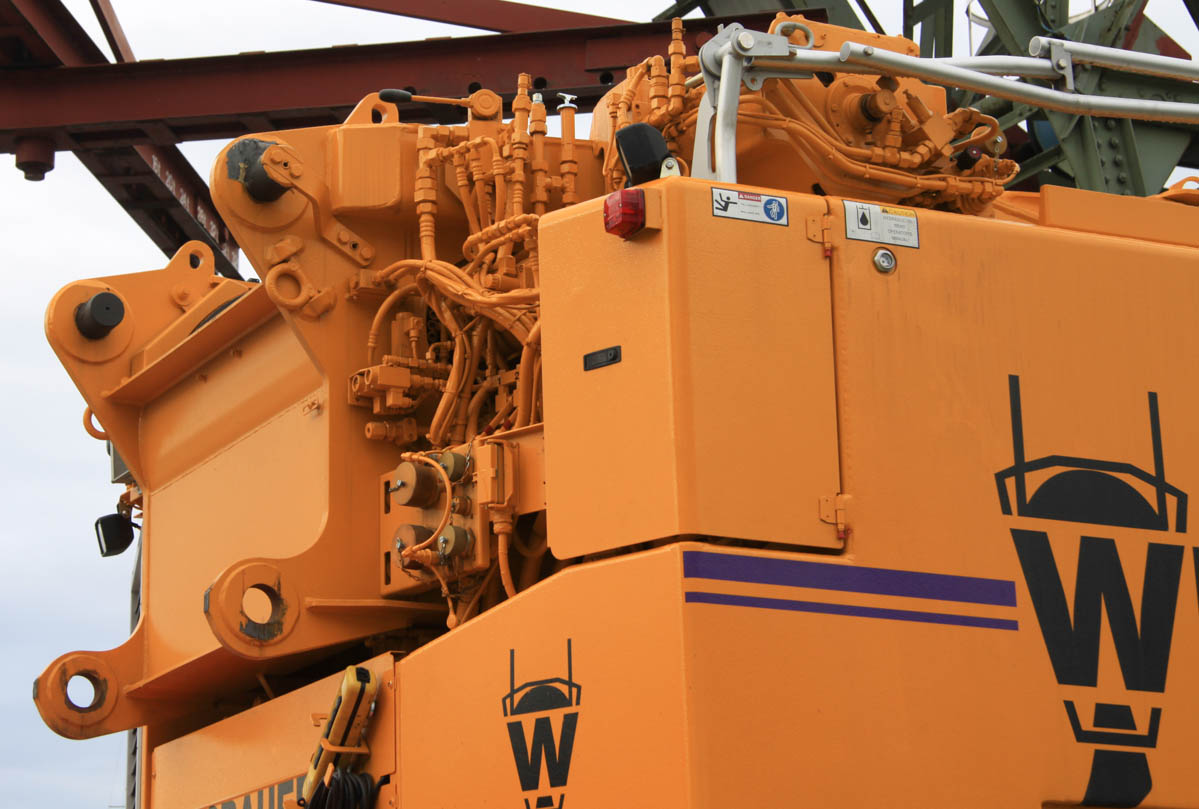

The counterweight has a maximum weight of 140 tonnes and has a 5.7 meter tailswing. The adjustment winch for the luffing jib is integrated in the frame on the counterweight.

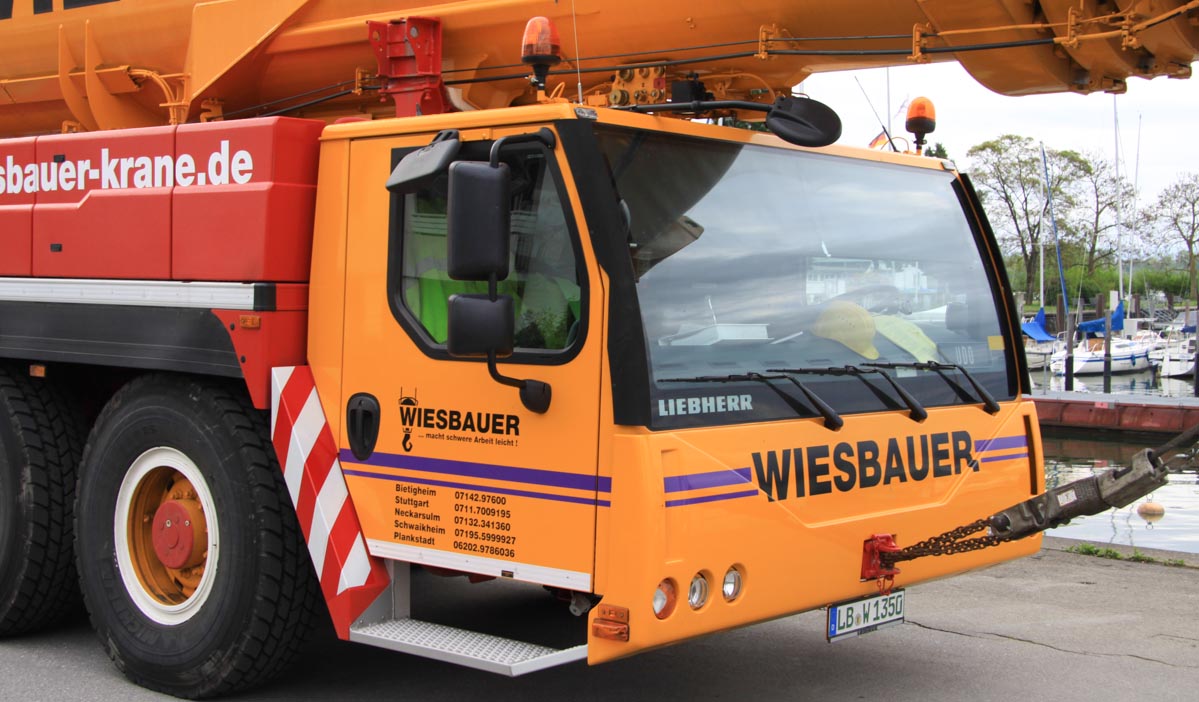

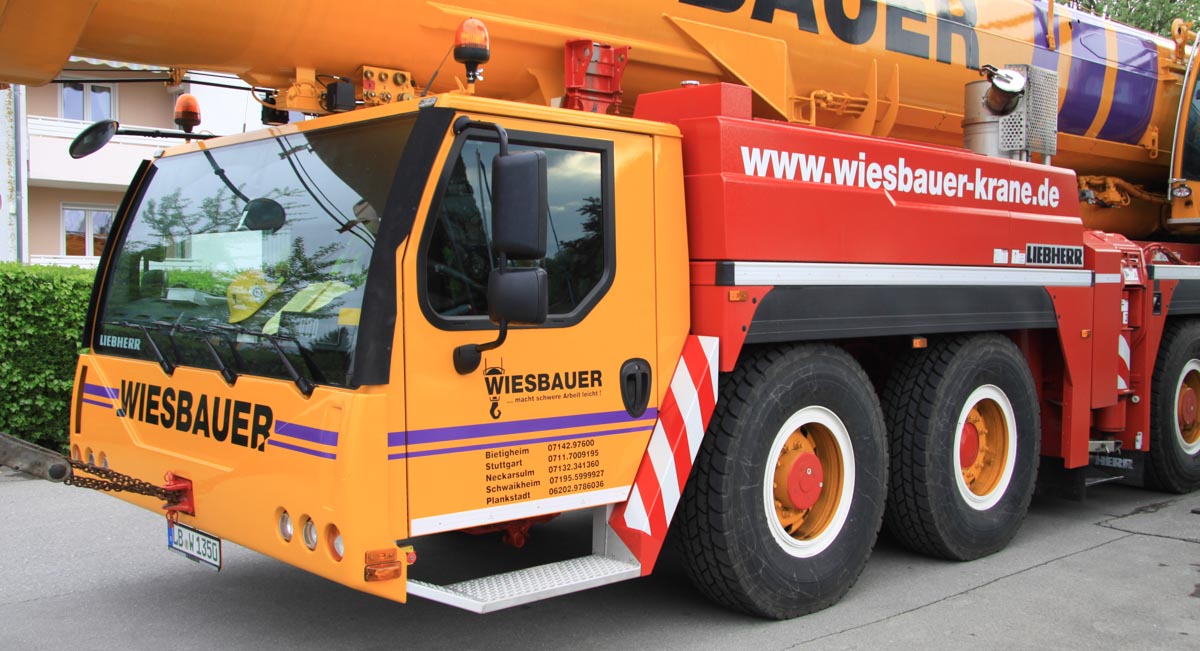

The undercarriage is powered by an 8 cylinder Liebherr diesel engine with 612 hp. By this crane are 4 axles driven, all axles are steerable.

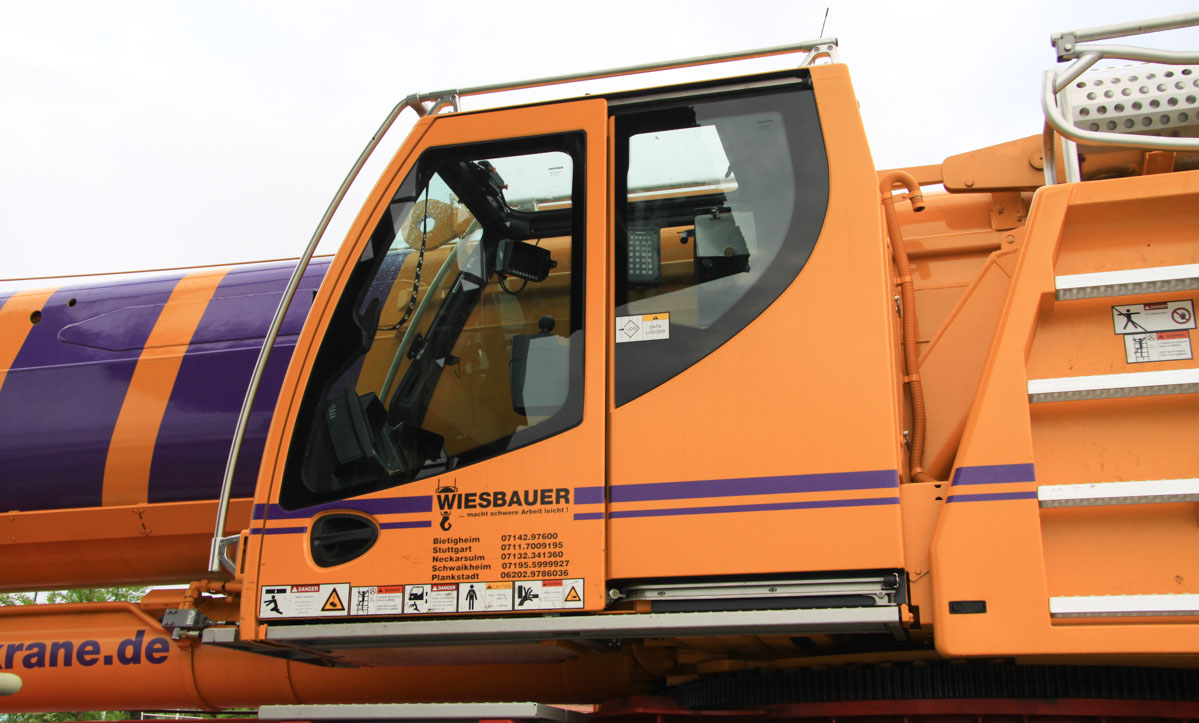

The cabin of the superstructure is tiltable.

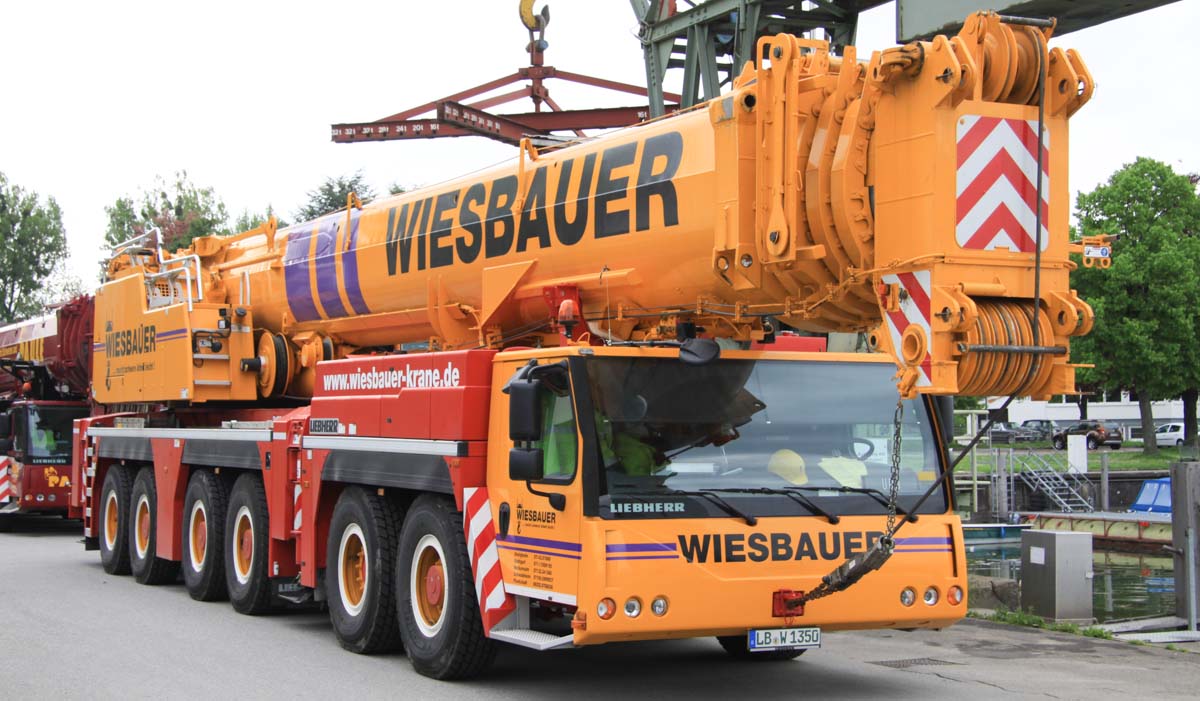

A very sharp crane in the colors of Wiesbauer. Unfortunately the crane job was cancelled that day, because the transport was delayed and would arrive the next day.
