Liebherr HS 875 HD - Volker Staal en Funderingen

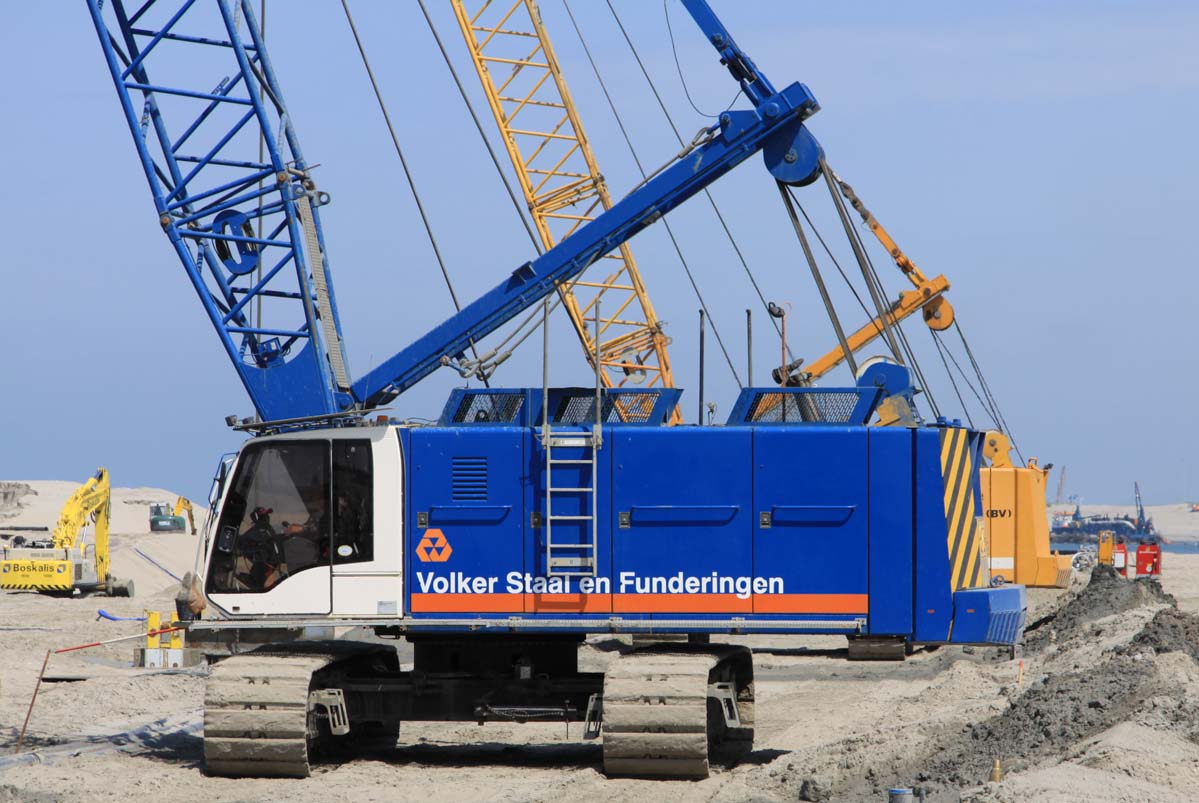

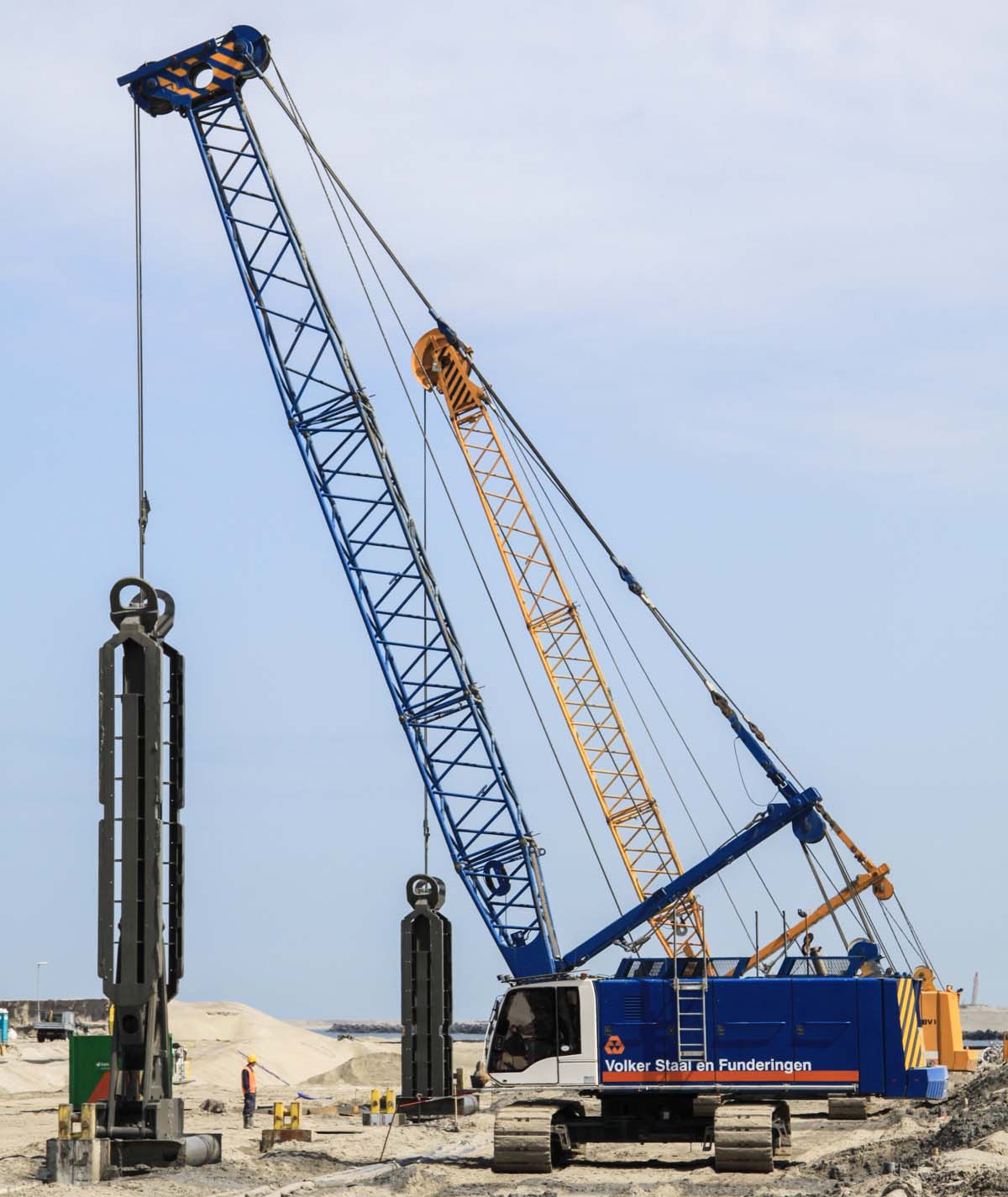

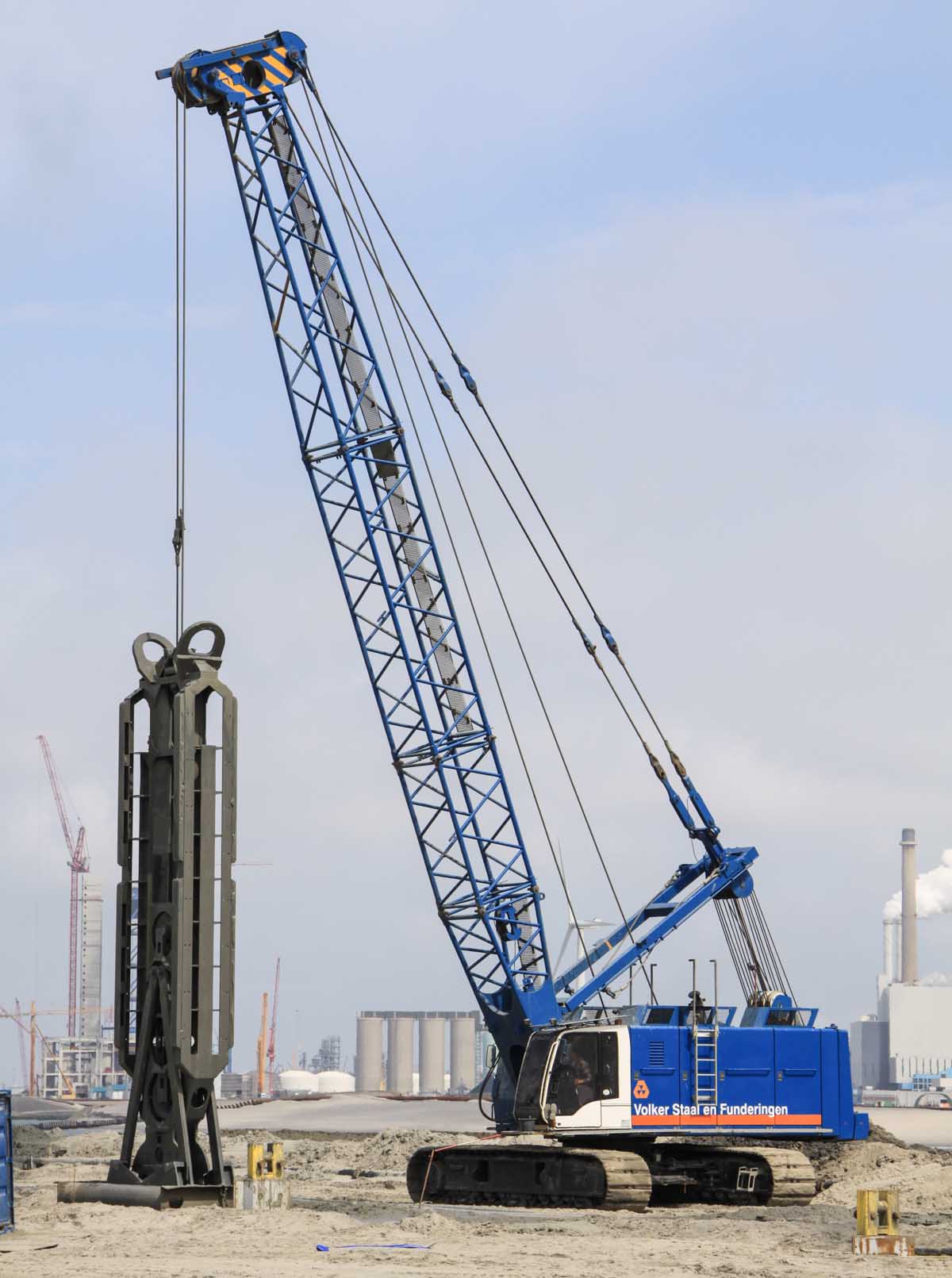

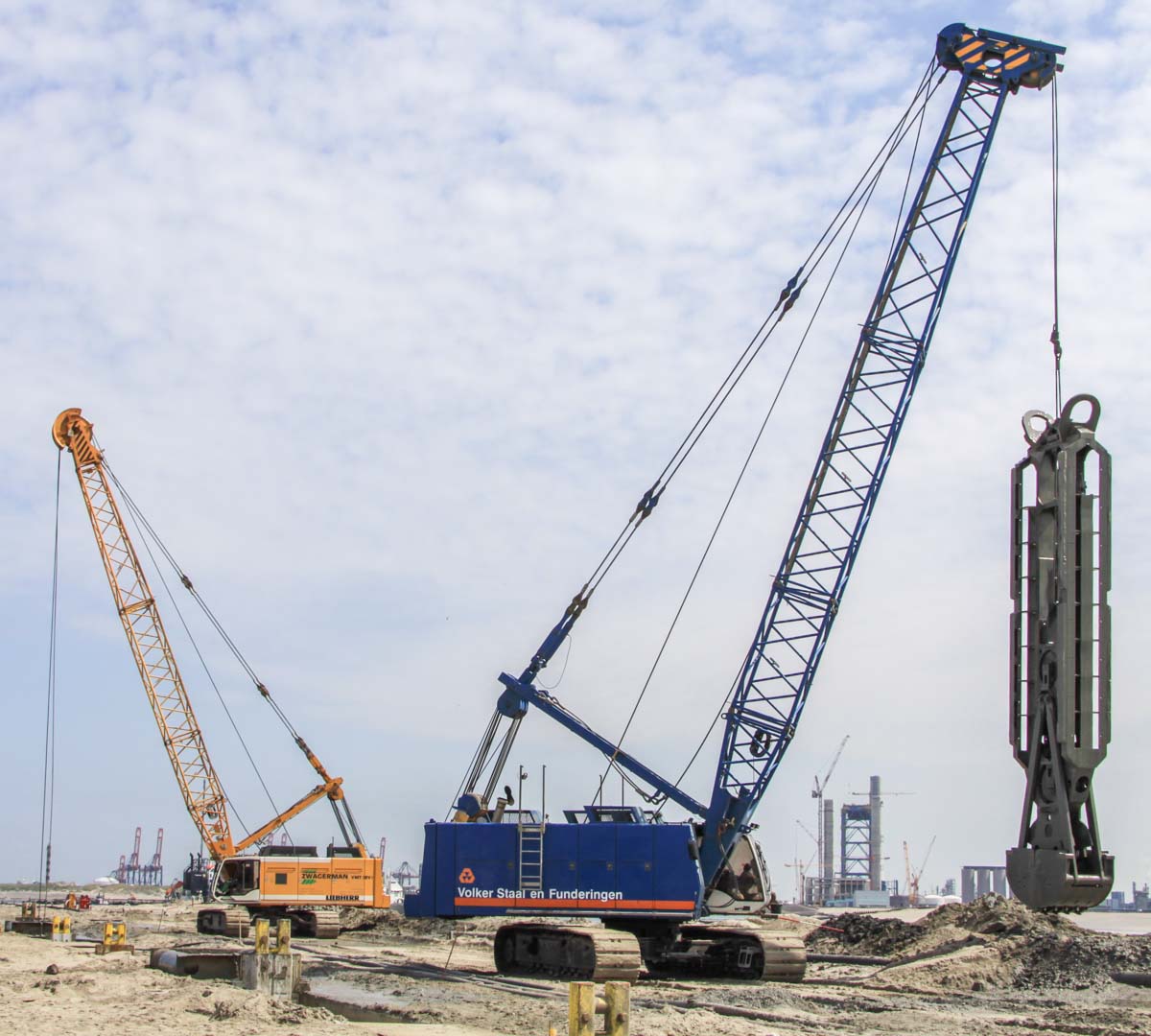

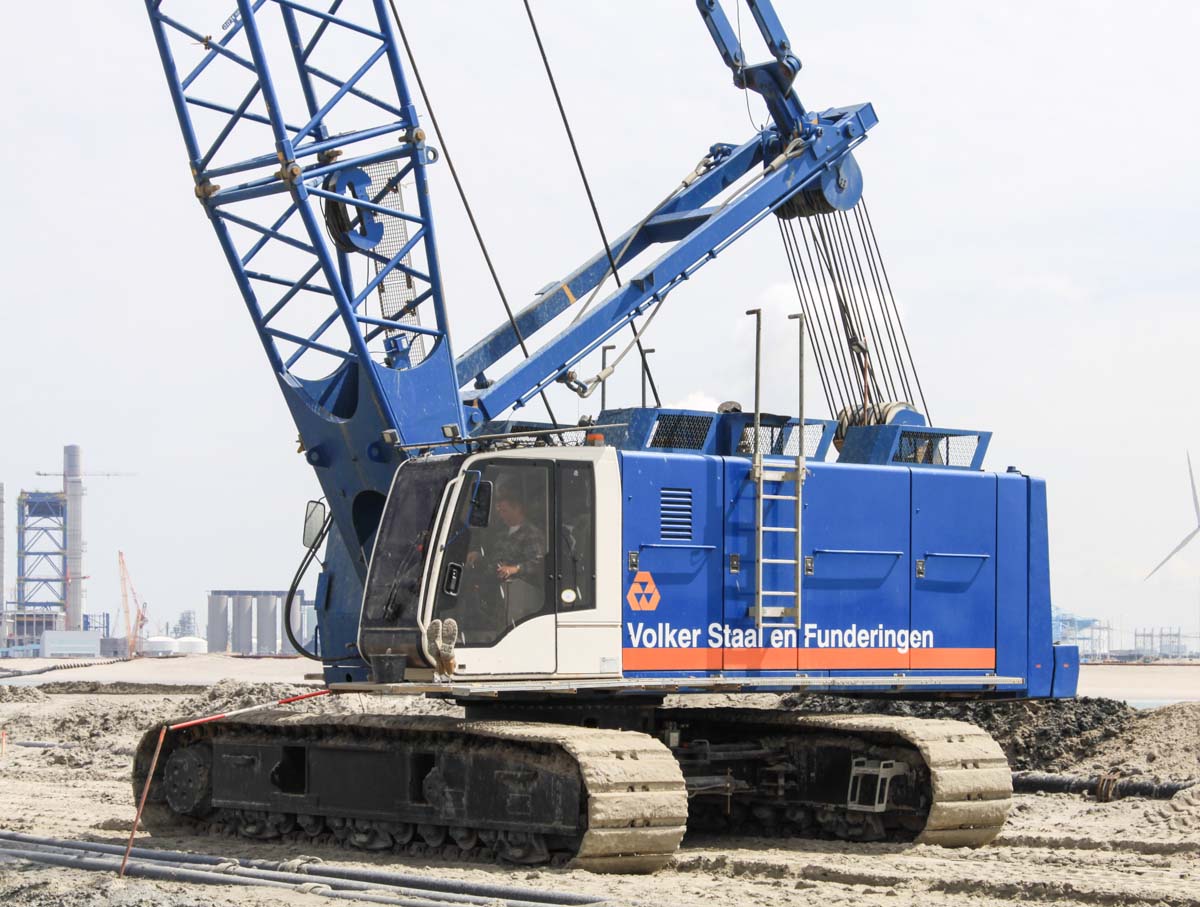

This Liebherr HS 875 HD of Volker Staal en Funderingen from Dordrecht (NL) was together with the HS 875 HD of BAM and Zwagerman VMT used on a construction site on the Second Maasvlakte (NL) to dig large slurry walls for large quay walls.

The heavy duty crane was erected with a 20 meter main boom. The maximum boom length as lifting crane is 50 meters.

The heavy duty crane is powered by a Liebherr D 9508 A7, a 603 hp diesel engine. This is a 100 tonne heavy duty crane.

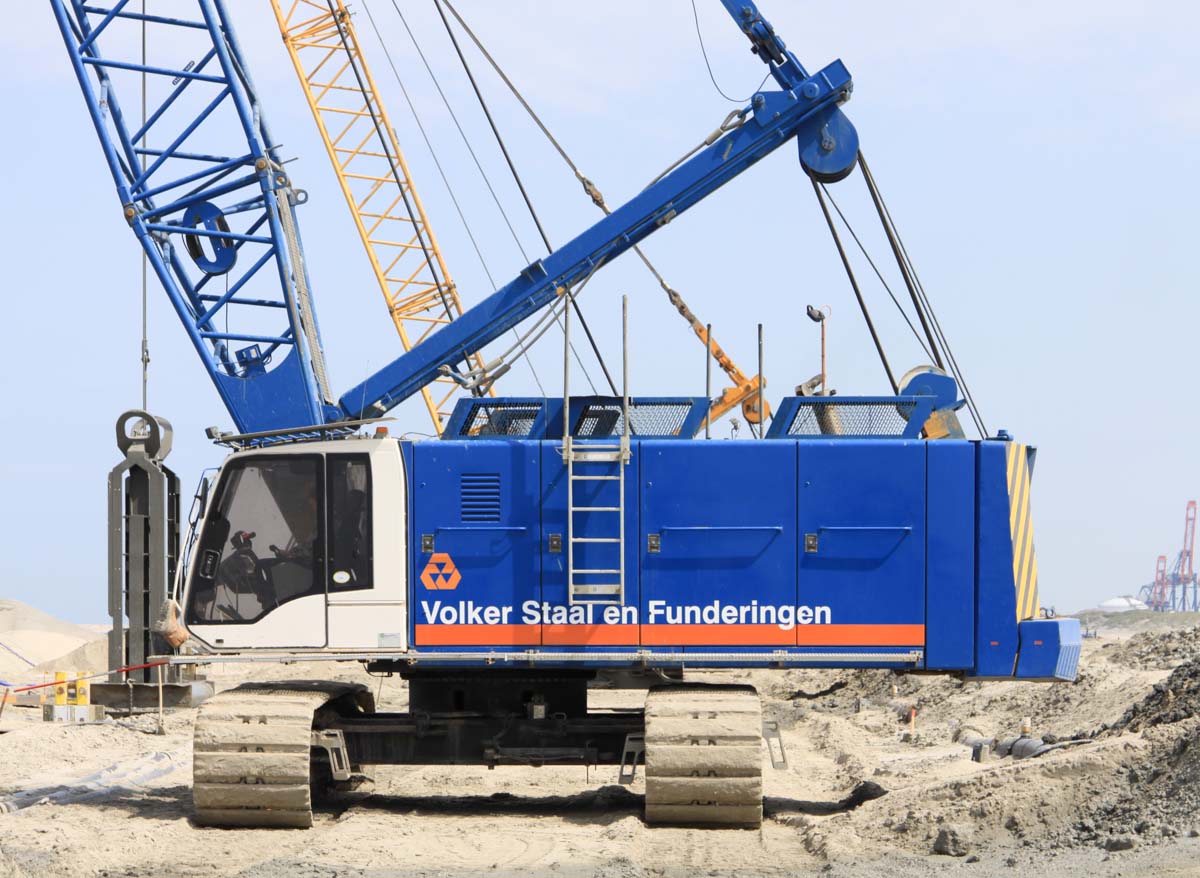

The undercarriage is 6.48 meters long and 4.9 meters wide. The superstructure is 3.5 meters wide.

The counterweight weights 24.1 tonnes and has a 5.52 meter tailswing.

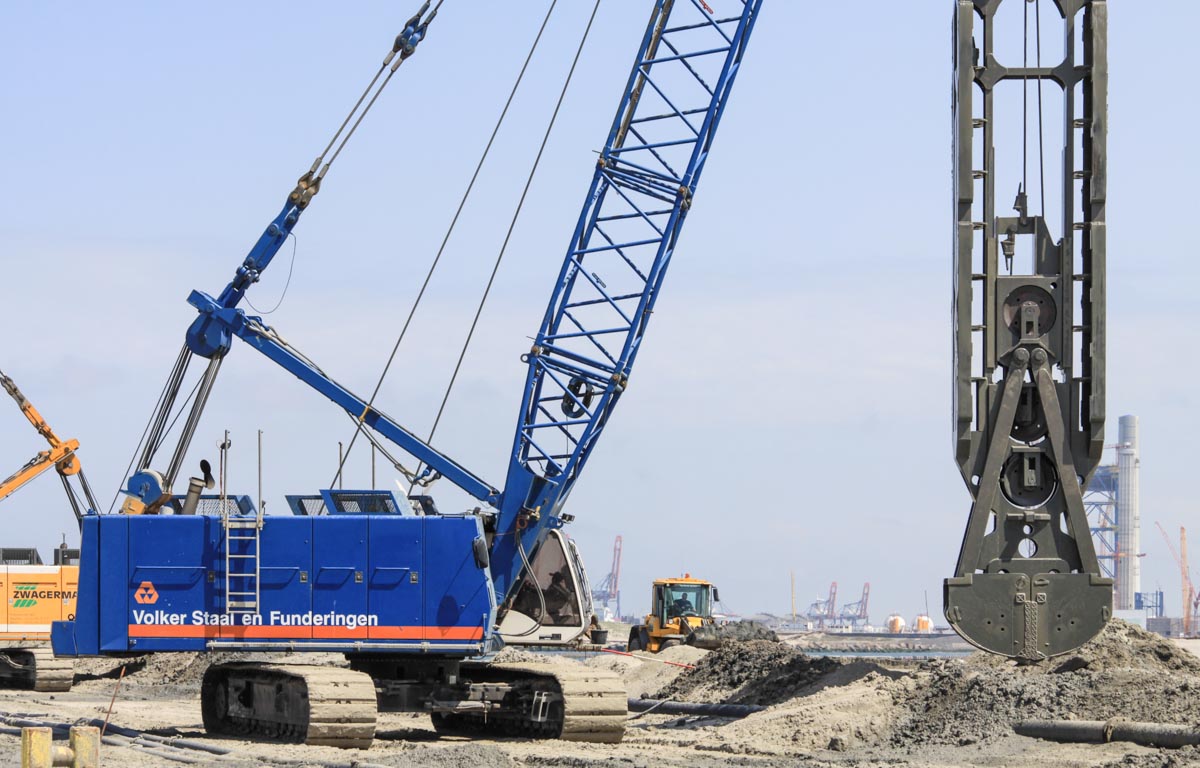

At this project were two quay walls made with a 650 and 1250 meter length and 38 meter depth by slurry wall method.
