Liebherr LTM 1200-5.1 - Schmidbauer

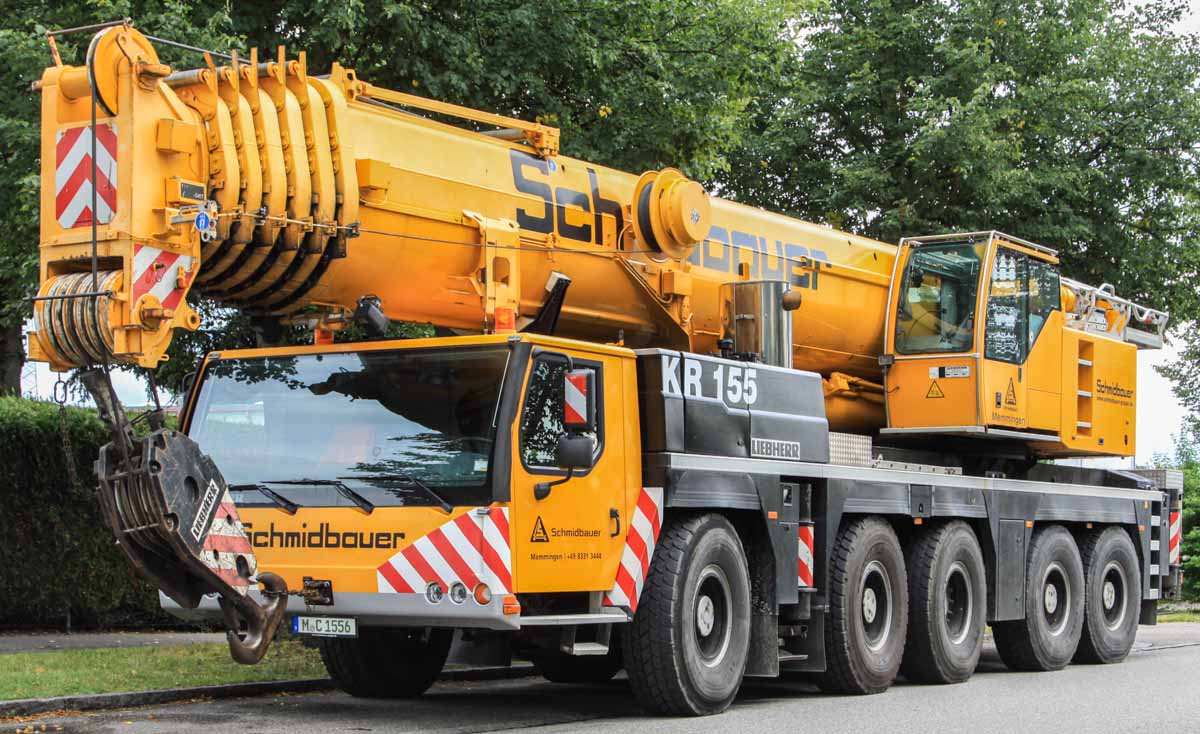

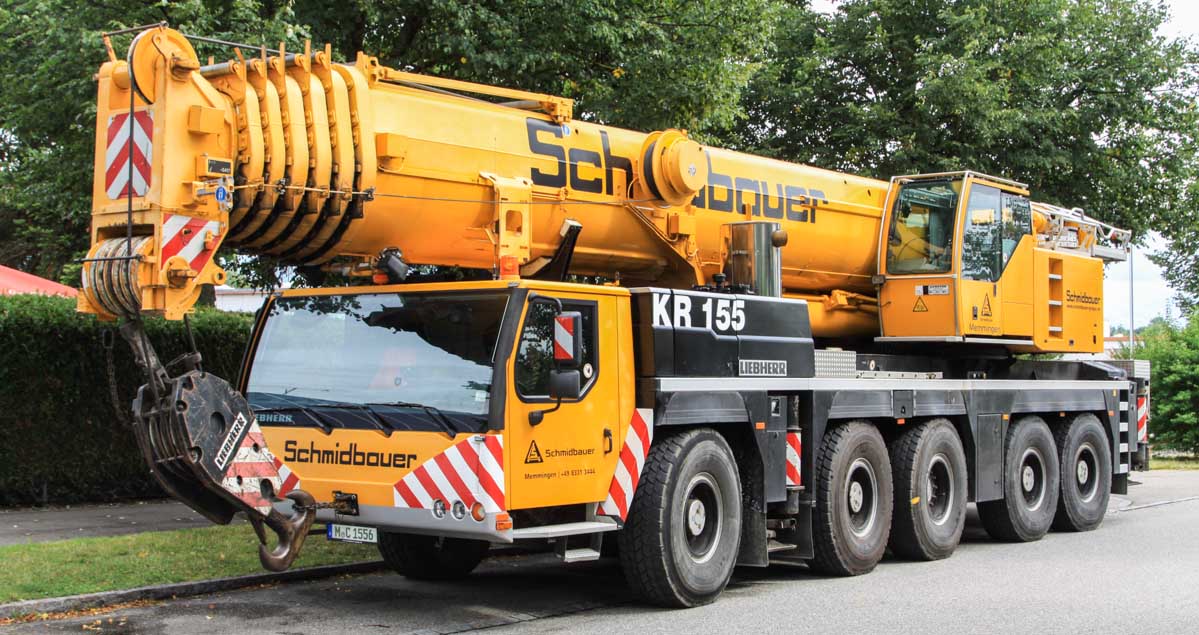

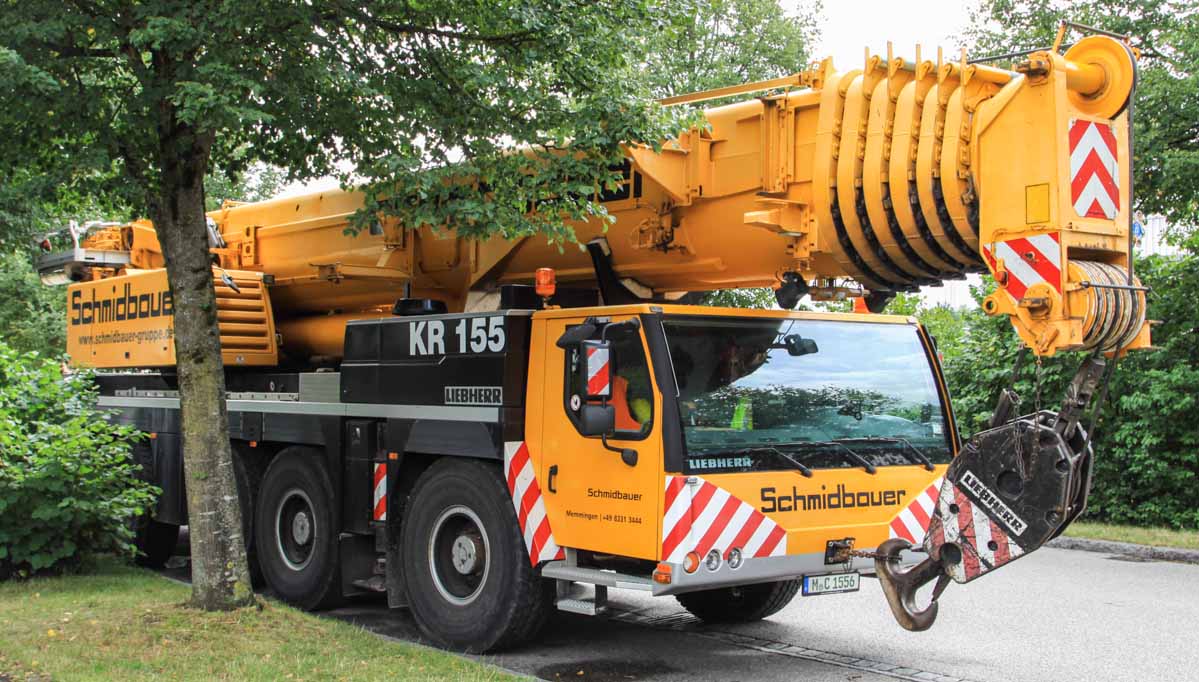

Schmidbauer is operating from their branch in Memmingen (DE) this sharp Liebherr LTM 1200-5.1. It is a 200-tonne crane with year of manufacture 2007.

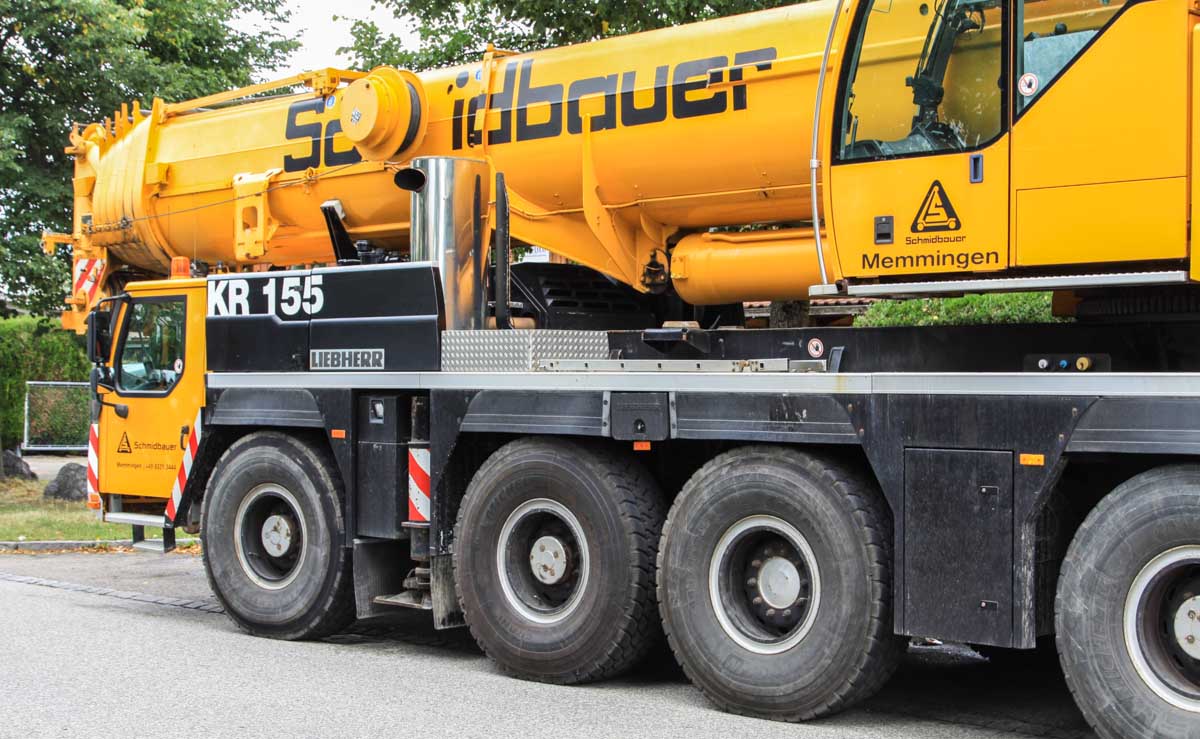

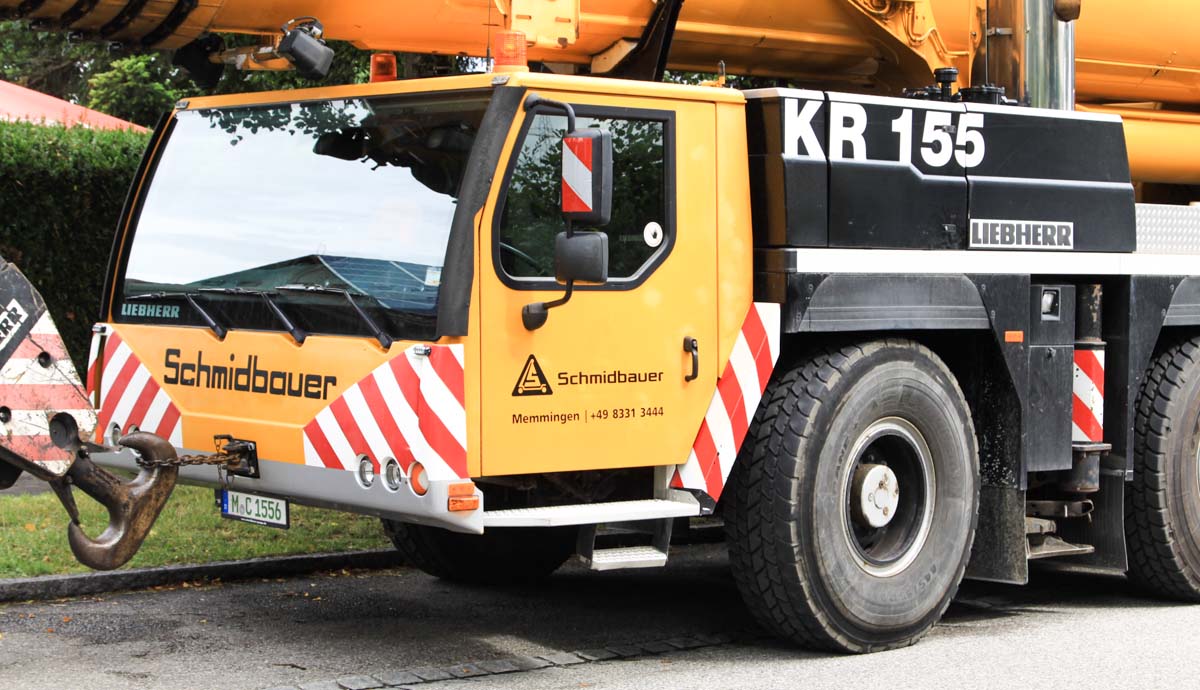

The undercarriage is powered by a Liebherr 6-cylinder diesel engine with a power of 370 kW (503 hp). This crane has the optional 10x8-drive line, where the first axle is also driven. All axles are steerable.

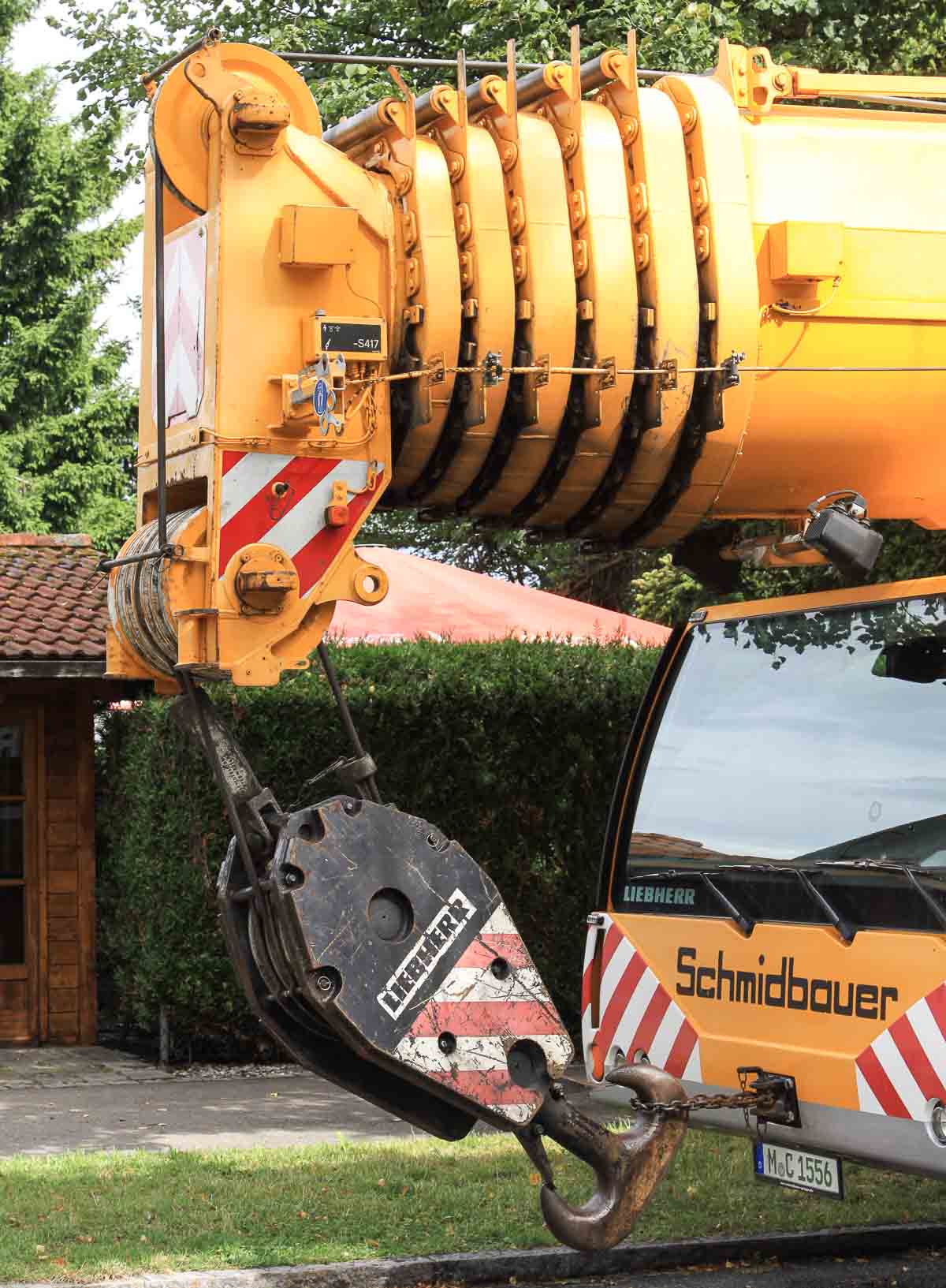

The 7-part main boom has a 13.2 meter base length and extends six times to a maximum length of 72 meters. A 12.2 / 22 meter bi-fold swingaway jib can be transported with the crane and is under 0, 22.5 and 45 degrees mountable. With two lattice extensions is the jib extendable to a maximum length of 36 meters.

Packed has the crane a 15.37 meter length, a 3 meter width and a 4 meter height. The transport mass is 60 tonnes. This crane doesn't bring the folding jib, in order to stay within the legal axle loads.

The outrigger base measures 8.9 x 8.3 meters, or half 8.9 x 5.5 meters.

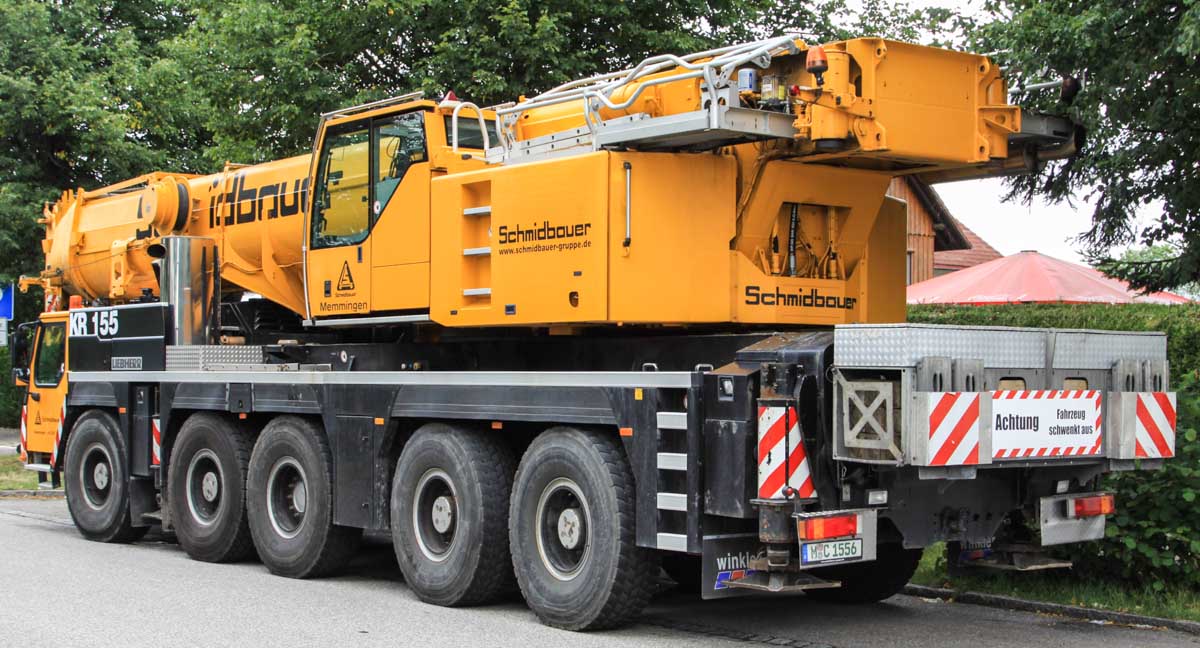

At the rear of the chassis is a large box installed for the wooden beams and some smaller lifting gear. The larger outrigger pads and the first counterweight are transported by the MAN TGA 26.440.

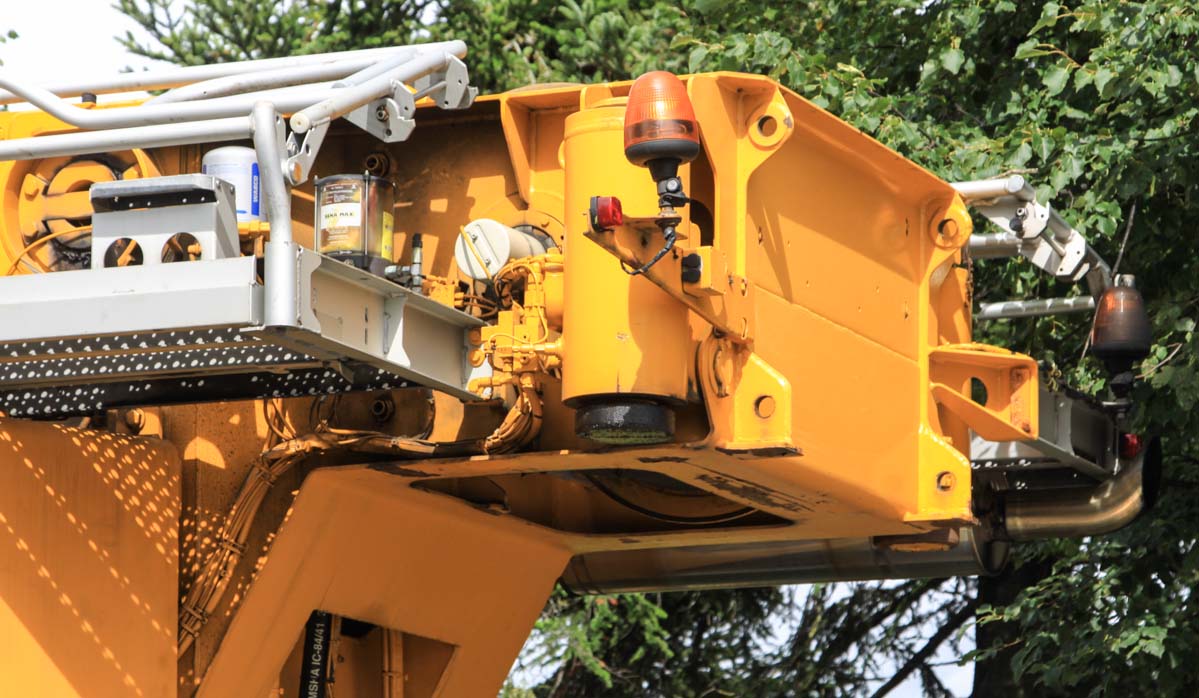

The full counterweight weights 72 tonnes and has a 4.85 meter tailswing. Optionally is it possible to attach a second winch to the super structure.

A sharp crane in the colours of Schmidbauer, this is the largest crane they are operating from Memmingen.
