Liebherr LTM 1130-5.1 - Scheffknecht

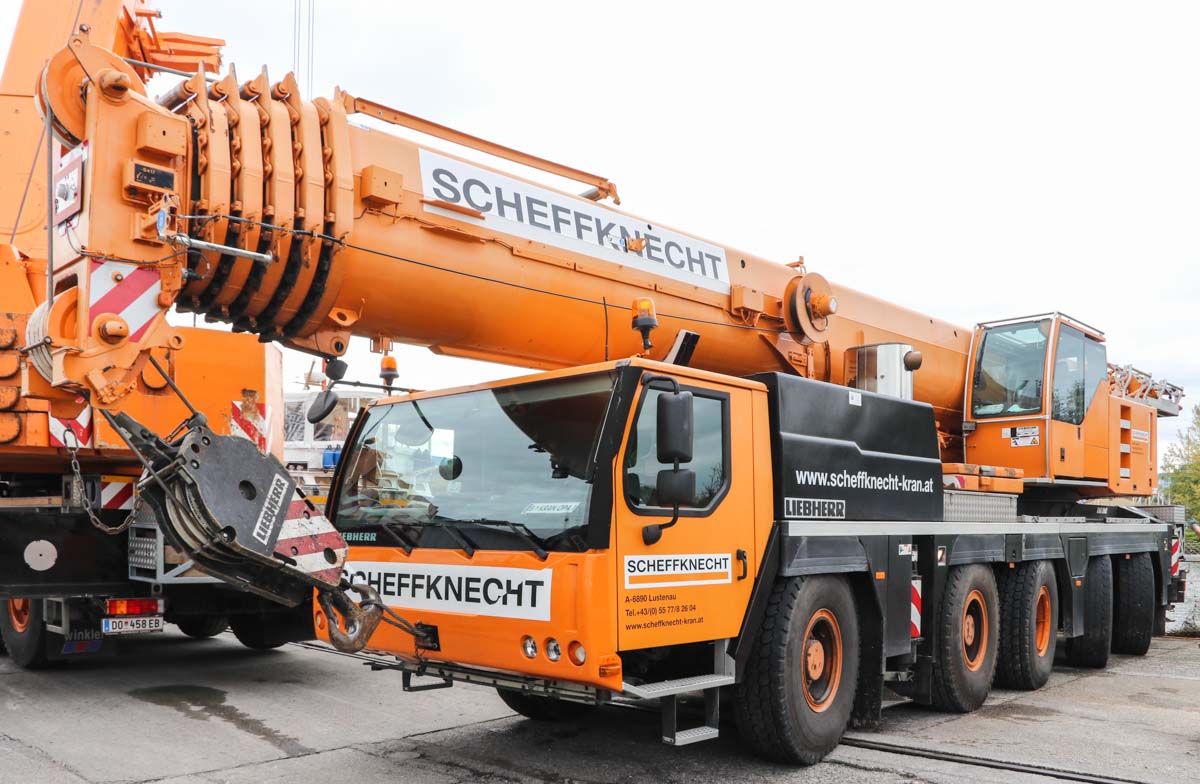

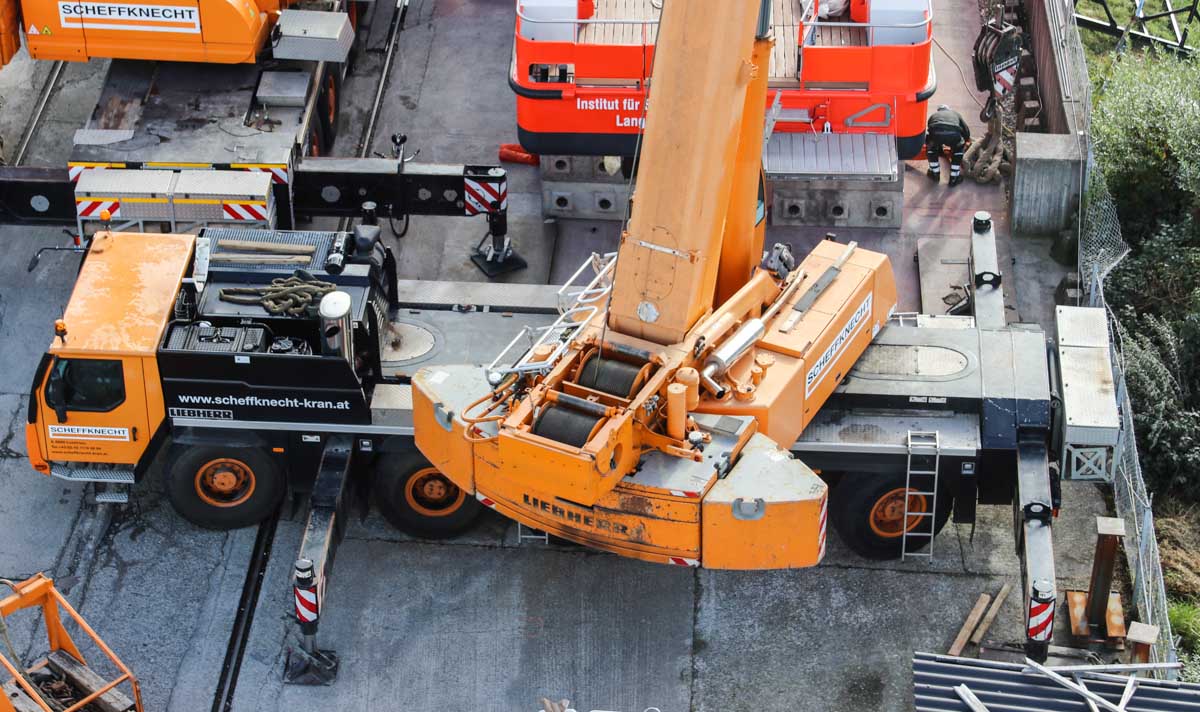

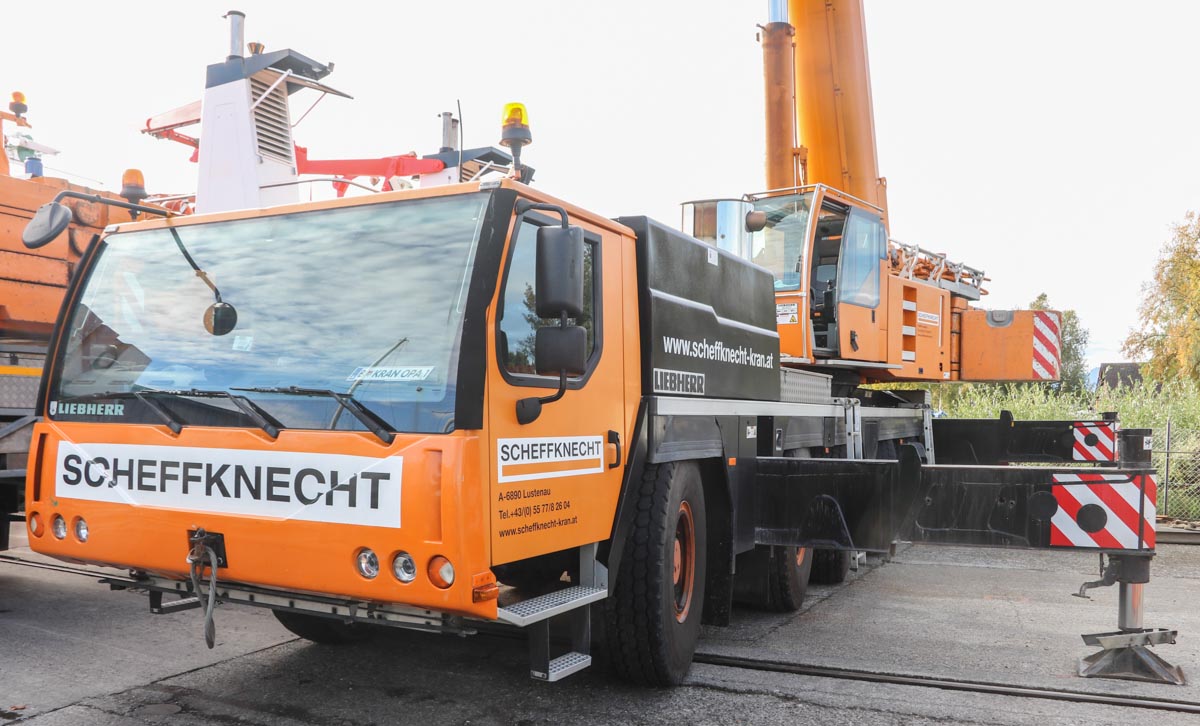

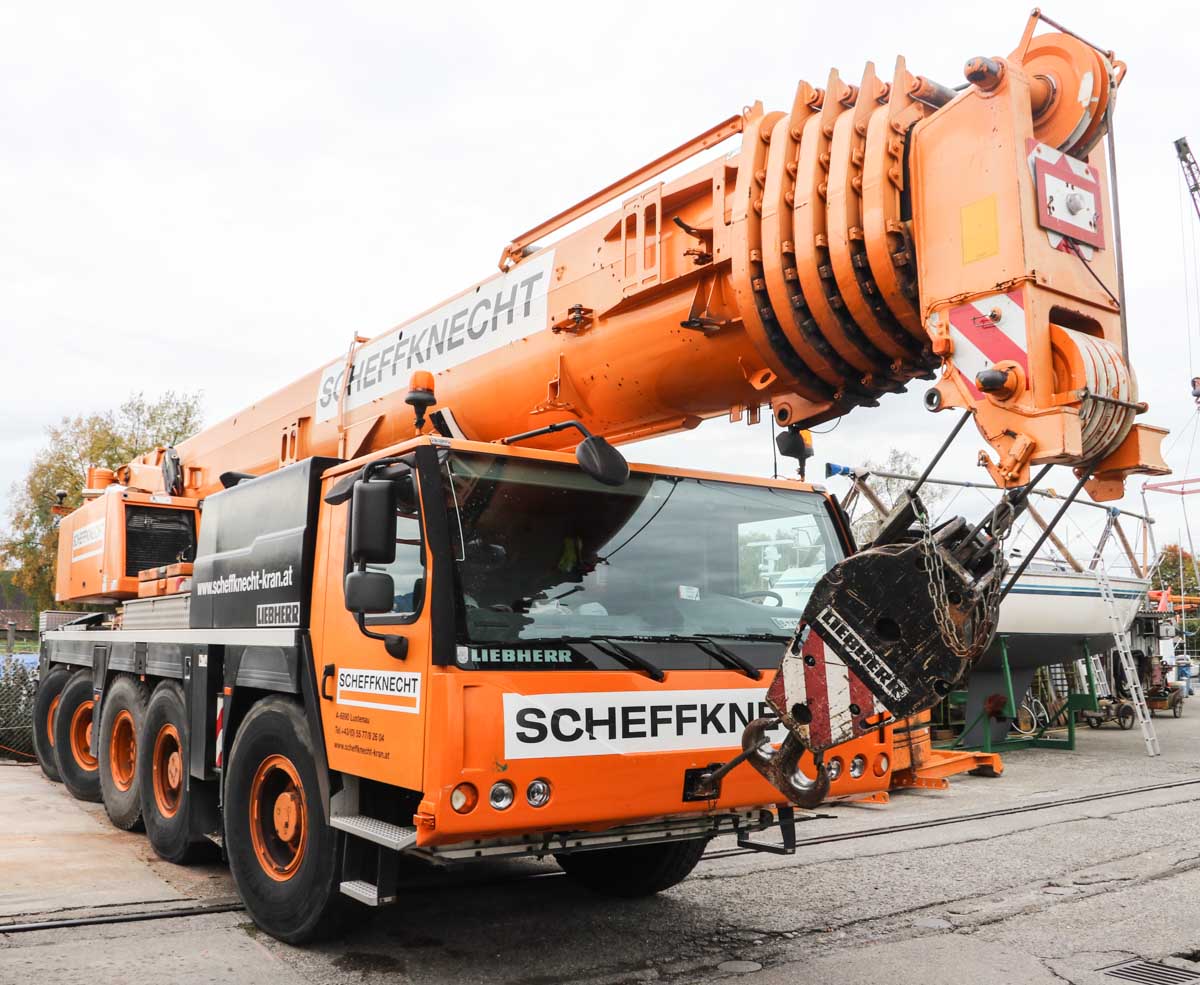

Scheffknecht from Lustenau (AT) is operating this sharp Liebherr LTM 1130-5.1, that was used by the lifting of a boat together with two other cranes. It is a 130-tonne crane with year of manufacture 2009.

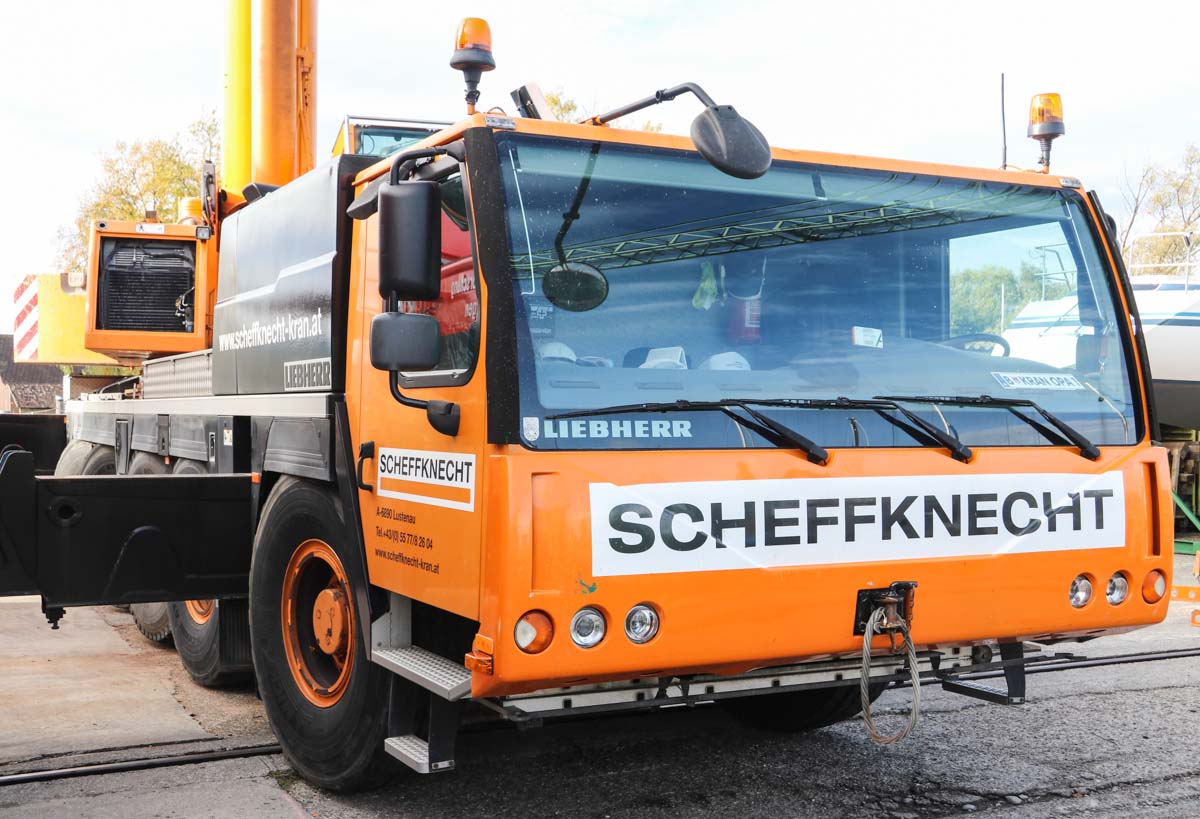

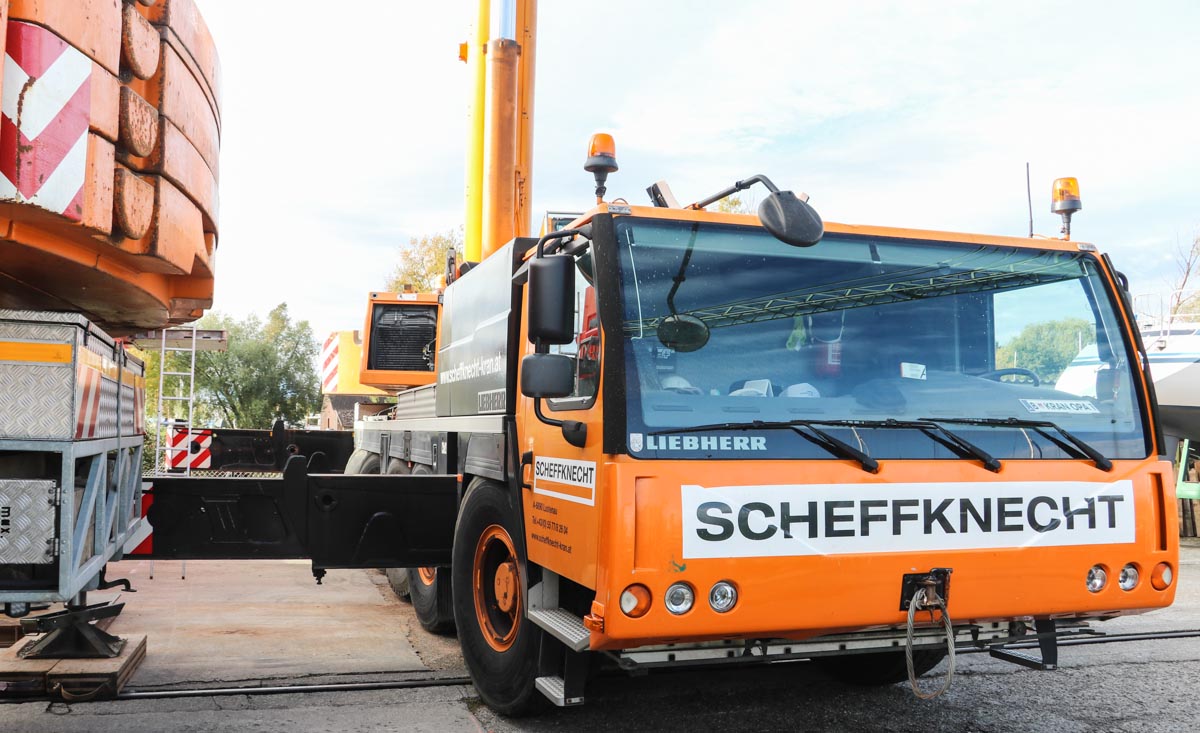

The undercarriage is equipped with the optional 10x8-drive line and is powered by a 6-cylinder diesel engine with a power of 370 kW (503 hp).

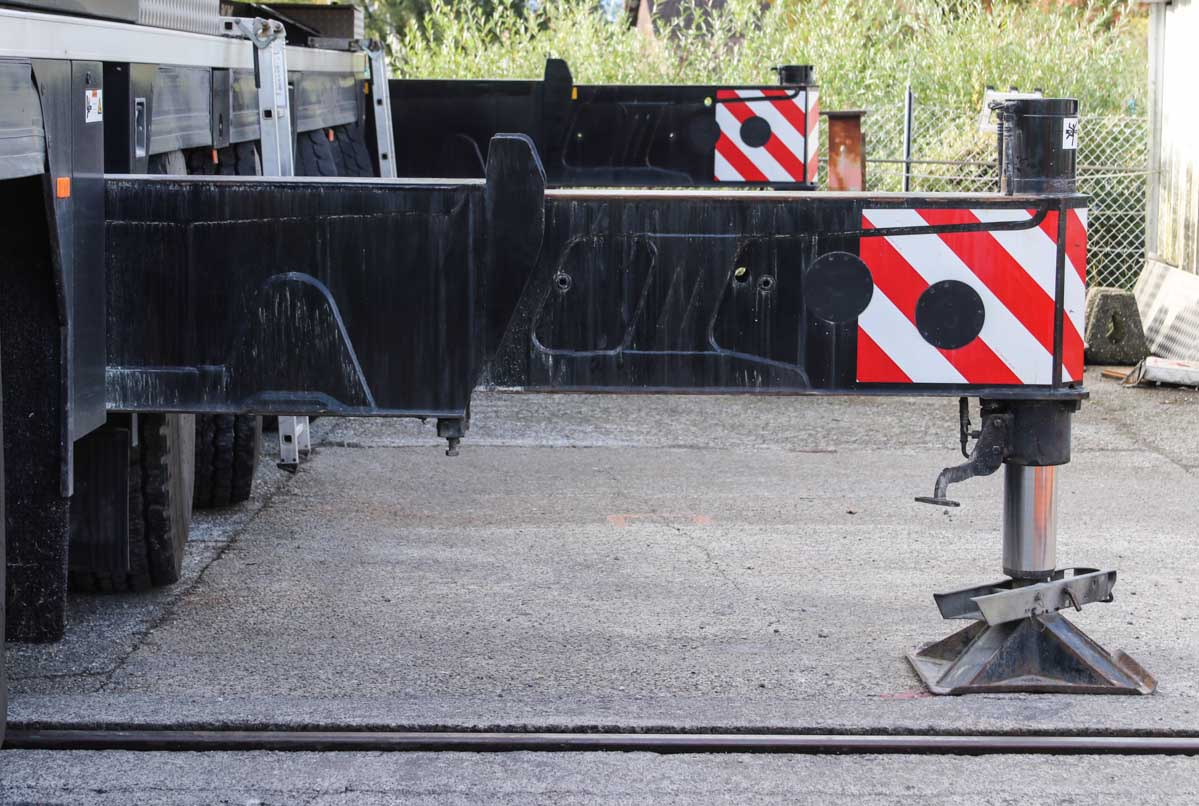

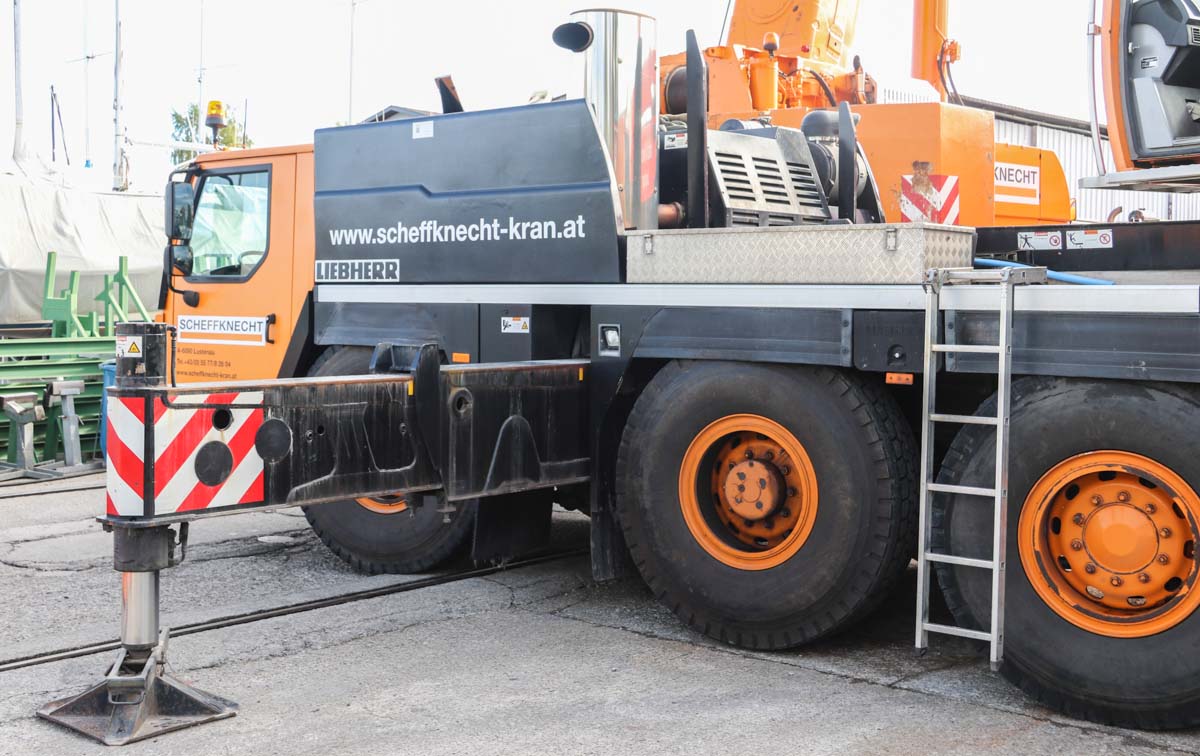

The outrigger base measures 8.07 x 7.5 meters, or half 8.07 x 4.95 meters.

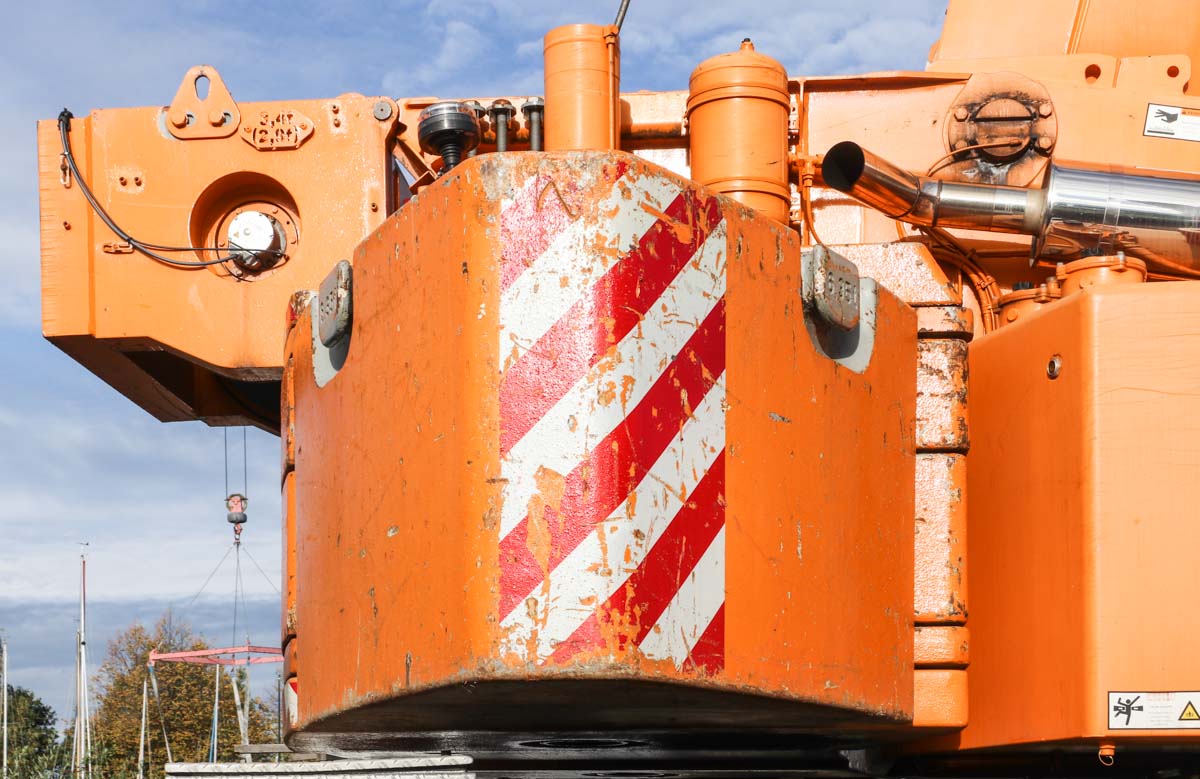

The crane is here with 39.1 tonnes of counterweight fitted, because the second winch is installed is a 2.9-tonne counterweight slab removed. The counterweight has a 4.2 meter tailswing and the second winch has a 4.88 meter tailswing.

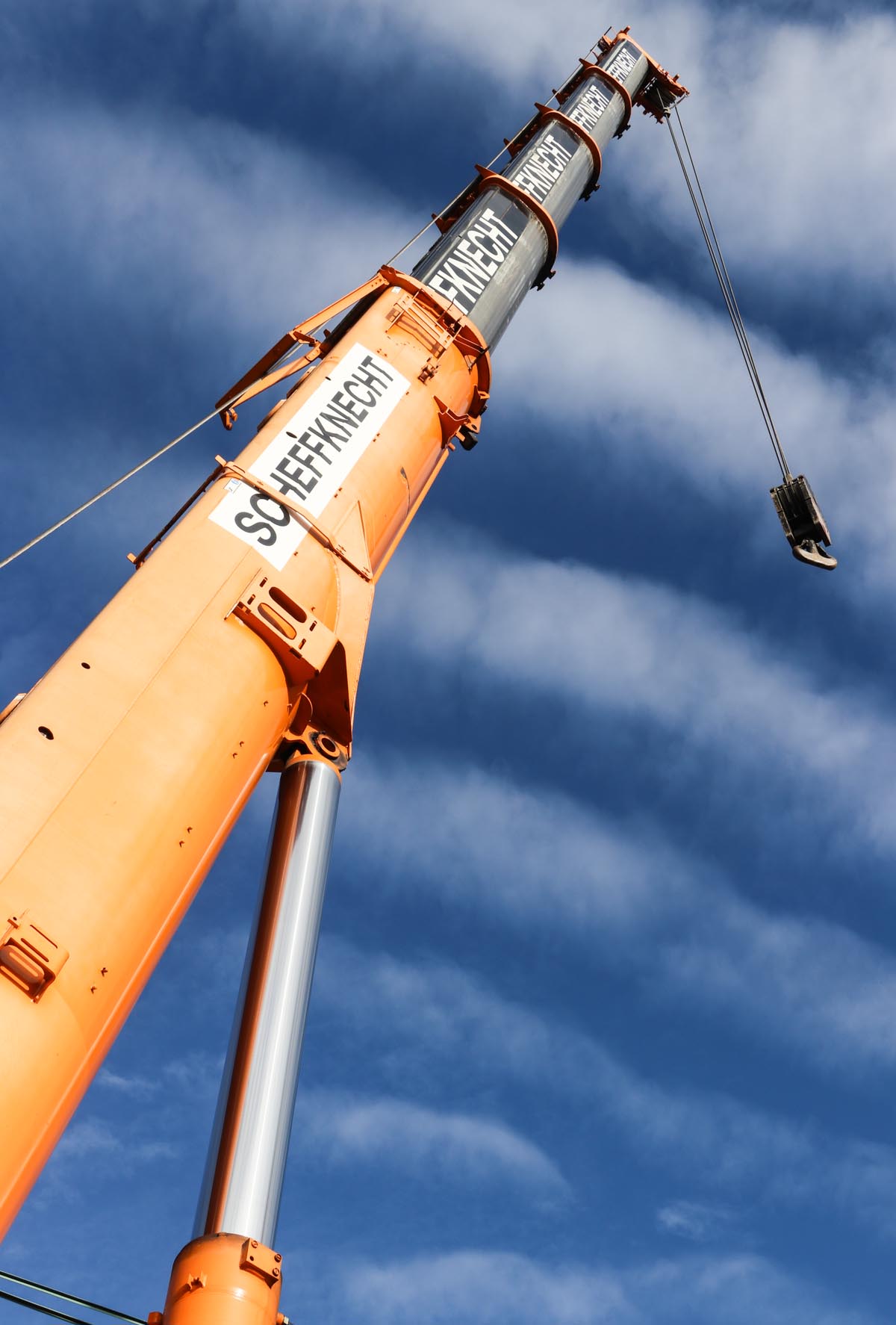

The main boom has a 12.7 meter base length and extends five times to a total length of 60 meters. The main boom is here 30.1 meters long.

At the back of the chassis is a large box installed with lifting gear and wooden beams to put below the outriggers.

Packed is the crane 15.475 meters long, 2.75 meters wide and 4 meters high. The transport mass is around 60 tonnes.

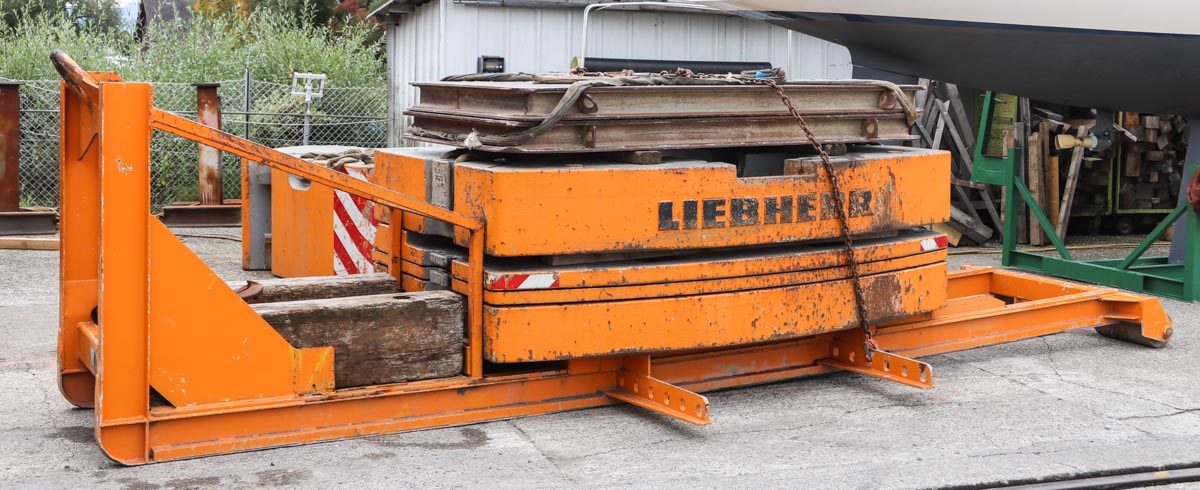

A part (20.3 tonnes) of the counterweight and the outrigger pads are transported on a frame that can be moved by a truck with hook loader. The hang-on slabs are transported by a separate truck.

All axles of the crane are steerable.
