Liebherr LG 1130 - Albert Regel

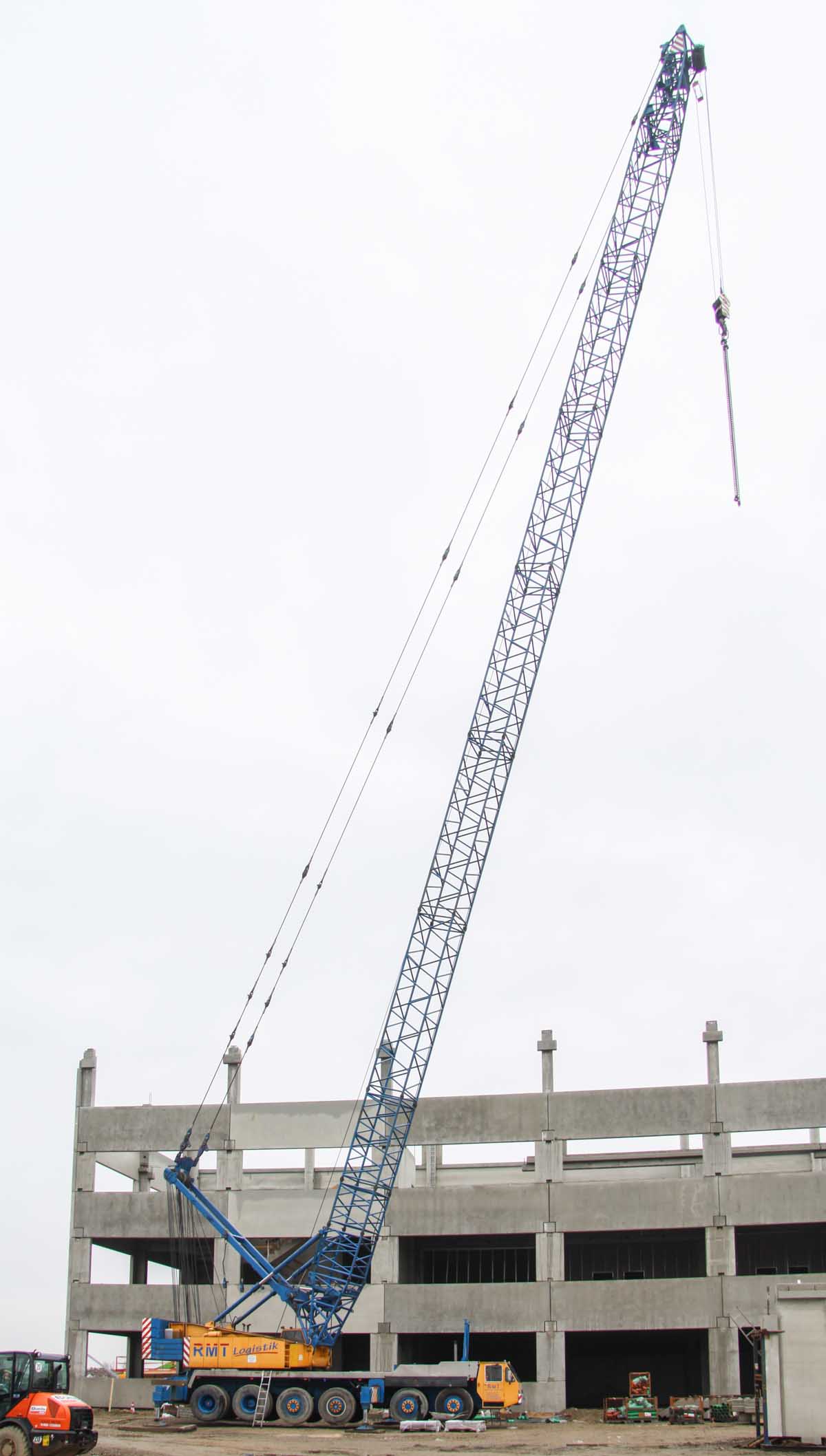

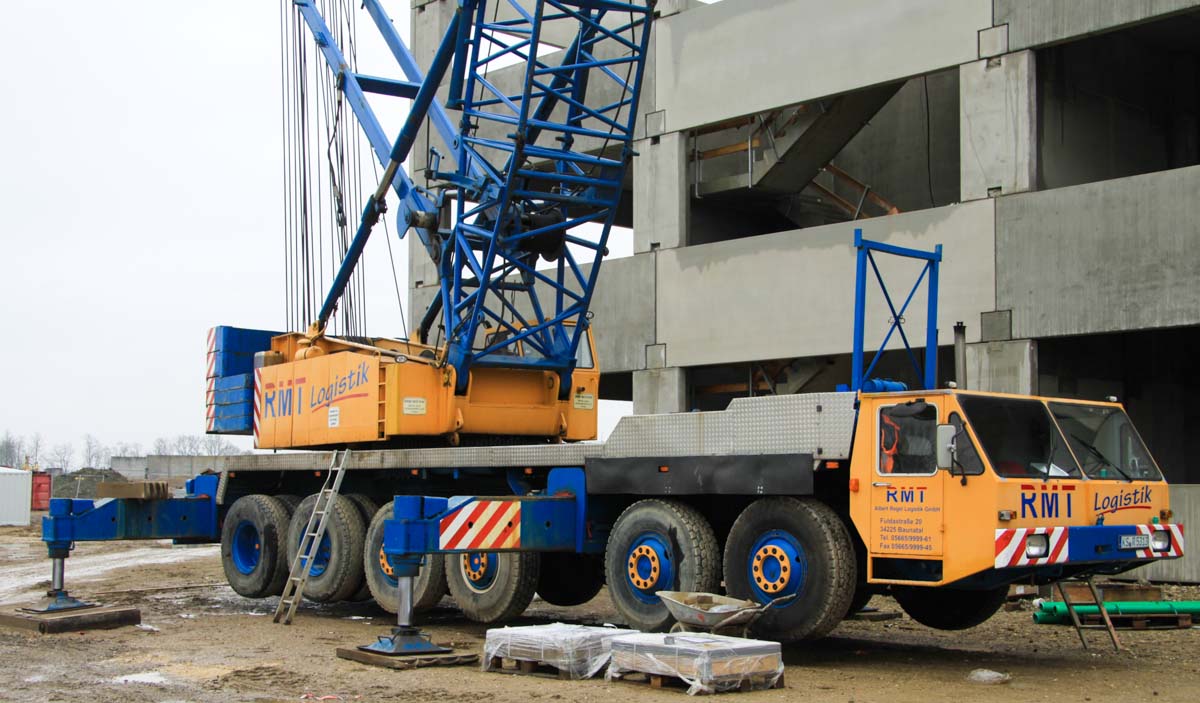

A sharp Liebherr LG 1130 of Albert Regel from Baunatal (DE) erecting a building with precast elements. The crane's year of manufacture is 1979.

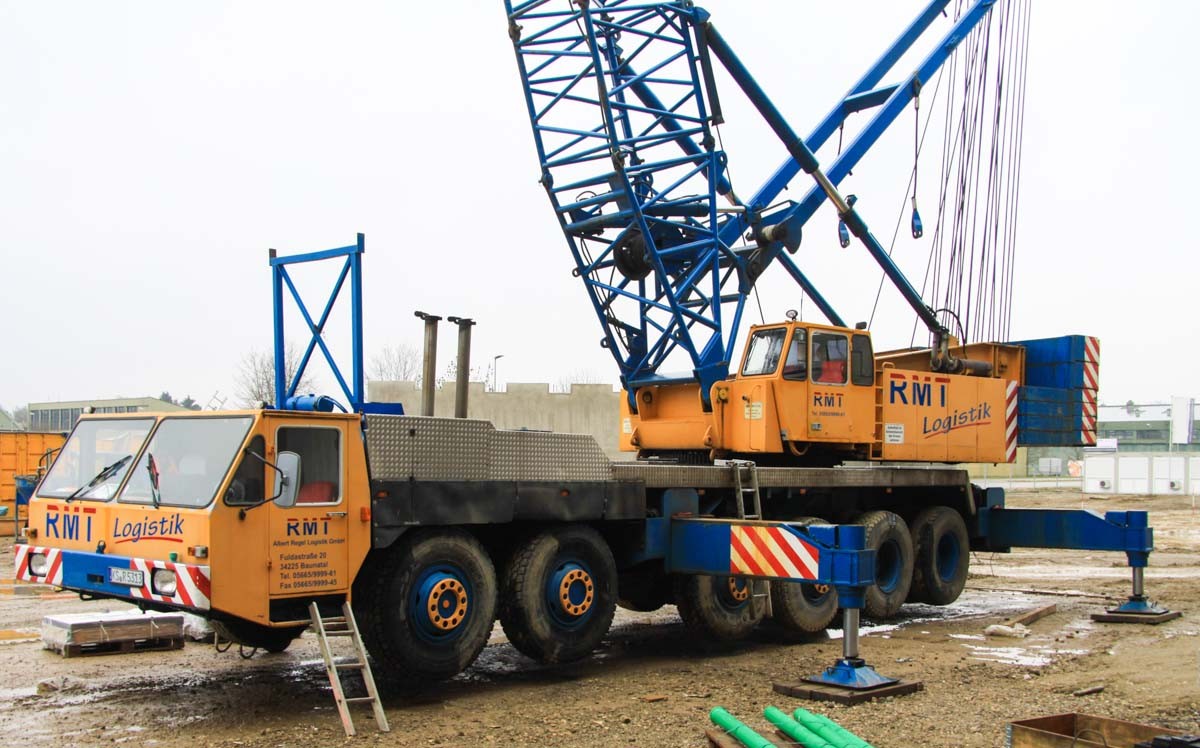

It is a 130 tonne lattice boom crane on a 6 axle crane carrier. During the transport over the road is the crane 16.36 meters long, 3 meters wide and 3.88 meters high. During the transport over the road the boom foot remains attached to the superstructure, the gantry is folded forwards over the frame behind the cabin.

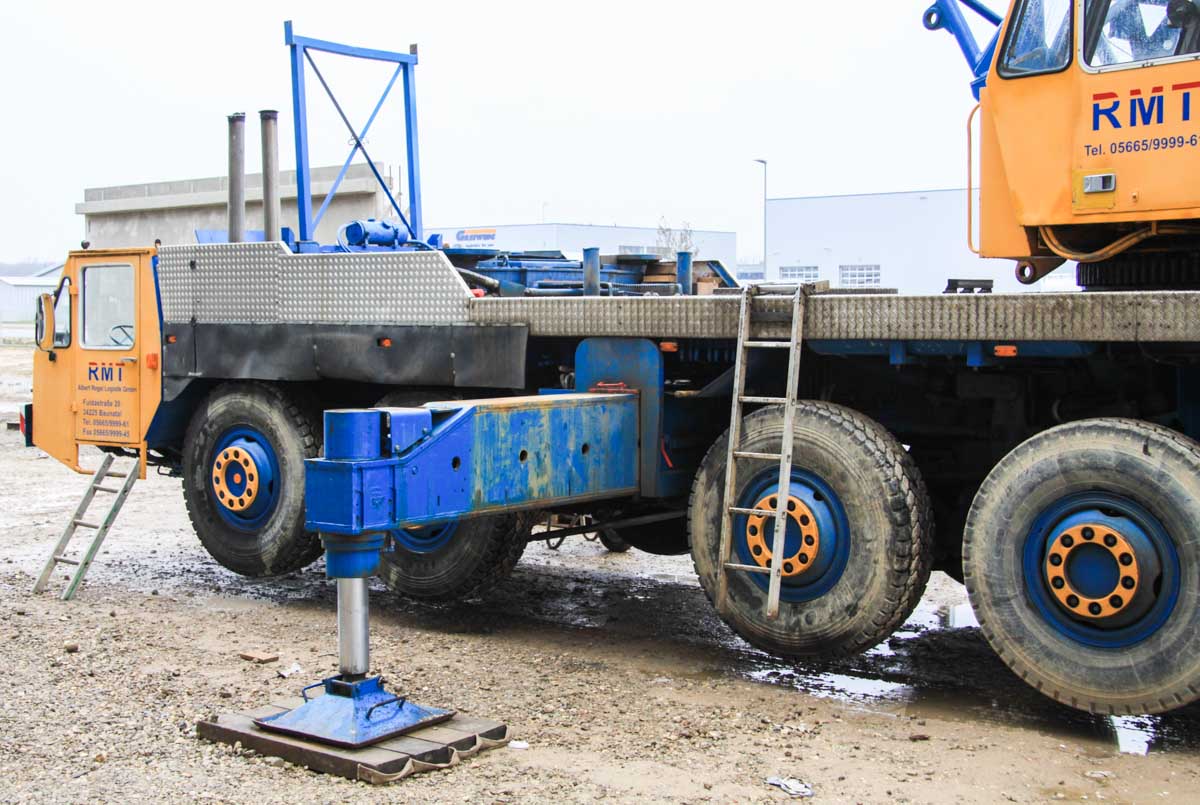

The undercarriage is powered by a Daimler-Benz OM 404 V12 engine with 430 hp, the max. travel speed is 65.6 km/h. Three of the six axles are driven and three are steerable.

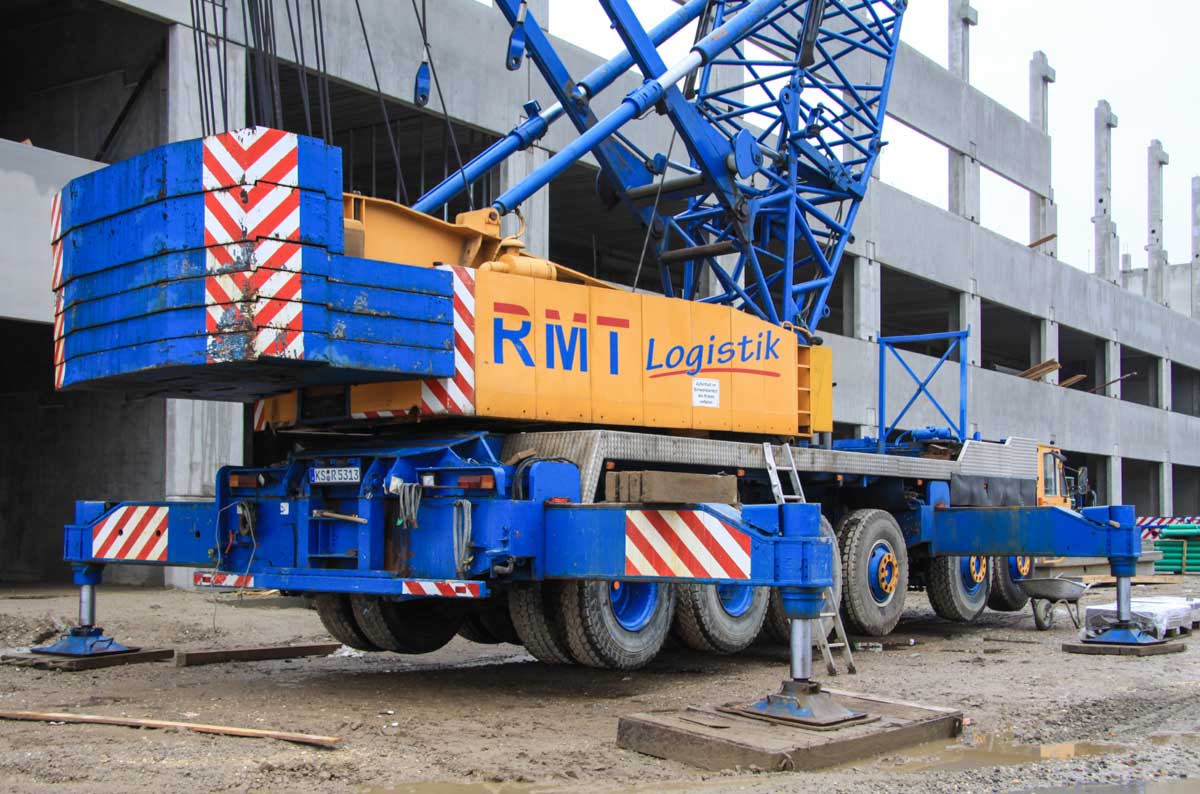

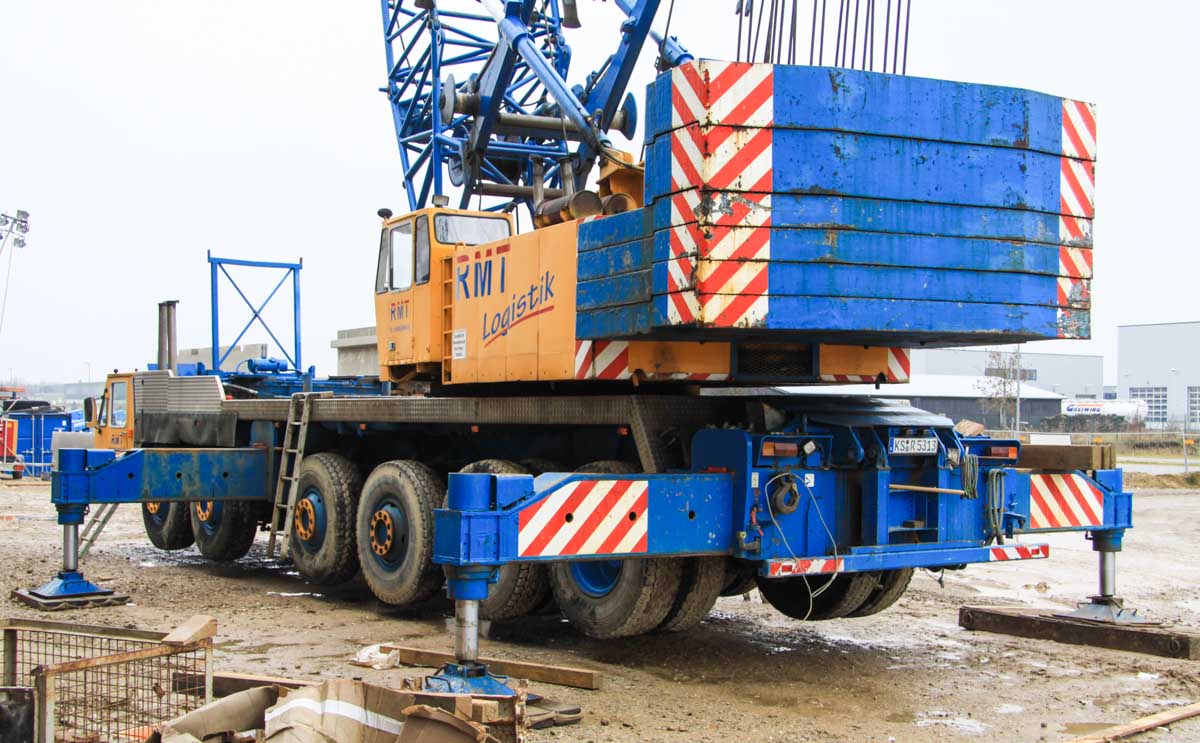

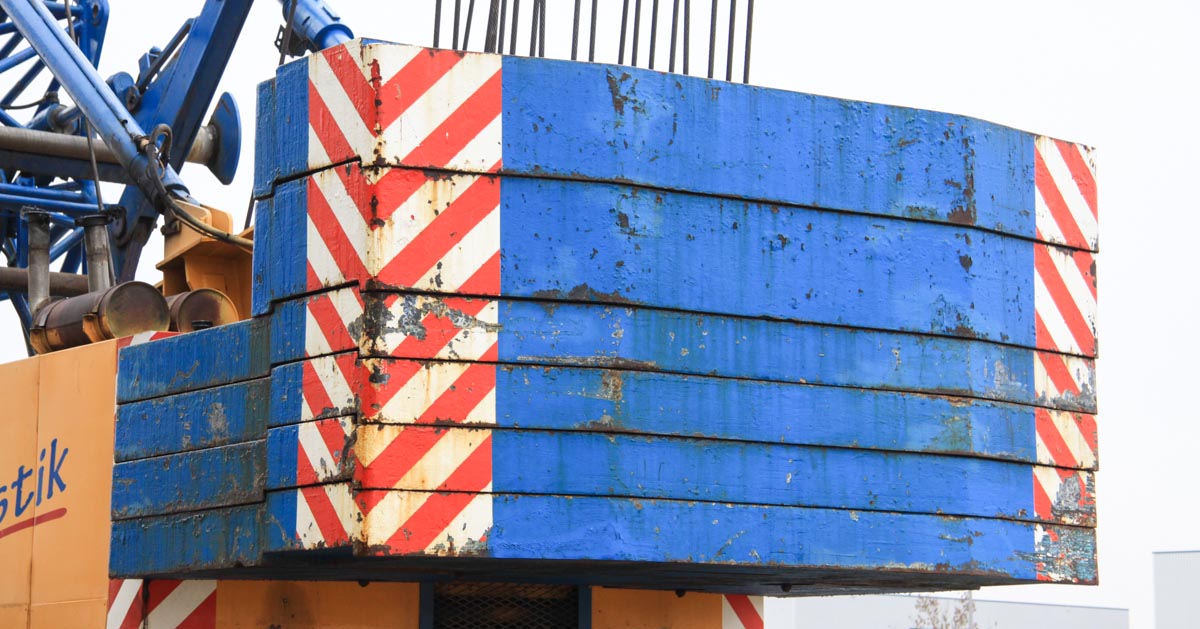

The counterweight weights 38 tonnes and has a 5.7 meter tailswing.

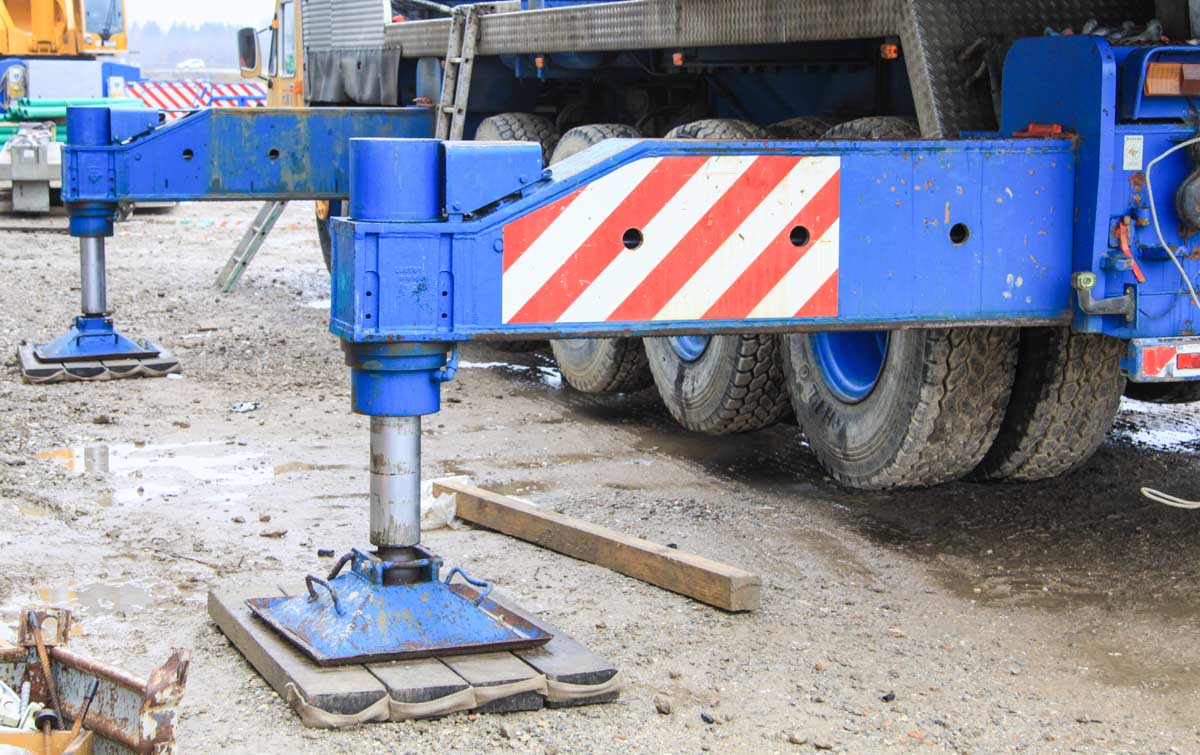

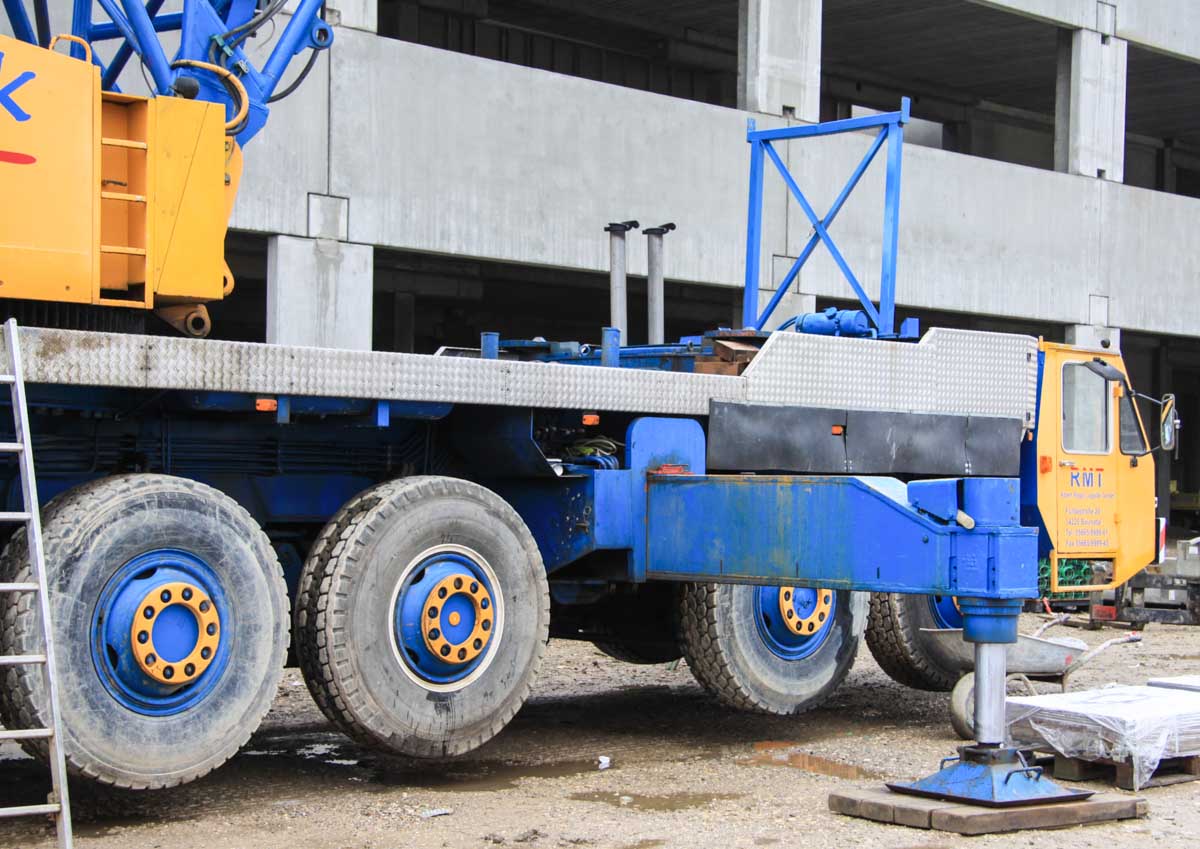

The outrigger base measures 7.3 x 7 meters.

The superstructure is powered by a Daimler-Benz OM 401 V6 engine with 192 hp.

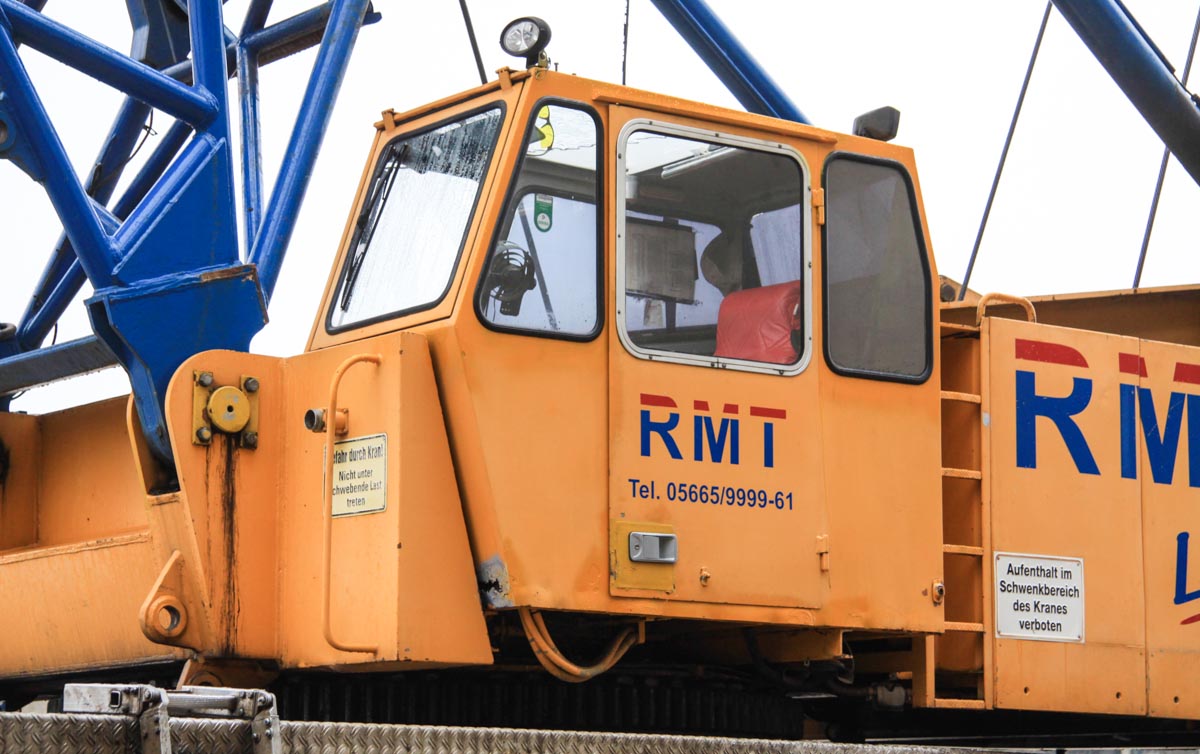

De bovenwagencabine wordt bij het transport over de weg in de bovenwagen geschoven.

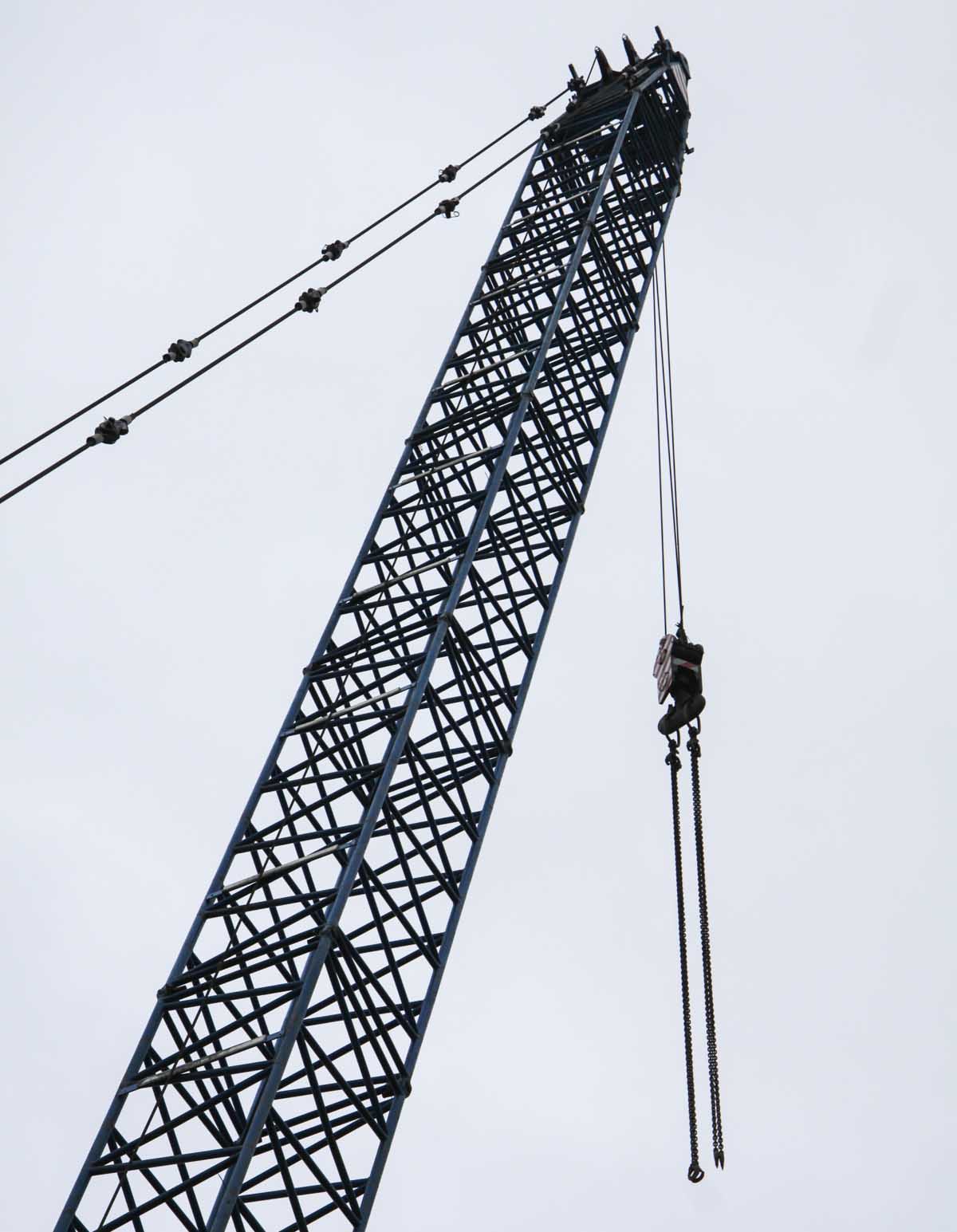

The main boom has a 7 meter base length and a max. length of 70 meters. The luffing jib has a maximum length of 63 meters and can be combined with a 63 meter main boom.

The crane is fitted here with a 56 meter main boom, the crane can lift 38 tonnes on a 7 meter radius and 3.4 tonnes on a 38 meter radius.
