Liebherr LTM 1250/1 - Michielsens

The Liebherr LTM 1250/1 of Michielsens from Wijnegem (BE) was used to lift airco units in the city centre of Brussels (BE).

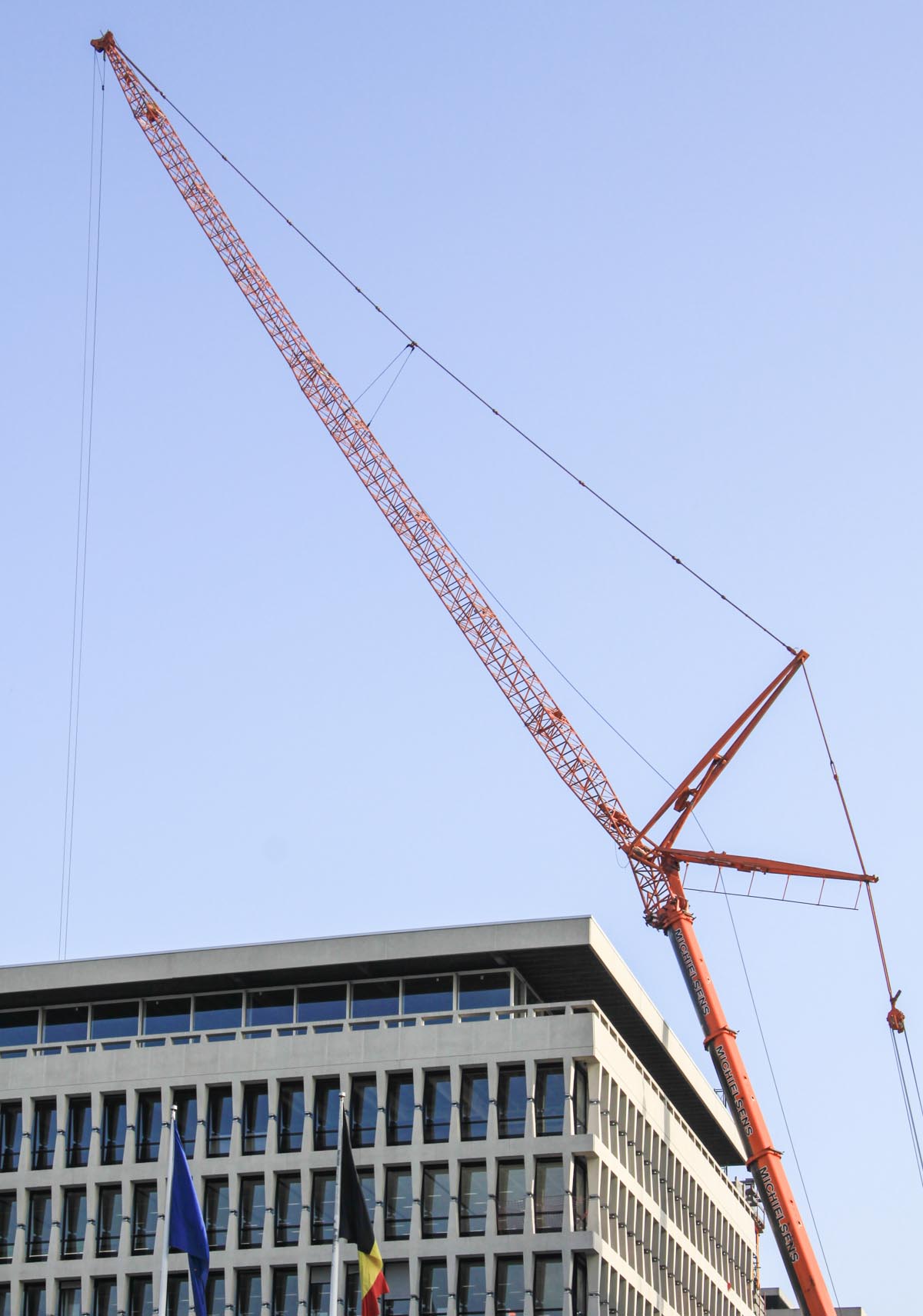

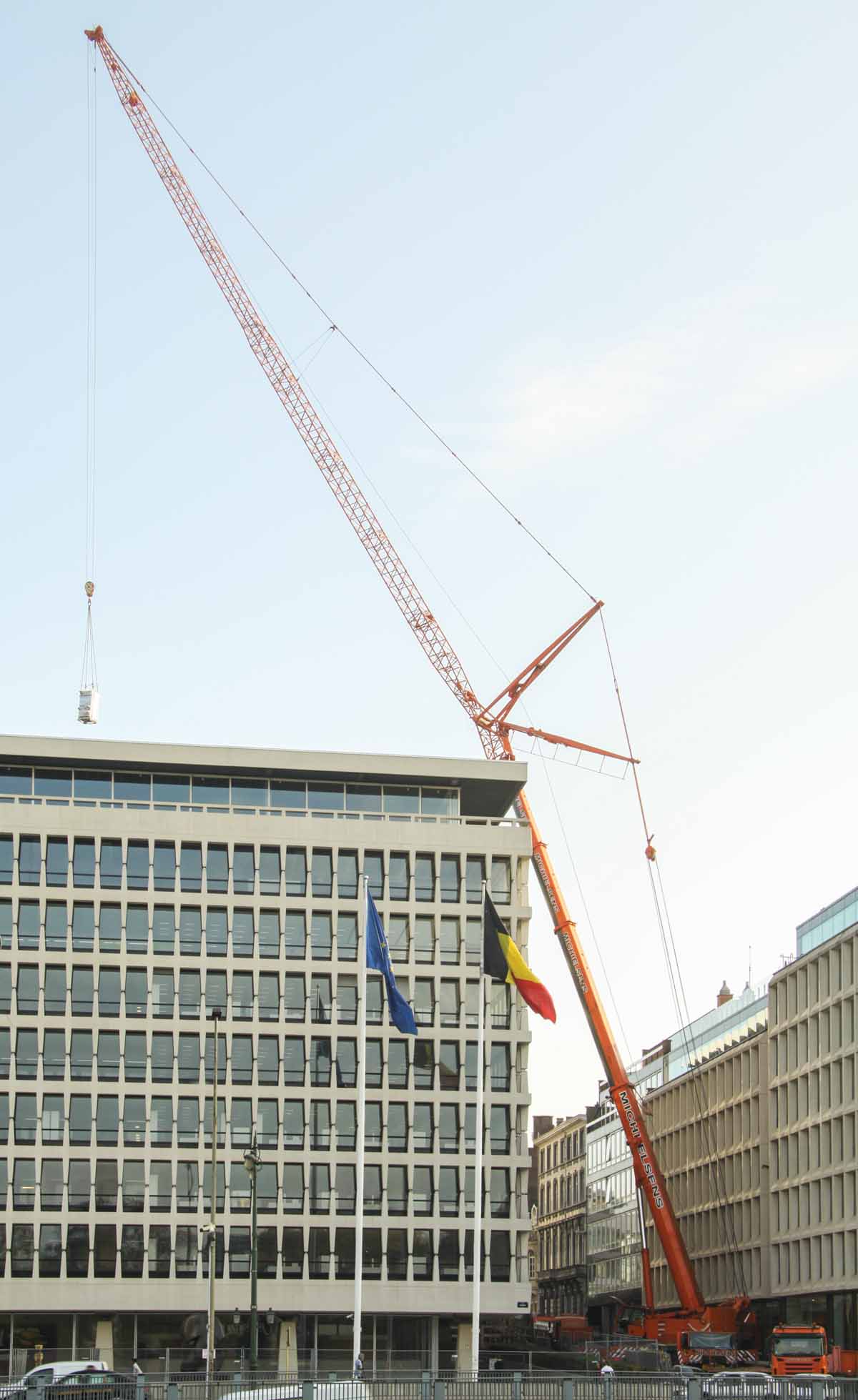

Fitted with a 63 meter luffing jib, the max. length is 70 meters.

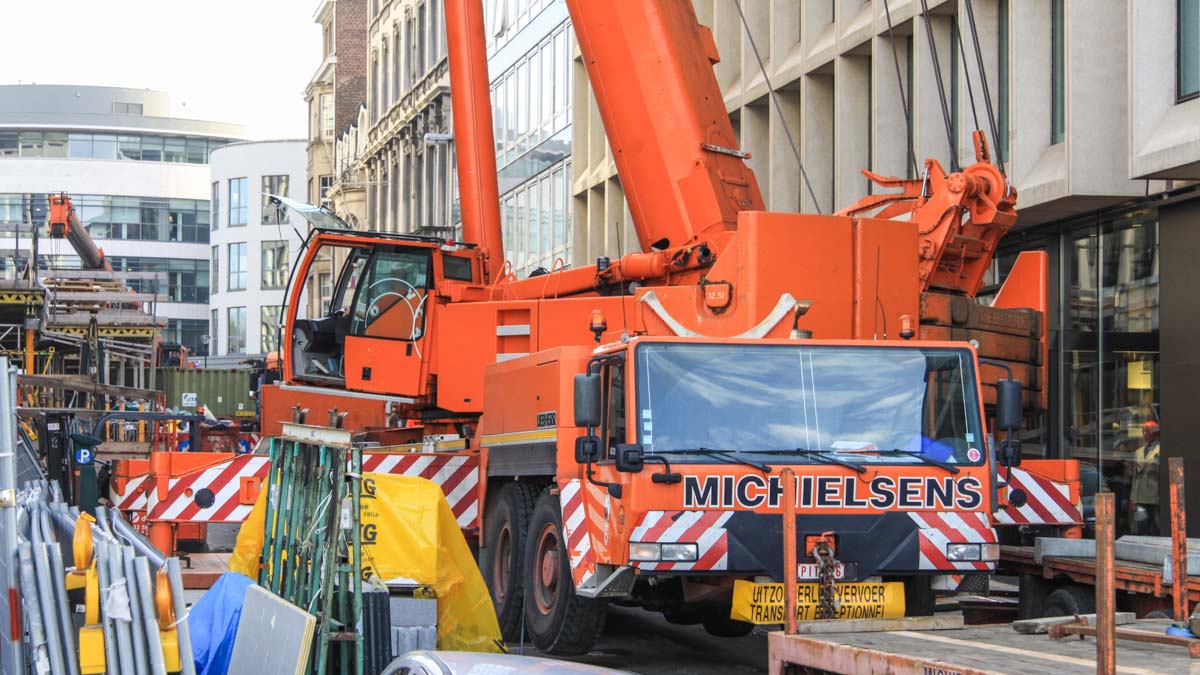

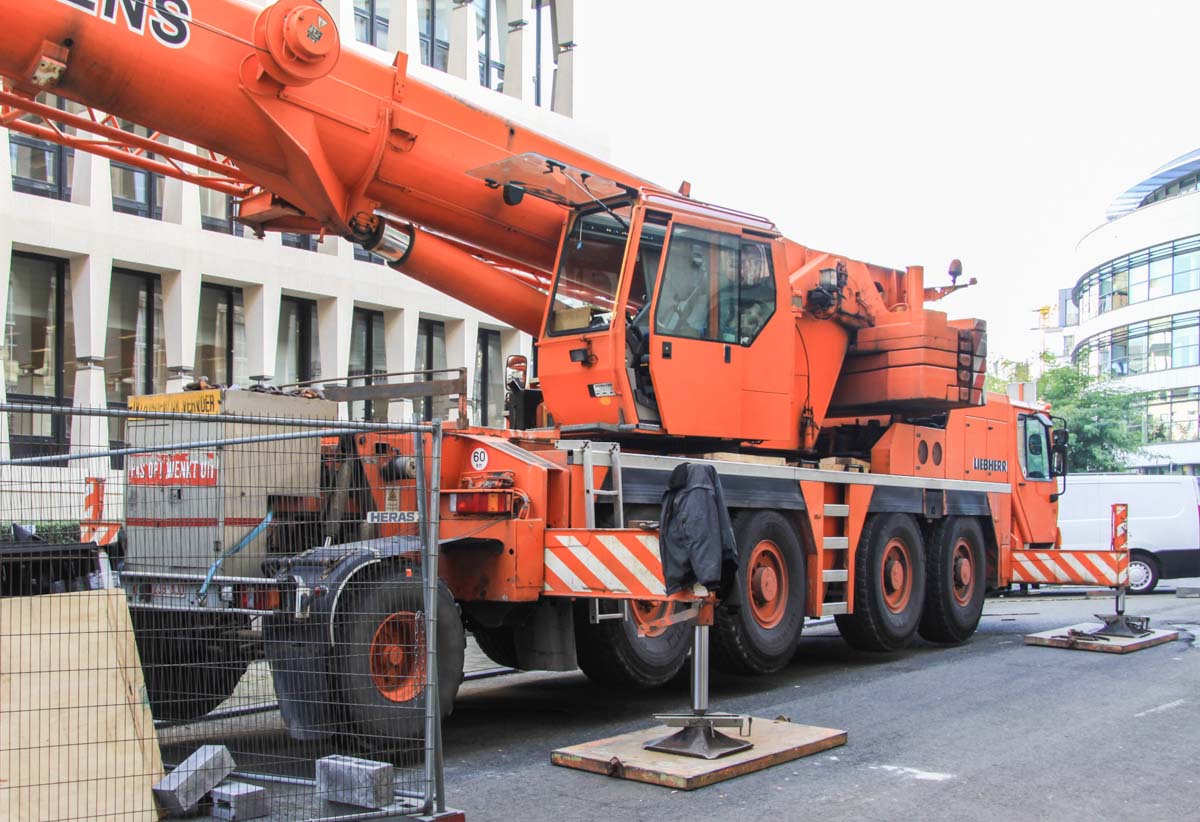

The crane self was put up in a narrow street. It is a 250 tonne crane with 6 axles.

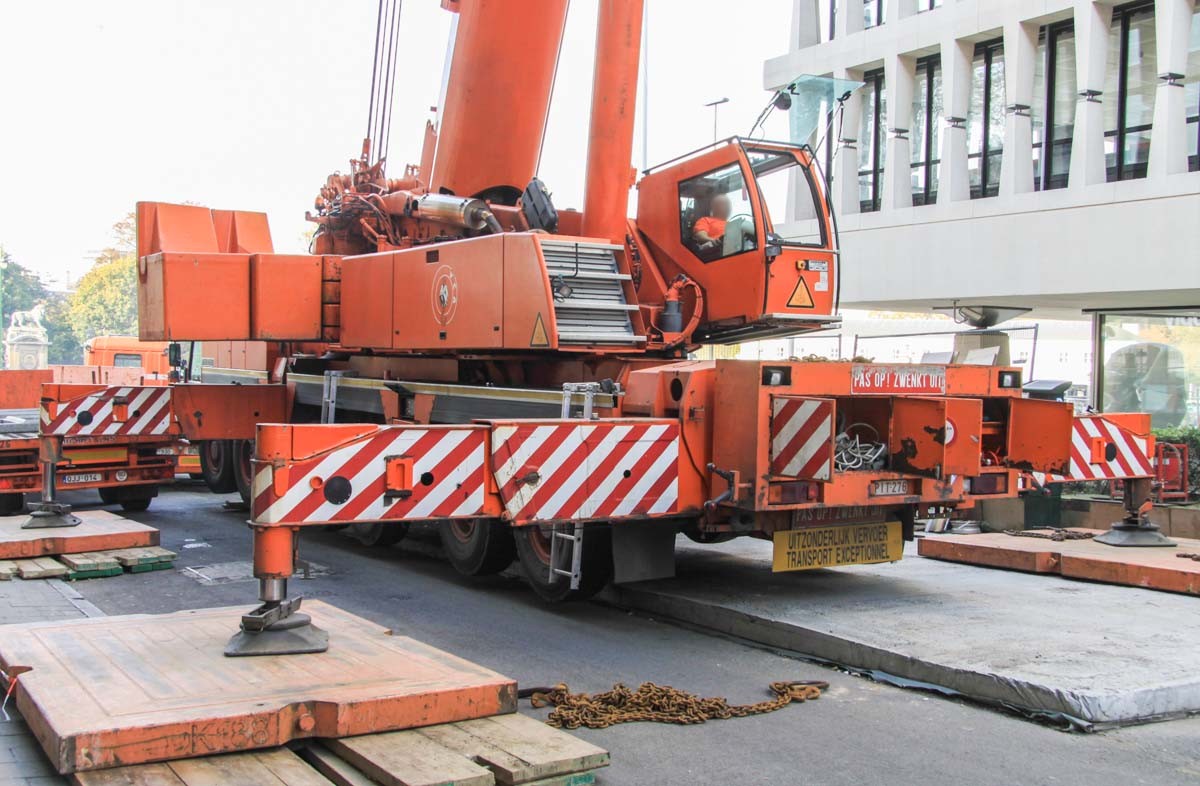

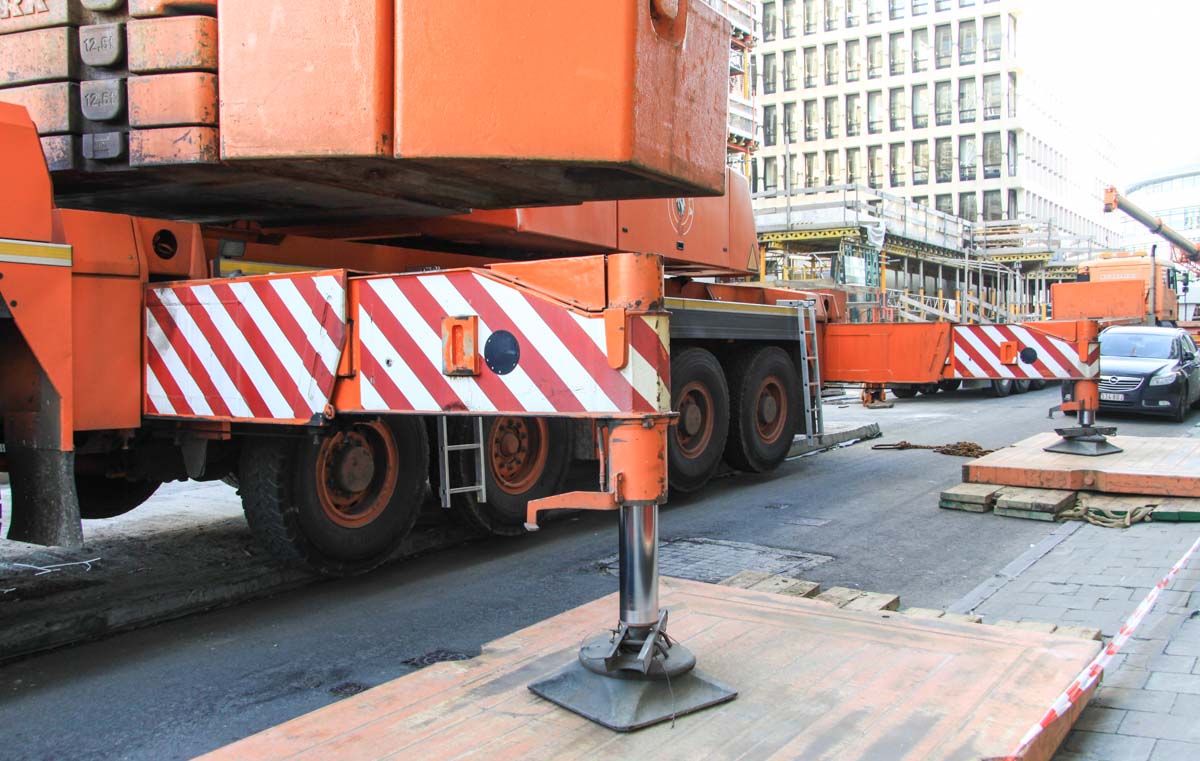

The outrigger base is 8.84 x 8.5 meters.

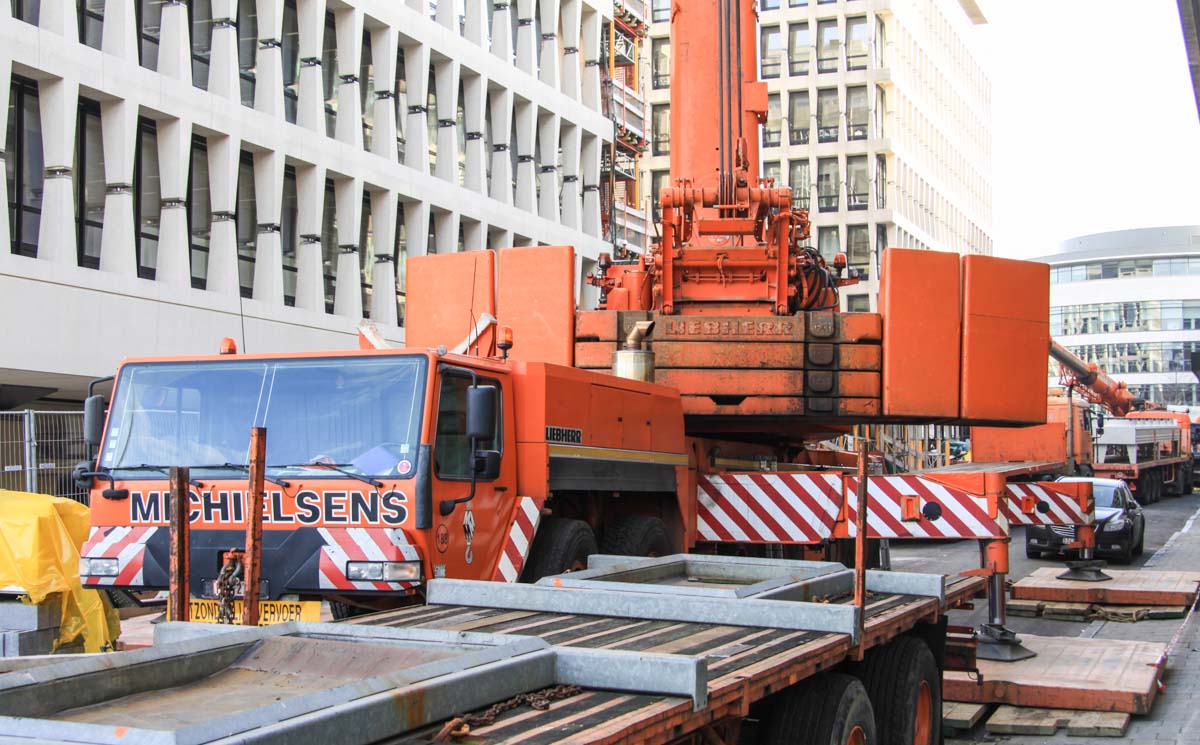

Put up with the full 97.5 tonne counterweight, with a 5.6 meter tailswing.

Michielens had in the Netherlands a newer Liebherr LTM 1250-6.1 working, that yard was closed last year.

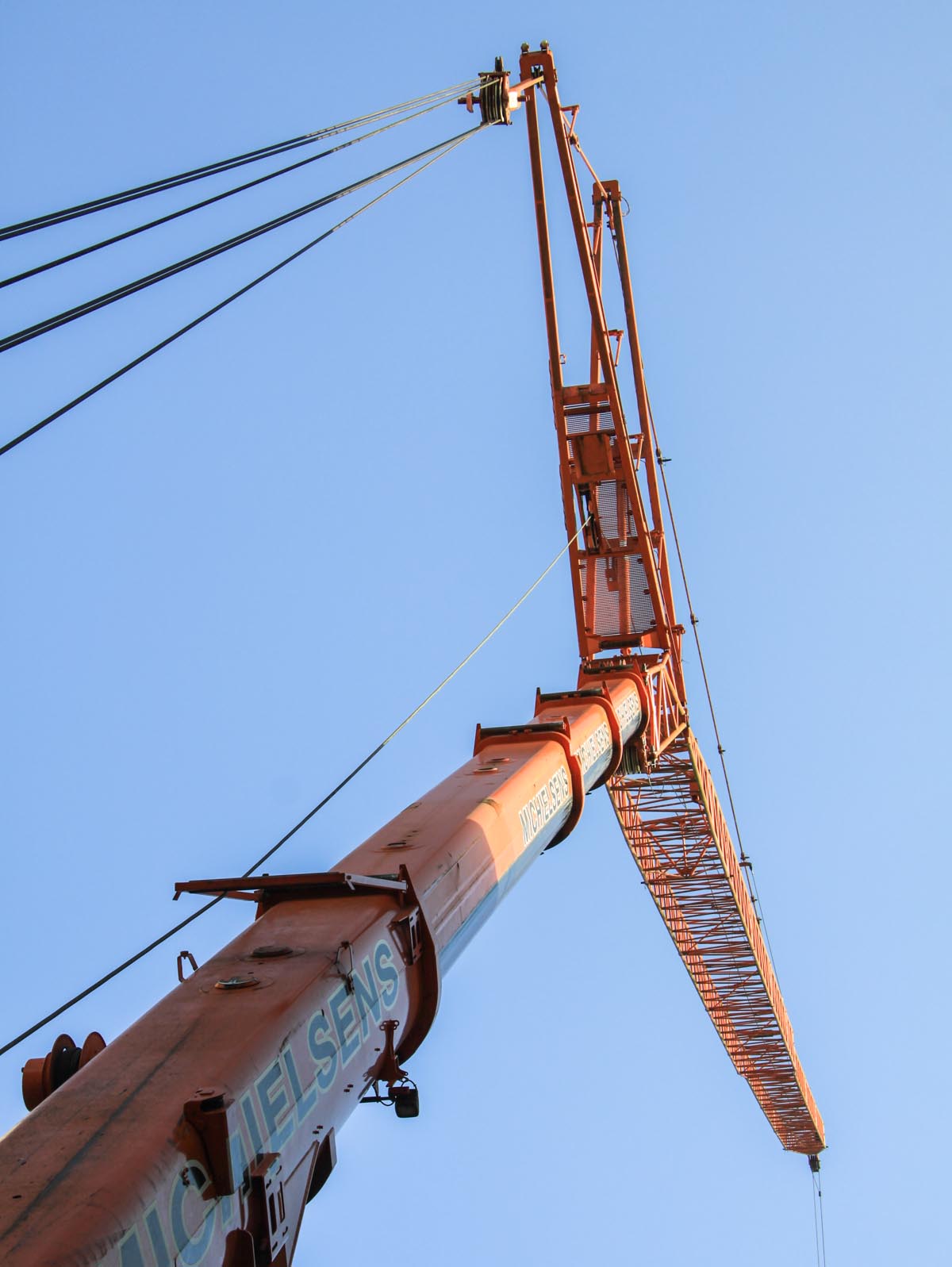

The main boom is extented 36.3 meters, the max. luffing jib length is then 63 meters. For the 70 meter jib the main boom should be retracted a half section.

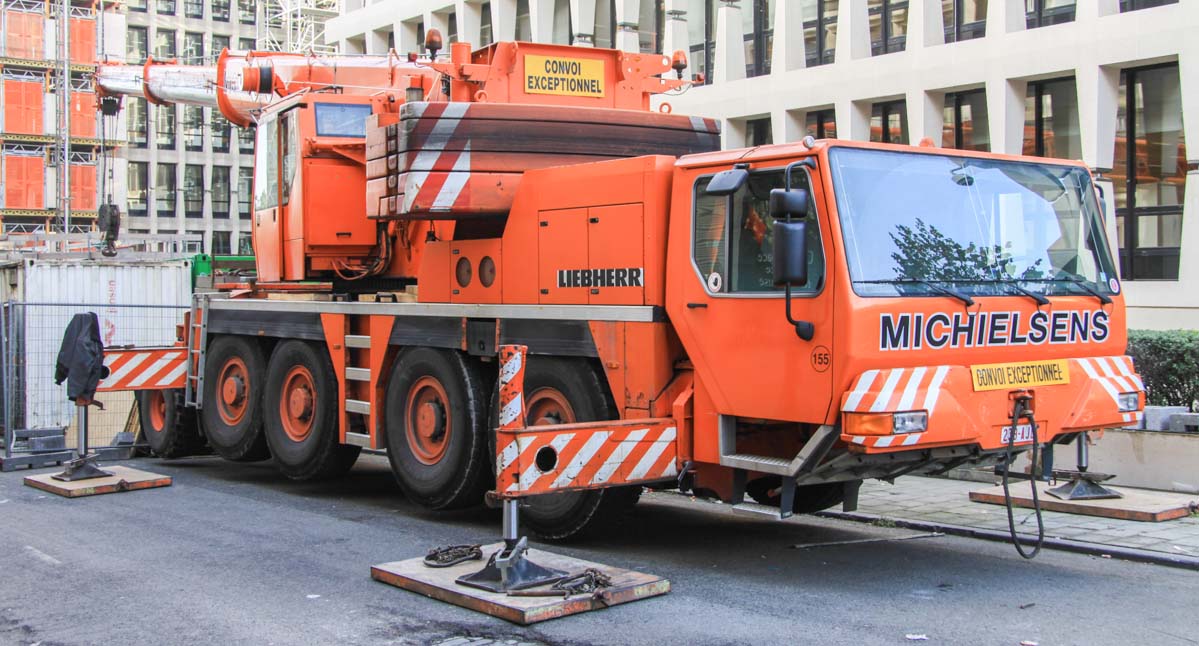

As assist crane was this 80 tonne Liebherr LTM 1080/1 on site.

Equipped with an attached axle to prevend an overloaded crane, the crane is now aloud to drive with folding jib and full counterweight.
