Liebherr HS 835 HD - Leitenmaier

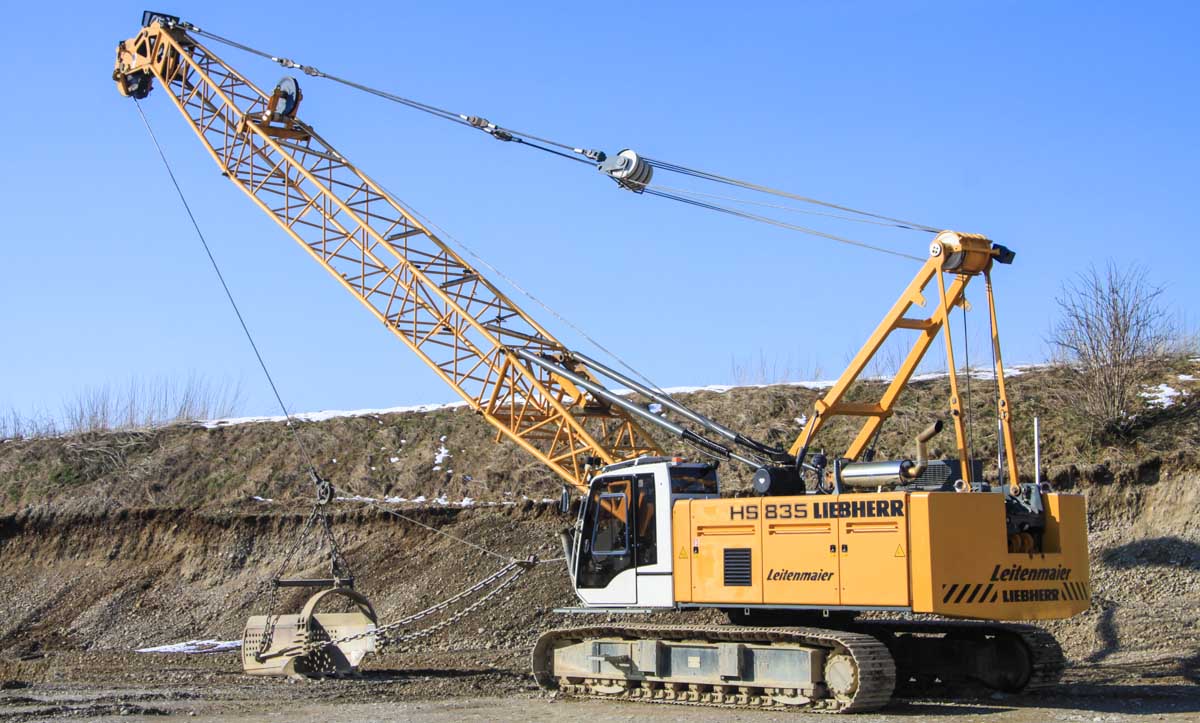

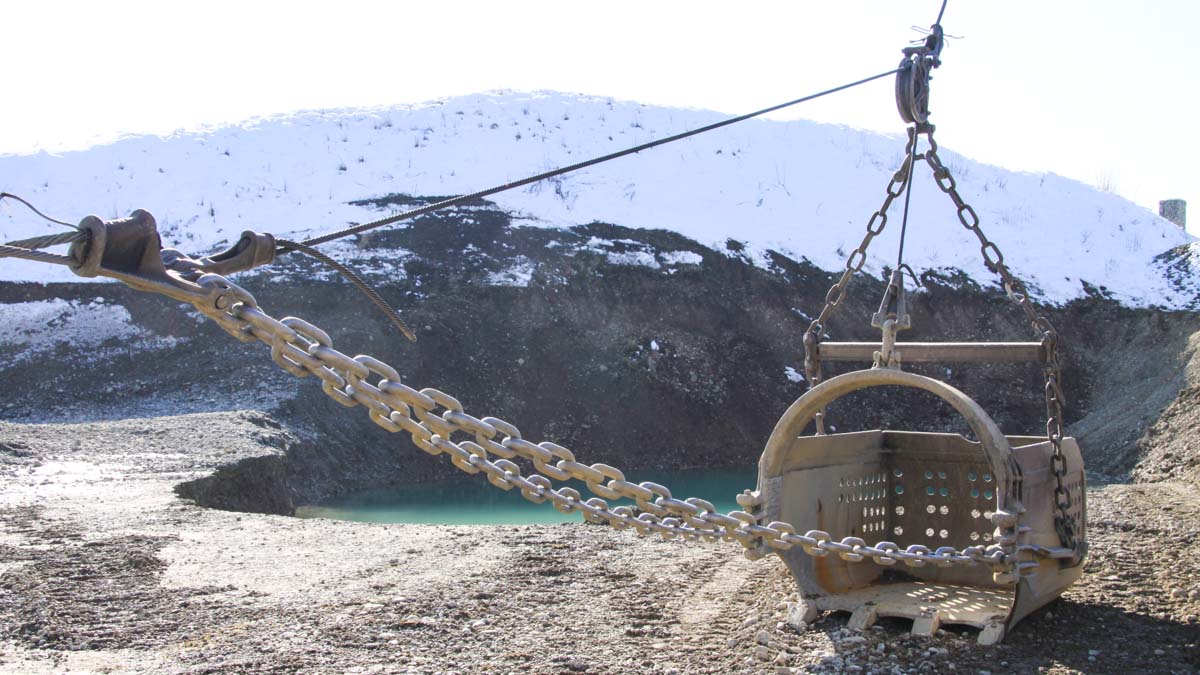

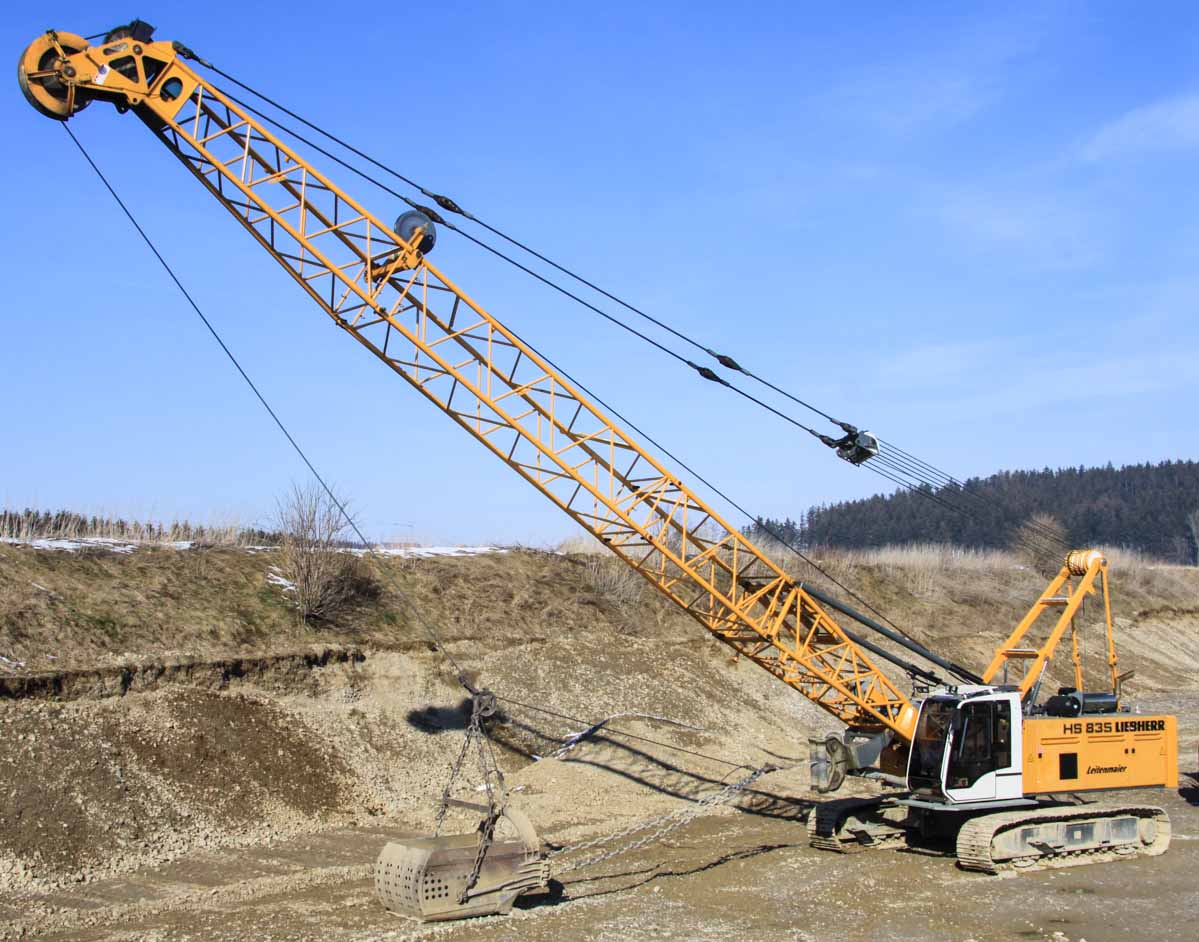

A Liebherr HS 835 HD of Leitenmaier from Ziemetshausen (DE) as a dragline on a gravel pit in the neighbourhood of Memmingen (DE).

As a lifting crane is this a 50 tonne crane, his year of manufacture is 2009. The weight of the crane is around 60 tonnes.

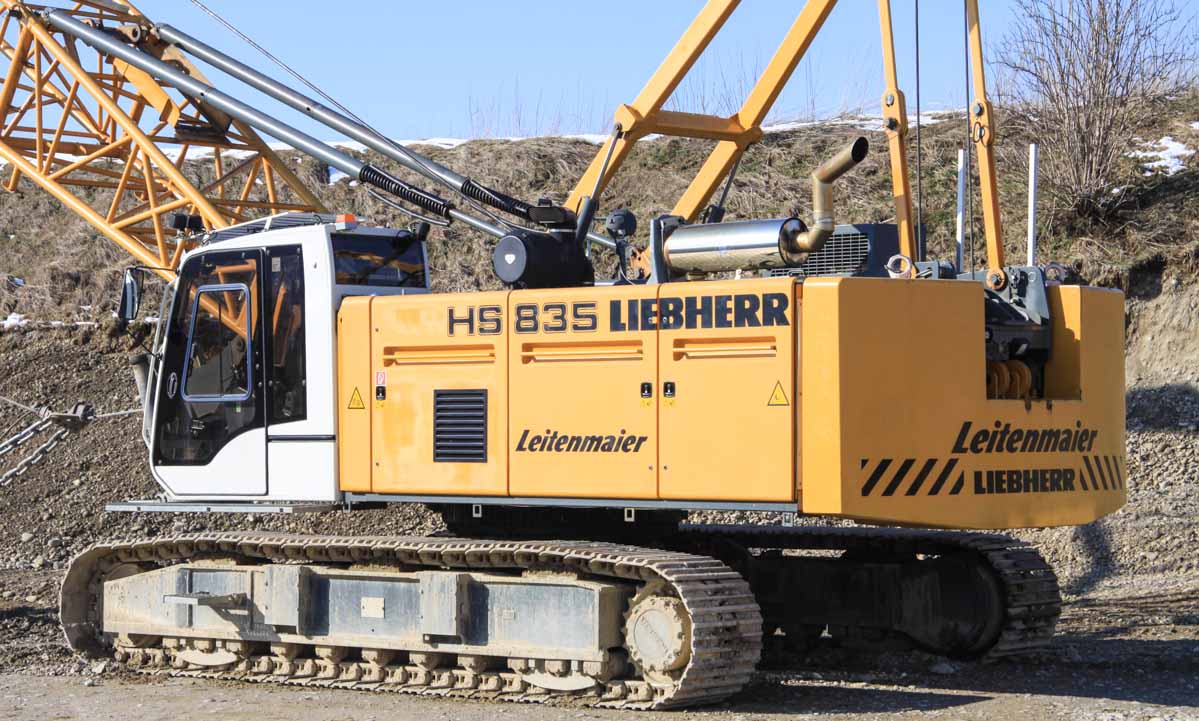

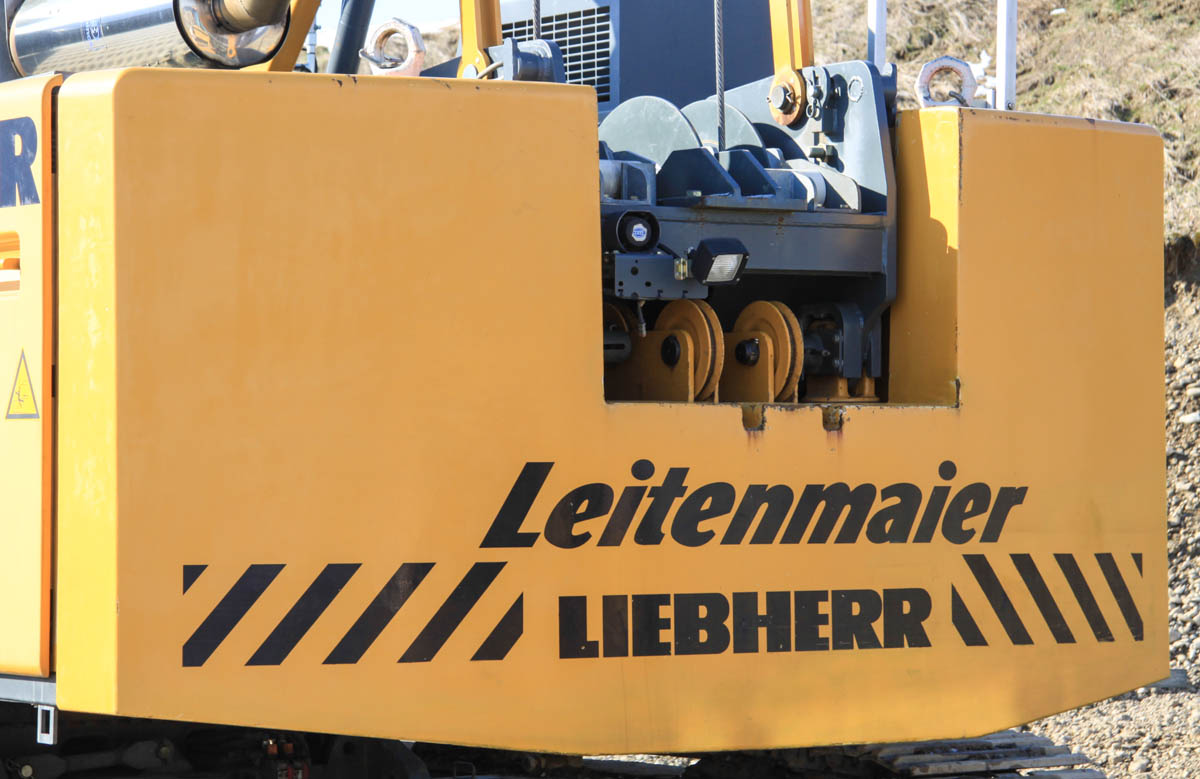

The counterweight weights 16.4 tonnes and has a 4.05 meter tailswing.

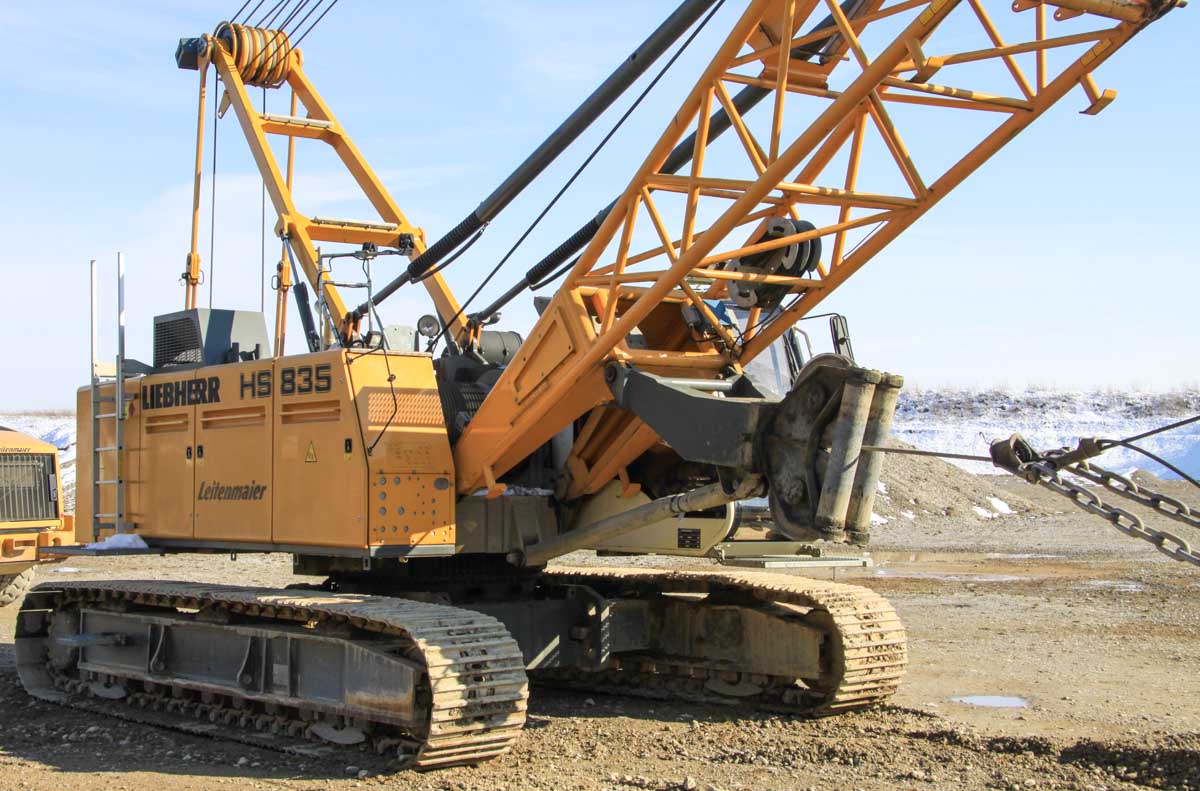

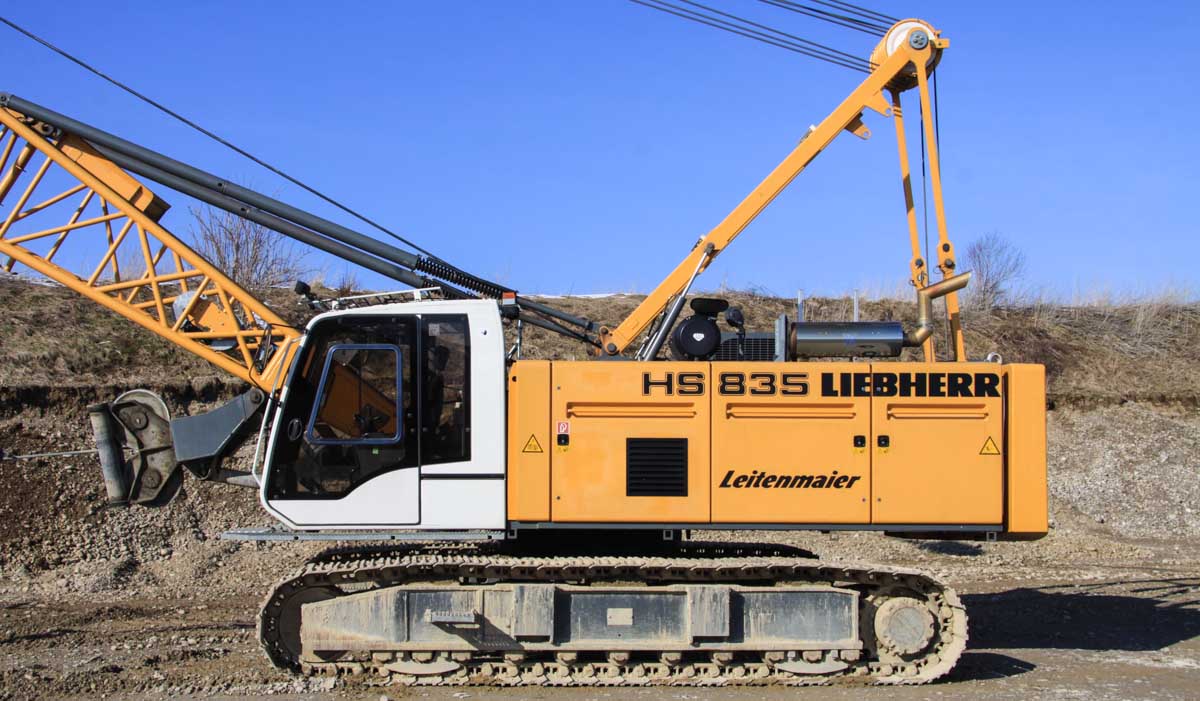

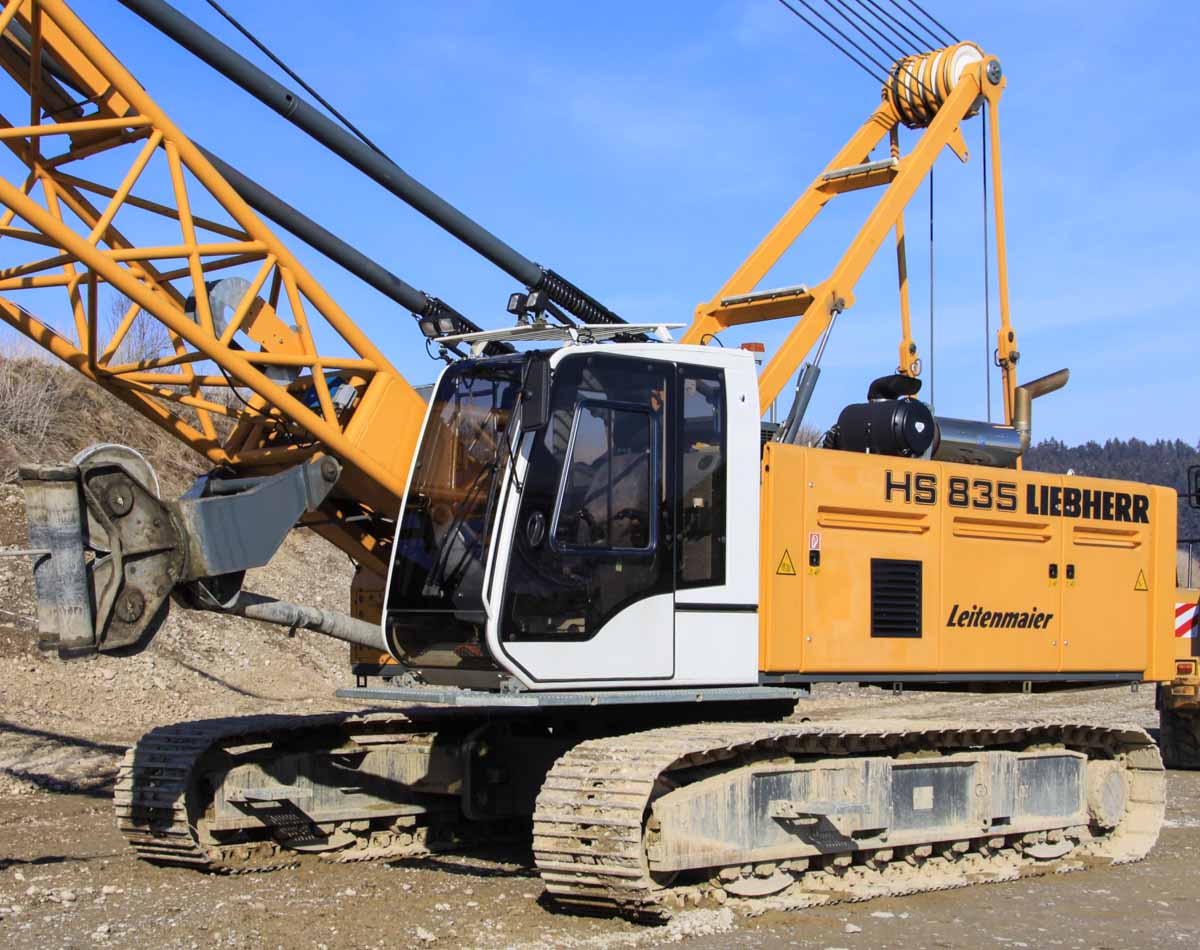

The undercarriage is 5.65 meters long and 4.3 meters wide. The tracks are 70 centimeter wide and 99 centimeter high. For the transport over the road are the tracks retrackted, the undercarriage is then only 3 meters wide.

The machine is powered by a Liebherr D 936 L A6, a 270 kW / 362 hp diesel engine.

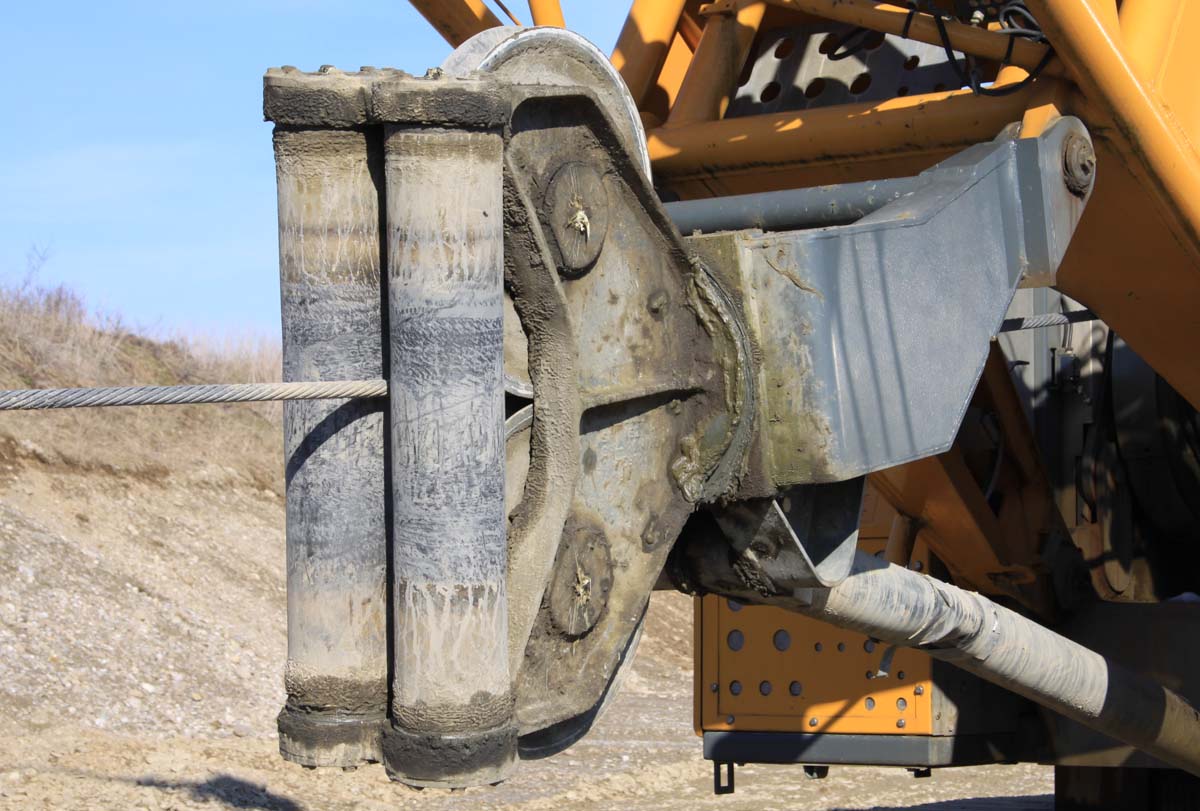

The fairlead is attached to the boom foot and superstructure.

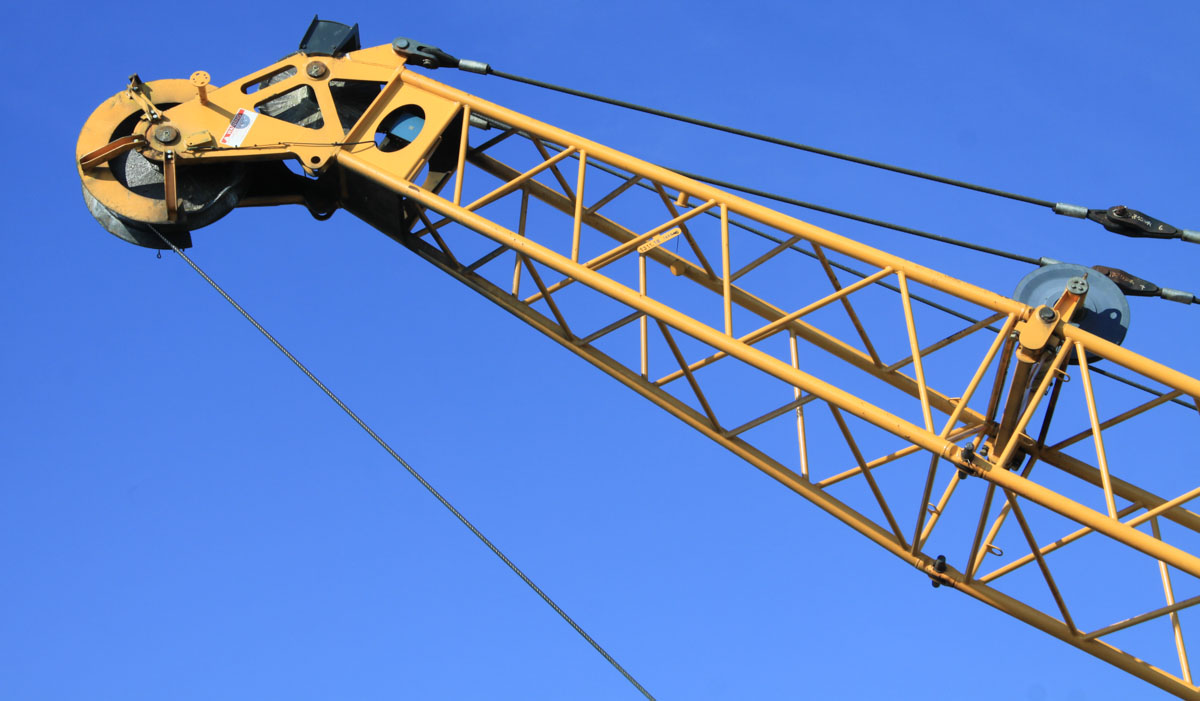

The crane can be erected with a minimum boom length of 11 meters and a maximum of 50 meters. The crane was fitted here with a 20 meter main boom.

A sharp machine!
