Joas Kranverleih from Sontheim (DE) is owning two mobile cranes. This Liebherr LTC 1045-3.1 and a FAUN ATF 65G-4.

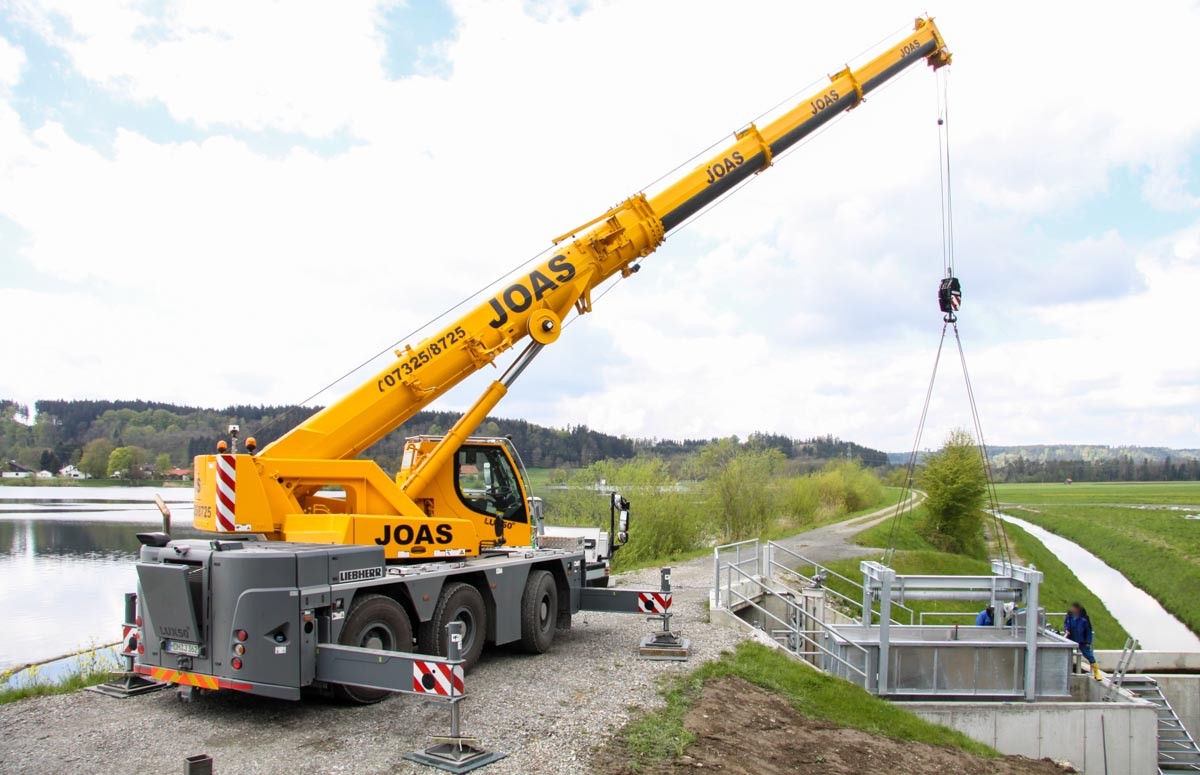

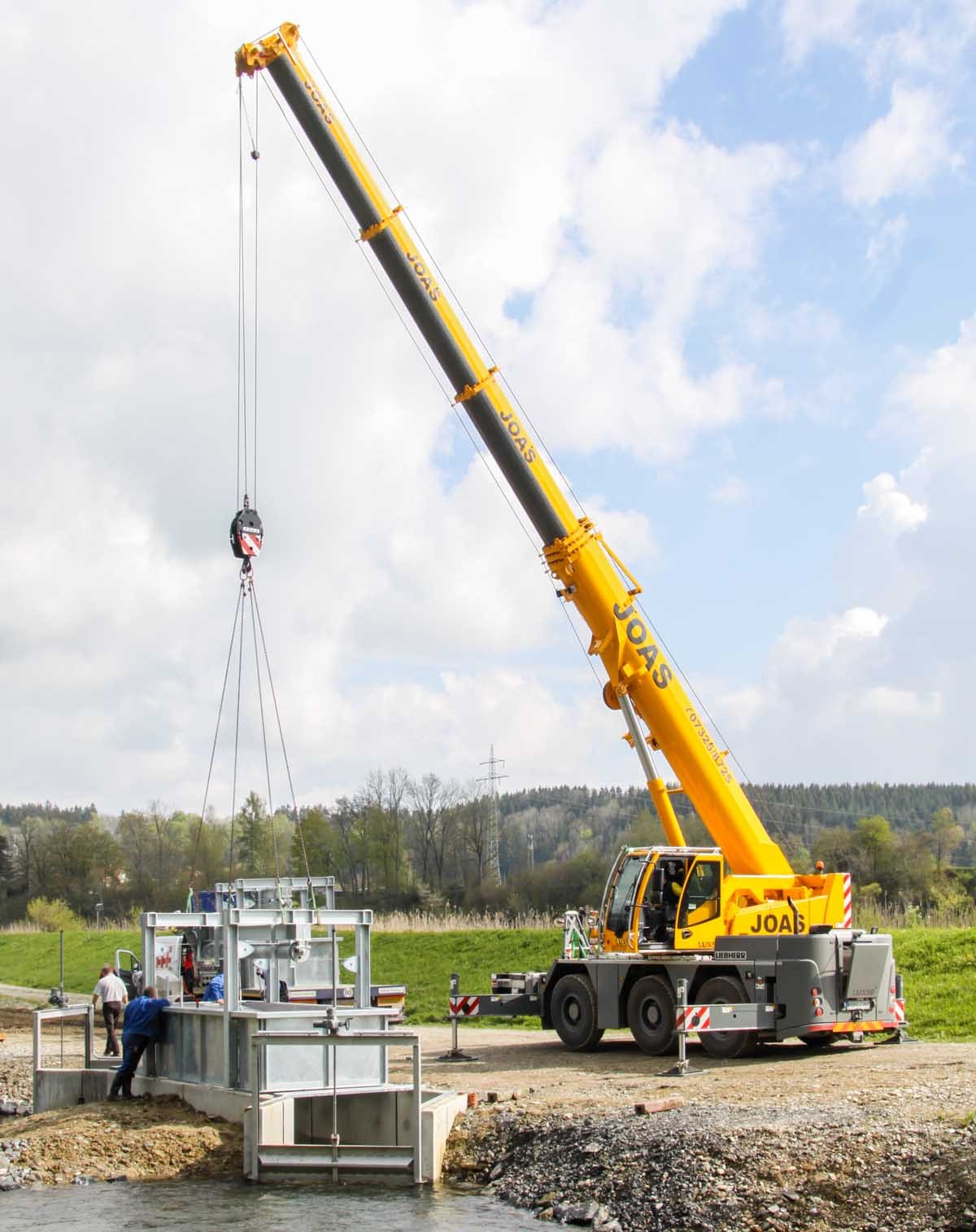

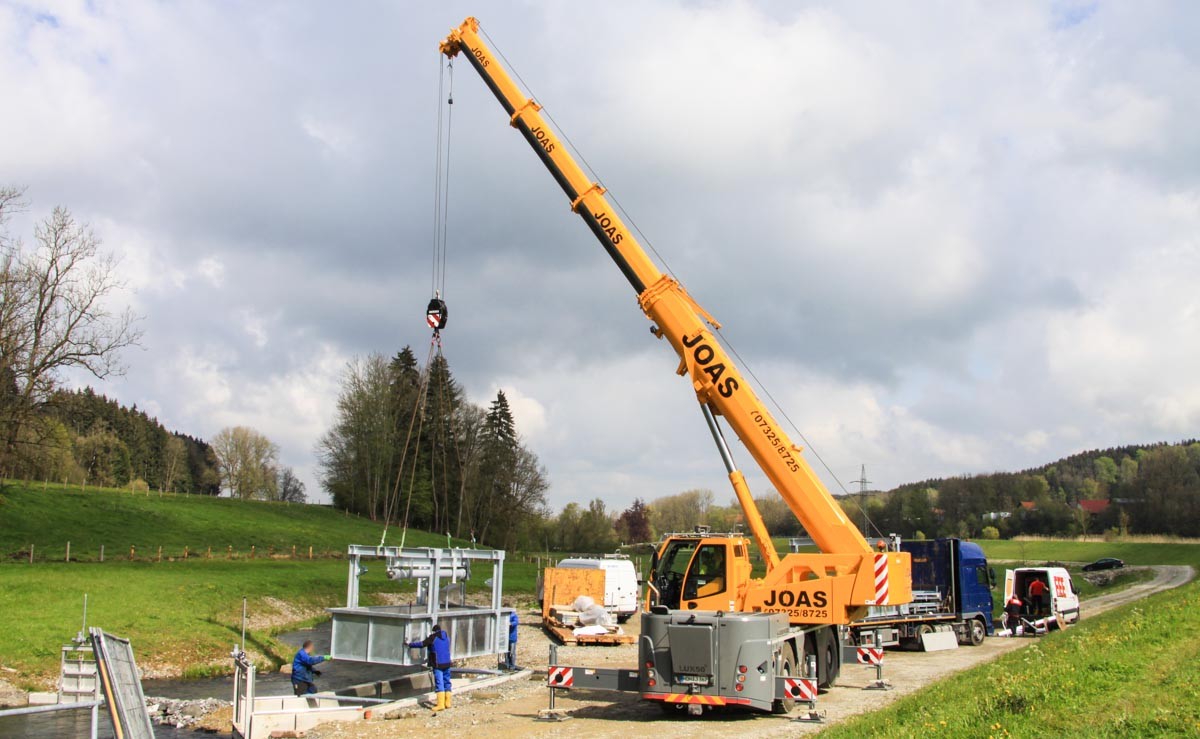

This crane was used near Maria Steinbach (DE) to lift a construction.

It is a construction to count fishes in river the Iller. This box weights around 2 tonnes.

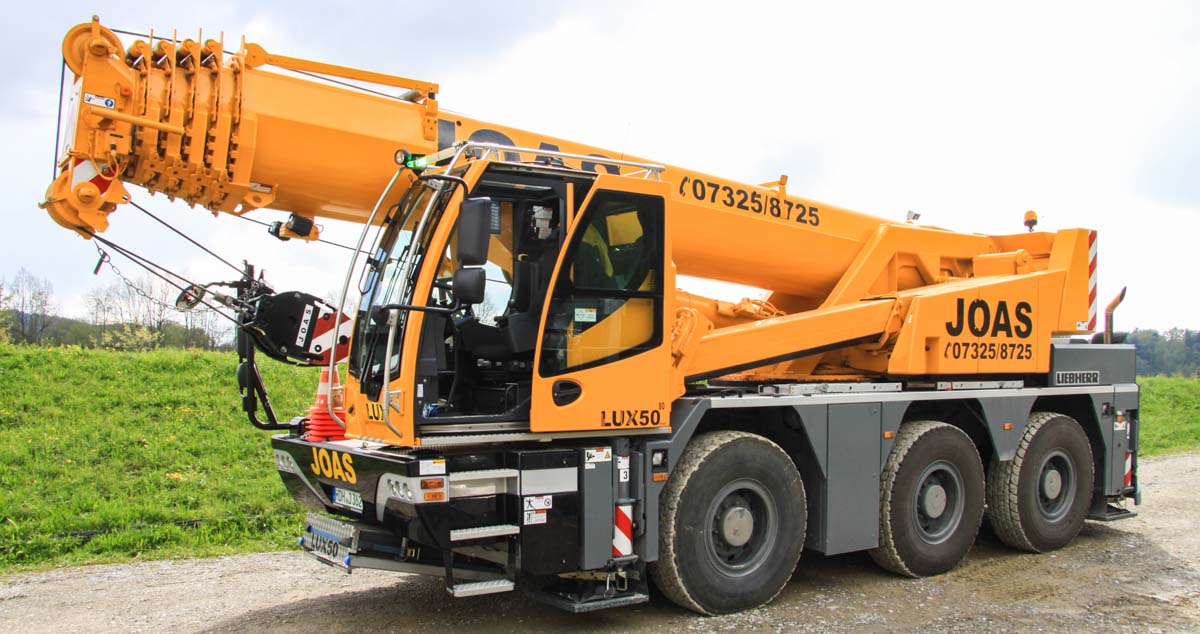

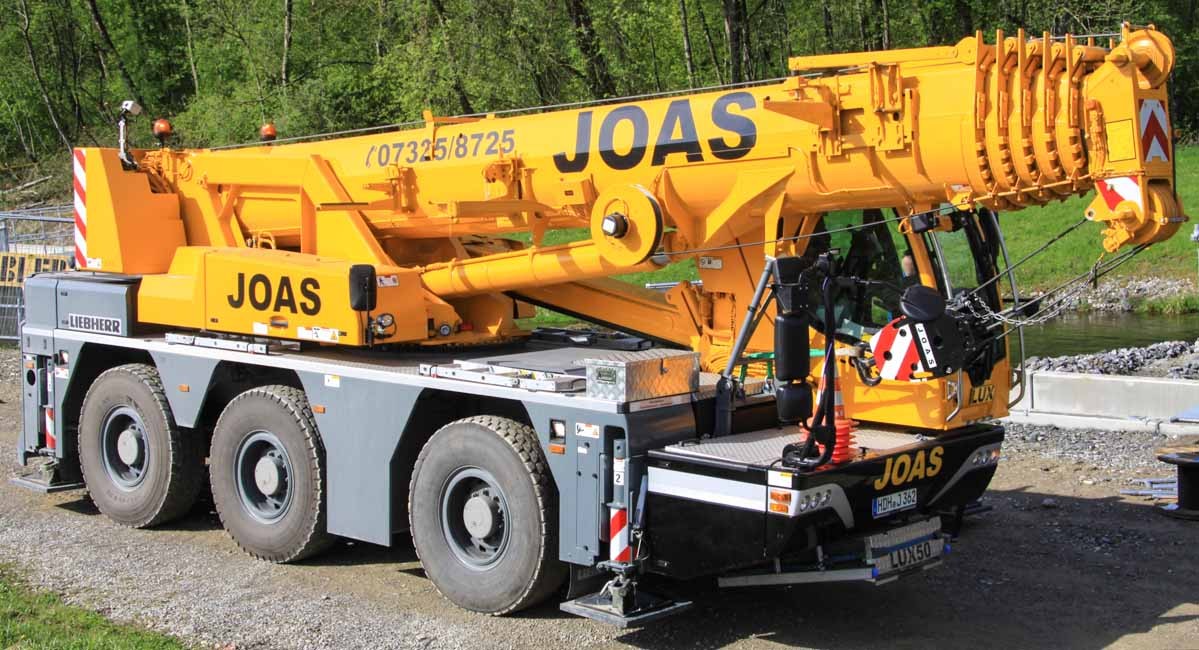

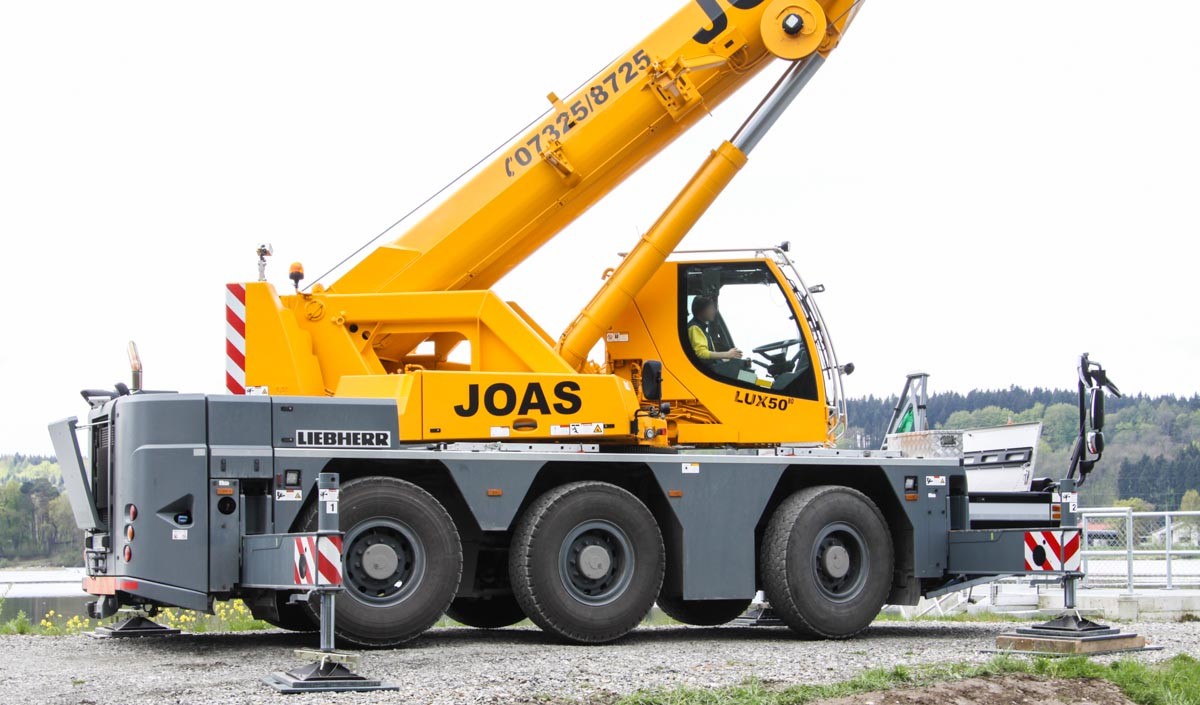

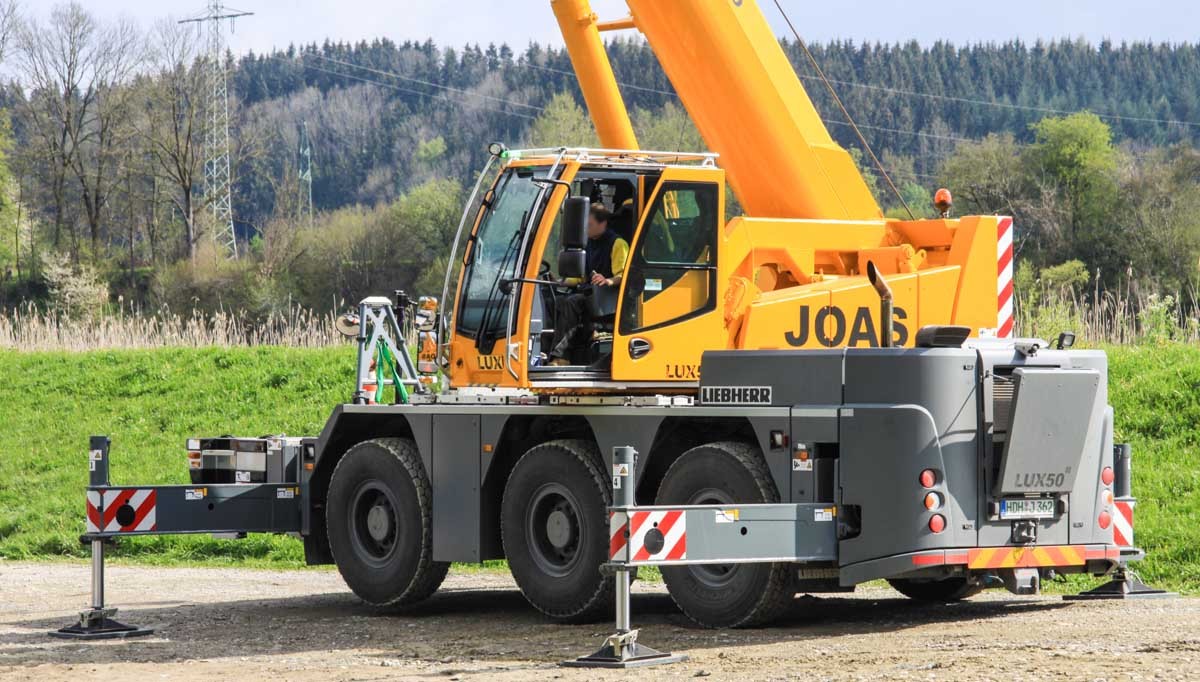

It is a 45 tonnes crane, to keep the crane so compact as possible the crane is driven and operated from one single cabin.

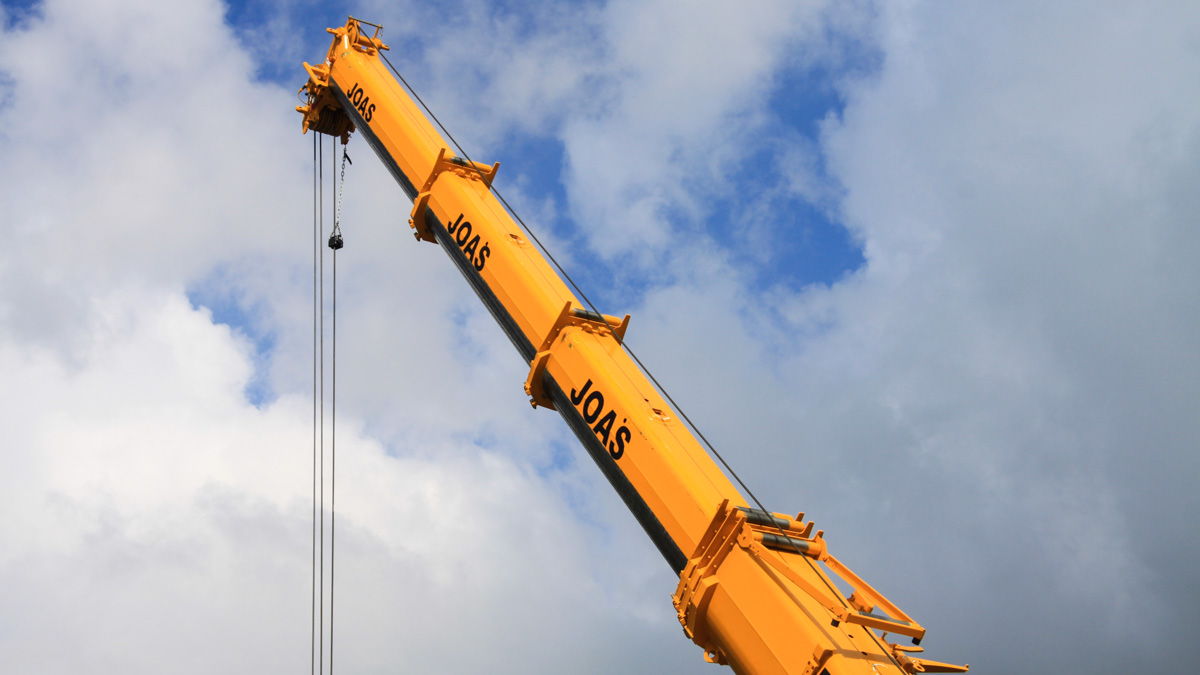

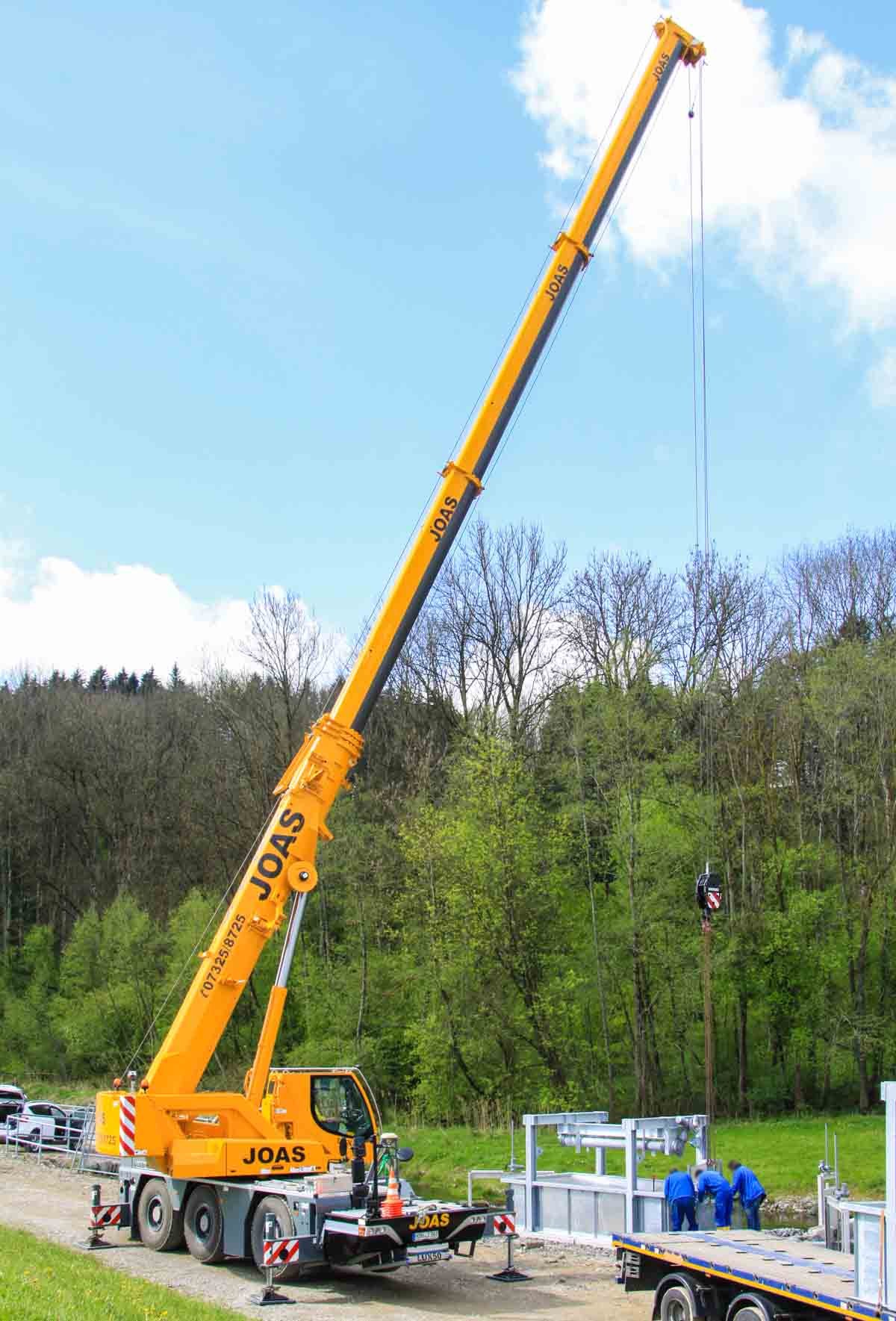

The 6 part main boom has an 8.2 meter base length and reached with 5 telescopic sections a 36 meter length. The folding jib with a total length of 13 meters take care of a maximum hook height of about 46 meters.

The crane is powered by a Mercedes-Benz OM 926 LA, a water cooled 6 cylinder with 326 hp. This crane has three driven and steerable axles.

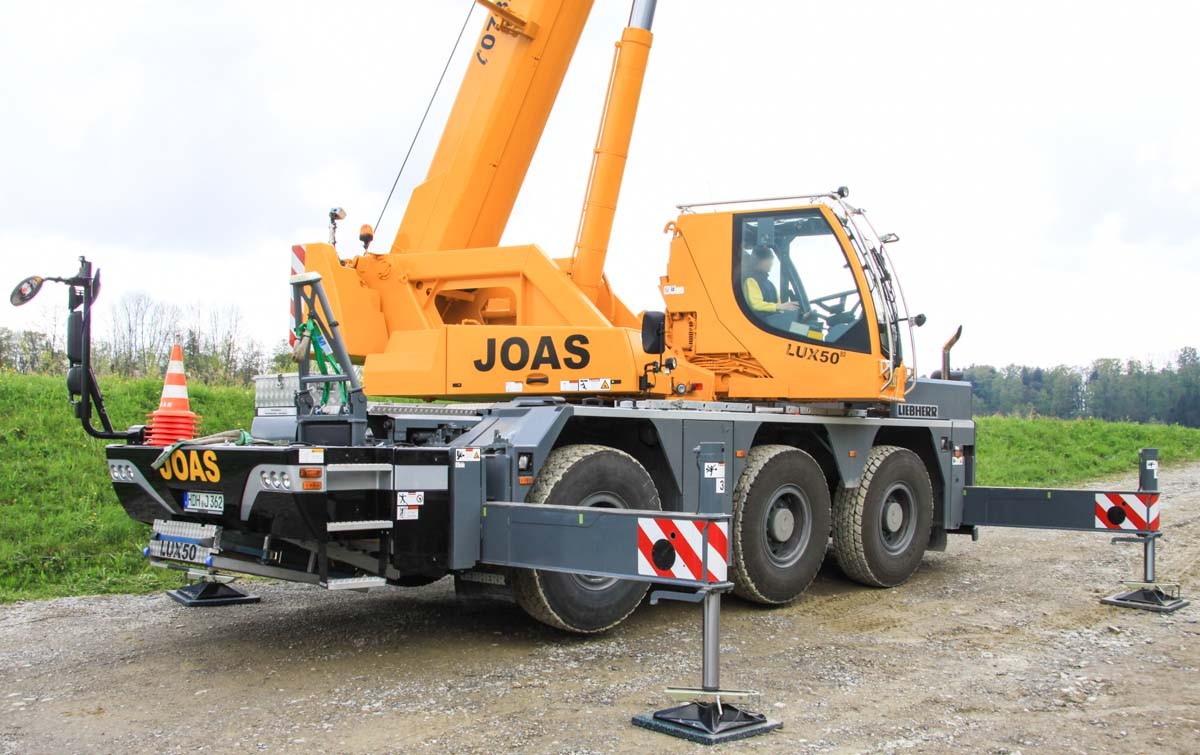

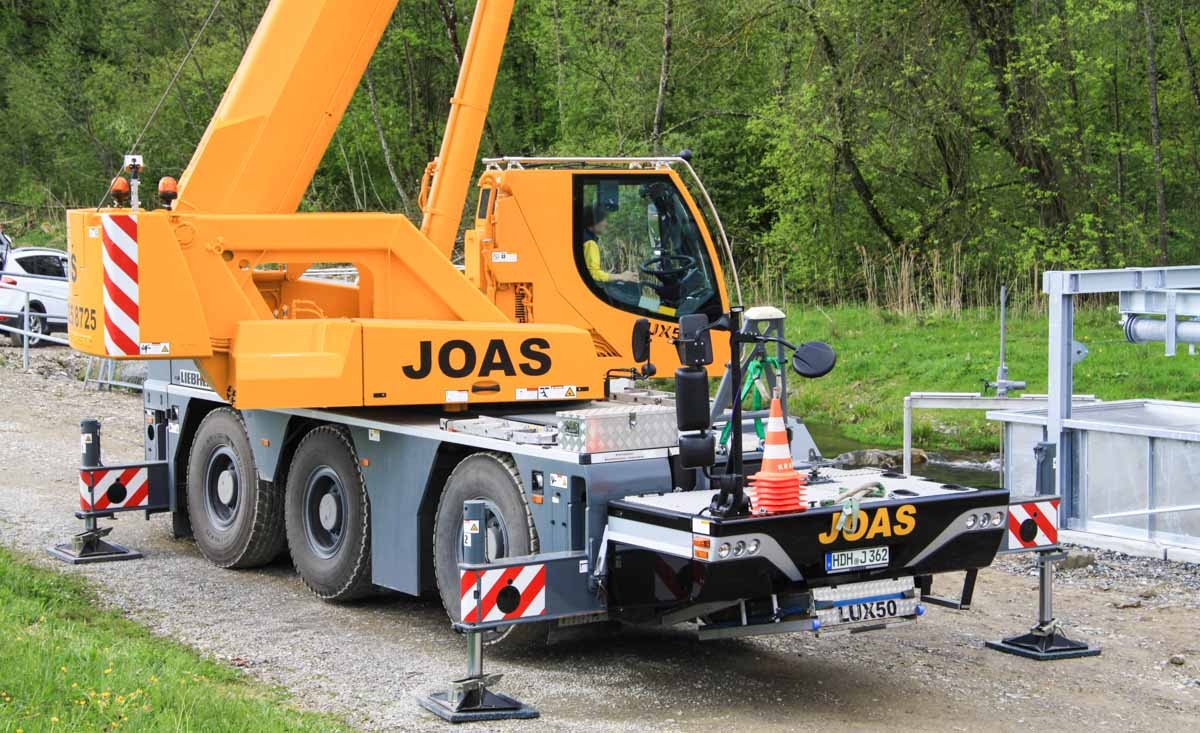

The outrigger base measures 6.4 x 6.2 meters, or half 6.4 x 4.4 meters.

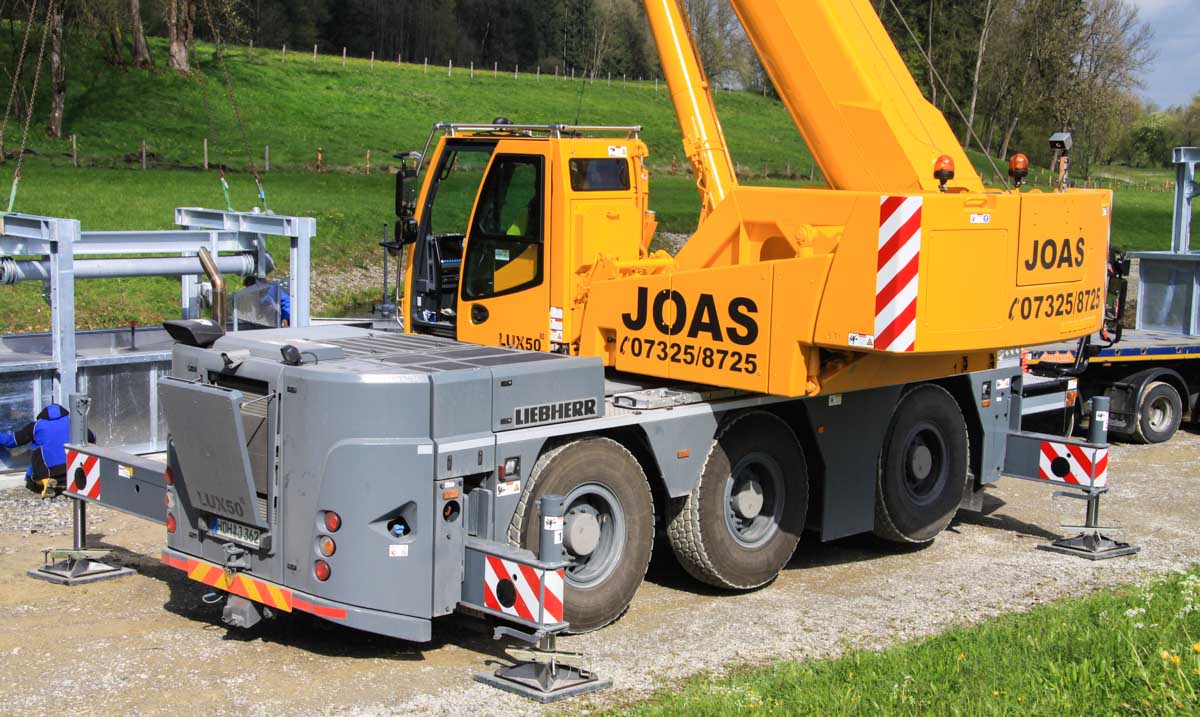

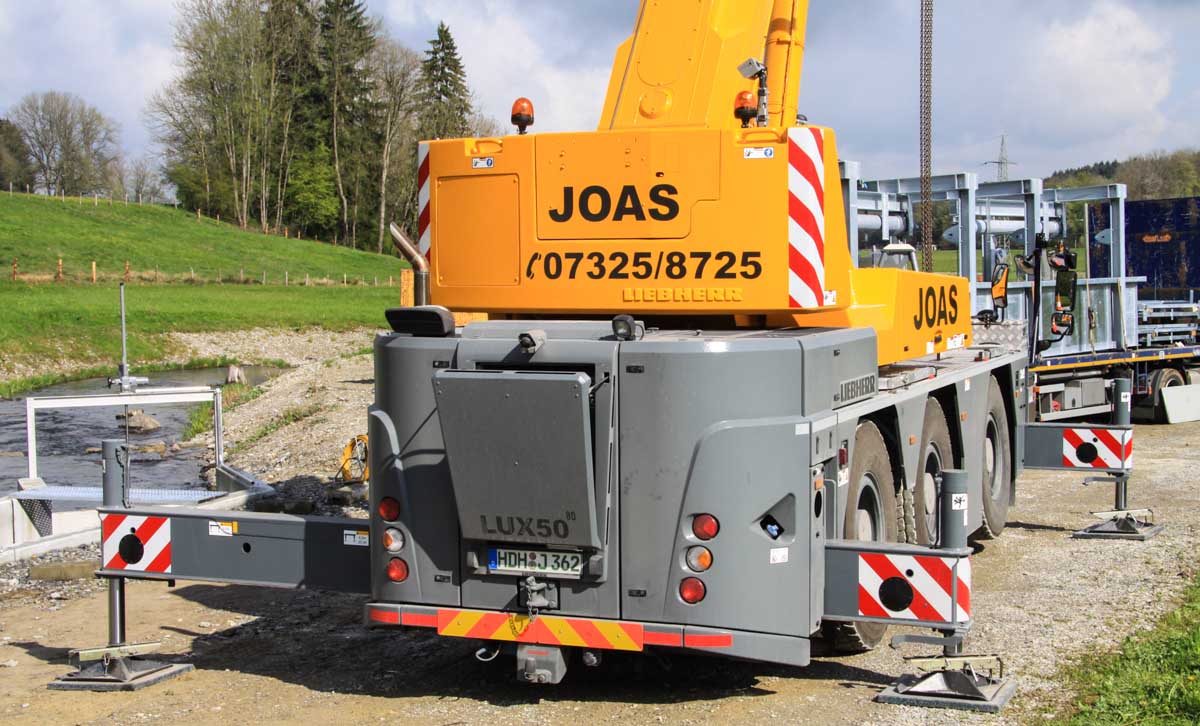

The fixed counterweight of 6.5 tonnes has a 3.2 meter tailswing.

At very narrow locations is it possible to remove the black box from the front side of the chassis.

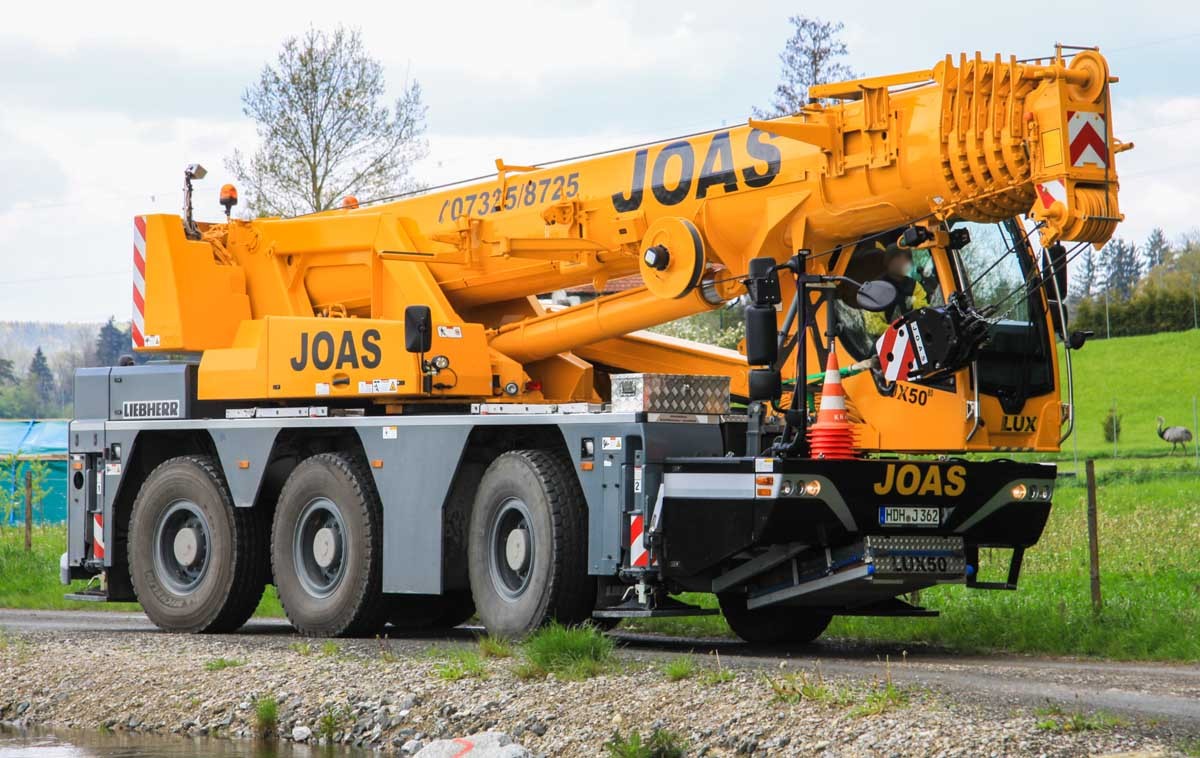

Packed has the crane a 10.4 meter length, a 2.5 meter breadth and a 3.8 meter height. The transport mass is 36 tonnes.

During the transport over the road is the boom slightly boomed up to give the crane driver a view on the right side of the crane.

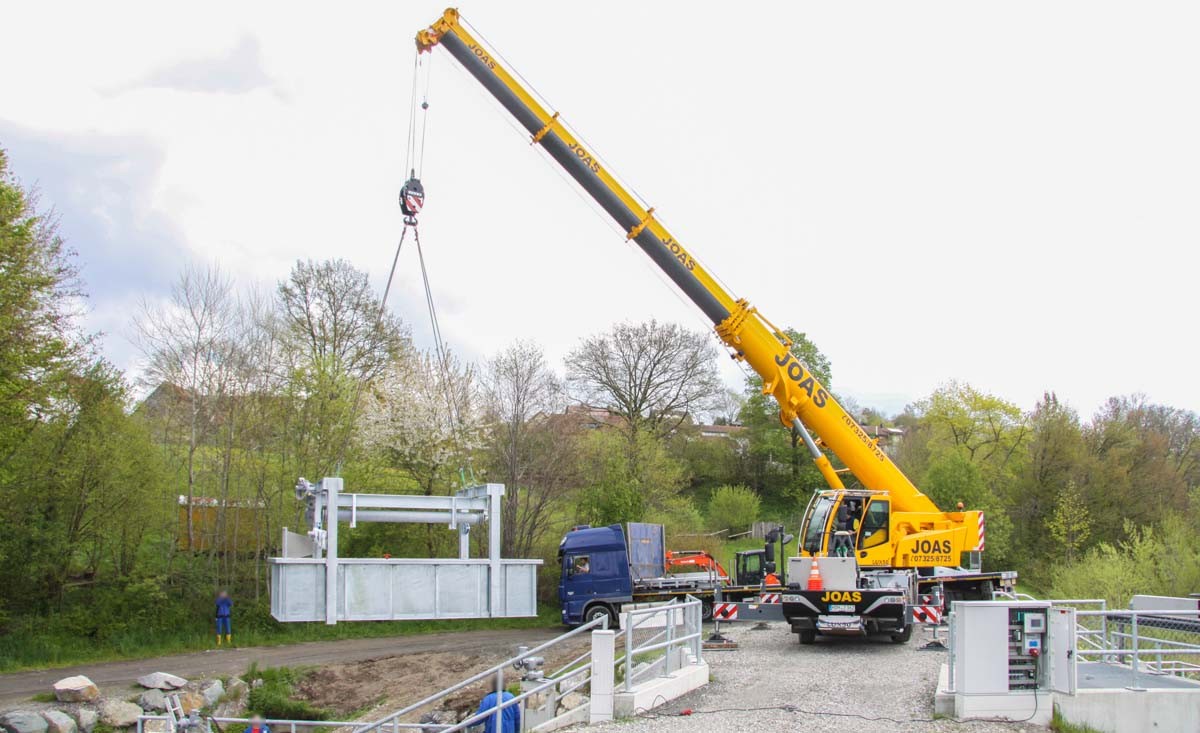

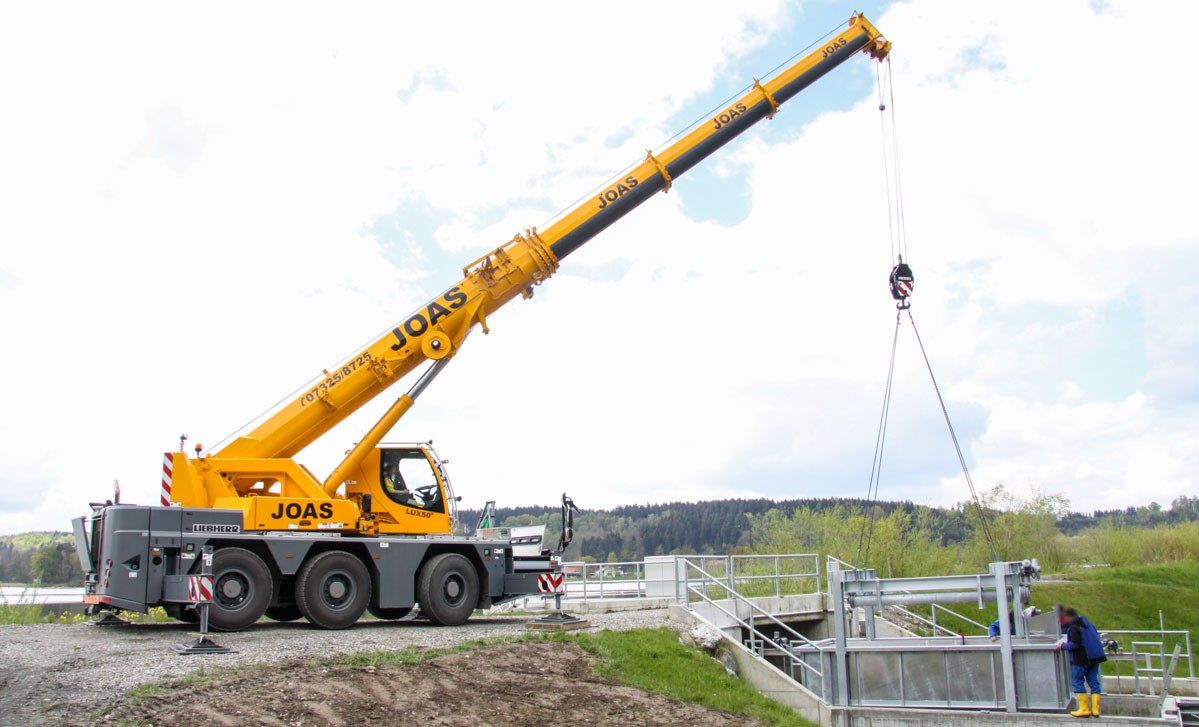

On a second location near Kardorf (DE) was the second construction installed.

A sharp crane that could be used ideal in narrow locations.
