Liebherr LTM 1500-8.1 - Huationg (Asia)
This sharp Liebherr LTM 1500-8.1 of Huationg (Asia) from Singapore (SG) was used to hoist large cooling towers for a new data centre. This is the second Liebherr LTM 1500-8.1 that Huationg (Asia) deploys in Singapore.

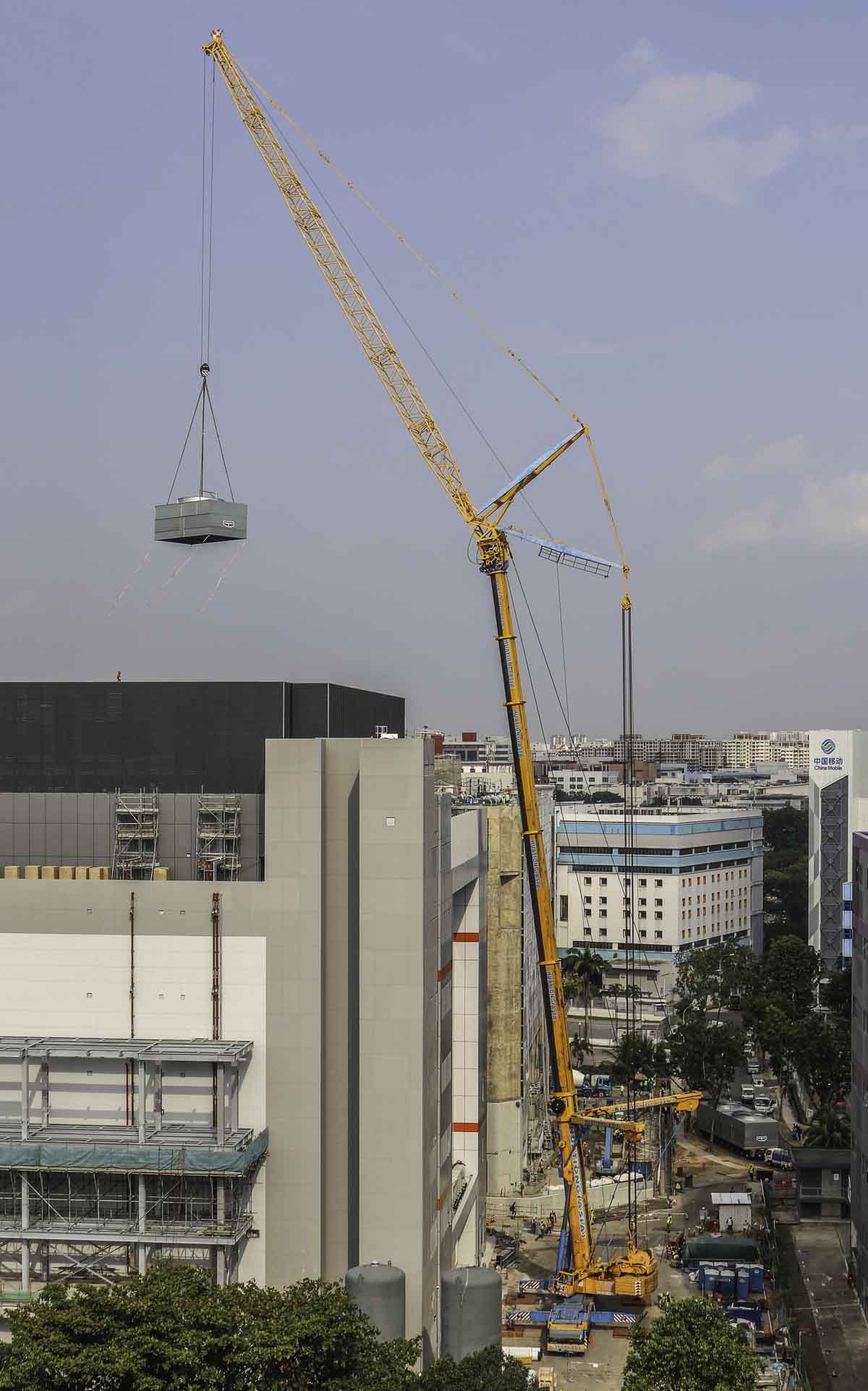

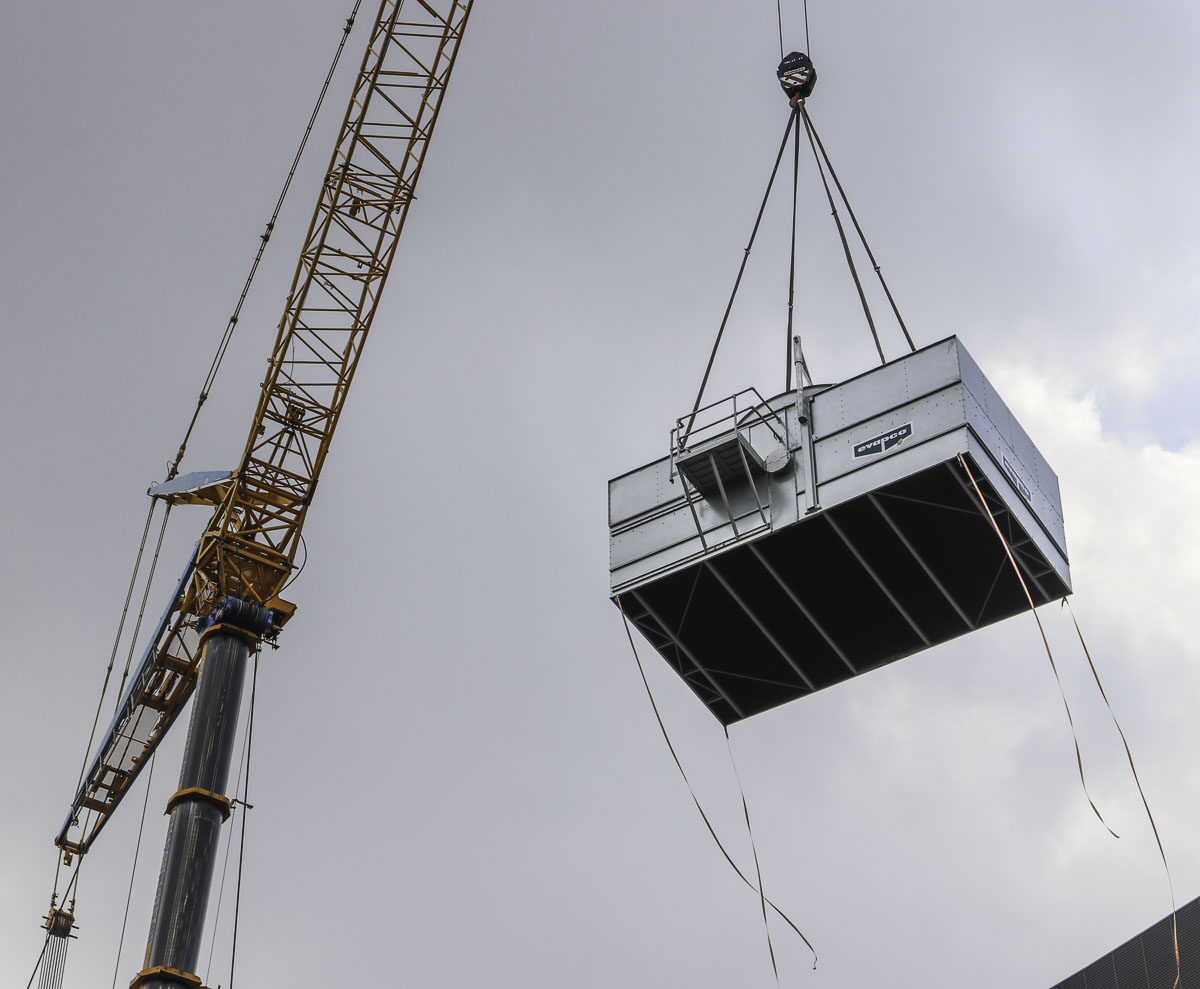

Multiple cooling towers had to be hoisted on top of the roof, the crane was fitted with a luffing jib.

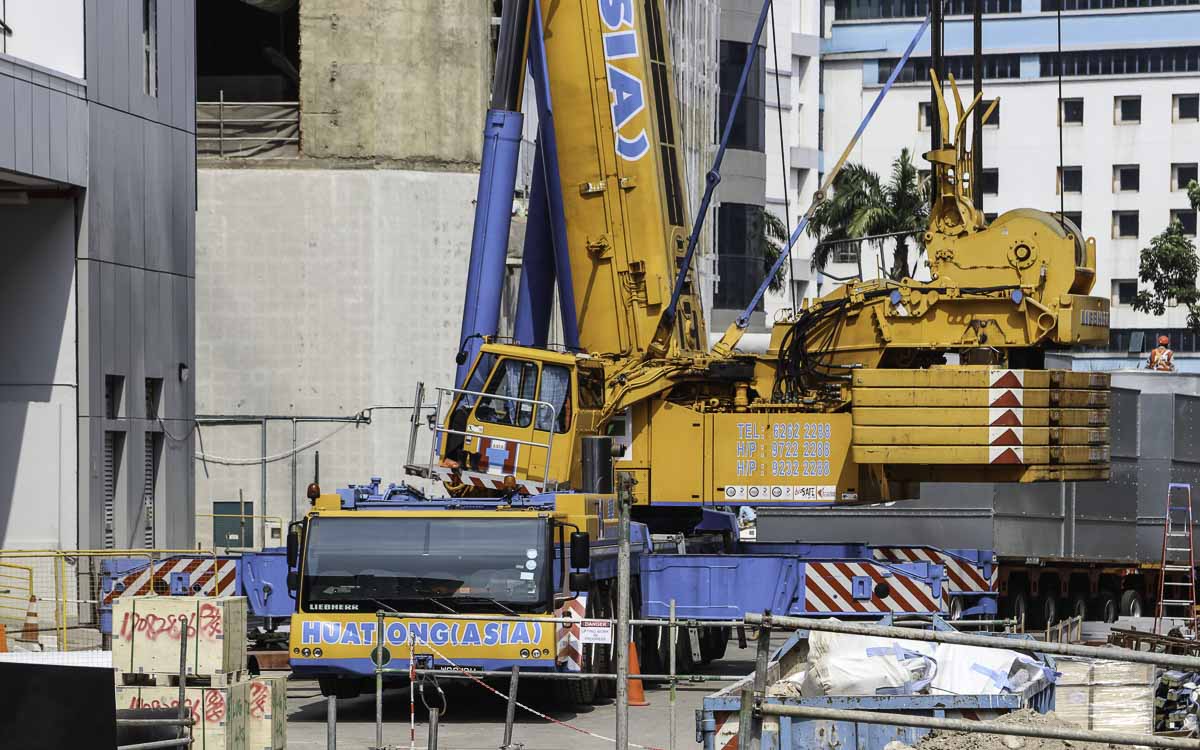

The outrigger base measures 10 x 9.6 meters.

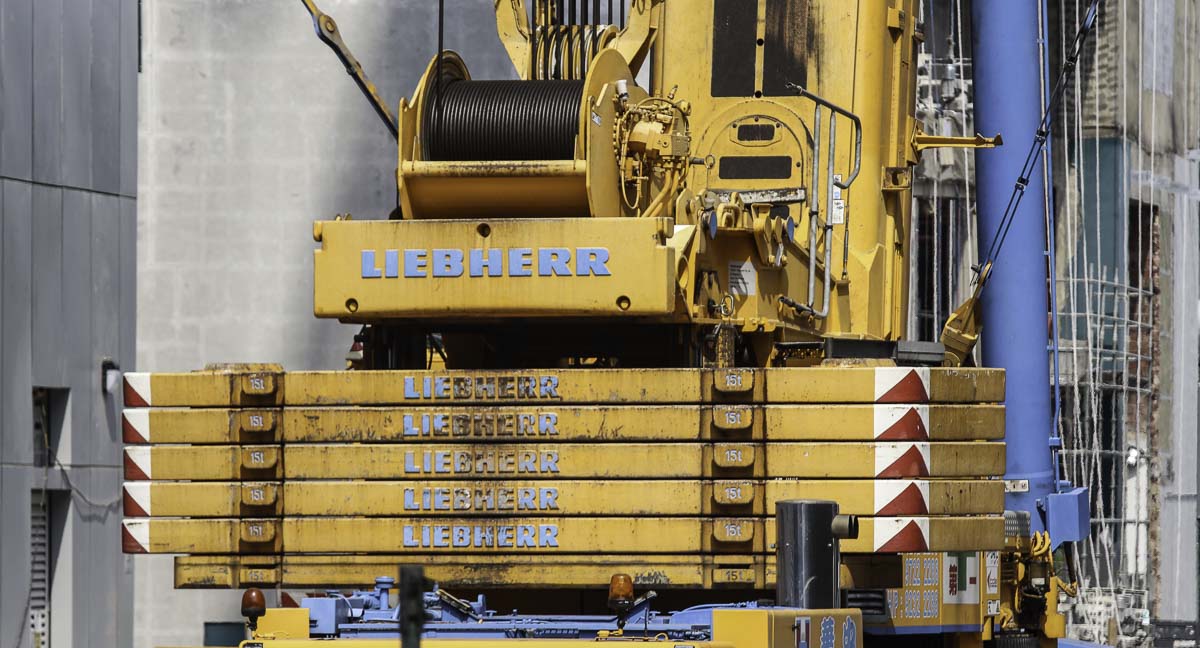

The crane was fitted with 90 tonnes of counterweight, the full counterweight contains 165 tonnes. The counterweight has a 6.6 meter tailswing.

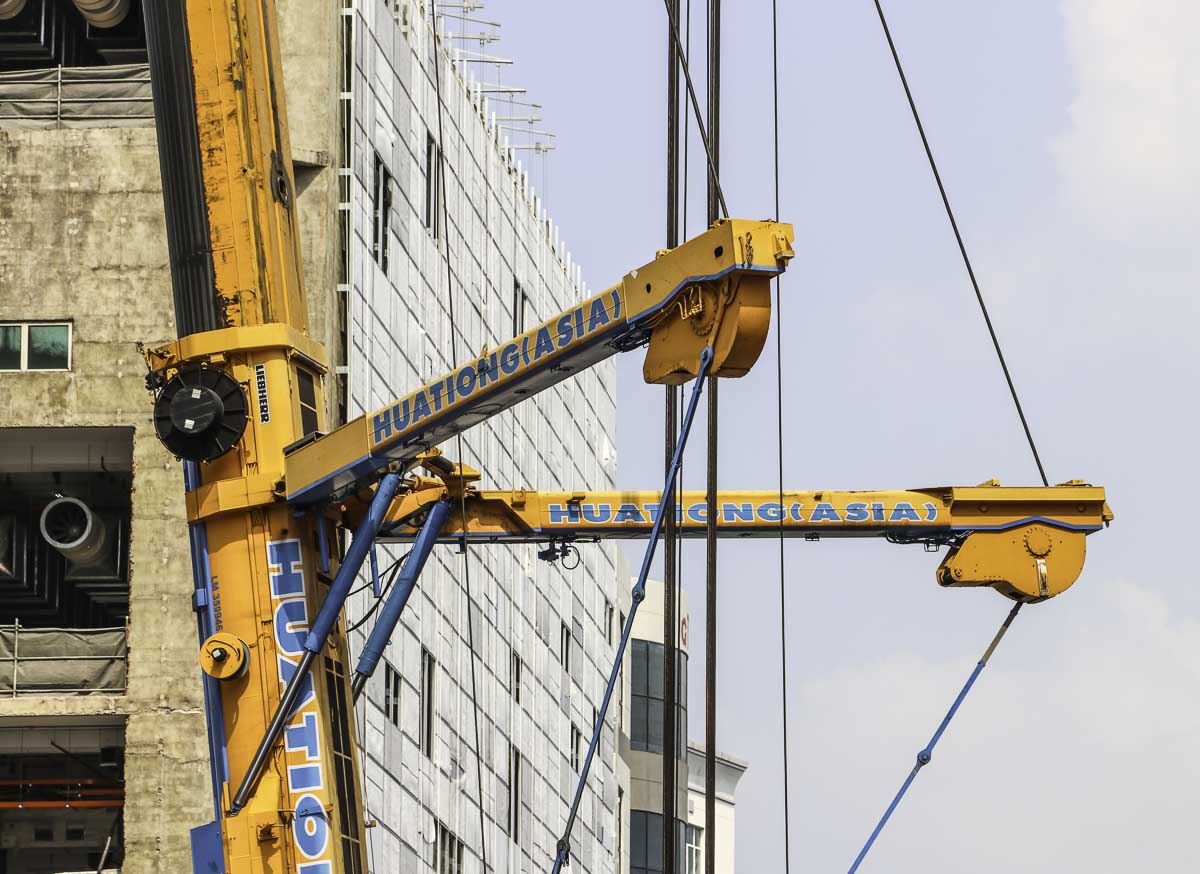

The crane was used with a luffing jib and a sideways superlift system (YSL). The gantries of the superlift are each unfolded 42 degrees.

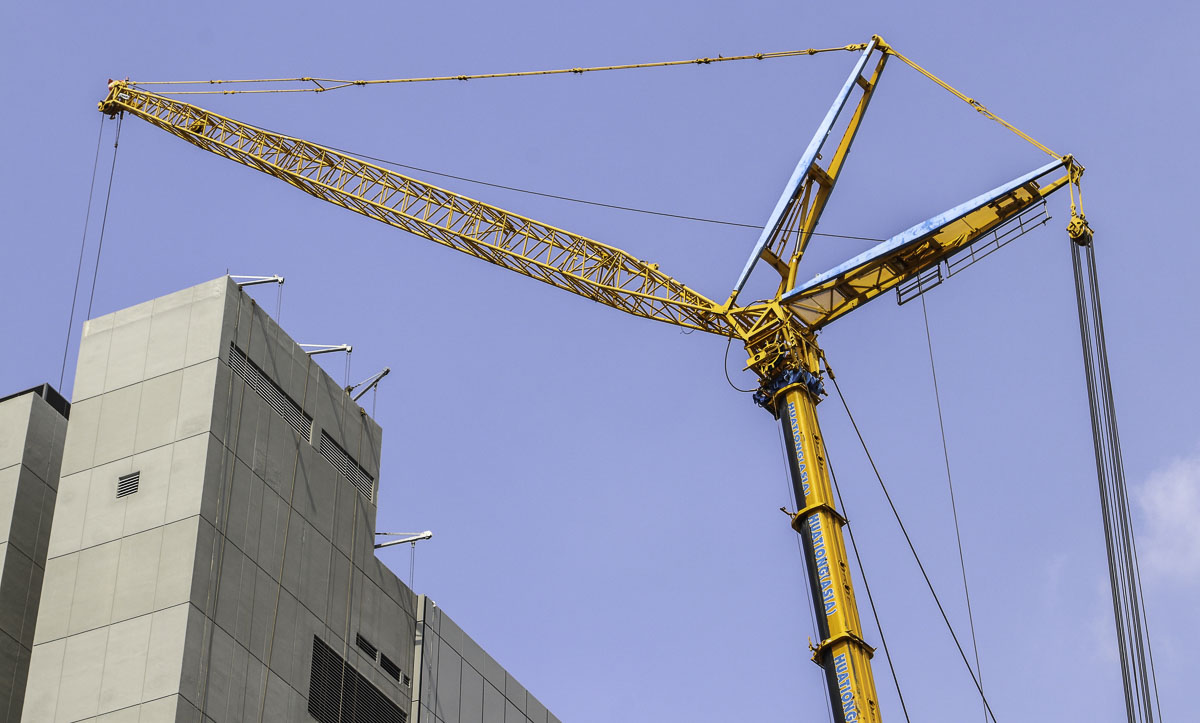

Here was the crane used with a 49 meter luffing jib, the jib has a maximum length of 91 meters.

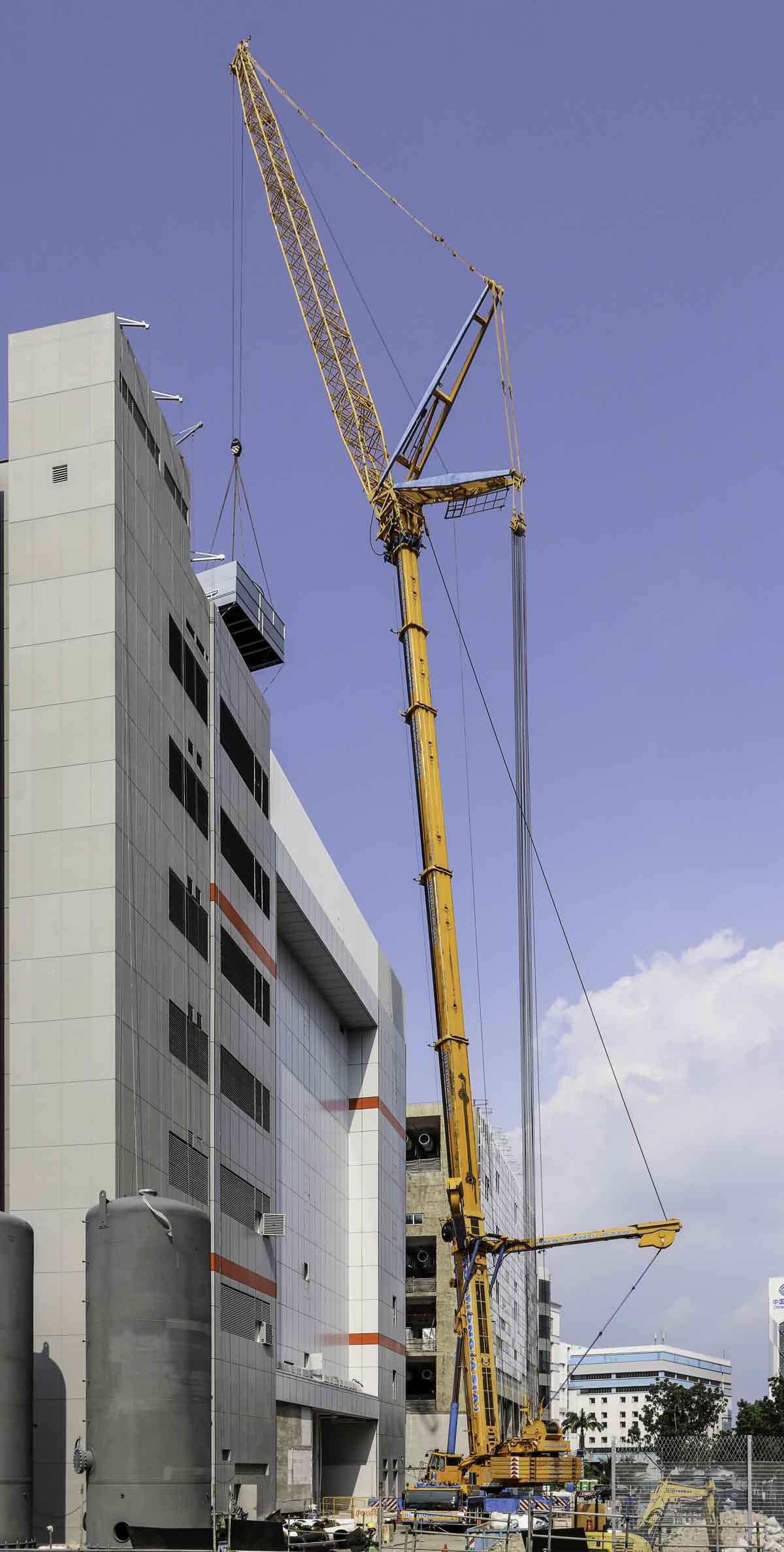

The main boom was extended to a 57.7 meter length. A very sharp job and crane by Huationg (Asia)!

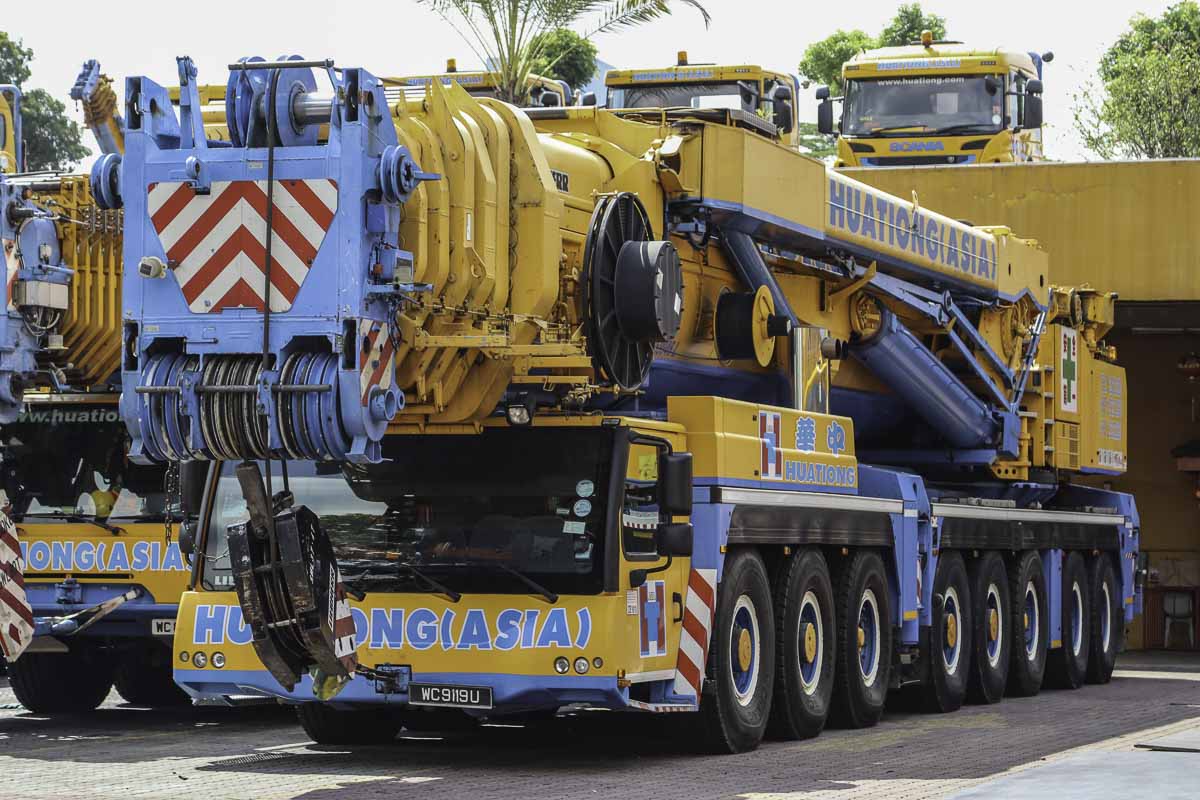

In transit is the crane 21.4 meters long, 3 meters wide and 4 meters tall. In this configuration weights the crane approx. 125 tonnes.
