Liebherr LTF 1035-3.1 - Gräser

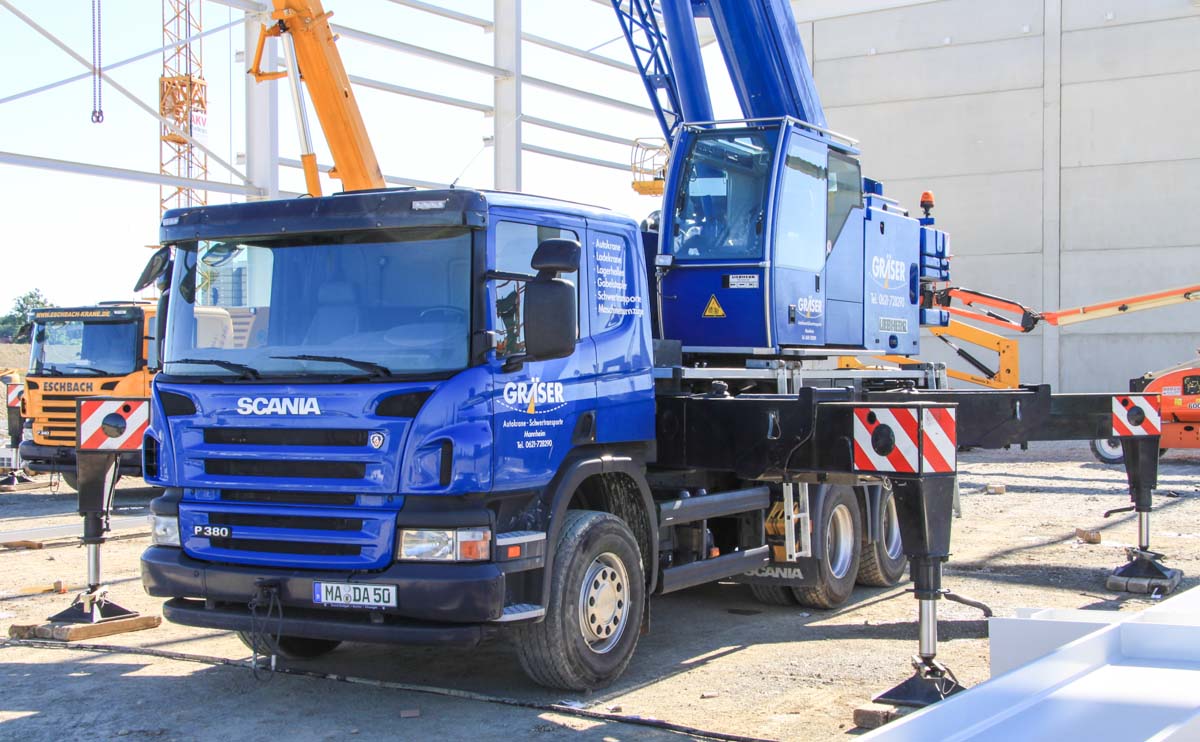

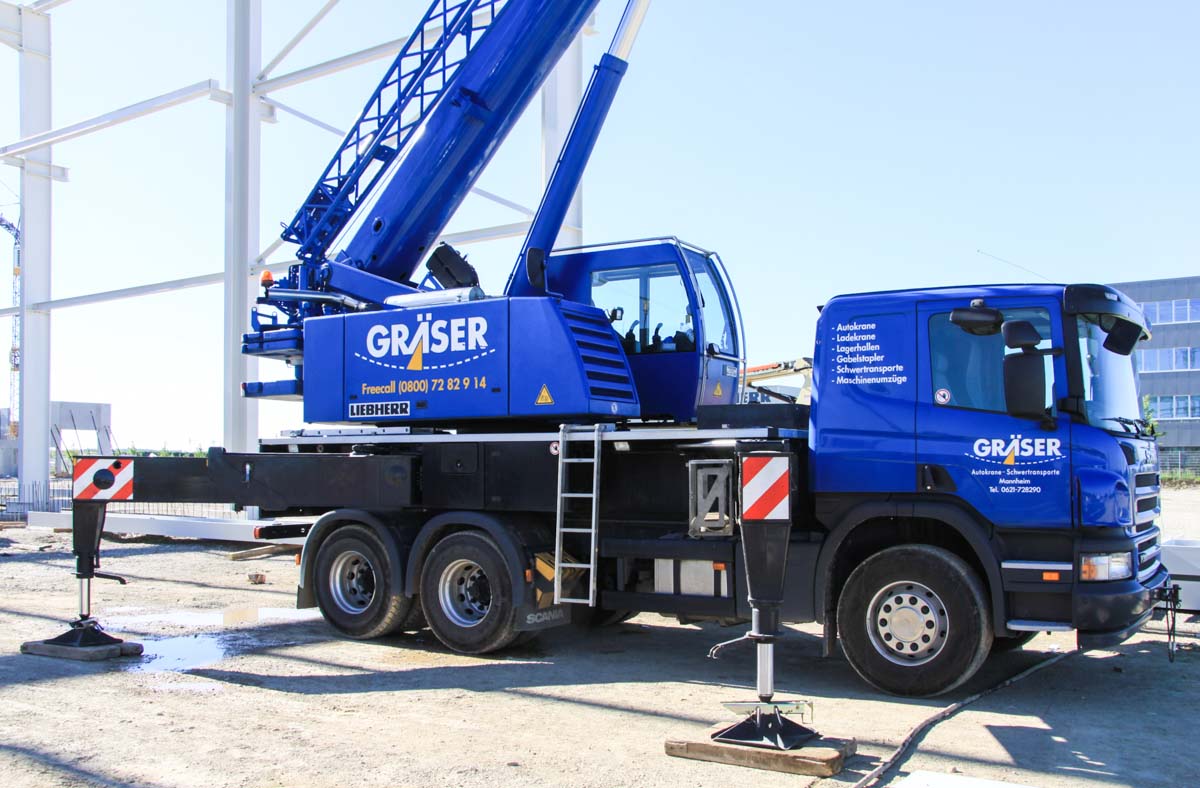

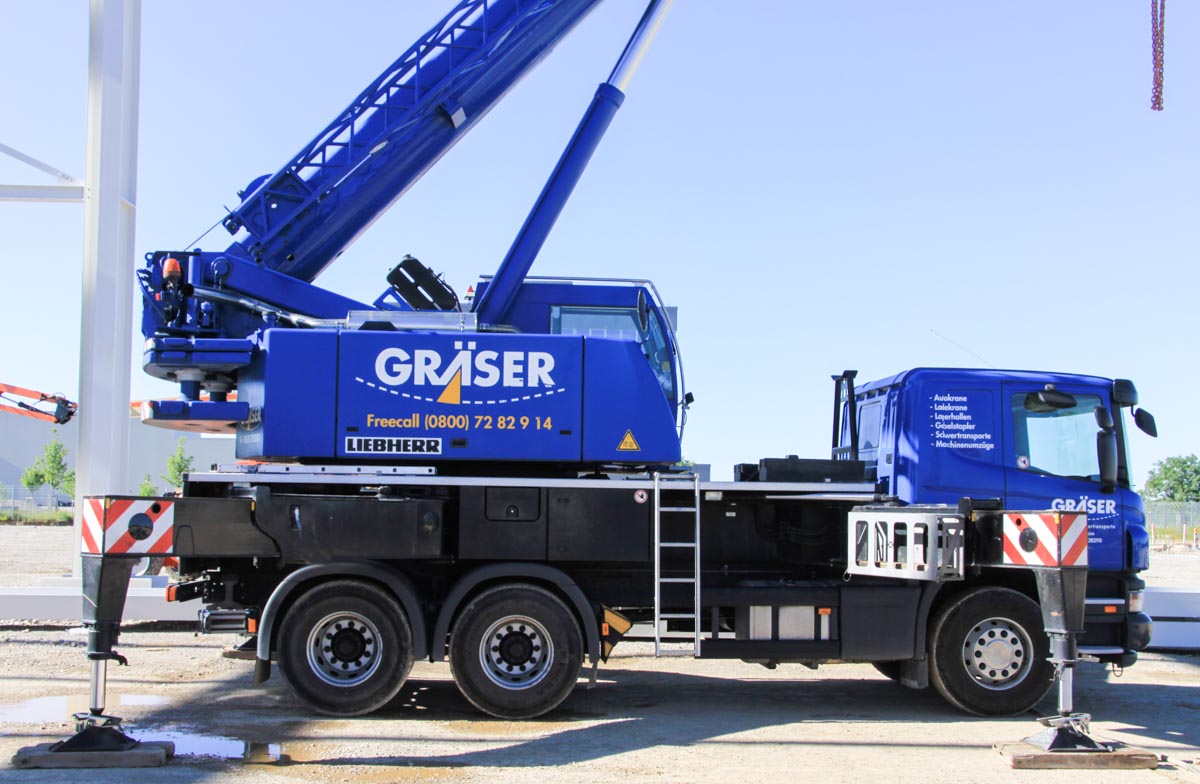

A sharp Liebherr LTF 1035-3.1 on a Scania P 380 chassis of Gräser from Mannheim (DE).

It is a 35 tonne crane on a 3 axle truck chassis. The undercarriage is powered by a Scania 12 liter 6 cylinder dieselengine with 380 hp.

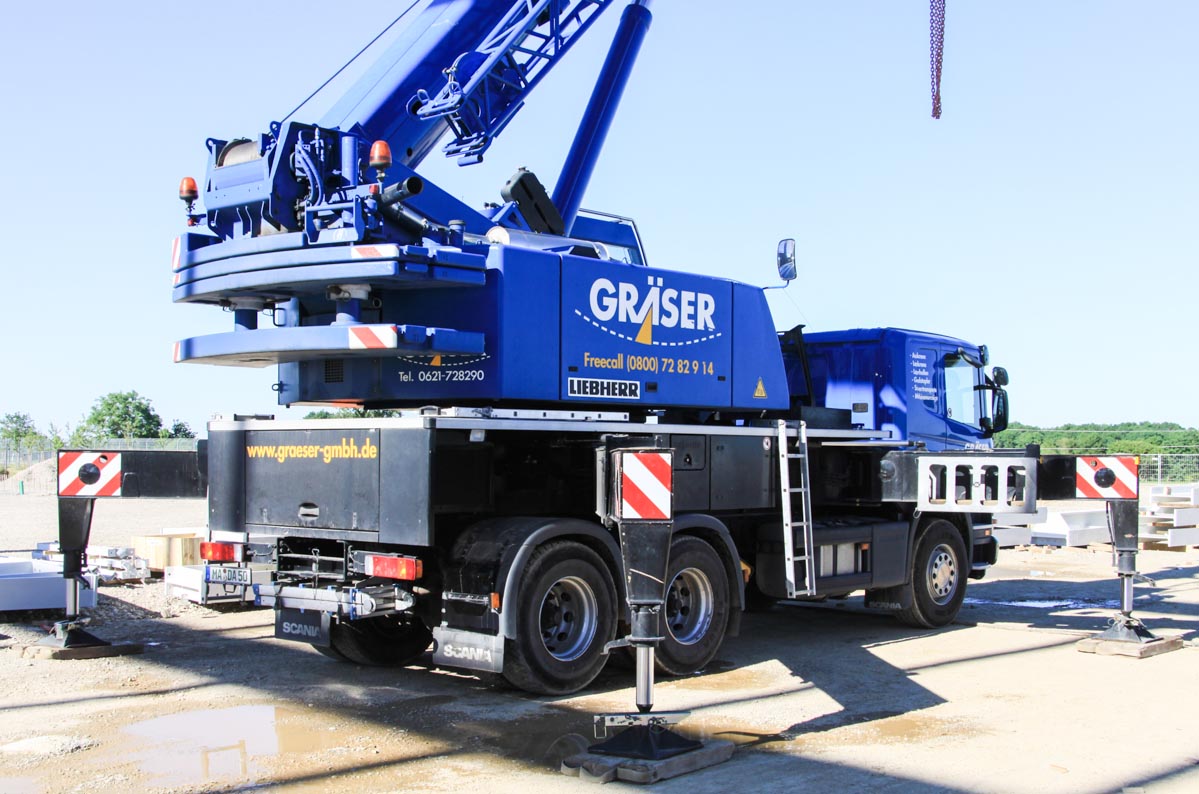

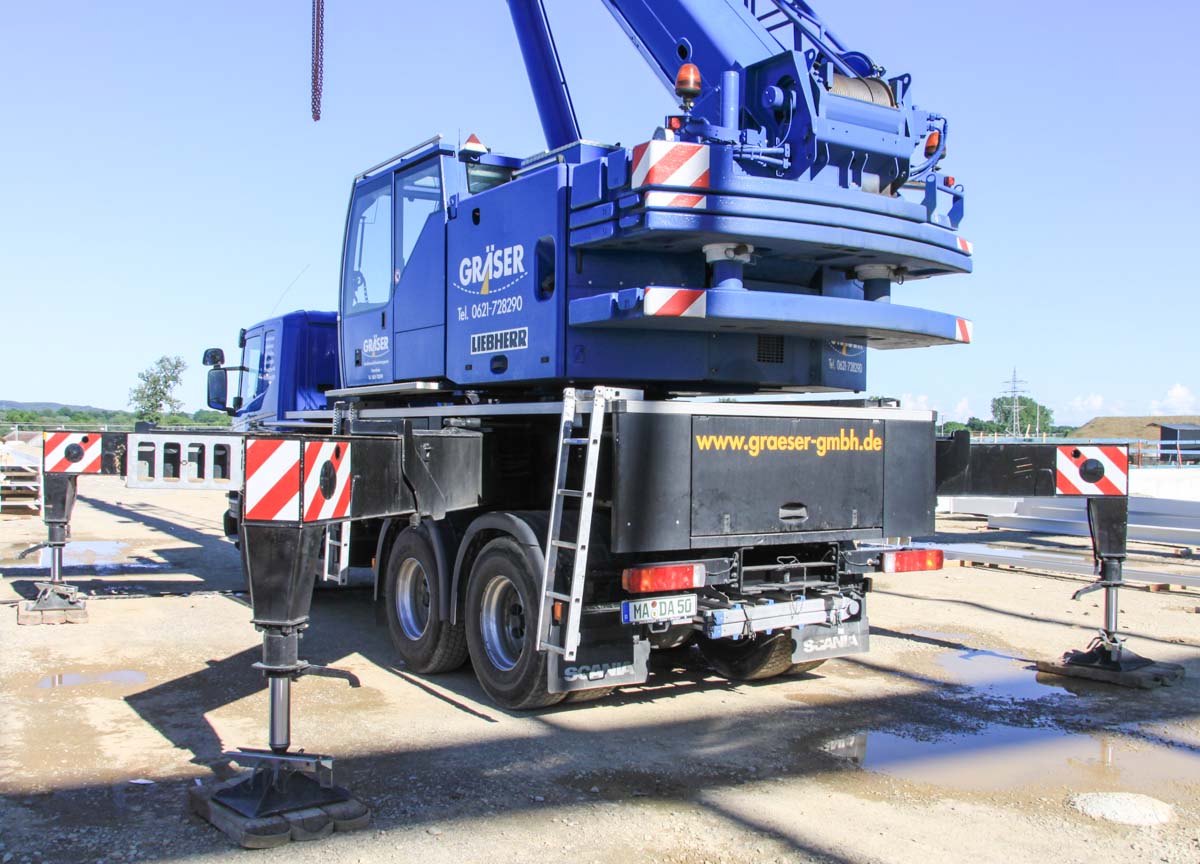

The X-shapped outriggers making a rectangle with 6.4 x 6.2 meters, or half 5.3 x 4.6 meters. Behind the front axle are the muffler and the diesel tank made. Between the outriggers are a storage compartment and the operation unit for the outriggers made.

The crane is powered by a 4 cylinder Liebherr D934L A6 with 175 hp. The engine powers two hydraulic pumps in order to operate all crane functions at the same time.

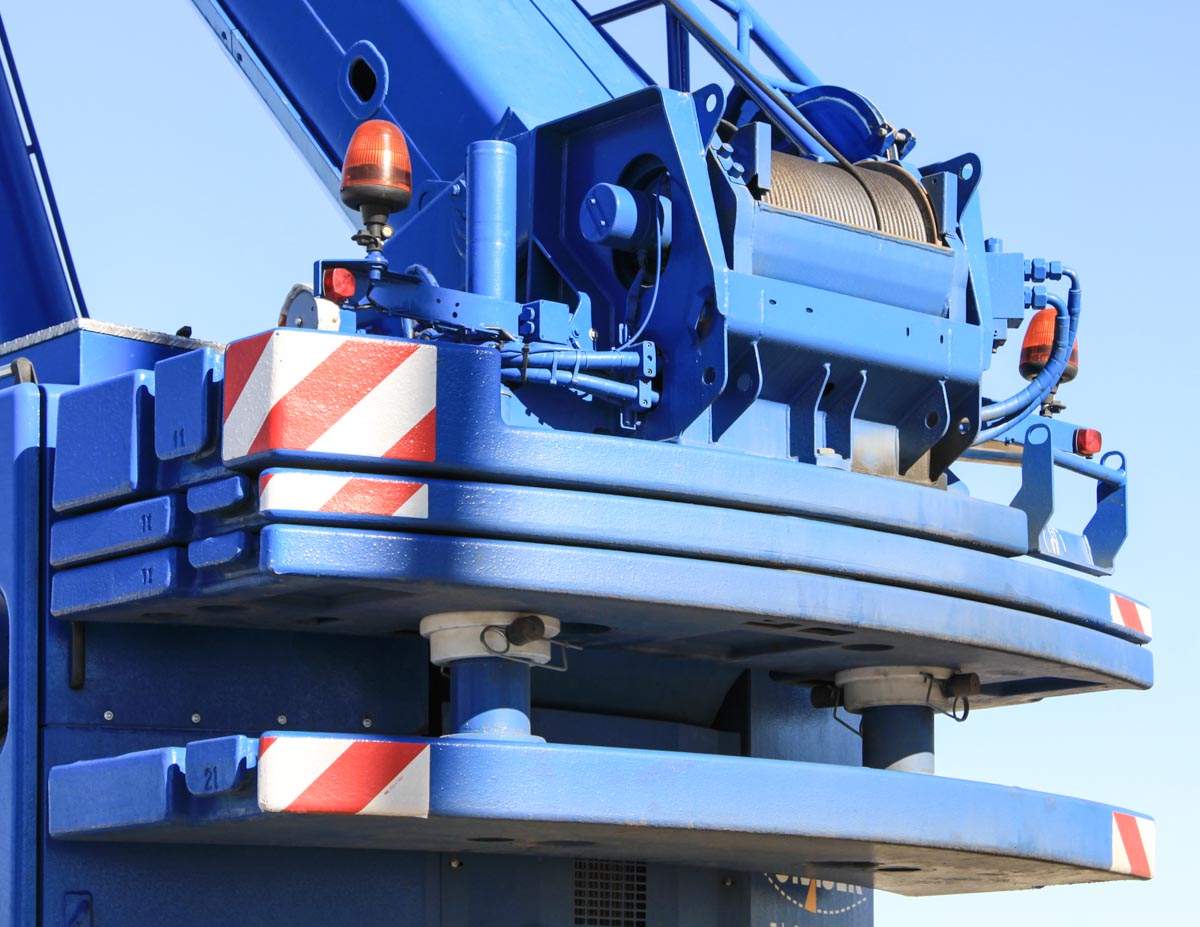

The crane has 5 tonnes of counterweight which is the maximum. The 2 tonne slab is lay down behind the cabin during transport over the road. The counterweight has a 3 meter tailswing.

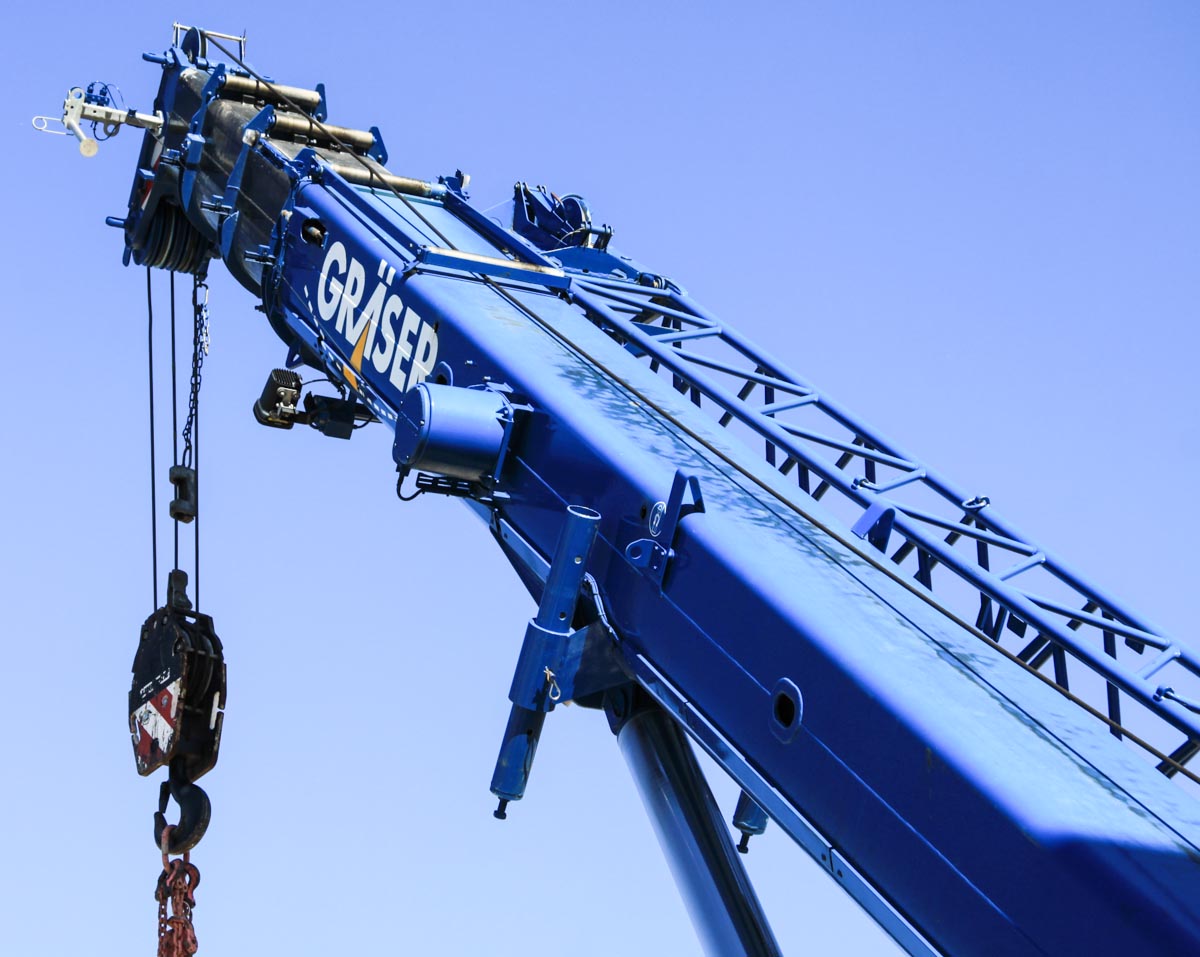

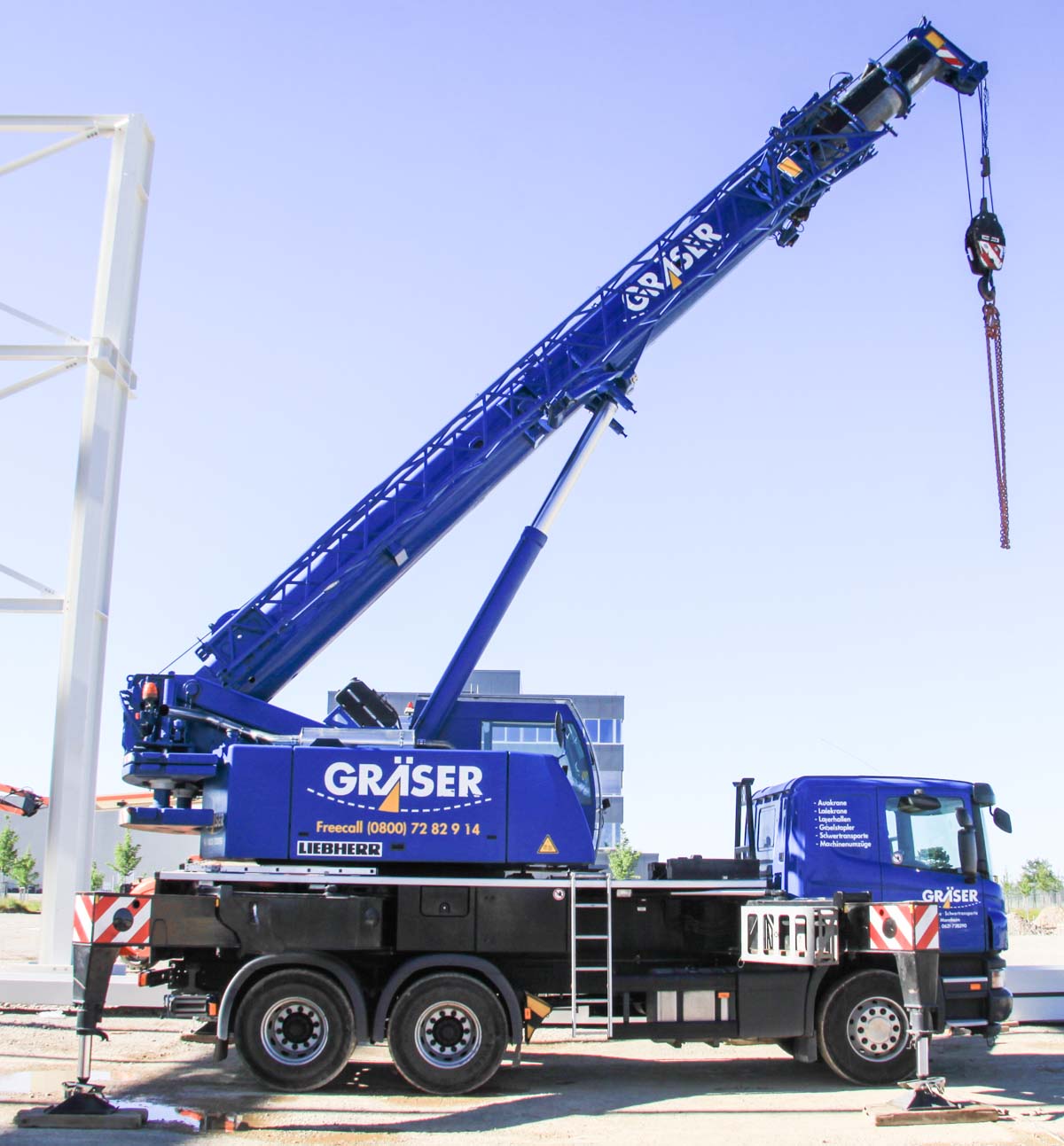

The 4-part main boom has three telescopic sections with a maximum length of 30 meters. The folding jib is 8.6 meters long and can be installed in a 0, 20 or 40 degree angle against the main boom.

The crane was used to erect a steel construction for a new production hall.
