Liebherr LTM 1090-4.1 - Van Ginkel

This Liebherr LTM 1090-4.1 of Van Ginkel from Scherpenzeel (NL) was used by the construction of a stable in Hoogwoud (NL).

The crane's year of manufacture is 2004 and was bought used in 2010. Therefore the crane was working in Germany by Grohmann.

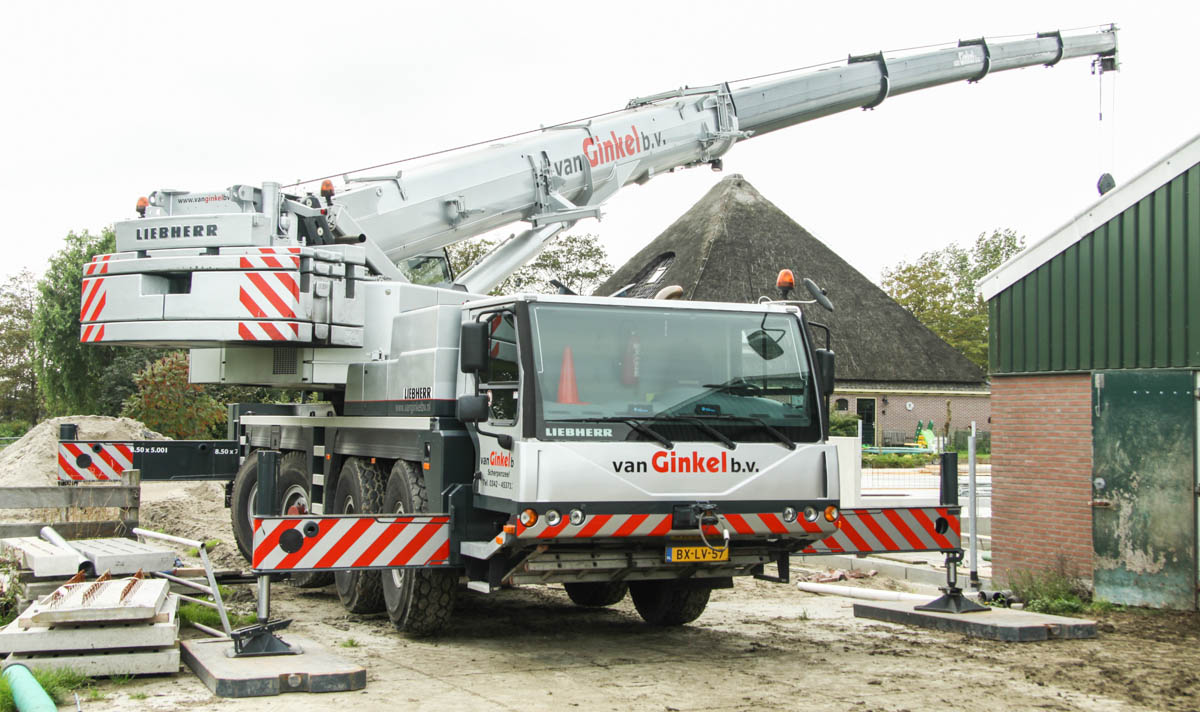

Fitted with 17 tonnes of counterweight, which could be enlarged up to 21 tonnes with two hang-on slabs.

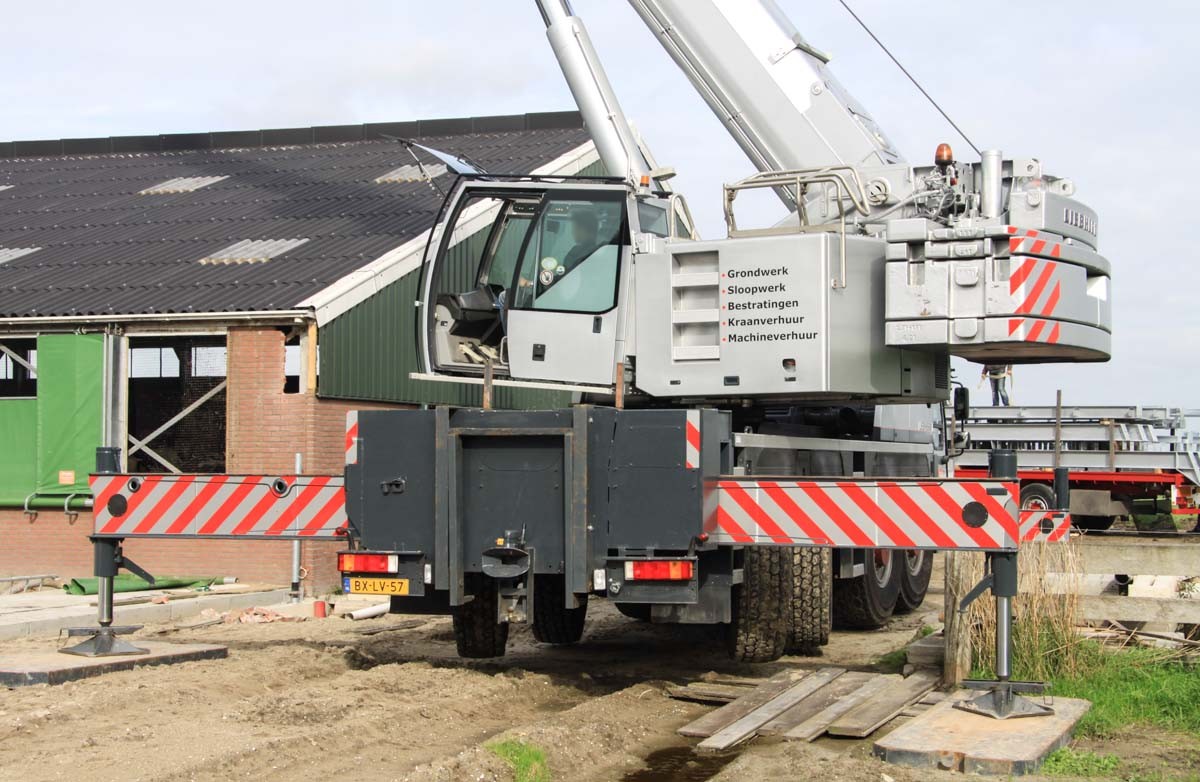

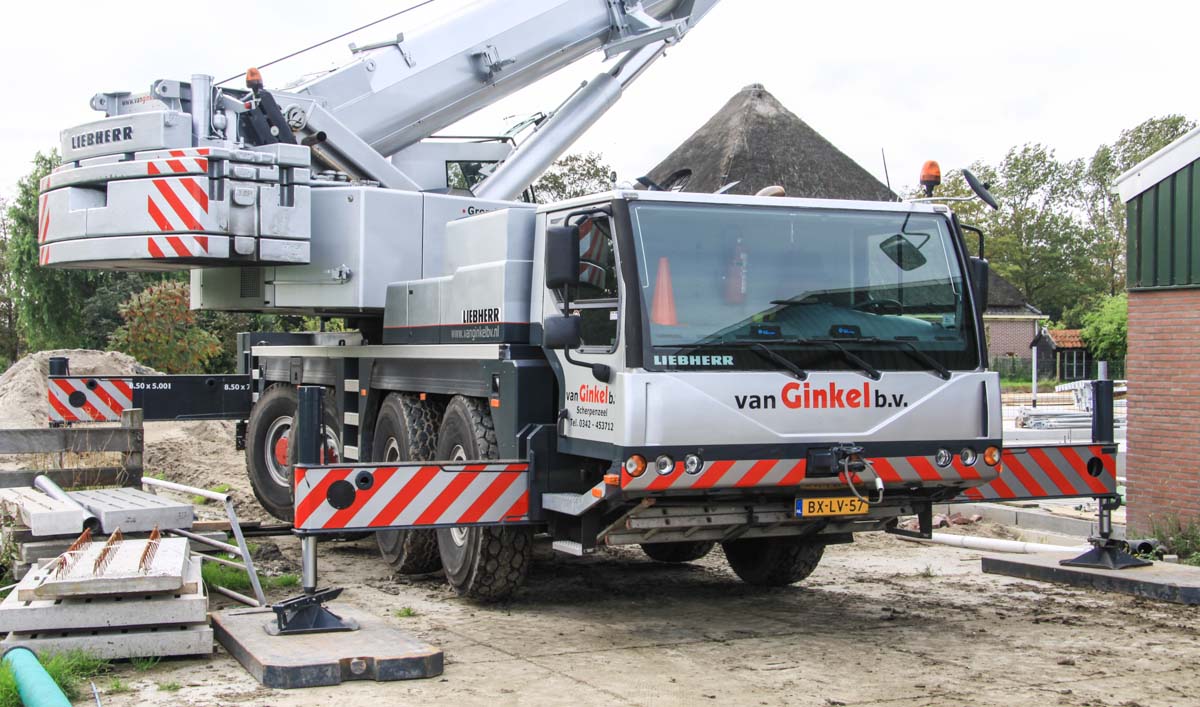

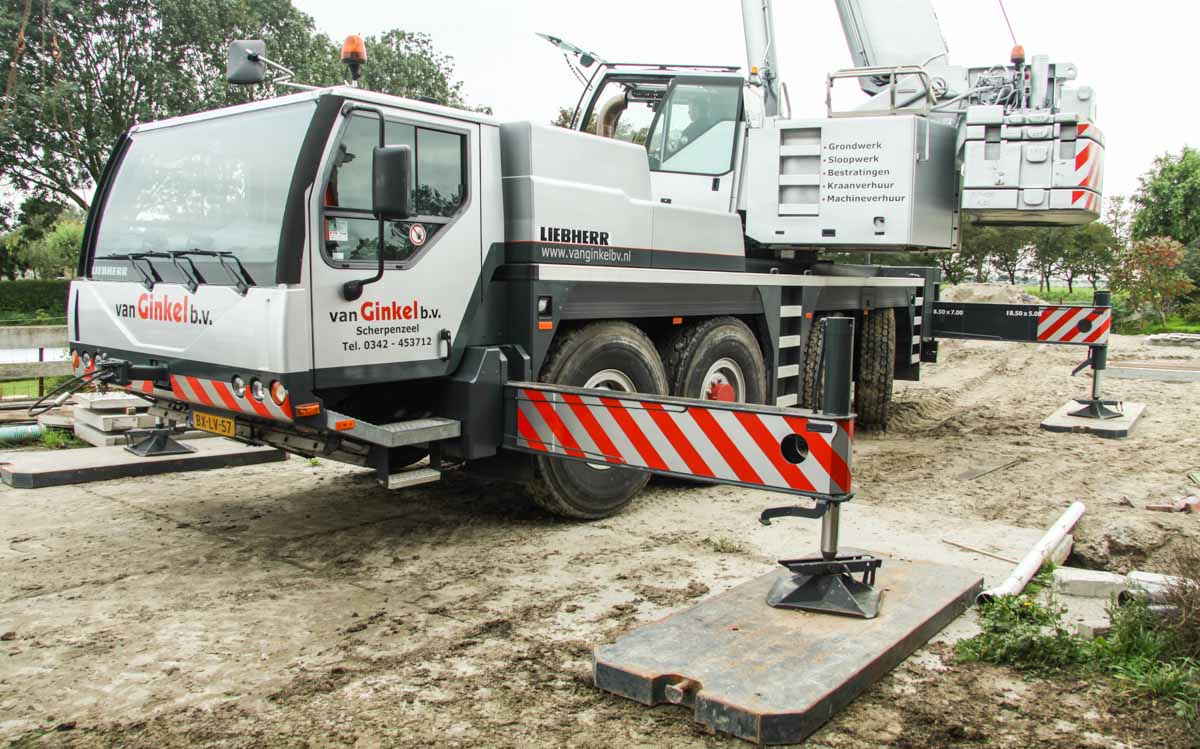

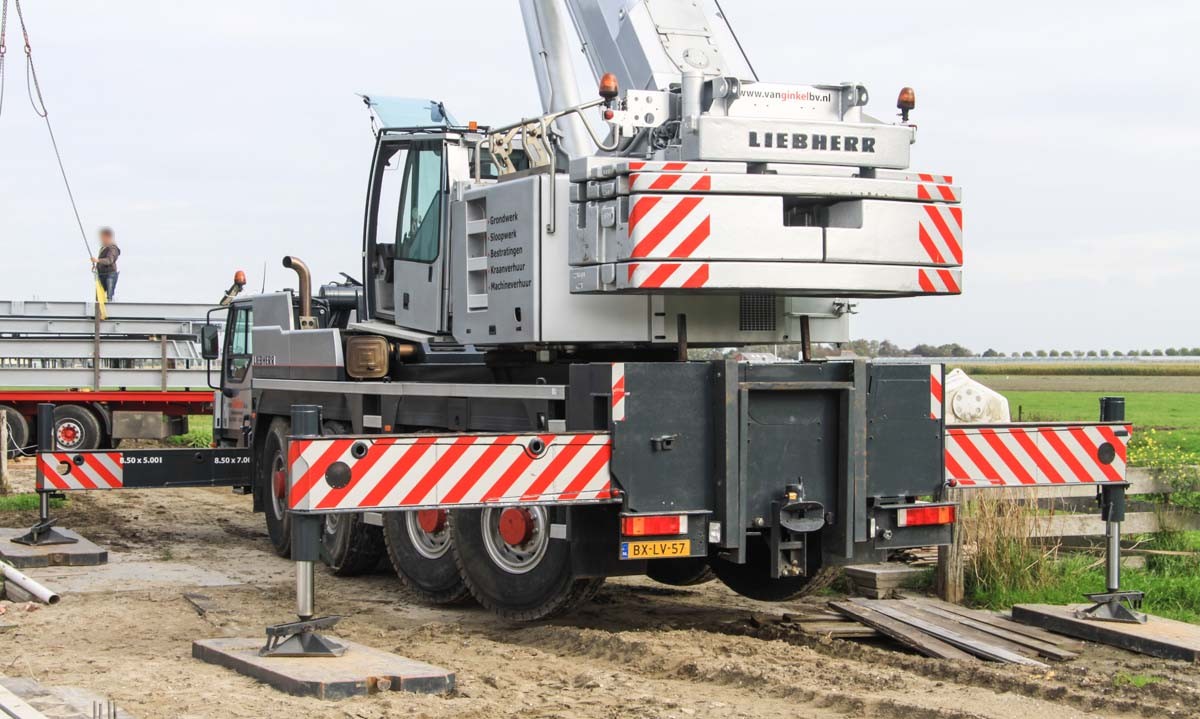

The crane outrigger base is 8.6 x 7 meters.

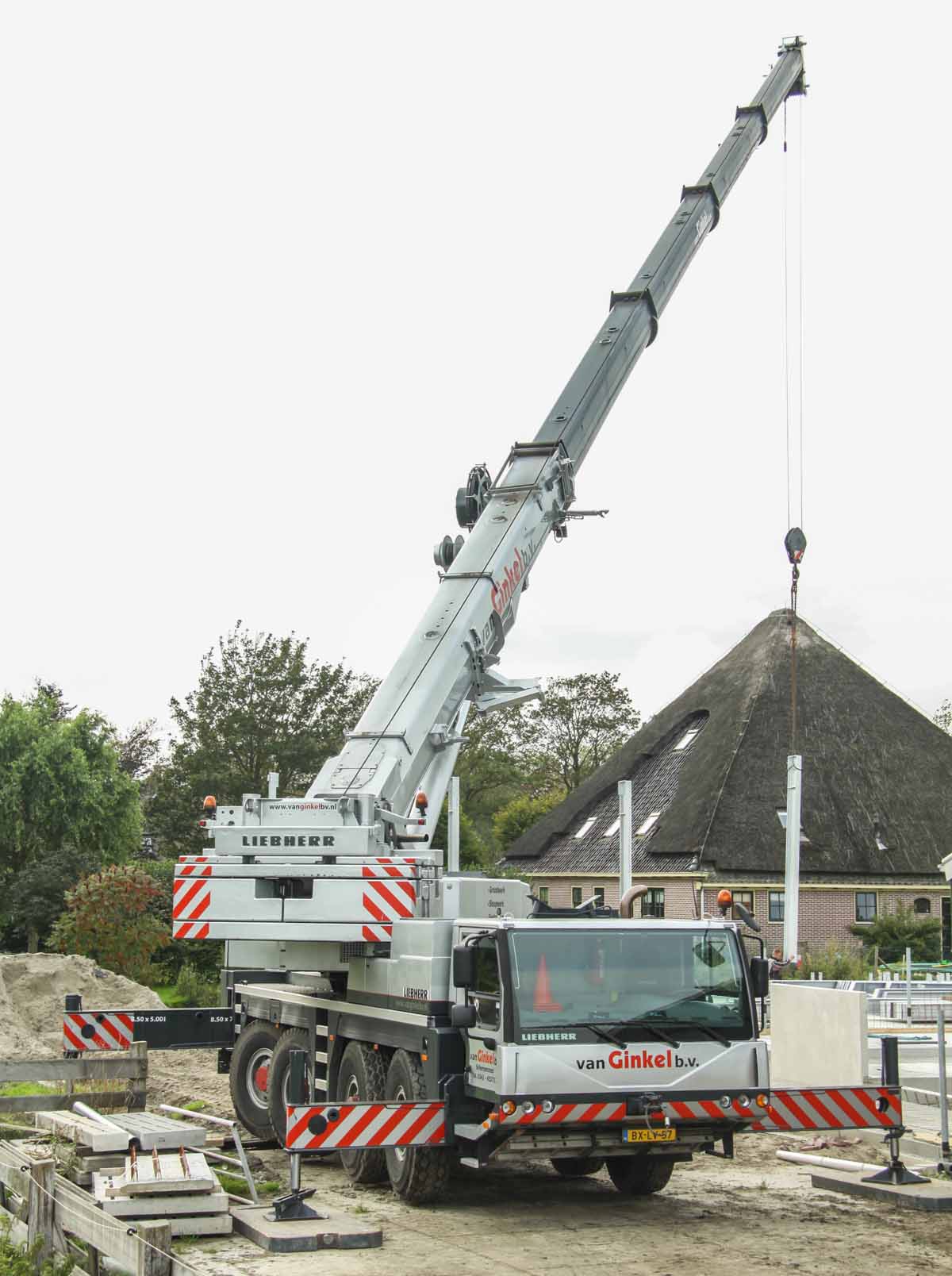

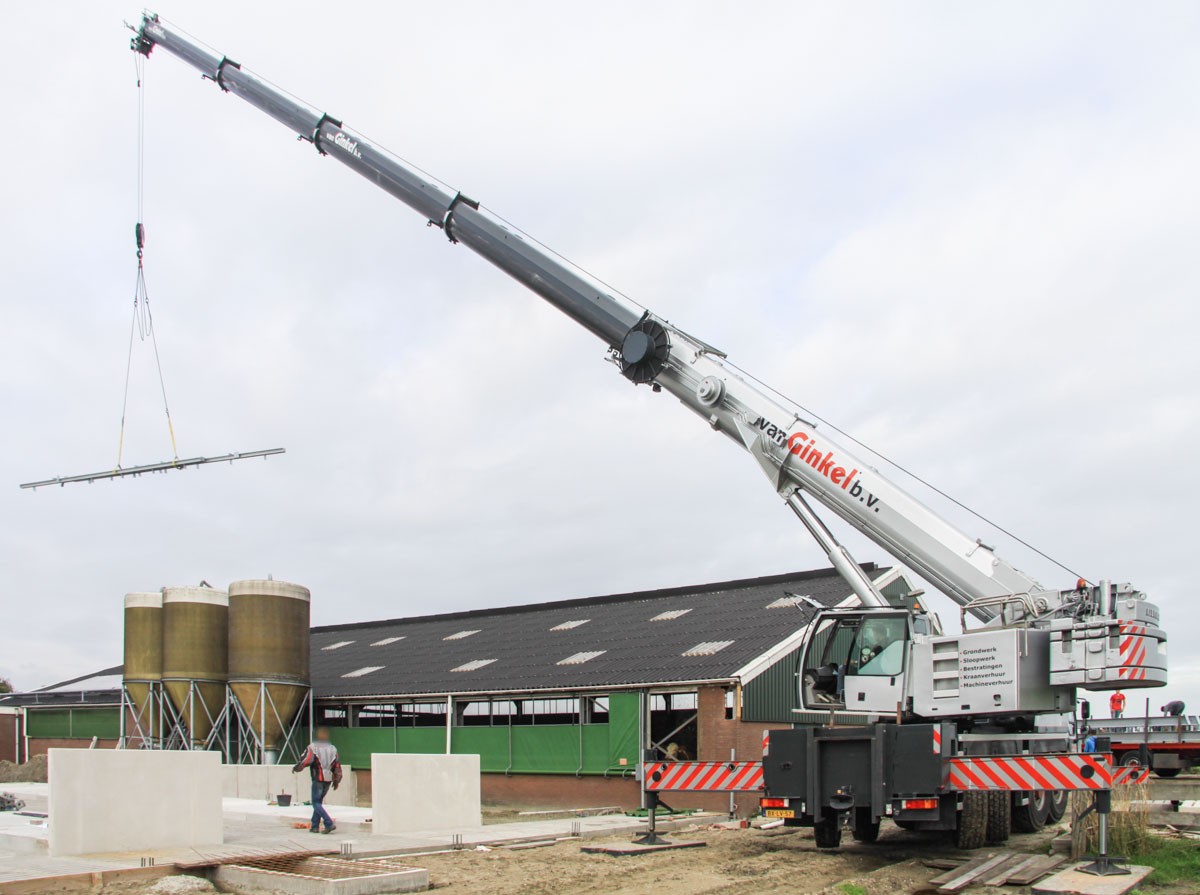

The crane has a 50 meter boom, here was only 39.7 meters extended. Now 17.6 tonnes is hoisted on a 7 meter radius and 2.8 tonnes on a 36 meter radius.

The boom is extendable with a 10.5 or 19 meter folding jib. Also a 7 meter boom extension can be added, the boom is then 75.4 meters long.

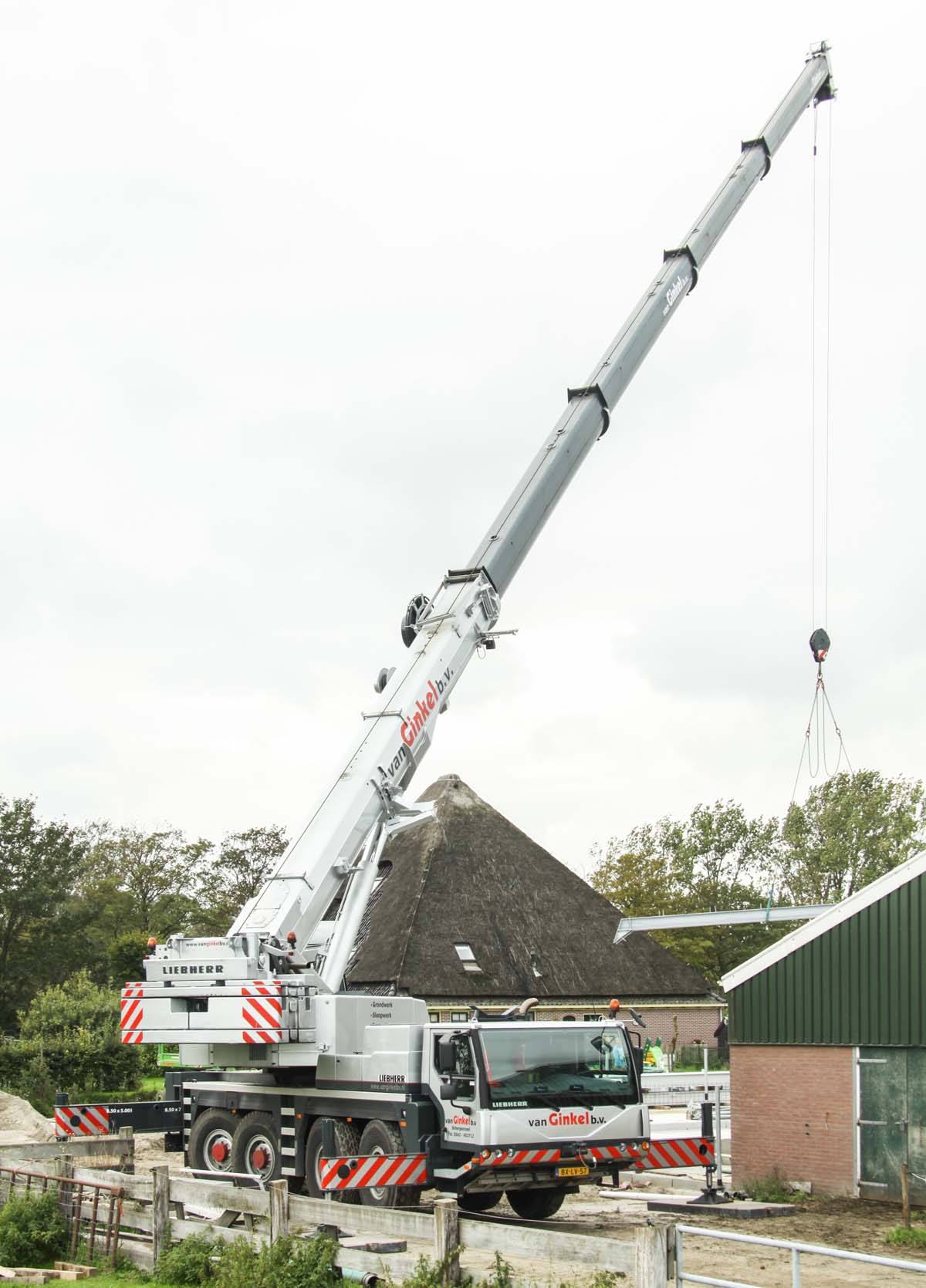

With the crane a steel construction was erected.

One day later the construction was ready and the crane could return homewards.

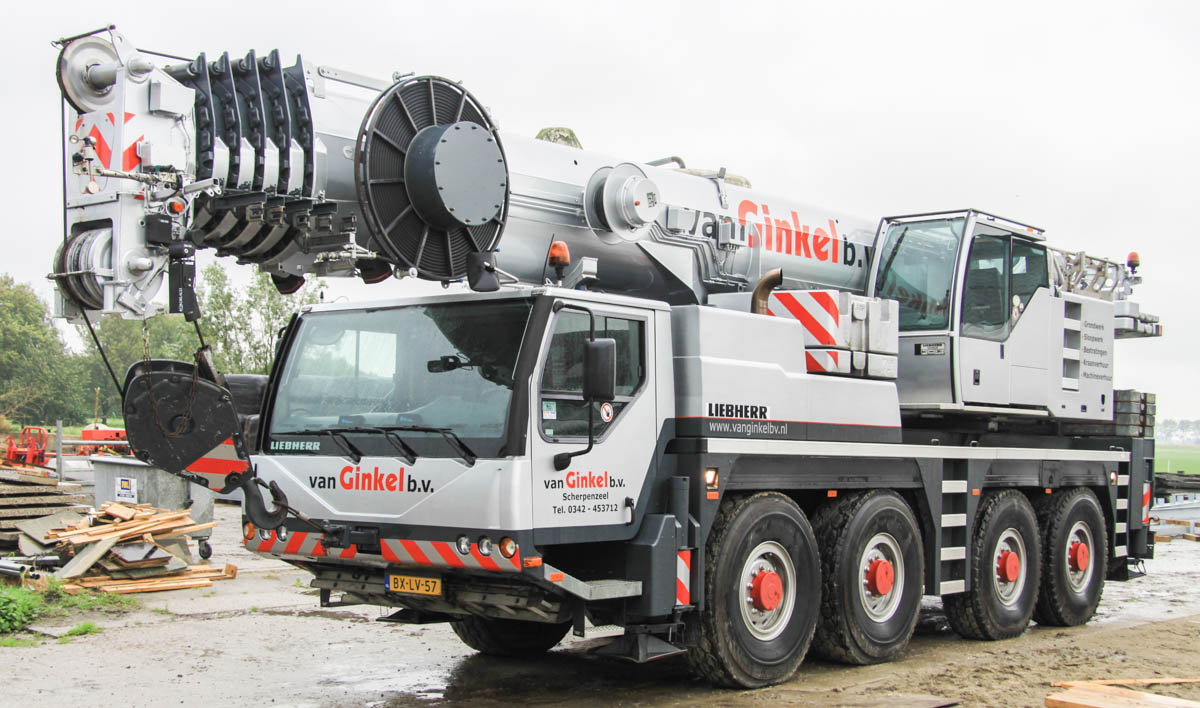

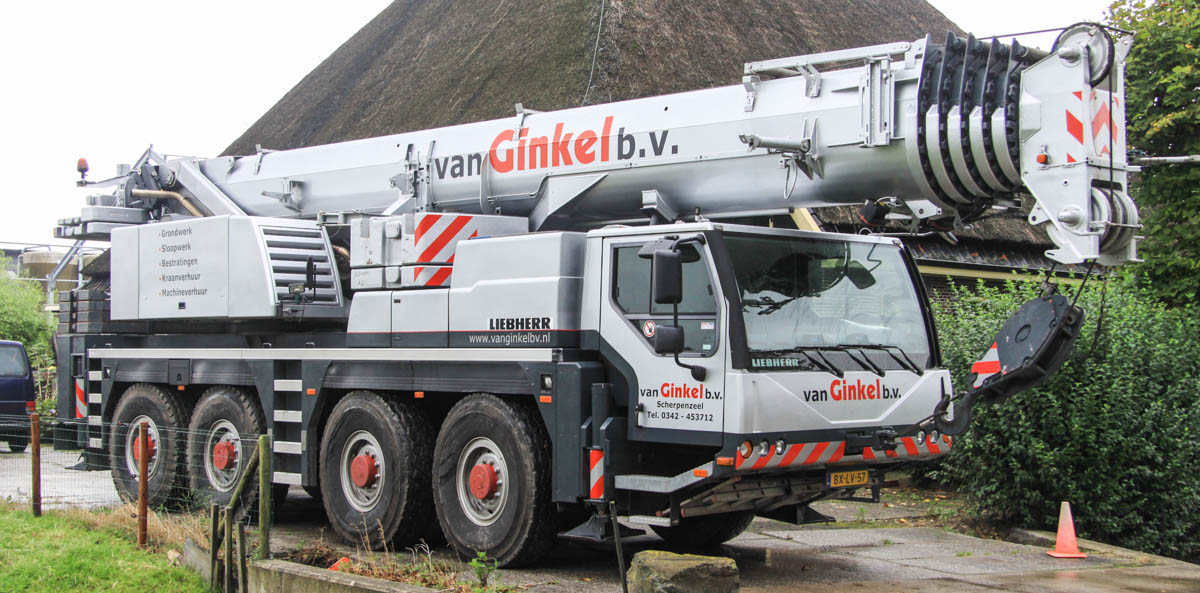

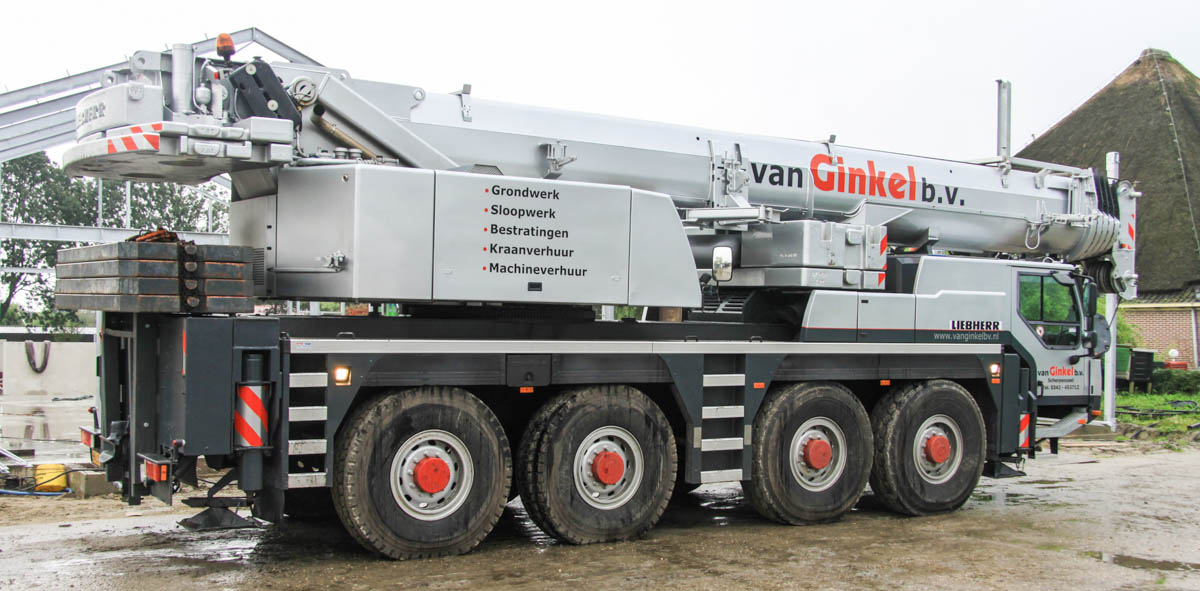

The crane goes complete on the road. The outrigger pads are taken on the rear of the crane.

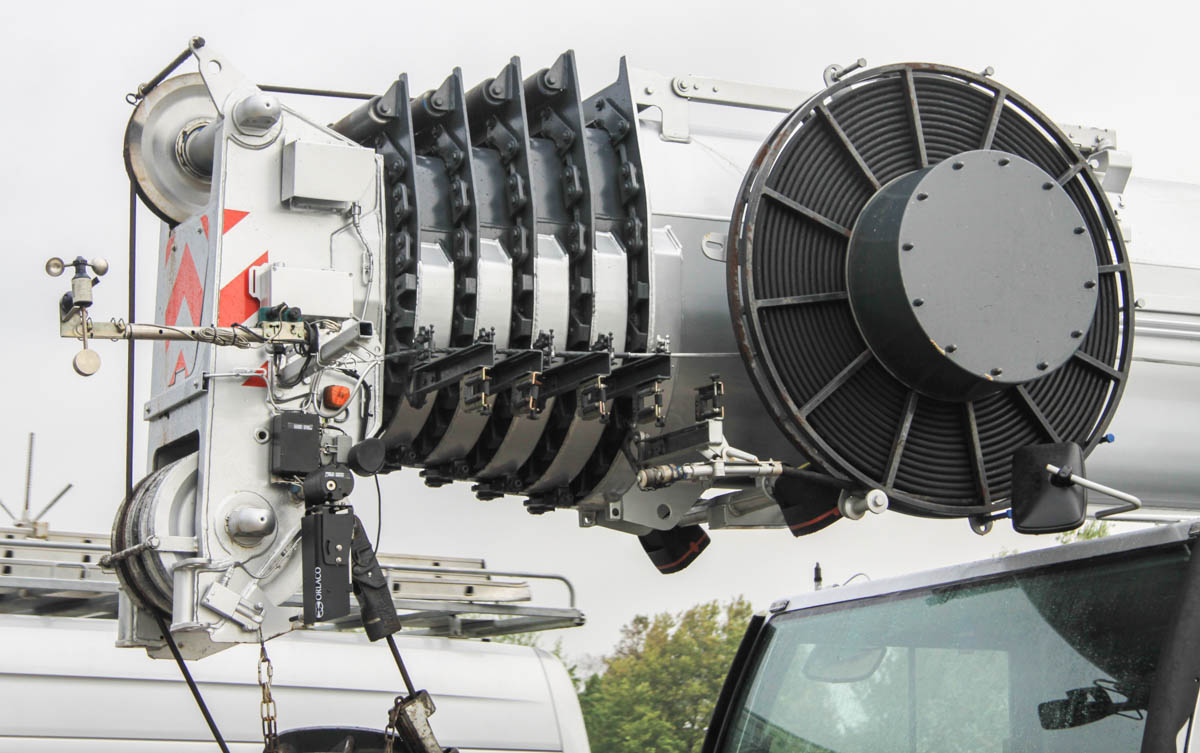

The folding jib is hydraulic adjustable, on the big reel is the hydraulic line wounded.

Van Ginkel owns also a Liebherr LTM 1030/2 and a Spierings SK599 AT5.
