Liebherr LTM 1100/2 - Fanger

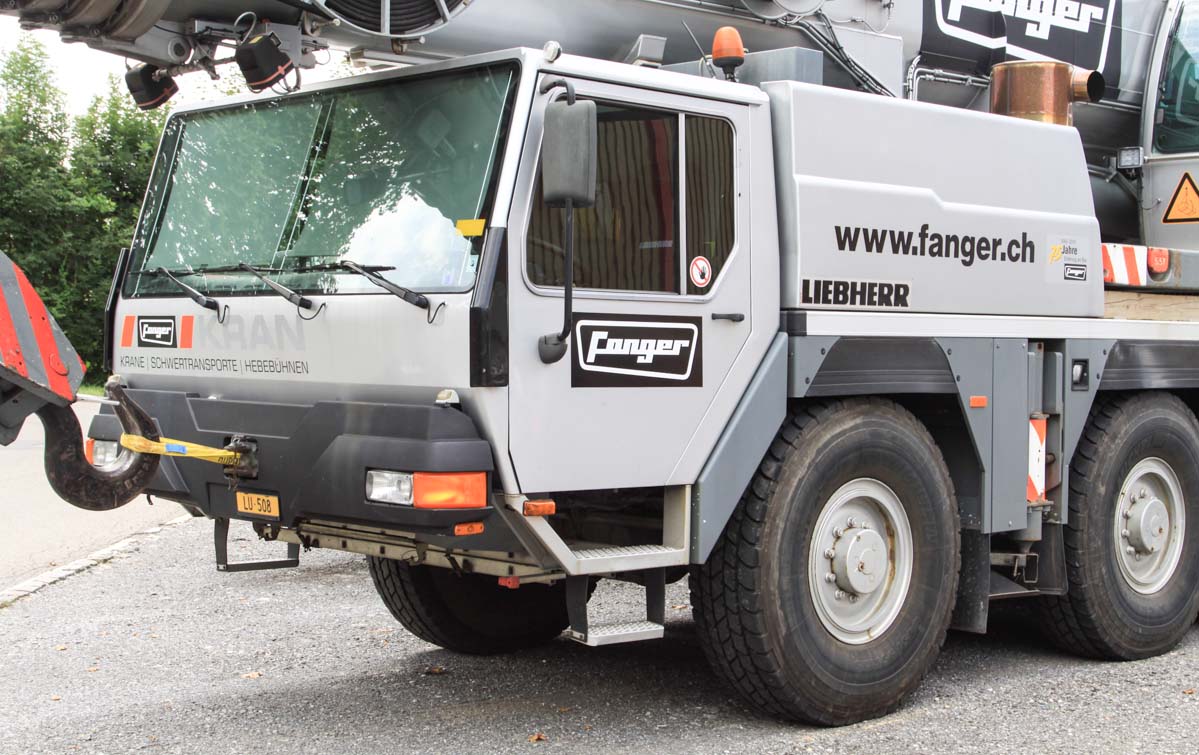

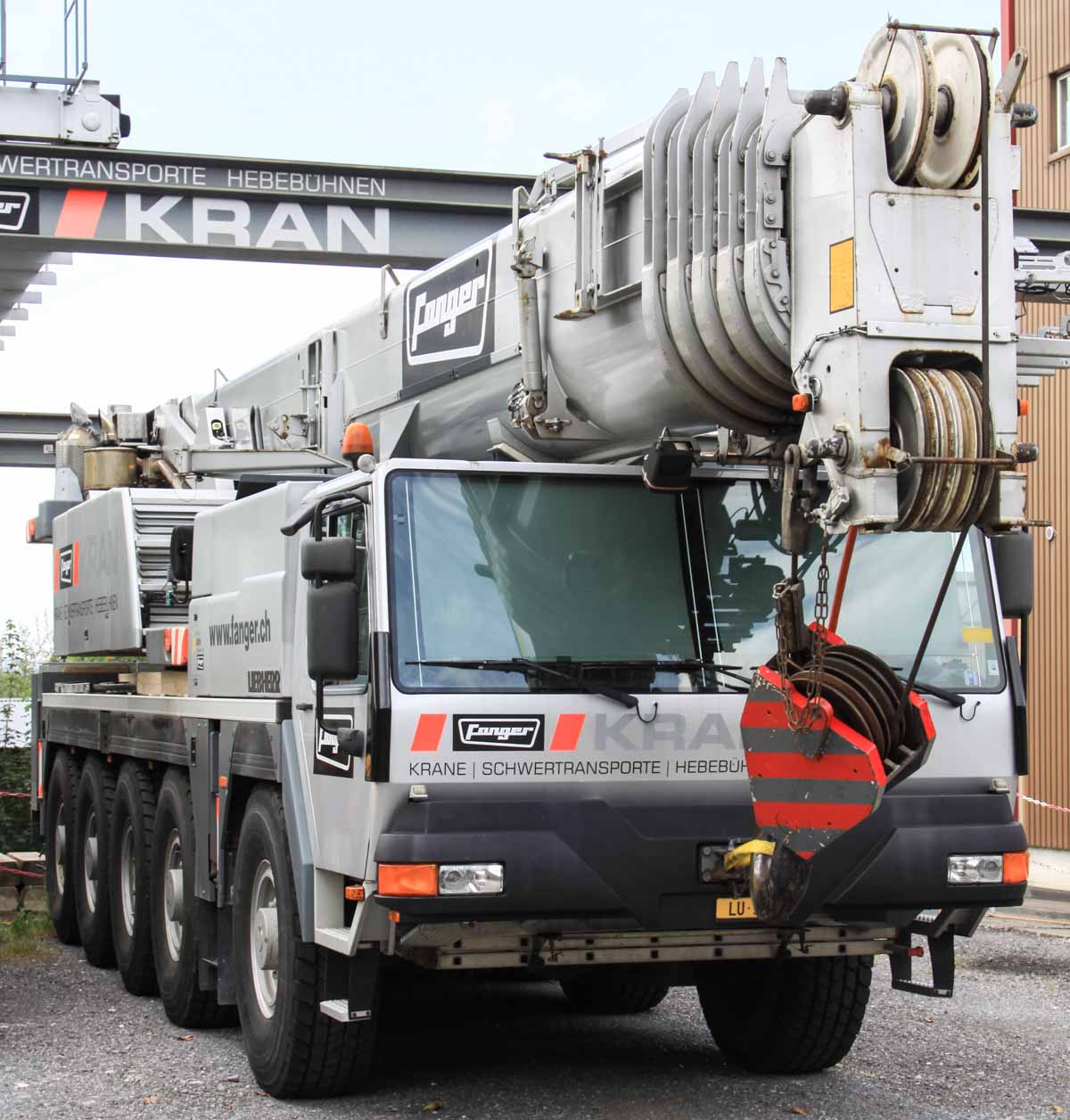

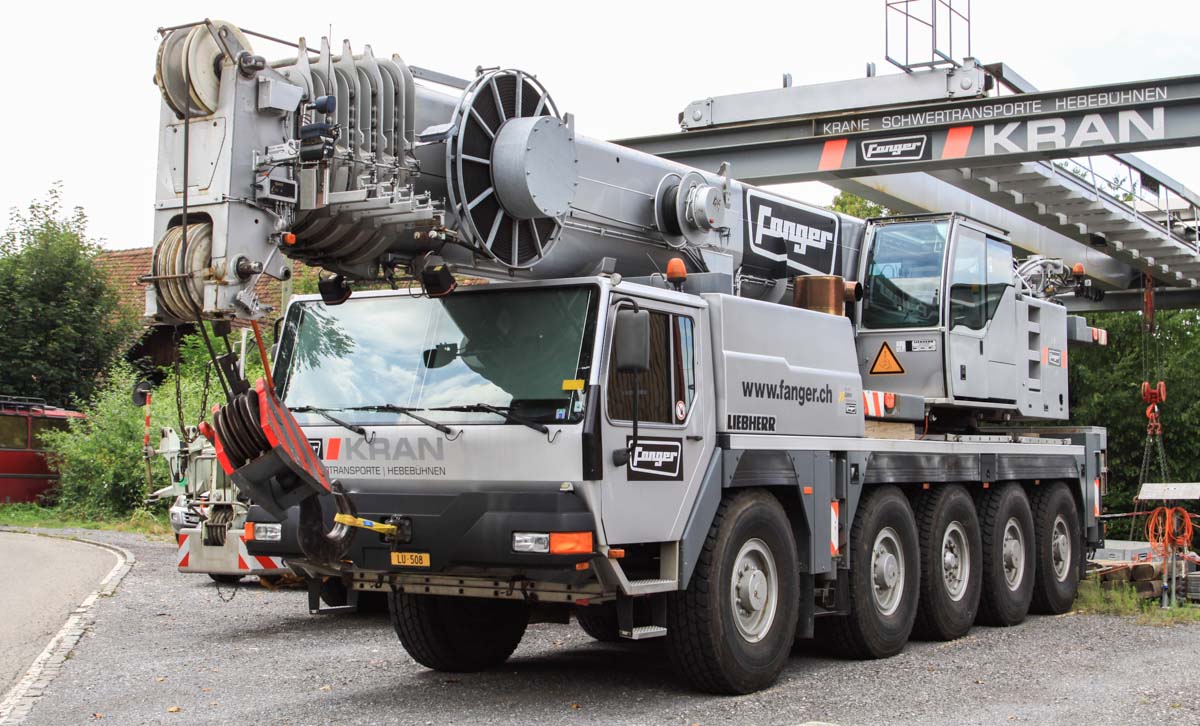

This sharp Liebherr LTM 1100/2 of Fanger from Sachseln (CH) stood parked on their yard. This is a 100 tonne crane with year of manufacture 2003.

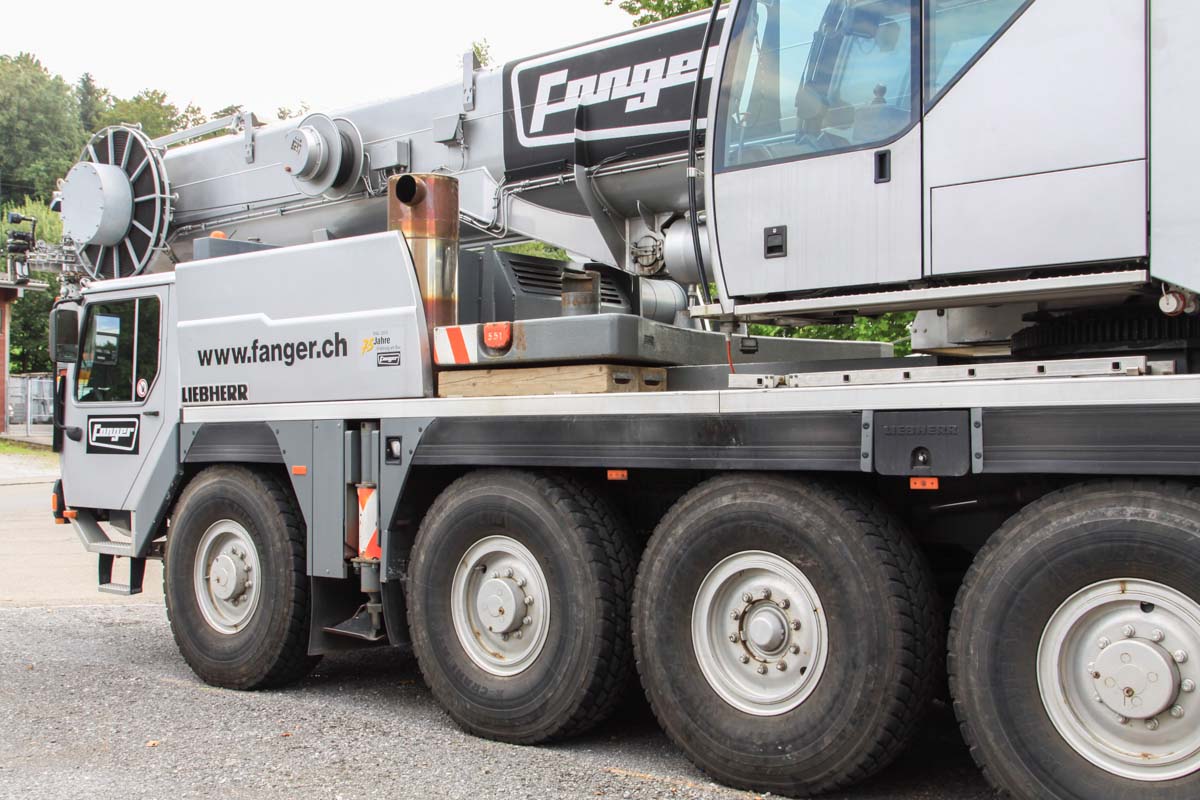

The undercarriage is powered by a Liebherr D 9408 TI-E, an 8-cylinder diesel engine with 544 hp. This crane has the optional 10x8 drive line, the axles 1, 2, 4 and 5 are driven. These axles are also steerable.

The telescopic boom has a 11.5 meter base length and extends five times to a totale length of 52 meters. The main boom can be extended by a 10.8 or 19 meter long folding jib.

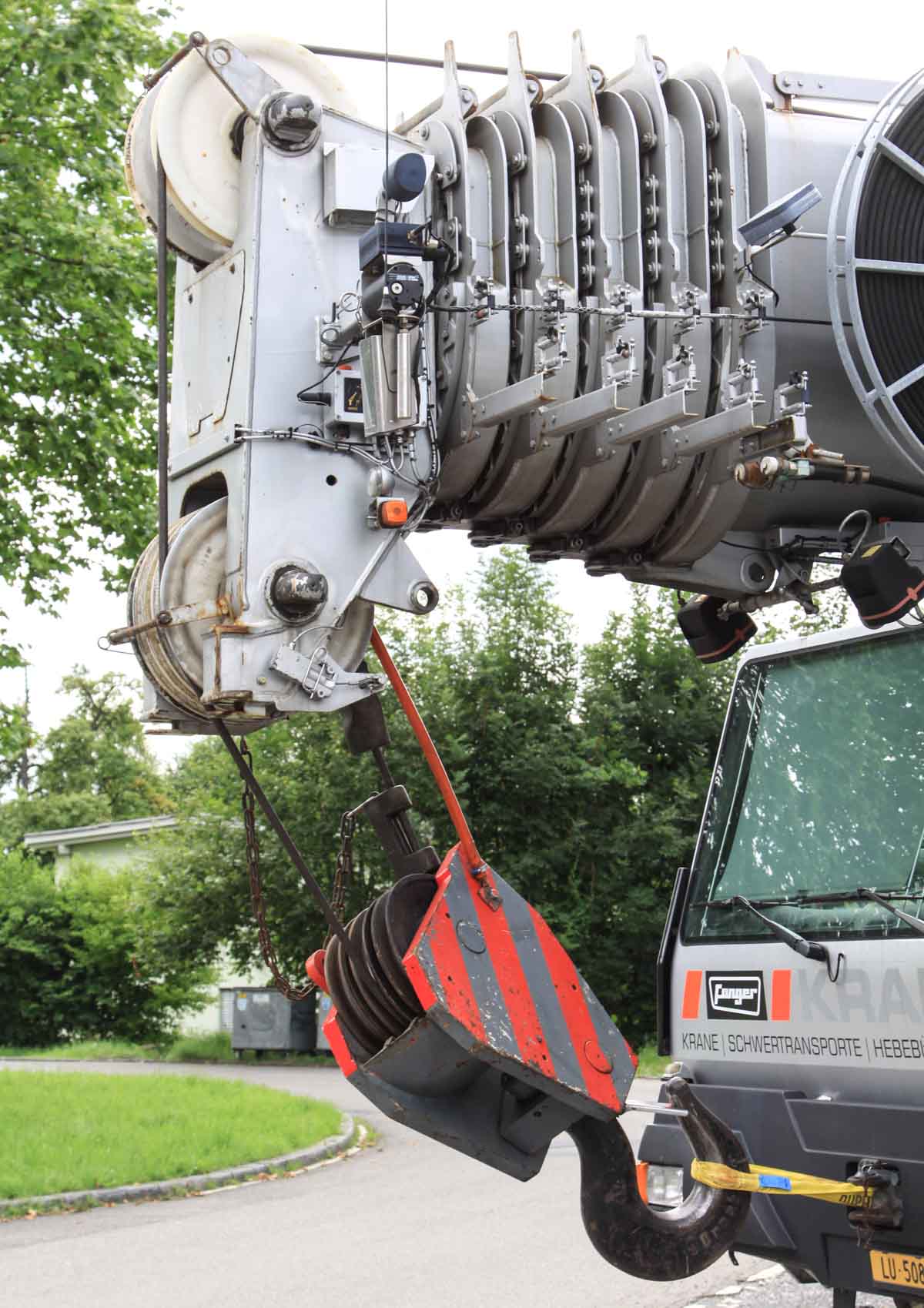

The counterweight has a 35 tonne weight with a 3.84 meter tailswing. The 6-tonne counterweight slab remains attached to the superstructure. This crane has a second winch installed so the crane can work with two hooks at the same time. The tailswing of the second winch is 3.97 meters.

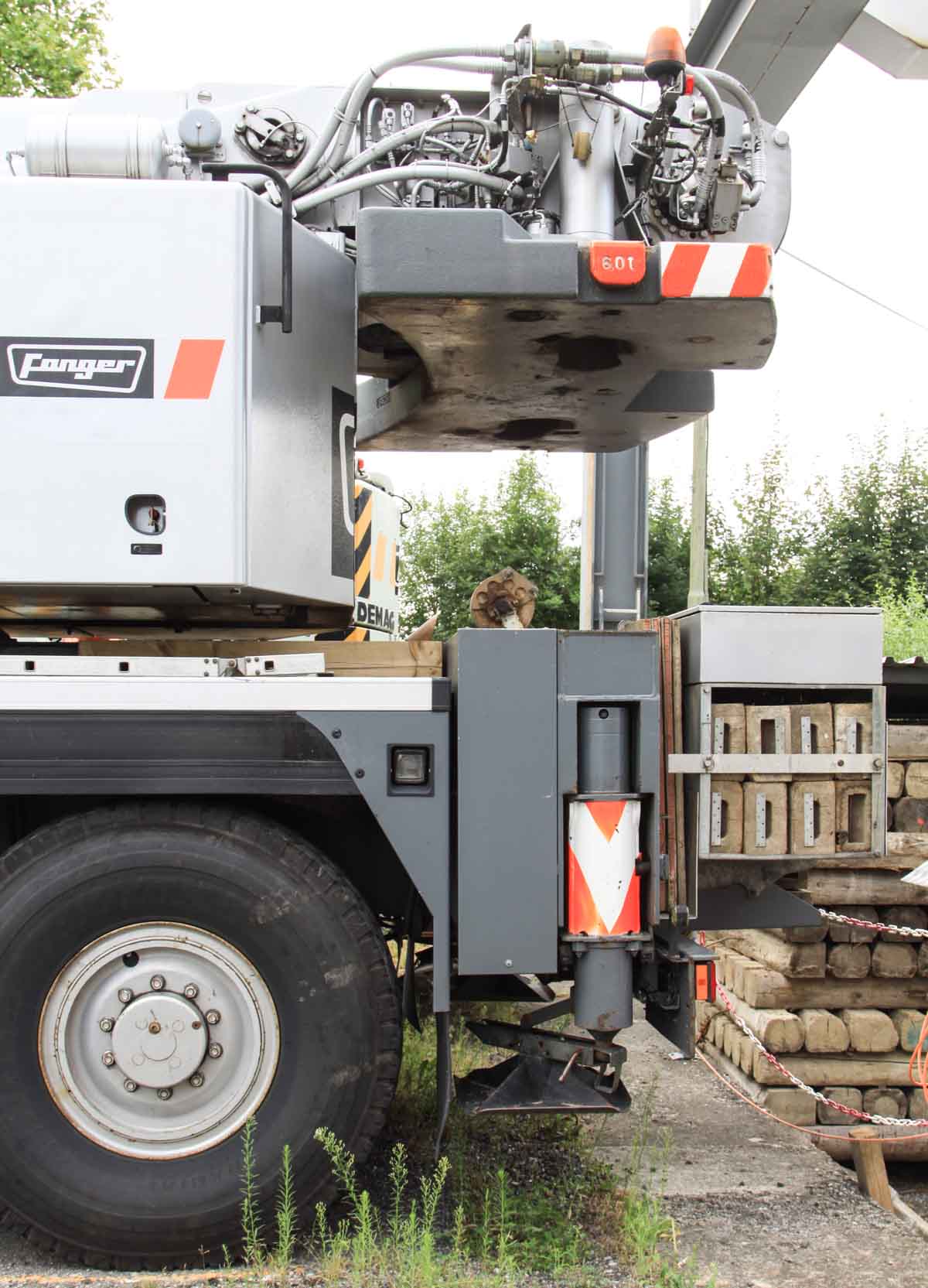

The outrigger base measures 7.3 x 7 meters. On the undercarriage is a counterweight slab of 5.5 tonnes stored.

During the transport over the road is this crane 13.75 meters long, 2.75 meters wide and 4 meters high. The transport mass of the crane as shown here is 56.5 tonnes.
