Liebherr LTC 1055-3.1 - Fanger

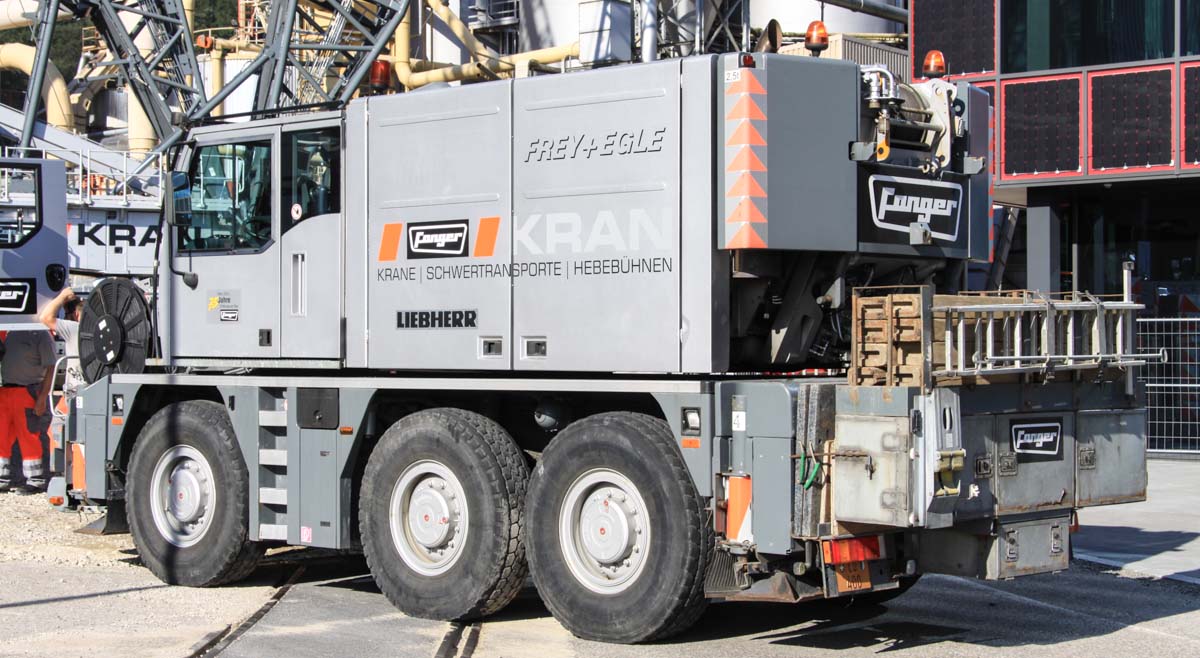

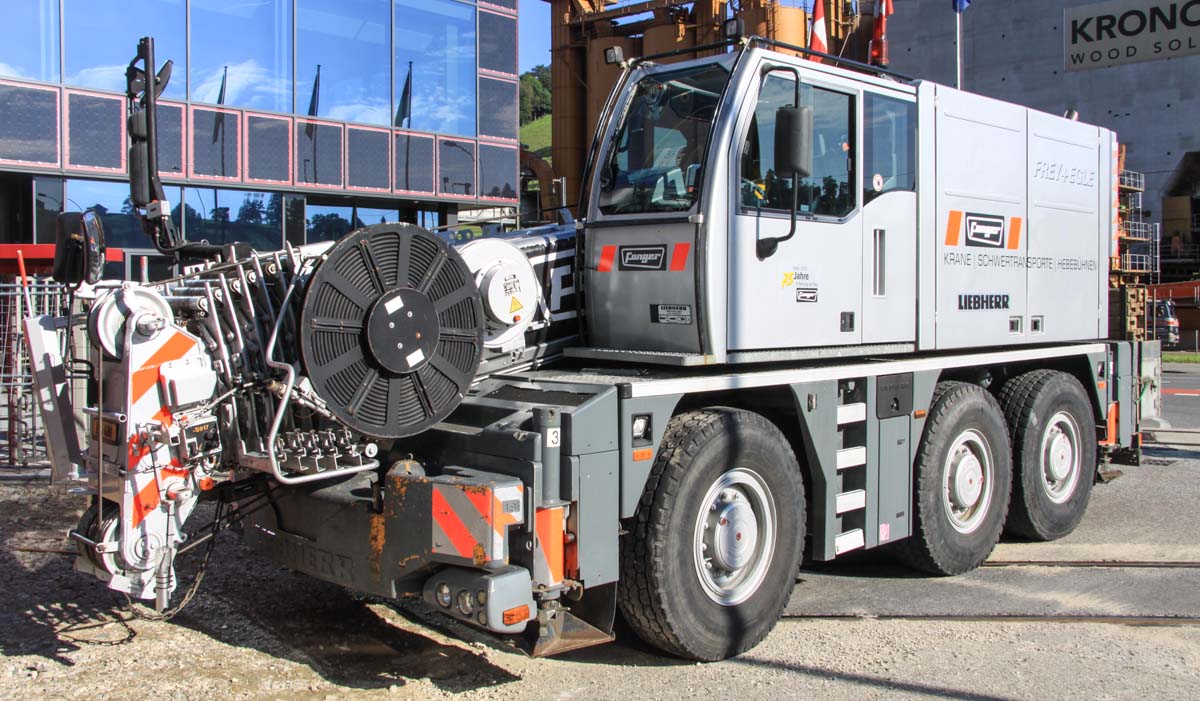

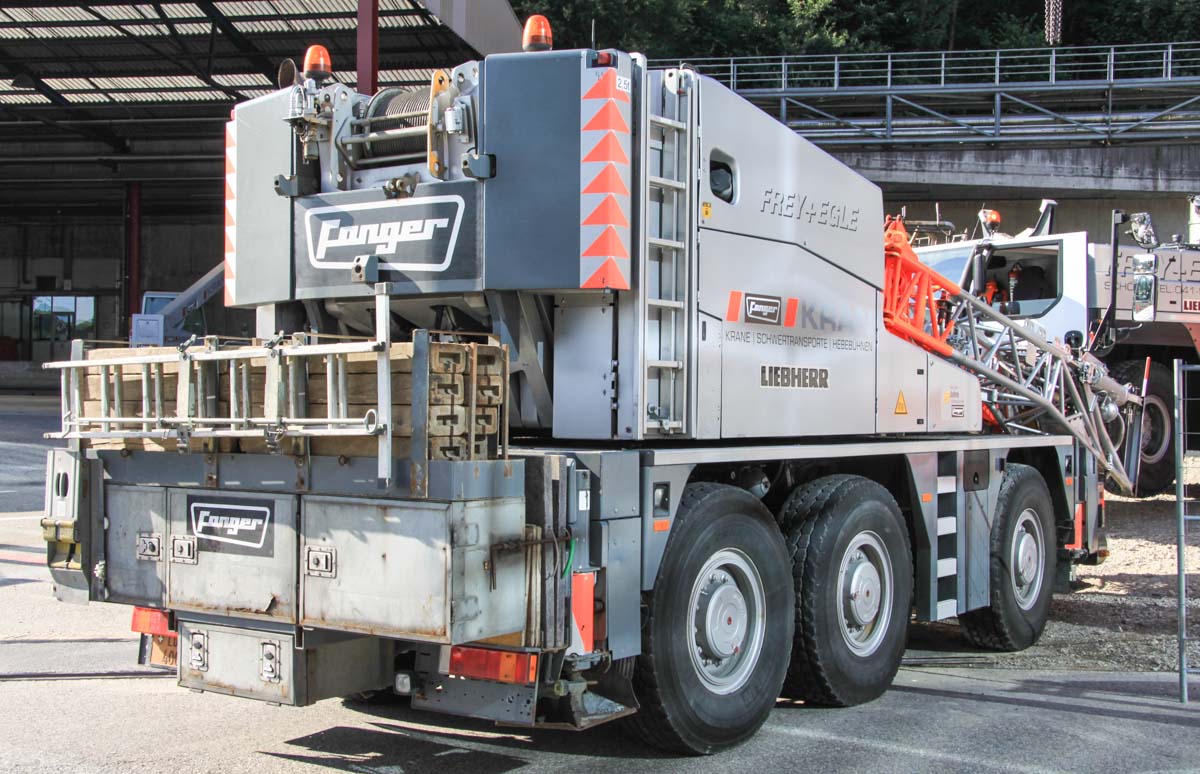

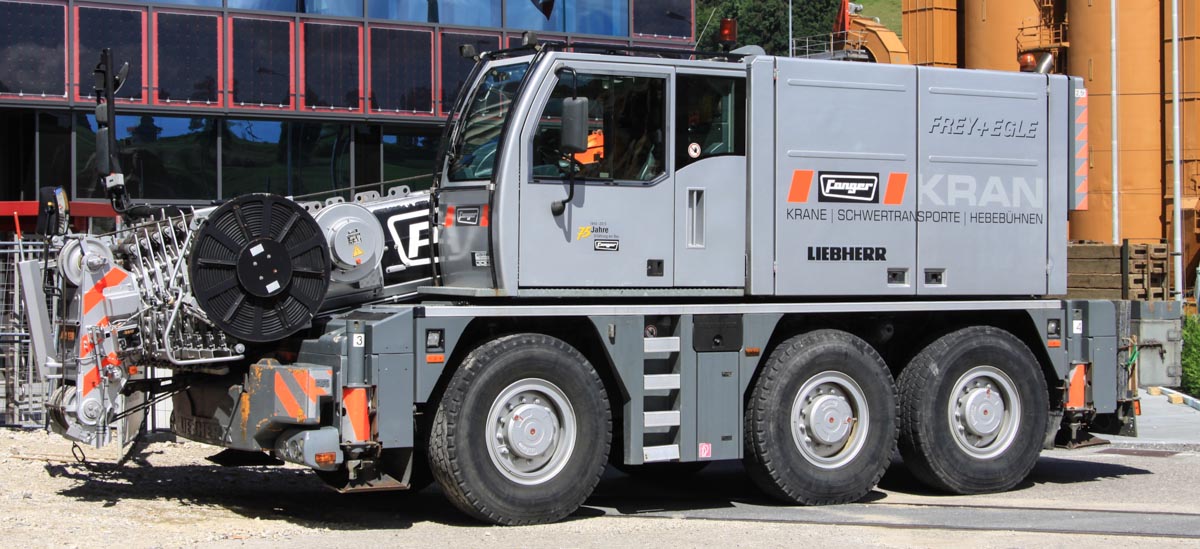

A Liebherr LTC 1055-3.1 of Fanger from Sachseln (CH). It is a 55-tonne crane on a 3-axle carrier.

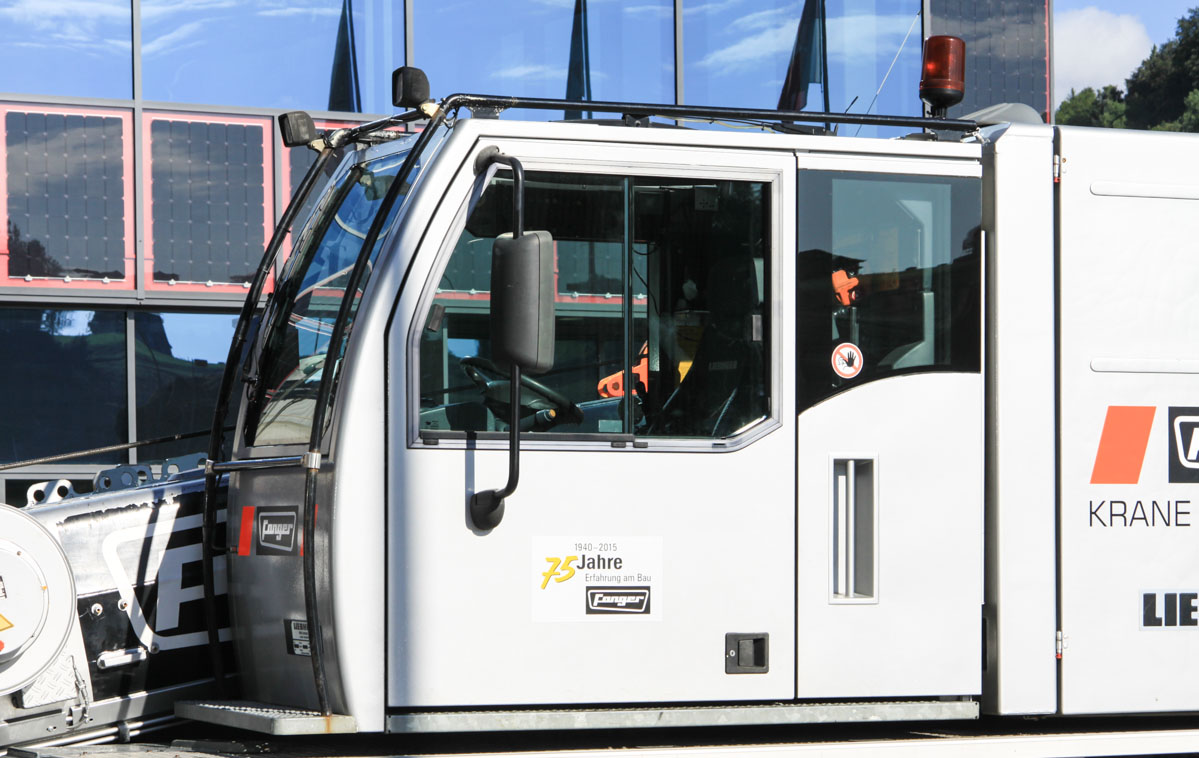

The crane is from one cabin driven and operated. The crane is powered by a Liebherr D846 A7, a 6-cylinder diesel engine with 476 hp. The engine is installed in the superstructure and powers all the axles trough an hydraulic system.

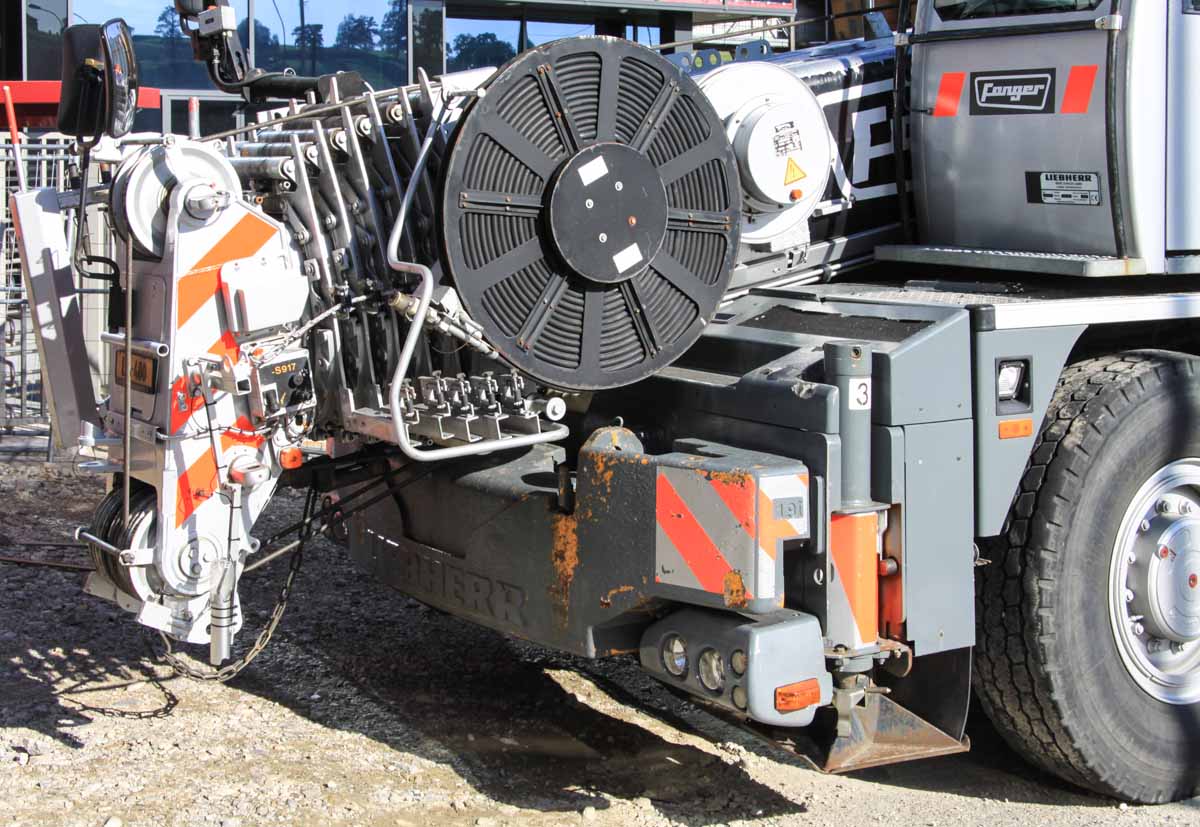

The short, but 7-part, main boom has a 7.9 meter base length and a maximum length of 36 meters. The boom can be extended under load. The folding jib has a maximum length of 15 meters and is with hydraulics in angle adjustable. A counterweight slab with 1.9 tonnes is during the transport over the road attached to the front bumper.

During the transport over the road is the crane 8.47 meters long, 2.54 meters wide and 3.3 meters high. The transport mass with 4.4 tonnes of counterweight is 36 tonnes. Because of the very compact dimensions is the crane also very good usable within buildings.

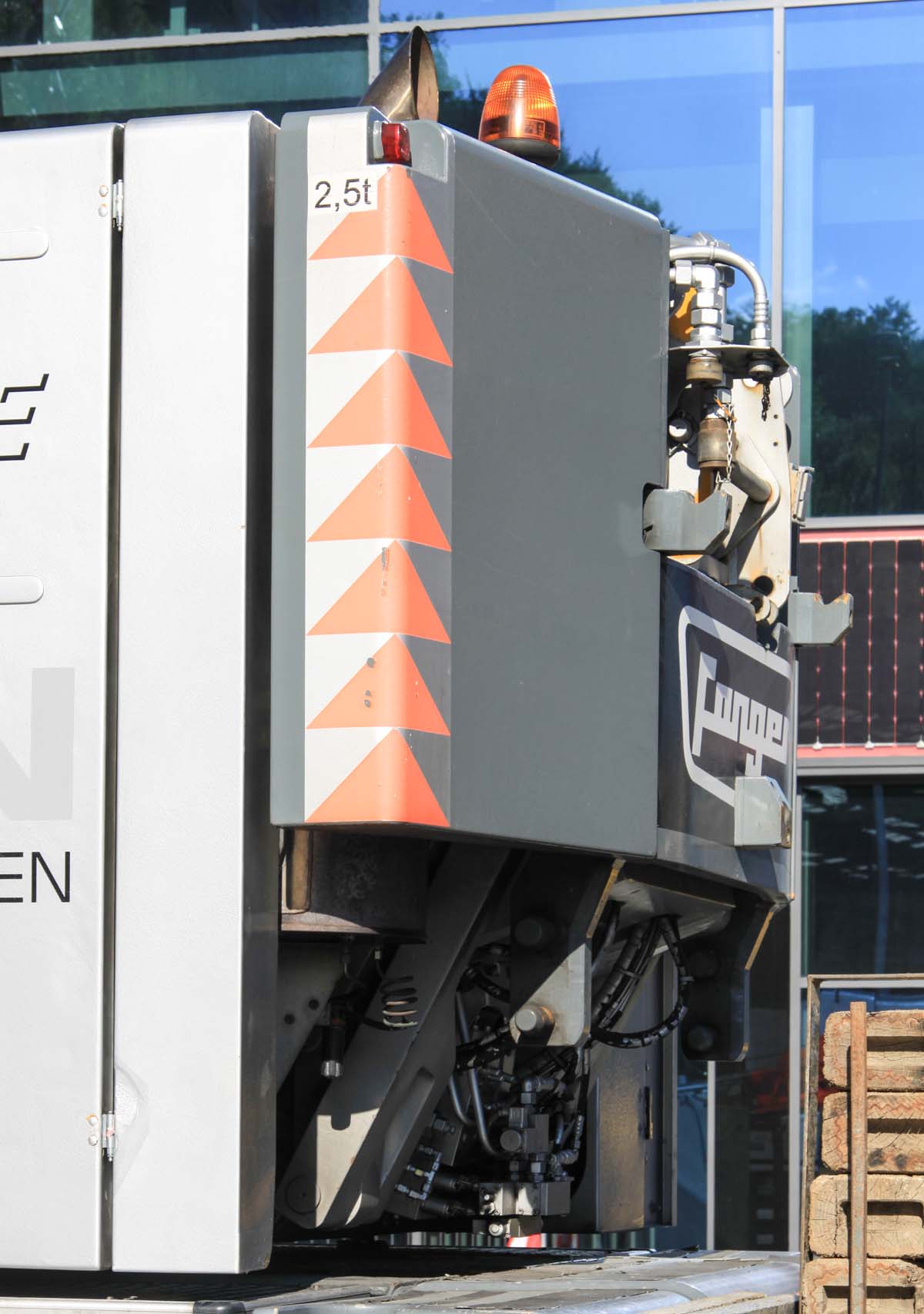

Attached to the superstructure remains 2.5 tonnes of counterweight, together with the slab attached to the bumper is the crane bringing 4,4 tonnes of counterweight with it. The full counterweight weights 10.4 tonnes and has a tailswing with 3.35 meters.

A sharp crane in the Fanger colors!
