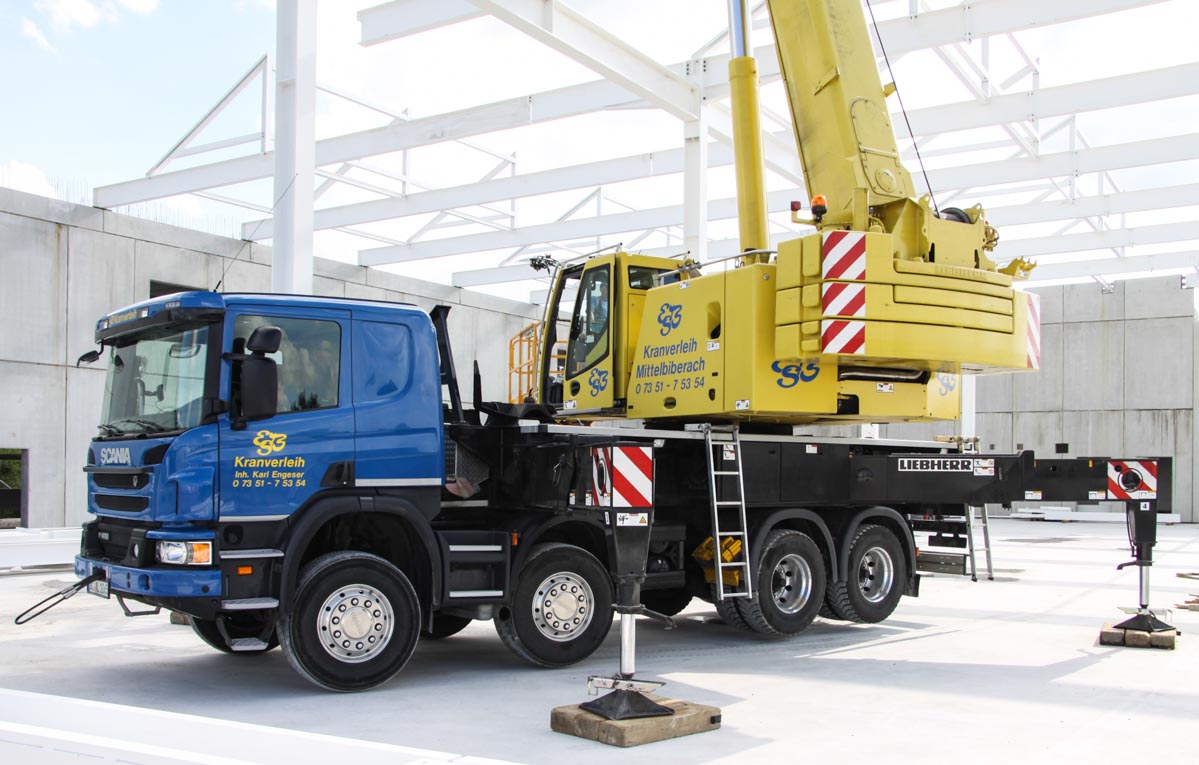

This sharp Liebherr LTM 1060-4.1 of ESB Kranverleih from Mittelbiberach (DE) stood on a construction site in Ummendorf (DE) to erect a steel construction.

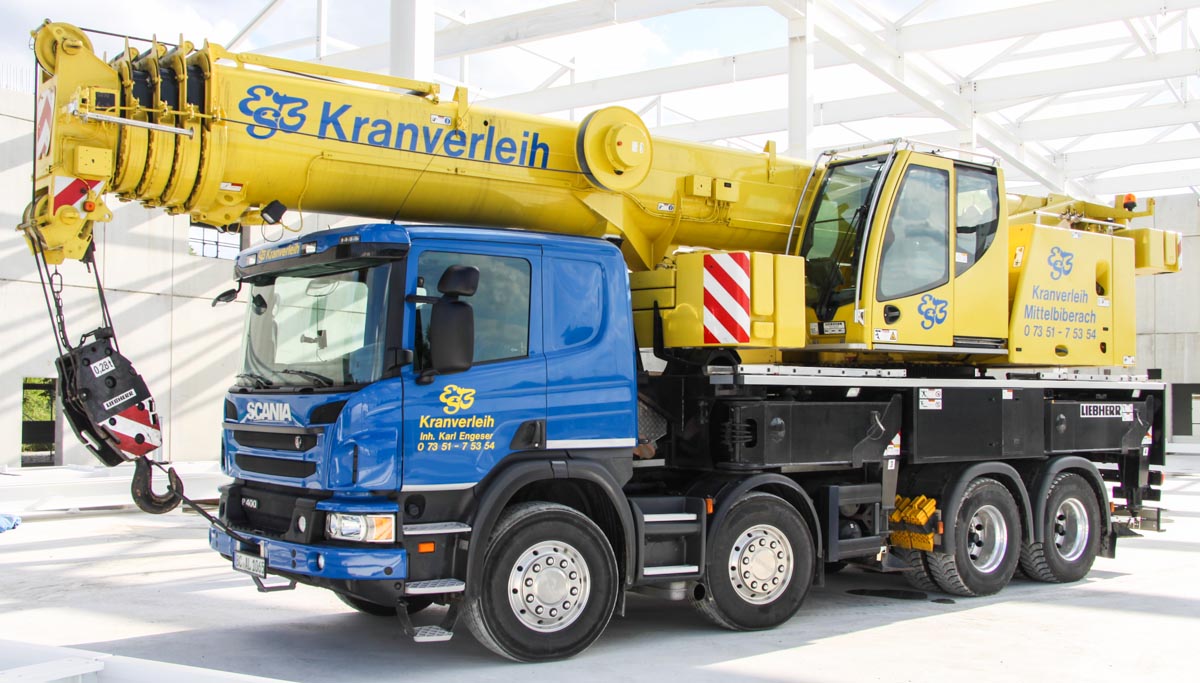

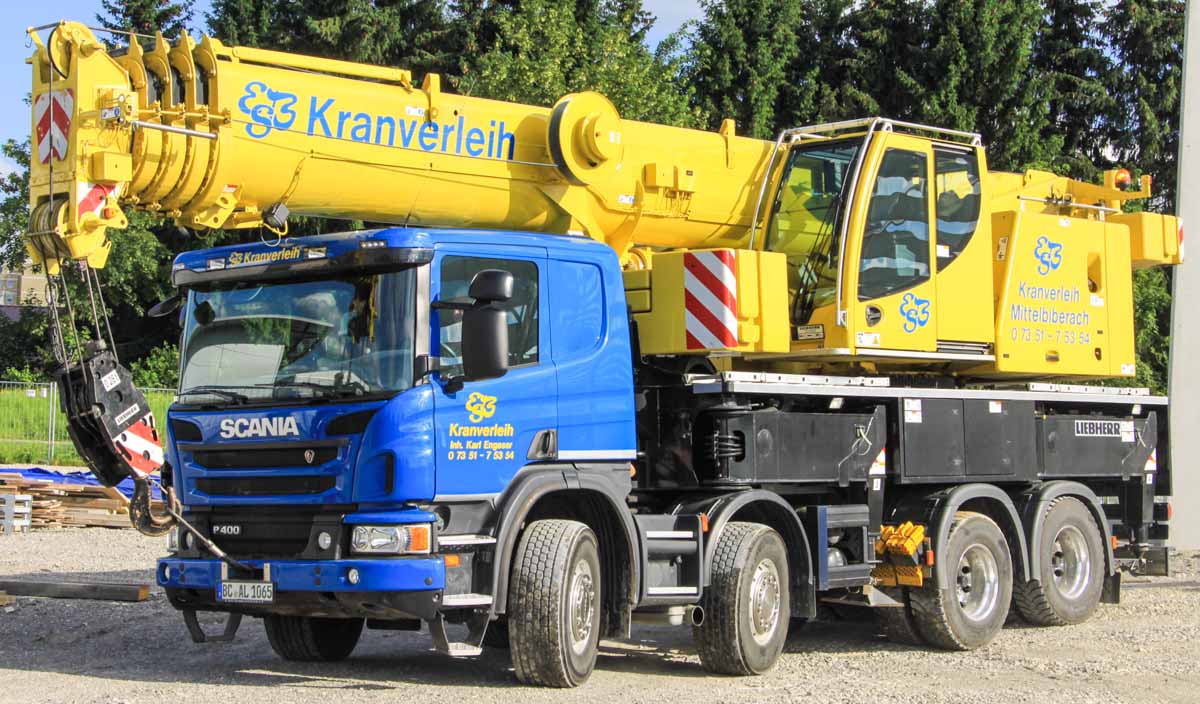

It is a 60 tonne telescopic crane on a 4 axle Scania carrier. The Scania P 400 carrier is powered by a 13 liter 6 cylinder diesel engine with 400 hp. The carrier has two driven rear axles and two steerable front axles.

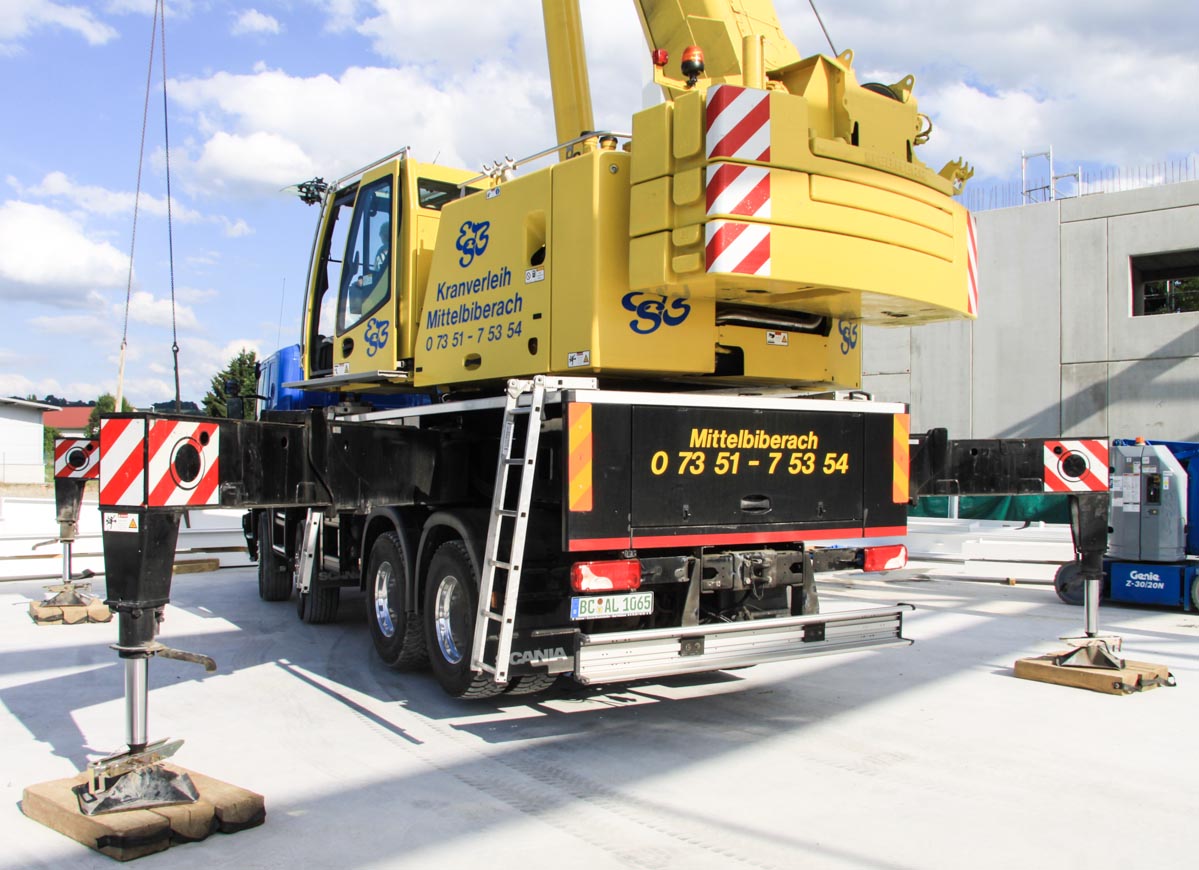

The X-shapped outrigger base measures 6.7 x 6.8 meters, or half 5.8 x 5 meters.

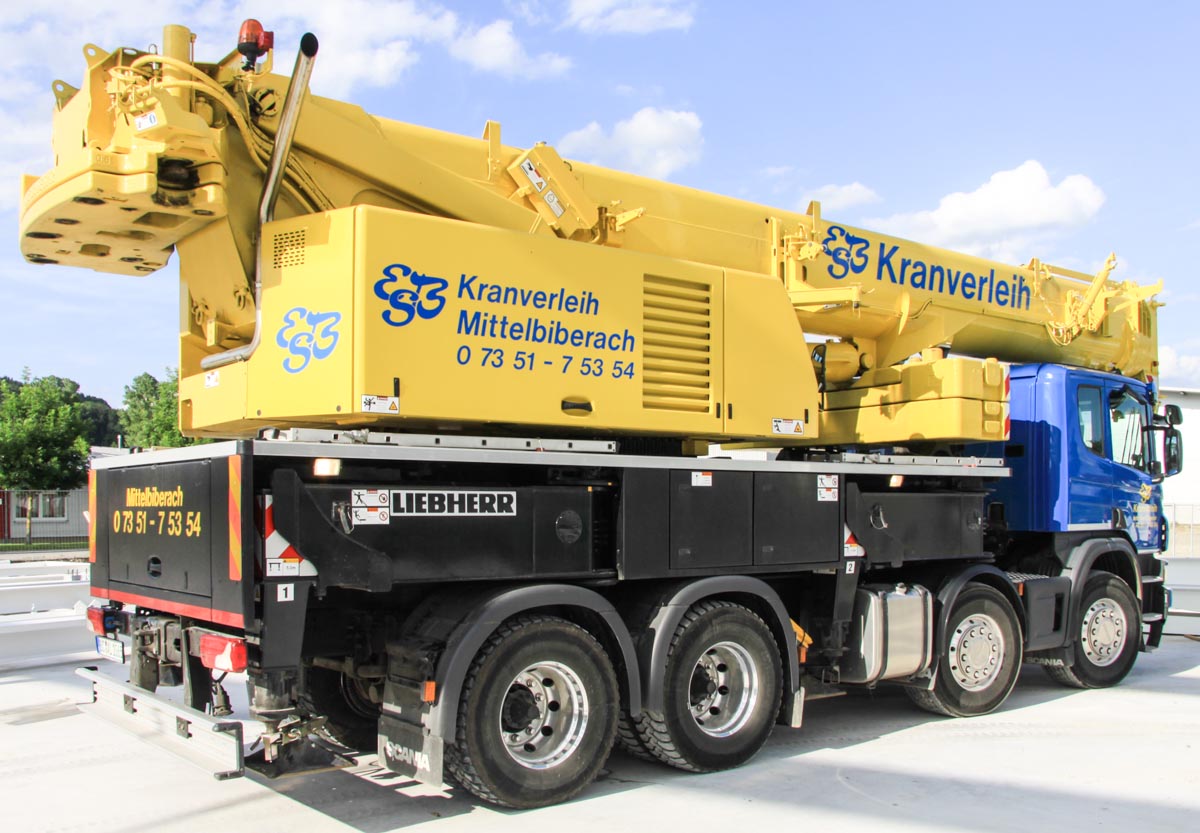

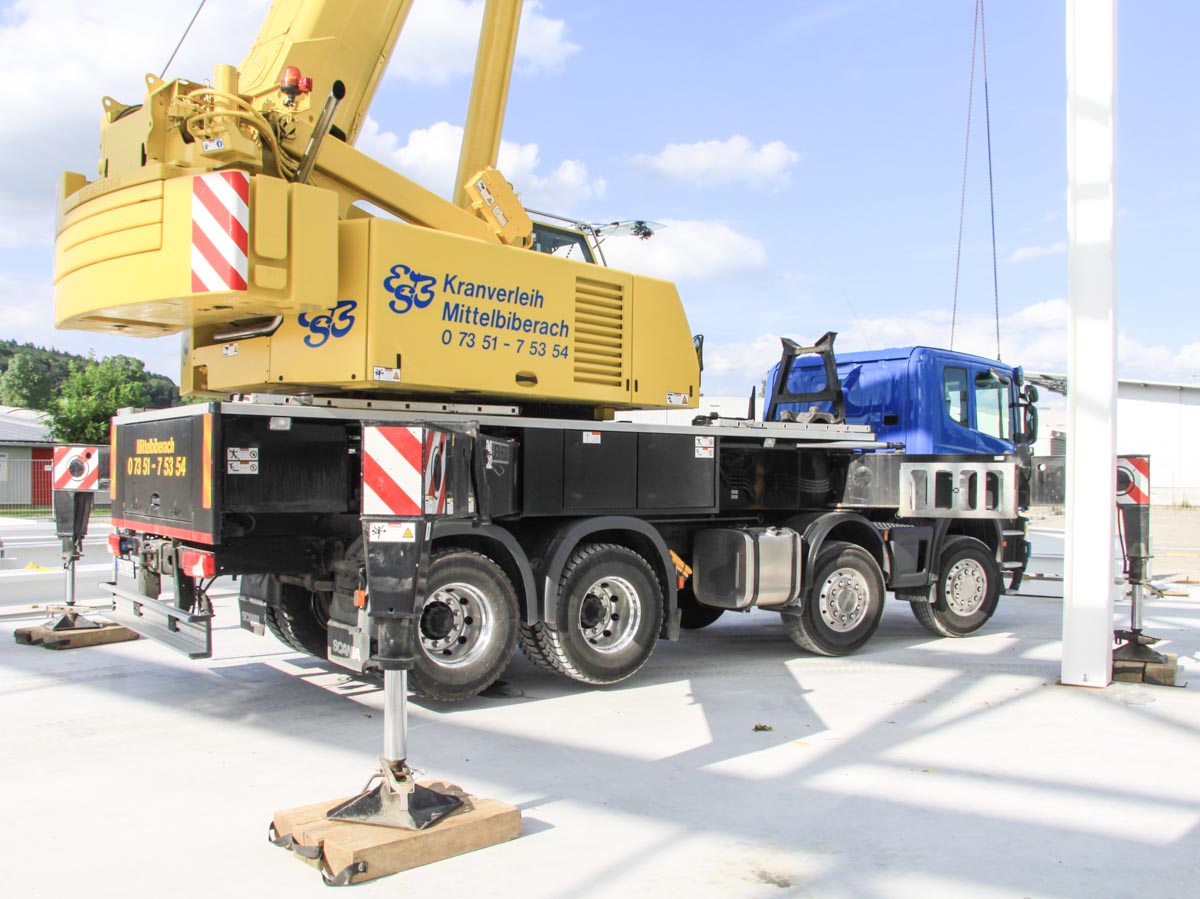

The superstructure has an own engine, the hydraulic pumps are driven by a Liebherr 175 hp diesel engine. The diesel tank of the crane carrier is installed behind the second axle. On the other side is the muffler installed.

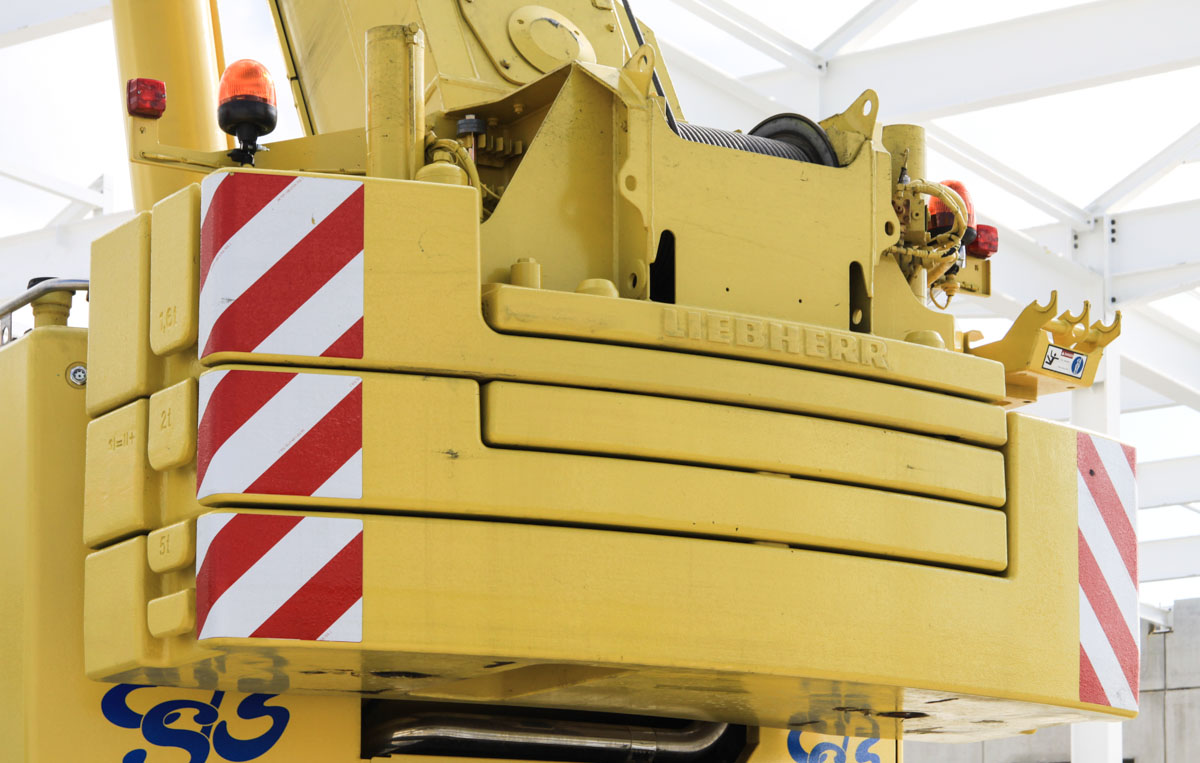

The full counterweight weights 10.2 tonnes and can be transported by the crane. The counterweight has a 3.5 meter tailswing.

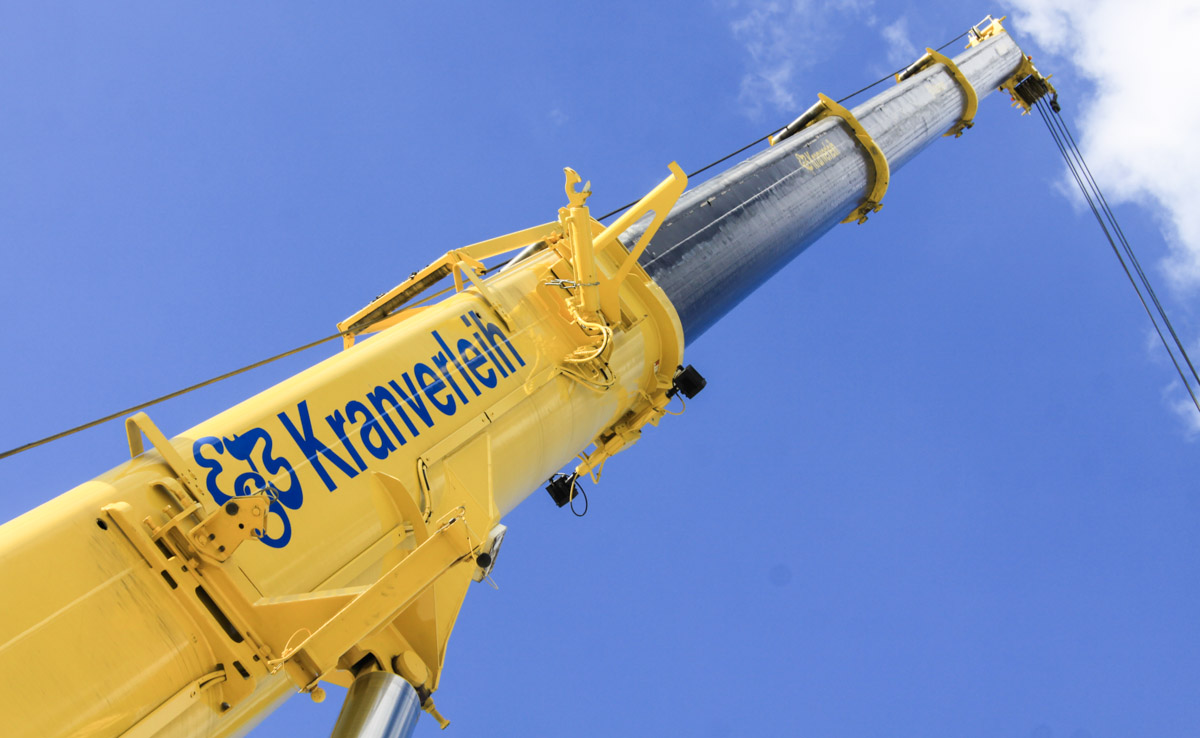

The 5-part main boom has a 10.2 meter base length and has a maximum length of 40 meters. The main boom can be extended by a 9.5 or 16 meter bi-fold swingaway jib that is mountable under 0, 20 or 40 degrees.

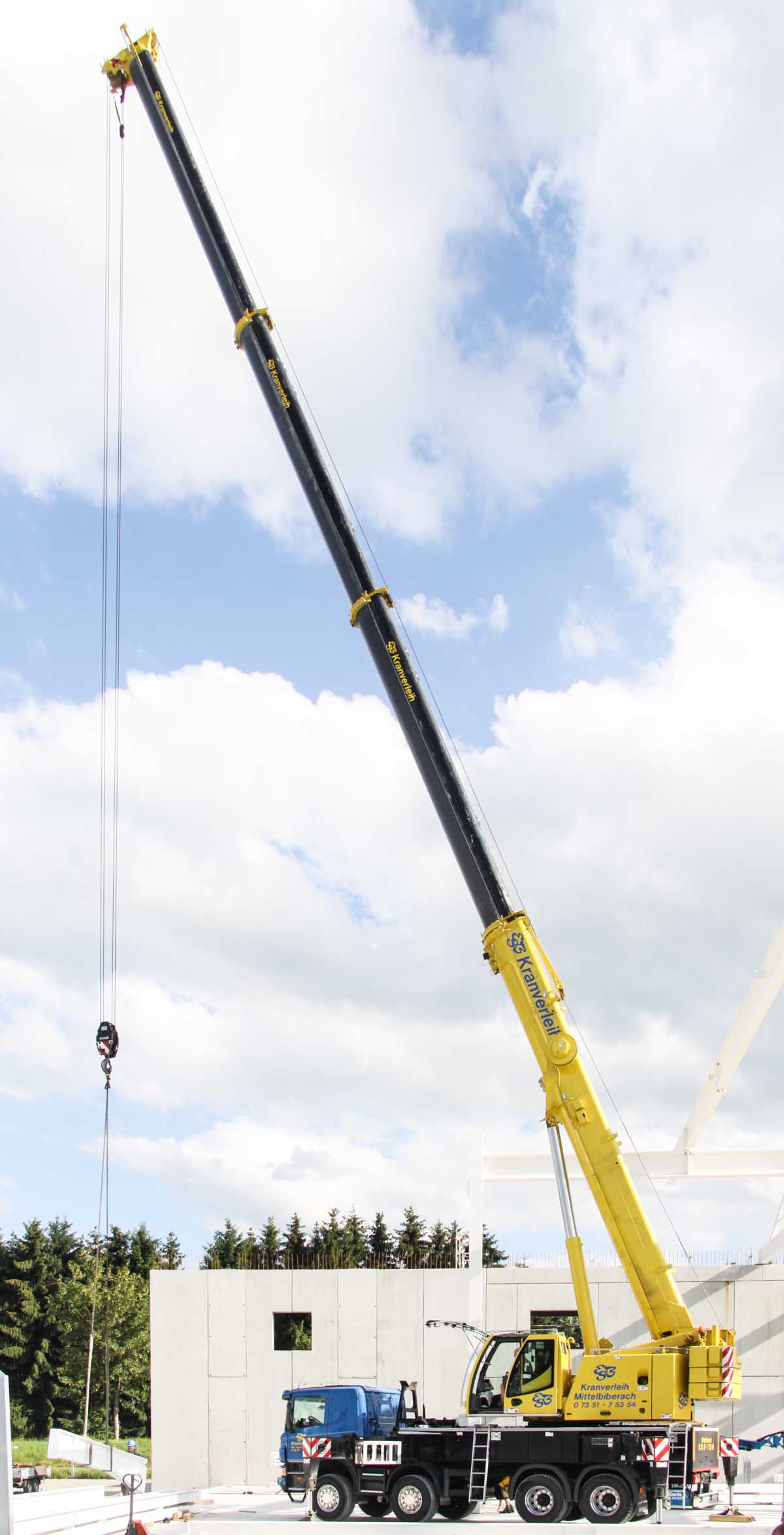

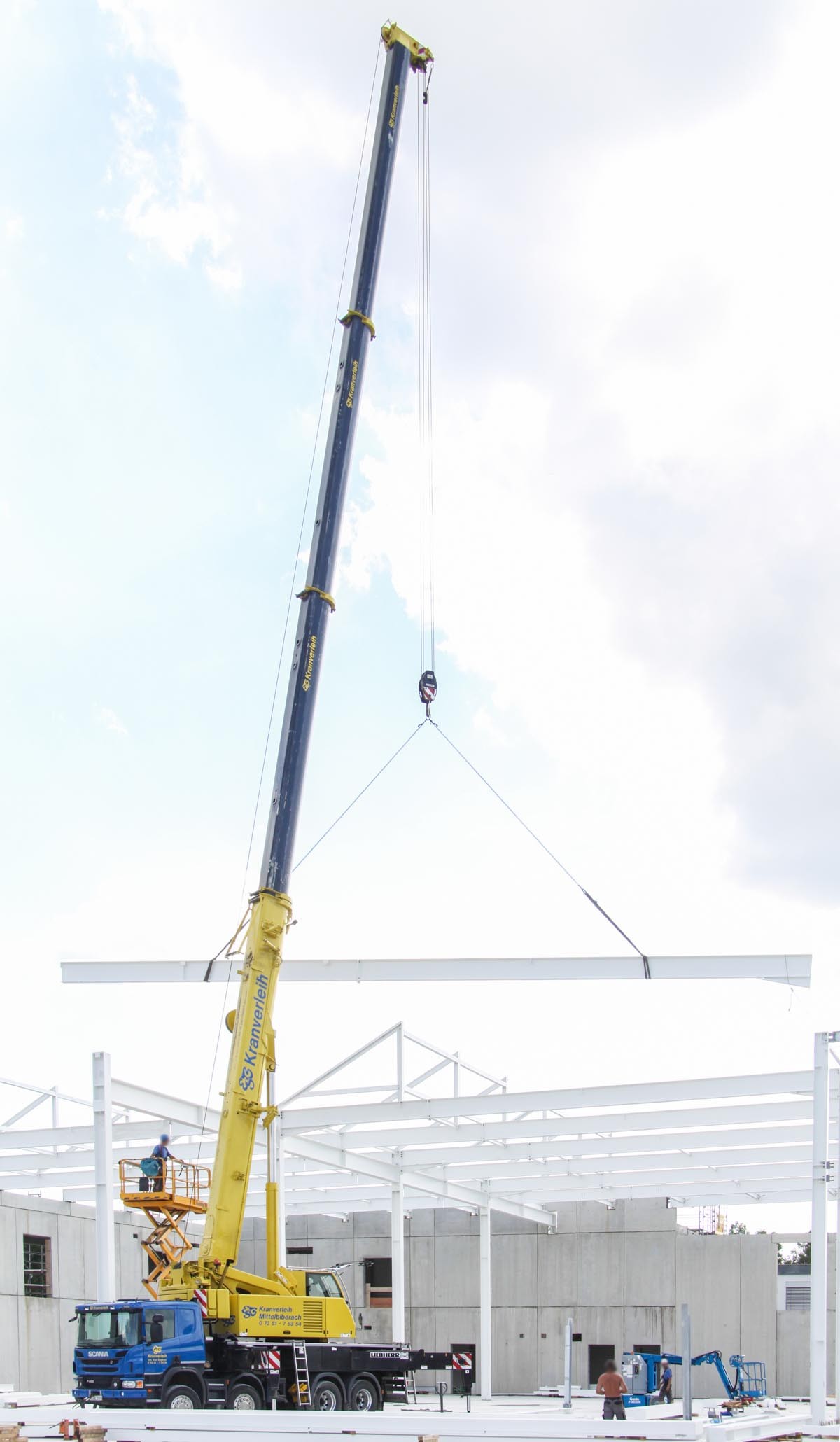

The main boom is extended here 30.7 meters. In this configuration the crane lifts maximum 19.8 tonnes on a 4 meter radius and 3.3 tonnes on a 28 meter radius.

Packed is the crane 11.4 meters long, 2.55 meters wide and 4 meters heigh.

The transport mass including 10.2 tonnes of counterweight is 42 tonnes.

A sharp crane in the colors of ESB Kranverleih!
