Liebherr LTM 1750-9.1 - Boekestijn

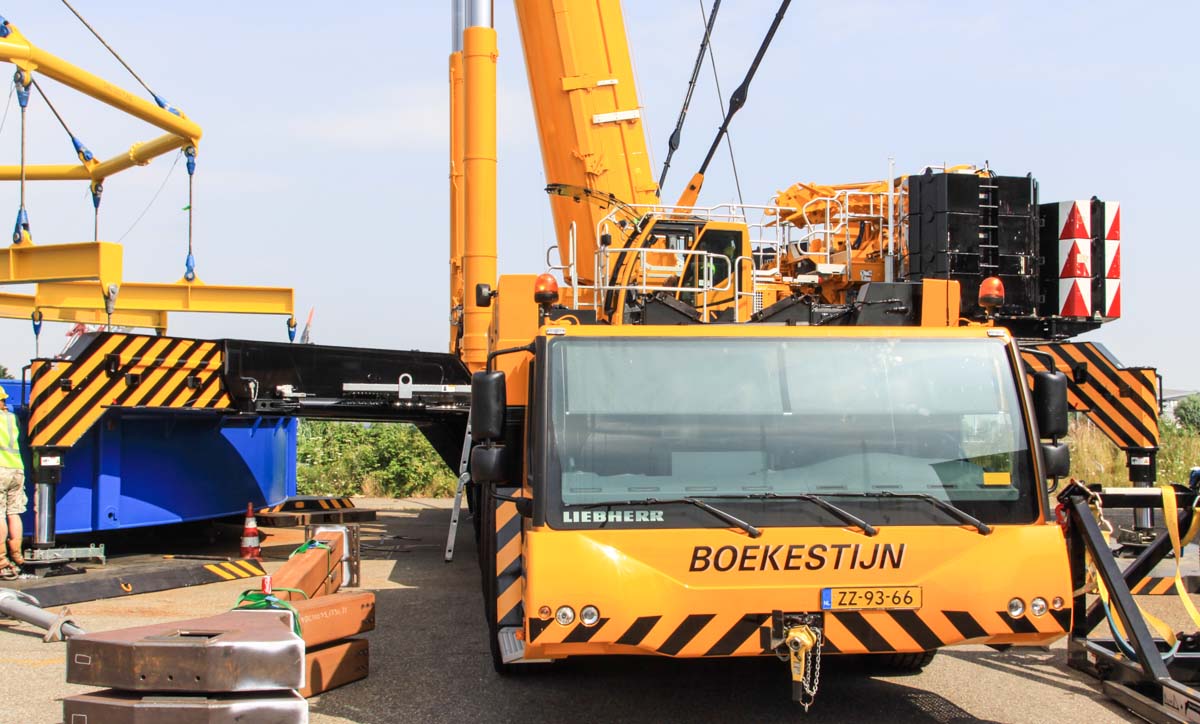

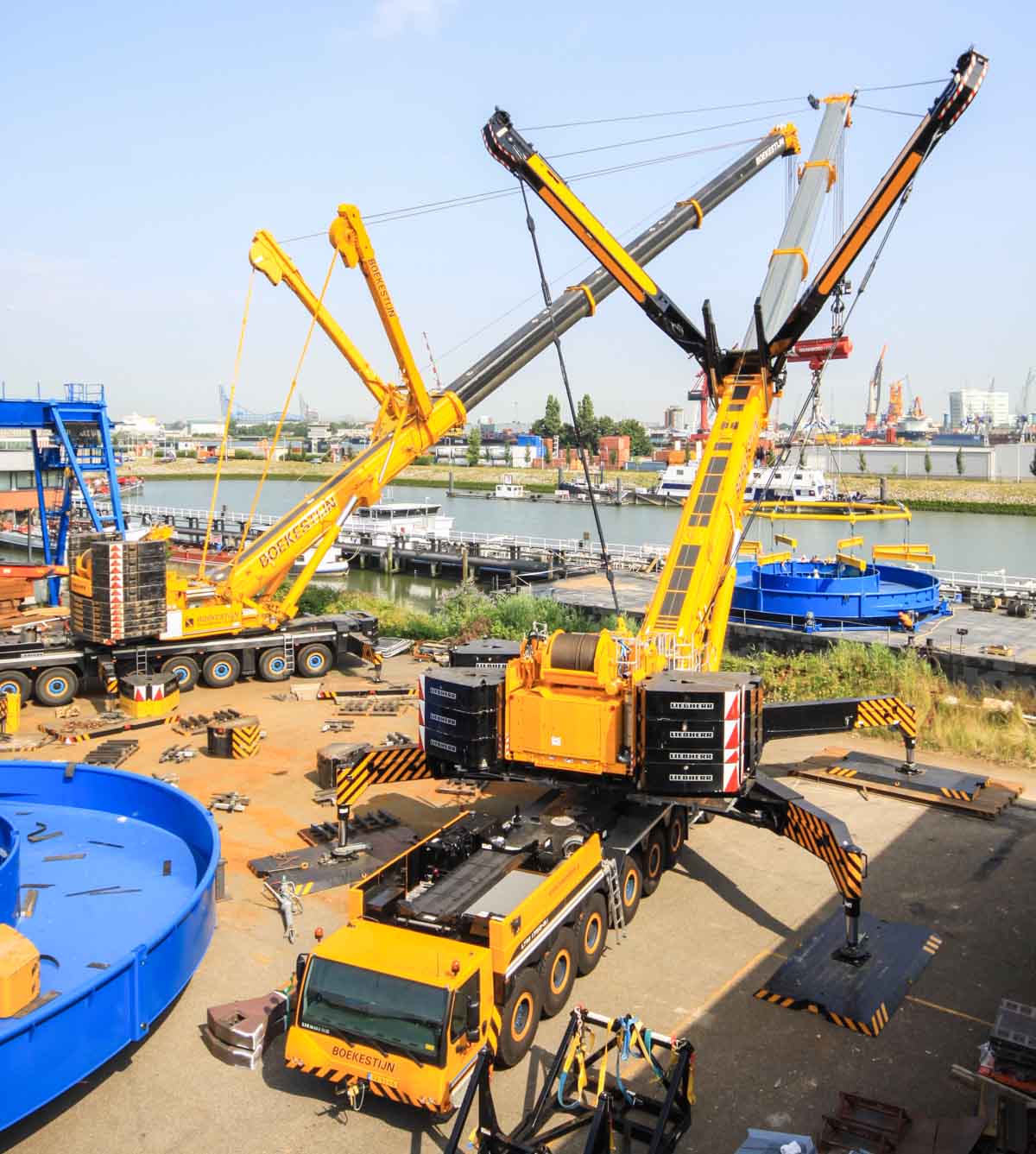

Boekestijn from Maasland (NL) is ownung this nice Liebherr LTM 1750-9.1. The crane was used by a job where cablepans were tested together with the LTM 1500-8.1.

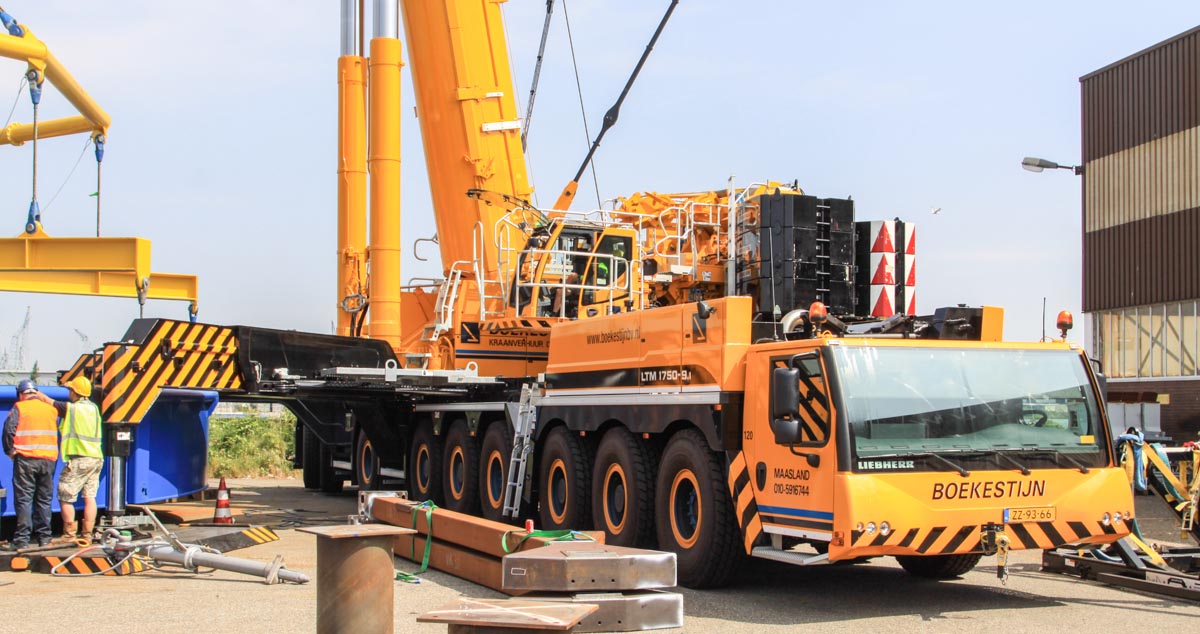

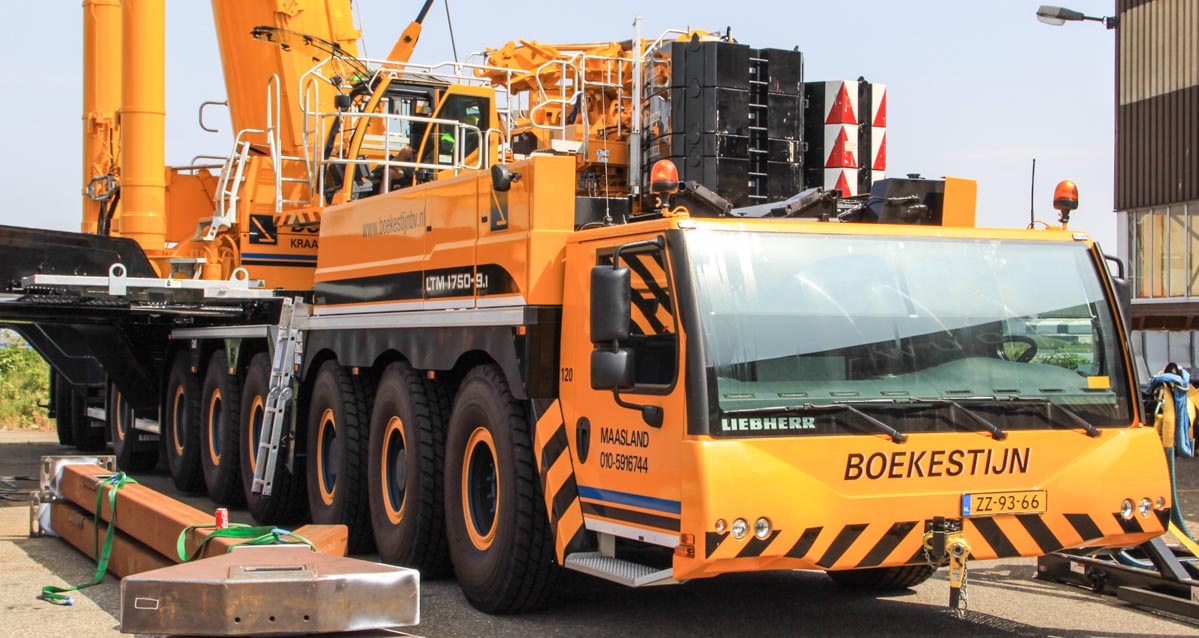

It is a 9 axle crane with a 750 tonne lifting capacity.

The crane packed weights 108 tonnes, the rear outriggers have to be disassmebled. Packed is the crane 22 meters long, 3 meters wide and 4 meters height.

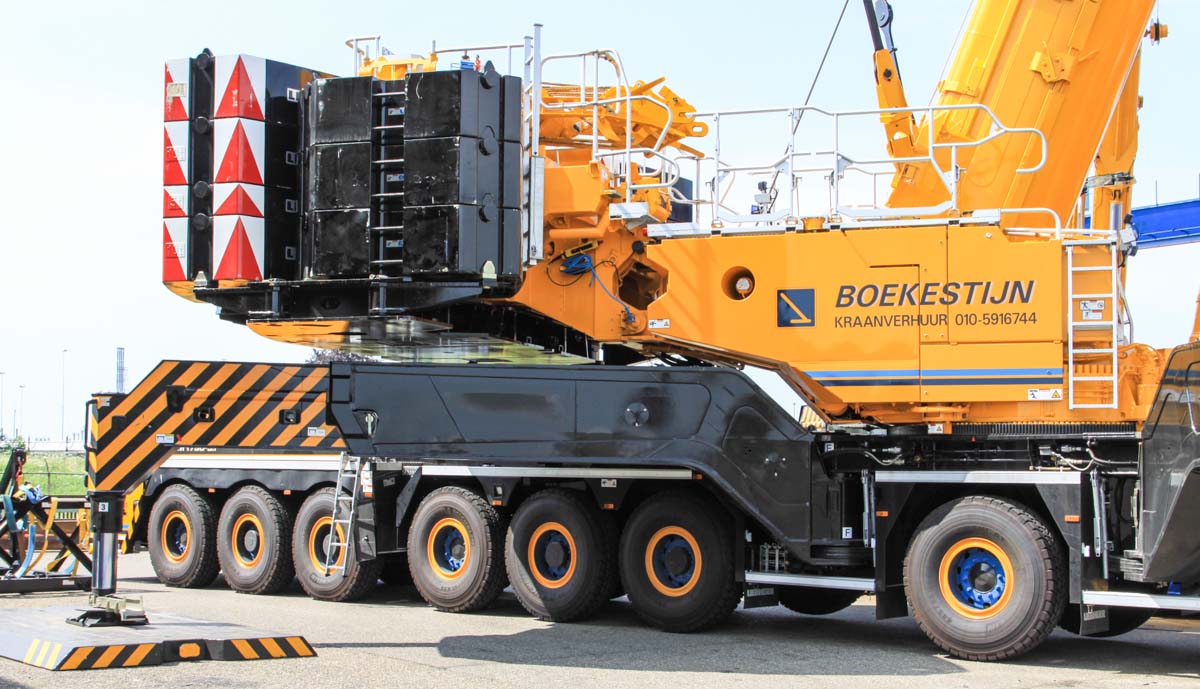

A counterweight frame with 2nd (and optinal 3th) winch is mounted on the upperstructure. The crane is here put up with 164 tonnes of counterweight, with a maximum of 204 tonnes. The tail swing is 8.83 meters.

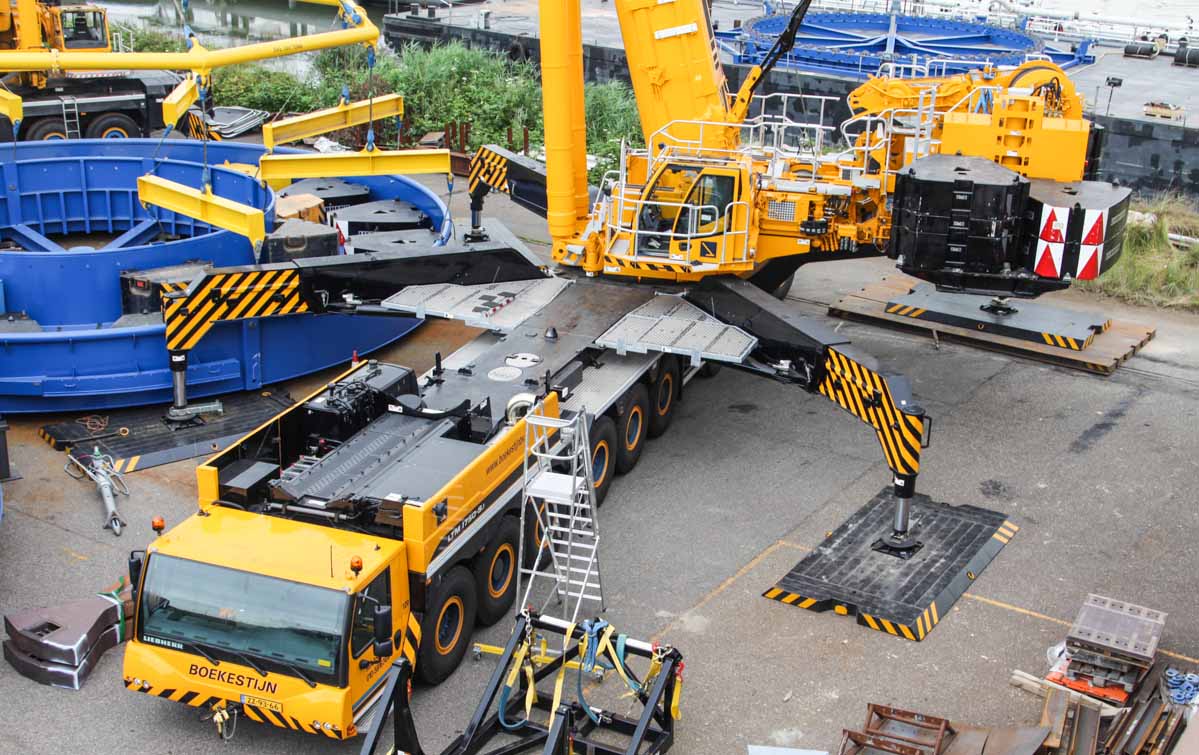

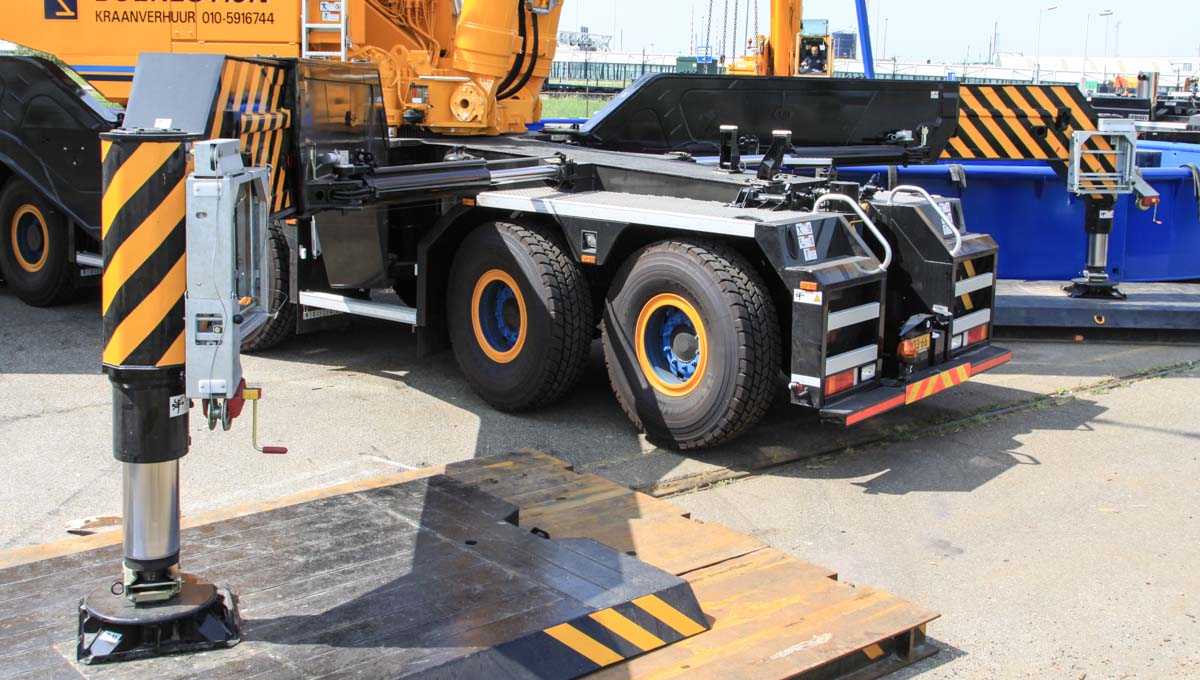

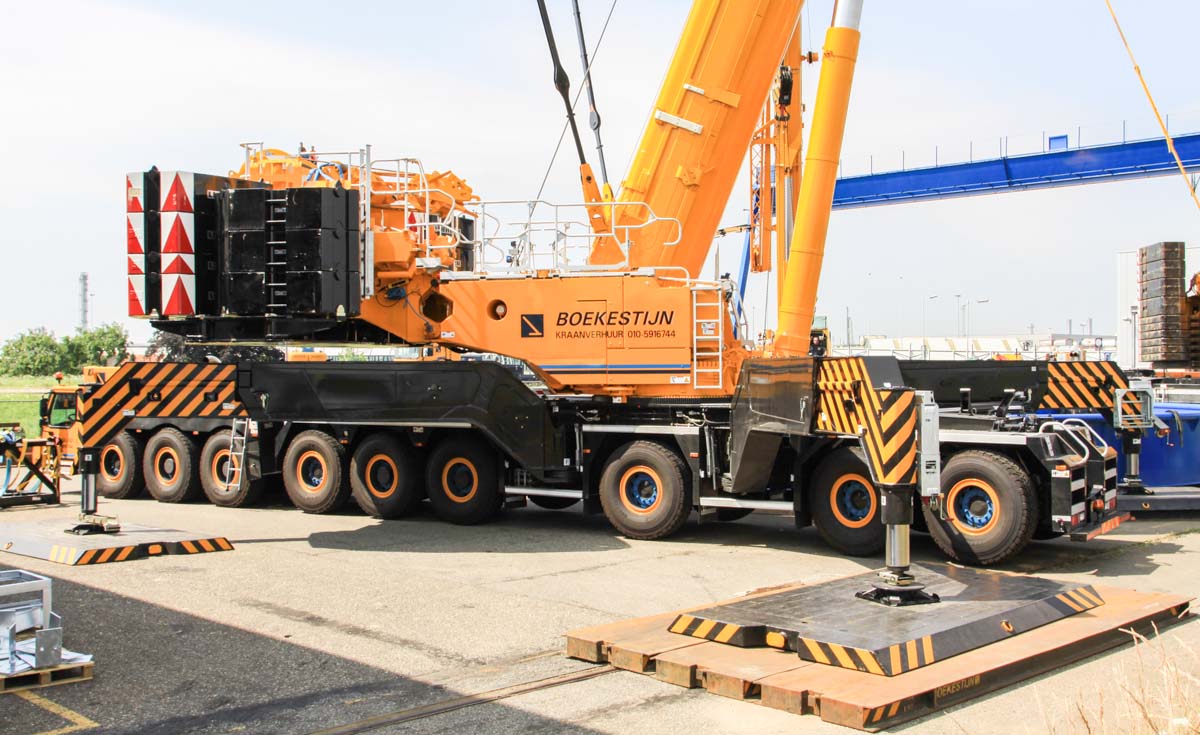

The crane outrigger dimensions are 12 x 12 meters. The crane can lift his own outriggers for (dis)assembly. A auxilary jack has to be used, this one is placed between the last axles.

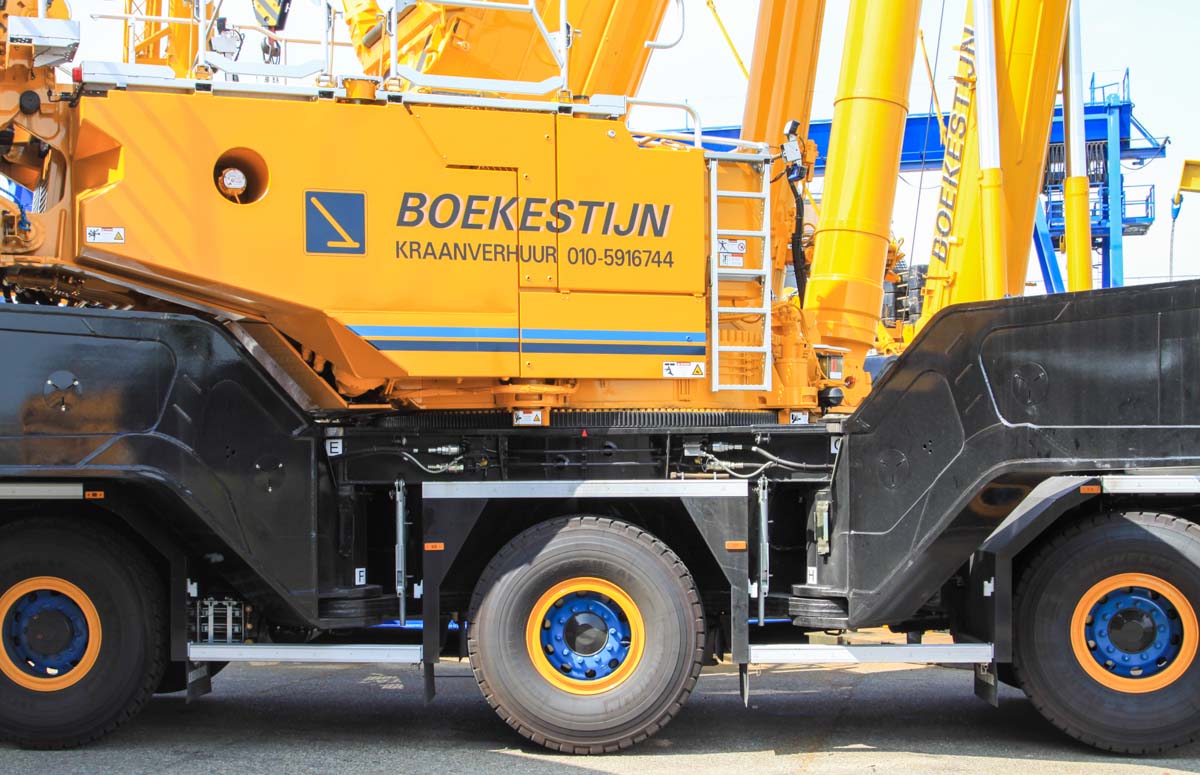

Below the slewing ring is only one axle placed.

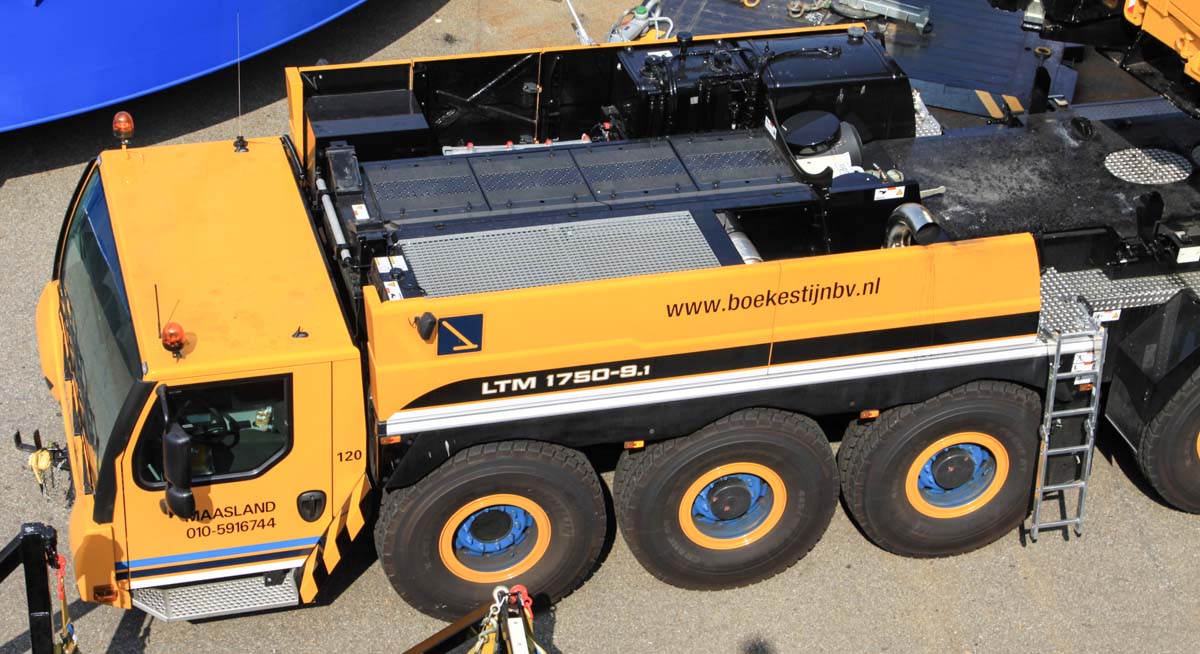

In the undercarriage lays an 8 cylinder Liebherr diesel engine with 680 hp.

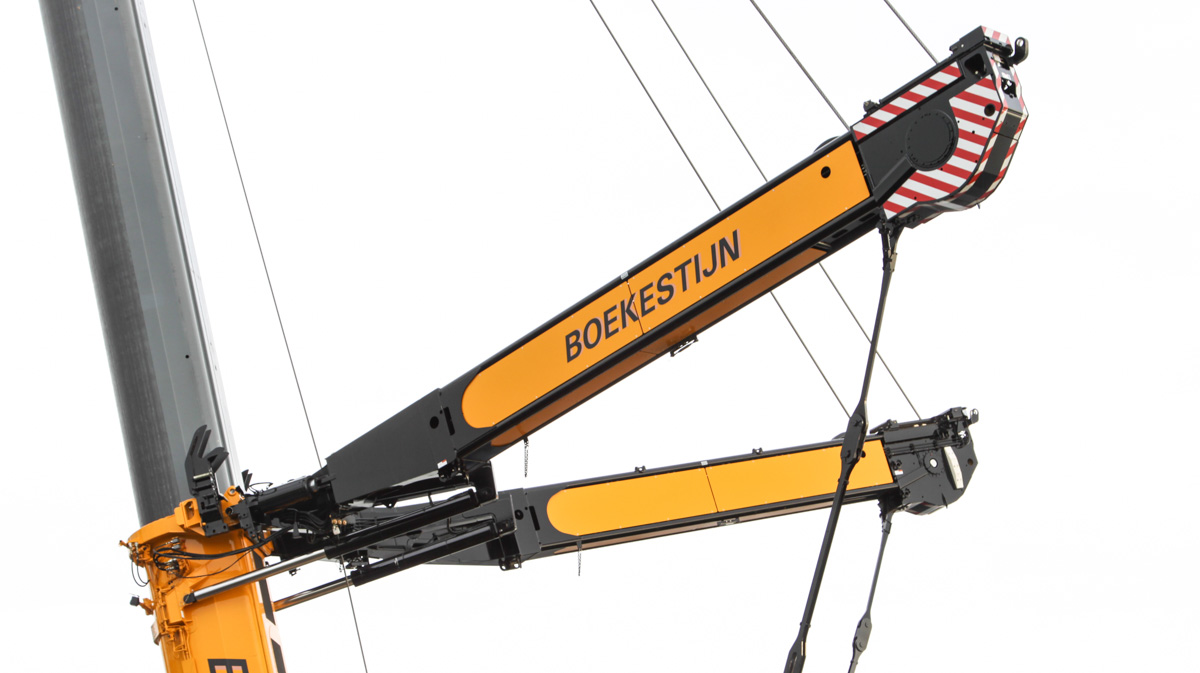

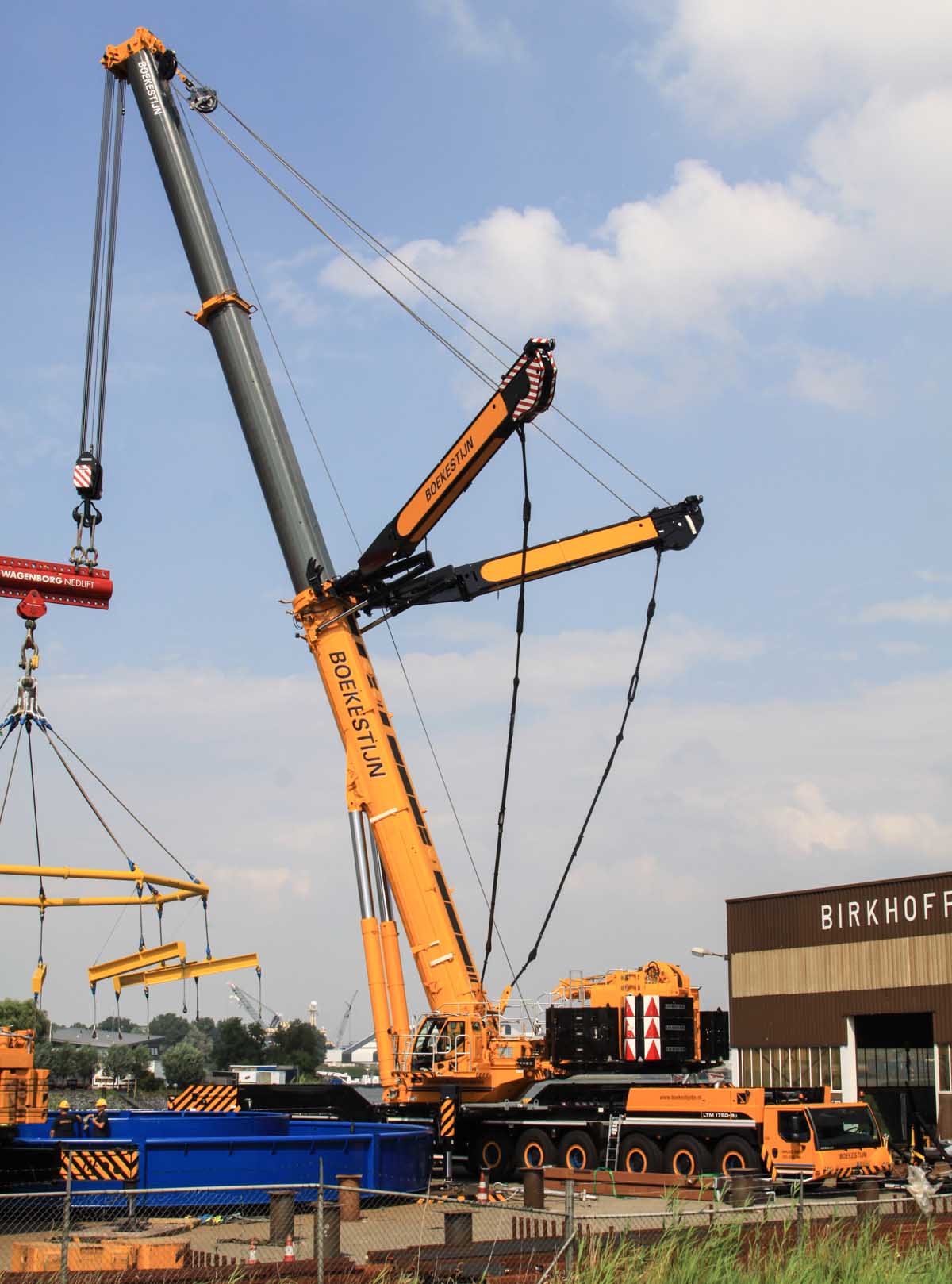

During this crane job the crane was put up with the YSL boom guying.

The crane 'only' has a 52 meter telescopic boom. The boom is extendable with a 62 meter fixed jib or 91 meter luffing jib.
